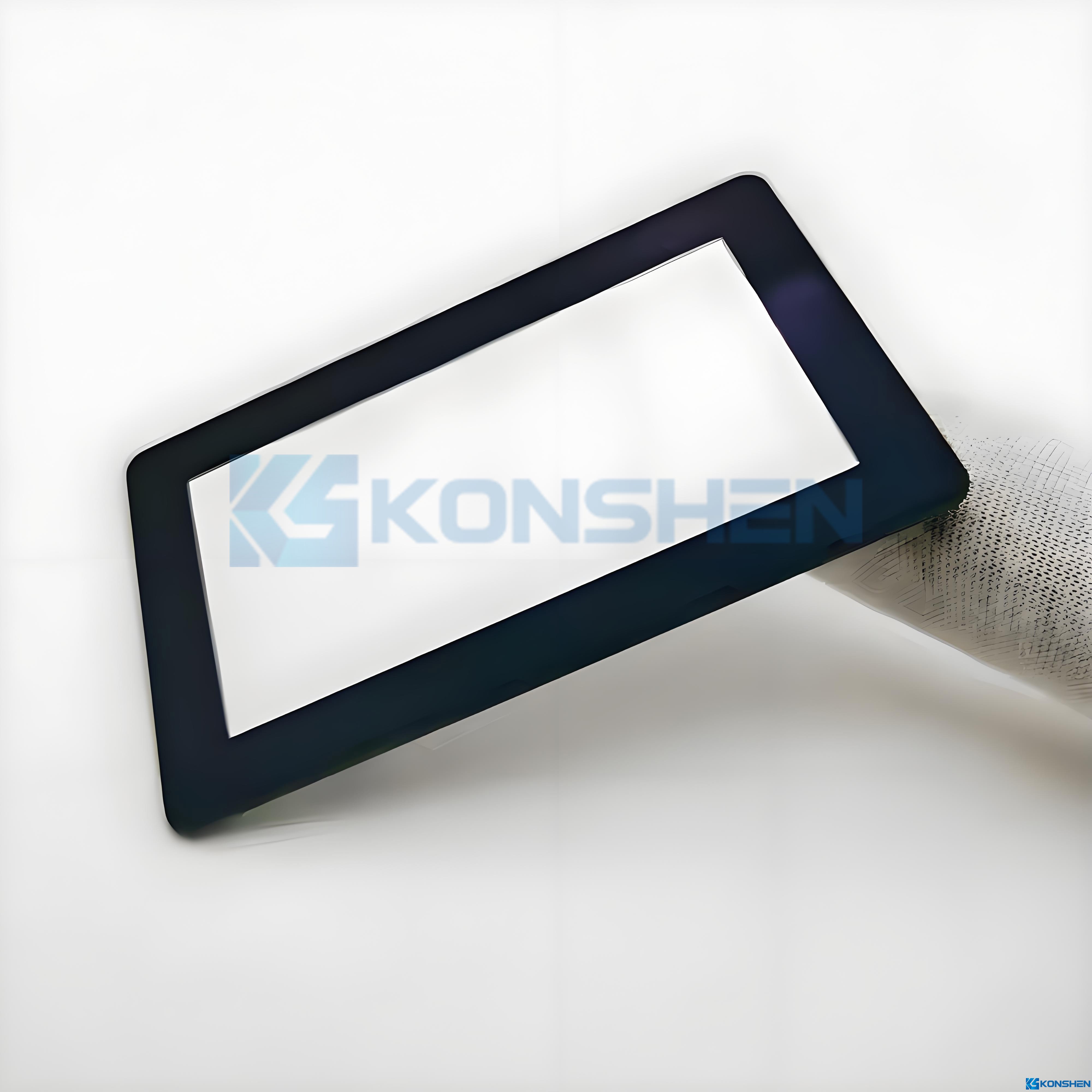

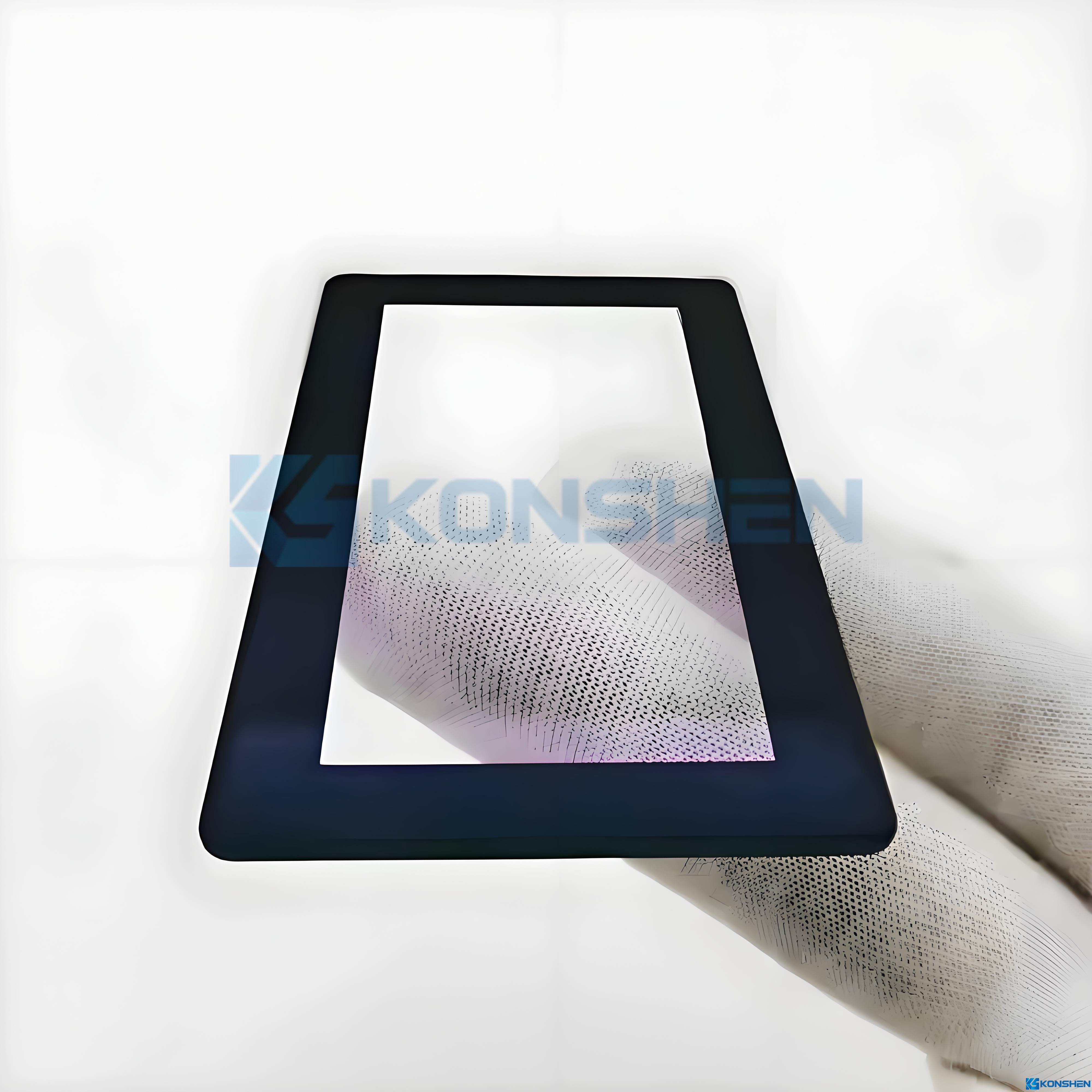

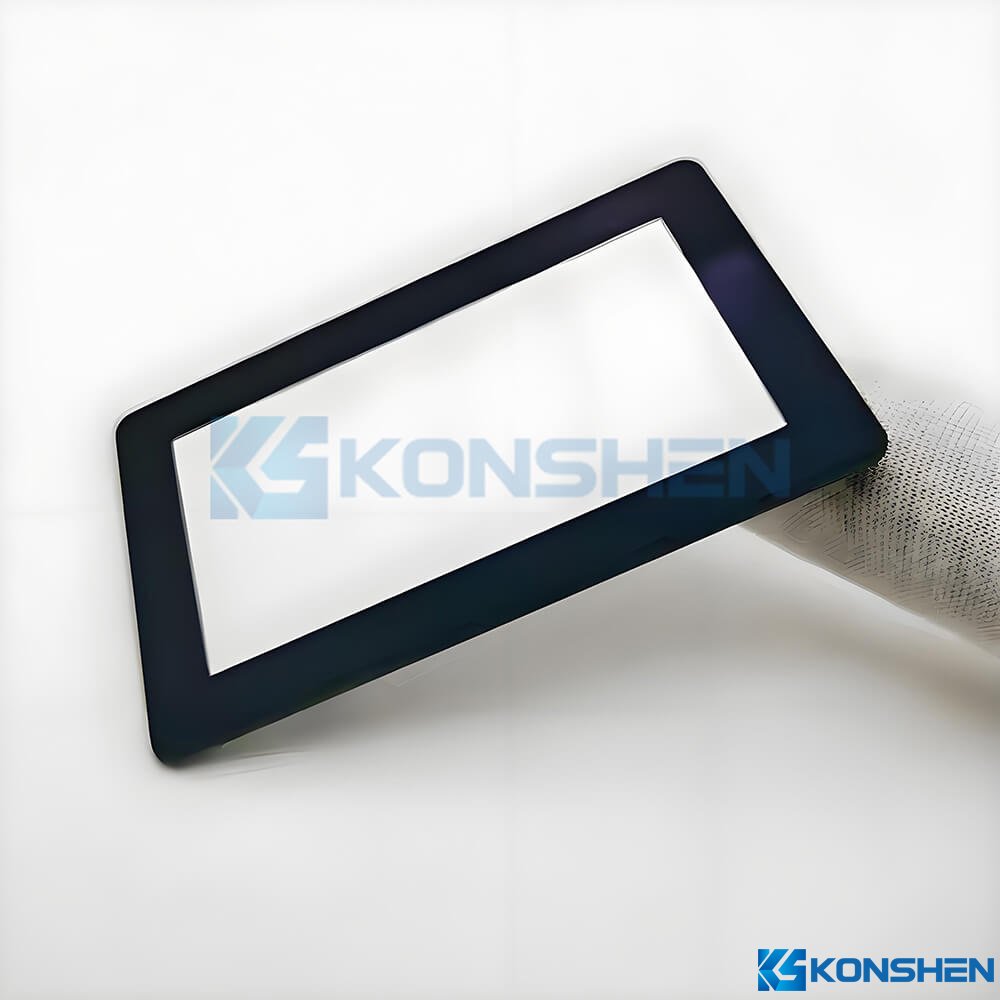

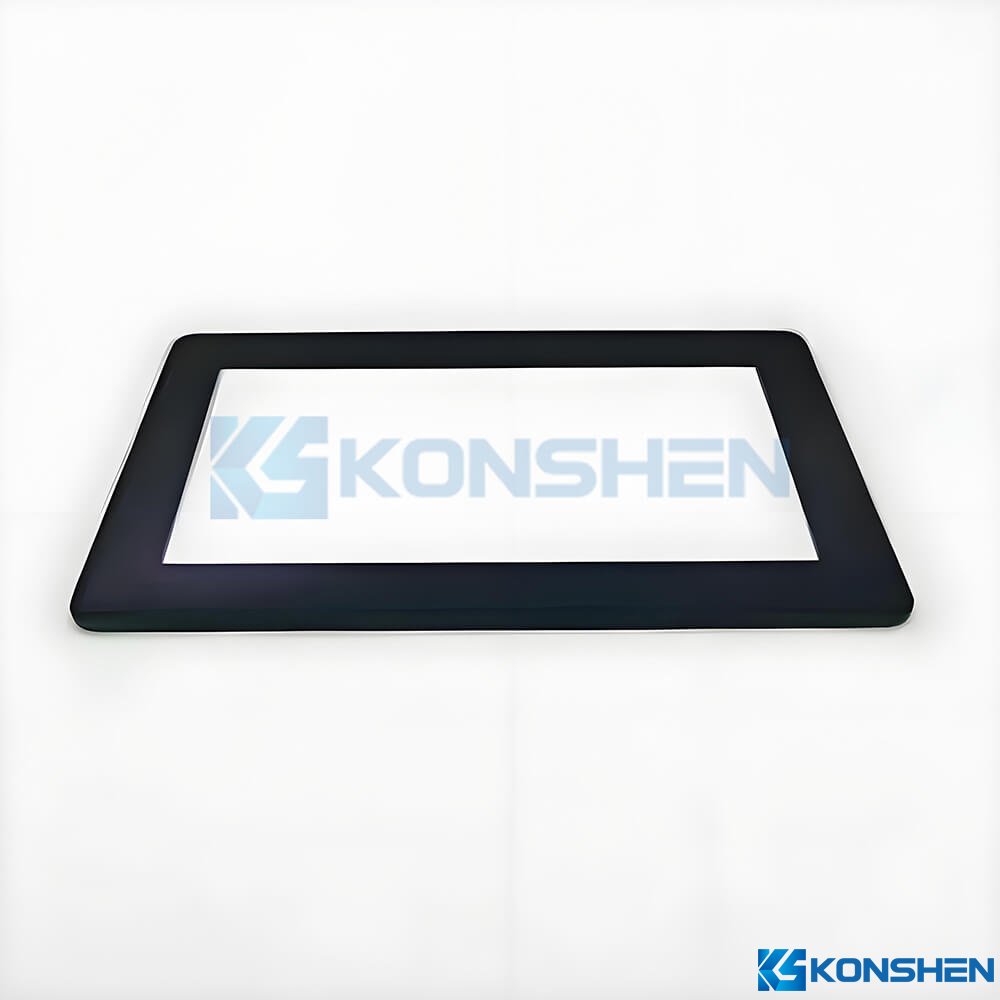

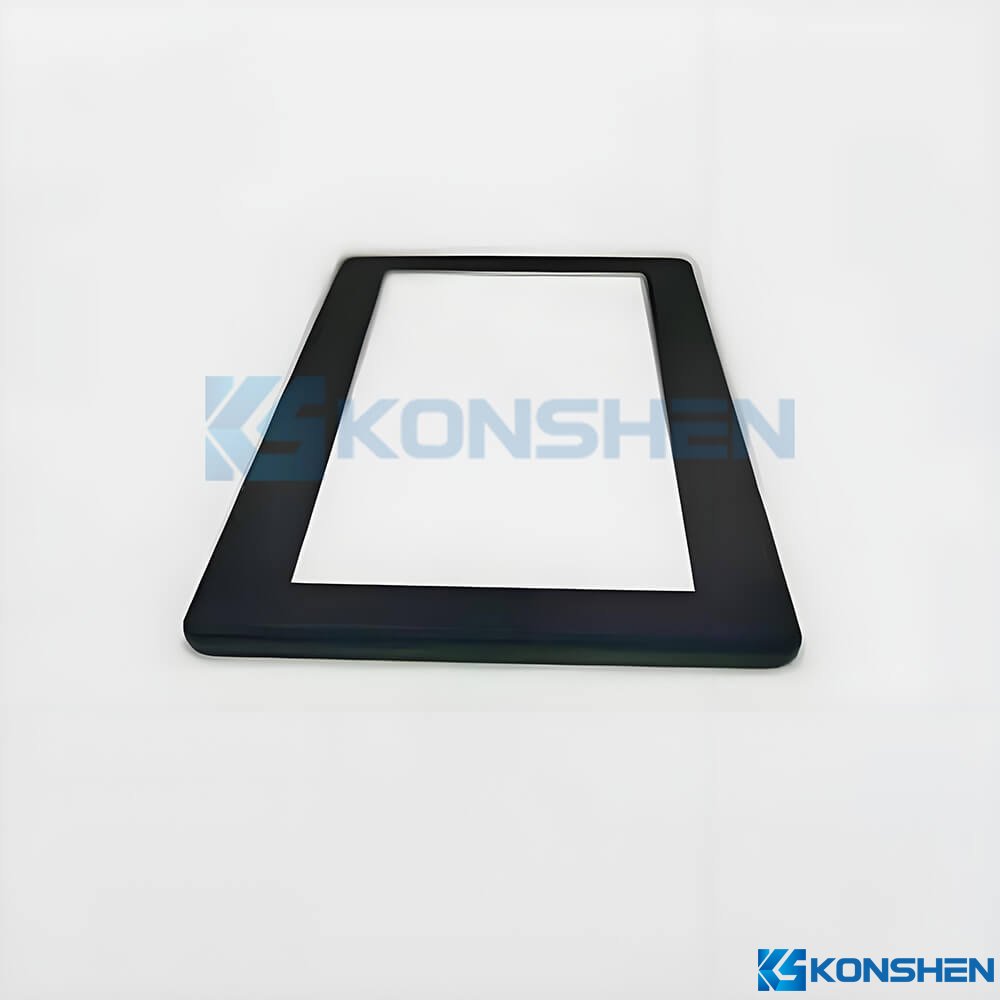

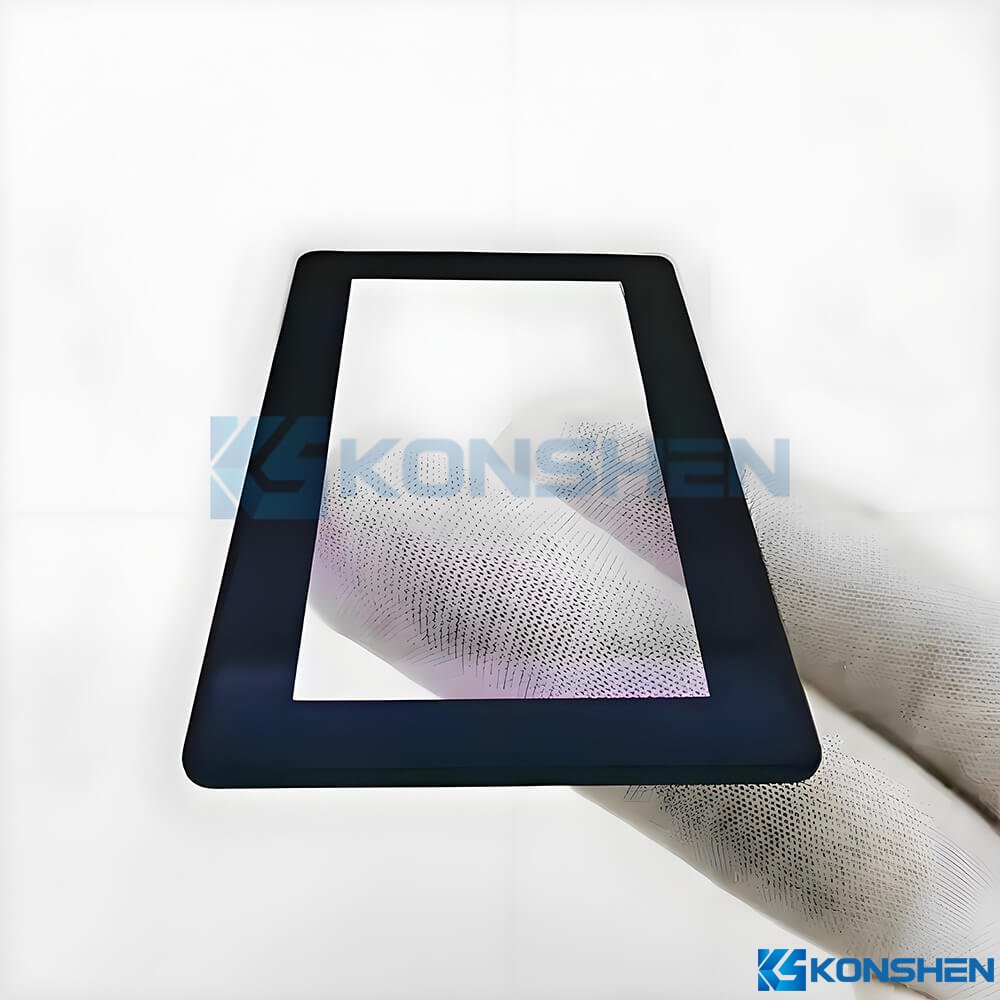

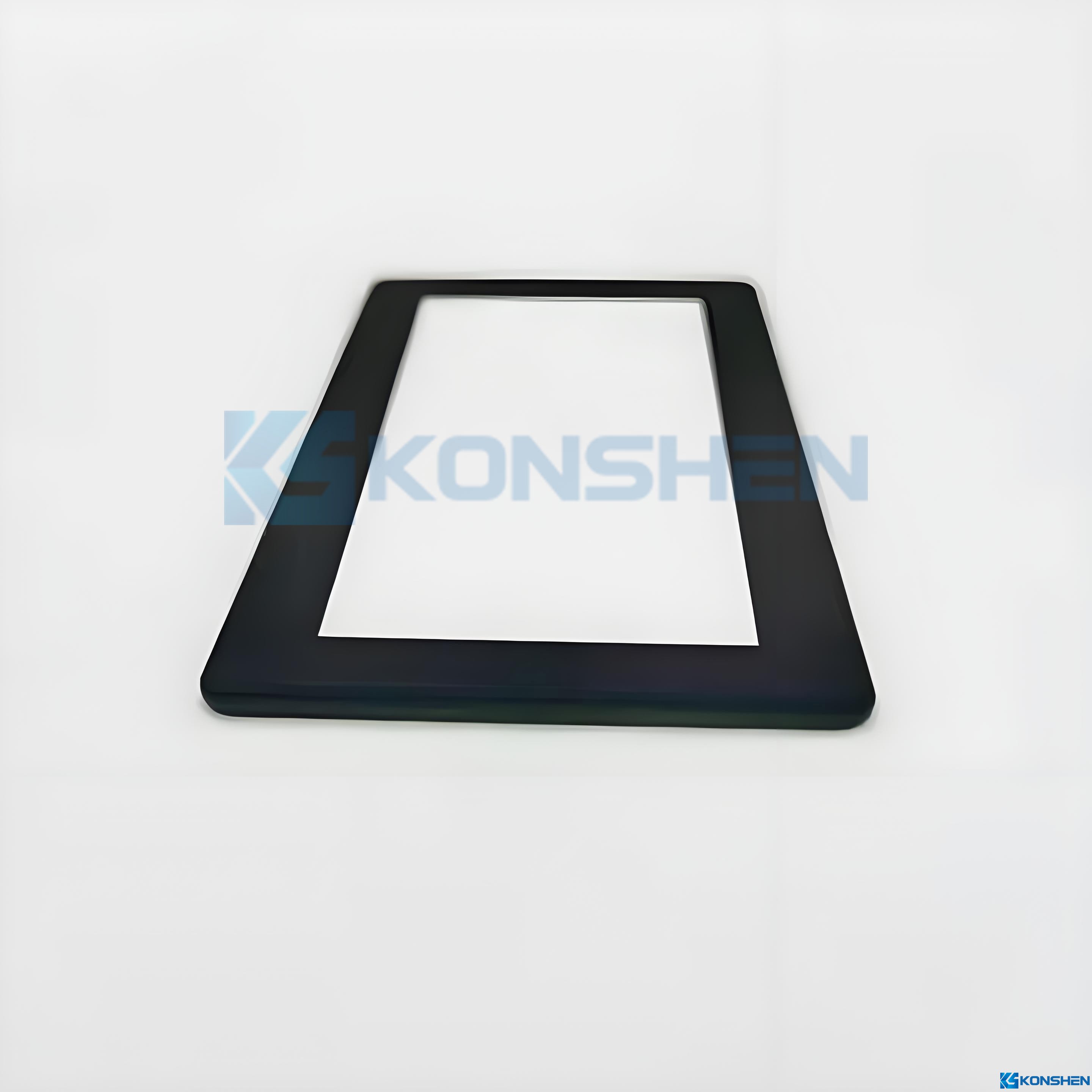

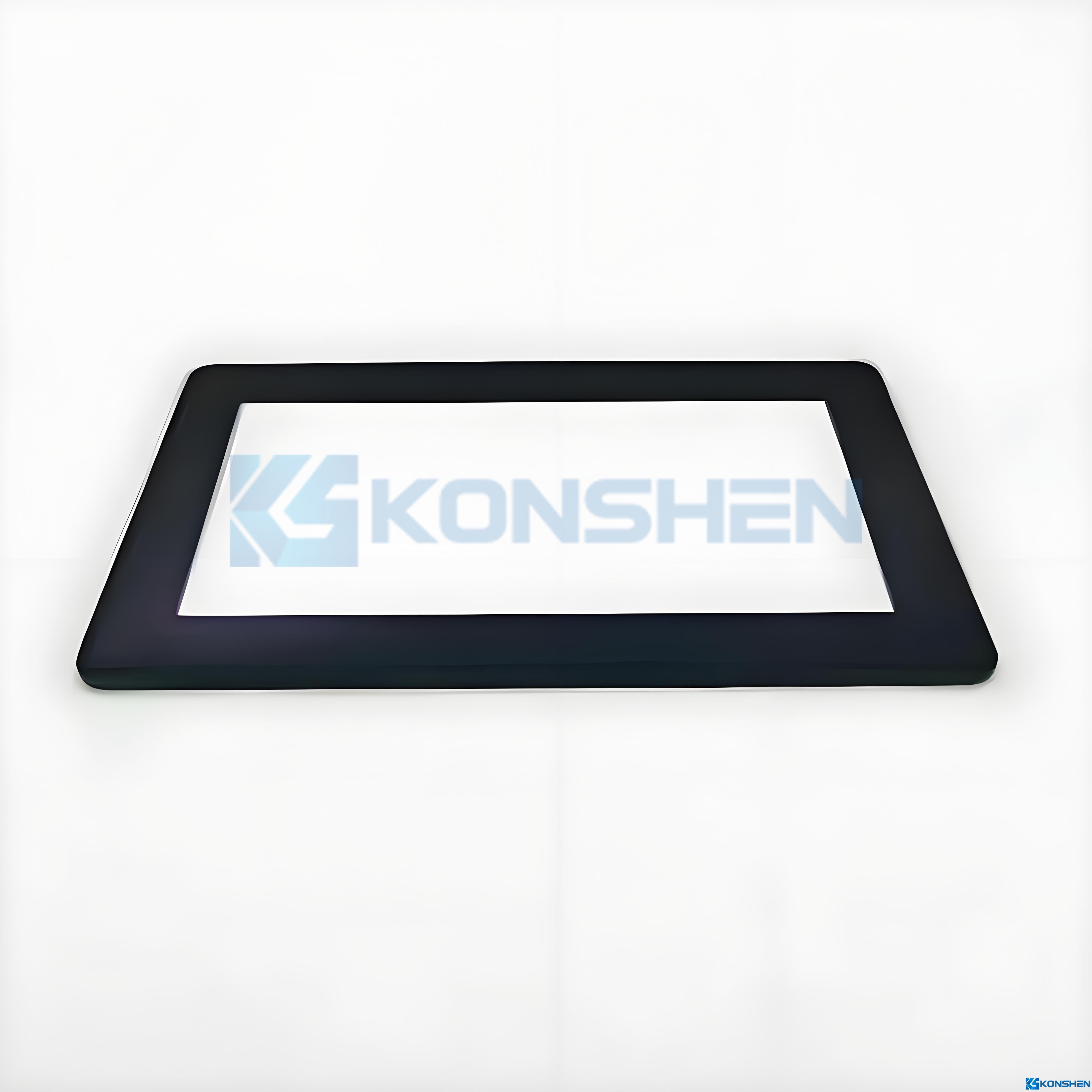

2mm Ultra-Thin Tempered Glass with Double-Sided AR Coating

Product Detail

Key Features:

Maximum Clarity: Advanced anti-reflective treatment on both surfaces reduces glare and enhances light transmission up to 98.5%, ensuring excellent visual performance in high-brightness environments.
Ultra-Thin and Lightweight Design: With a thickness of just 2mm, it supports slim and compact device structures without compromising durability.
Precision R-Corner Finishing: Rounded corners offer smoother edge transitions, improving both user safety and the overall device aesthetics.
Surface Durability & Coating Stability: AR coating provides excellent chemical resistance, environmental durability, and stable optical performance across temperature and humidity ranges.
Customizable Options: Available in a variety of sizes, shapes, and edge types; additional coatings (AF, AG) can be applied upon request.

Customized Option:

Available Thickness: Ranging from 0.33 mm to 10 mm, depending on the insulation requirements and specific applications.
Size & Shape: Supports special-shaped cutting to meet diverse needs. Customizes as per drawing.
Cutting Option: CNC Cutting/Water jet Cutting/Diamond Blade Cutting.
Edge Options: Polished Edge/Safety Edge/Beveled Edge/Smooth Edge/2.5D Edge/Pencil Edge/Straight Edge.
Tempering Options: Physical Tempered/Checmical Strengthened.
Coating Options: Anti-Reflective (AR) Coating/Anti-Fingerprint (AF) Coating/Scratch-Resistant Coating or Anti-Glare (AG)Coating.
Printing Options: UV Printing/Silk screen printing/Laser engraving printing.
Adhesive Options: AB Tape/ Double-side Tape/3M Adhesive.

Technical Parameters

Materials: Corning Gorilla Glass 3 2320
Shape: Rectangular
Thickness: 2mm
Edge Work: Safety Edge+R corner
Tempered Method: Physical Tempered
Coating: Double-side Anti-Reflective(AR) Coating
Printing: Silk screen Printing #RAL9004
Transmission Rate: 98.5%
Density: 2.5 g/cm³
Mohs Scale: ≥7H
Operating Temperature Range: Suitable for -30°C to 250°C.
Thickness Tolerances:± 0.2mm
Dimensional Tolerances:±0.5mm for large size; ±0.1mm for small size
Surface Quality: No visible scratches, bubbles, or inclusions under inspection light
Weather Resistance: Strong resistance to high temperatures and humidity, reducing aging effects

Application

Consumer Electronics: Protective glass for high-end displays, touchscreens, and camera modules.
Optical Instruments: Lens protection, projection systems, and optical windows demanding high transmission and low reflection.
Medical Displays & Sensors: High-visibility glass for diagnostic monitors, imaging devices, and sensor interfaces in sterile environments.
Industrial Touch Panels: Integrated into HMI displays in clean rooms or high-brightness workstations for improved screen visibility and optical response.
Automotive HUDs and Displays: Ideal for head-up displays and dashboard interfaces requiring low reflection under sunlight.

Company and factory equipment

Customer Visit

Company Profile

Dlivery & Payment

Packaging:

Step 1: PE film coating(Normally) / paper(For seashipment prevent wet).
Step 2: Kraft paper for fixation.
Step 3: Carton for glass safety protection.
Step 4: Custom make plywood case with hinge for custom(fumigation + convenient inspection) convenience.
Step 5: Packing strap for further fixation.
