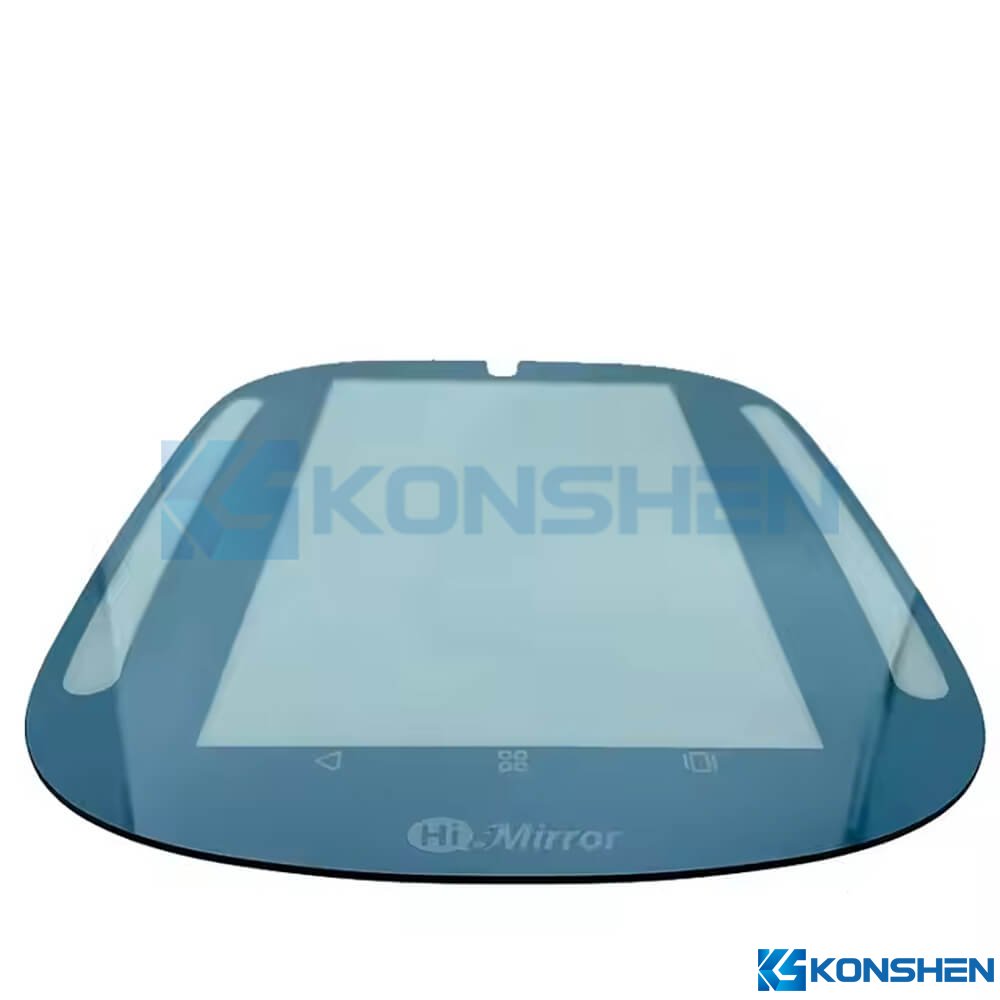

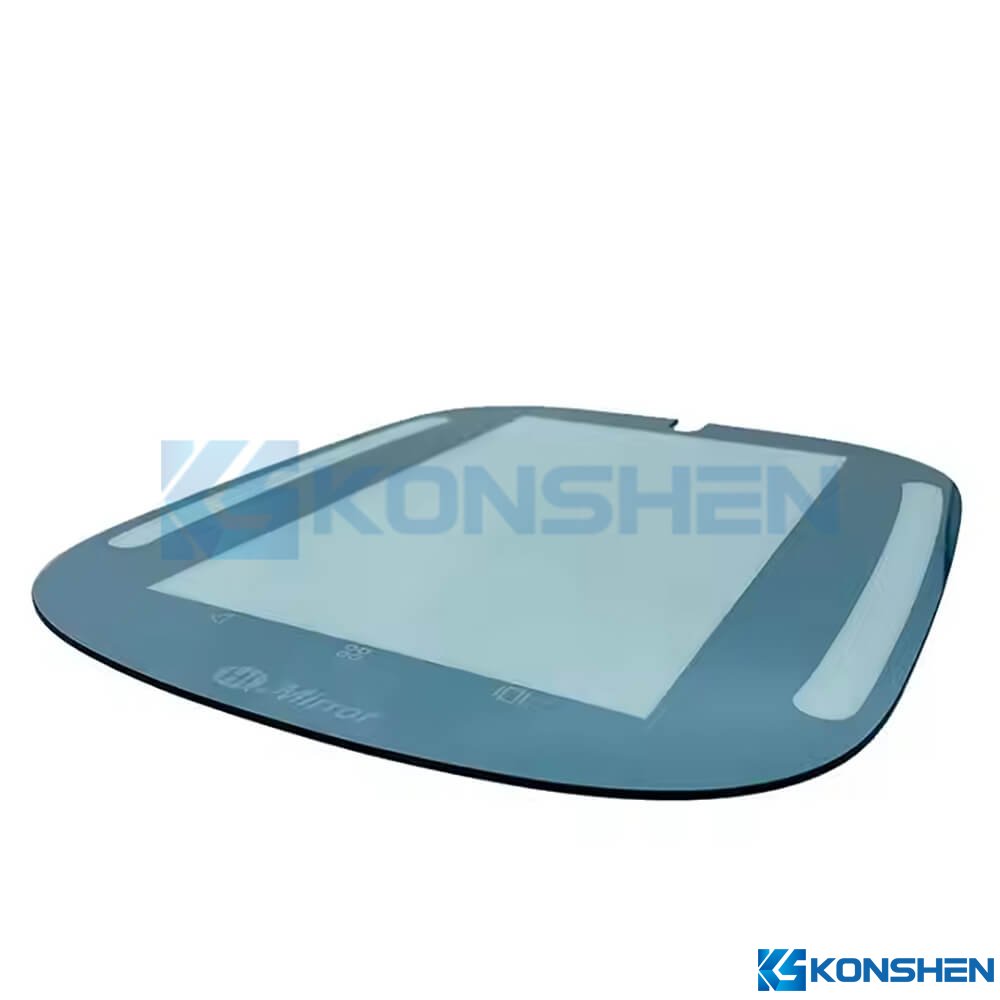

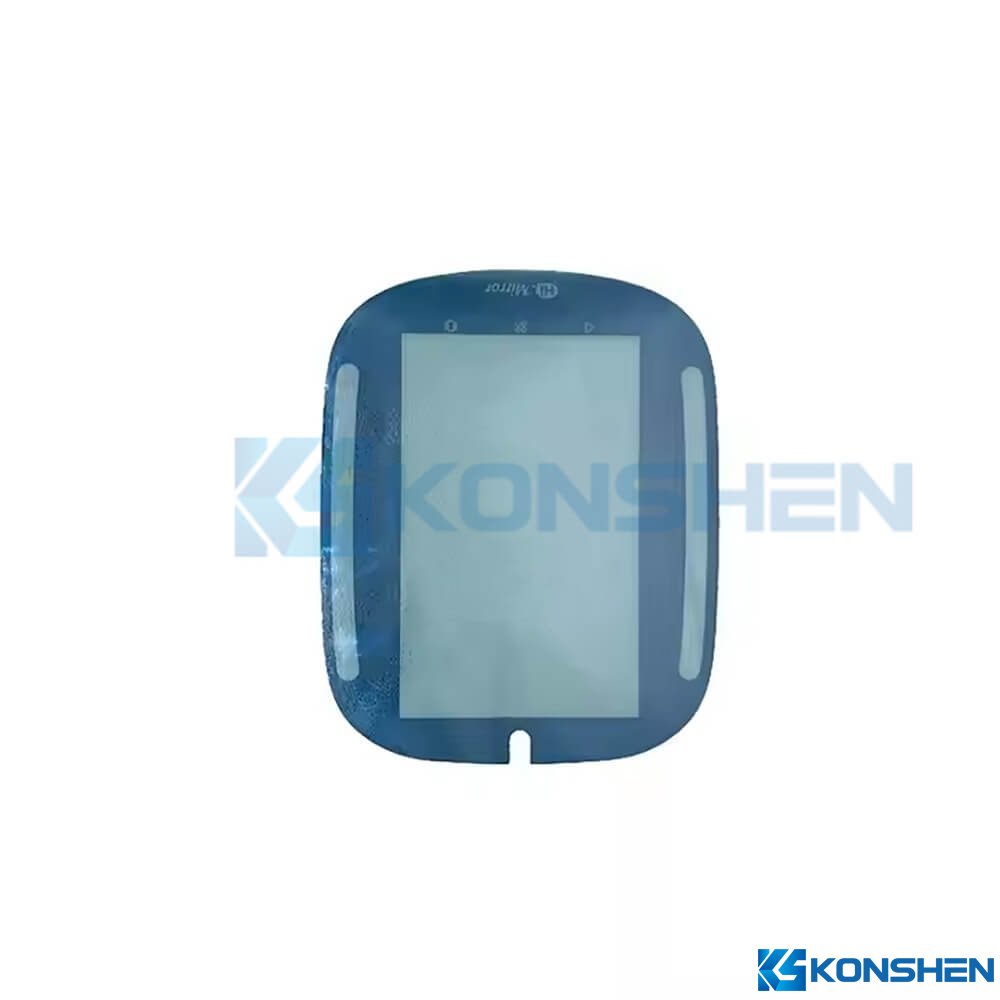

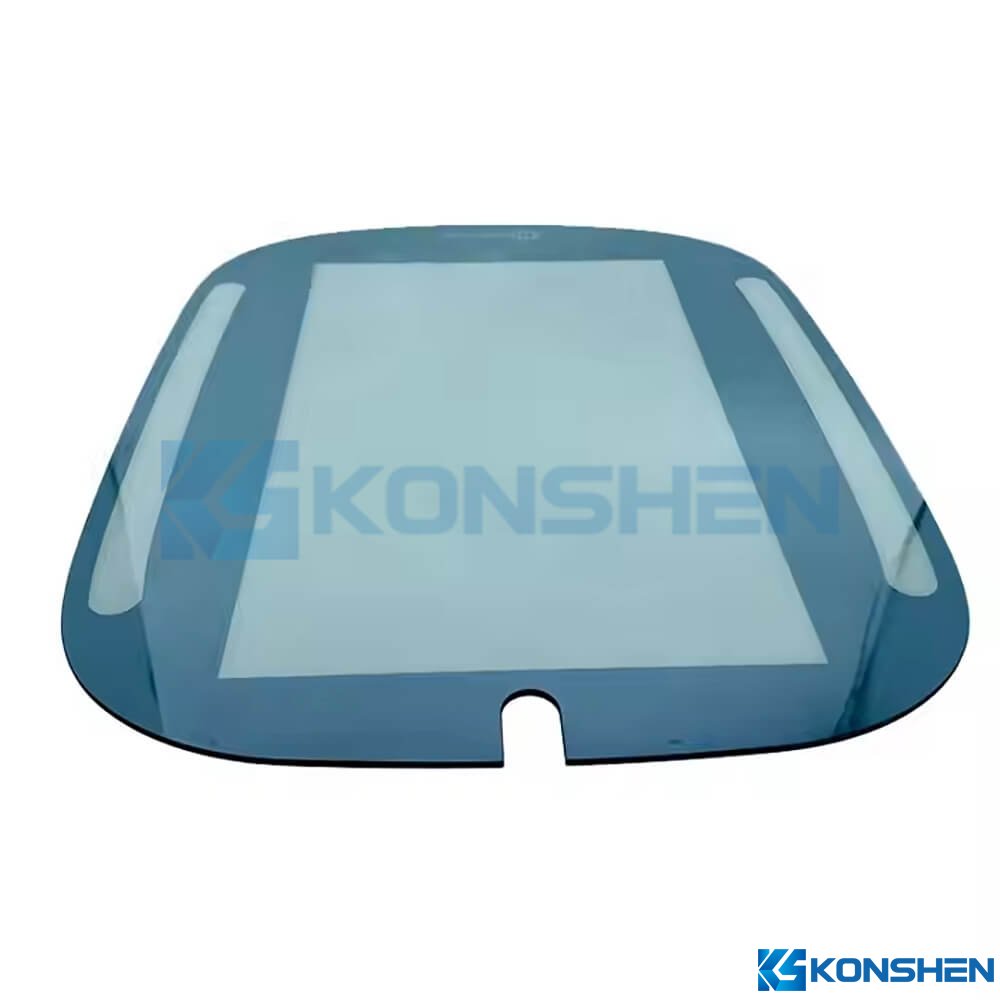

Custom 2mm Mirror Coated Glass Cover Panel for Smart Devices

Product Detail

Key Features:

High Reflective Mirror Surface: Crafted with a high-gloss mirror finish that provides clear reflection and enhances device aesthetics, suitable for visible or semi-visible UI integration.
Optical Clarity with Adjustable Transmittance: Supports semi-transparent or fully reflective designs based on customer needs, ensuring optimal balance between display visibility and reflection.
Silk Printing & Icon Integration: Allows seamless integration of icons, logos, or UI markers using high-temperature inks without affecting the mirror finish.
High Surface Flatness: Guarantees uniform reflection and stable bonding with sensor layers, display units, or touch foils.
Custom Shape & Opening Support: Fully supports edge rounding, custom cutouts, notches, or sensor holes based on installation needs.
Anti-fingerprint Optional: Available with anti-fingerprint (AF) coatings to improve usability and reduce smudging.
Wide Compatibility: Suitable for integration with capacitive sensors, LED backlights, smart displays, and control touchpoints.

Customized Option:

Available Thickness: Ranging from 0.33 mm to 10 mm, depending on the insulation requirements and specific applications.
Size & Shape: Supports special-shaped cutting to meet diverse needs. Customizes as per drawing.
Cutting Option: CNC Cutting/Water jet Cutting/Diamond Blade Cutting
Edge Options: Polished Edge/Safety Edge/Beveled Edge/Smooth Edge/2.5D Edge/Pencil Edge/Straight Edge
Tempering Options: Physical Tempered/Checmical Strengthened
Coating Options: Anti-Reflective (AR) Coating/Anti-Fingerprint (AF) Coating/Scratch-Resistant Coating/Indium Tin Oxide(ITO) Coating or Anti-Glare (AG)Coating
Printing Options: UV Printing/Silk screen printing/Laser engraving printing
Adhesive Options: AB Tape/ Double-side Tape/3M Adhesive

Technical Parameters

Materials: Ultra Clear Glass
Shape: Irregular
Thickness: 2mmT
Edge Work: CNC machine
Tempered Method: Physical Tempering
Coating: Mirror Coating
Printing Method: Silk screen printing #RAL9004 BK
Transmission Rate: ≤ 30%
Reflectivity Rate: ≥69.5%
Density: 2.5 g/cm³
Hardness: at least 6H
Strengthness: IK07
Operating Temperature Range: Suitable for -30°C to 250°C.
Thickness Tolerances:± 0.2mm
Dimensional Tolerances: ±0.5mm for large size; ±0.1mm for small size
Weather Resistance: Strong resistance to high temperatures and humidity, reducing aging effects
UV Resistance: High UV-blocking capability
Impact Resistance: 2-5 times stronger than standard glass. Specific impact resistance can vary based on thickness and treatment.

Application

Smart Mirrors & Vanity Displays: Used in smart bathroom mirrors, makeup stations, or digital mirror terminals, offering display & reflection capability.
Home Automation Touch Panels: Serves as the exterior interface for controlling lighting, climate, and security in smart homes.
Capacitive Touch Switch Covers: Ideal for elegant wall switches with touch feedback, often seen in luxury homes, hotels, and commercial buildings.
Smart Health & Fitness Terminals: Integrated into fitness mirrors, body detection devices, or bathroom scales for both form and functionality.
Hospitality & Retail Interfaces: Applied in hotel room control units, elevators, digital signage, and smart dressing rooms.

Company and factory equipment

Customer Visit

Company Profile

Dlivery & Payment

Packaging:

Step 1: PE film coating(Normally) / paper(For seashipment prevent wet).
Step 2: Kraft paper for fixation.
Step 3: Carton for glass safety protection.
Step 4: Custom make plywood case with hinge for custom(fumigation + convenient inspection) convenience.
Step 5: Packing strap for further fixation.
