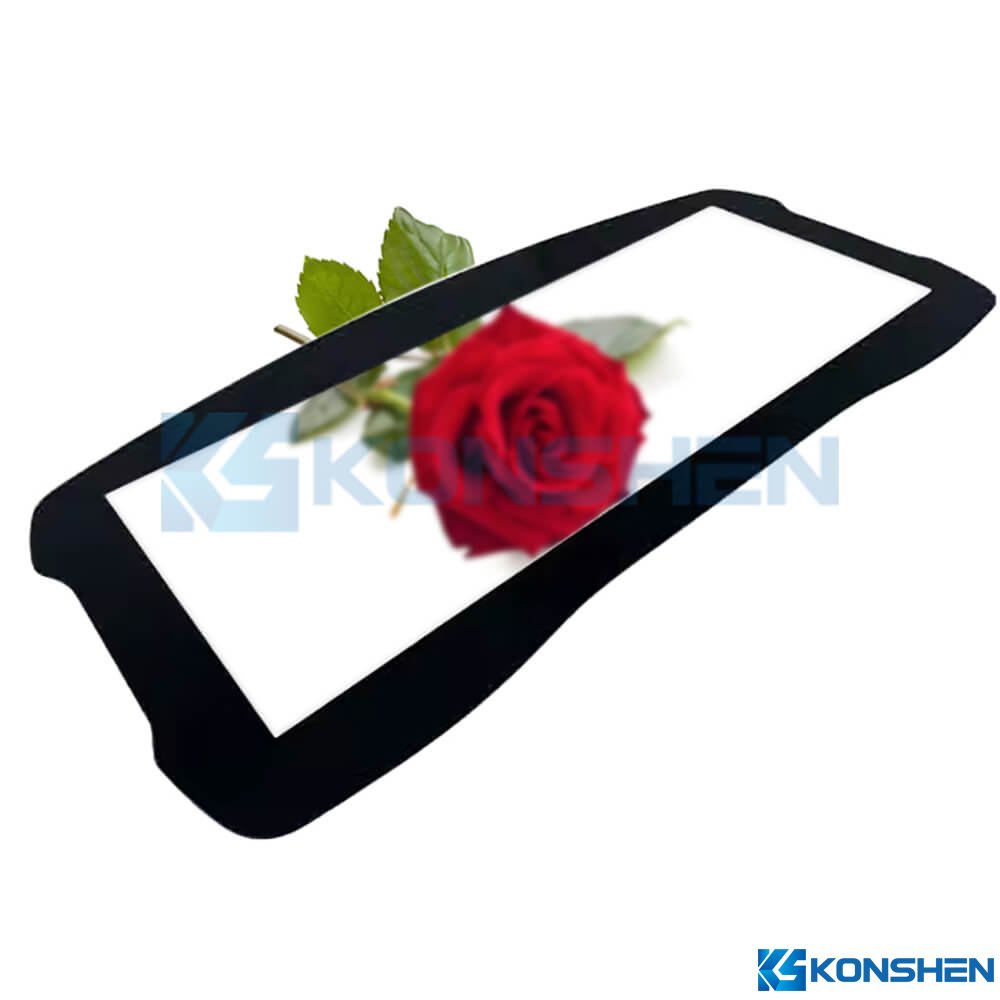

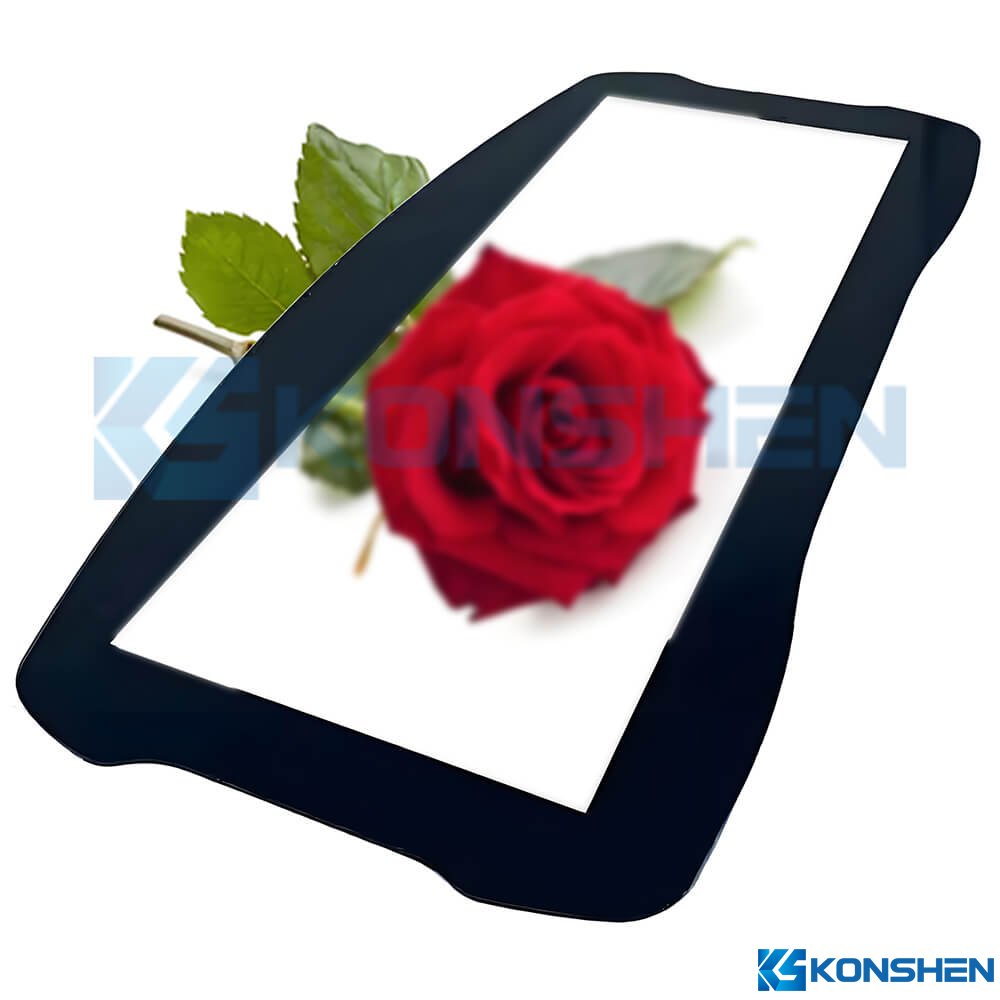

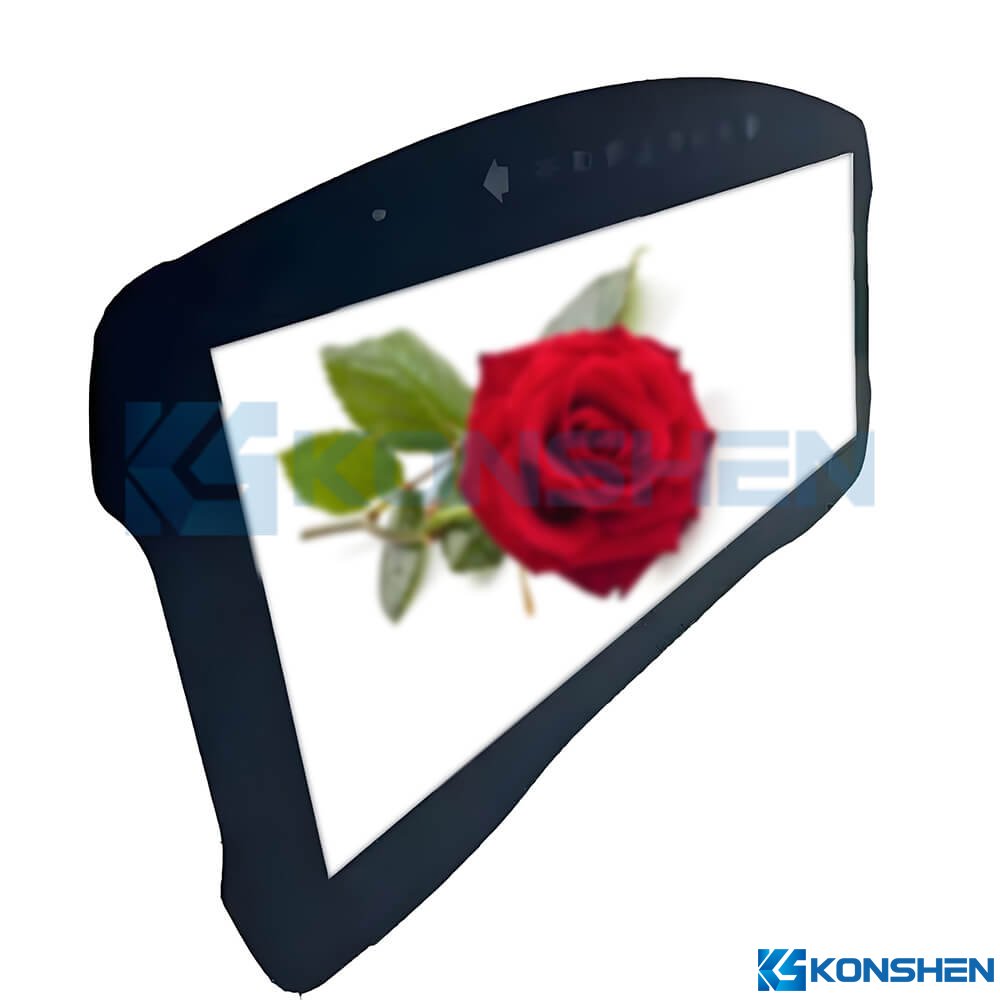

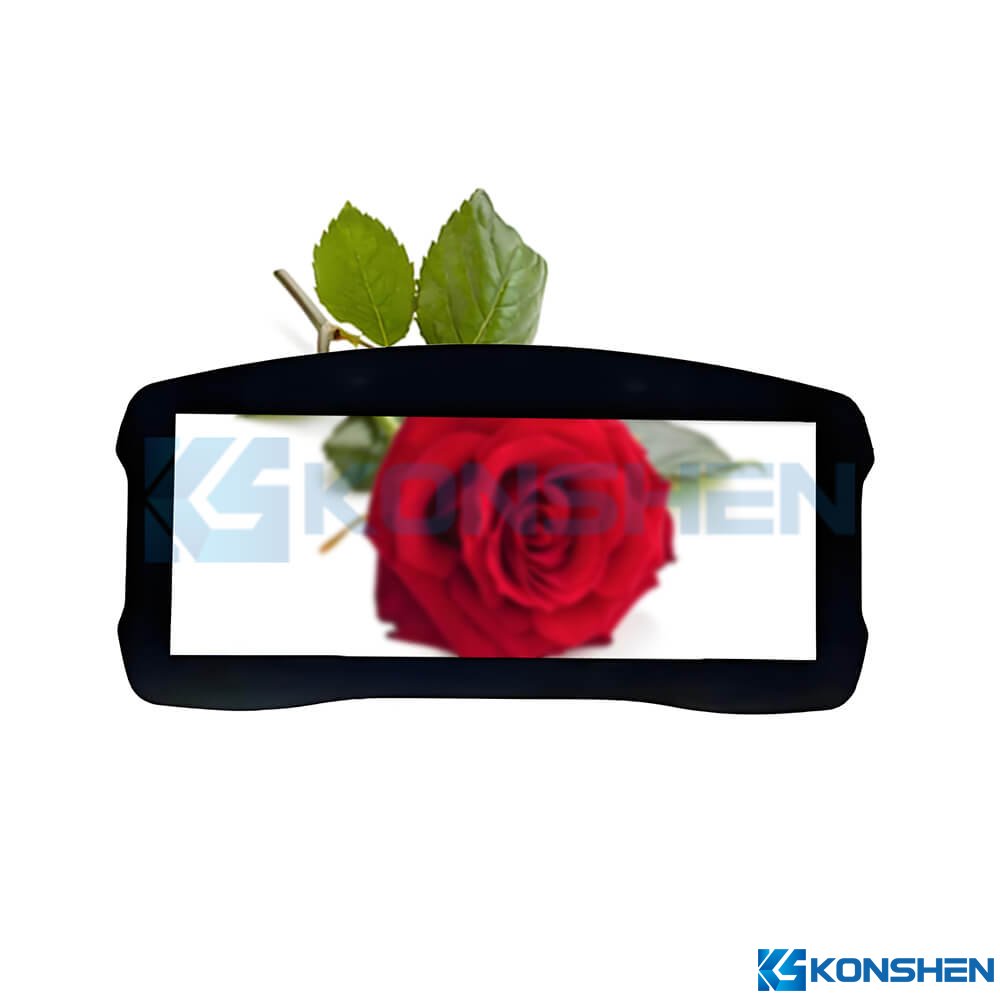

2mm Anti-Glare Automotive Glass Cover Panel for Vehicle Displays

Product Detail

Key Features:

Anti-Glare Matte Finish: Effectively reduces glare and ambient light reflection, ensuring clear readability even in bright daylight conditions.
High Surface Hardness: Surface hardness ≥7H with optional chemical strengthening enhances scratch resistance and extends product lifespan.
Custom Printing & Shape: Supports black border, icons, and multi-color screen printing, with precise cutouts and customized curves for unique designs.
High Transmittance: Made from ultra-clear glass to ensure maximum image fidelity, even with AG coating applied.
Automotive-Grade Durability: Resistant to high/low temperature changes, humidity, and vibration—meeting automotive environment standards.

Customized Option:

Available Thickness: Ranging from 0.33 mm to 10 mm, depending on the insulation requirements and specific applications.
Size & Shape: Supports special-shaped cutting to meet diverse needs. Customizes as per drawing.
Cutting Option: CNC Cutting/Water jet Cutting/Diamond Blade Cutting
Edge Options: Polished Edge/Safety Edge/Beveled Edge/Smooth Edge/2.5D Edge/Pencil Edge/Straight Edge
Tempering Options: Physical Tempered/Checmical Strengthened
Coating Options: Anti-Reflective (AR) Coating/Anti-Fingerprint (AF) Coating/Scratch-Resistant Coating/Indium Tin Oxide(ITO) Coating or Anti-Glare (AG)Coating
Printing Options: UV Printing/Silk screen printing/Laser engraving printing
Adhesive Options: AB Tape/ Double-side Tape/3M Adhesive

Technical Parameters

Materials: Ultra Clear Glass
Shape: Irregular
Thickness: 2mmT
Edge Work: Safety edge by CNC machine
Tempered Method: Physical Tempering
Coating: Anti-glare (AG) coating & Anti-fingerprint(AF) coating
Printing Method: Silk screen printing #RAL9004 BK
Transmission Rate: ≥ 80%
Density: 2.5 g/cm³
Hardness: at least 6H
Strengthness: IK07
Operating Temperature Range: Suitable for -30°C to 250°C.
Thickness Tolerances:± 0.2mm
Dimensional Tolerances:±0.5mm for large size; ±0.1mm for small size
Weather Resistance: Strong resistance to high temperatures and humidity, reducing aging effects
UV Resistance: High UV-blocking capability
Impact Resistance: 2-5 times stronger than standard glass. Specific impact resistance can vary based on thickness and treatment.

Application

Automotive Center Displays: Used in large-format infotainment screens and control displays, providing glare-free visual interaction in varying lighting conditions.
Smart Cockpit & Instrument Cluster: Ideal for fully digital dashboards, head-up display (HUD) zones, and cluster covers requiring both durability and optical quality.
Rear Seat Entertainment Systems: Anti-glare surface improves user experience for rear passengers in multimedia or display-integrated seatback systems.
Touch-Controlled HVAC Panels: Protects capacitive interface zones used for air conditioning, lighting, or seating adjustment in modern vehicles.
Industrial or Outdoor Vehicle Displays: Also suitable for buses, tractors, RVs, or construction vehicles requiring sunlight-readable and rugged glass.

Company and factory equipment

Customer Visit

Company Profile

Dlivery & Payment

Packaging:

Step 1: PE film coating(Normally) / paper(For seashipment prevent wet).
Step 2: Kraft paper for fixation.
Step 3: Carton for glass safety protection.
Step 4: Custom make plywood case with hinge for custom(fumigation + convenient inspection) convenience.
Step 5: Packing strap for further fixation.
