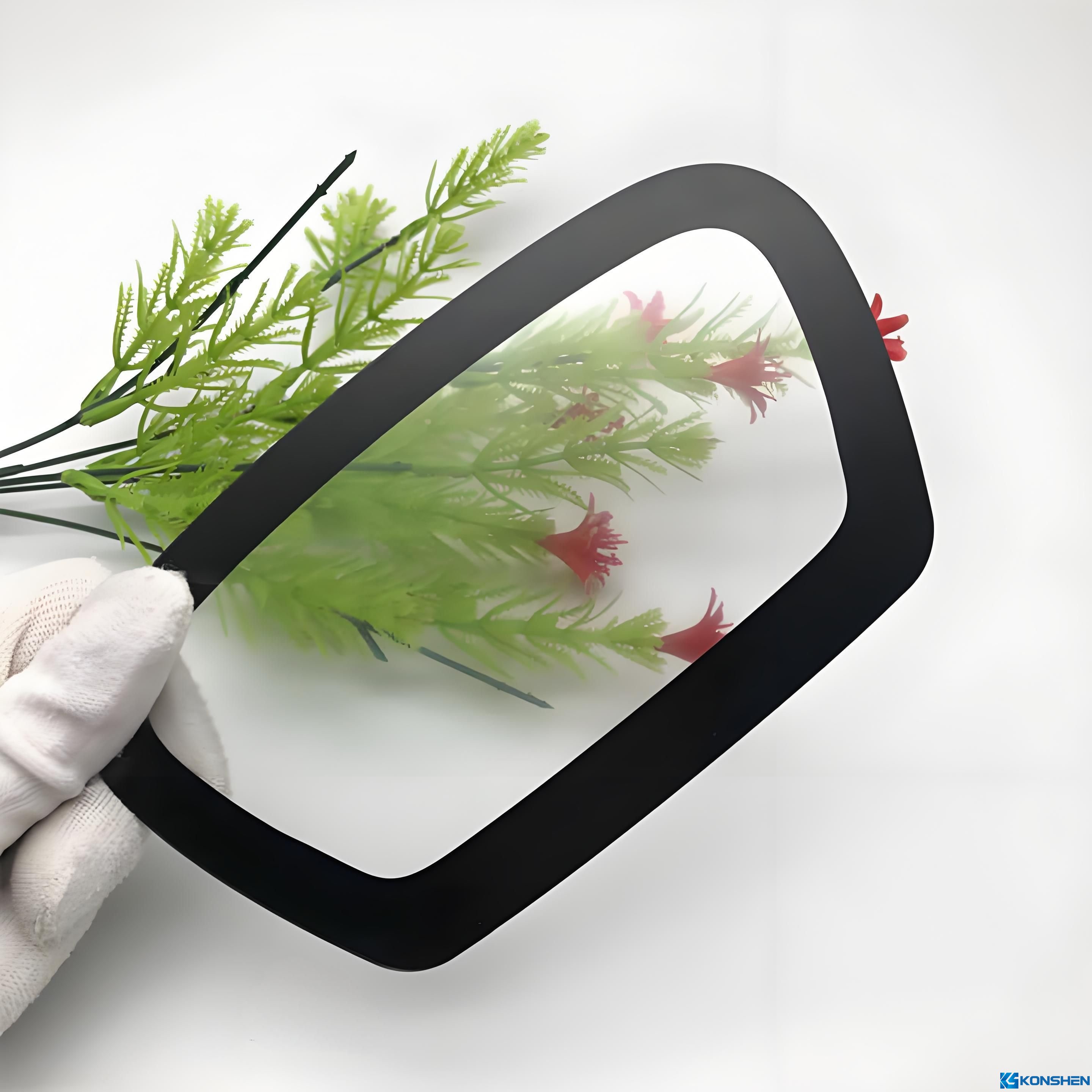

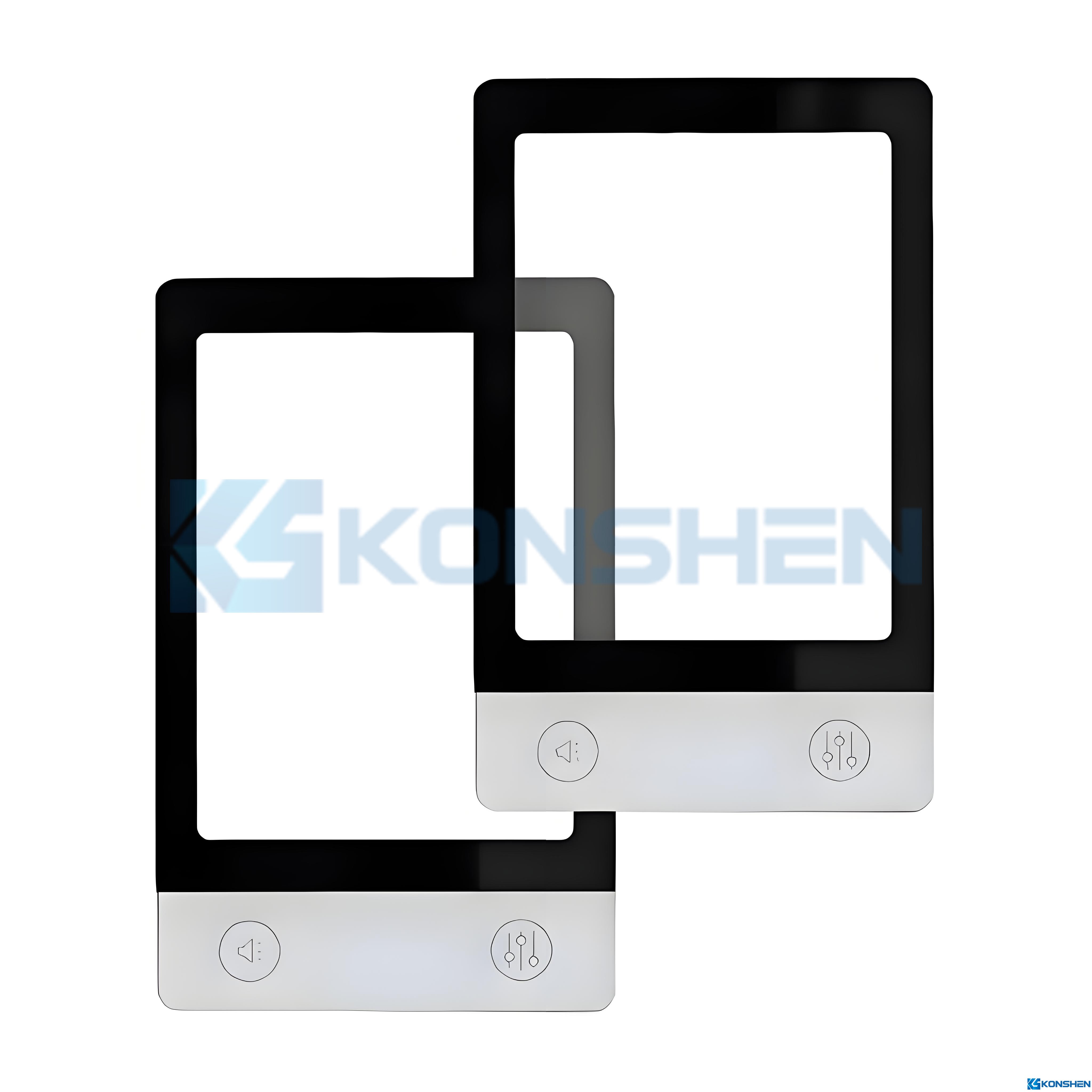

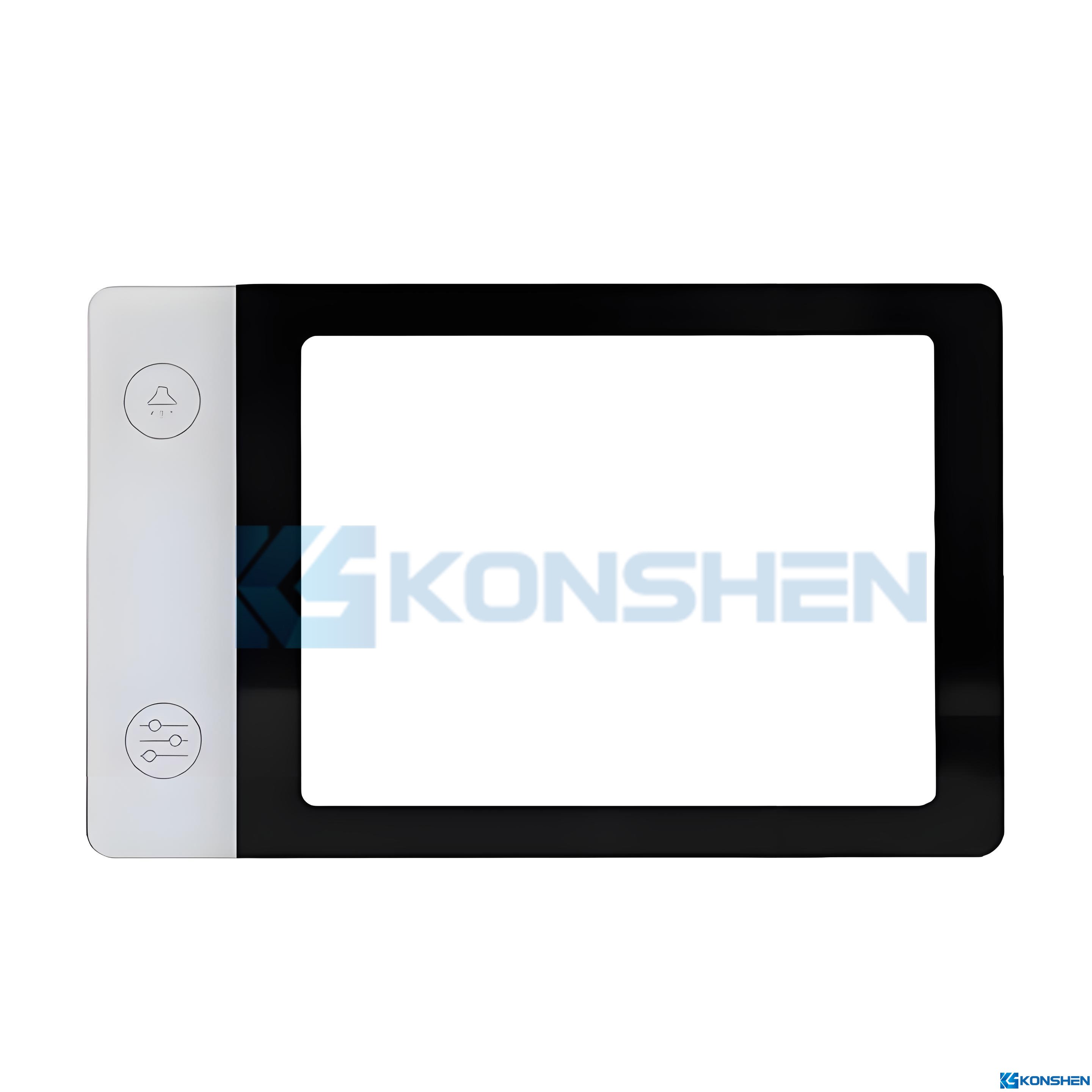

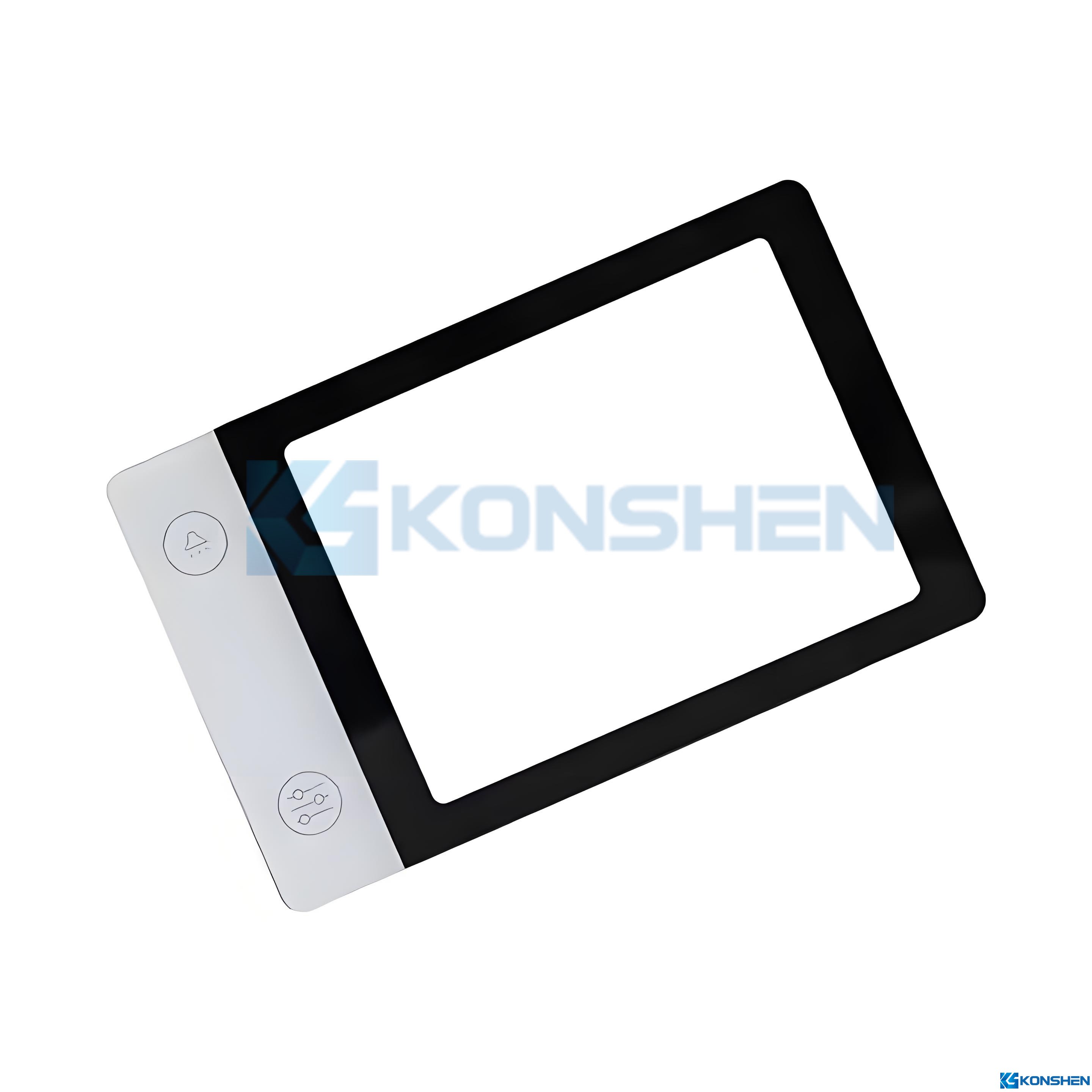

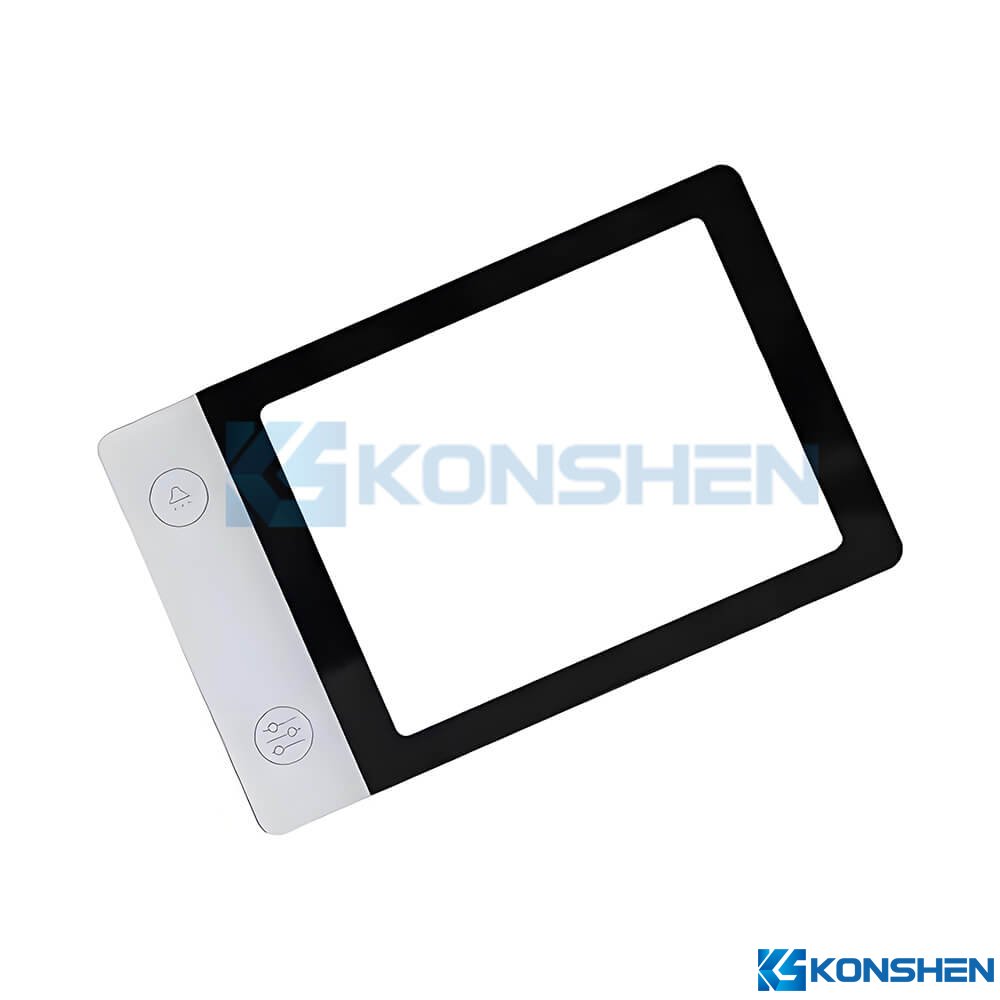

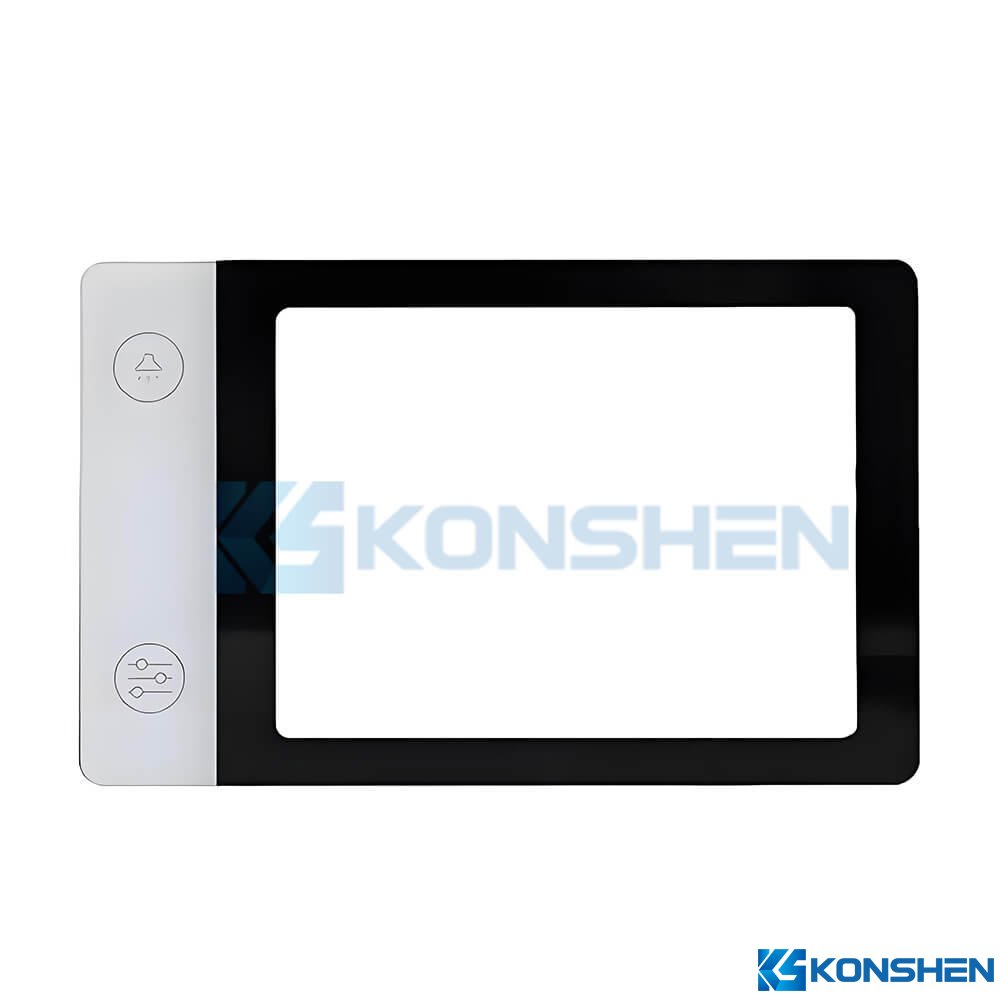

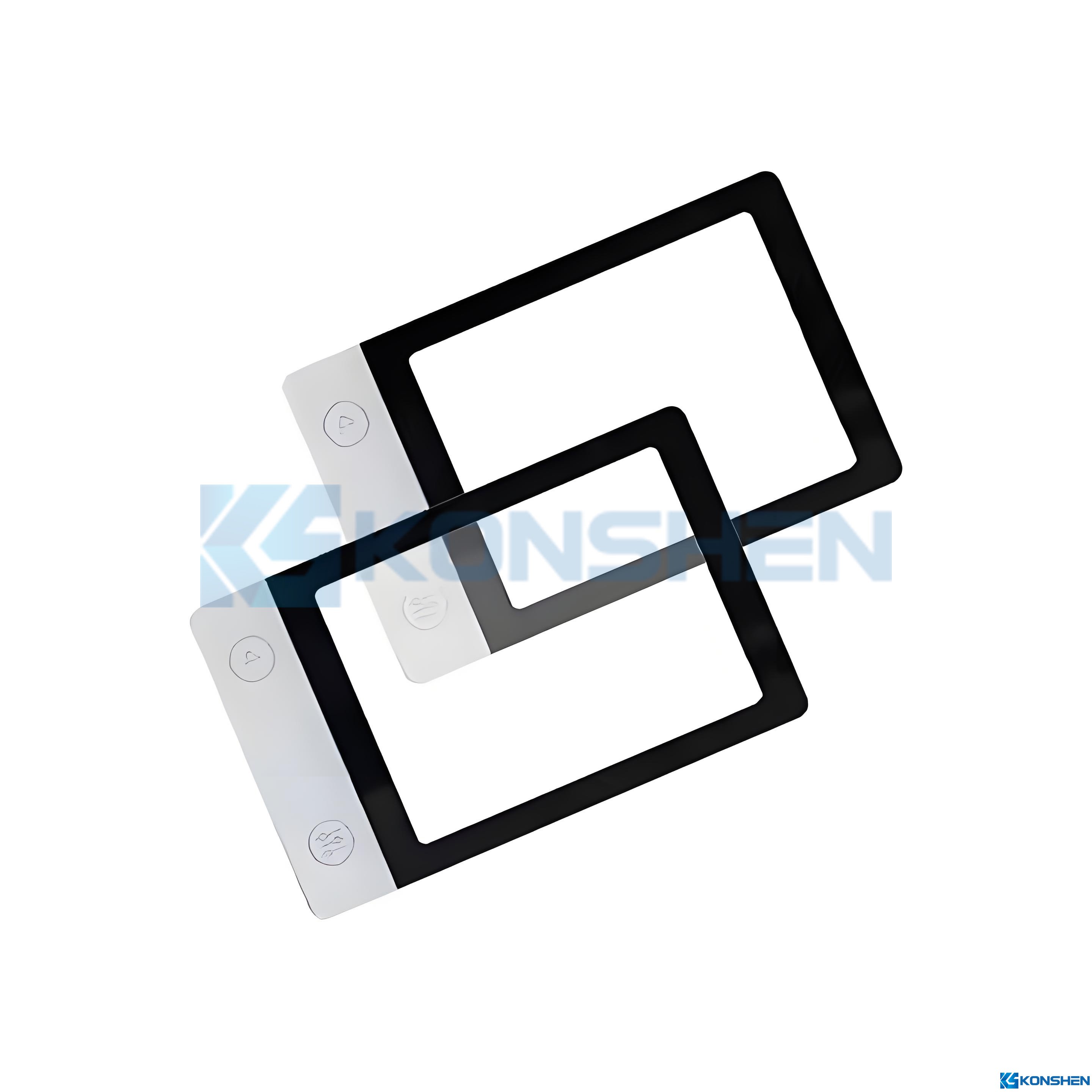

OEM 2mm Physically Tempered Glass Panel for Electronic Touchpad Devices

Product Detail

Key Features:

High Optical Clarity: Ultra-clear substrate ensures excellent light transmission and accurate display visibility.
Anti-Fingerprint Coating: Repels oil and smudges, keeping the surface clean and smooth to the touch.
Anti-Glare Coating: Reduces reflections and enhances visibility under bright lighting conditions.
Smooth Touch Experience: Optimized for capacitive touchscreens with fast and precise response.
Durable & Scratch Resistant: Physically tempered for enhanced strength and surface hardness ≥ 6H.
Customizable Design: Available with printing, icon design, and edge finishes to meet your project requirements.
Heat & Humidity Resistant: Performs reliably in extreme environmental conditions.

Customized Option:

Available Thickness: Ranging from 0.33 mm to 10 mm, depending on the insulation requirements and specific applications.
Size & Shape: KS Glass can provide vacuum glass in a variety of shapes and sizes, tailored to your exact needs.
Cutting Option: CNC Cutting/Water jet Cutting/Diamond Blade Cutting
Edge Options: Polished Edge/Safety Edge/Beveled Edge/Smooth Edge/2.5D Edge/Pencil Edge/Straight Edge
Tempering Options: Physical Tempered/Checmical Strengthened
Coating Options: Anti-Reflective (AR) Coating/Anti-Fingerprint (AF) Coating/Scratch-Resistant Coating or Anti-Glare Coating(AG)
Printing Options: UV Printing/Silk screen printing/Laser engraving printing
Adhesive Options: AB Tape/ Double-side Tape/3M Adhesive

Technical Parameters

Materials: Ultra Clear Glass

Shape: Rectangular

Thickness: 2mm

Edge Work: Safety Edge

Tempered Method: Physical Tempered

Coating: Anti-fingerprint(AF)Coating & Anti-Glare(AG)

Printing Method: Multi-color Silk Screen Printing

Back Adhesive: 3M Tape

Transmission Rate: ≥ 80%

Density: 2.5 g/cm³

Mohs Scale: ≥6H

Strengthness: IK07

Operating Temperature Range: Suitable for -30°C to 250°C.

Thickness Tolerances:± 0.2mm

Dimensional Tolerances:±0.5mm for large size; ±0.1mm for small size

Surface Quality: No visible scratches, bubbles, or inclusions under inspection light

Weather Resistance: Strong resistance to high temperatures and humidity, reducing aging effects

Impact Resistance: 2-5 times stronger than standard glass. Specific impact resistance can vary based on thickness and treatment.

Thermal Shock Resistance: Can withstand temperature difference of up to 150°C without breakage.

Application

Consumer Electronics: Ideal for smart home control panels, touch interfaces on smart speakers, lighting systems, and electronic door locks, offering both sleek aesthetics and reliable functionality.
Building Intercom Systems: Used in video intercoms and building security terminals, the glass ensures clear display, high durability, and long-term touch sensitivity.
Industrial Control Panels: Perfect for industrial automation systems such as HMIs and PLC panels, offering high resistance to temperature, impact, and glare in demanding environments.
Medical Equipment: Applied in medical devices such as thermometers, blood pressure monitors, and touchscreen displays, ensuring clear visuals and hygiene compatibility.
Smart Kitchen Appliances: Ideal for glass control panels on induction cookers, ovens, and dishwashers, offering heat resistance, anti-smudge performance, and a sleek appearance.

Company and factory equipment

Customer Visit

Company Profile

Dlivery & Payment

Packaging:

Step 1: PE film coating(Normally) / paper(For seashipment prevent wet).
Step 2: Kraft paper for fixation.
Step 3: Carton for glass safety protection.
Step 4: Custom make plywood case with hinge for custom(fumigation + convenient inspection) convenience.
Step 5: Packing strap for further fixation.
