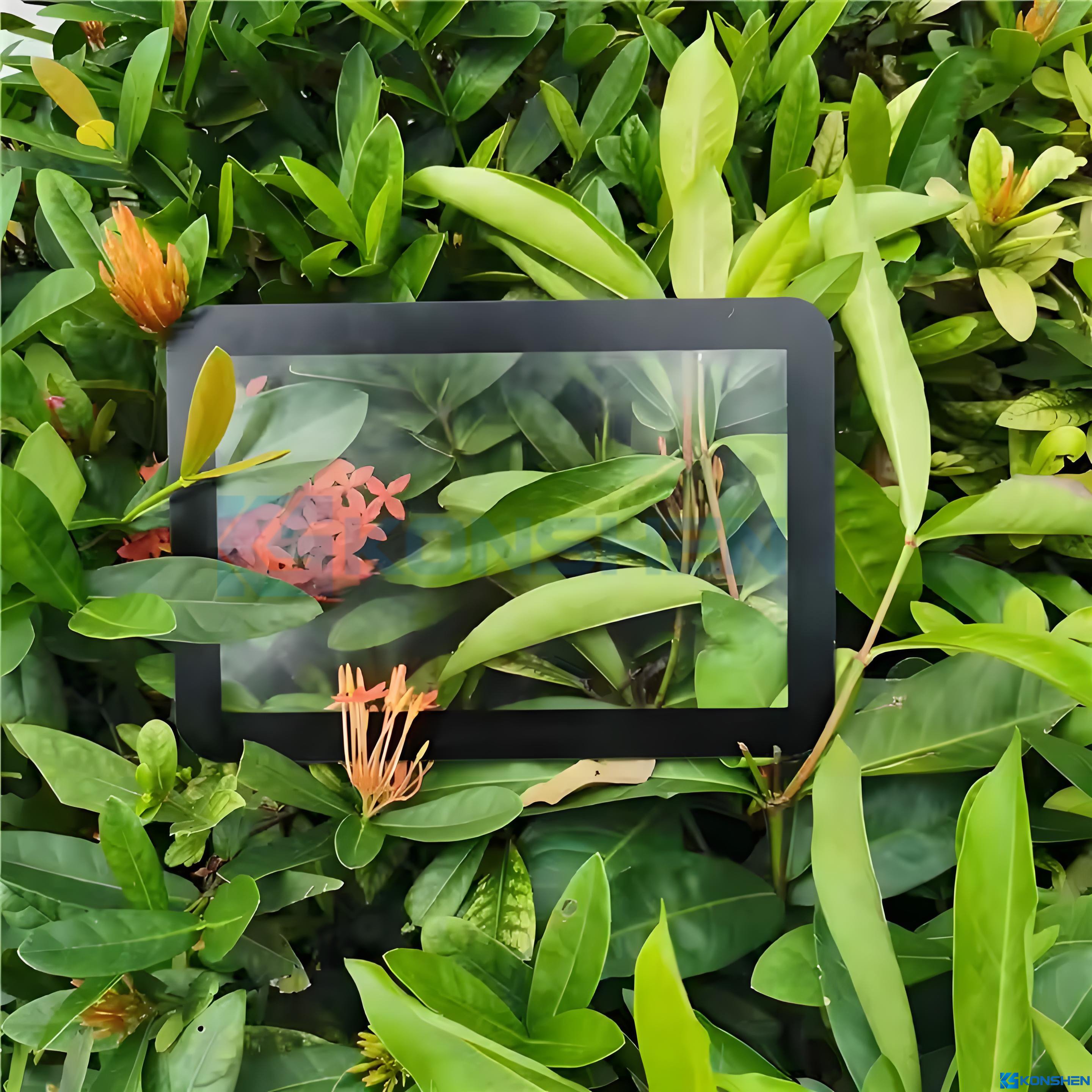

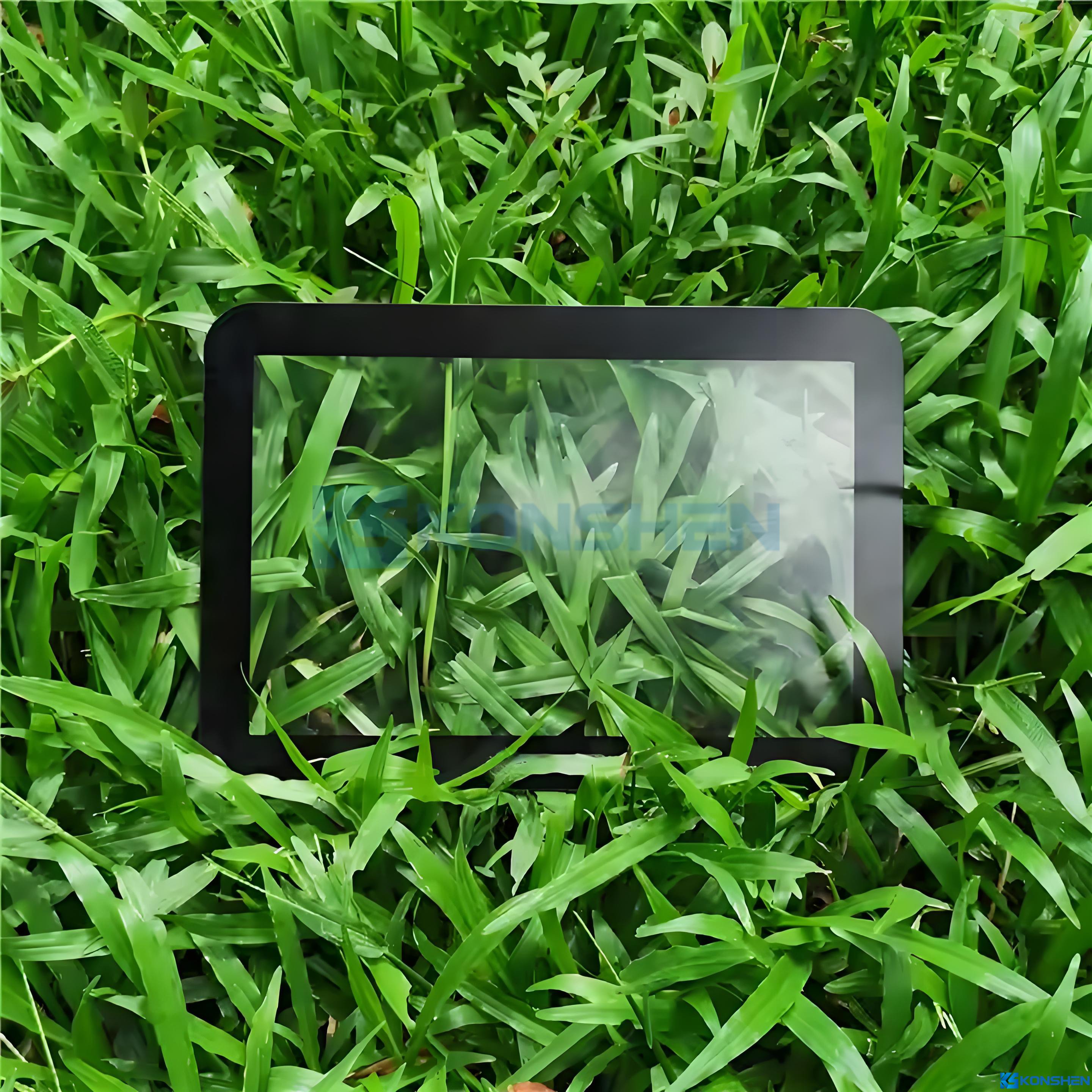

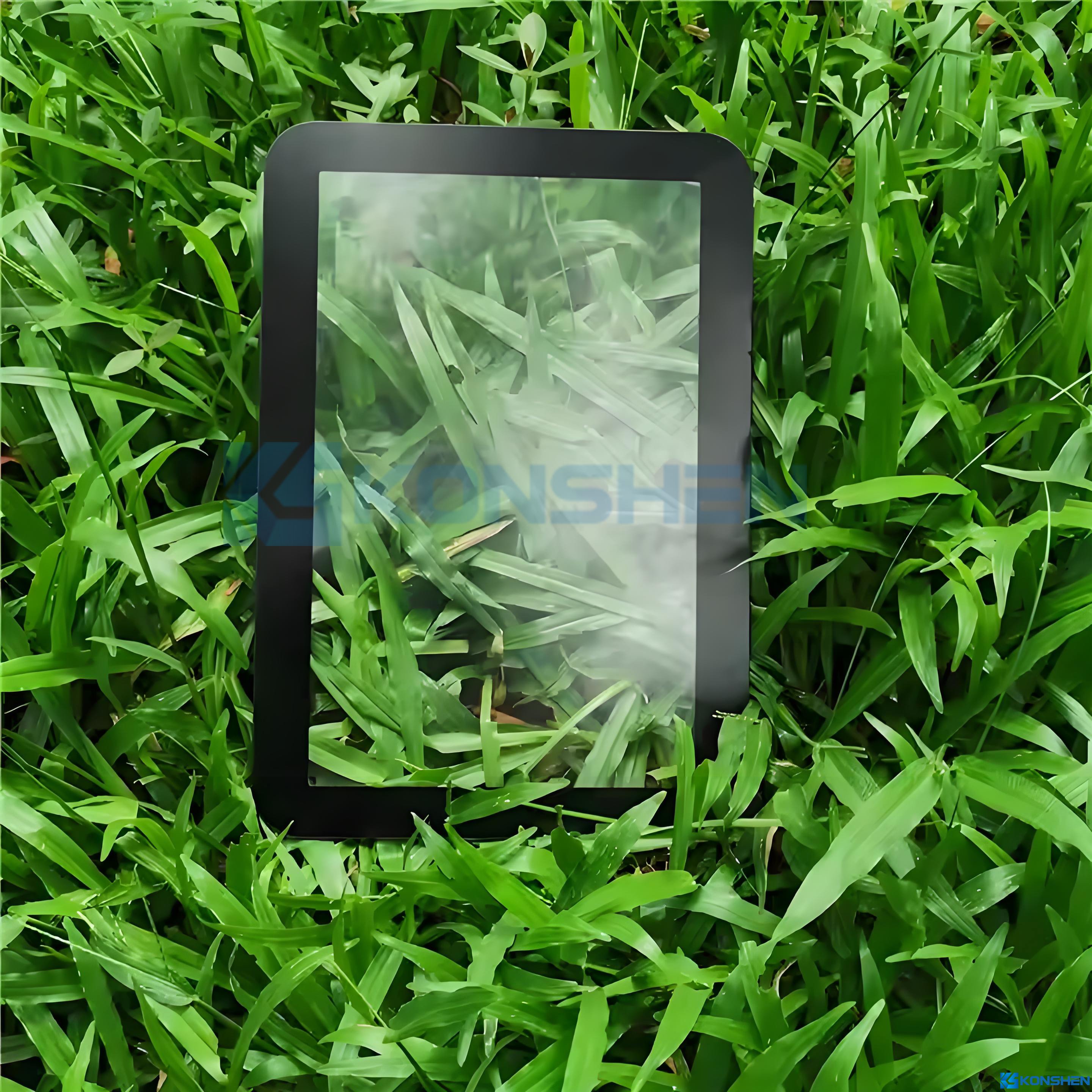

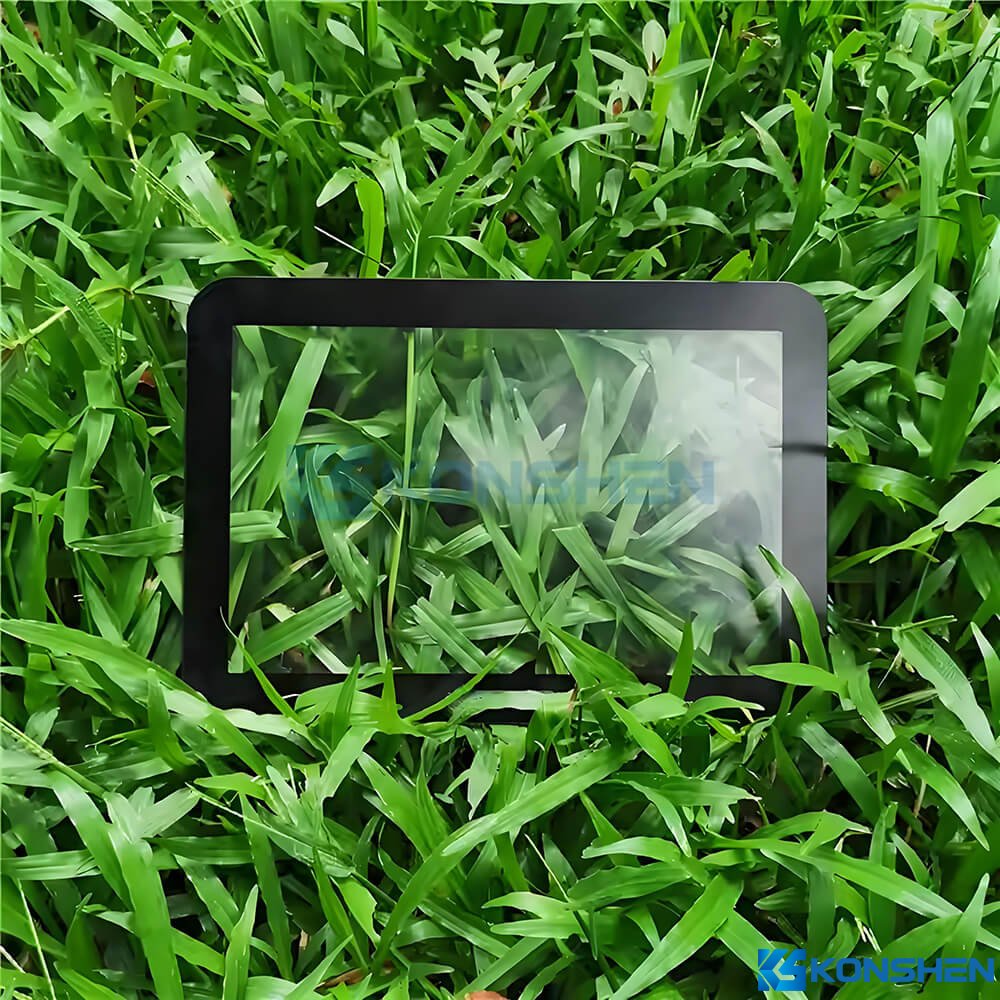

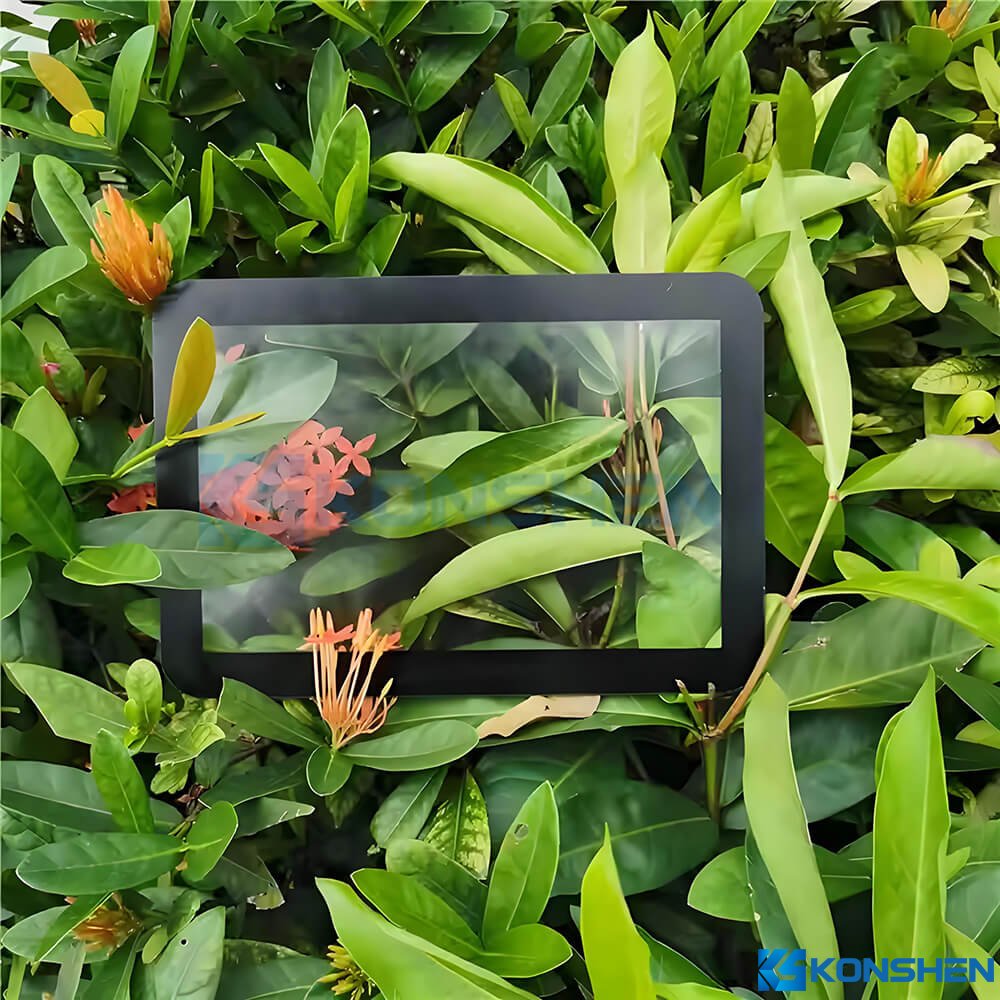

3mm Ultra Clear Frosted Anti-Glare Glass Panel with Black Silkscreen Printing

Product Detail

Key Features:

High Optical Performance: Made from ultra clear glass and treated with an anti-glare (AG) surface, this cover glass maintains over 80% light transmittance while reducing ambient reflections—ideal for high-brightness display environments.
Effective Anti-Glare Coating: Chemically etched AG surface minimizes glare and enhances readability in direct light conditions.
Strengthened for Durability: Physically tempered to ensure excellent impact resistance (IK07) and scratch protection with surface hardness ≥6H.
Black Silk-Printed Frame: Precision silk screen printing delivers a uniform black border with strong ink adhesion and clean appearance.
Smooth Edge Finishing: All edges are polished to ensure safety, reduce chipping risk, and support seamless installation into final assemblies.
Fully Customizable for OEM Needs: Available with tailored thicknesses, shapes, coating types (AG/AR/AF), edge finishes, and printing options to meet diverse industrial and commercial requirements.

Customized Option:

Available Thickness: Ranging from 0.33 mm to 10 mm, depending on the insulation requirements and specific applications..
Size & Shape: Supports special-shaped cutting to meet diverse needs.
Cutting Option: CNC Cutting/Water jet Cutting/Diamond Blade Cutting.
Edge Options: Polished Edge/Safety Edge/Beveled Edge/Smooth Edge/2.5D Edge/Pencil Edge/Straight Edge.
Tempering Options: Physical Tempered/Checmical Strengthened.
Coating Options: Anti-Reflective (AR) Coating/Anti-Fingerprint (AF) Coating/Scratch-Resistant Coating or Anti-Glare (AG)Coating.
Printing Options: UV Printing/Silk screen printing/Laser engraving printing.
Adhesive Options: AB Tape/ Double-side Tape/3M Adhesive.

Technical Parameters

Materials: Ultra Clear Glass
Shape: Rectangular
Thickness: 3mm
Edge Work: Smooth Edge+R Corner
Tempered Method: Physical Tempered
Coating:Anti-Glare(AG)Coating
Gloss: 70%±10%
Haze: 10%±5%
Printing Method: Silk Screen Printing #RAL9004 BK
Back Adhesive: 3M Tape
Transmission Rate: ≥ 82.5%
Density: 2.5 g/cm³
Mohs Scale: ≥6H
Strengthness: IK07
Operating Temperature Range: Suitable for -30°C to 250°C.
Thickness Tolerances:± 0.2mm
Dimensional Tolerances:±0.5mm for large size; ±0.1mm for small size
Surface Quality: No visible scratches, bubbles, or inclusions under inspection light
Weather Resistance: Strong resistance to high temperatures and humidity, reducing aging effects
Impact Resistance: 2-5 times stronger than standard glass. Specific impact resistance can vary based on thickness and treatment.
Thermal Shock Resistance: Can withstand temperature difference of up to 150°C without breakage.

Application

Consumer Electronics: Ideal for touch displays, tablets, e-readers, and smart home control panels that require clear visuals and reduced glare under ambient light.
Automotive Displays: Used in infotainment systems, digital dashboards, and HUDs where anti-glare performance is critical for driver visibility and safety.
Industrial Control Panels: Perfect for HMIs (Human-Machine Interfaces), factory automation screens, and equipment control interfaces that operate under strong lighting or outdoor conditions.
Medical Equipment: Applied in diagnostic monitors, portable testing devices, and medical display interfaces that demand both hygiene and high display accuracy.
Smart Home Devices: Enhances the look and function of smart thermostats, wall-mounted control panels, intercoms, and security touchscreens.
Public and Commercial Displays: Used in ATMs, vending machines, digital signage, and interactive kiosks for improved user experience and screen readability in brightly lit areas.
Instrument Panels & Measurement Devices: Suitable for scientific and lab equipment where glare-free display surfaces are required for precise reading and control.

Company and factory equipment

Customer Visit

Company Profile

Dlivery & Payment

Packaging:

Step 1: PE film coating(Normally) / paper(For seashipment prevent wet).
Step 2: Kraft paper for fixation.
Step 3: Carton for glass safety protection.
Step 4: Custom make plywood case with hinge for custom(fumigation + convenient inspection) convenience.
Step 5: Packing strap for further fixation.
