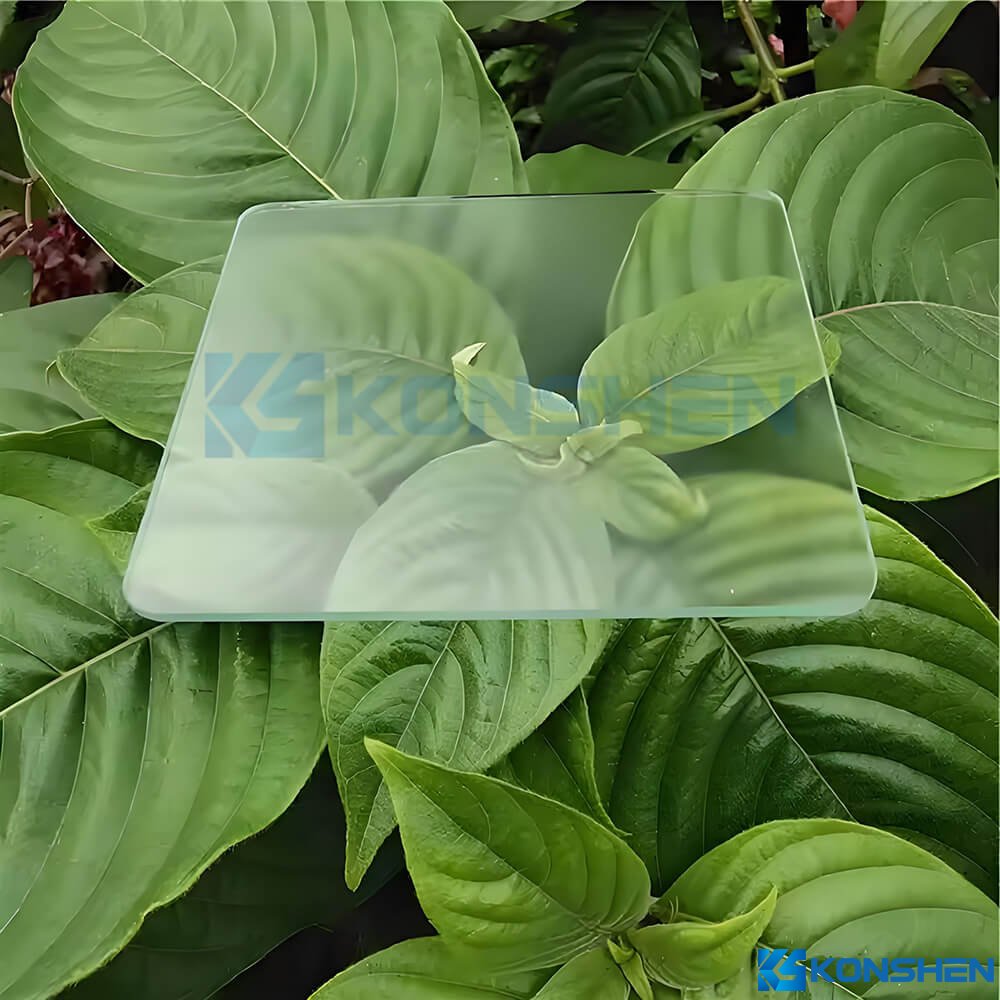

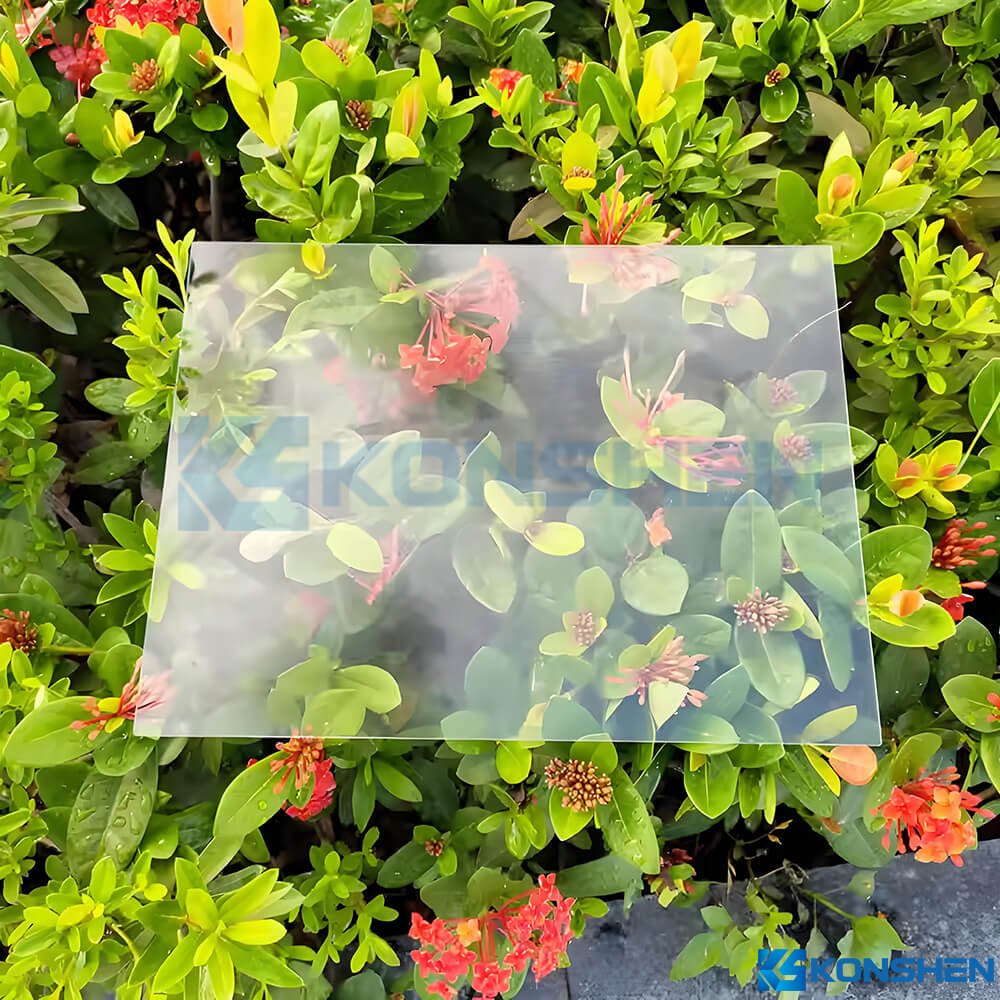

Product Detail

Key Features:
  • Anti-Glare Surface: Minimize ambient light reflection with our anti-glare surface, enhancing screen readability even in bright lighting conditions.
  • High Transparency: Crafted from ultra-clear glass for superior light transmission, ensuring vivid, true-to-life display quality and optimal visual performance.
  • Durability: Durable and scratch-resistant tempered safety glass, meeting IK07 impact protection and ≥6H hardness standards for maximum reliability.
  • Delicate Edge Work: Frosted edge processing provides a sleek, non-reflective finish, perfect for installations where appearance and durability matter.
  • OEM Customization Support: Custom solutions tailored to your industrial and commercial needs, including size, shape, printing, coating, and bonding options.

Customized Option:
  • Available Thickness: Ranging from 0.33 mm to 10 mm, depending on the insulation requirements and specific applications.
  • Size & Shape: Supports special-shaped cutting to meet diverse needs. Customizes as per drawing.
  • Cutting Option: CNC Cutting/Water jet Cutting/Diamond Blade Cutting.
  • Edge Options: Polished Edge/Safety Edge/Beveled Edge/Smooth Edge/2.5D Edge/Pencil Edge/Straight Edge.
  • Tempering Options: Physical Tempered/Checmical Strengthened.
  • Coating Options: Anti-Reflective (AR) Coating/Anti-Fingerprint (AF) Coating/Scratch-Resistant Coating or Anti-Glare (AG)Coating.
  • Printing Options: UV Printing/Silk screen printing/Laser engraving printing.
  • Adhesive Options: AB Tape/ Double-side Tape/3M Adhesive.

Technical Parameters

Materials: Low-Iron Glass
Shape: Rectangular
Thickness: 3.2mm
Edge Work: Matt Edge (frosted finish),Smooth Edge,R-Corner
Tempered Method: Physical Tempered
Coating: Etching AG Coating
Gloss: 65%
Haze: 15%
Transmission Rate: ≥ 80%
Density: 2.5 g/cm³
Mohs Scale: ≥6H
Strengthness: IK07
Operating Temperature Range: Suitable for -30°C to 250°C.
Thickness Tolerances:± 0.2mm
Dimensional Tolerances:±0.5mm for large size; ±0.1mm for small size
Surface Quality: No visible scratches, bubbles, or inclusions under inspection light
Weather Resistance: Strong resistance to high temperatures and humidity, reducing aging effects

Application

  • Consumer Touch Devices: Explore a range of smart displays, control panels, and tablets designed for intuitive user interaction.
  • Industrial HMI Systems: Discover advanced human-machine interface (HMI) solutions for machinery, factory control, and industrial displays.
  • Automotive Displays: Find cutting-edge central control screens and infotainment systems that enhance the driving experience with high-performance displays.
  • Medical Devices: High-quality diagnostic monitors and portable testing interfaces, offering precision and reliability for medical professionals.
  • Smart Home Terminals: Secure and user-friendly wall-mounted control panels and security displays that connect and manage your smart home systems.
  • Outdoor & Public Screens: Durable and versatile outdoor displays for vending machines, kiosks, ATMs, and public information systems, built to withstand harsh environments.

Company and factory equipment

Customer Visit

Customer Visit

Company Profile

Company Profile

Dlivery & Payment

Packaging:

  • Step 1: PE film coating(Normally) / paper(For seashipment prevent wet).
  • Step 2: Kraft paper for fixation.
  • Step 3: Carton for glass safety protection.
  • Step 4: Custom make plywood case with hinge for custom(fumigation + convenient inspection) convenience.
  • Step 5: Packing strap for further fixation.
