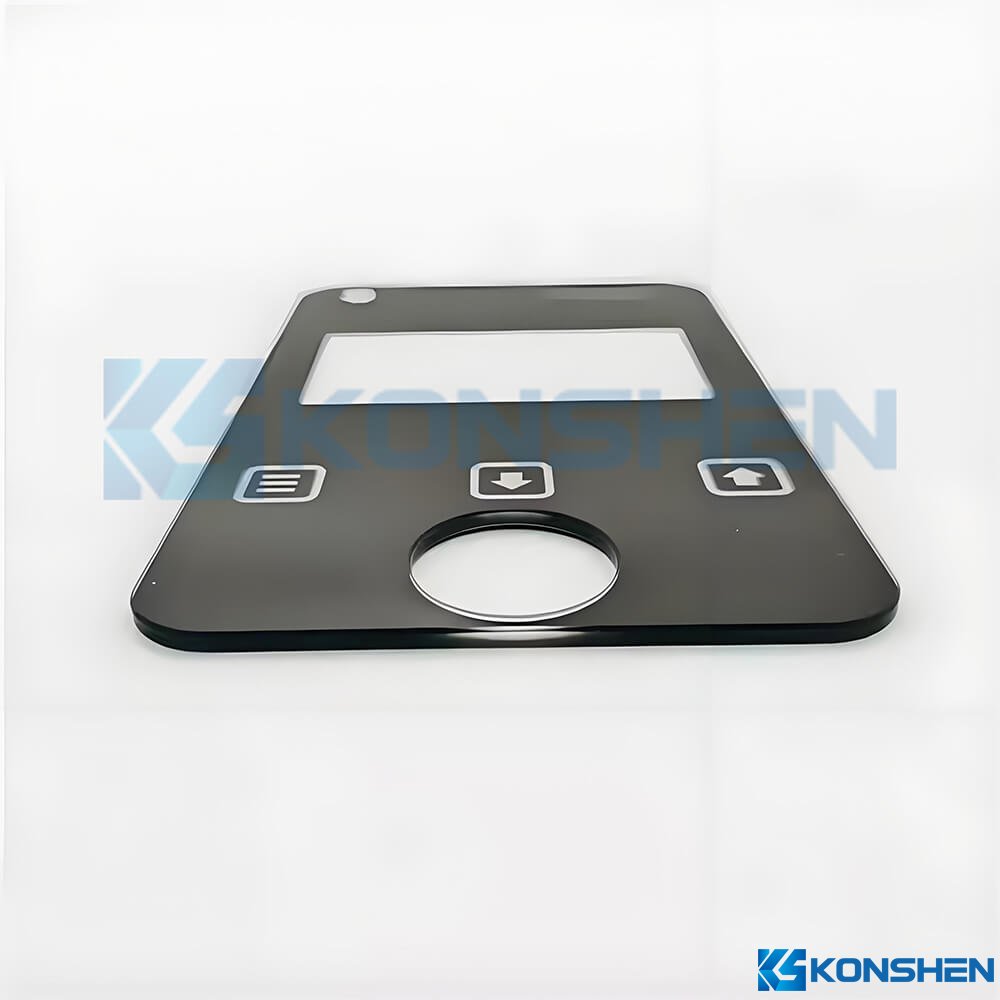

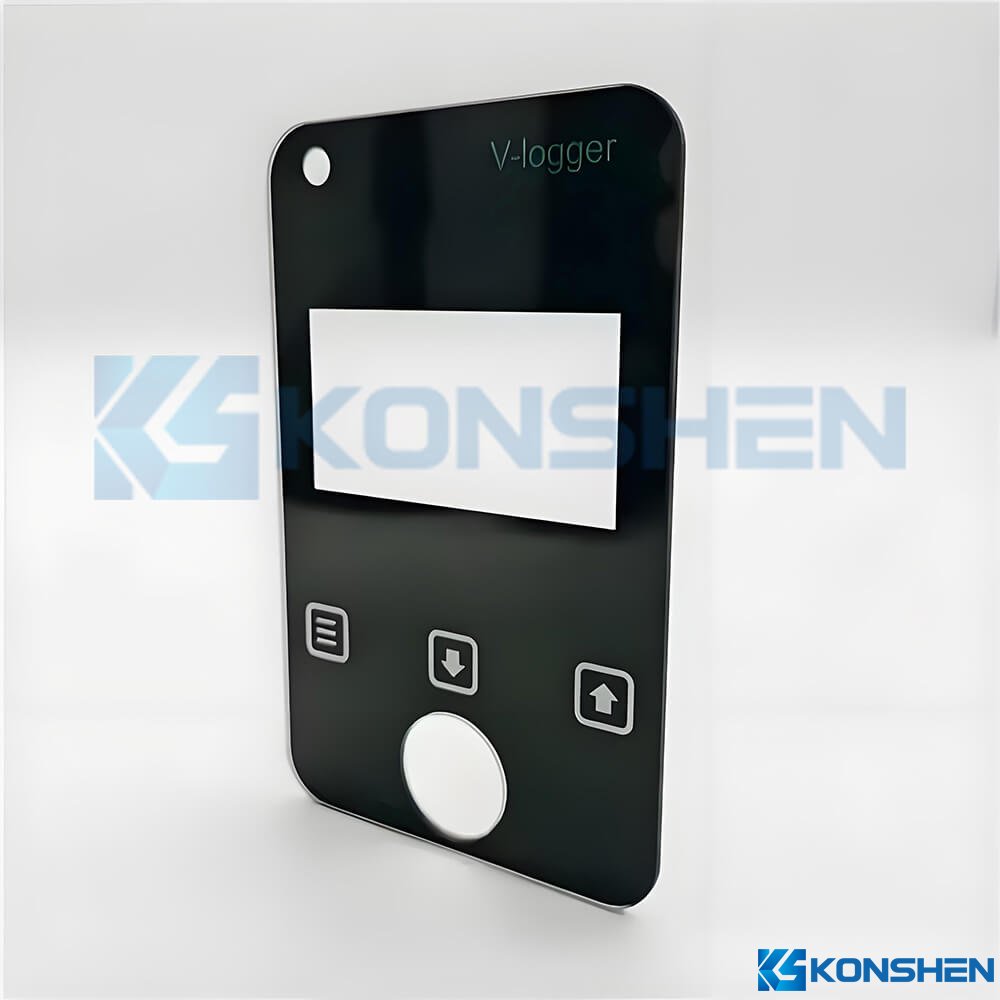

2mm Ultra Clear Tempered Cover Glass Plate with Precision Cutout Hole

Product Detail

Key Features:

Ultra Clear Base Materia: Made from ultra-clear low-iron glass, offering exceptional optical clarity and light transmittance for enhanced display performance.
Tempered for Safety & Strength: Physically tempered for high impact resistance and thermal durability, ensuring long-lasting reliability in demanding environments.
Precision Drilled Hole: Equipped with a CNC-machined hole for functional integration, providing tight tolerance and smooth edges suitable for embedded components.
High-End Silk Printing: Dual-color (black & white) silk printing delivers a refined look with high adhesion and wear resistance, customizable to project requirements.
Smooth Edgework: Safety edge and chamfering treatment ensures handling safety and a polished appearance without sharp edges.

Customized Option:

Available Thickness: Ranging from 0.1 mm to 15 mm, depending on the insulation requirements and specific applications.
Size & Shape: Supports special-shaped cutting to meet diverse needs. Customizes as per drawing.
Cutting Option: CNC Cutting/Water jet Cutting/Diamond Blade Cutting
Edge Options: Polished Edge/Safety Edge/Beveled Edge/Smooth Edge/2.5D Edge/Pencil Edge/Straight Edge
Tempering Options: Physical Tempered/Checmical Strengthened
Coating Options: Anti-Reflective (AR) Coating/Anti-Fingerprint (AF) Coating/Scratch-Resistant Coating/Indium Tin Oxide(ITO) Coating or Anti-Glare (AG)Coating
Printing Options: UV Printing/Silk screen printing/Laser engraving printing
Adhesive Options: AB Tape/ Double-side Tape/3M Adhesive

Technical Parameters

Materials: Ultra Clear Glass
Shape: Rectangular
Thickness: 2mmT
Edge Work: Safety edge Through holes by CNC machine
Tempered Method: Physical Tempered
Coating: Anti-fingerprint(AF) coating
Printing Method: Silk screen printing #RAL9004 BK #RAL9001 WH
Density: 2.5 g/cm³
Hardness: at least 6H
Strengthness: IK07
Operating Temperature Range: Suitable for -30°C to 250°C.
Thickness Tolerances:± 0.2mm
Dimensional Tolerances:±0.5mm for large size; ±0.1mm for small size
Weather Resistance: Strong resistance to high temperatures and humidity, reducing aging effects
UV Resistance: High UV-blocking capability
Impact Resistance: 2-5 times stronger than standard glass. Specific impact resistance can vary based on thickness and treatment.

Application

Smart Control Interfaces: It is widely applied in smart control systems such as home automation panels, smart thermostats, and electronic locking systems. With its precise CNC-drilled hole and silk-printed surface, it allows seamless integration with sensors and displays, while maintaining an elegant appearance.
Industrial Equipment Interfaces: Due to its excellent strength, flatness, and processability, it is ideal for use in industrial HMIs (Human-Machine Interfaces), monitoring panels, PLC controllers, and sensor modules. Its scratch resistance and durability ensure stable performance in harsh industrial environments.
Medical and Diagnostic Devices: Commonly used in touch-enabled medical interfaces, diagnostics displays, and portable monitoring instruments. The precision edge treatment and chemical durability make it suitable for environments requiring high hygiene standards and long-term reliability.
Consumer Electronics: Perfect for smart home devices such as air purifiers, smart mirrors, digital switches, and kitchen appliance panels. The refined black & white printing complements modern electronic aesthetics, while the safety edge ensures a secure user experience.
Automotive and Transportation Terminals: Applicable in vehicle-mounted touch panels, dashboard displays, and public transport terminals where durability and visibility are critical. The tempered ultra-clear glass maintains high optical performance while withstanding constant use and vibration.

Company and factory equipment

Customer Visit

Company Profile

Dlivery & Payment

Packaging:

Step 1: PE film coating(Normally) / paper(For seashipment prevent wet).
Step 2: Kraft paper for fixation.
Step 3: Carton for glass safety protection.
Step 4: Custom make plywood case with hinge for custom(fumigation + convenient inspection) convenience.
Step 5: Packing strap for further fixation.
