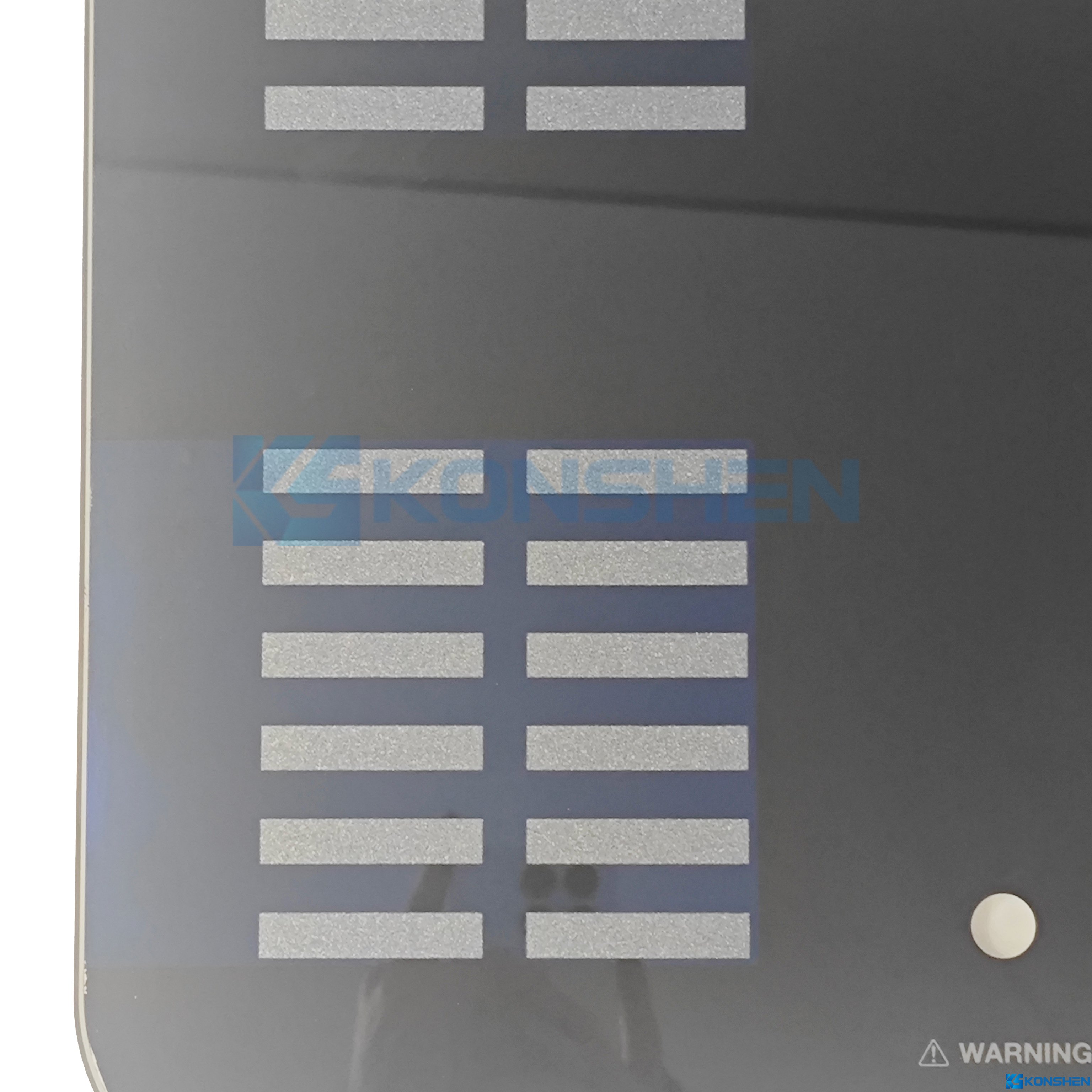

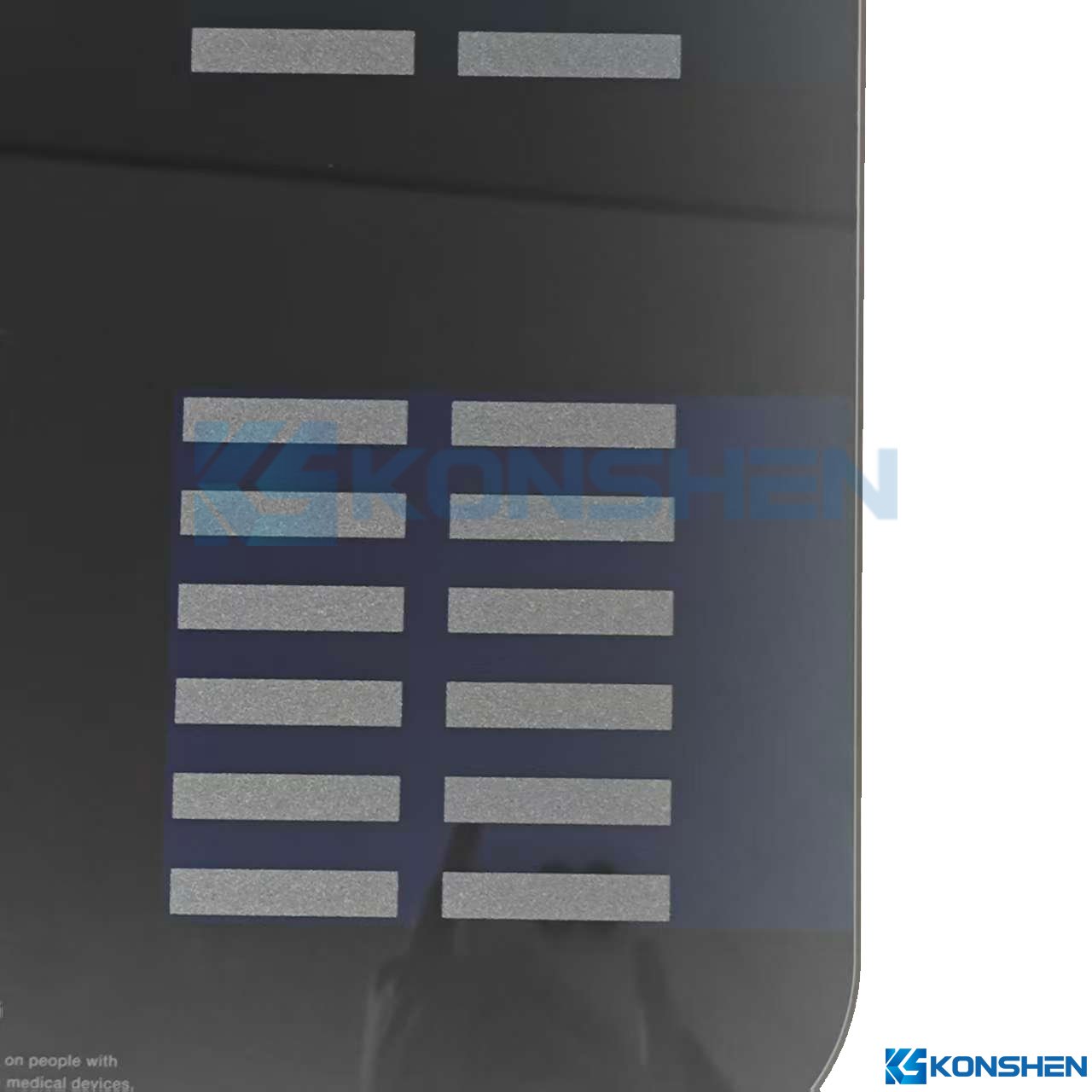

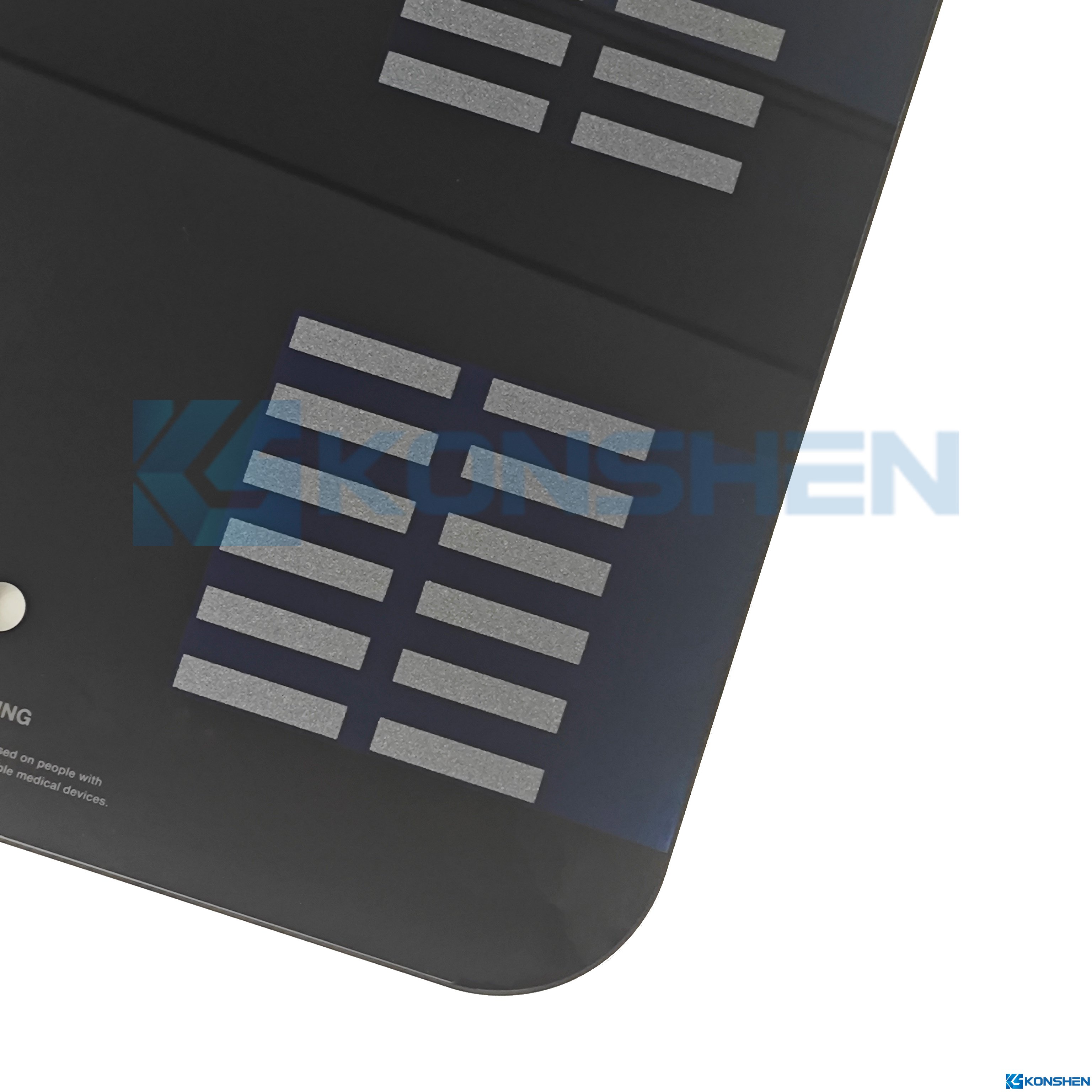

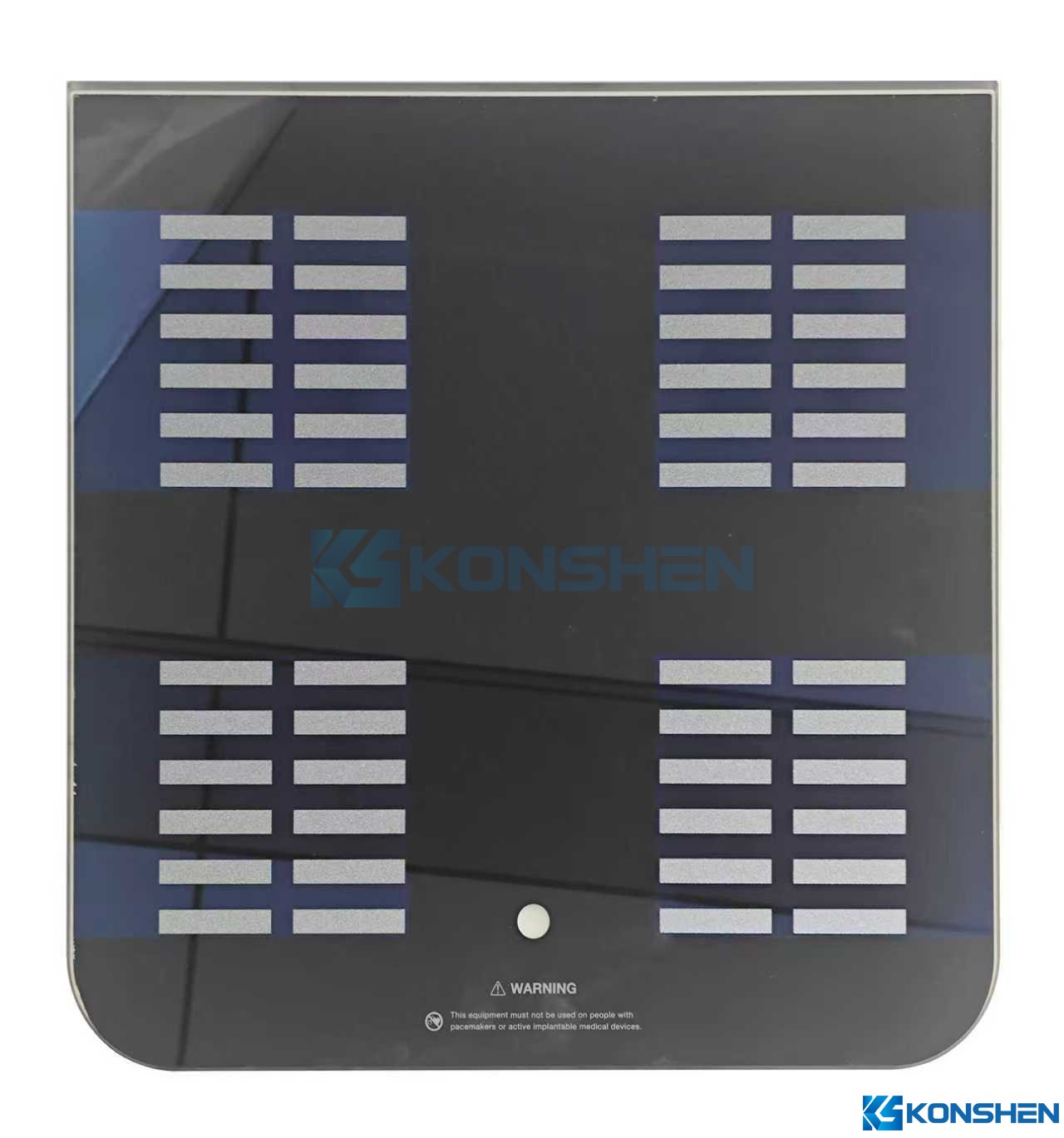

10mm IK10 Tempered ITO Conductive Glass Panel with AG Coating

Key Features:

• High Strength 10mm Tempered Glass: The panel uses a 10mm thick glass substrate providing excellent mechanical strength and structural stability. After physical tempering, the glass achieves significantly improved impact resistance and safety performance.

• Heat Soak Treatment (HST) for Safety: Heat soak testing is applied to minimize the risk of spontaneous breakage caused by nickel sulfide inclusions, ensuring higher safety reliability for critical equipment applications.

• Full Surface ITO Conductive Coating: A uniform ITO conductive layer is deposited on the glass surface with a resistance of 10–15 Ω/sq. This conductive coating provides stable electrical performance and is suitable for sensing, heating, and electromagnetic control applications.

• Laser Patterning for Functional Isolation: Precision laser ablation technology is used to selectively remove ITO layers from non-functional areas, forming accurate conductive circuits and electrical isolation zones.

• AG Anti-Glare Surface Treatment: The AG surface coating reduces reflection and glare under strong lighting conditions while maintaining good optical clarity, improving visibility in bright environments.

Customized Option:

• Available Thickness:  ranging from 0.33 mm to 10 mm, depending on the insulation requirements and specific applications.

• Size & Shape: Supports special-shaped cutting to meet diverse needs. Customizes as per drawing.

• Cutting Option:CNC Cutting/Water jet Cutting/Diamond Blade Cutting

• Edge Options:Polished Edge/Safety Edge/Beveled Edge/Smooth Edge/2.5D Edge/Pencil Edge/Straight Edge

• Tempering Options:Physical Tempered/Checmical Strengthened

• Coating Options:Anti-Reflective (AR) Coating/Anti-Fingerprint (AF) Coating/Scratch-Resistant Coating/Indium Tin Oxide(ITO) Coating or Anti-Glare (AG)Coating

• Printing Options: UV Printing/Silk screen printing/Laser engraving printing

• Adhesive Options: AB Tape/ Double-side Tape/3M Adhesive

• Materials: Ultra Clear Soda Lime Glass

• Shape: Square

• Thickness: 10mm

• Edge Work: Safety Edge

• Tempered Method: Physical Tempered

• Coating:Indium Tin Oxide(ITO) Coating+ Anti-Glare Coating

• Surface Resistance: 10-15Ω/sq

• Coating Uniformity: ≤ ±10% across the entire surface

• Transmittance:≥ 80%

• Density: 2.5 g/cm³

• Mohs Scale: ≥6H

• Strengthness: IK10

• Operating Temperature Range: Suitable for -30°C to 250°C.

• Thickness Tolerances:± 0.2mm

• Dimensional Tolerances:±0.5mm for large size; ±0.1mm for small size

• Surface Quality: No visible scratches, bubbles, or inclusions under inspection light

• Weather Resistance: Strong resistance to high temperatures and humidity, reducing aging effects

• Industrial Control Panels:This IK10-rated tempered ITO conductive glass is widely used as protective and functional panels in industrial control systems, automation equipment, and machine interfaces. The combination of high-strength 10mm tempered glass and conductive ITO coating enables both mechanical protection and electrical functionality.The laser-patterned conductive areas allow integration with sensing circuits and control modules, while the AG anti-glare surface improves readability of indicators and display elements under strong industrial lighting conditions.

• Smart Sensing & Interactive Systems: The conductive glass panel is suitable for smart sensing platforms where precise conductive patterns are required. The 10–15 Ω/sq ITO coating combined with laser patterning enables accurate circuit design for capacitive sensing, touch detection, and signal control applications.These properties make the glass ideal for intelligent equipment interfaces, sensing modules, and advanced interactive electronic systems.

• Medical and Laboratory Equipment: In medical and laboratory environments, equipment panels often require both structural durability and stable electrical functionality. The IK10 impact-resistant glass provides reliable protection for internal components, while the conductive ITO layer enables sensing or heating functions required by specialized devices.The AG surface treatment also helps reduce glare from bright lighting typically used in clinical and laboratory environments.

• Fitness and Public Equipment Panels: Due to its IK10 impact resistance and thick tempered structure, this conductive glass is also suitable for high-durability environments such as fitness equipment, public kiosks, and interactive devices. The robust glass construction ensures long-term reliability even under frequent use or potential external impact.Black silk screen printing enhances the product appearance while masking internal electronic structures.
