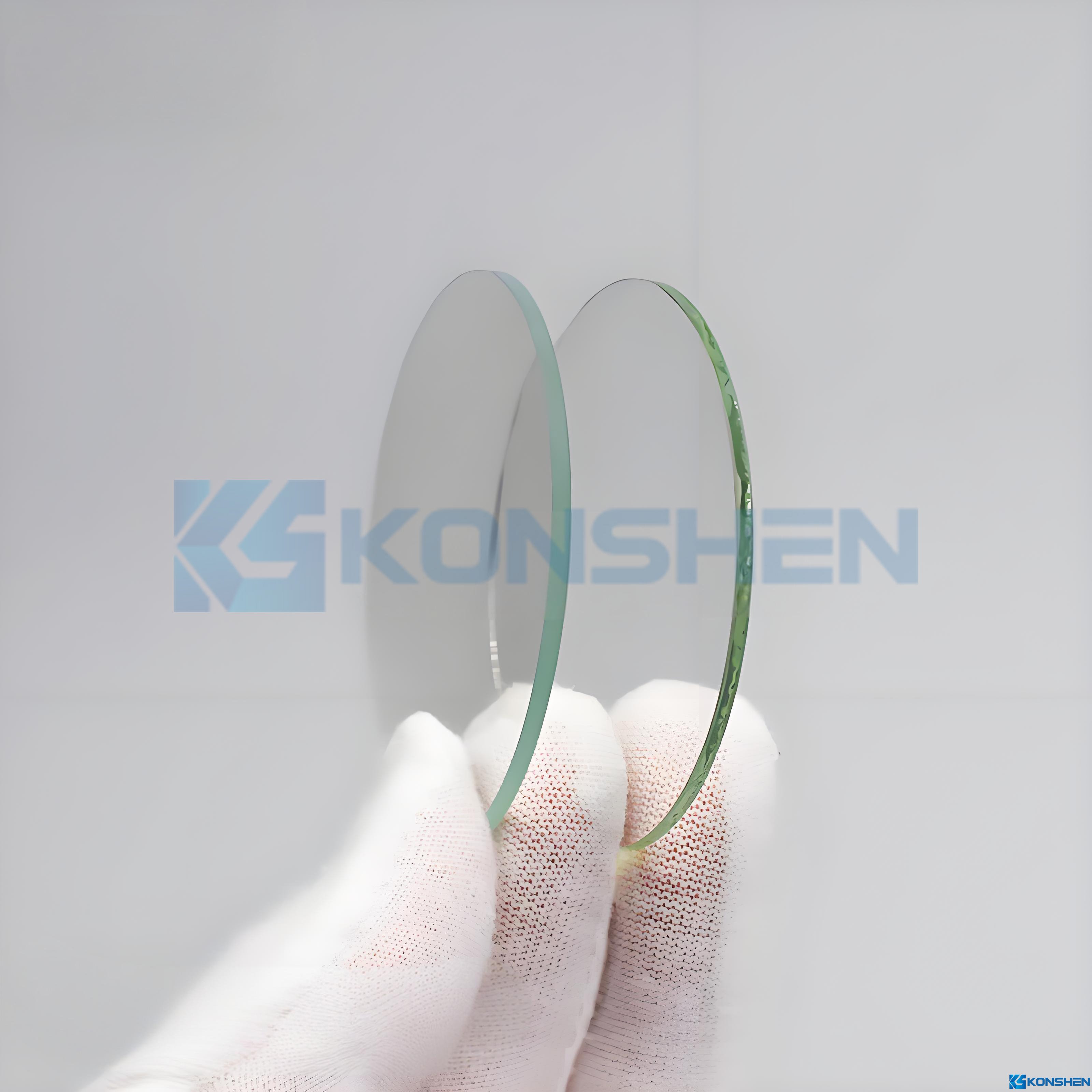

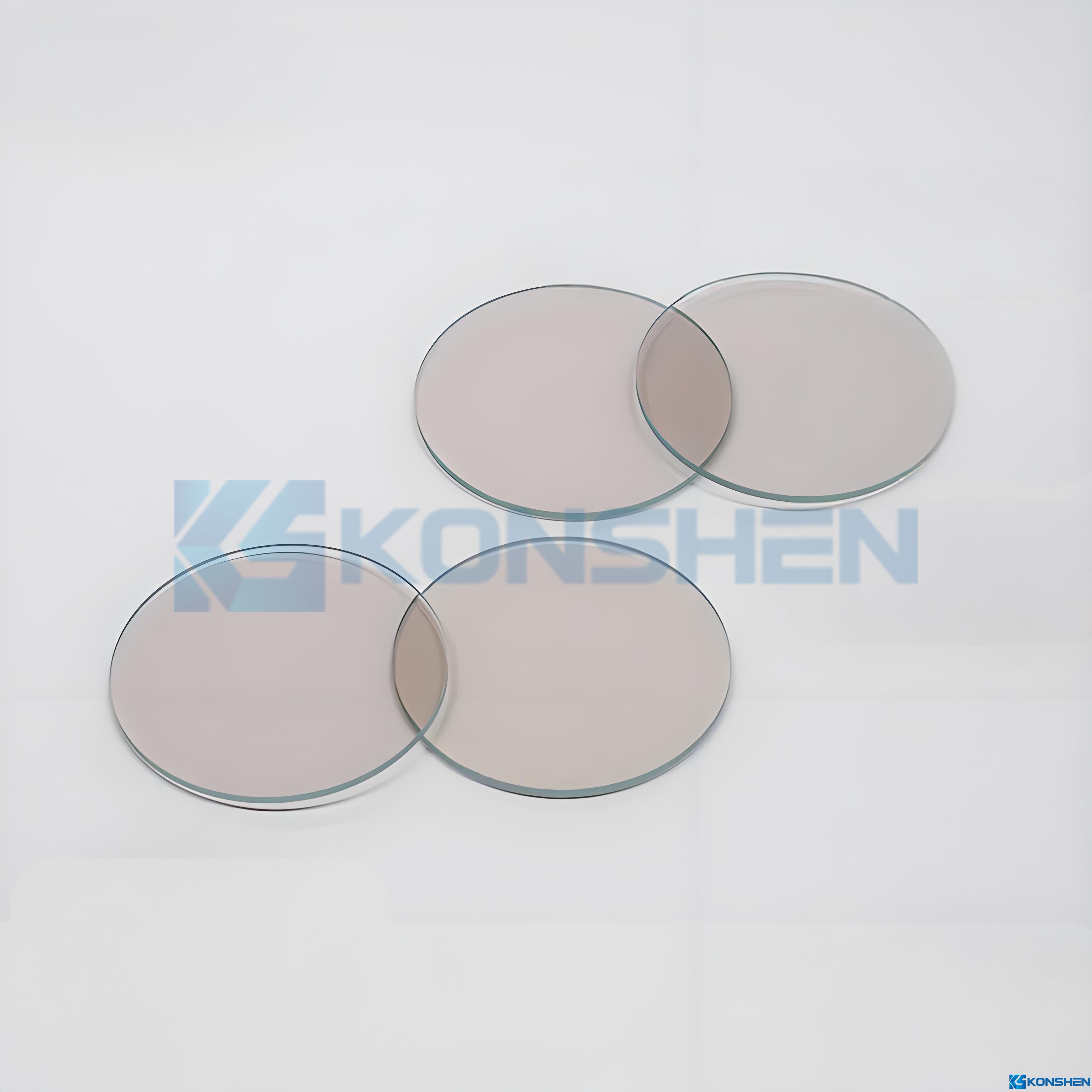

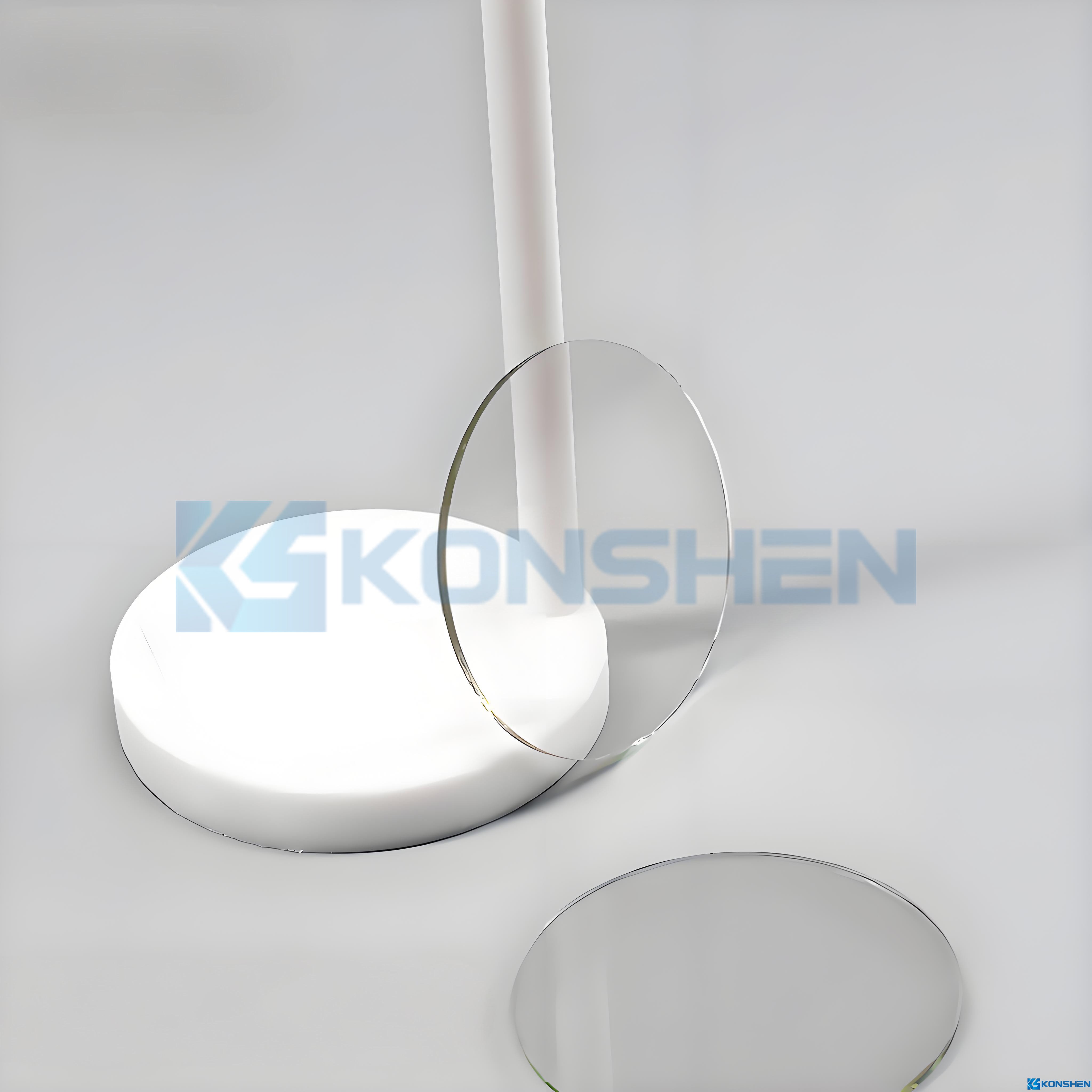

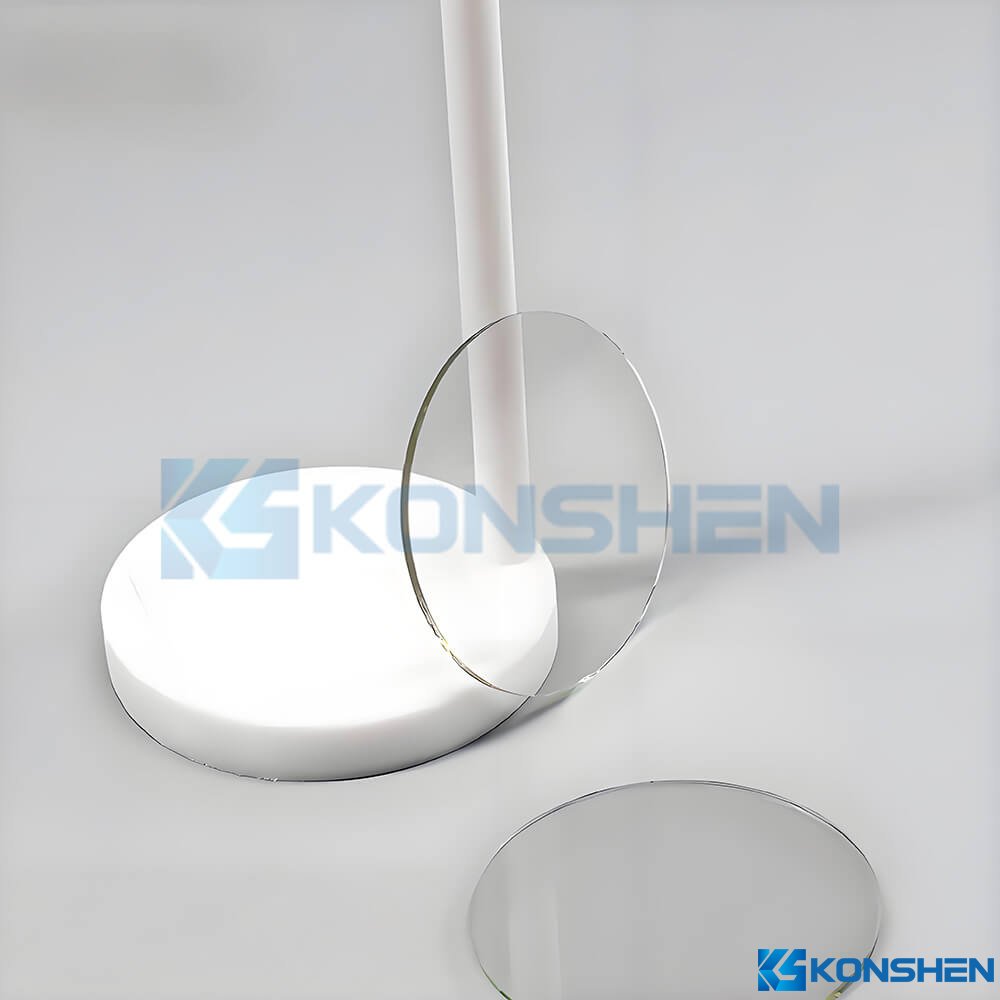

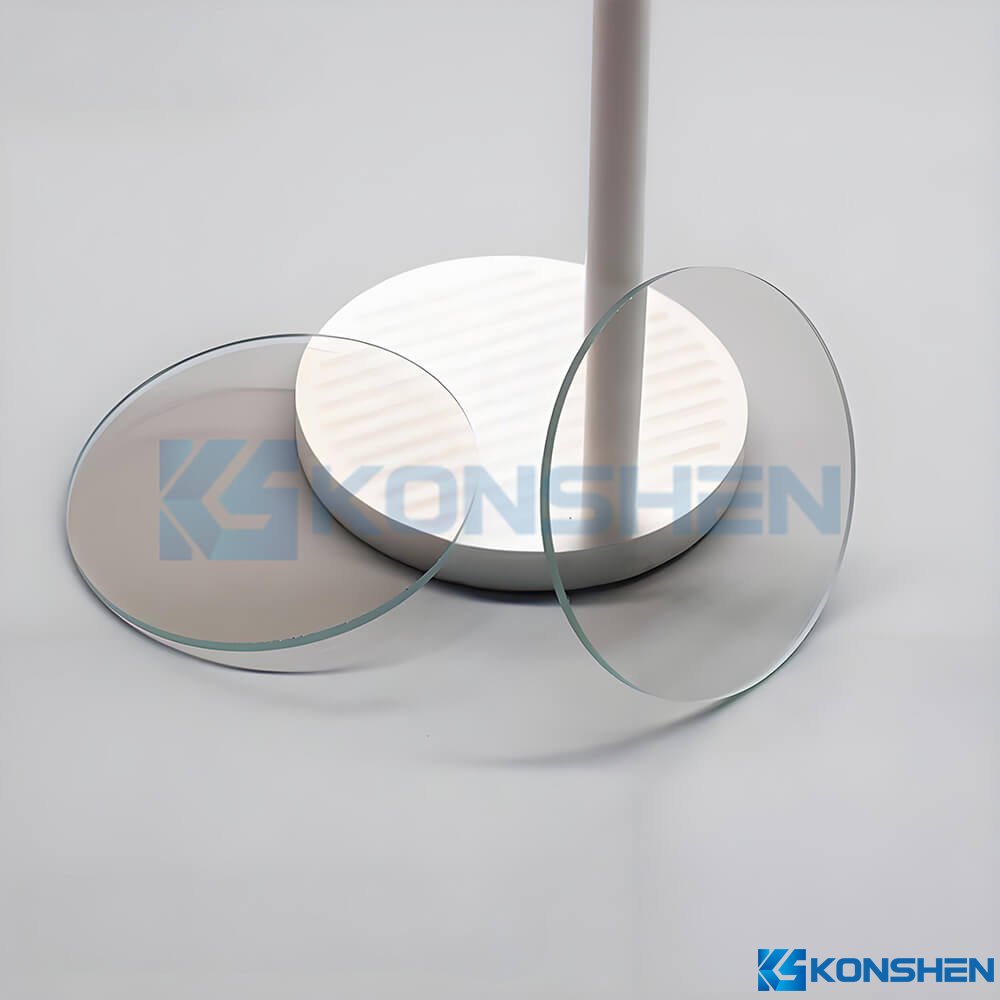

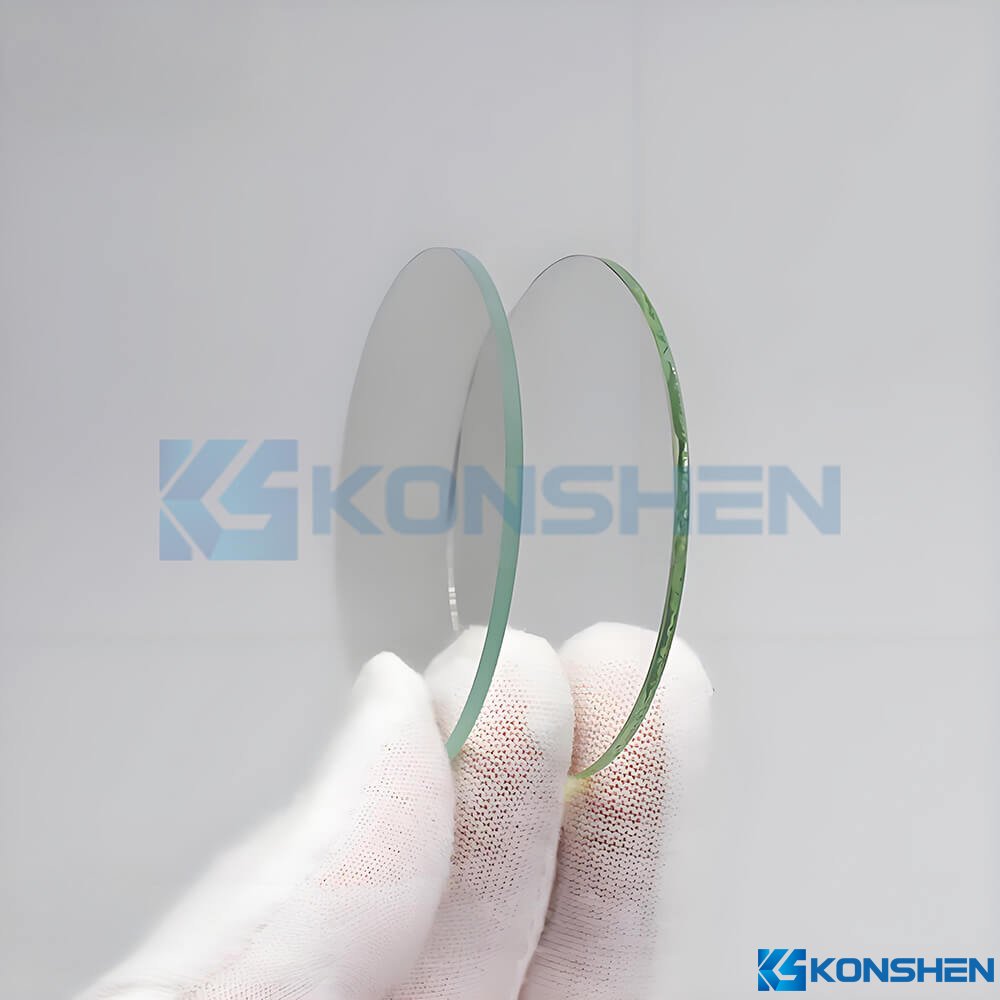

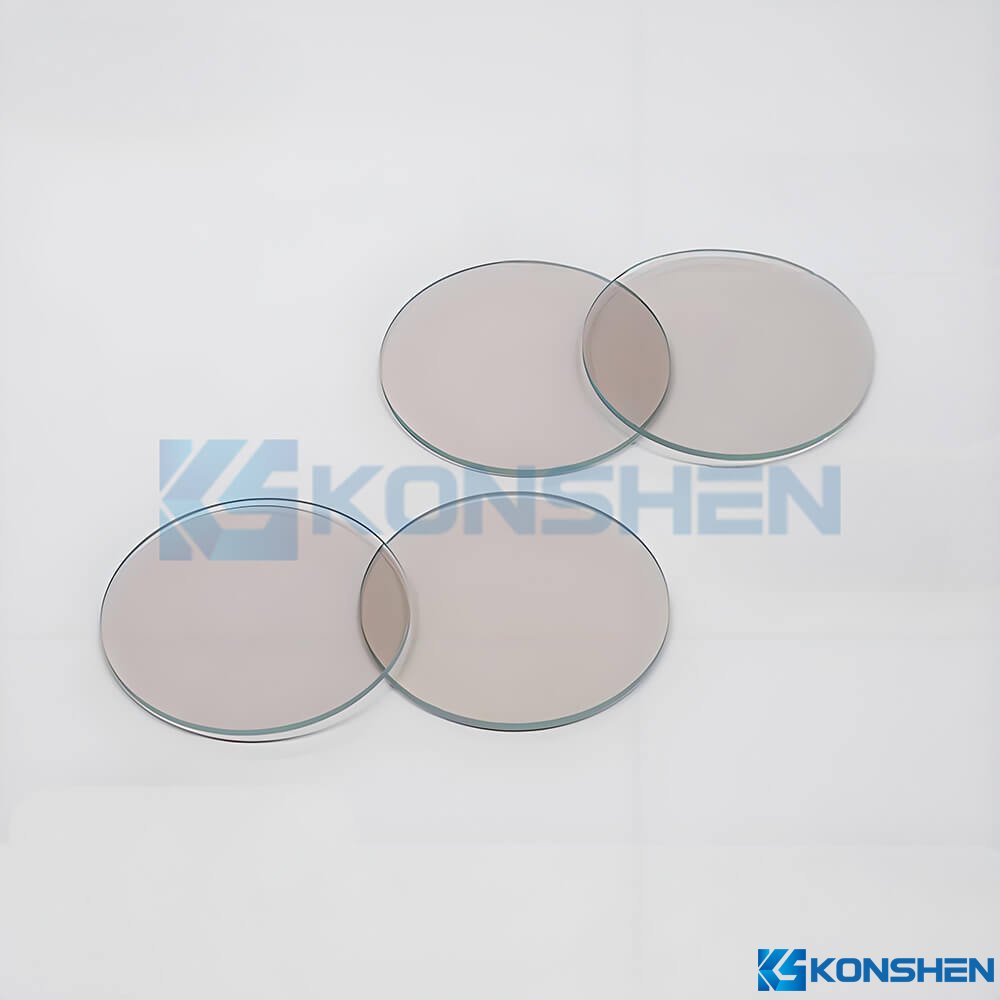

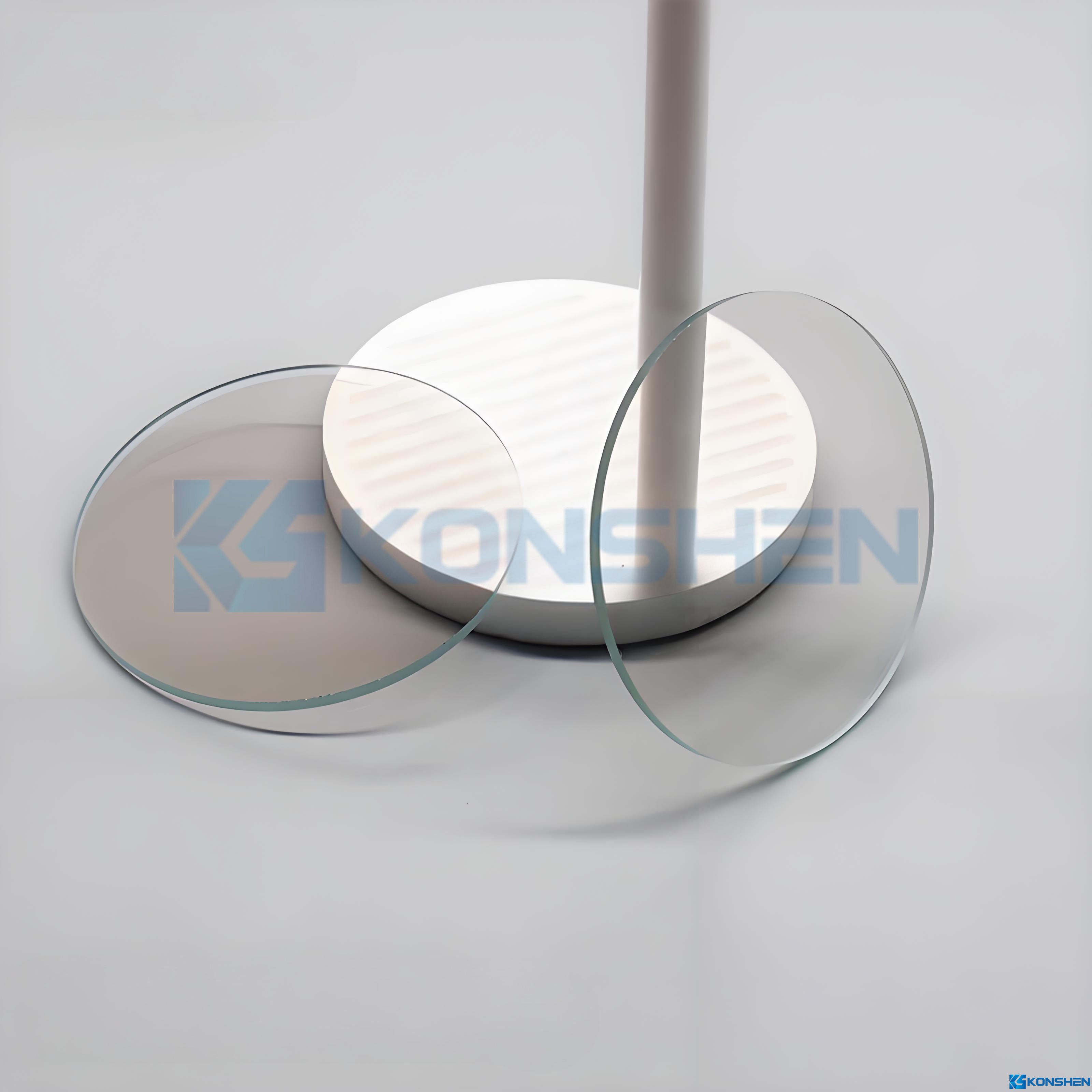

2.2mm Conductive ITO Glass Panel | Ultra-Clear Tempered Glass with 7Ω/sq Resistance

Product Detail

Key Features:

High Conductivity: ITO coating with low surface resistance of 7Ω/sq ensures stable electrical performance for various electronic and optical applications.
Ultra-Clear Glass Substrate: Made with high-transparency soda lime glass for superior light transmittance and minimal color distortion.
Tempered for Durability: Physically or chemically tempered for increased strength, impact resistance, and thermal stability.
Uniform Coating: Excellent ITO film uniformity across the entire surface, ensuring consistent electrical and optical performance.
Customizable Formats: Available in sheets, discs, or custom shapes and sizes to meet diverse application needs.
Optoelectronic Compatibility: Ideal for touchscreens, smart glass, displays, solar panels, and transparent heaters.

Customized Option:

Available Thickness: Ranging from 0.33 mm to 10 mm, depending on the insulation requirements and specific applications.
Size & Shape: Supports special-shaped cutting to meet diverse needs. Customizes as per drawing.
Cutting Option: CNC Cutting/Water jet Cutting/Diamond Blade Cutting
Edge Options: Polished Edge/Safety Edge/Beveled Edge/Smooth Edge/2.5D Edge/Pencil Edge/Straight Edge
Tempering Options: Physical Tempered/Checmical Strengthened
Coating Options: Anti-Reflective (AR) Coating/Anti-Fingerprint (AF) Coating/Scratch-Resistant Coating/Indium Tin Oxide(ITO) Coating or Anti-Glare (AG)Coating
Printing Options: UV Printing/Silk screen printing/Laser engraving printing
Adhesive Options: AB Tape/ Double-side Tape/3M Adhesive

Technical Parameters

Materials: Ultra Clear Soda Lime Glass
Shape: Round
Thickness: 2.2mm
Edge Work: Safety Edge
Tempered Method: Physical Tempered
Coating: Indium Tin Oxide(ITO) Coating
Surface Resistance: 7Ω/sq ±10%
Coating Uniformity: ≤ ±10% across the entire surface
Density: 2.5 g/cm³
Mohs Scale: ≥6H
Strengthness: IK07
Operating Temperature Range: Suitable for -30°C to 250°C.
Thickness Tolerances:± 0.2mm
Dimensional Tolerances:±0.5mm for large size; ±0.1mm for small size
Surface Quality: No visible scratches, bubbles, or inclusions under inspection light
Weather Resistance: Strong resistance to high temperatures and humidity, reducing aging effects

Application

Touch Panels & Screens: As a conductive and transparent layer for capacitive touchscreens in smartphones, tablets, and industrial monitors.
Smart Glass & Switchable Glass: Used as a transparent conductive layer for smart glass that changes opacity with voltage input.
Photovoltaic & Solar Cells: Ideal as a front electrode in thin-film solar panels due to its high conductivity and transparency.
EMI Shielding & Transparent Heaters: Suitable for electromagnetic shielding or transparent heating applications in vehicles, displays, and aerospace components.
Display & Optical Devices: Used in LCDs, OLEDs, projection systems, and other optoelectronic displays requiring uniform conductivity and optical clarity.

Company and factory equipment

Customer Visit

Company Profile

Dlivery & Payment

Packaging:

Step 1: PE film coating(Normally) / paper(For seashipment prevent wet).
Step 2: Kraft paper for fixation.
Step 3: Carton for glass safety protection.
Step 4: Custom make plywood case with hinge for custom(fumigation + convenient inspection) convenience.
Step 5: Packing strap for further fixation.
