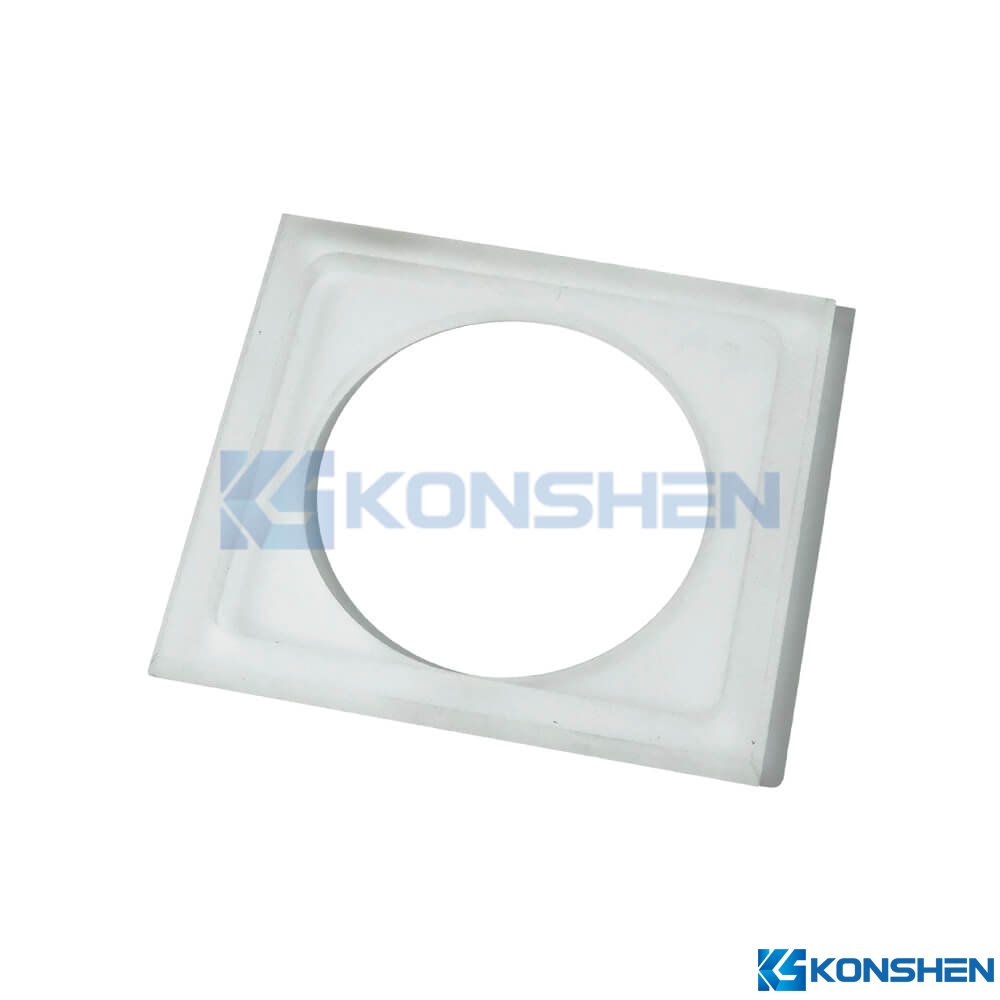

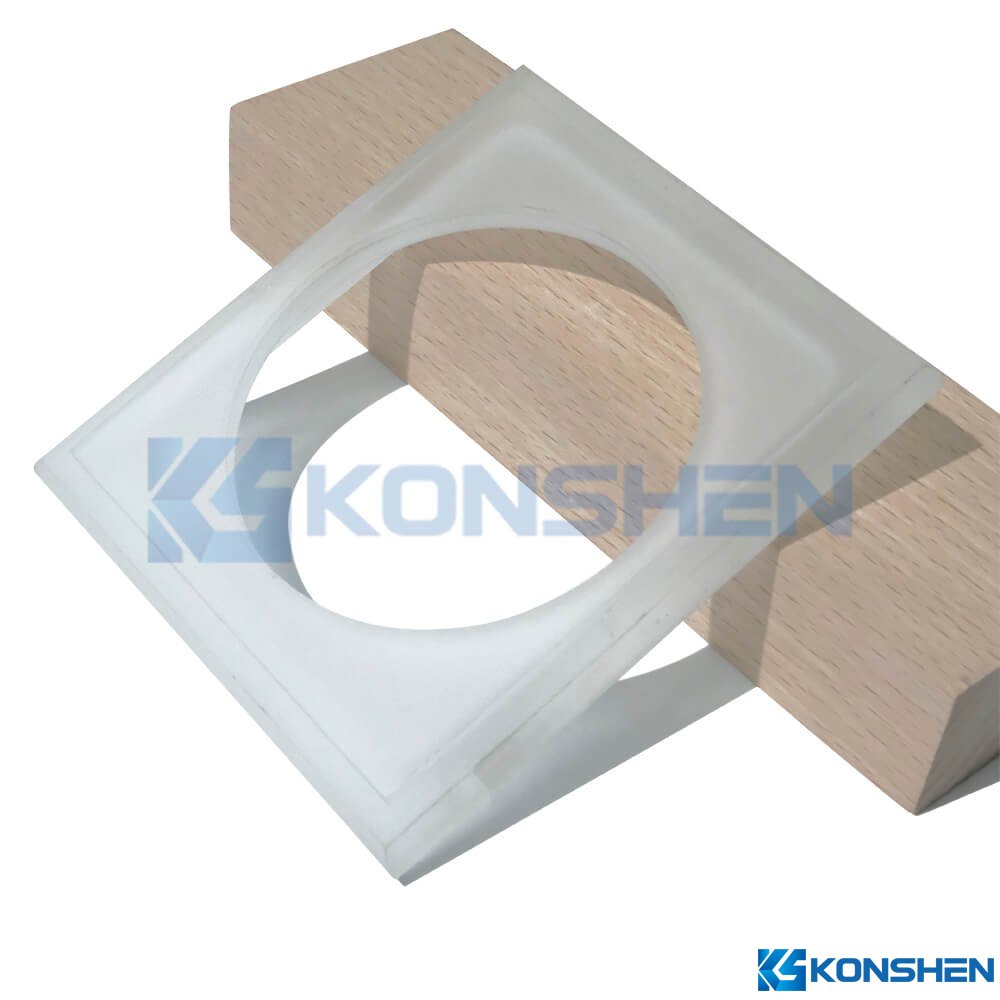

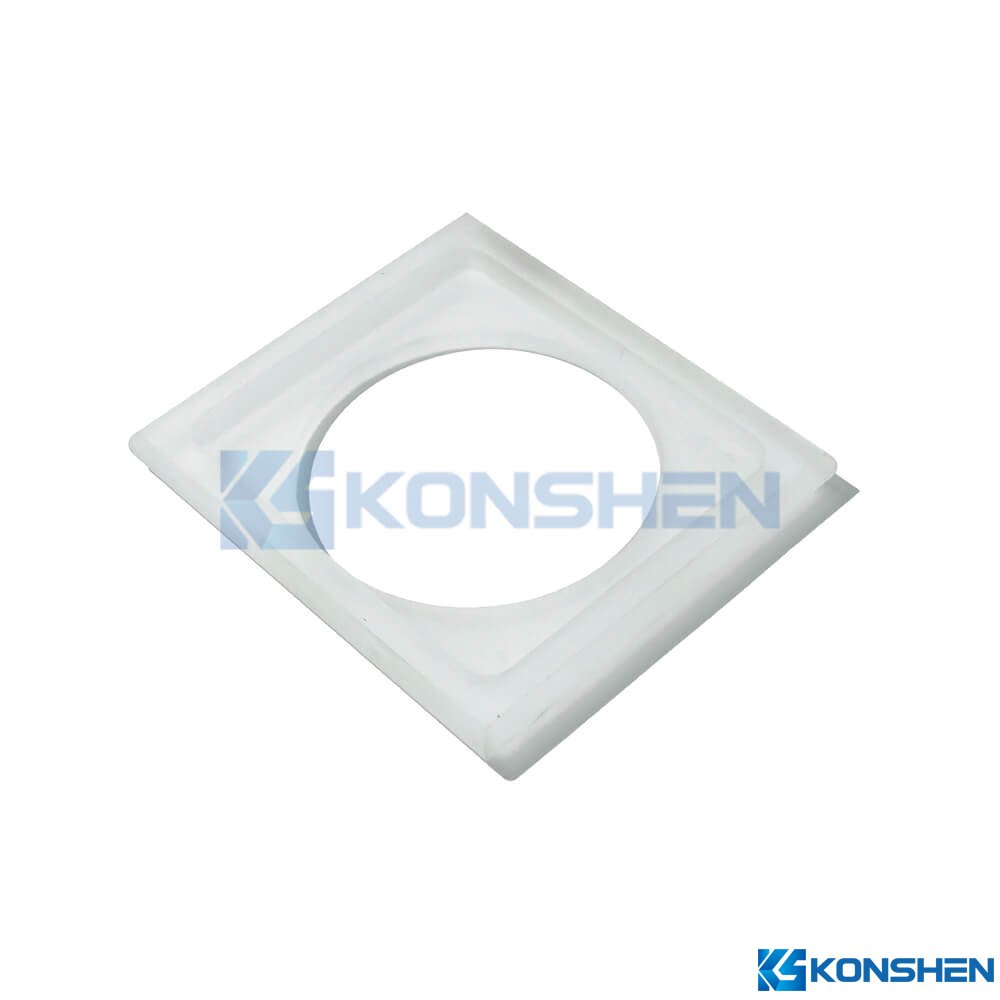

4mm Stepped Edge Etching AG Coated Toughened Glass for Lighting

Key Features:

• Etched AG Anti-Glare Coating: Effectively reduces surface reflections and glare, improving light diffusion and visual comfort, ideal for professional lighting and display environments.

• Ultra-Clear Glass Material: Provides high light transmittance, delivering bright and accurate illumination with minimal color distortion.

• Circular Cutout Design: Enables easy integration with light sources, lenses, or sensors for enhanced functionality in various applications.

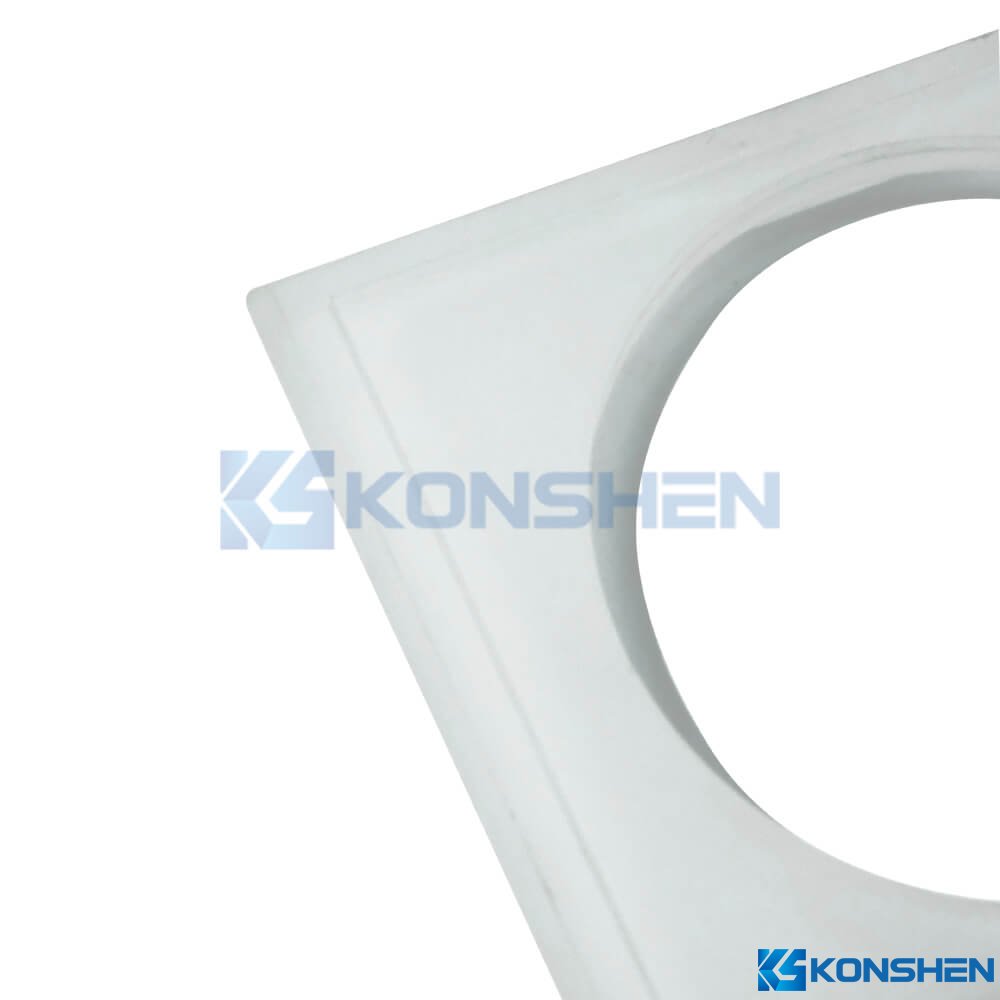

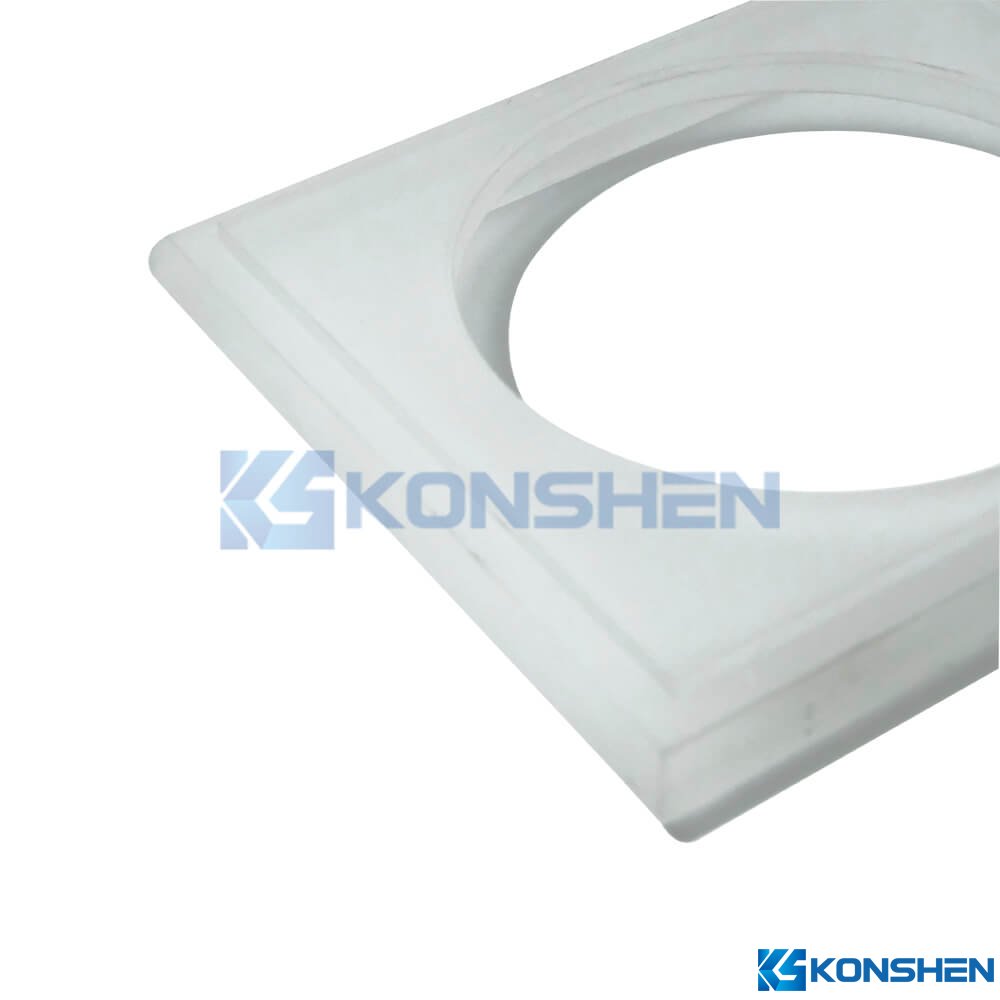

• Stepped Edge Processing: Ensures precise fitting and stability during assembly, suitable for complex structural designs.

• Safety and Strength: Physical Tempering greatly improves impact resistance and thermal stability, reducing the risk of breakage and ensuring user safety.

• Customizable Options: Available in different sizes, shapes, coatings, and edge treatments to meet specific project requirements.

Customized Option:

• Available Thickness: Ranging from 0.1 mm to 15 mm, depending on the insulation requirements and specific applications.

• Size & Shape: Supports special-shaped cutting to meet diverse needs. Customizes as per drawing.

• Cutting Option: CNC Cutting/Water jet Cutting/Diamond Blade Cutting

• Edge Options: Polished Edge/Safety Edge/Beveled Edge/Smooth Edge/2.5D Edge/Pencil Edge/Straight Edge

• Tempering Options: Physical Tempered/Checmical Strengthened

• Coating Options: Anti-Reflective (AR) Coating/Anti-Fingerprint (AF) Coating/Scratch-Resistant Coating/Indium Tin Oxide(ITO) Coating or Anti-Glare (AG)Coating

• Printing Options: UV Printing/Silk screen printing/Laser engraving printing

• Adhesive Options: AB Tape/ Double-side Tape/3M Adhesive

• Materials: Ultra Clear Glass

• Shape: Square

• Thickness: 4mmT

• Edge Work: Stepped edge by CNC machine

• Tempered Method: Physically Tempering

• Coating: Anti-glare (AG) Coating

• Density: 2.5 g/cm³

• Hardness: at least 7H

• Strengthness: IK08

• Operating Temperature Range: Suitable for -30°C to 250°C.

• Thickness Tolerances:± 0.2mm

• Dimensional Tolerances: ±0.5mm for large size; ±0.1mm for small size

• Weather Resistance: Strong resistance to high temperatures and humidity, reducing aging effects

• UV Resistance: High UV-blocking capability

• Impact Resistance: 2-5 times stronger than standard glass. Specific impact resistance can vary based on thickness and treatment.

• Architectural and Decorative Lighting: Ideal for recessed lights, wall washers, and high-end decorative fixtures, delivering consistent light diffusion and a premium appearance.

• Commercial and Retail Displays: Perfect for display cabinets, showcases, and product lighting systems, enhancing product visibility while minimizing glare.

• Industrial and Professional Equipment: Suitable for precision instruments, machine vision systems, and industrial control panels requiring anti-glare properties and durability.

• Stage and Studio Lighting: Used in spotlights, studio lamps, and other high-intensity lighting applications to ensure uniform light and visual clarity.

• Outdoor and Harsh Environment Applications: Thanks to its tempered strength and AG coating, it performs well in outdoor lighting, public spaces, and environments with frequent exposure to bright light.
