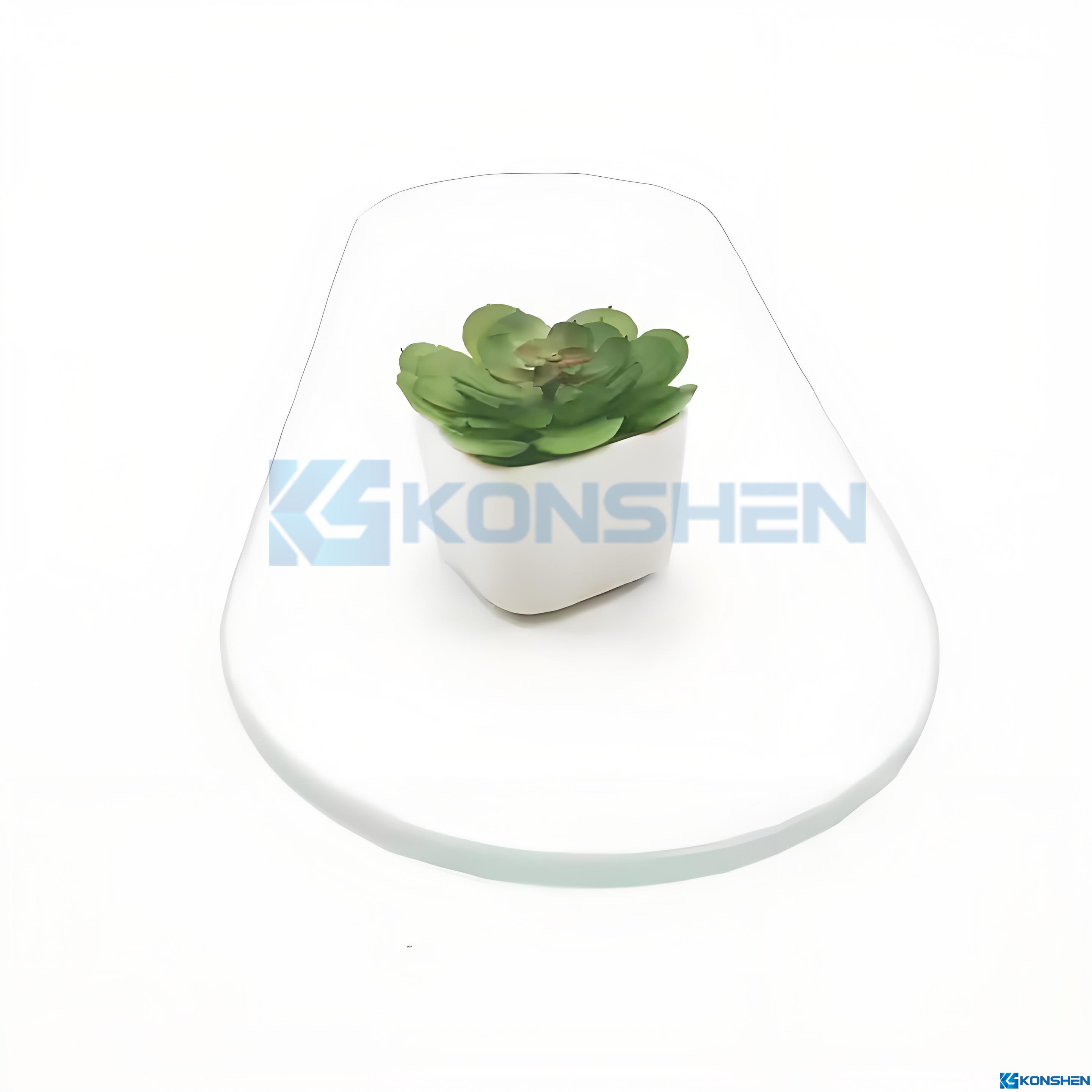

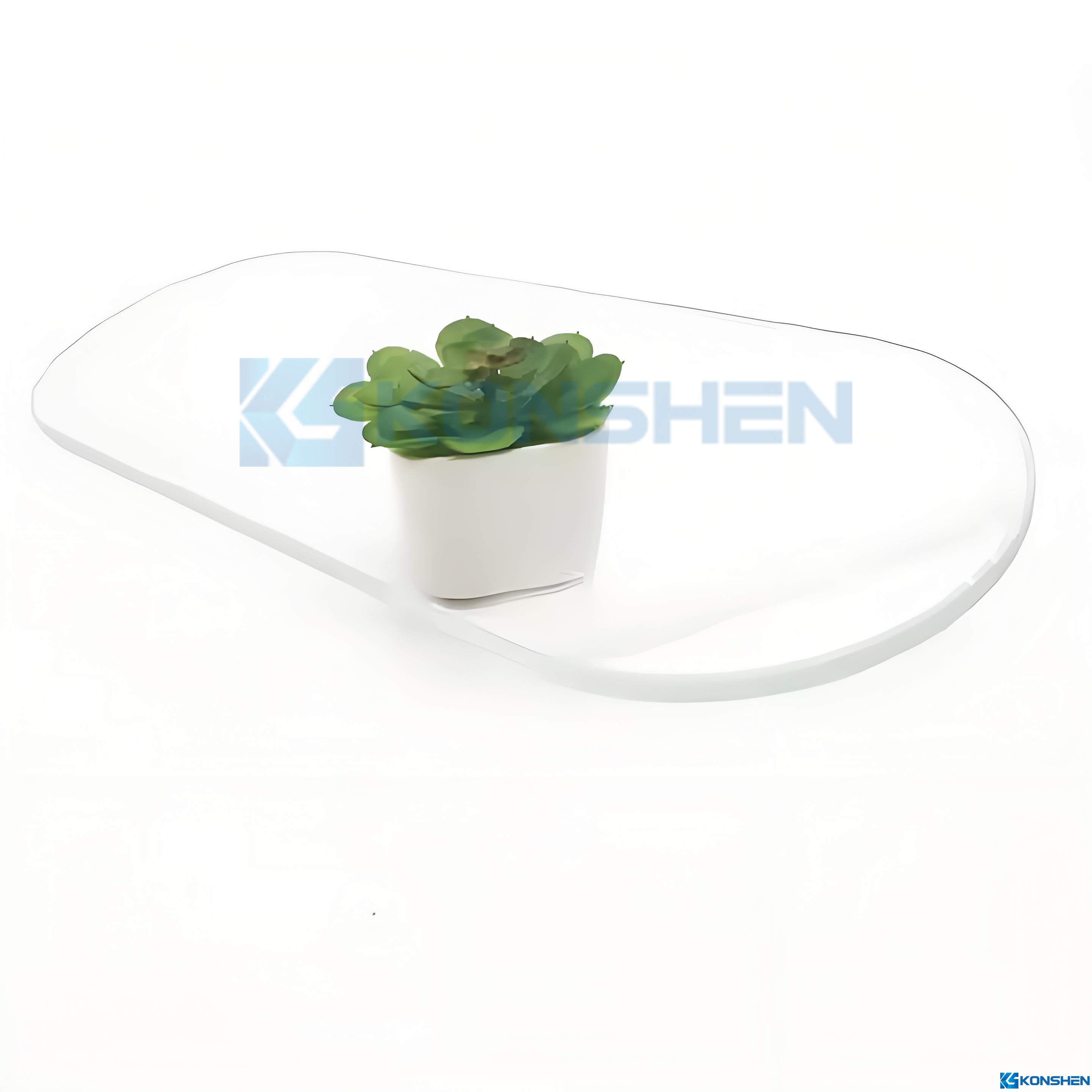

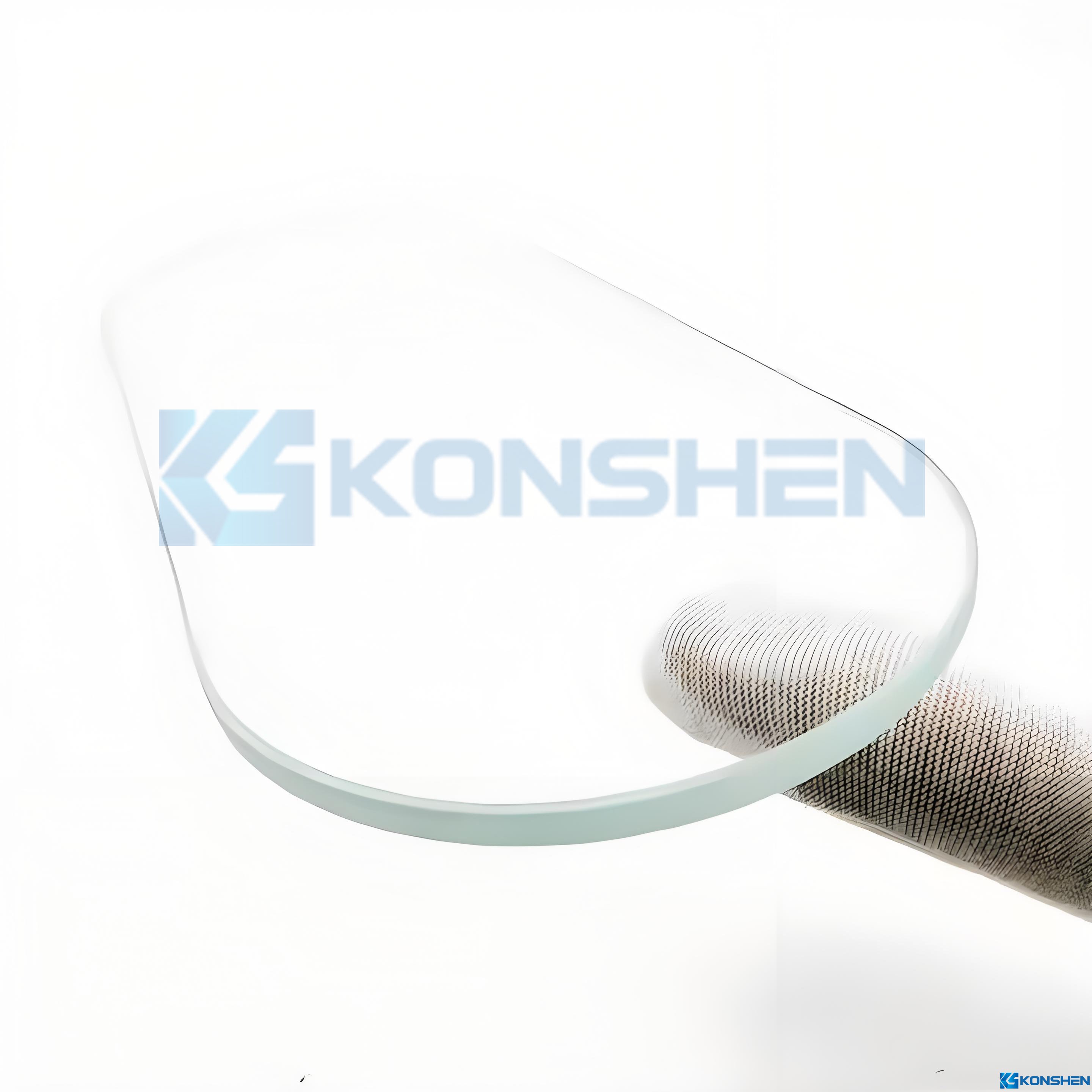

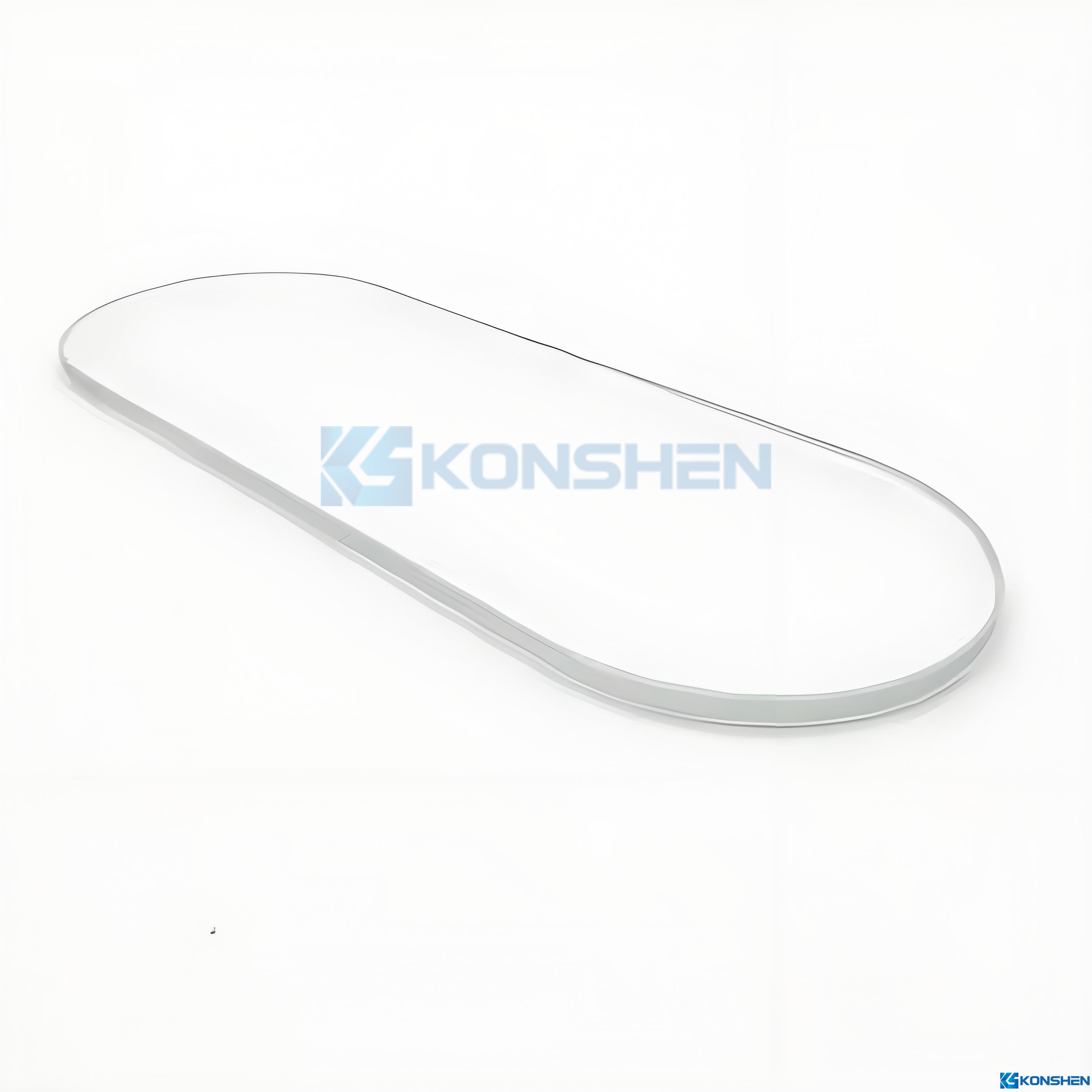

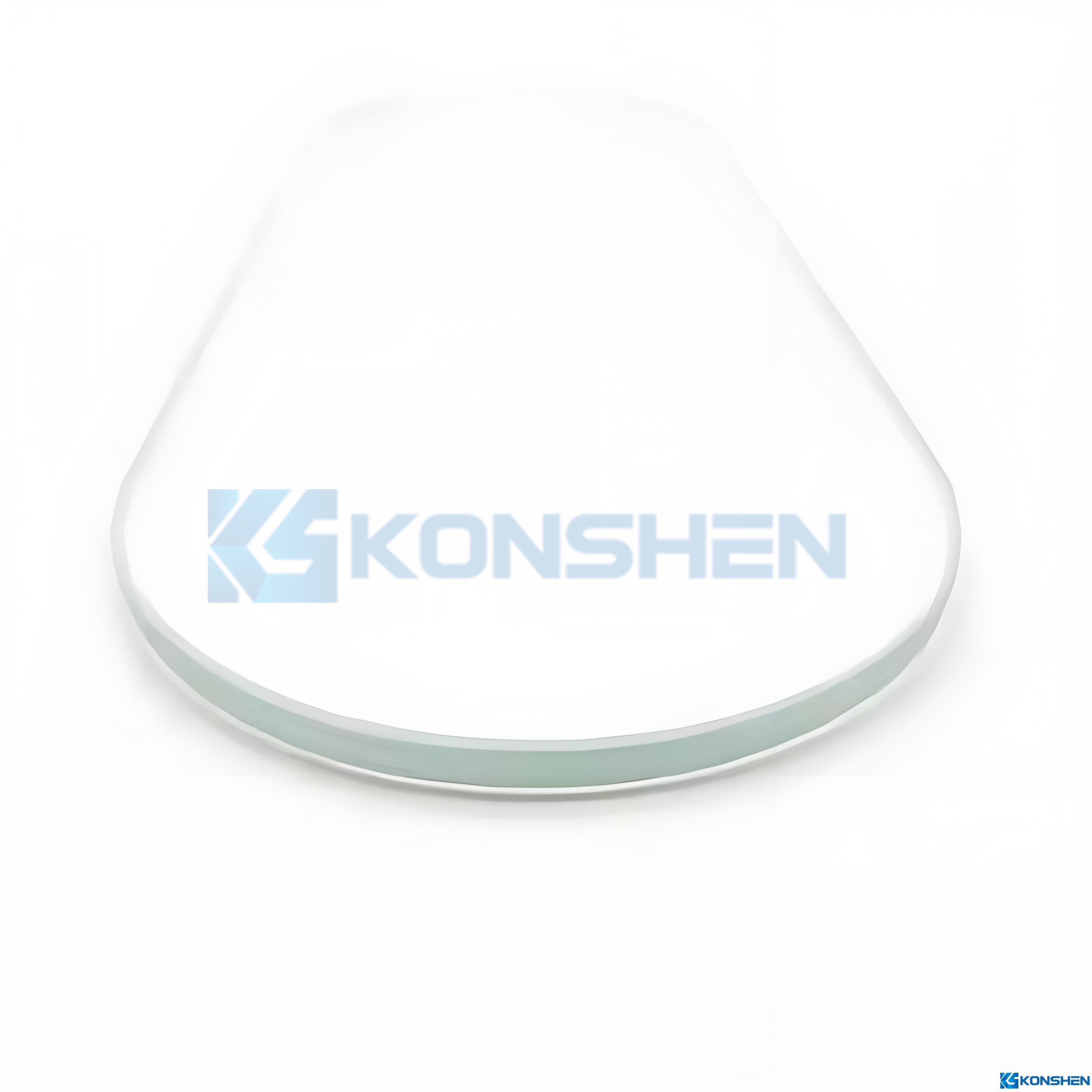

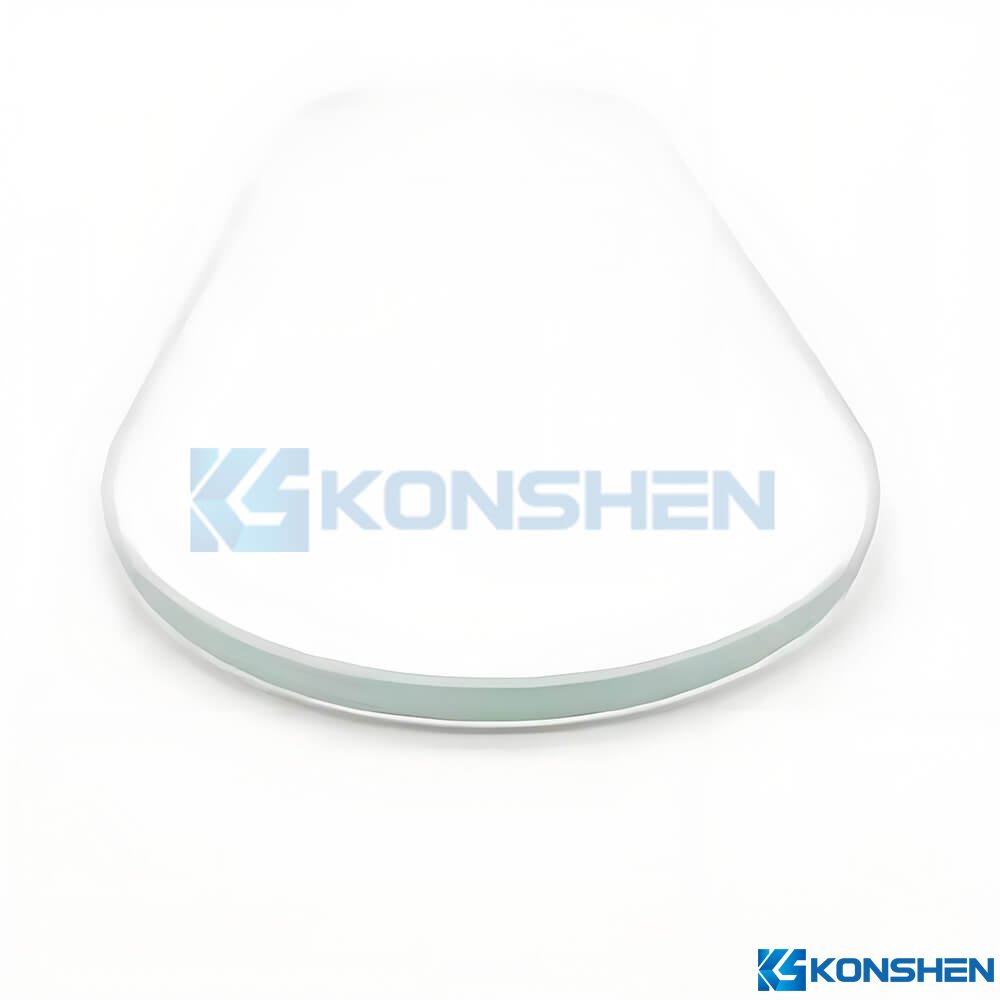

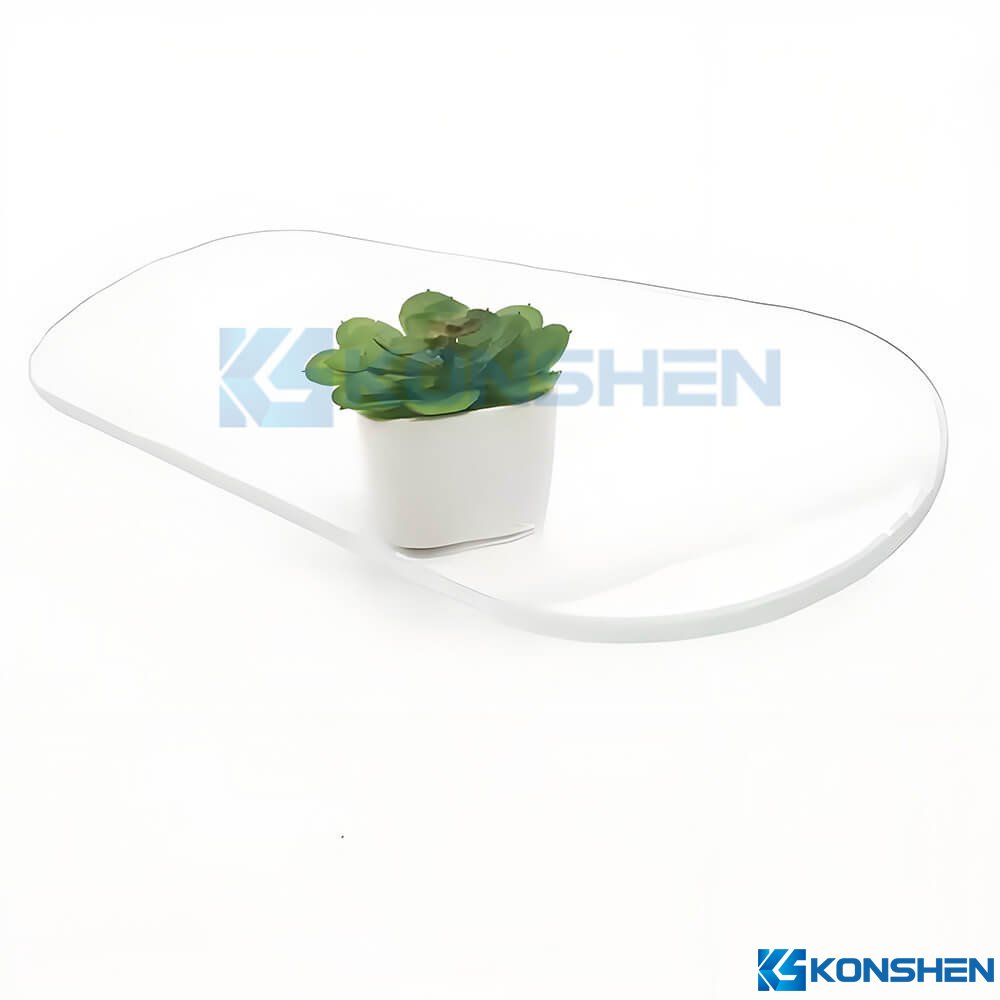

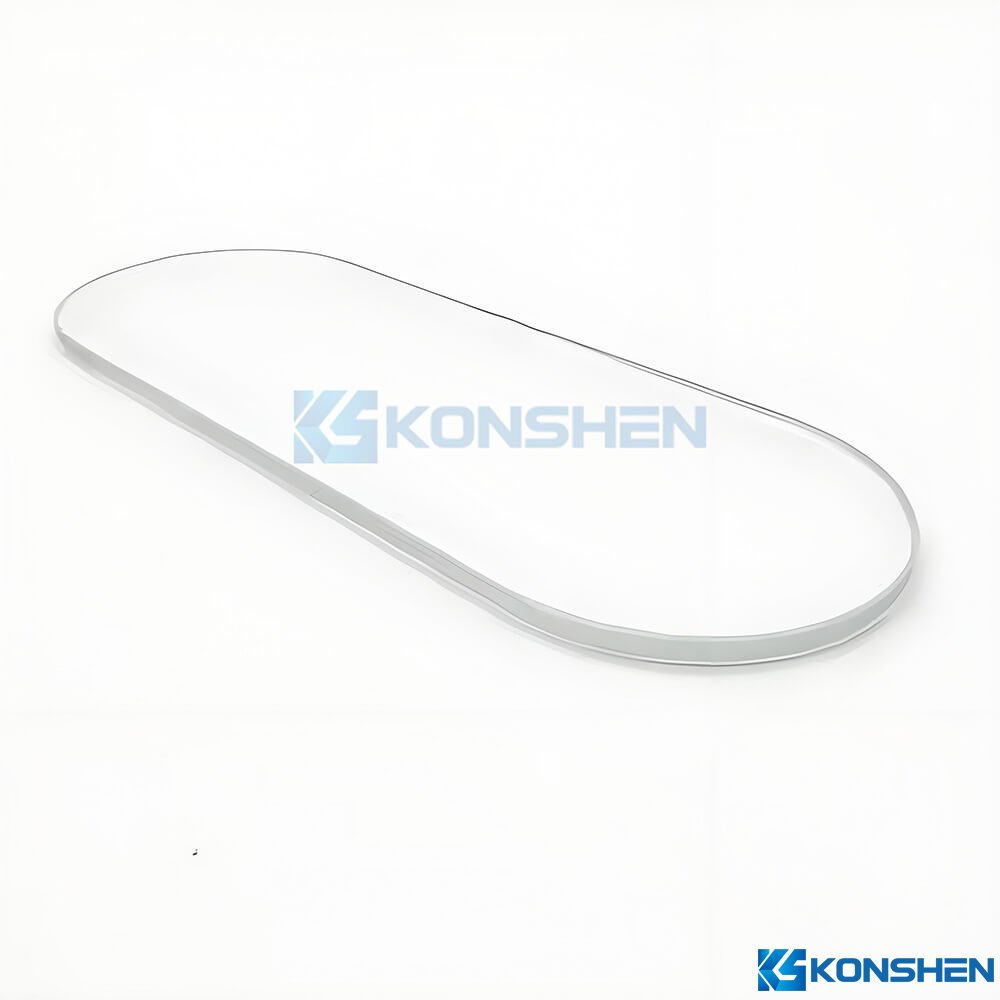

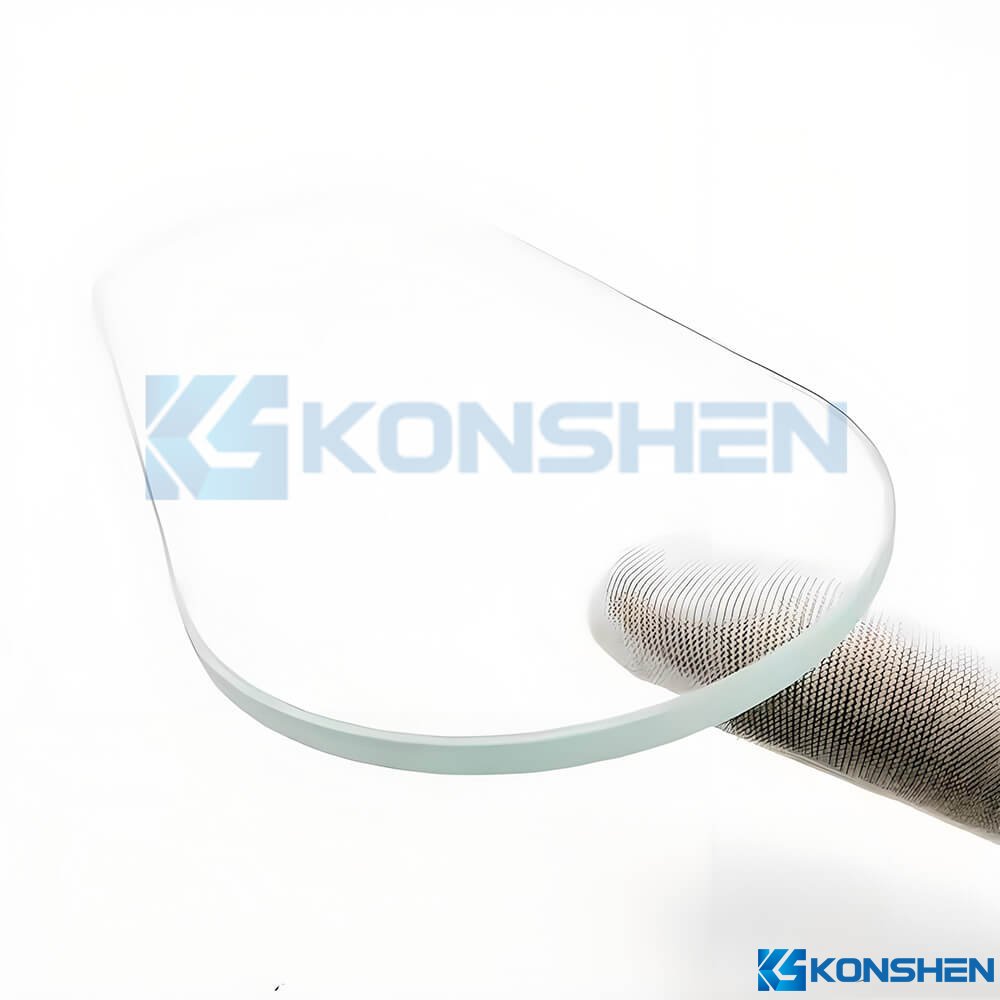

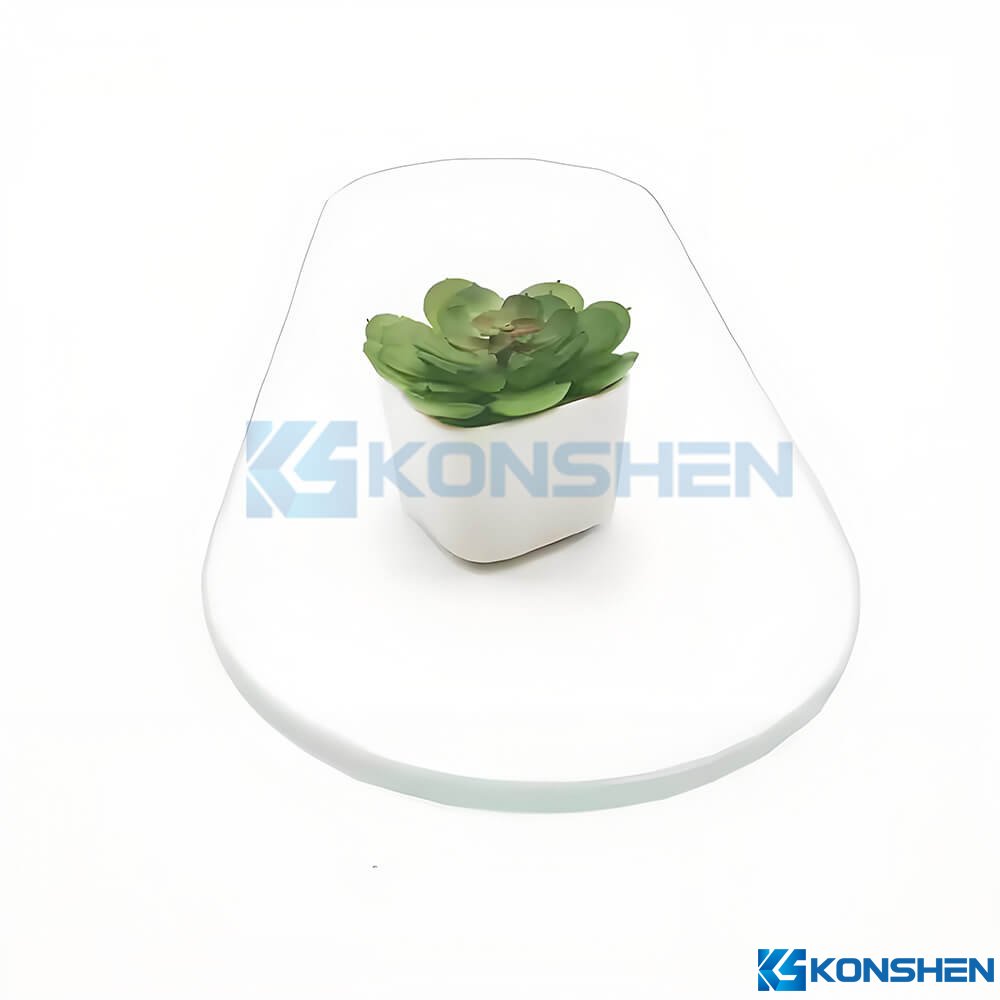

Wholesale 3.85mm Ultra Clear Tempered Glass Cover for LED Lighting

Product Detail

Key Features:

High Light Transmission: ≥90% transmittance ensures bright and uniform illumination.
Enhanced Durability: IK07-rated impact resistance offers reliable protection in harsh environments.
Thermal Stability: Suitable for extreme temperatures ranging from -30°C to 250°C.
Smooth Edge Finishing: Smooth edges reduce safety risks and improve installation precision.
Strict Dimensional Tolerance: Controlled thickness and dimensions for accurate fitting.
Premium Appearance: Flawless surface with no visible scratches, bubbles, or inclusions.

Customized Option:

Materials Options: Soda Lime Glass,Mid-Aluminum Glass,High-Aluminum Glass,Gorilla Glass,AGC Glass,etc
Available Thickness:0.33mm to 10 mm, customizable for different application needs.
Size & Shape: Irregular or custom shapes and dimensions as per drawing
Cutting Methods:Laser Cutting,Water jet Cutting,Diamond Blade Cutting,CNC cutting
Edge Options:Polished Edge,Safety Edge,Beveled Edge,Smooth Edge,2.5D Edge,Pencil Edge,Straight Edge
Coating Options: Optional Anti-Reflective (AR) Coating,Anti-Fingerprint (AF) Coating,Scratch-Resistant Coating(AS) or Anti-Glare Coating(AG)
Printing Options: UV Printing,Silk screen printing,Laser engraving printing
Adhesive Soluions:3M tape, double-sided tape, or AB glue available upon request.

Technical Parameters

Materials: Ultra Clear Glass
Shape: Irregular
Thickness: 3.85mmT
Edge Work: Smooth Edge
Tempered Method: Physical Tempered
Transmission Rate: ≥ 90%
Density: 2.5 g/cm³
Mohs scale: at least 7H
Strengthness: IK07
Operating Temperature Range: Suitable for -30°C to 250°C.
Thickness Tolerances:± 0.2mm
Dimensional Tolerances:±0.5mm for large size; ±0.1mm for small size
Surface Quality:No visible scratches, bubbles, or inclusions under inspection light
Weather Resistance: Strong resistance to high temperatures and humidity, reducing aging effects
Impact Resistance: 2-5 times stronger than standard glass. Specific impact resistance can vary based on thickness and treatment.
Thermal Shock Resistance:Can withstand temperature difference of up to 150°C without breakage.

Application

Outdoor and Industrial Lighting: Floodlights, streetlights, tunnel lights requiring high strength and weather resistance.
Indoor Commercial Lighting: Ceiling lights, panel lights, and downlights in malls, offices, and exhibitions.
Home Lighting: Decorative or smart LED fixtures with aesthetic and optical clarity needs.
Specialized Equipment: Medical lights, photography lamps, and stage lighting demanding optical and safety performance.

Company and factory equipment

Customer Visit

Company Profile

Dlivery & Payment

Packaging:

Step 1: PE film coating(Normally) / paper(For seashipment prevent wet).
Step 2: Kraft paper for fixation.
Step 3: Carton for glass safety protection.
Step 4: Custom make plywood case with hinge for custom(fumigation + convenient inspection) convenience.
Step 5: Packing strap for further fixation.
