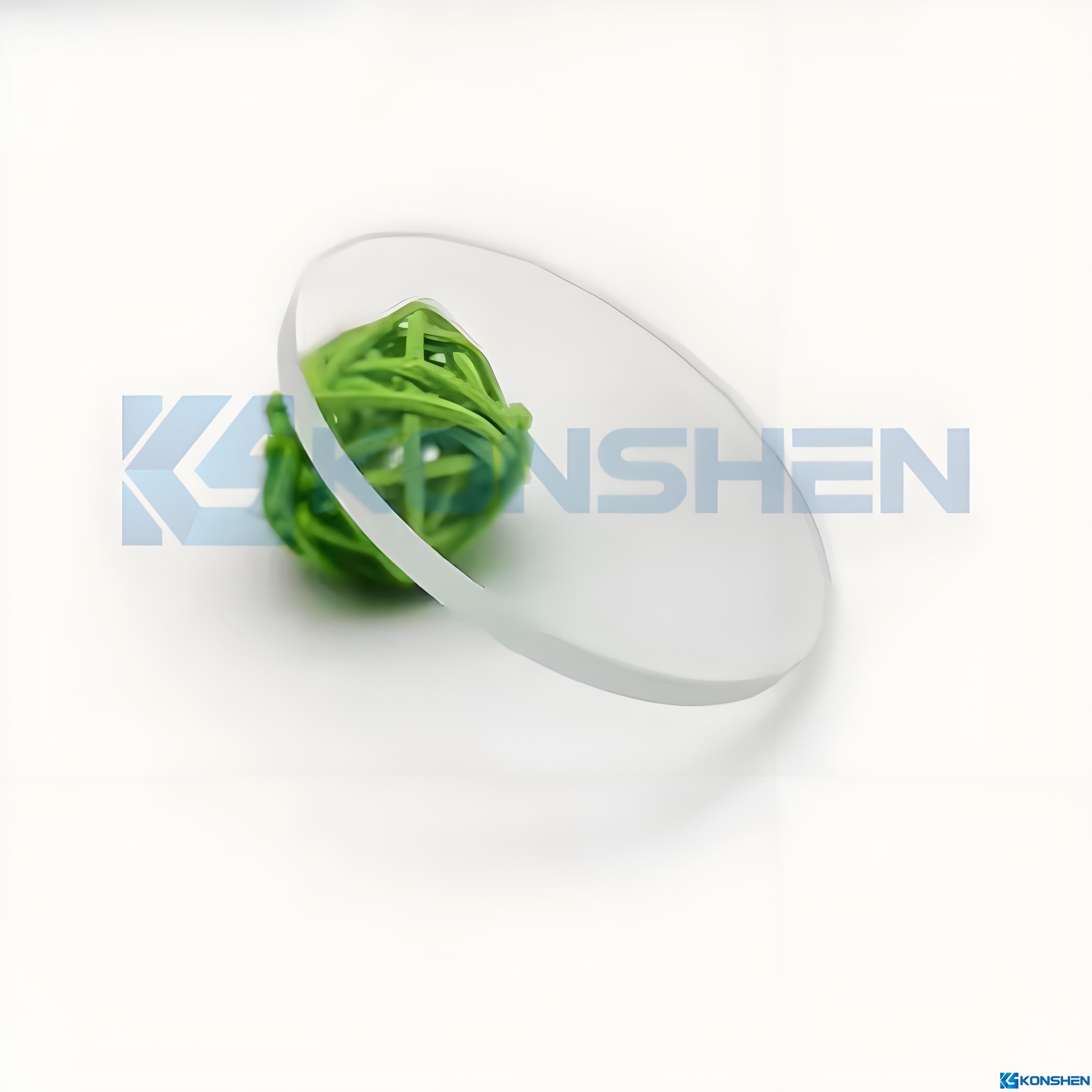

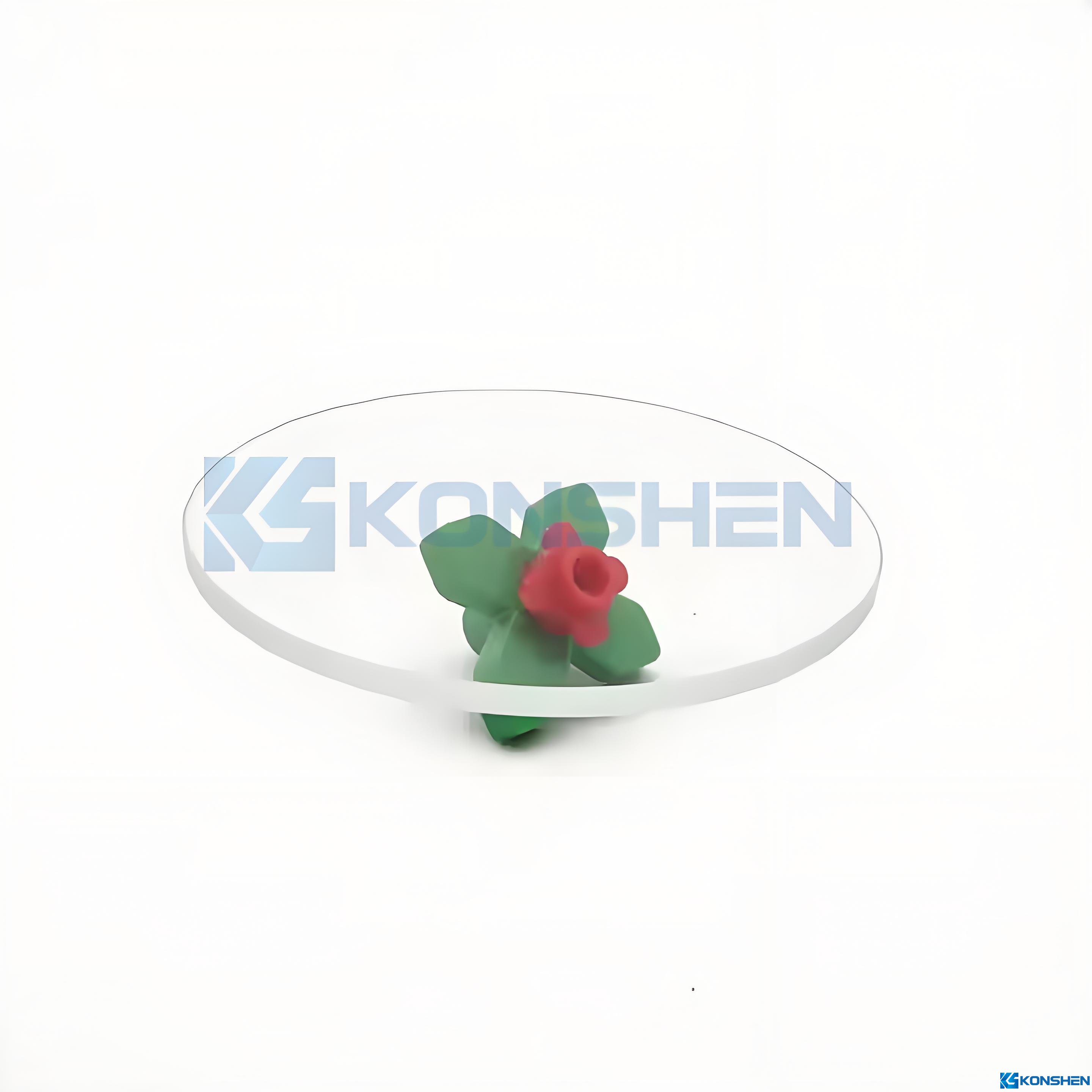

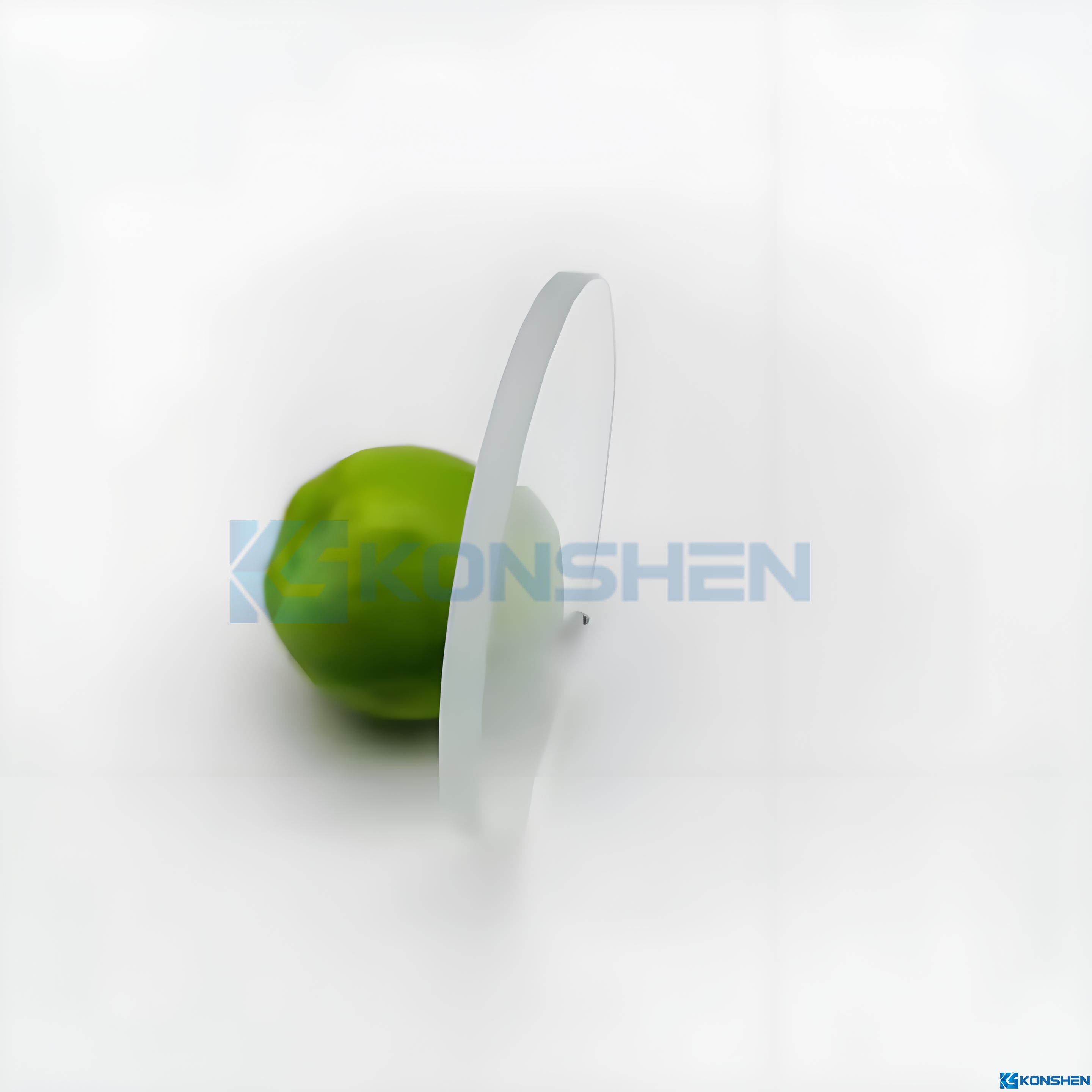

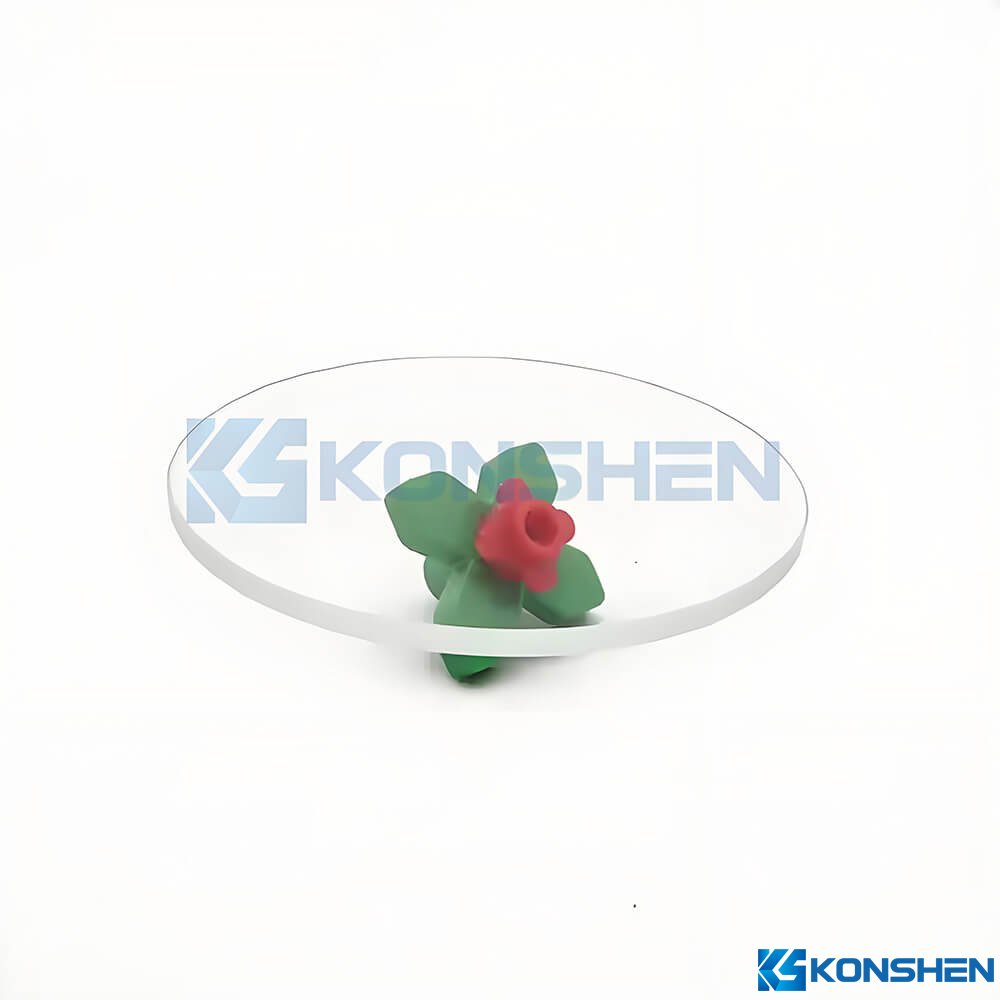

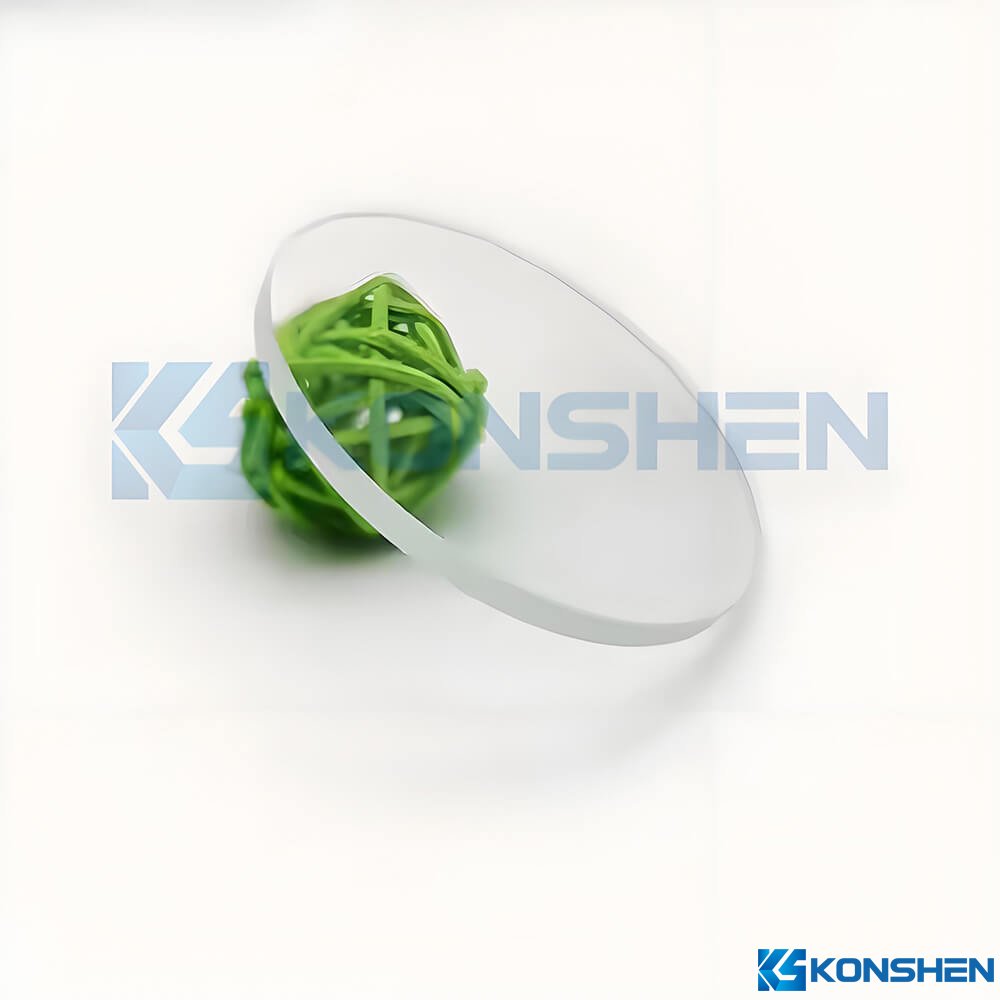

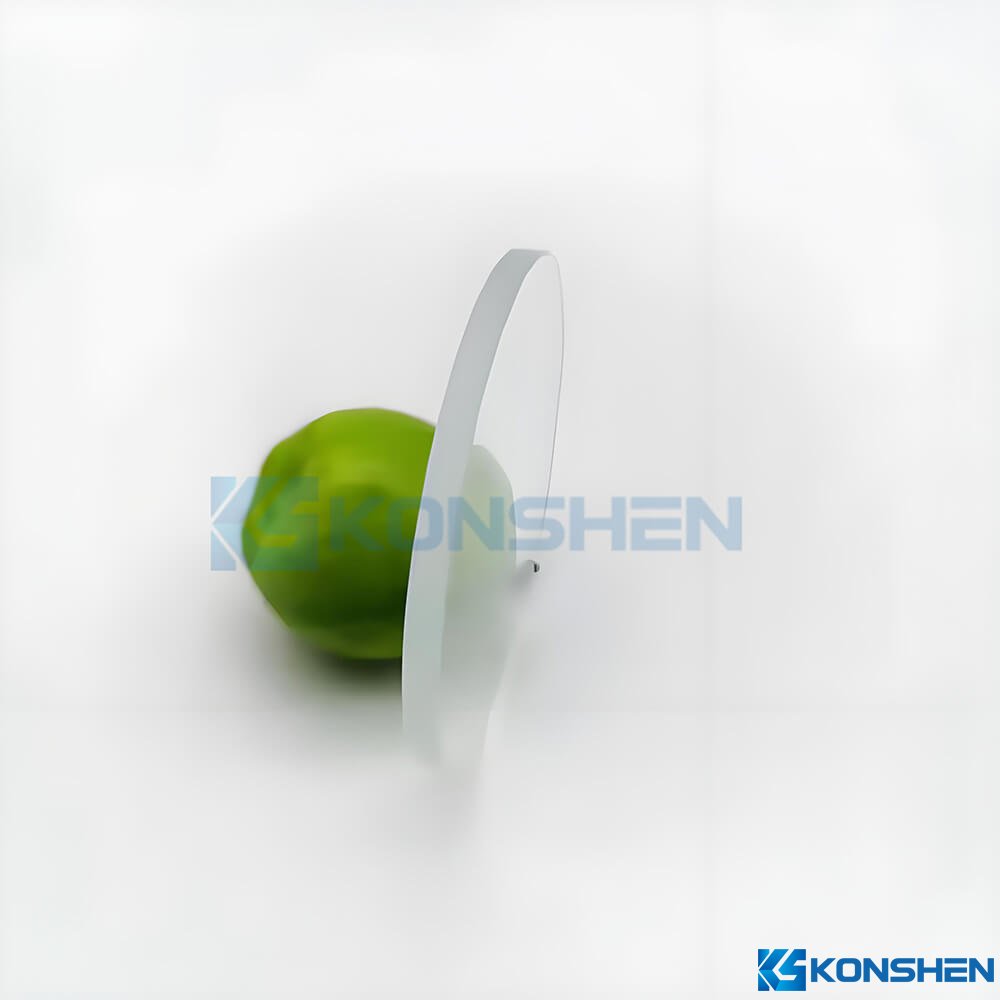

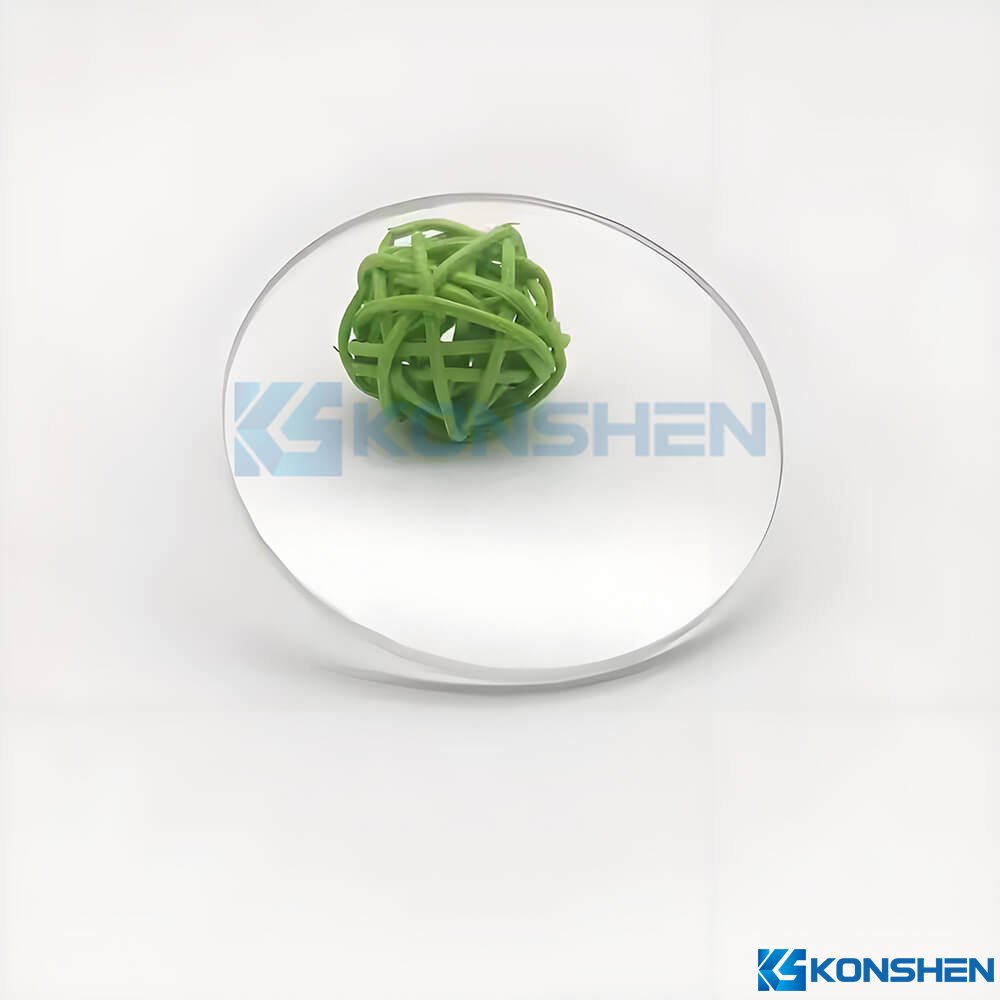

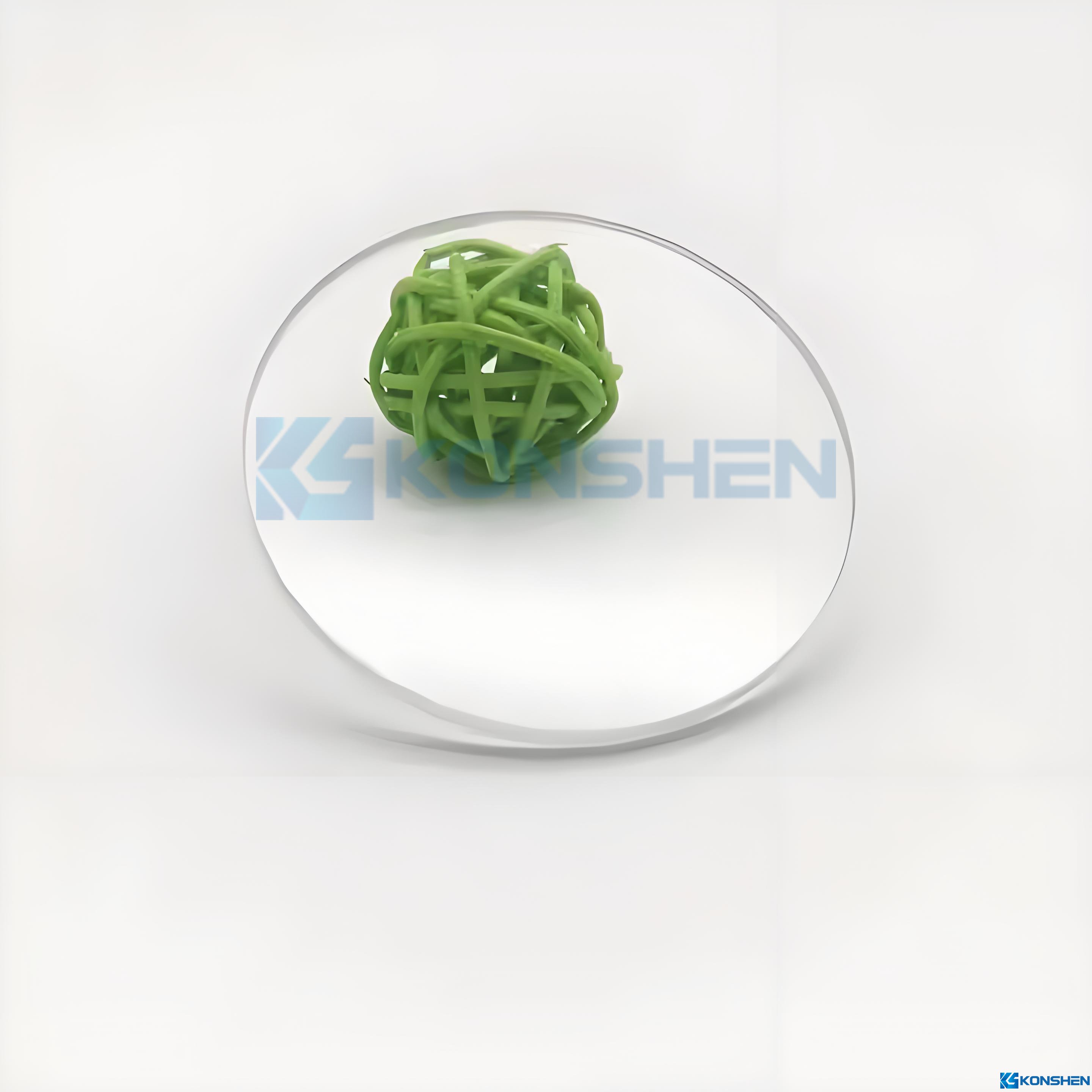

Wholesale 3mm Ultra Clear Physically Tempered Lighting Glass

Product Detail

Key Features:

Ultra-Clear Glass: High-transparency glass provides superior optical clarity, ideal for lighting applications where clear light transmission is essential.
Tempered for Strength: The glass is heat-treated for increased impact resistance, ensuring durability and safety in various lighting fixtures.
Precision Cut: Precision-engineered 150mm diameter ensures a perfect fit for various spotlight and lighting designs.
Versatile Application: Suitable for use in spotlights, downlights, and other lighting components, providing both function and aesthetic appeal.
High Durability: Tempered glass ensures resistance to scratches, impacts, and heat, extending the lifespan of your lighting systems.

Customized Option:

Available Thickness: Ranging from 0.33 mm to 10 mm, depending on the insulation requirements and specific applications.
Size & Shape: Supports special-shaped cutting to meet diverse needs. Customizes as per drawing.
Cutting Option: CNC Cutting/Water jet Cutting/Diamond Blade Cutting
Edge Options: Polished Edge/Safety Edge/Beveled Edge/Smooth Edge/2.5D Edge/Pencil Edge/Straight Edge
Tempering Options: Physical Tempered/Checmical Strengthened
Coating Options: Anti-Reflective (AR) Coating/Anti-Fingerprint (AF) Coating/Scratch-Resistant Coating/Indium Tin Oxide(ITO) Coating or Anti-Glare (AG)Coating
Printing Options: UV Printing/Silk screen printing/Laser engraving printing
Adhesive Options: AB Tape/ Double-side Tape/3M Adhesive

Technical Parameters

Materials: Low Iron Glass
Shape: Round
Thickness: 3mm
Diameter:150mm
Edge Work: Safety Edge
Tempered Method: Physical Tempered
Density: 2.5 g/cm³
Mohs Scale: ≥6H
Strengthness: IK07
Operating Temperature Range: Suitable for -30°C to 250°C.
Thickness Tolerances:± 0.2mm
Dimensional Tolerances:±0.5mm for large size; ±0.1mm for small size
Surface Quality: No visible scratches, bubbles, or inclusions under inspection light
Weather Resistance: Strong resistance to high temperatures and humidity, reducing aging effects

Application

Spotlights & Downlights: Ideal for use as cover glass in spotlights and downlights, providing high transparency and optimal light diffusion.
Lighting Fixtures: Perfect for various lighting fixtures, enhancing the aesthetic appeal and functionality of the lighting system.
Interior Design: Used in modern lighting designs for homes, offices, and commercial spaces, combining both style and durability.
Optical Components: Can be used in optical devices or other equipment where clear, high-quality glass is required to ensure optimal performance.
Outdoor Lighting: Suitable for outdoor lighting solutions, offering resilience to weather conditions and heat.

Company and factory equipment

Customer Visit

Company Profile

Dlivery & Payment

Packaging:

Step 1: PE film coating(Normally) / paper(For seashipment prevent wet).
Step 2: Kraft paper for fixation.
Step 3: Carton for glass safety protection.
Step 4: Custom make plywood case with hinge for custom(fumigation + convenient inspection) convenience.
Step 5: Packing strap for further fixation.
