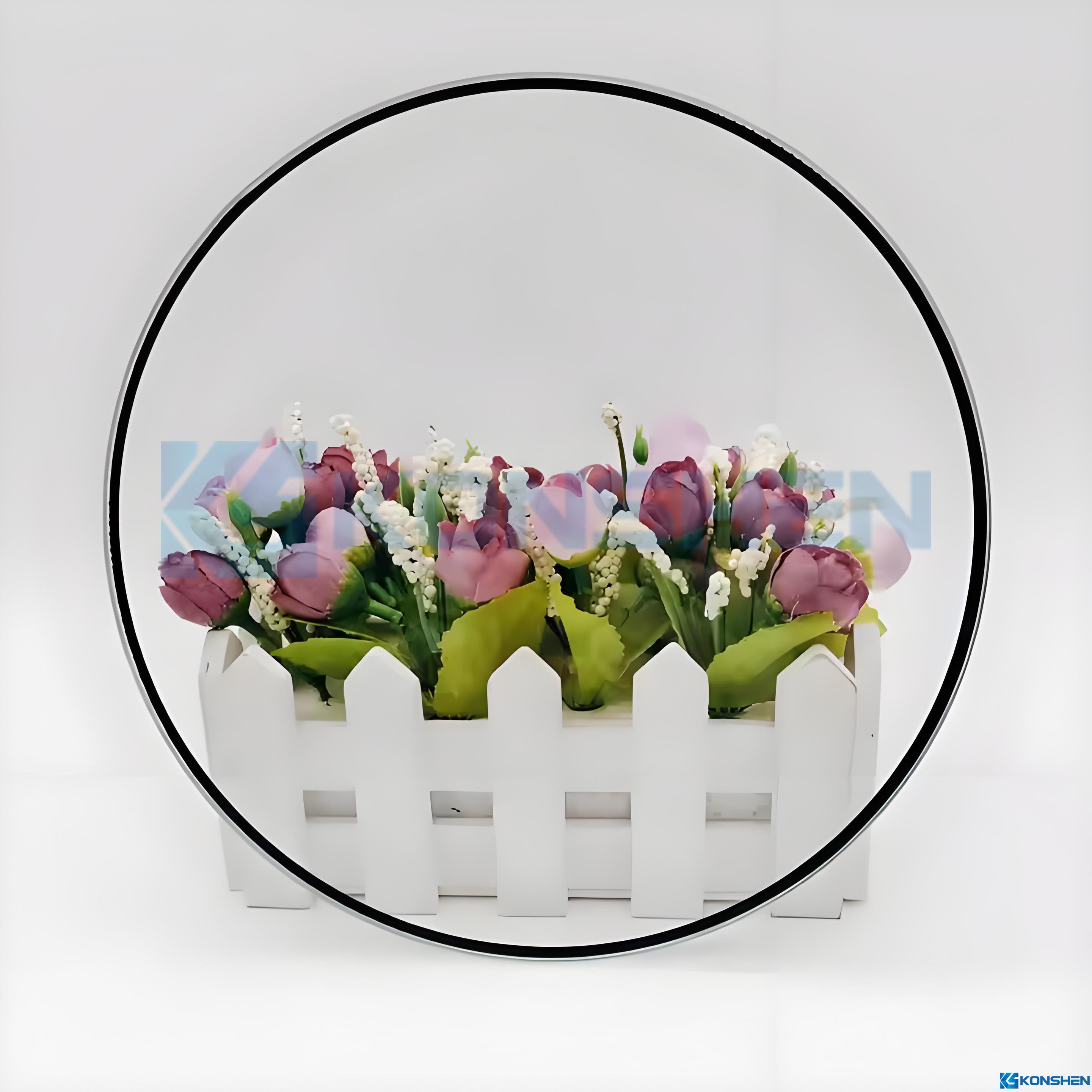

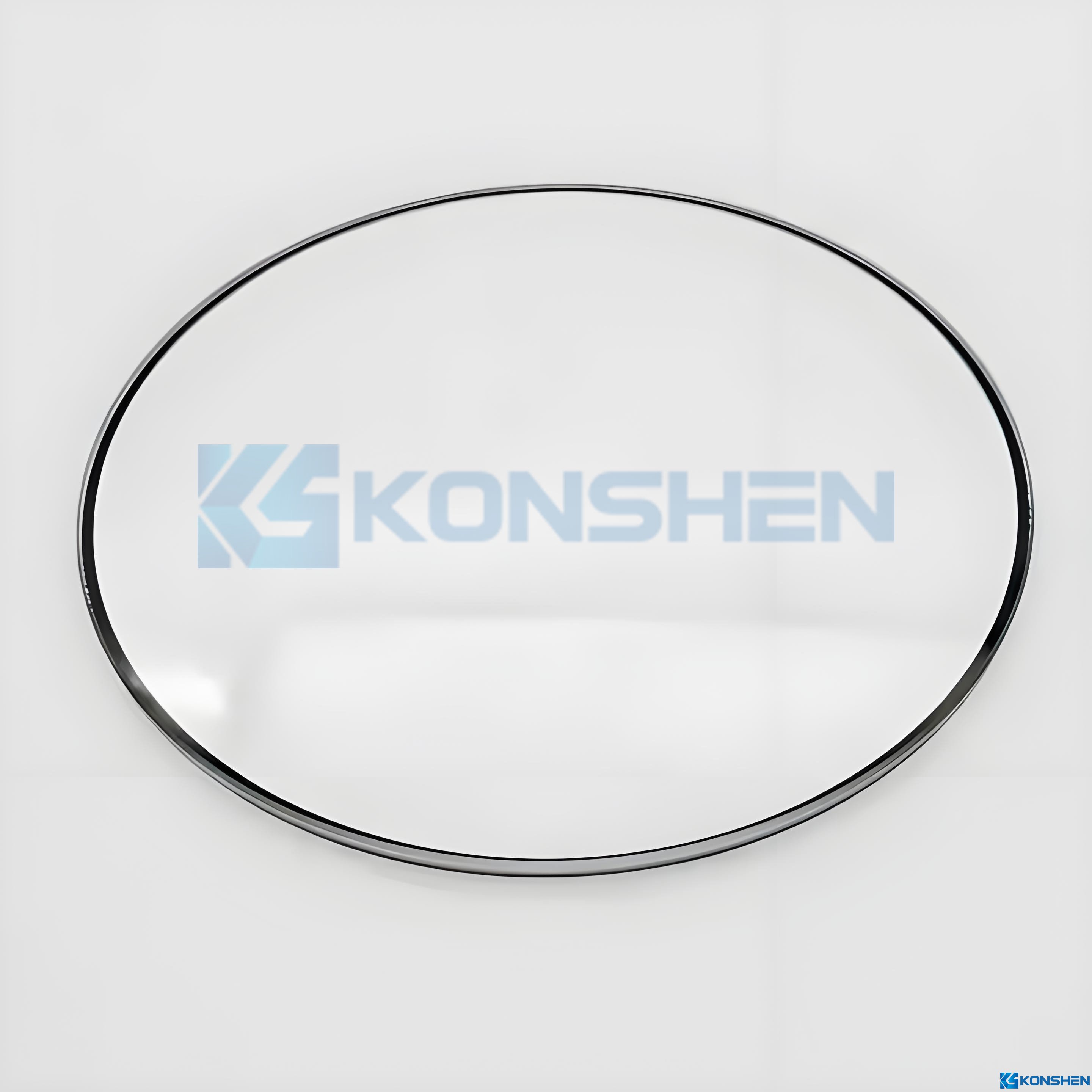

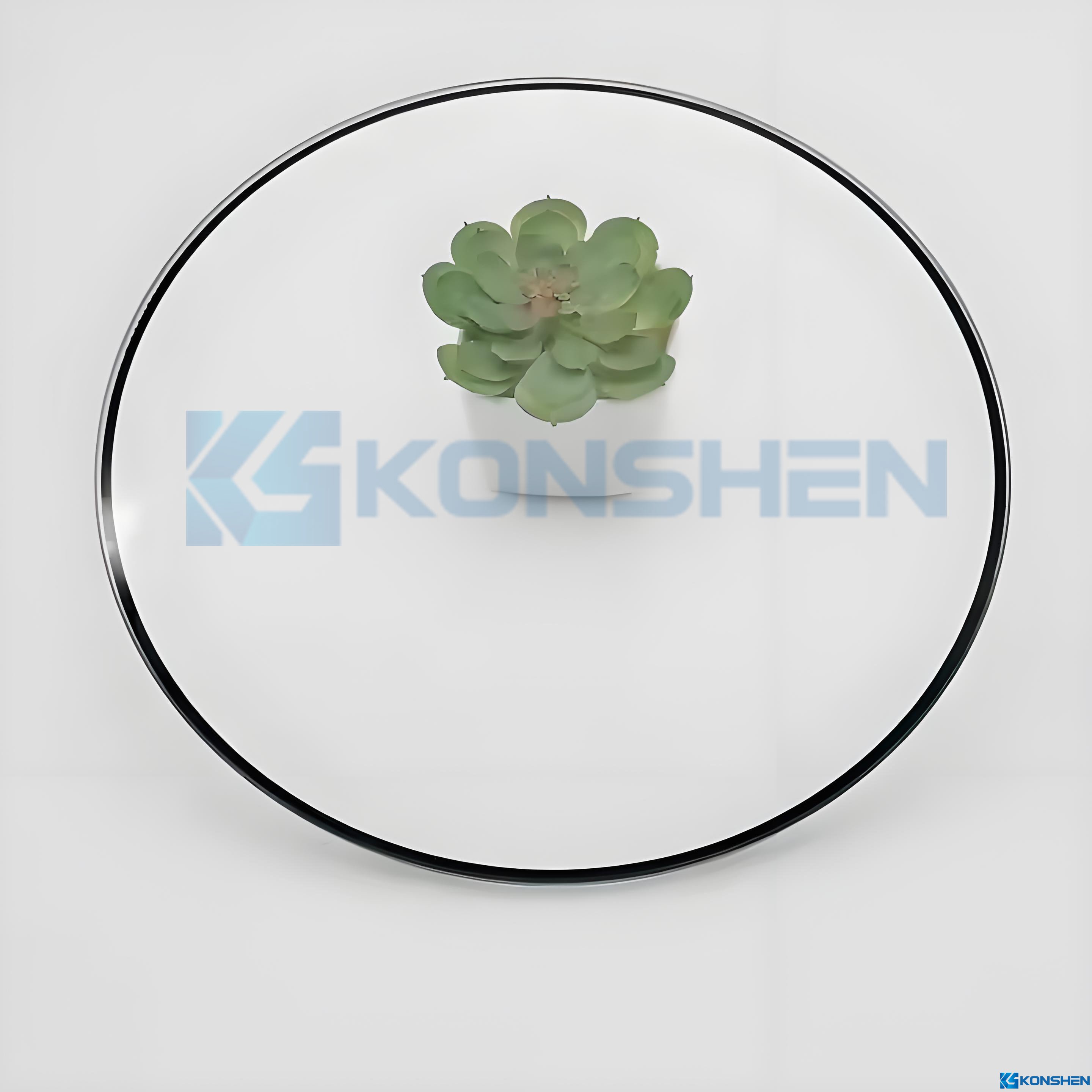

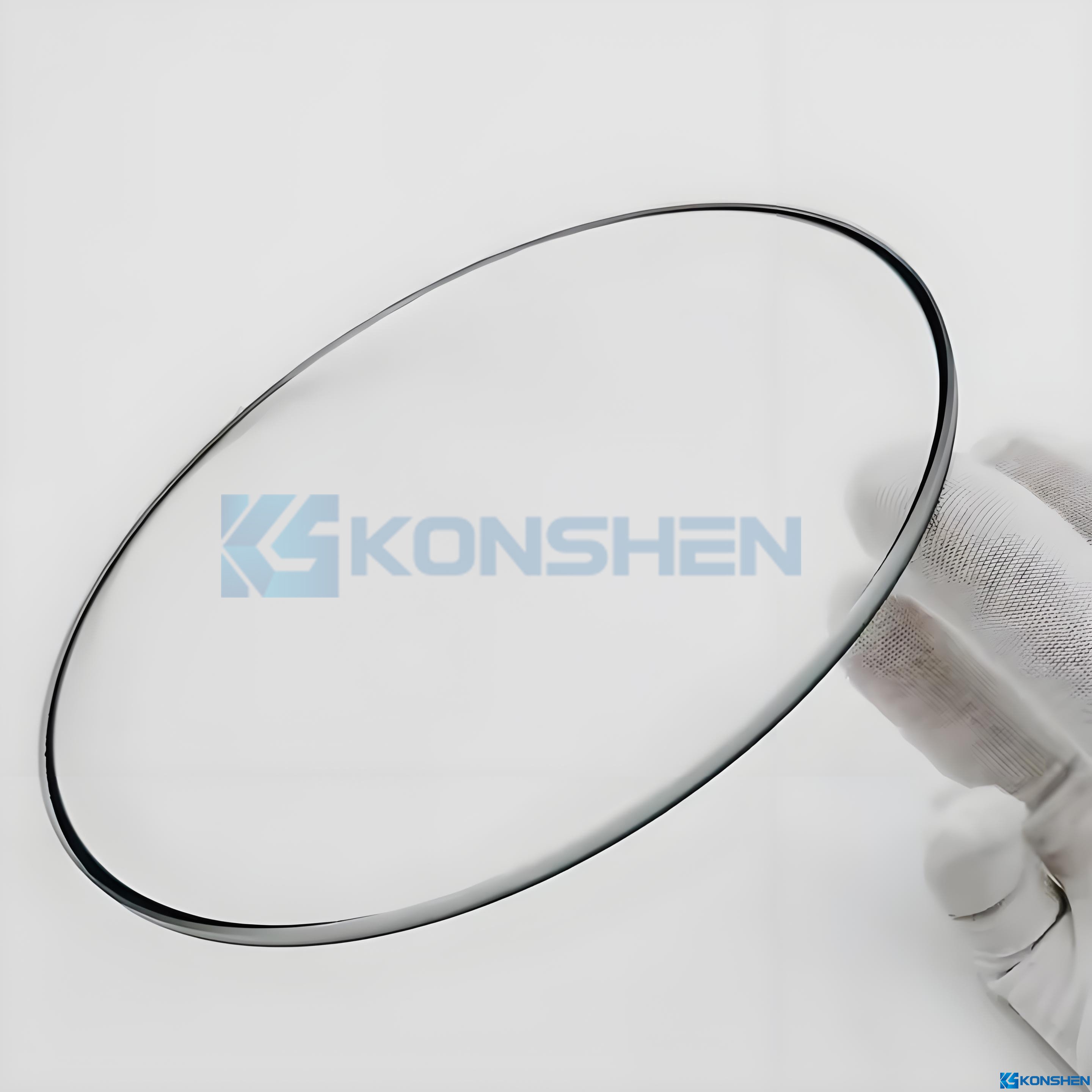

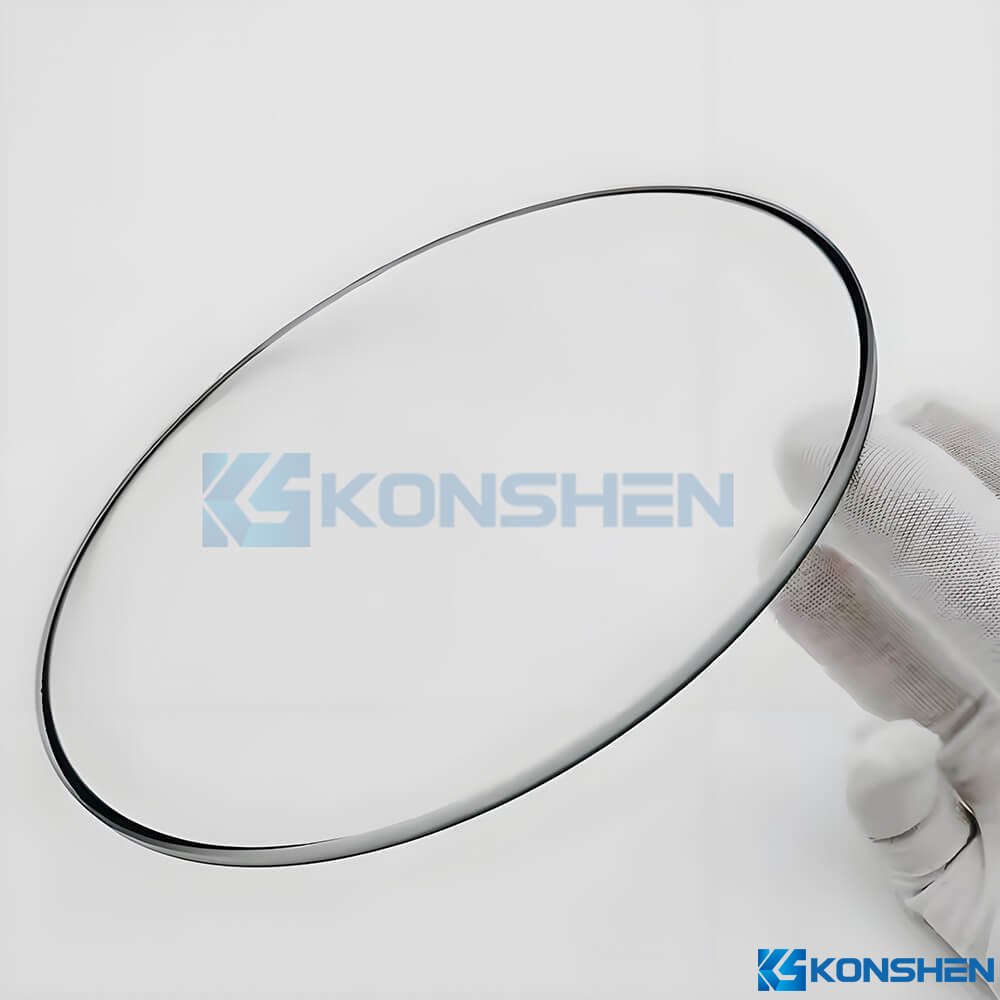

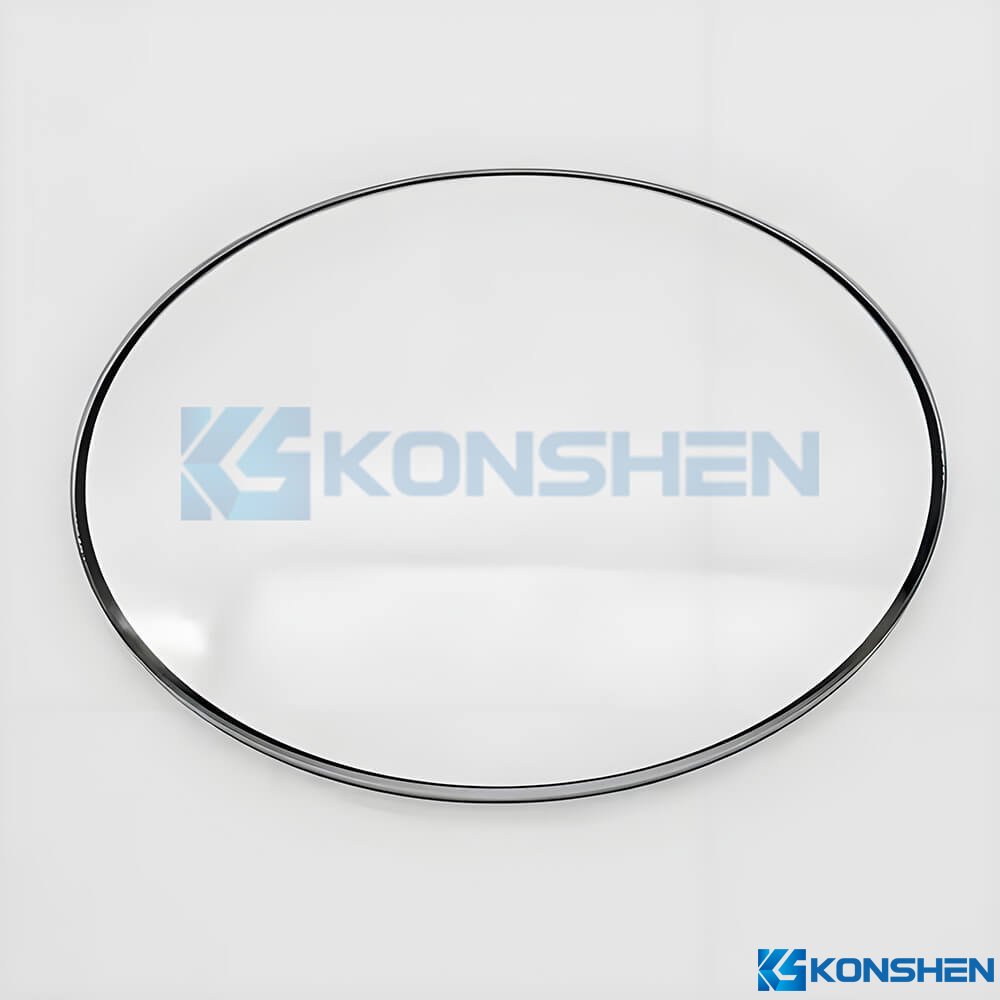

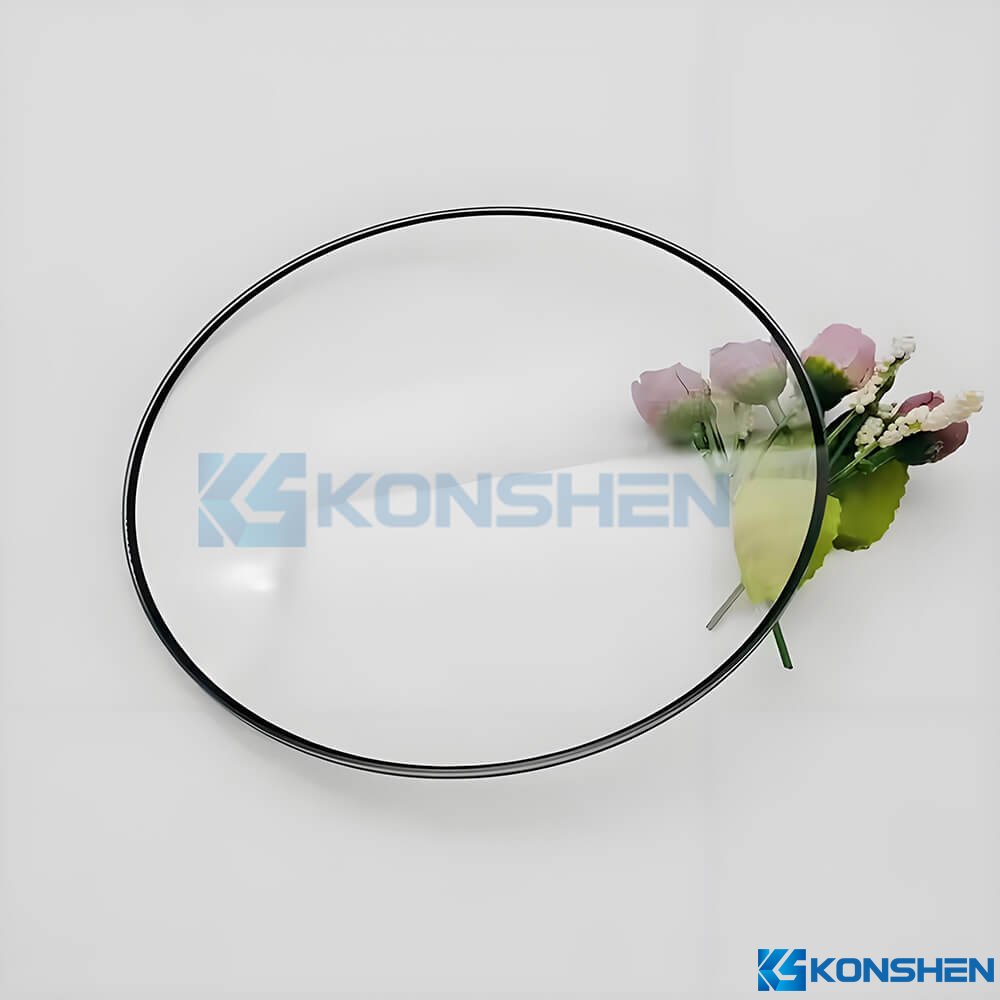

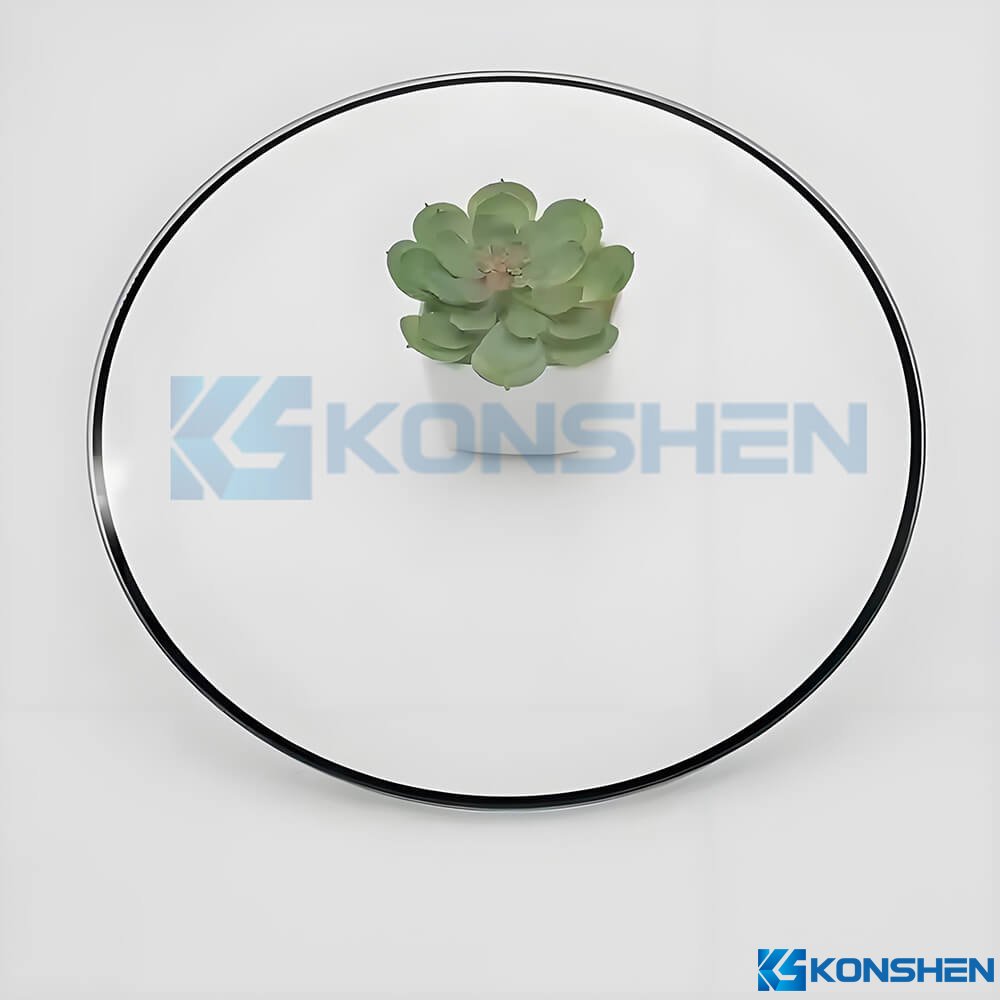

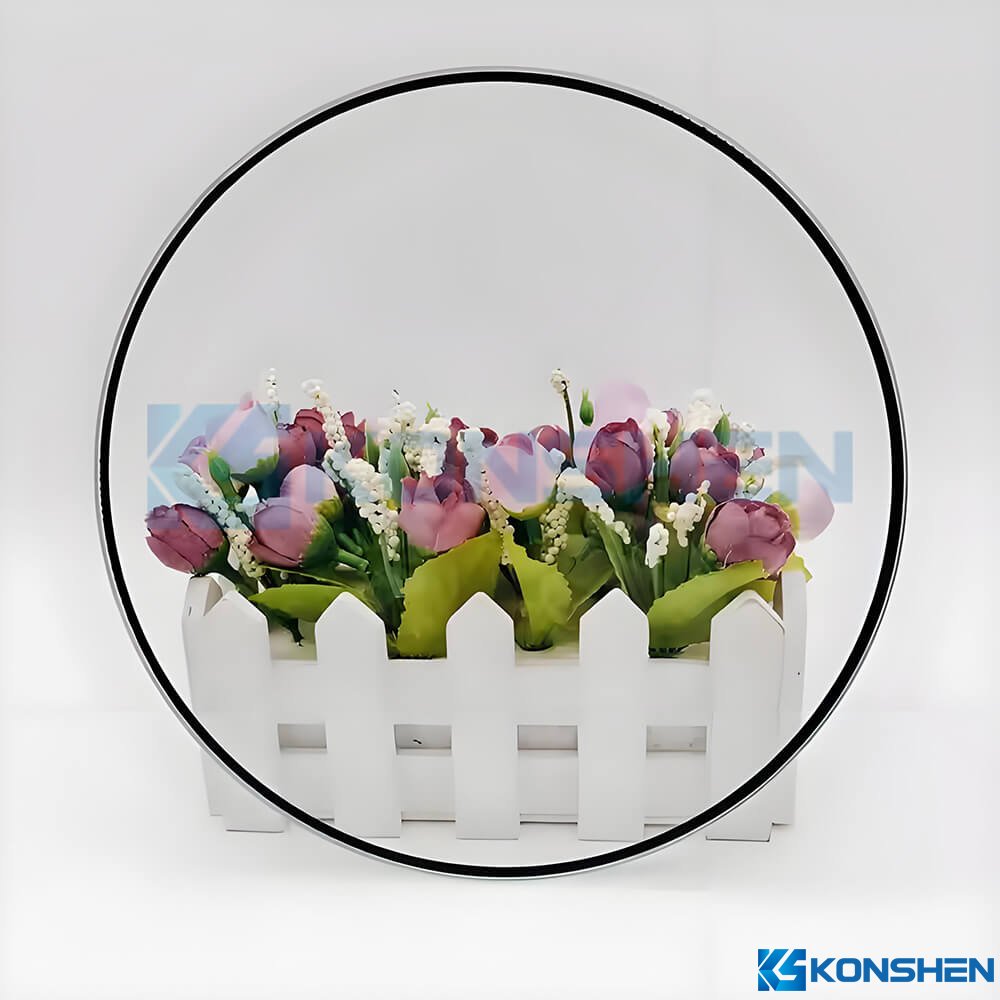

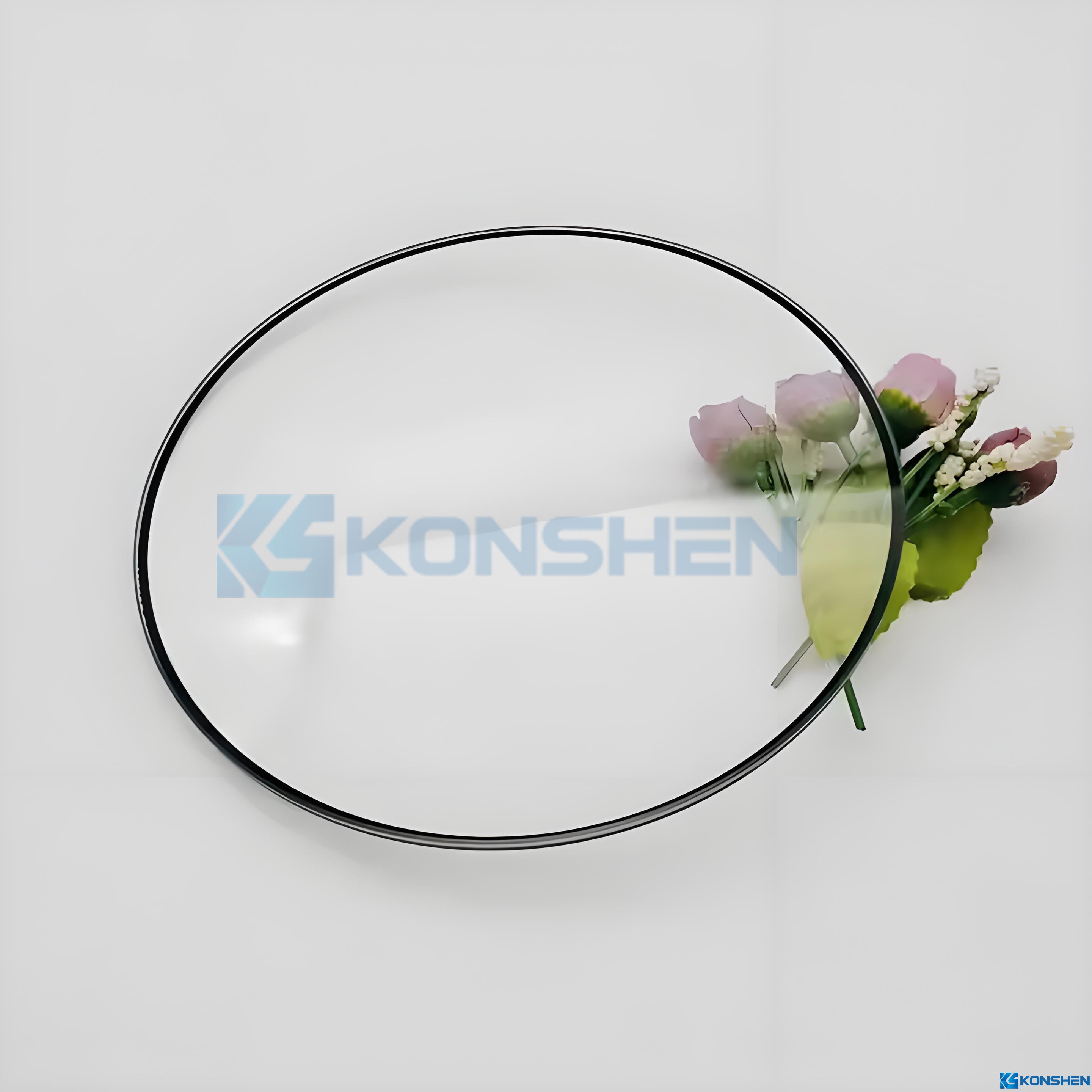

91.5% Transmittance 2mm Round Tempered Mid-Aluminum Cover Glass for LED Lighting

Product Detail

Key Features:

High Clarity: Made from premium aluminosilicate glass, this cover delivers excellent optical clarity and brightness, ideal for LED and precision lighting applications.
Ultra-Thin Thickness: The slim 2mm thickness reduces overall fixture weight, allowing for sleek, minimalistic lighting designs without compromising durability.
Safety & Durability: Physically tempered to resist thermal shock, scratches, and mechanical stress—ideal for indoor and commercial environments.
Aesthetics: Features a precision silk-printed black frame that conceals internal components and enhances edge sealing aesthetics.Professionally finished with ground and frosted edge treatment, ensuring smooth handling and a refined look.

Customized Option:

Available Thickness: Ranging from 0.33 mm to 10 mm, depending on the insulation requirements and specific applications.
Size & Shape: Supports special-shaped cutting to meet diverse needs. Customizes as per drawing.
Cutting Option: CNC Cutting/Water jet Cutting/Diamond Blade Cutting
Edge Options: Polished Edge/Safety Edge/Beveled Edge/Smooth Edge/2.5D Edge/Pencil Edge/Straight Edge
Tempering Options: Physical Tempered/Checmical Strengthened
Coating Options: Anti-Reflective (AR) Coating/Anti-Fingerprint (AF) Coating/Scratch-Resistant Coating/Indium Tin Oxide(ITO) Coating or Anti-Glare (AG)Coating
Printing Options: UV Printing/Silk screen printing/Laser engraving printing
Adhesive Options: AB Tape/ Double-side Tape/3M Adhesive

Technical Parameters

Materials: Mid-aluminum Glass
Shape: Round
Thickness: 2mm
Diameter: 100mm
Edge Work: Safety Edge
Tempered Method: Physical Tempered
Density: 2.5 g/cm³
Mohs Scale: ≥6H
Strengthness: IK07
Operating Temperature Range: Suitable for -30°C to 250°C.
Thickness Tolerances: ±0.2mm
Dimensional Tolerances: ±0.5mm for large size; ±0.1mm for small size
Surface Quality: No visible scratches, bubbles, or inclusions under inspection light
Weather Resistance: Strong resistance to high temperatures and humidity, reducing aging effects

Application

LED Lighting Fixtures: Ideal for ceiling lights, panel lights, and ring-shaped LED lamps where uniform light distribution and aesthetic appearance are essential.
Smart Home Devices: Used in smart switches, control panels, and digital touchscreens requiring high transparency and durable protective surfaces.
Display & Indicator Panels: Excellent choice for equipment displays and indicator windows needing clear visual presentation and edge protection.
Consumer Electronics: Applicable for electronic scales, thermostats, air purifiers, and other devices requiring sleek, tempered round glass surfaces.
Industrial & Commercial Equipment: Used as protective covers in testing machines, control terminals, or public display panels where durability and clarity are critical.

Company and factory equipment

Customer Visit

Company Profile

Dlivery & Payment

Packaging:

Step 1: PE film coating(Normally) / paper(For seashipment prevent wet).
Step 2: Kraft paper for fixation.
Step 3: Carton for glass safety protection.
Step 4: Custom make plywood case with hinge for custom(fumigation + convenient inspection) convenience.
Step 5: Packing strap for further fixation.
