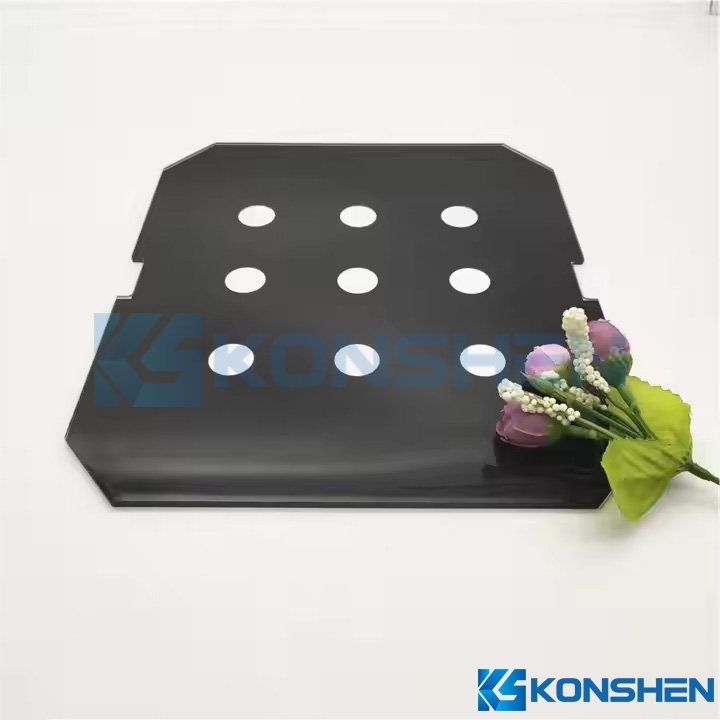

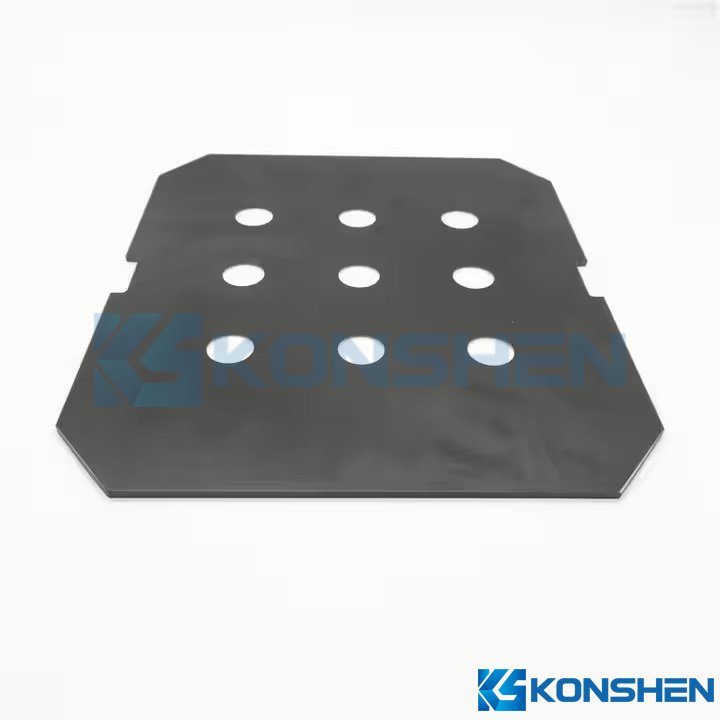

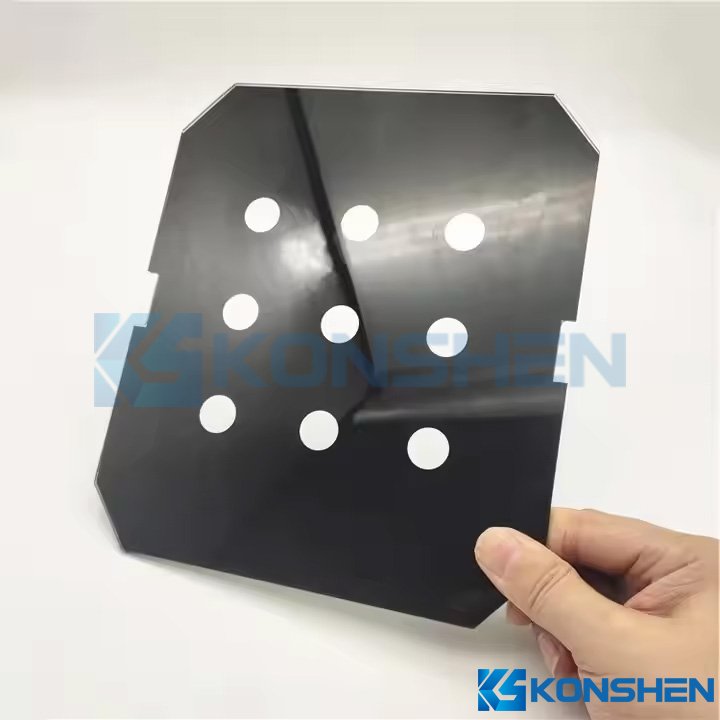

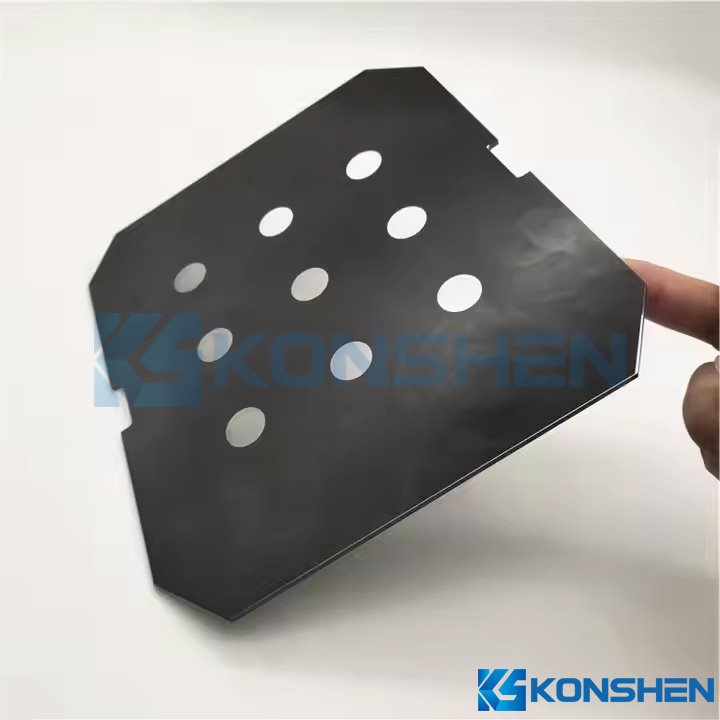

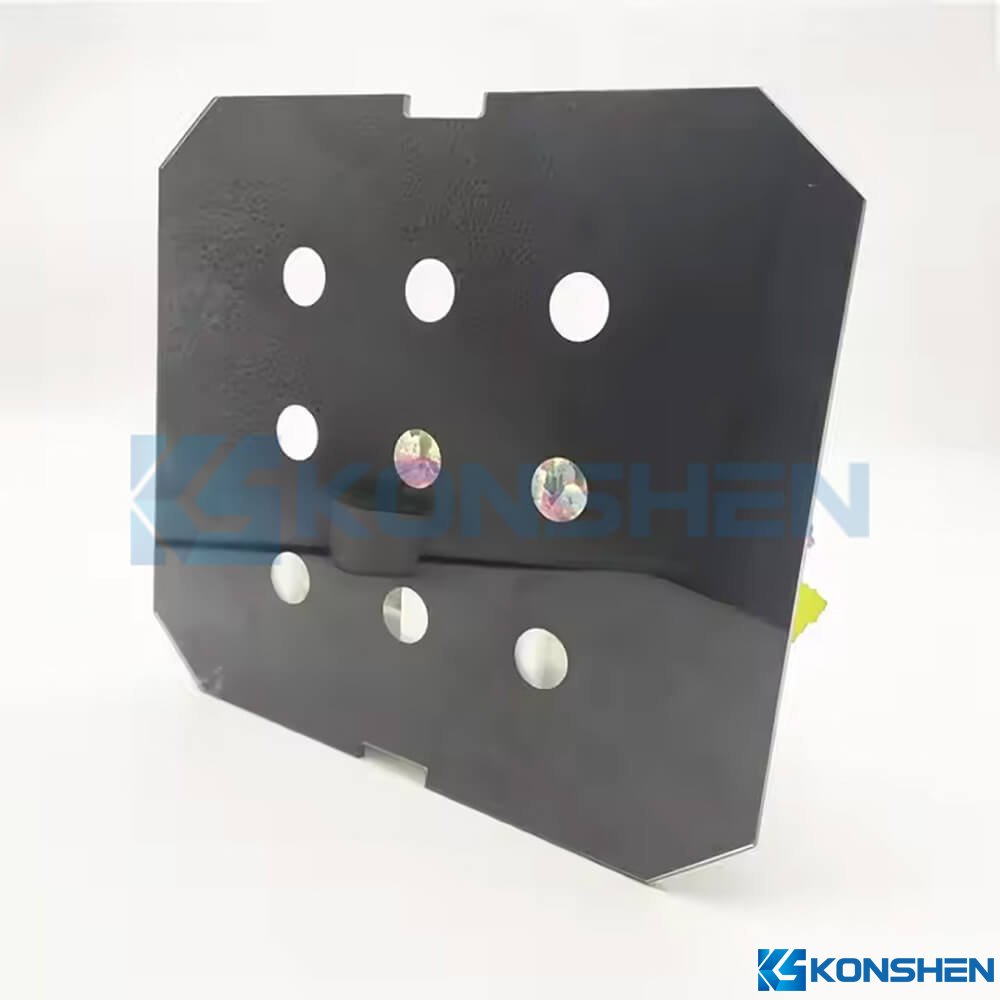

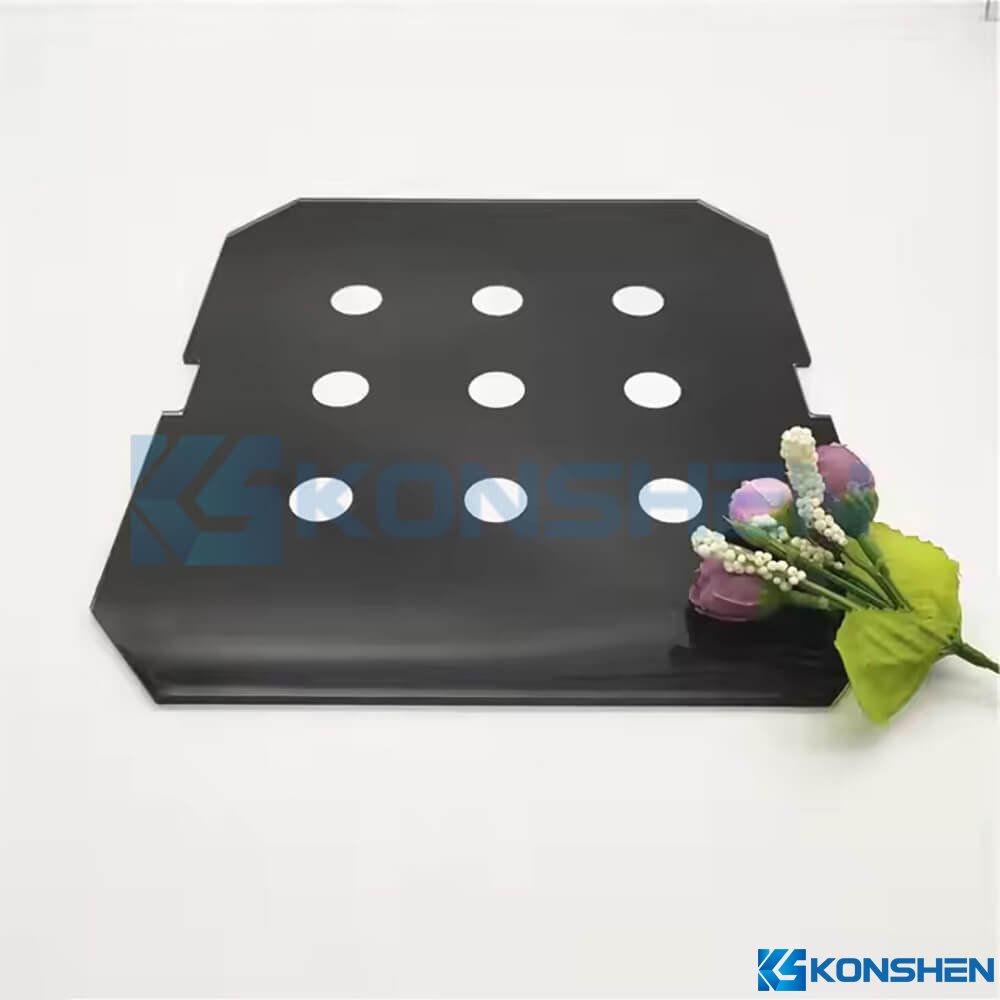

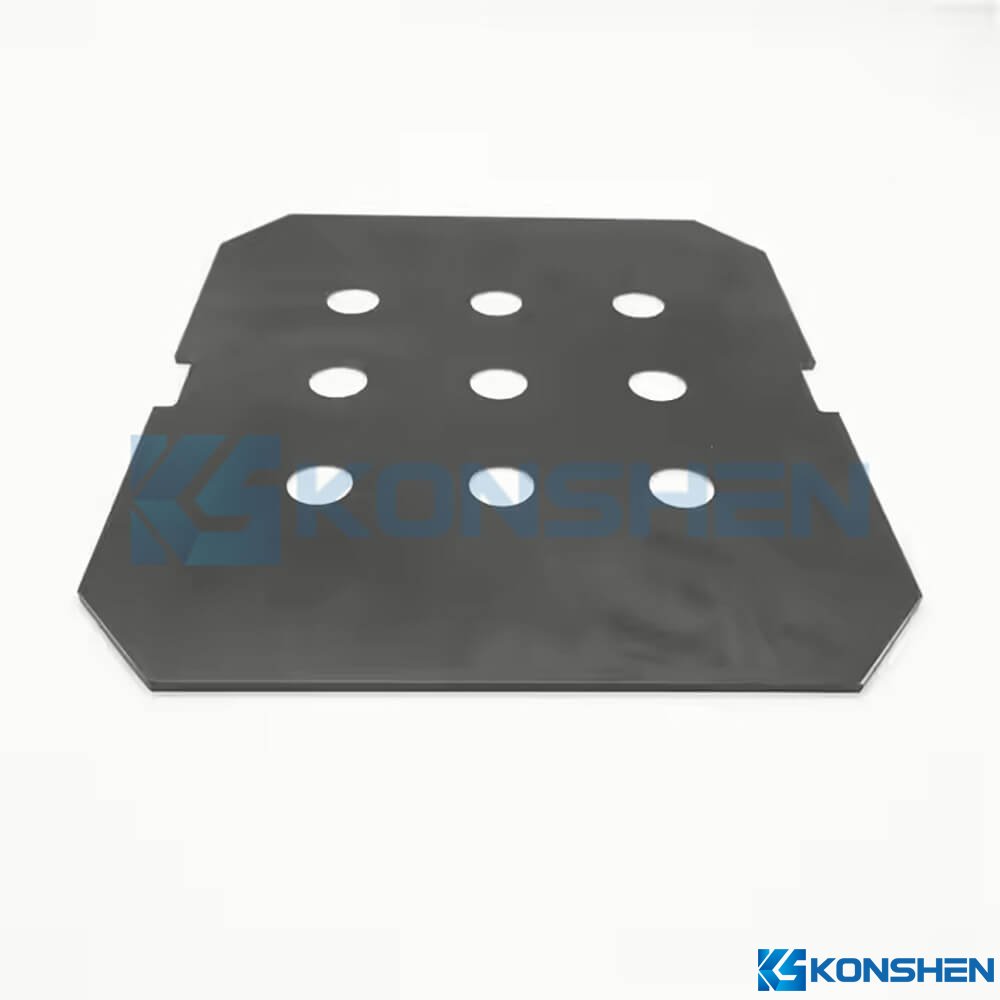

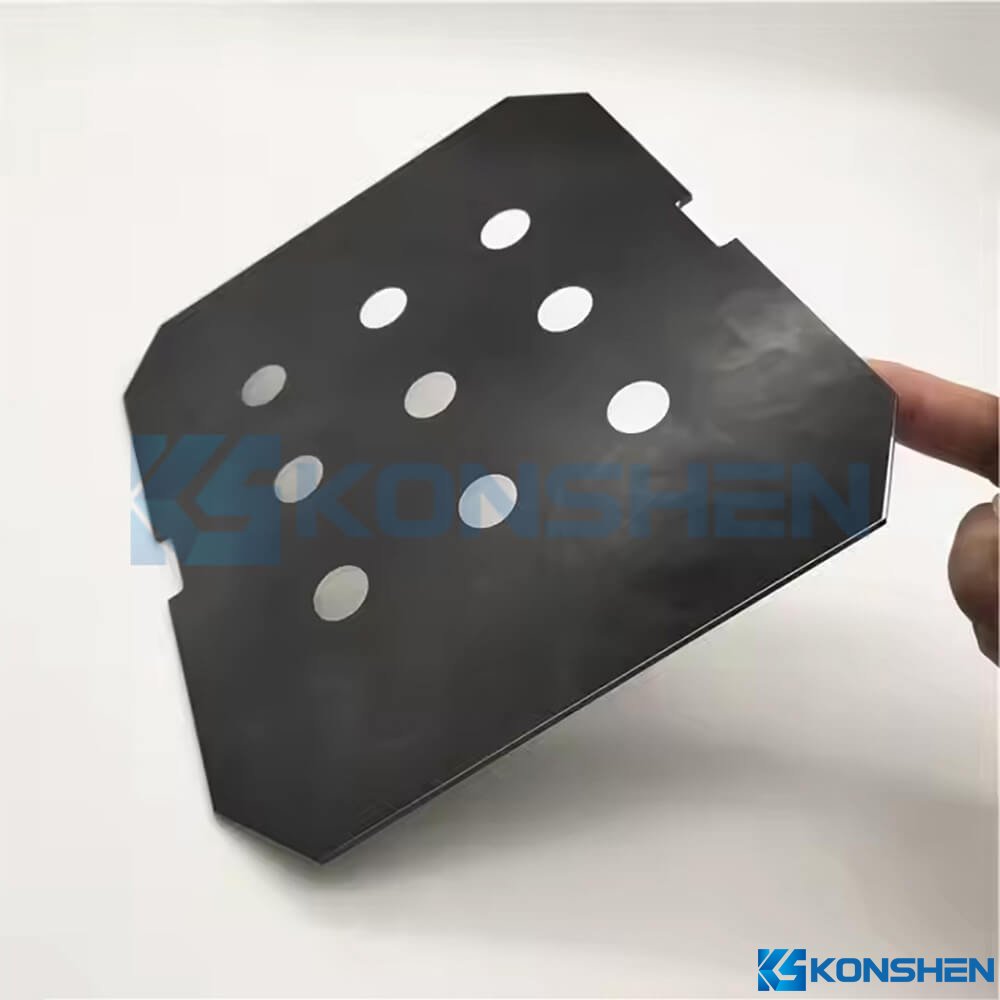

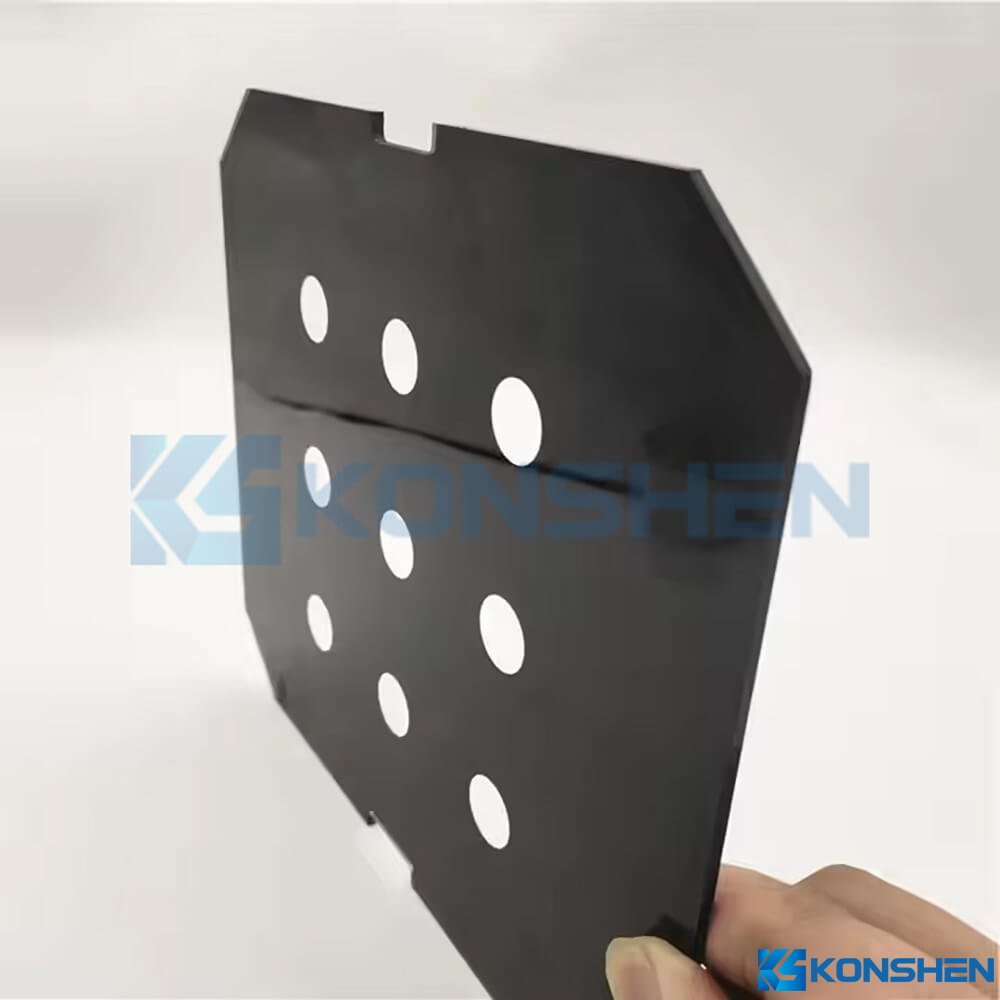

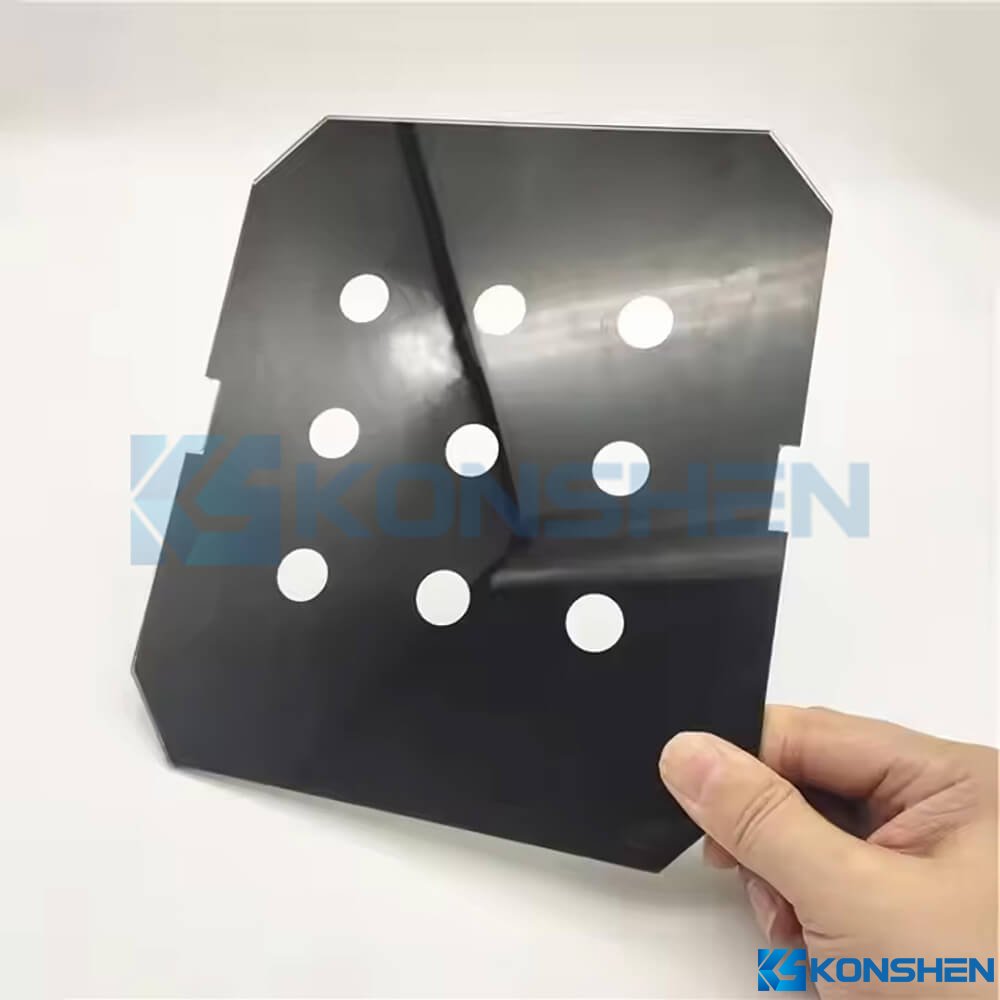

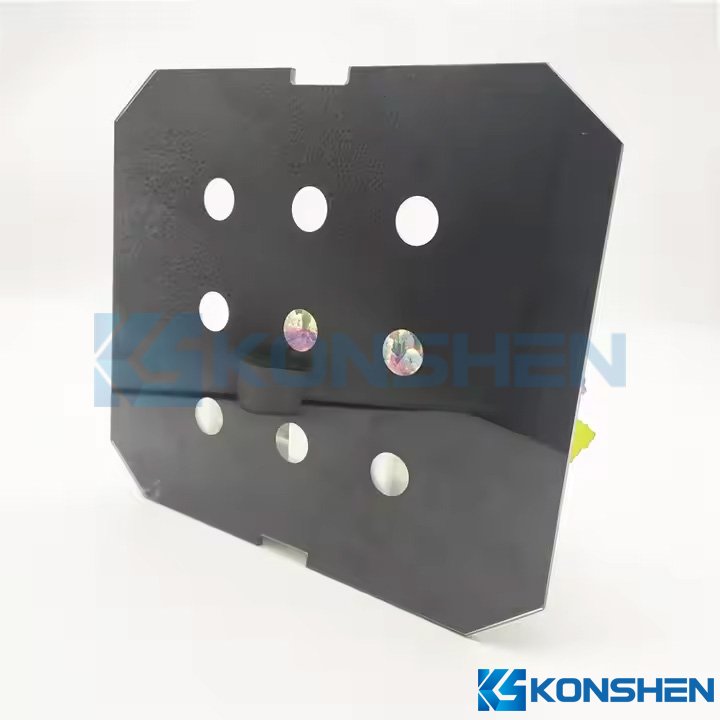

Custom 2mm Irregular Ultra Clear Tempered Lighting Cover Glass with Ceramic screen printing

Product Detail

Key Features:

High Light Transmittance: Made from low-iron ultra-clear glass with ≥91% transmittance, ensuring pure light output and color fidelity.
High-quality Silkscreen Printing: Black border printing with durable UV-resistant ceramic ink enhances aesthetics, blocks internal components, and reduces glare.
Durability: Tempered via thermal process to enhance impact resistance and heat tolerance, ideal for high-temperature lighting environments.
Flexible Customization Available: Available for full customization of shape, hole layout, and printing—supporting diverse lighting designs and installations.

Customized Option:

Available Thickness: Ranging from 0.33 mm to 10 mm, depending on the insulation requirements and specific applications.
Size & Shape: Supports special-shaped cutting to meet diverse needs. Customizes as per drawing.
Cutting Option: CNC Cutting/Water jet Cutting/Diamond Blade Cutting
Edge Options: Polished Edge/Safety Edge/Beveled Edge/Smooth Edge/2.5D Edge/Pencil Edge/Straight Edge
Tempering Options: Physical Tempered/Checmical Strengthened
Coating Options: Anti-Reflective (AR) Coating/Anti-Fingerprint (AF) Coating/Scratch-Resistant Coating/Indium Tin Oxide(ITO) Coating or Anti-Glare (AG)Coating
Printing Options: UV Printing/Silk screen printing/Laser engraving printing
Adhesive Options: AB Tape/ Double-side Tape/3M Adhesive

Technical Parameters

Materials: Ultra Clear Glass
Shape: Irregular
Thickness: 2mm
Edge Work: Safety Edge
Tempered Method: Physically Tempered
Printing: Silkscreen printing #RAL9004 BK
Back Adhesive: 3M double side tape
Density: 2.5 g/cm³
Mohs Scale: ≥6H
Strengthness: IK07
Operating Temperature Range: Suitable for -30°C to 250°C.
Thickness Tolerances: ±0.2mm
Dimensional Tolerances: ±0.5mm for large size; ±0.1mm for small size
Surface Quality: No visible scratches, bubbles, or inclusions under inspection light
Weather Resistance: Strong resistance to high temperatures and humidity, reducing aging effects

Application

Professional Lighting and LED Spotlights: Used in track lights, downlights, stage lighting, and display lighting systems—providing clarity, dust resistance, and structural protection for LED modules.
Commercial and Display Lighting: Ideal for lighting fixtures in retail stores, galleries, and exhibitions—offering elegant appearance and reliable safety.
Smart Home Lighting Systems: Perfect for smart home lighting covers and ambient fixtures—anti-glare, easy to clean, and long-lasting.
Industrial and Outdoor Lighting Covers: Used in outdoor wall lights and floodlights—ensuring stability and resistance to harsh conditions.
