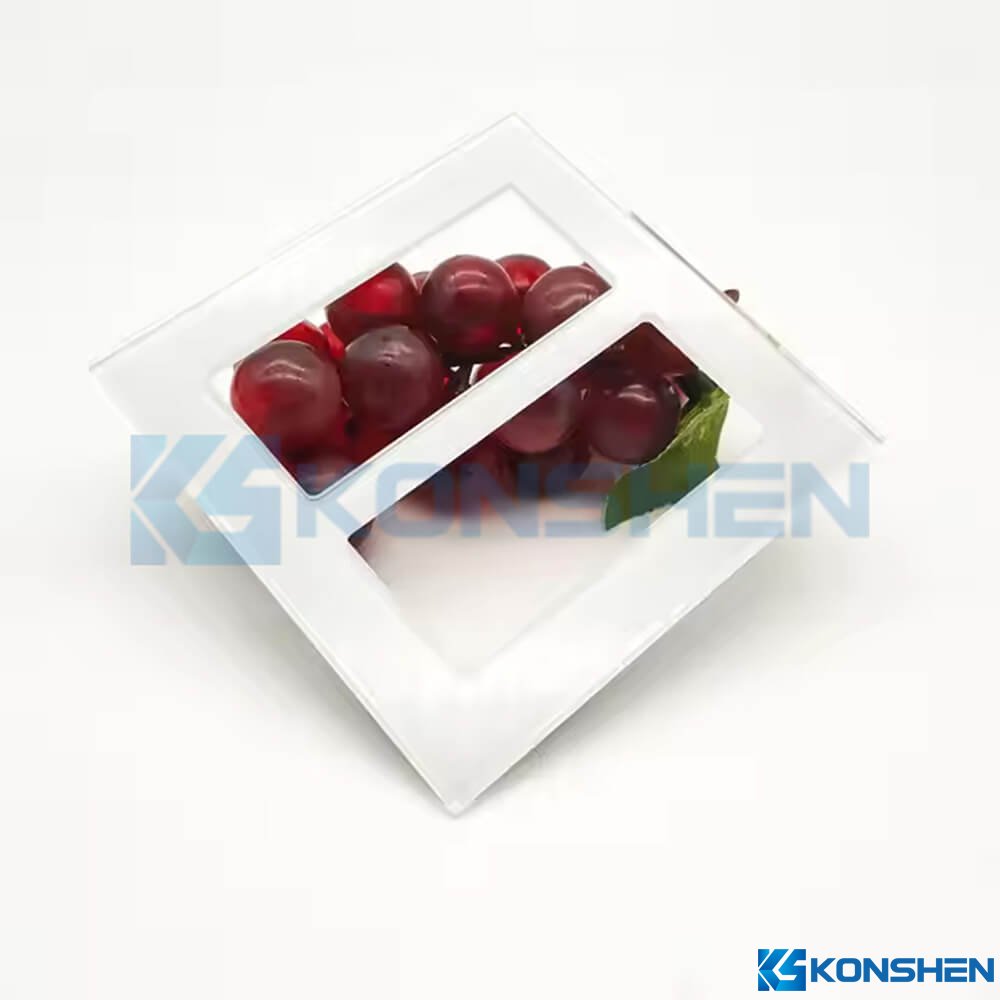

2mm Physical Tempered Socket Light Switch Panel Glass with Silkscreen Printing

Product Detail

Key Features:

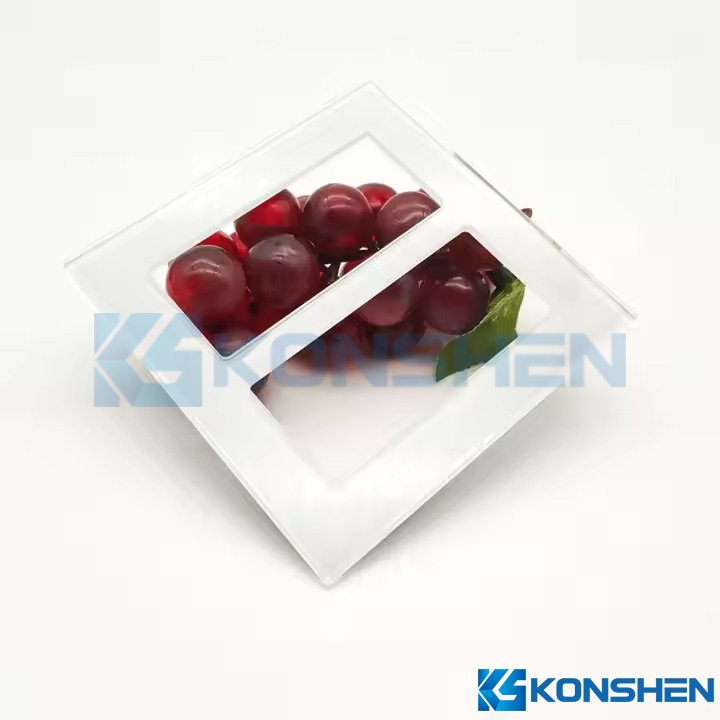

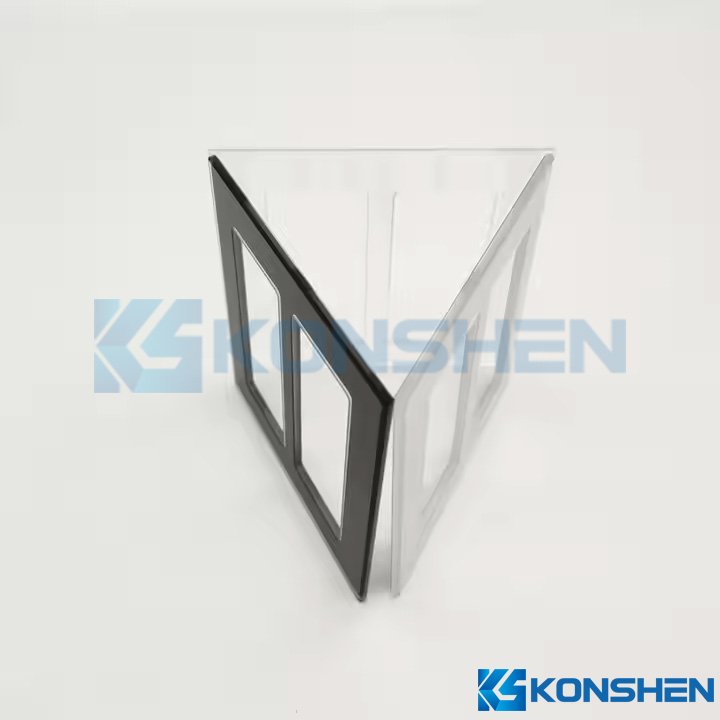

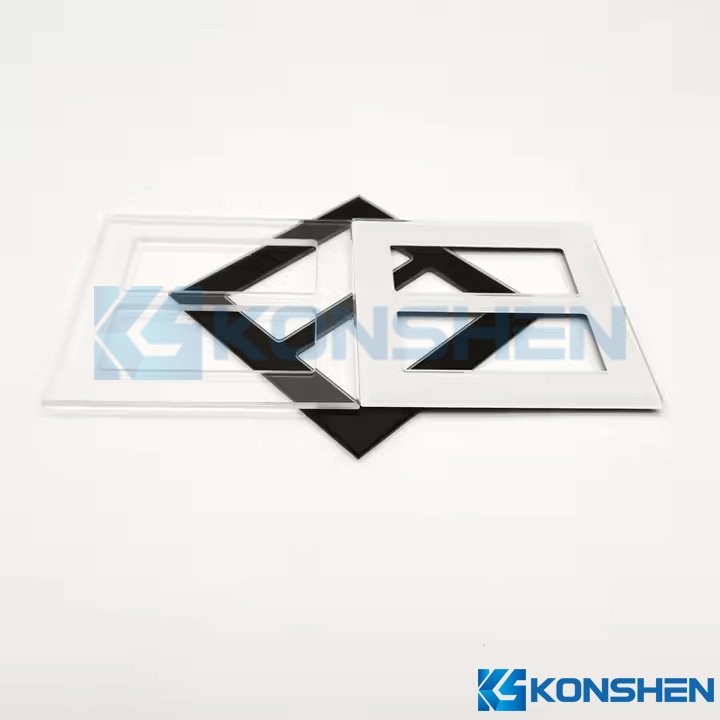

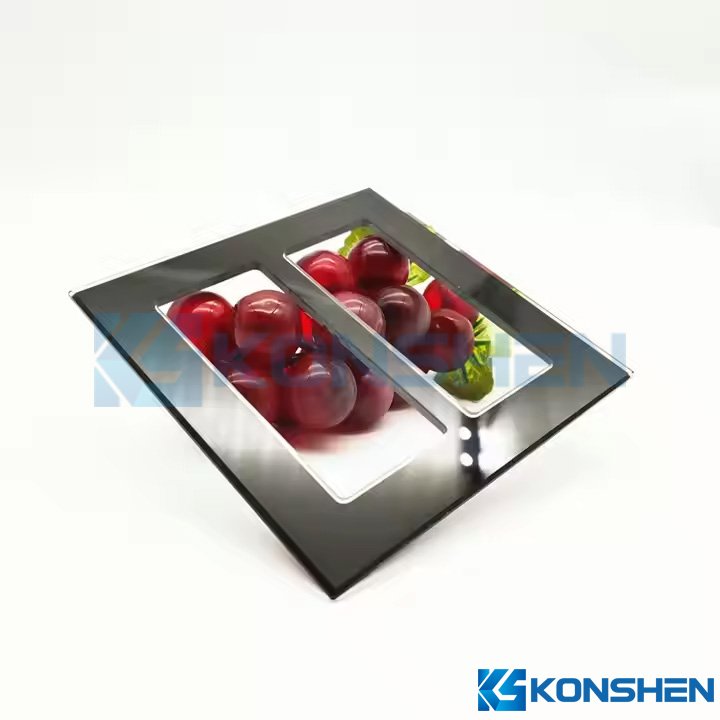

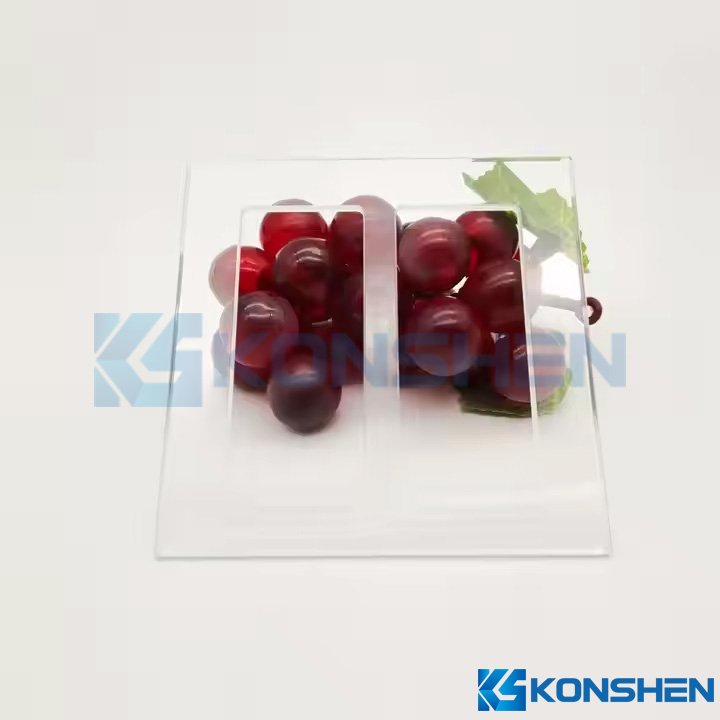

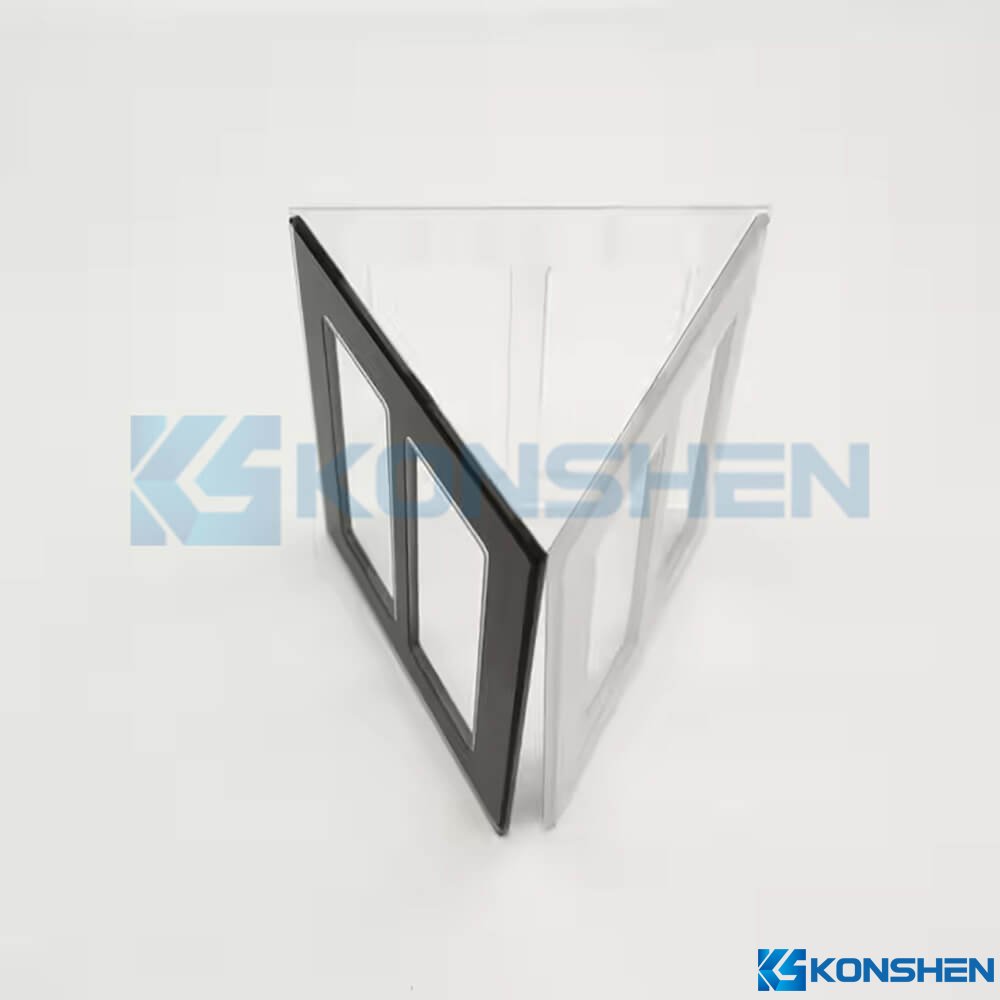

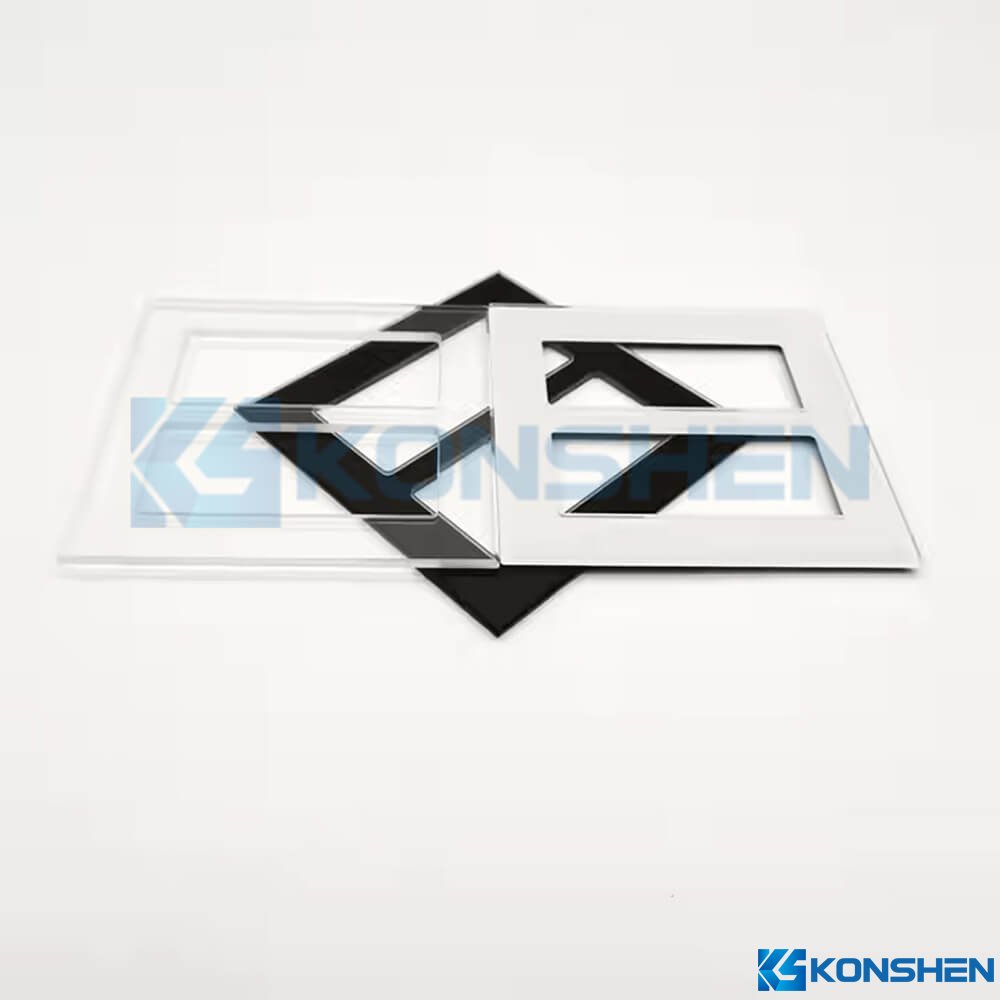

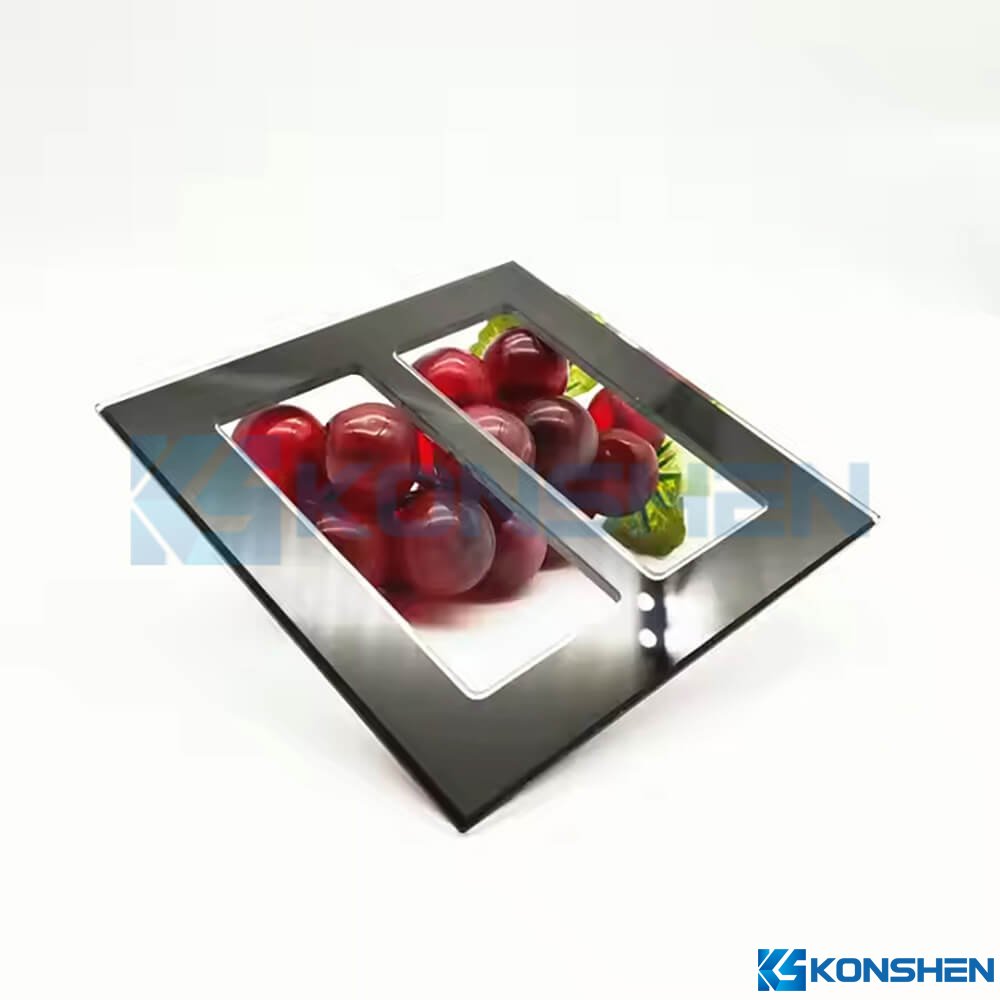

Dual Window Cutouts: Precisely machined dual-window cutouts ensure smooth edges and allow easy integration of display or switch components.
Delicate Apperance: The black silk-printed border offers fingerprint resistance and enhanced visual appeal while ensuring long-term weather resistance.
High-Strength Performance: Tempered for superior impact and thermal resistance, meeting safety standards for control and wall-mounted devices.
Slim and Lightweight Structure: Slim 2mm thickness ensures easy installation without compromising structural integrity.
Polished Edges for Comfort: Smoothly polished edges prevent injury and enhance user handling experience.

Customized Option:

Available Thickness: Ranging from 0.33 mm to 10 mm, depending on the insulation requirements and specific applications.
Size & Shape: Supports special-shaped cutting to meet diverse needs. Customizes as per drawing.
Cutting Option: CNC Cutting/Water jet Cutting/Diamond Blade Cutting
Edge Options: Polished Edge/Safety Edge/Beveled Edge/Smooth Edge/2.5D Edge/Pencil Edge/Straight Edge
Tempering Options: Physical Tempered/Checmical Strengthened
Coating Options:Anti-Reflective (AR) Coating/Anti-Fingerprint (AF) Coating/Scratch-Resistant Coating/Indium Tin Oxide(ITO) Coating or Anti-Glare (AG)Coating
Printing Options: UV Printing/Silk screen printing/Laser engraving printing
Adhesive Options: AB Tape/ Double-side Tape/3M Adhesive

Technical Parameters

Materials: Ultra Clear Glass
Shape: Square
Thickness: 2mm
Edge Work: Safety Edge+2 window cutouts
Tempered Method: Physically Tempered
Printing: Silkscreen printing #RAL9004 BK #RAL9001 WH
Density: 2.5 g/cm³
Mohs Scale: ≥6H
Strengthness: IK07
Operating Temperature Range: Suitable for -30°C to 250°C.
Thickness Tolerances: ±0.2mm
Dimensional Tolerances: ±0.5mm for large size; ±0.1mm for small size
Surface Quality: No visible scratches, bubbles, or inclusions under inspection light
Weather Resistance: Strong resistance to high temperatures and humidity, reducing aging effects

Application

Smart Home Wall Control Panels: Ideal for smart lighting, HVAC, and access control systems, elevating the aesthetic and technological value of interior spaces.
Home Appliance Display Panels: Used in appliances like purifiers and control units to enhance front appearance and provide robust protection.
Commercial Facility Switch Interfaces: Perfect for use in commercial buildings, hotels, or exhibition spaces requiring durable and stylish switch interfaces.

Company and factory equipment

Customer Visit

Company Profile

Dlivery & Payment

Packaging:

Step 1: PE film coating(Normally) / paper(For seashipment prevent wet).
Step 2: Kraft paper for fixation.
Step 3: Carton for glass safety protection.
Step 4: Custom make plywood case with hinge for custom(fumigation + convenient inspection) convenience.
Step 5: Packing strap for further fixation.
