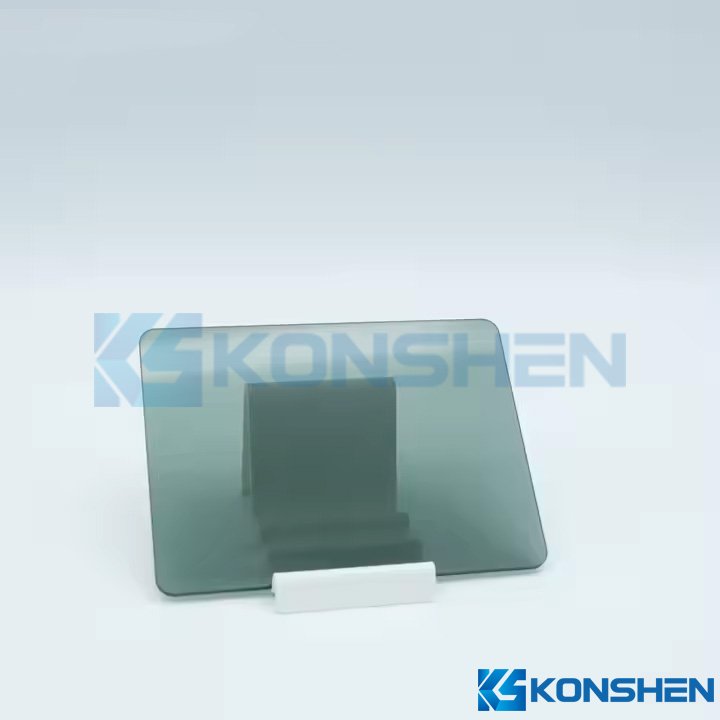

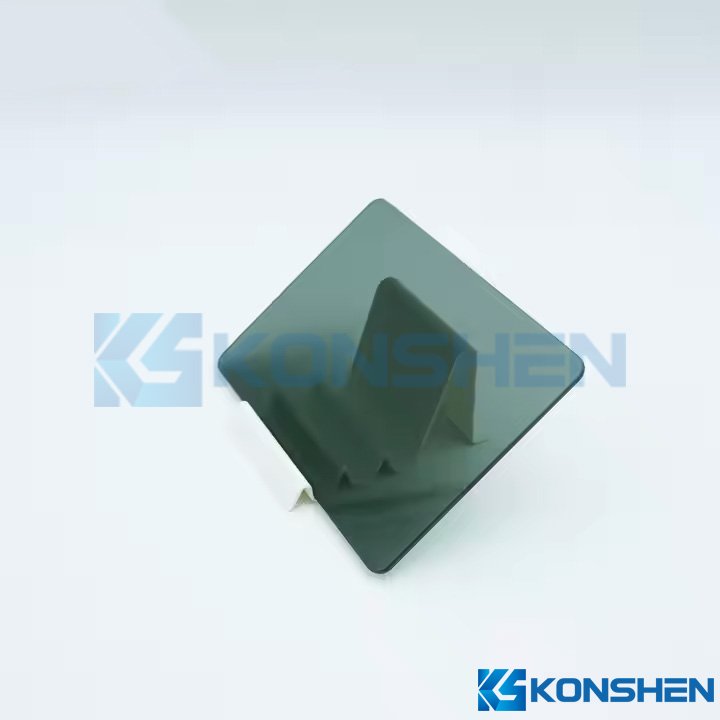

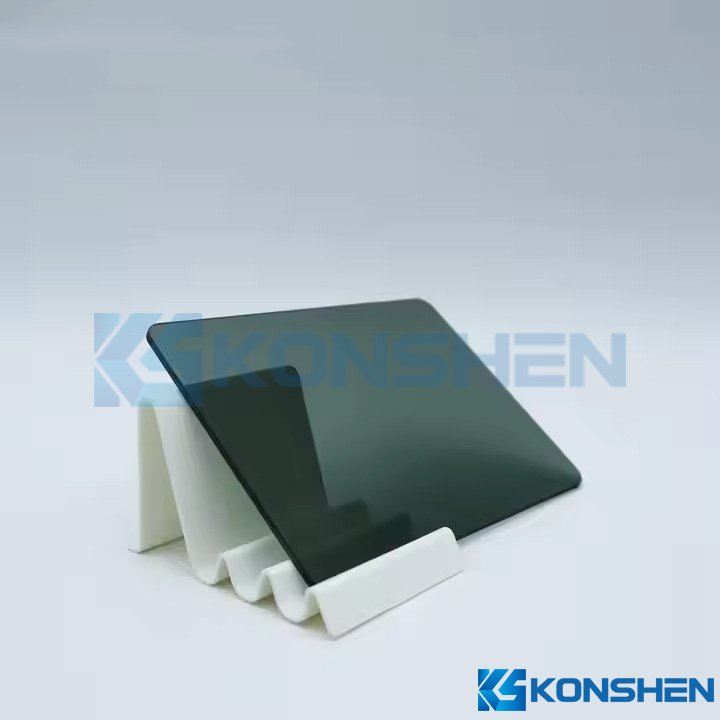

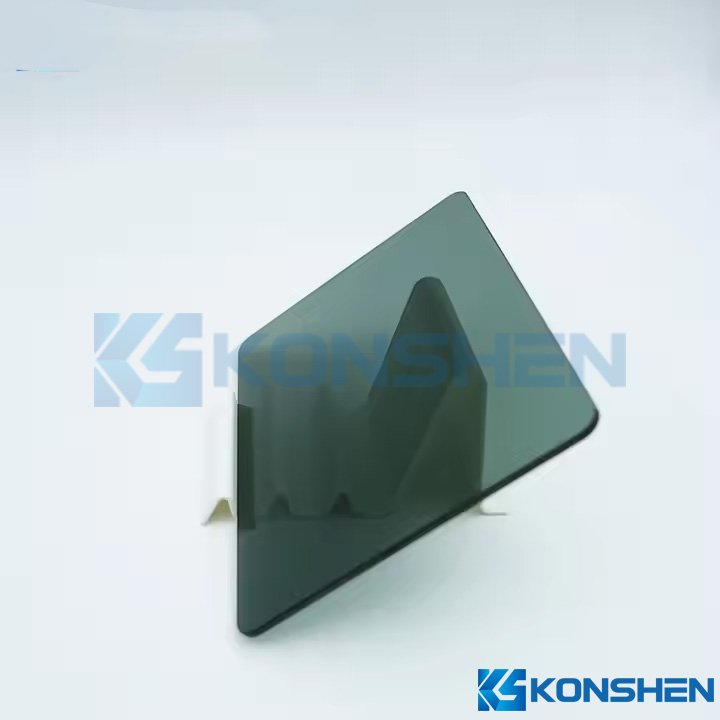

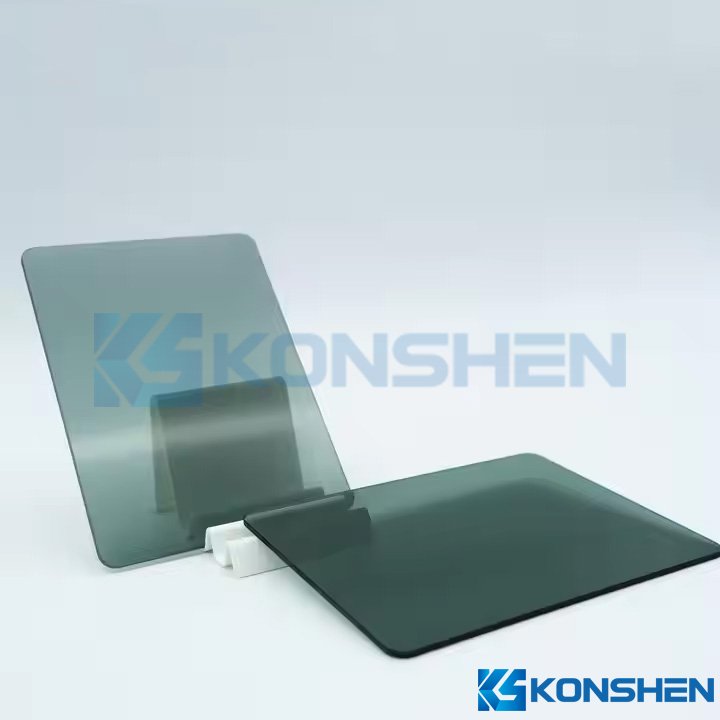

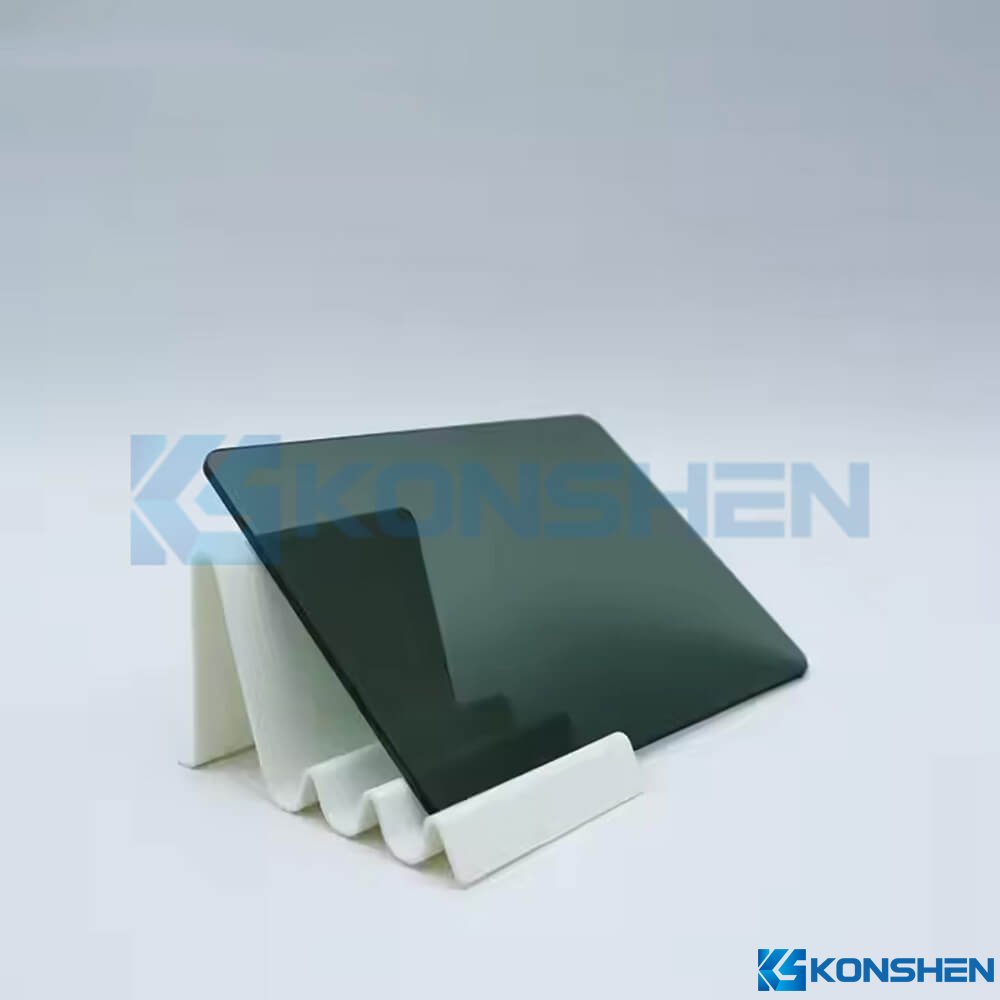

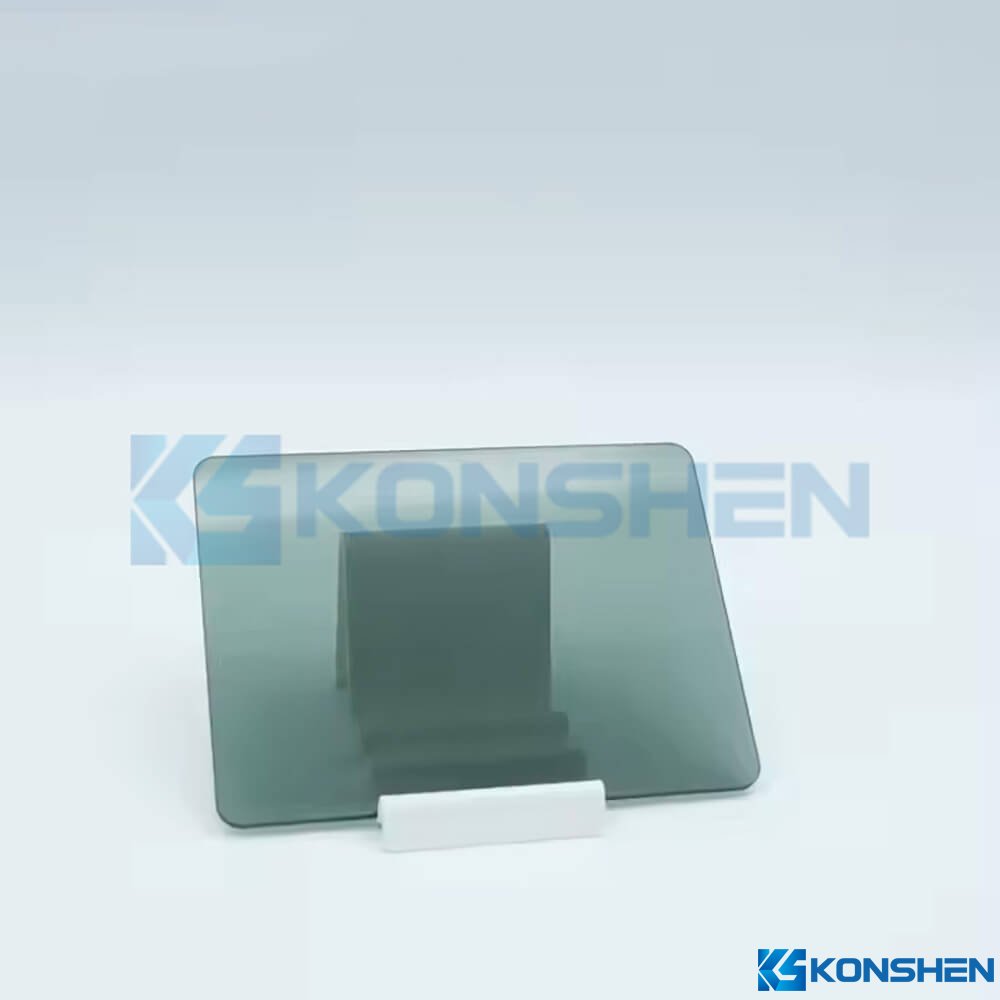

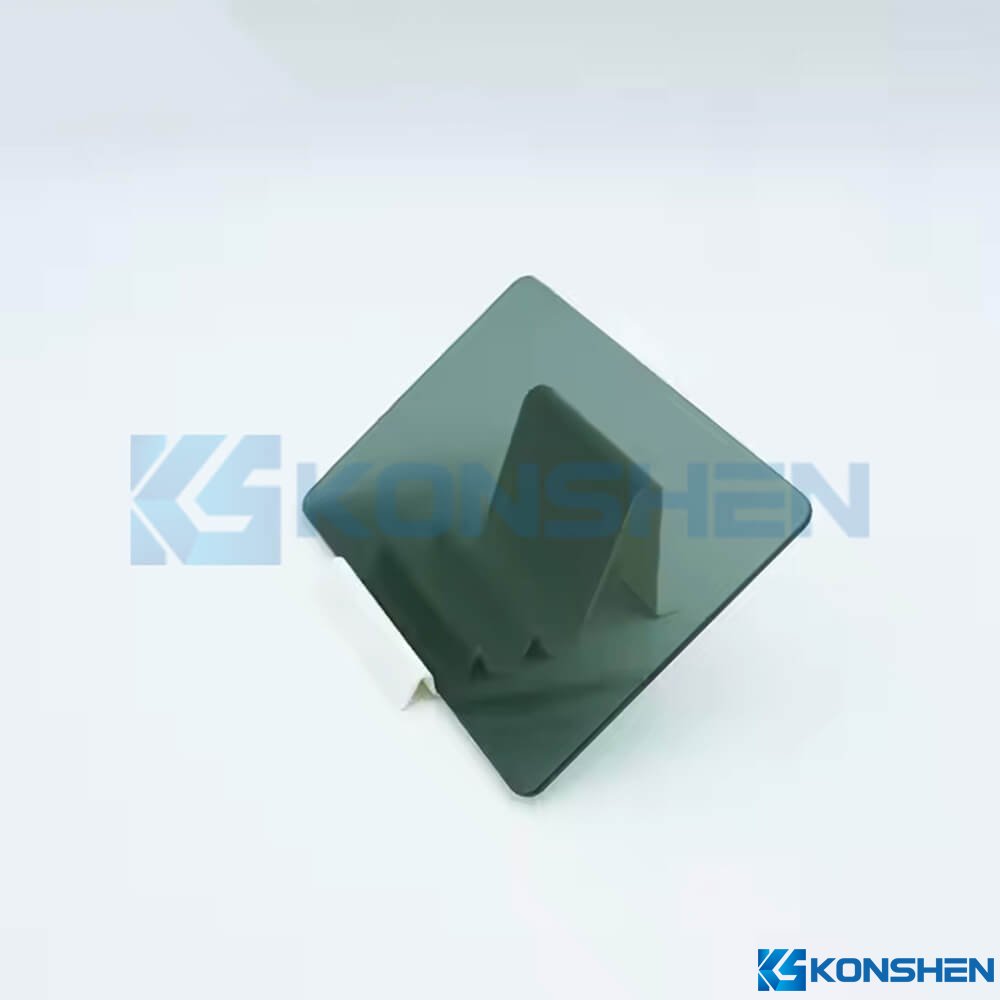

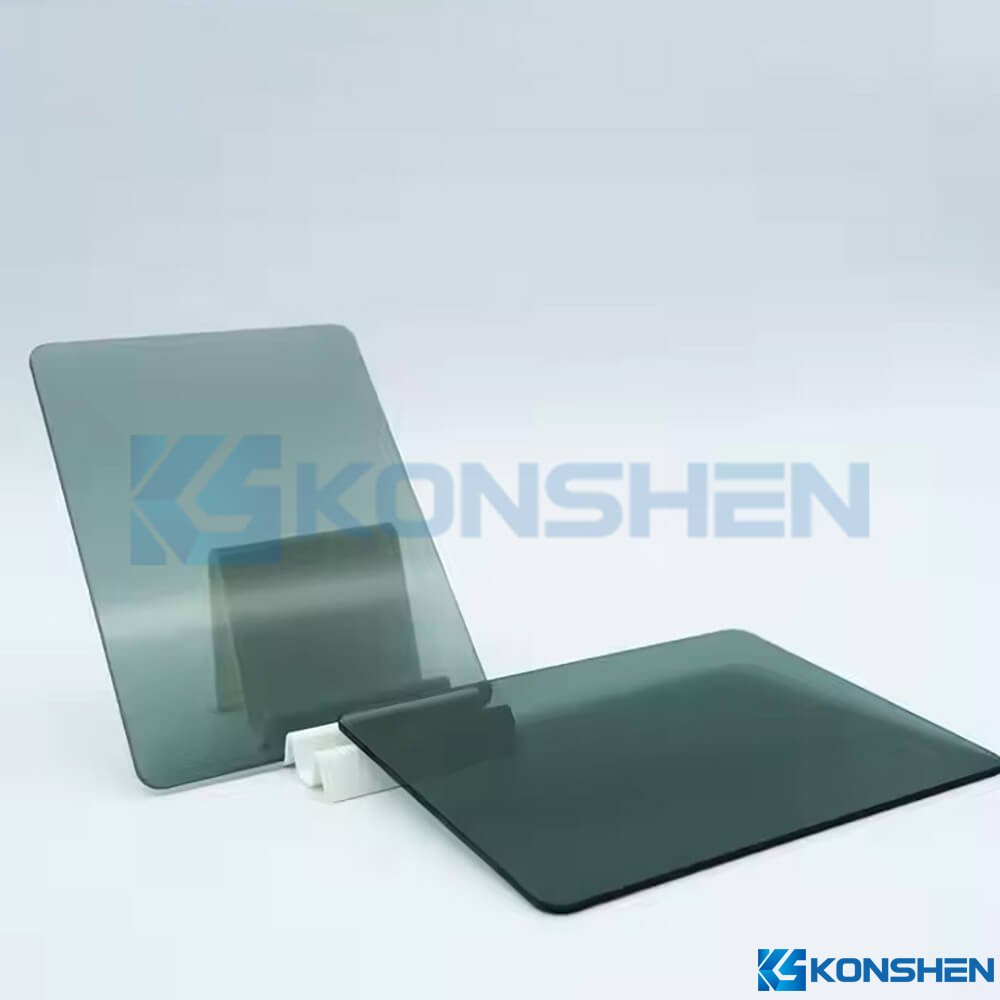

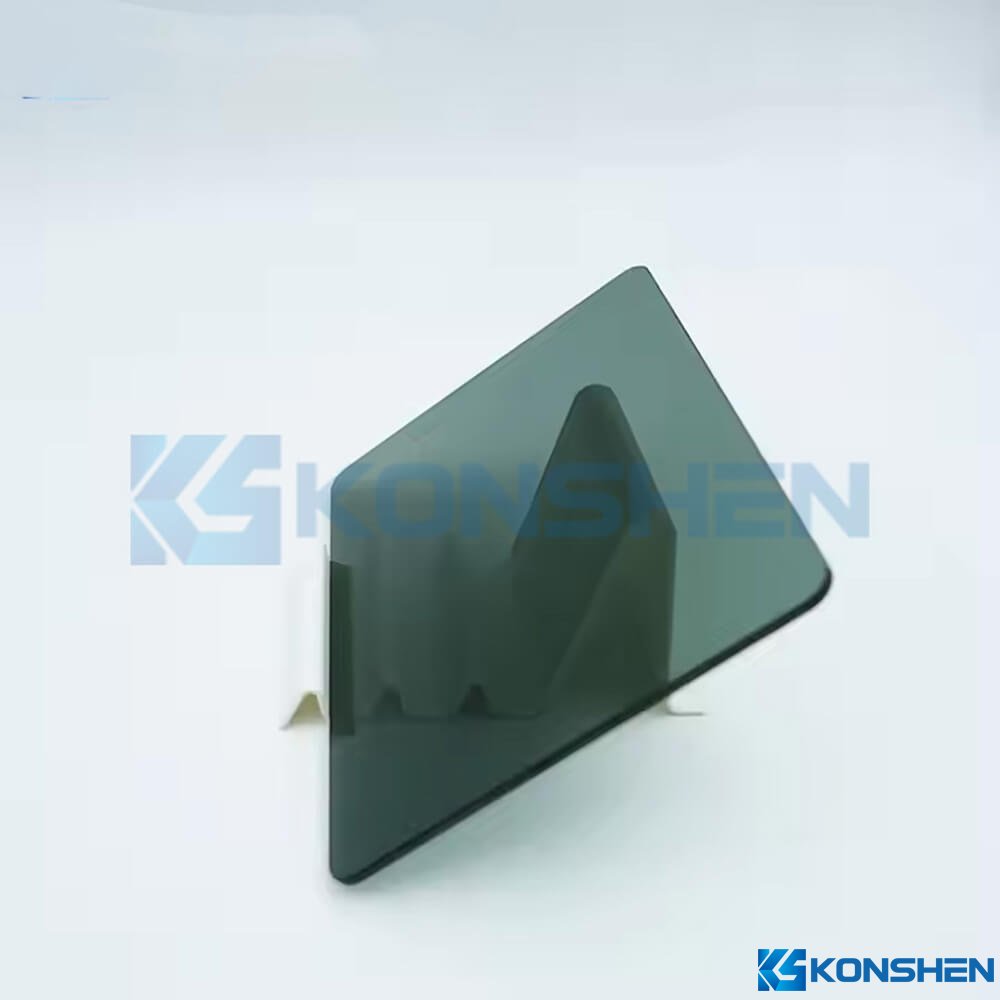

Custom 3mm PG20 20% transmittance black tempered cover glass panel

Product Detail

Key Features:

Precisive Transimittance Control: Made from premium PG20 black glass with approx. 20% visible light transmittance, it effectively manages light penetration to create a soft visual effect and ensures essential display areas remain visible while providing shading for non-functional zones—ideal for semi-transparent interface covers.
Premium Edge Treatment: Polished edges provide a smooth, burr-free finish, ensuring safe handling and assembly. This feature is particularly important for control panels or touch interfaces where user interaction is frequent.
Excellent Flatness: The glass features excellent flatness and surface smoothness, making it compatible with capacitive sensors, optical bonding, or multilayer assembly processes to ensure performance consistency.
Flexible Customization Options: Customization options include various dimensions, thicknesses (e.g., 2mm, 3mm, 4mm), edge profiles, and optional processes like screen printing or coatings, offering full flexibility for different application scenarios.

Customized Option:

Materials Options: Soda Lime Glass,Mid-Aluminum Glass,High-Aluminum Glass
Available Thickness: 0.33 mm to 10 mm, customizable for different application needs.
Size & Shape: KS Glass offers various custom shapes and sizes tailored to your specifications.
Cutting Options: Laser Cutting,Water jet Cutting,Diamond Blade Cutting,CNC
Edge Options: Polished Edge,Safety Edge,Beveled Edge,Smooth Edge,2.5D Edge,Pencil Edge,Straight Edge
Tempering Options: Physical Tempered/Checmical Strengthened
Coating Options: Anti-Reflective (AR) Coating,Anti-Fingerprint (AF) Coating,Scratch-Resistant Coating(AS),Anti-Glare Coating(AG)
Printing Options: UV Printing,Silk screen printing,Laser engraving printing
Adhesive Options: AB Tape, Double-side Tape,3M Adhesive

Technical Parameters

Materials: PG20 Black Glass

Shape: Rectangular
Thickness: 3mm
Edge Work: Safety edge+Round Corner
Tempered Method: Physical Tempering
Coating: Anti-fingerprint(AF) coating
Transmission Rate: 20%
Density: 2.5 g/cm³
Hardness: at least 6H
Strengthness: IK07
Operating Temperature Range: Suitable for -30°C to 250°C.
Thickness Tolerances:± 0.2mm
Dimensional Tolerances: ±0.5mm for large size; ±0.1mm for small size
Weather Resistance: Strong resistance to high temperatures and humidity, reducing aging effects
UV Resistance: High UV-blocking capability
Impact Resistance: 2-5 times stronger than standard glass. Specific impact resistance can vary based on thickness and treatment.

Application

Smart Control& Lighting Panel Cover: Widely applied as front panels for smart lighting systems, touch-based light controllers, or LED panel masks, this glass hides internal components while selectively transmitting key display indicators, enhancing both aesthetics and user interaction.
Home Appliance &Interface Control Panel: Used as front control panels for kitchen appliances like ovens, steamers, and microwaves, the deep black tone complements stainless steel or metallic casings, offering a premium look with functional heat resistance.
HMI & Control Terminals: Ideal for industrial HMIs, inspection terminals, or process control panels where a semi-opaque surface is needed to protect internal components while allowing essential data to remain visible.
Smart Home & Embedded Electronic Panels: Used in smart home products like voice assistants, access control panels, visual intercoms, or environmental controllers, the panel offers an elegant, unified front with optimized transmittance for internal LED indicators.
Medical & Commercial Display Terminals: Applicable in medical displays, health monitoring devices, and public information terminals, this glass enhances visual clarity, adds wear resistance, and keeps the device looking clean and professional.

Company and factory equipment

Customer Visit

Company Profile

Dlivery & Payment

Packaging:

Step 1: PE film coating(Normally) / paper(For seashipment prevent wet).
Step 2: Kraft paper for fixation.
Step 3: Carton for glass safety protection.
Step 4: Custom make plywood case with hinge for custom(fumigation + convenient inspection) convenience.
Step 5: Packing strap for further fixation.
