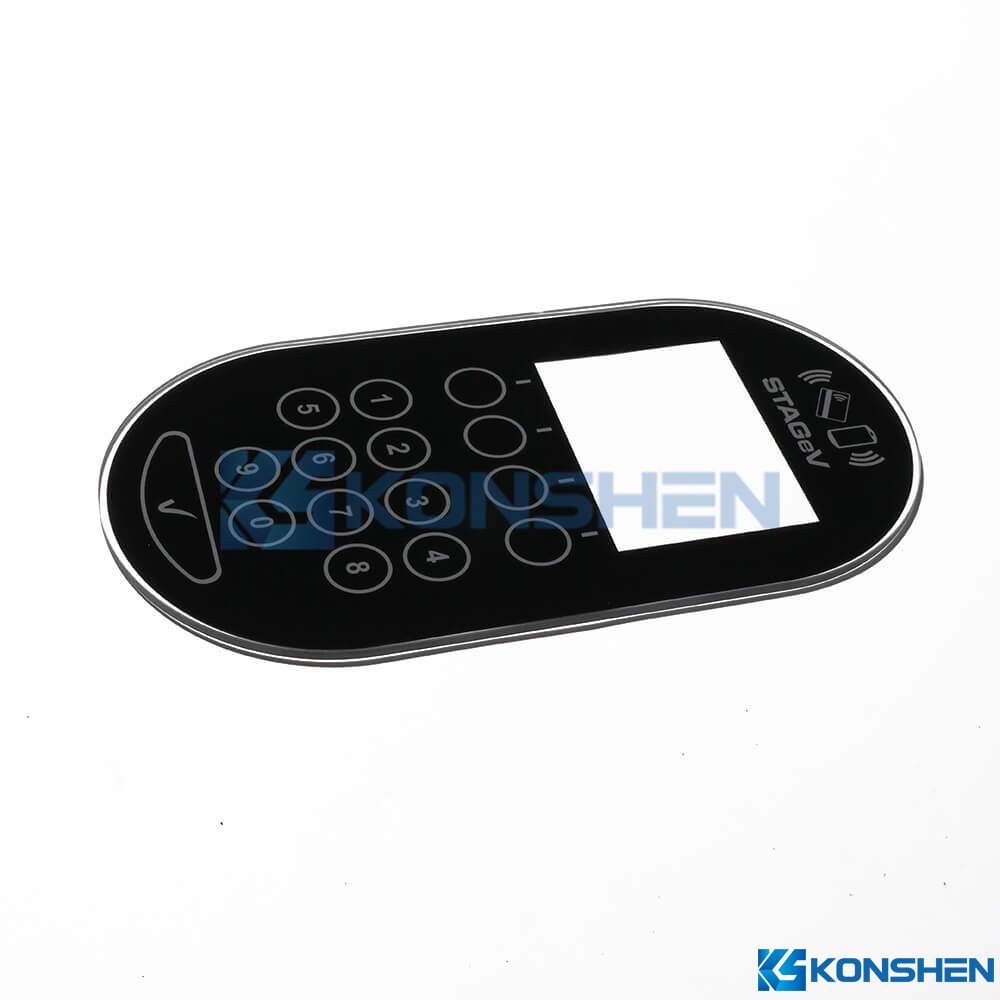

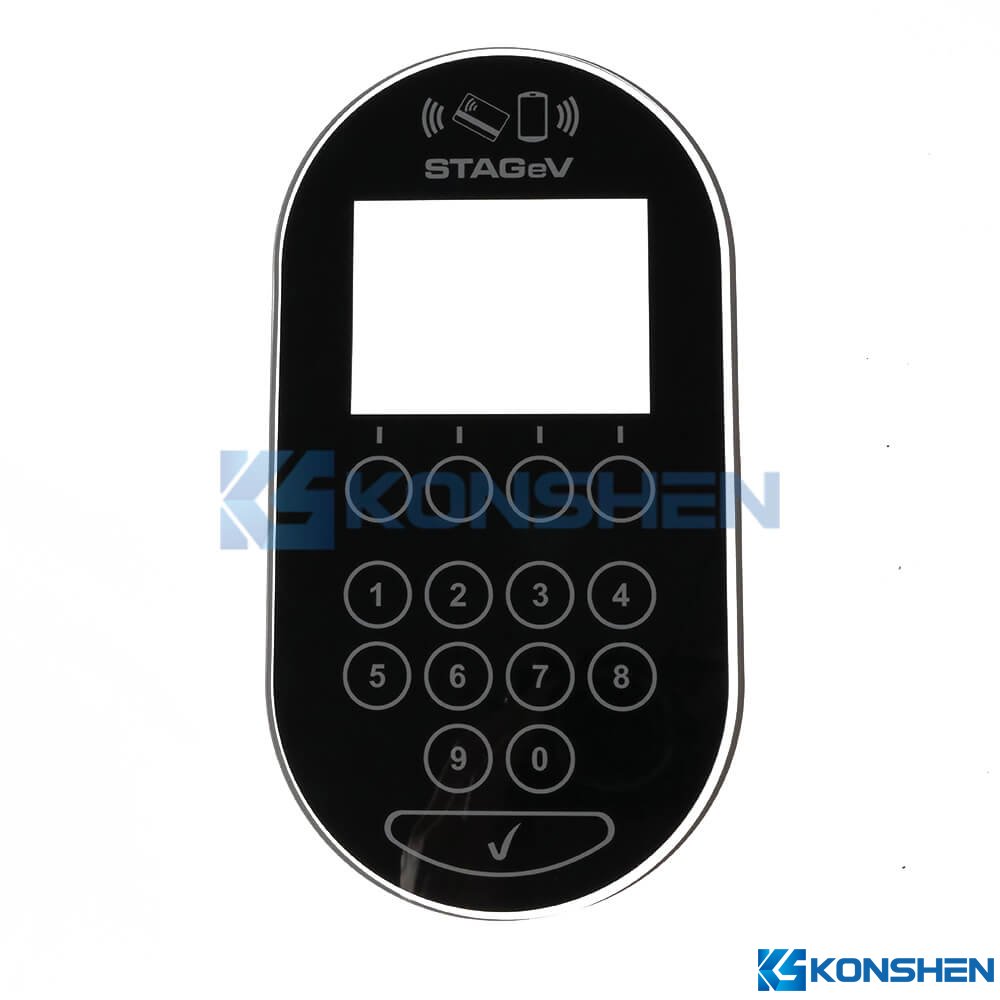

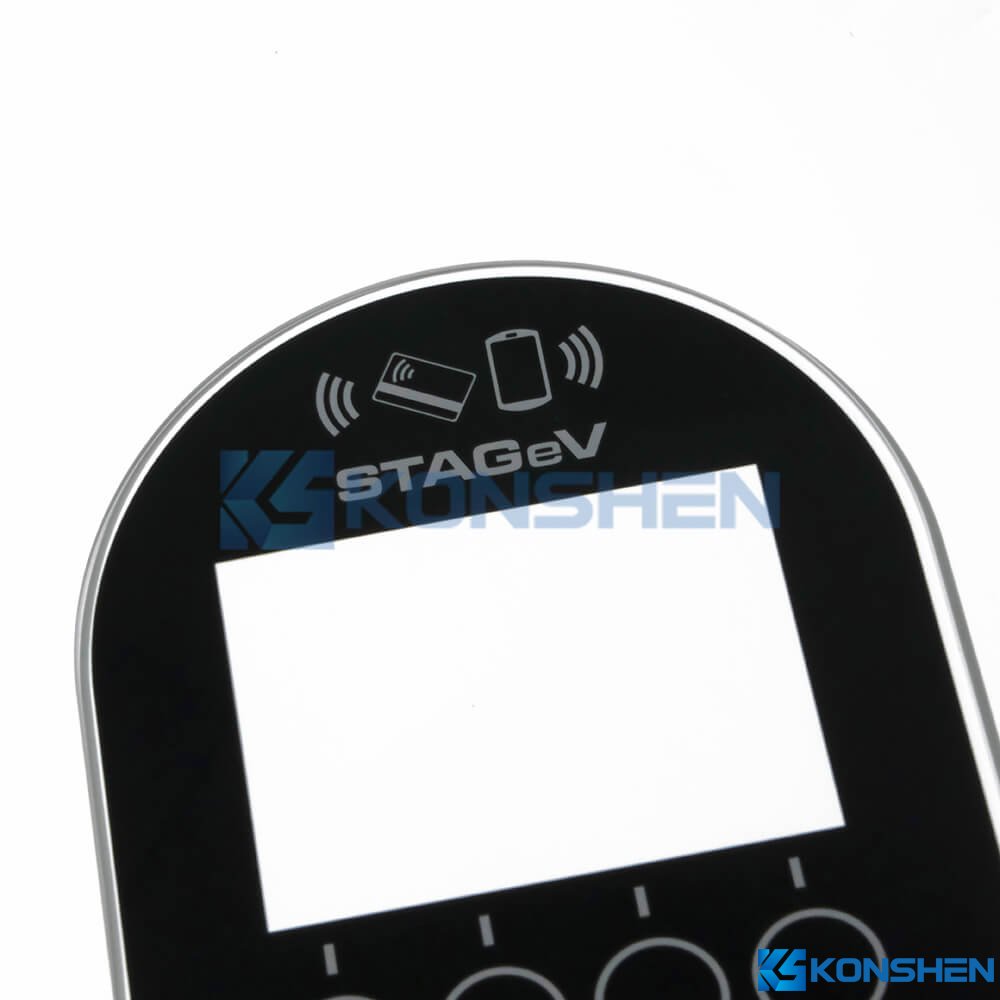

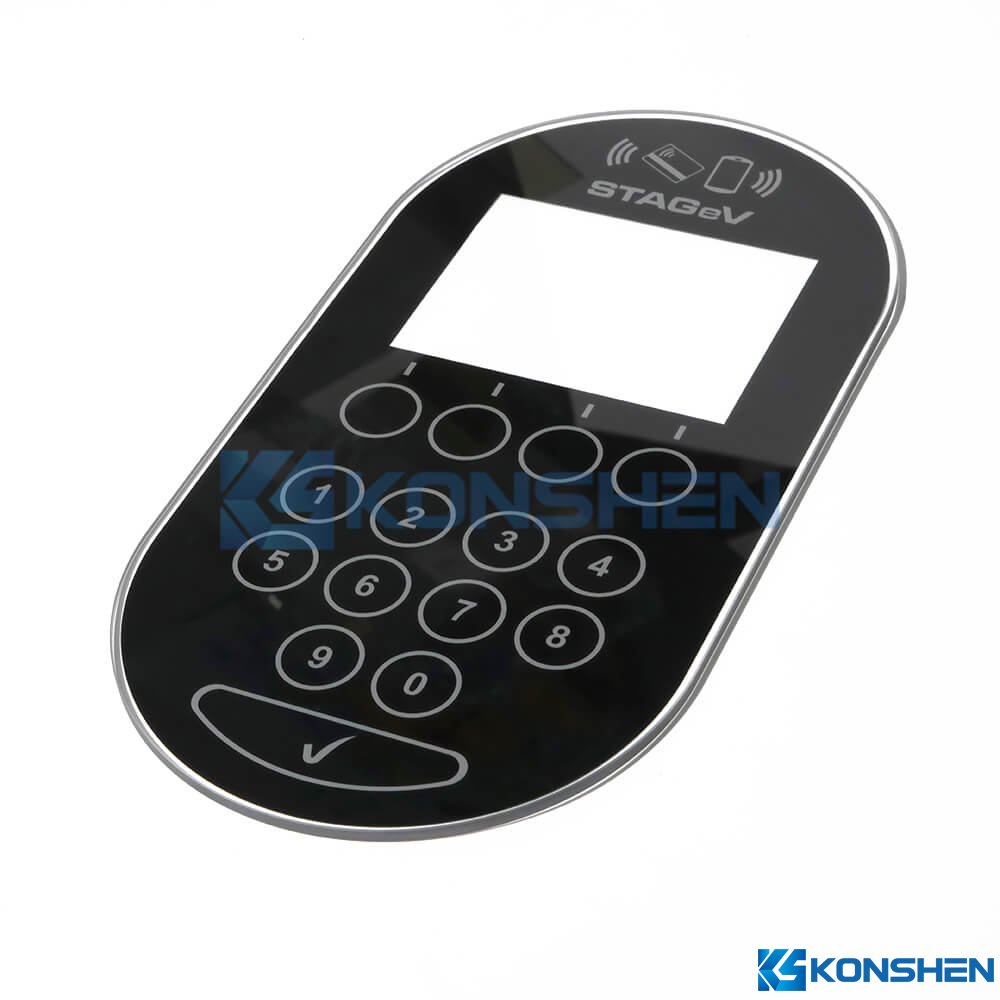

5mm Thick Physically Tempered Ultra-Clear Glass Panel

Key Features:

• High Strength & Safety: Tempered through physical toughening process for superior impact resistance and safety performance.

• Ultra-Clear Glass: Made from low-iron ultra-clear glass for excellent light transmission and premium aesthetics.

• Black Silk Printing: Precision silk screen printing ensures long-lasting color, excellent adhesion, and a refined visual effect.

• Polished Safety Edges: Smooth edge treatment reduces the risk of injury and enhances product quality.

• Customizable Shapes: Supports custom sizes, shapes, and edge processing to meet different application requirements.

• Scratch & Wear Resistance: The tempered surface offers outstanding resistance to scratches and daily wear.

Customized Option:

• Available Thickness: Ranging from 0.1 mm to 15 mm, depending on the insulation requirements and specific applications.

• Size & Shape: Supports special-shaped cutting to meet diverse needs. Customizes as per drawing.

• Cutting Option:CNC Cutting/Water jet Cutting/Diamond Blade Cutting

• Edge Options: Polished Edge/Safety Edge/Beveled Edge/Smooth Edge/2.5D Edge/Pencil Edge/Straight Edge

• Tempering Options: Physical Tempered/Checmical Strengthened

• Coating Options: Anti-Reflective (AR) Coating/Anti-Fingerprint (AF) Coating/Scratch-Resistant Coating/Indium Tin Oxide(ITO) Coating or Anti-Glare (AG)Coating

• Printing Options: UV Printing/Silk screen printing/Laser engraving printing

• Adhesive Options: AB Tape/ Double-side Tape/3M Adhesive

• Materials: Ultra Clear Glass

• Shape: Irregular

• Thickness: 5mmT

• Edge Work: Safety edge by CNC machine

• Tempered Method: Physically Tempering

• Printing Method: Silk screen printing  #RAL9004 BK #RAL9001 WH

• Density: 2.5 g/cm³

• Hardness: at least 6H

• Strengthness: IK07

• Operating Temperature Range: Suitable for -30°C to 250°C.

• Thickness Tolerances:± 0.2mm

• Dimensional Tolerances:±0.5mm for large size; ±0.1mm for small size

• Weather Resistance: Strong resistance to high temperatures and humidity, reducing aging effects

• UV Resistance: High UV-blocking capability

• Impact Resistance: 2-5 times stronger than standard glass. Specific impact resistance can vary based on thickness and treatment.


• Smart Access Systems: Ideal for electronic door locks, keypads, and smart entry panels where both aesthetics and durability are essential.

• Industrial Control Panels: Used as protective panels for control units, ensuring clarity and resistance to harsh operating environments.

• Consumer Electronics: Suitable for home automation devices, smart home control panels, and high-end audio systems.

• Medical Equipment Panels: Applied in medical devices that require hygienic, easy-to-clean, and durable surfaces.

• Touch Panels & Interfaces: Provides a smooth, scratch-resistant surface for touch interaction and display protection.

• Architectural & Decorative Panels: Enhances modern interiors with customized printed glass panels for functional and aesthetic purposes.
