Product Detail

Key Features:

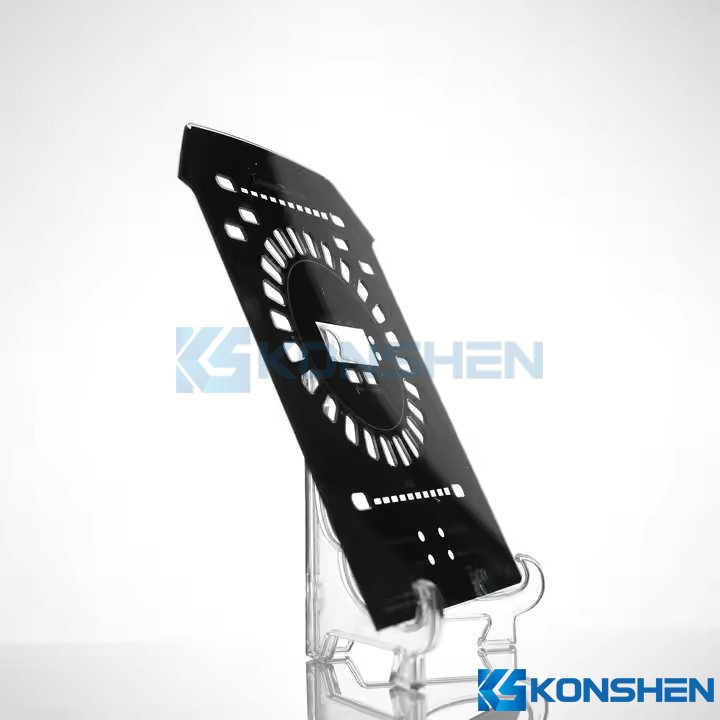

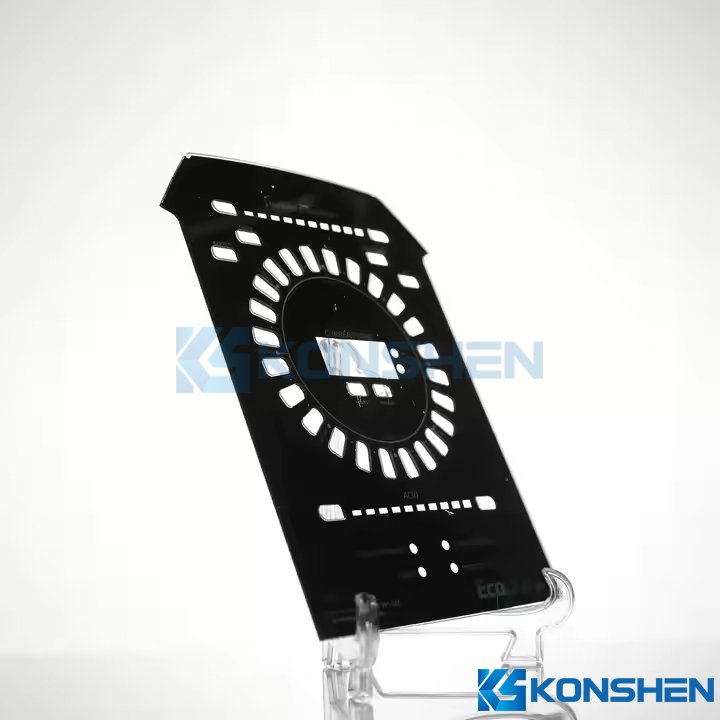

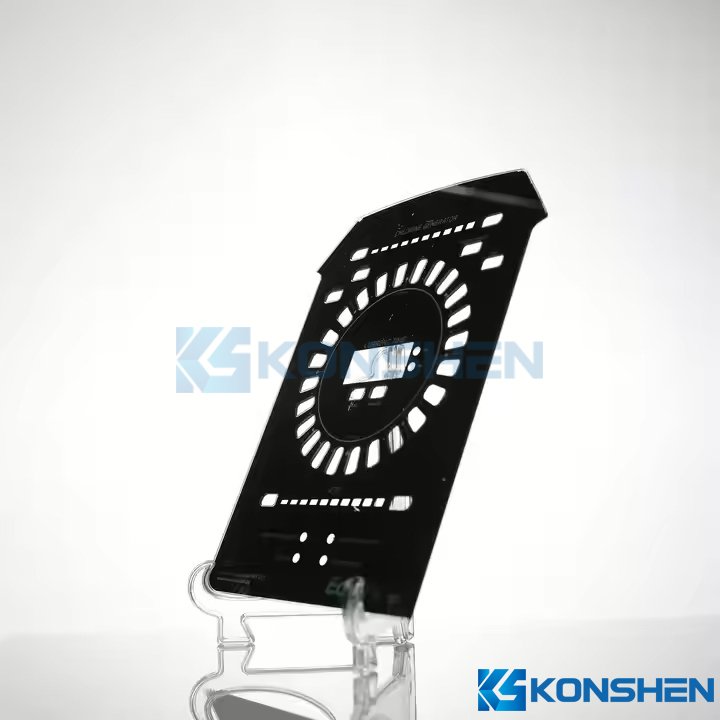

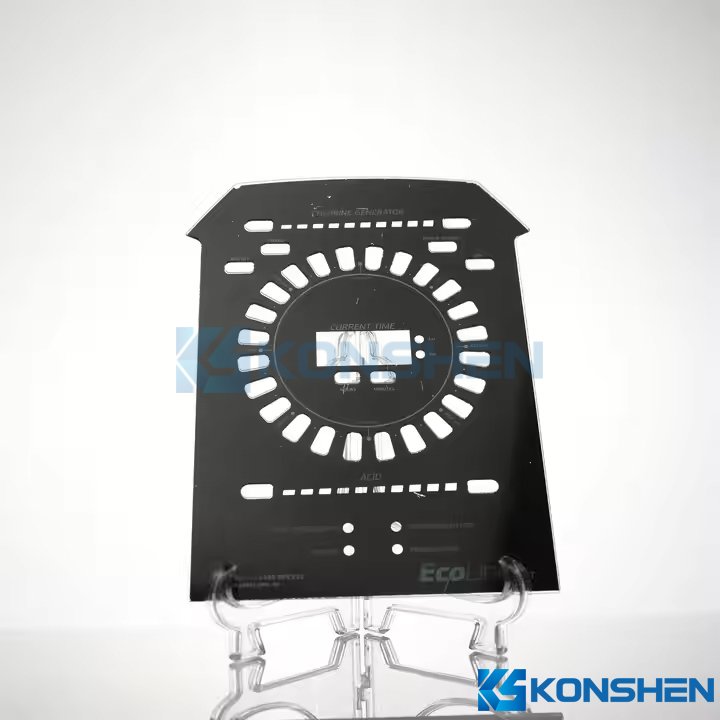

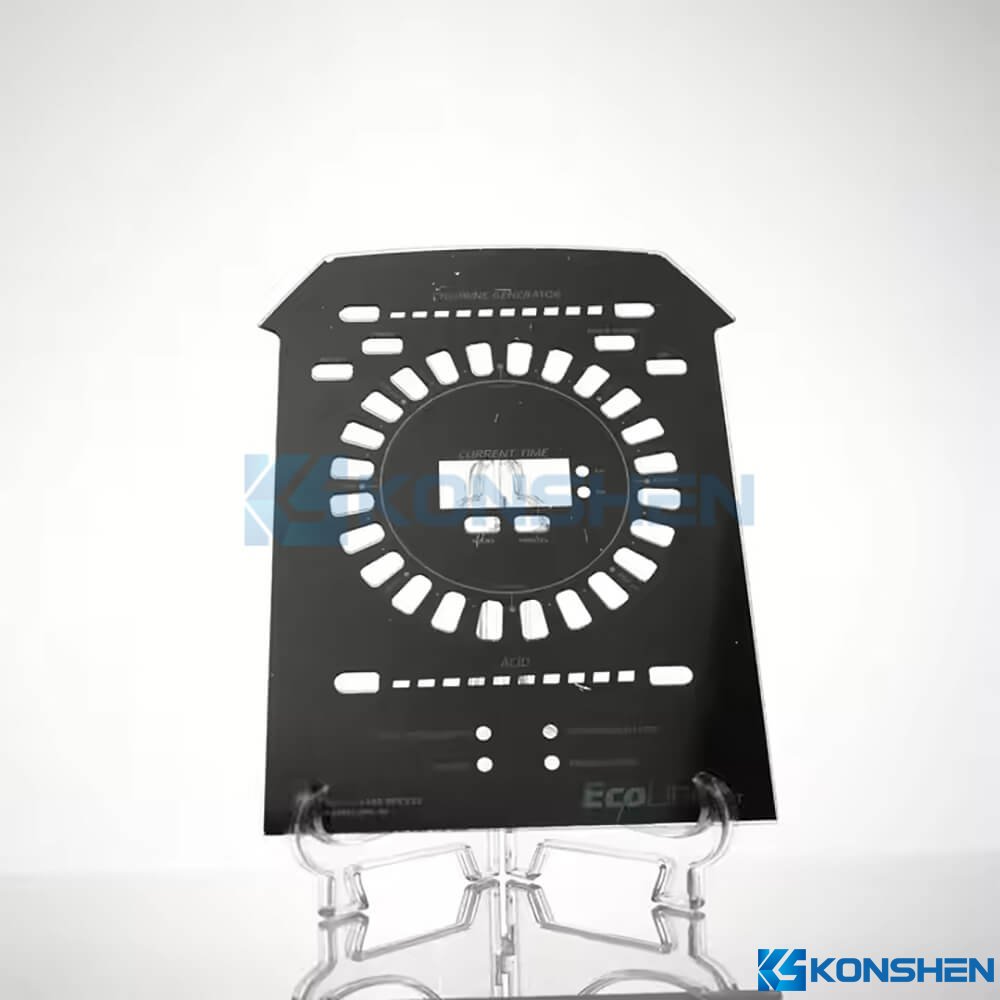

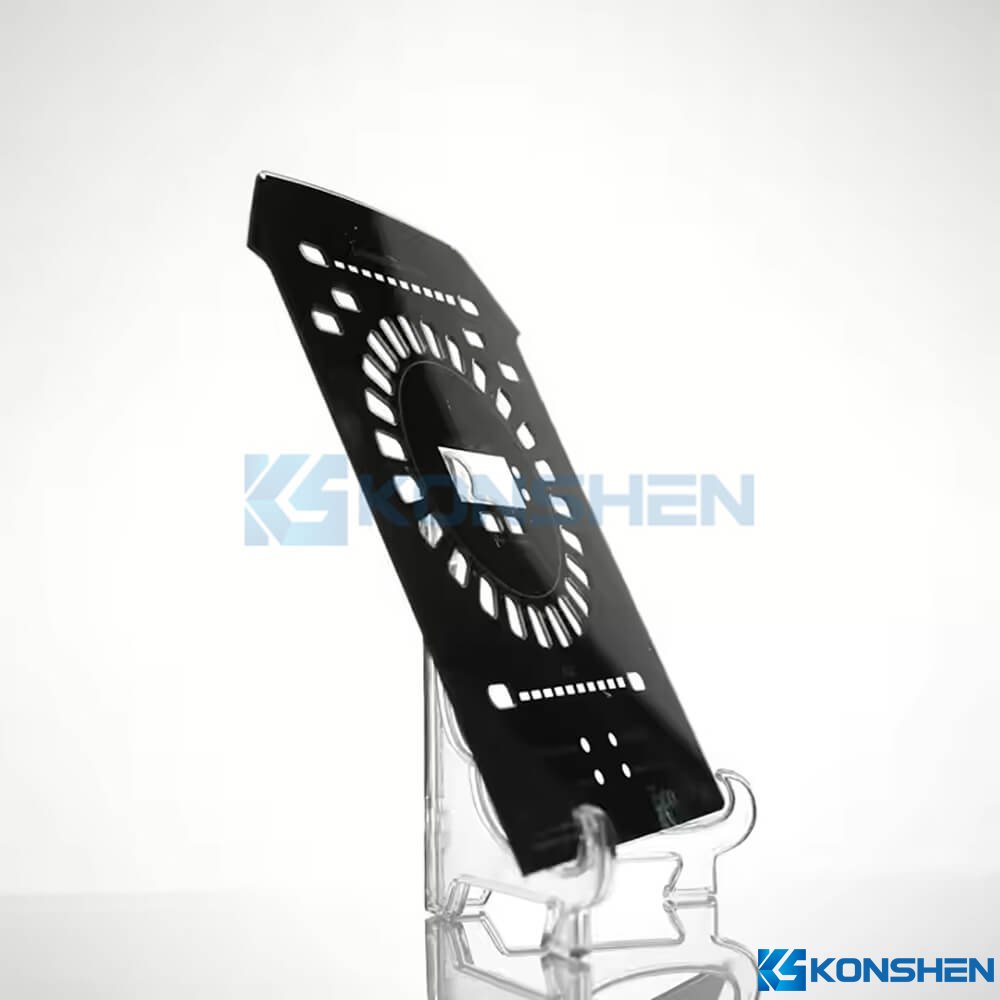

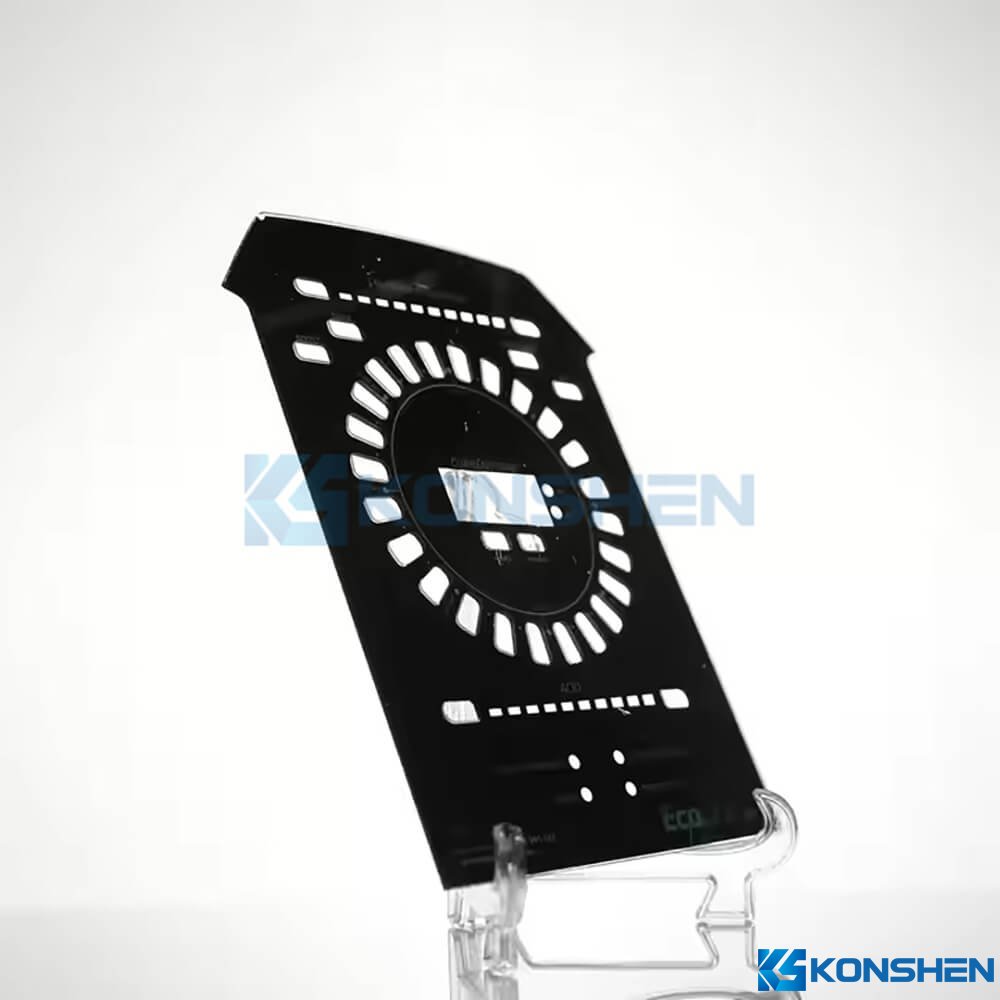

  • Durability & Safety: Tempered for enhanced strength and safety, the 3mm thick glass panel offers excellent resistance to impact and thermal fluctuations. Its balanced thickness ensures structural integrity during installation and in demanding environments.
  • Multi-through Hole Structure: Multiple through holes are precisely machined to accommodate the integration of LEDs, buttons, microphones, or cameras. Each opening is smooth-edged and tailored to complex system requirements.
  • Exquisite black silk screen: Black silk printing delivers high opacity for masking internal components, while also enhancing the product’s aesthetic. It can be customized for logos, frames, or functional graphics.
  • Surface cleanliness: The anti-fingerprint (AF) coating reduces smudges, oil, and moisture residue, maintaining a clean and smooth surface that supports frequent interaction.
  • High-precision edge chamfering: Edges are finely polished and chamfered for safe handling and smooth assembly, eliminating sharpness and improving structural fit.
  • Diversified customization: Fully customizable in shape, size, silk print, hole layout, and more to adapt to specific application needs, enabling seamless integration across industries.

Customized Option:
  • Available Thickness: Ranging from 0.33 mm to 10 mm, depending on the insulation requirements and specific applications.
  • Size & Shape: Supports special-shaped cutting to meet diverse needs. Customizes as per drawing.
  • Cutting Option: CNC Cutting/Water jet Cutting/Diamond Blade Cutting
  • Edge Options: Polished Edge/Safety Edge/Beveled Edge/Smooth Edge/2.5D Edge/Pencil Edge/Straight Edge
  • Tempering Options: Physical Tempered/Checmical Strengthened
  • Coating Options: Anti-Reflective (AR) Coating/Anti-Fingerprint (AF) Coating/Scratch-Resistant Coating/Indium Tin Oxide(ITO) Coating or Anti-Glare (AG)Coating
  • Printing Options: UV Printing/Silk screen printing/Laser engraving printing
  • Adhesive Options: AB Tape/ Double-side Tape/3M Adhesive

Technical Parameters

Materials: Ultra Clear Glass
Shape: Irregular
Thickness: 3mmT
Edge Work: Safety edge by CNC machine
Tempered Method: Physical Tempered
Coating: Anti-fingerprint(AF) coating
Printing Method: Silk screen printing  #RAL9004 BK
Density: 2.5 g/cm³
Hardness: at least 6H
Strengthness: IK07
Operating Temperature Range: Suitable for -30°C to 250°C.
Thickness Tolerances:± 0.2mm
Dimensional Tolerances:±0.5mm for large size; ±0.1mm for small size
Weather Resistance: Strong resistance to high temperatures and humidity, reducing aging effects
UV Resistance: High UV-blocking capability
Impact Resistance: 2-5 times stronger than standard glass. Specific impact resistance can vary based on thickness and treatment.




Application

  • Smart Touch Device: Perfect for smart touchscreen and access control terminals with embedded fingerprint sensors, cameras, and microphones. The glass ensures durability and premium appearance.
  • Industrial Control Panel(HMI): Widely used in HMI panels for industrial automation, providing high durability under dust, impact, and heavy operation. Silk printing supports functional zoning and labeling.
  • High-end Consumer Electronic Terminals: Ideal for smart home panels, touch switches, and control units—delivering sleek aesthetics and enhanced user interaction via the AF coating.
  • Medical Electronics Equipment: Used as a front glass for medical and surveillance systems, offering visual clarity, antimicrobial surface options, and functional cutouts for full integration.
  • Information Interaction Intelligent Terminal: Applied in kiosks, card readers, and smart display terminals—through holes support component integration, while silk print areas are customizable for branding or interface zones.

Company and factory equipment

Customer Visit

Customer Visit

Company Profile

Company Profile

Dlivery & Payment

Packaging:

  • Step 1: PE film coating(Normally) / paper(For seashipment prevent wet).
  • Step 2: Kraft paper for fixation.
  • Step 3: Carton for glass safety protection.
  • Step 4: Custom make plywood case with hinge for custom(fumigation + convenient inspection) convenience.
  • Step 5: Packing strap for further fixation.
