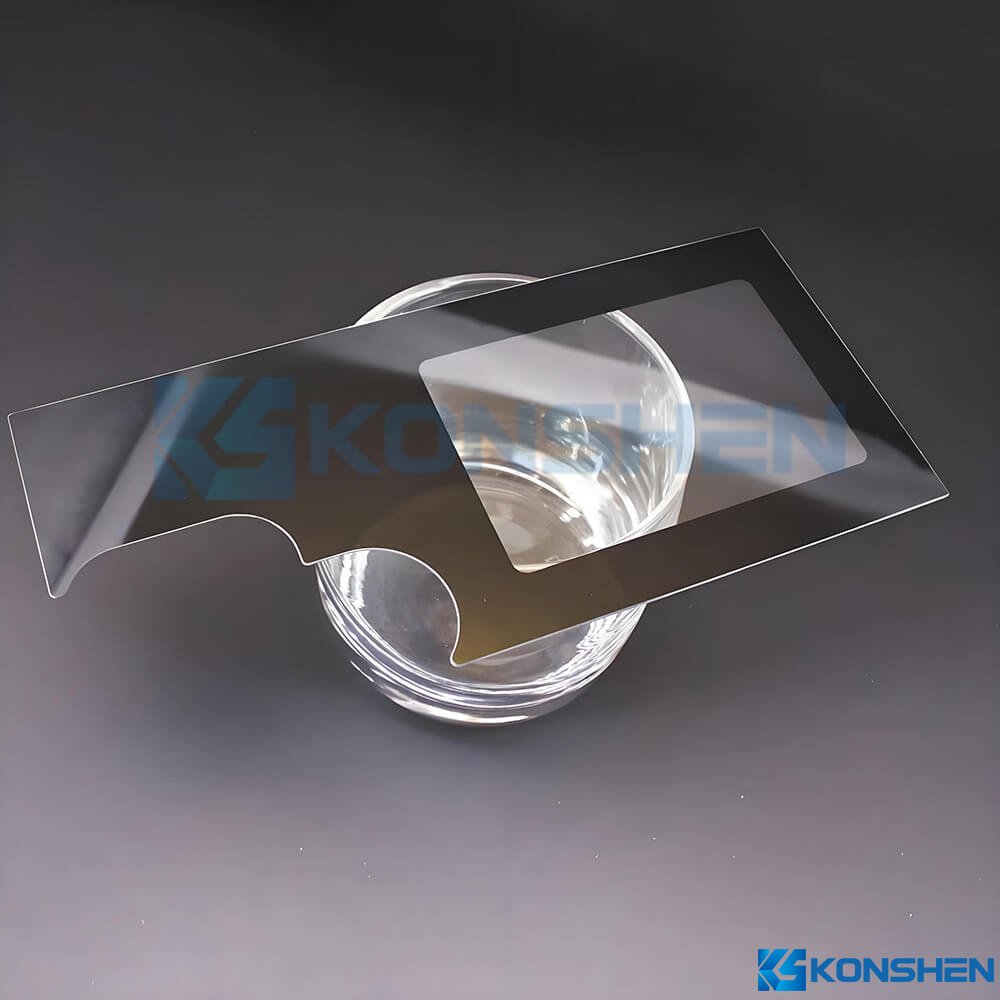

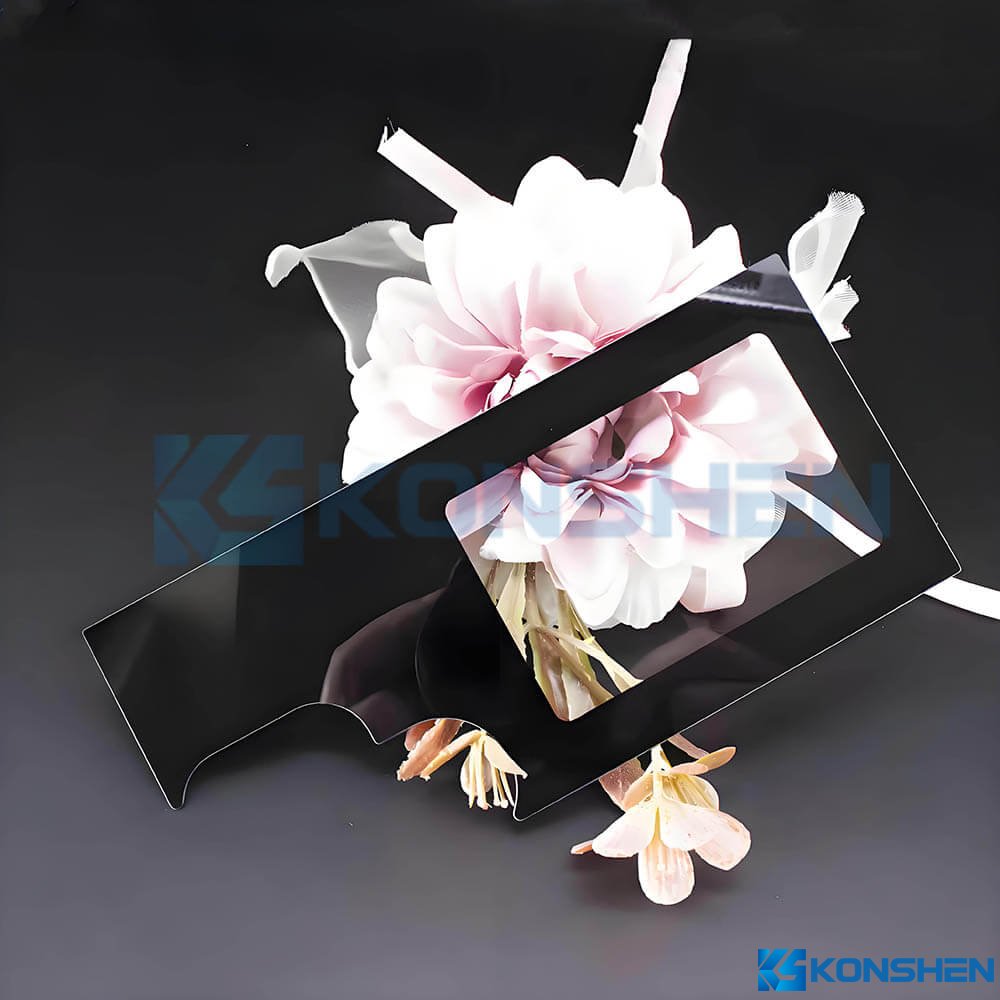

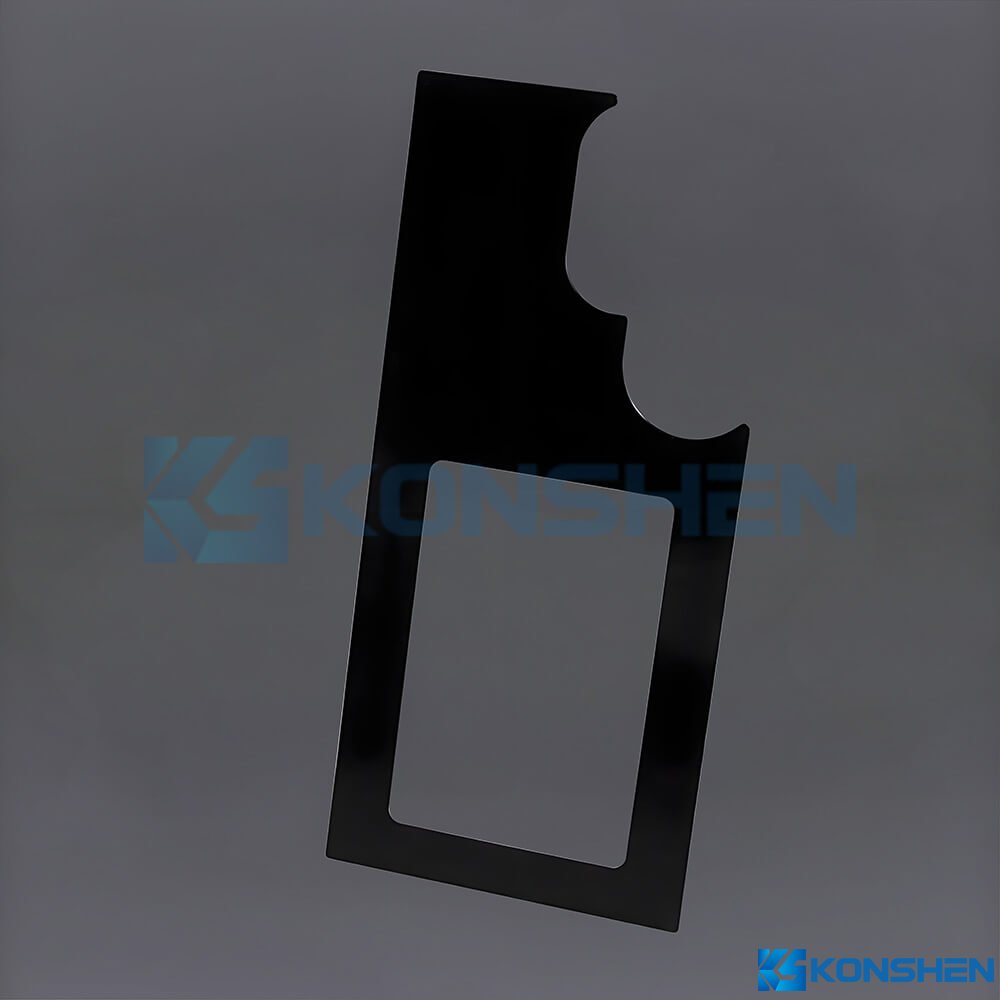

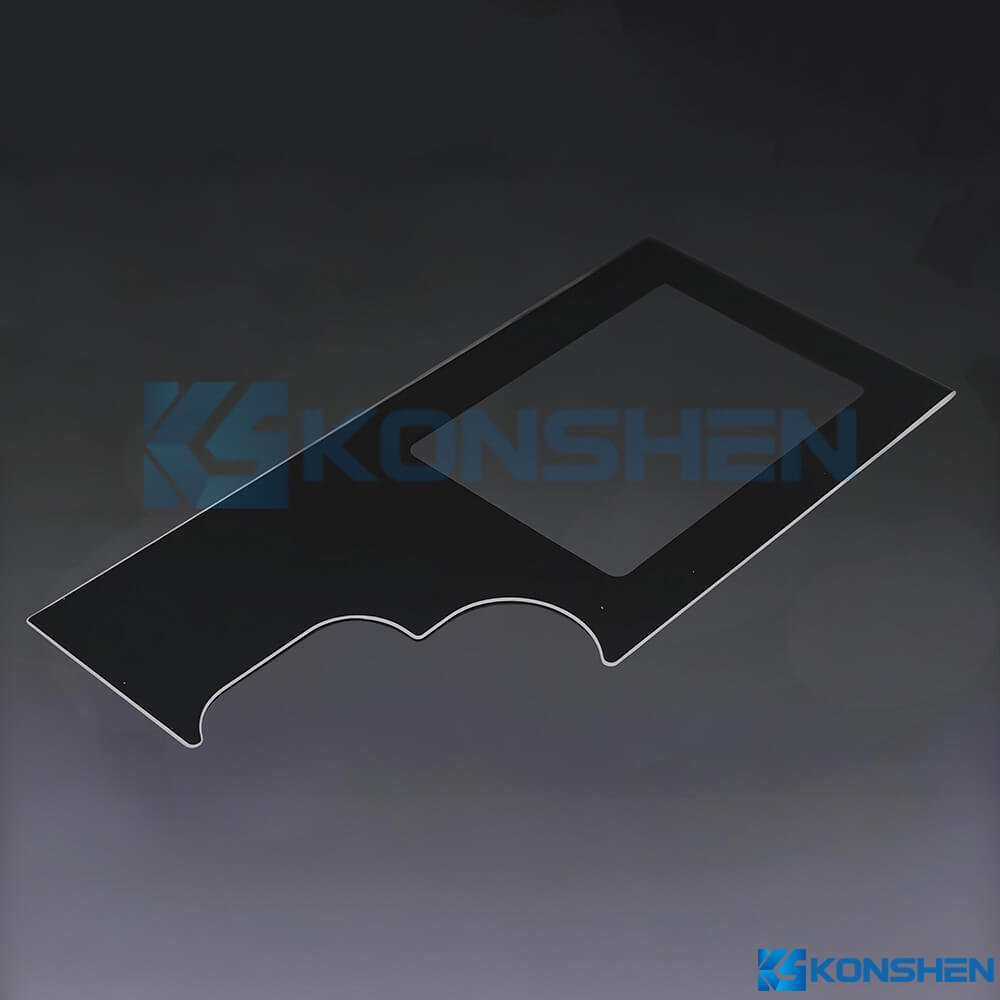

2mm IK07 Irregular shape Anti-Scratch Coating Tempered Glass Panel

Product Detail

Key Features:

Semi-Tempered Strength: Offers enhanced mechanical durability while reducing the risk of sharp fragmentation upon impact, making it safer and more robust in industrial applications.
Precision Shaped Design: Laser-cut for intricate profiles, ensuring perfect compatibility with complex enclosures or custom housing designs.
AS Anti-Scratch Coating: The surface is treated with a durable AS coating that minimizes scratches and scuffing in high-contact environments.
High-end Printing: Crisp and durable black silk printing enhances visual aesthetics and provides functional UI guides.
Safety Edge Work: Smoothly finished edges reduce risk during handling and installation while adding a refinedlook.

Customized Option:

Available Thickness: Ranging from 0.1 mm to 15 mm, depending on the insulation requirements and specific applications.
Size & Shape: Supports special-shaped cutting to meet diverse needs. Customizes as per drawing.
Cutting Option: CNC Cutting/Water jet Cutting/Diamond Blade Cutting
Edge Options: Polished Edge/Safety Edge/Beveled Edge/Smooth Edge/2.5D Edge/Pencil Edge/Straight Edge
Tempering Options: Physical Tempered/Checmical Strengthened
Coating Options: Anti-Reflective (AR) Coating/Anti-Fingerprint (AF) Coating/Scratch-Resistant Coating/Indium Tin Oxide(ITO) Coating or Anti-Glare (AG)Coating
Printing Options: UV Printing/Silk screen printing/Laser engraving printing
Adhesive Options: AB Tape/ Double-side Tape/3M Adhesive

Technical Parameters

Materials: Ultra Clear Glass

Shape: Irregular

Thickness: 2mmT

Edge Work: Safety edge by CNC machine

Tempered Method: Physical Tempered

Coating: Anti-scratch(AS) coating

Printing Method: Silk screen printing #RAL9004 BK

Density: 2.5 g/cm³

Hardness: at least 6H

Strengthness: IK07

Operating Temperature Range: Suitable for -30°C to 250°C.

Thickness Tolerances:± 0.2mm

Dimensional Tolerances:±0.5mm for large size; ±0.1mm for small size

Weather Resistance: Strong resistance to high temperatures and humidity, reducing aging effects

UV Resistance: High UV-blocking capability

Impact Resistance: 2-5 times stronger than standard glass. Specific impact resistance can vary based on thickness and treatment.

Application

Smart Terminals & Access Control Panels: Perfect for smart home devices, intercom systems, and access control units, this shaped glass offers both refined aesthetics and durable surface protection. Its precise cutouts and anti-scratch coating ensure stable performance under frequent touch interaction and environmental exposure.
Industrial HMI Panels & Display Interfaces: In industrial automation and control equipment, the glass serves as a protective interface for touch panels and display modules. It resists abrasion, impact, and chemical wear, making it suitable for harsh workshop environments.
Consumer Electronics & Embedded Devices: From smart kitchen appliances to personal fitness monitors, this cover glass enhances both function and form. Its multi-functional design enables seamless integration into embedded touchscreens or control surfaces.
Medical & Diagnostic Equipment: Frequently used in diagnostic monitors, patient interface terminals, and portable medical devices, the glass offers hygiene-friendly surface properties and resistance to disinfectants.
Automotive Interior Components: This shaped glass is suitable for dashboard interfaces, touch panels, or rear-seat entertainment systems, combining safety edges with aesthetic silk printing and high mechanical stability.

Company and factory equipment

Customer Visit

Company Profile

Dlivery & Payment

Packaging:

Step 1: PE film coating(Normally) / paper(For seashipment prevent wet).
Step 2: Kraft paper for fixation.
Step 3: Carton for glass safety protection.
Step 4: Custom make plywood case with hinge for custom(fumigation + convenient inspection) convenience.
Step 5: Packing strap for further fixation.
