0.8mm Curved Ultra-Thin Chemically Strengthened Cover Glass

Key Features:

• Ultra-thin yet Rigid: At just 0.8mm, the cover dramatically reduces device weight and z-height while maintaining stiffness and flatness, resisting warpage after assembly. It is ideal for compact or portable devices where space and cosmetic consistency matter.

• Chemically Strengthened Durability: Ion-exchange strengthening creates a surface compressive layer that boosts impact resistance and edge-chip robustness. Even at ultra-thin thickness, it delivers higher reliability and service life during daily use and assembly.

• Premium Deep-Black Printing: High-opacity, high-adhesion inks deliver a rich, uniform black that cleanly masks internal parts. Crisp edges with no show-through or streaking support branding and safety graphics while elevating the premium look.

• Curved Form & Tactility: The smooth curvature mates neatly with device enclosures, offering comfortable grip and glide without sharp feel. Visually, the curve refines the product and softens edges for a seamless, integrated appearance.

• Clear Optical Windows: Display/indicator areas can be configured as transparent or translucent windows with controlled transmittance and haze for crisp icons and backlighting. Clean transitions prevent shadowing and light bleed.

Customized Option:

• Available Thickness: Ranging from 0.1 mm to 15 mm, depending on the insulation requirements and specific applications.

• Size & Shape: Supports special-shaped cutting to meet diverse needs. Customizes as per drawing.

• Cutting Option: CNC Cutting/Water jet Cutting/Diamond Blade Cutting

• Edge Options: Polished Edge/Safety Edge/Beveled Edge/Smooth Edge/2.5D Edge/Pencil Edge/Straight Edge

• Tempering Options: Physical Tempered/Checmical Strengthened

• Coating Options: Anti-Reflective (AR) Coating/Anti-Fingerprint (AF) Coating/Scratch-Resistant Coating/Indium Tin Oxide(ITO) Coating or Anti-Glare (AG)Coating

• Printing Options: UV Printing/Silk screen printing/Laser engraving printing

• Adhesive Options: AB Tape/ Double-side Tape/3M Adhesive

Materials: Ultra Clear Glass

Shape: Irregular

Thickness: 0.8mmT

Edge Work: Safety edge by CNC machine

Tempered Method: Chemical Strengthened

Printing Method: Silk screen printing  #RAL9004 BK

Density: 2.5 g/cm³

Hardness: at least 6H

Strengthness: IK07

Operating Temperature Range: Suitable for -30°C to 250°C.

Thickness Tolerances: ± 0.05mm

Dimensional Tolerances: ±0.5mm for large size; ±0.1mm for small size

Weather Resistance: Strong resistance to high temperatures and humidity, reducing aging effects

UV Resistance: High UV-blocking capability

Impact Resistance: 2-5 times stronger than standard glass. Specific impact resistance can vary based on thickness and treatment.

Production-Ready Customization: End-to-end customization—thickness, outline, ink color codes, window size and registration—is supported with color and lot-to-lot consistency controls, from pilot runs to mass production.

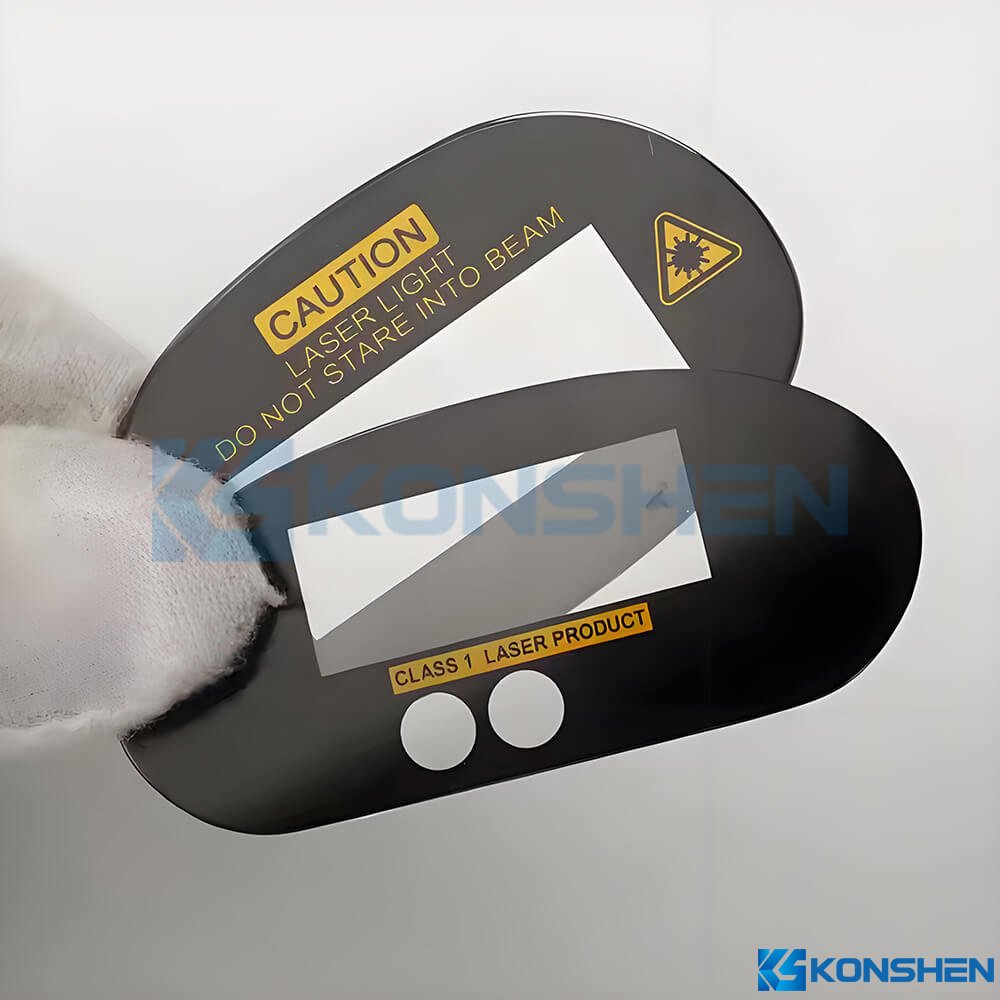

• Lasers & Optical Instruments: With high transmittance windows and precise screen-printed safety markings, this cover glass is well-suited for laser devices, optical scanners, and projectors. It maintains optical path stability while providing safety warnings and brand recognition.

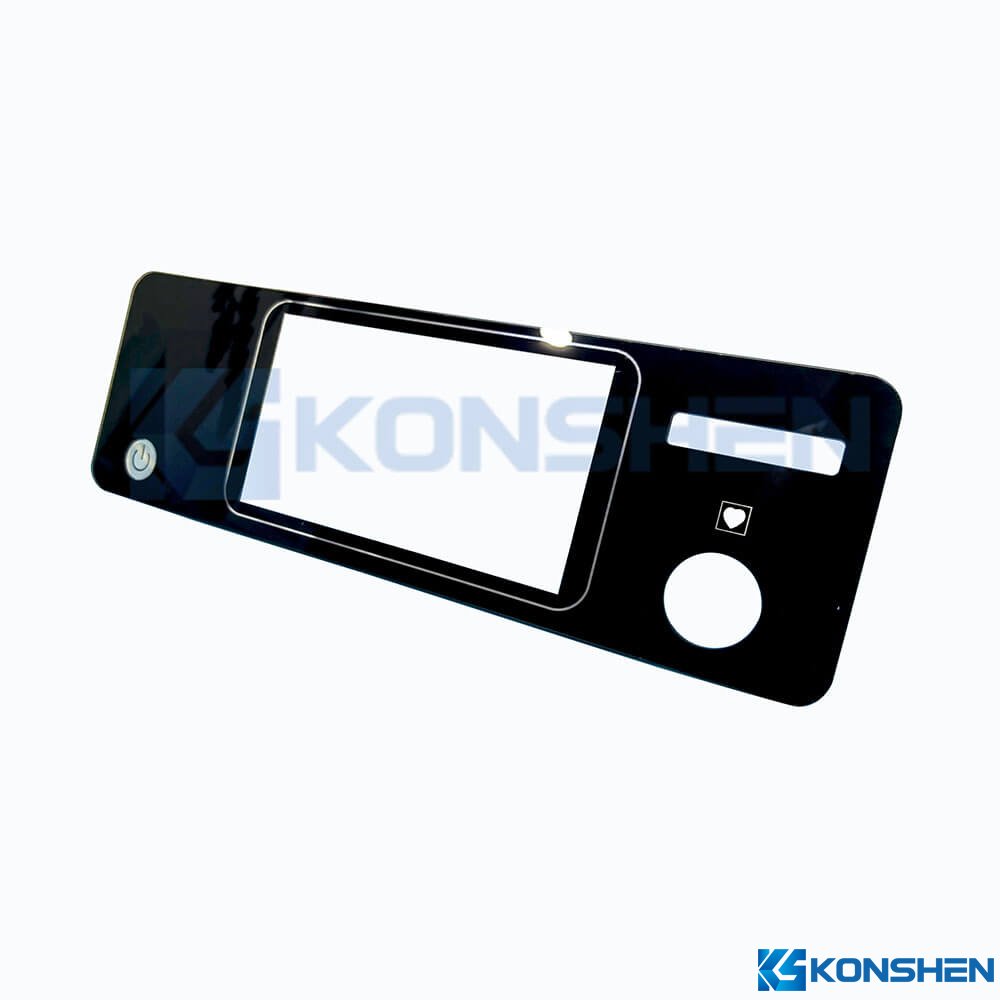

• Medical & Diagnostic Devices: In medical analyzers and diagnostic instruments, the ultra-thin glass reduces device size and weight, while the deep-black print masks internal electronics for a professional look. Clear windows ensure legible readings and indicators, making it ideal for high-reliability, hygienic environments.

• Consumer Electronics & Smart Devices: The curved design and premium black finish make this glass cover suitable for smart home panels, wearables, and portable electronics. It enhances the tactile experience while elevating product aesthetics, catering to consumer demand for sleek, lightweight devices.

• Industrial Control & HMI: In industrial control and HMI applications, the cover glass withstands operational stress while providing dependable masking. The black printed borders clearly delineate display and control zones, improving interface clarity and operator safety.

• Safety & Protective Applications: With its chemically strengthened durability and printed warning graphics, this cover glass serves well in protective roles for laser rangefinders and optical sensors. It functions both as a physical barrier and a visual safety reminder, reinforcing compliance with usage standards.

•
