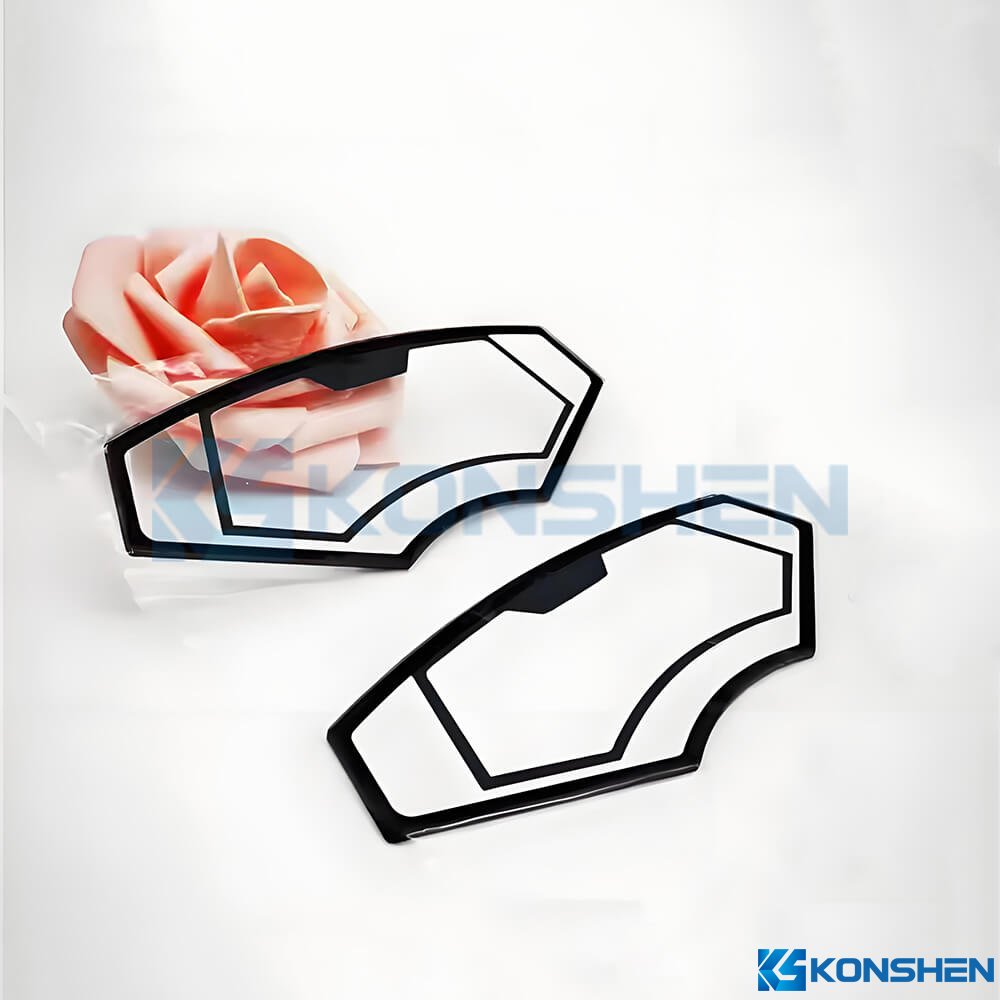

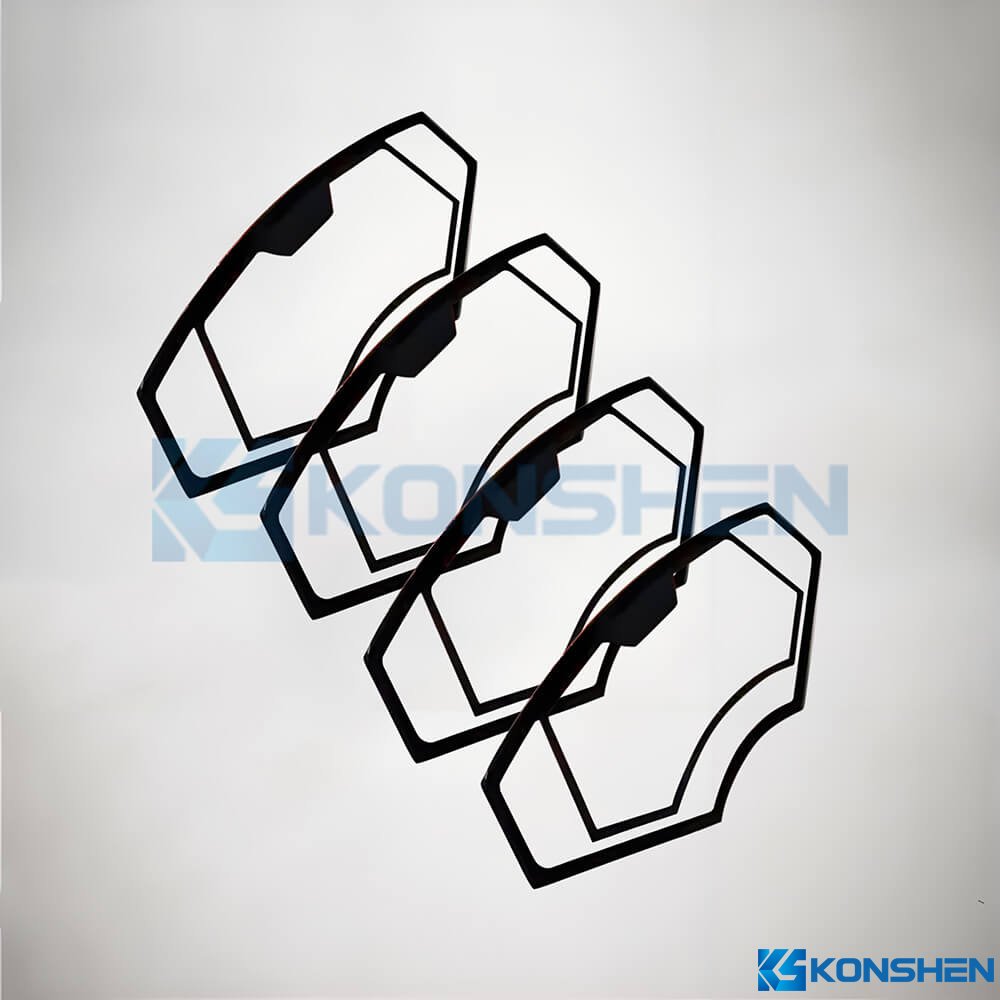

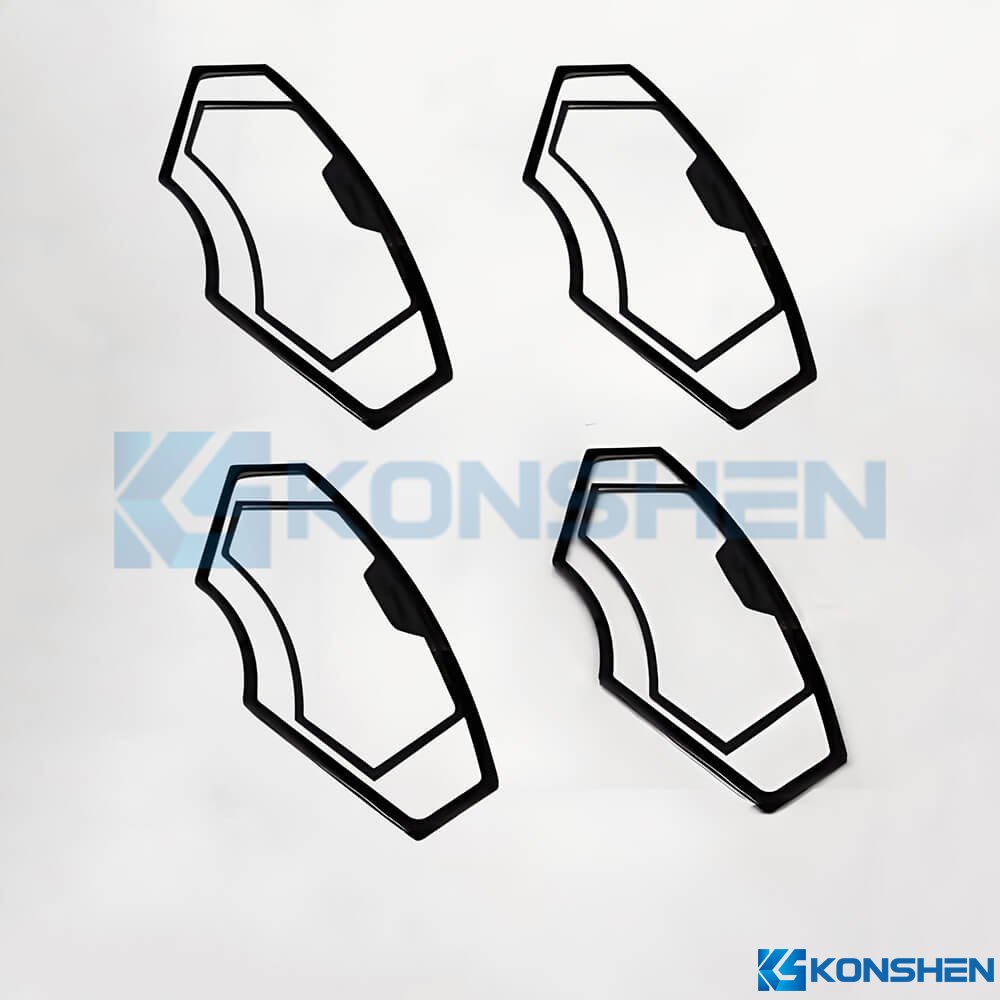

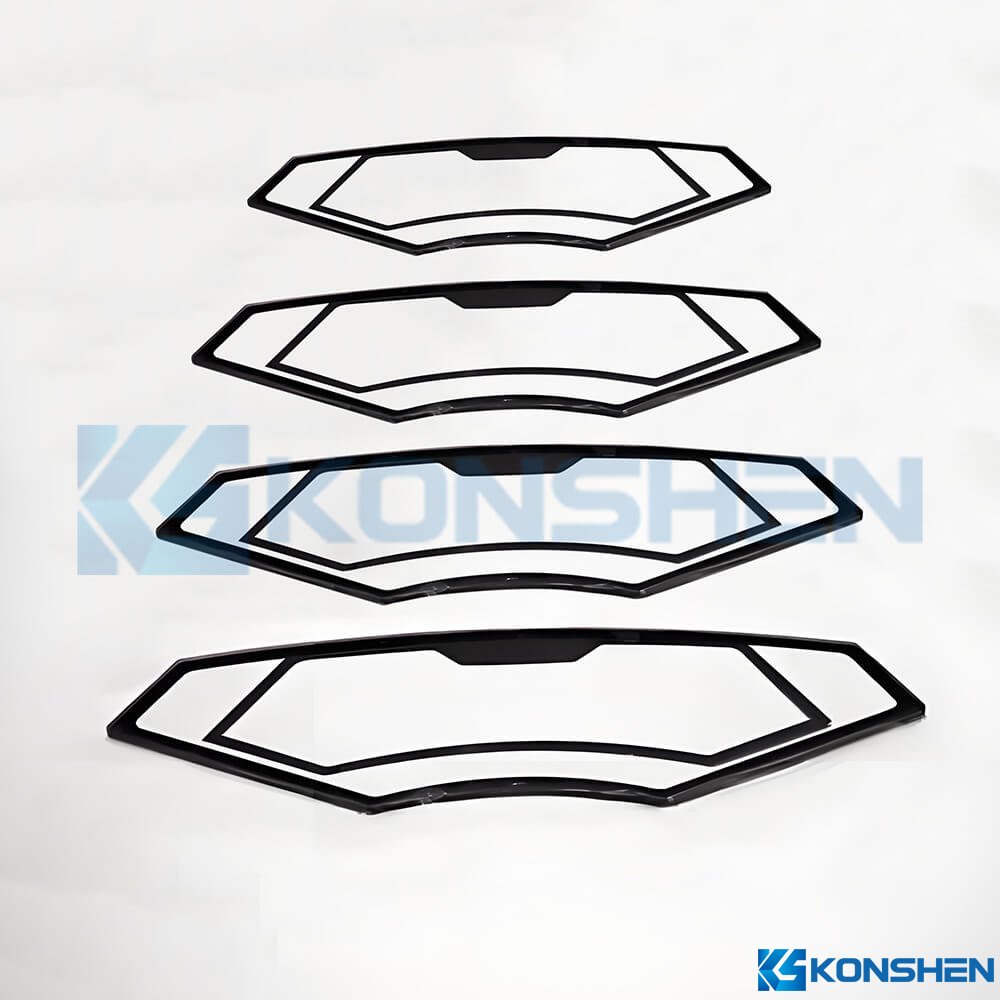

1.3mm Thick Irregular Shaped Glass Cover with Black Silk Printing for Display Devices

Key Features:

• High Precision Dimensional Control: The glass is manufactured using advanced CNC machining and precision engraving techniques, ensuring smooth edges without burrs and maintaining highly accurate hole positions and shapes. This precision engineering allows for perfect compatibility with complex device structures, reducing installation errors and enhancing overall performance and user experience.

• Chemical Strengthening Treatment: The glass undergoes a chemical strengthening process that significantly enhances its impact and bending resistance at the molecular level, making it stronger and more durable than standard glass. This treatment extends the product's lifespan while ensuring safety and stability in high-frequency usage scenarios, making it ideal for devices requiring stringent safety and reliability standards.

• Premium Silk Screen Printing:The surface features premium silk screen printing that delivers sharp, wear-resistant graphics and markings, combining aesthetics with precise functional labeling. The printed layer adheres firmly, ensuring long-lasting performance without fading, maintaining both visual appeal and functionality over time.



Customized Option:

• Available Thickness: Ranging from 0.1 mm to 15 mm, depending on the insulation requirements and specific applications.

• Size & Shape: Supports special-shaped cutting to meet diverse needs. Customizes as per drawing.

• Cutting Option: CNC Cutting/Water jet Cutting/Diamond Blade Cutting

• Edge Options: Polished Edge/Safety Edge/Beveled Edge/Smooth Edge/2.5D Edge/Pencil Edge/Straight Edge

• Tempering Options: Physical Tempered/Checmical Strengthened

• Coating Options: Anti-Reflective (AR) Coating/Anti-Fingerprint (AF) Coating/Scratch-Resistant Coating/Indium Tin Oxide(ITO) Coating or Anti-Glare (AG)Coating

• Printing Options: UV Printing/Silk screen printing/Laser engraving printing

• Adhesive Options: AB Tape/ Double-side Tape/3M Adhesive

•

• Materials: Ultra Clear Glass

• Shape: Irregular

• Thickness: 1.3mmT

• Edge Work: Safety edge by CNC machine

• Tempered Method: Chemical Strengthened

• Printing Method: Silk screen printing  #RAL9004 BK

• Density: 2.5 g/cm³

• Hardness: at least 6.5H

• Strengthness: IK07

• Operating Temperature Range: Suitable for -30°C to 250°C.

• Thickness Tolerances: ± 0.1mm

• Dimensional Tolerances: ±0.5mm for large size; ±0.1mm for small size

• Weather Resistance: Strong resistance to high temperatures and humidity, reducing aging effects

• UV Resistance: High UV-blocking capability

• Impact Resistance: 2-5 times stronger than standard glass. Specific impact resistance can vary based on thickness and treatment.

•

•  Smart Lock Panels: This kind of glass is an ideal choice for smart lock panels, thanks to its superior strength and anti-fingerprint properties. It ensures long-term safety while delivering an exceptional visual experience and tactile feel, meeting the design requirements of premium smart home products.

• Consumer Electronics Devices: It is suitable for various consumer electronics such as tablets, smart control panels, and wearable devices. The precise dimensions and high-quality silk printing ensure perfect compatibility, enhancing both the aesthetic appeal and user experience of the devices.

• Industrial Control Terminals: For industrial control terminals that demand high stability and durability, this chemically strengthened glass withstands harsh operational environments and frequent use, ensuring long-term reliable performance.

• Medical Device Displays: In the medical field, glass must offer durability while meeting stringent hygiene and maintenance standards. The AF coating facilitates easy cleaning, reducing contamination risks and ensuring safe use in medical equipment.
