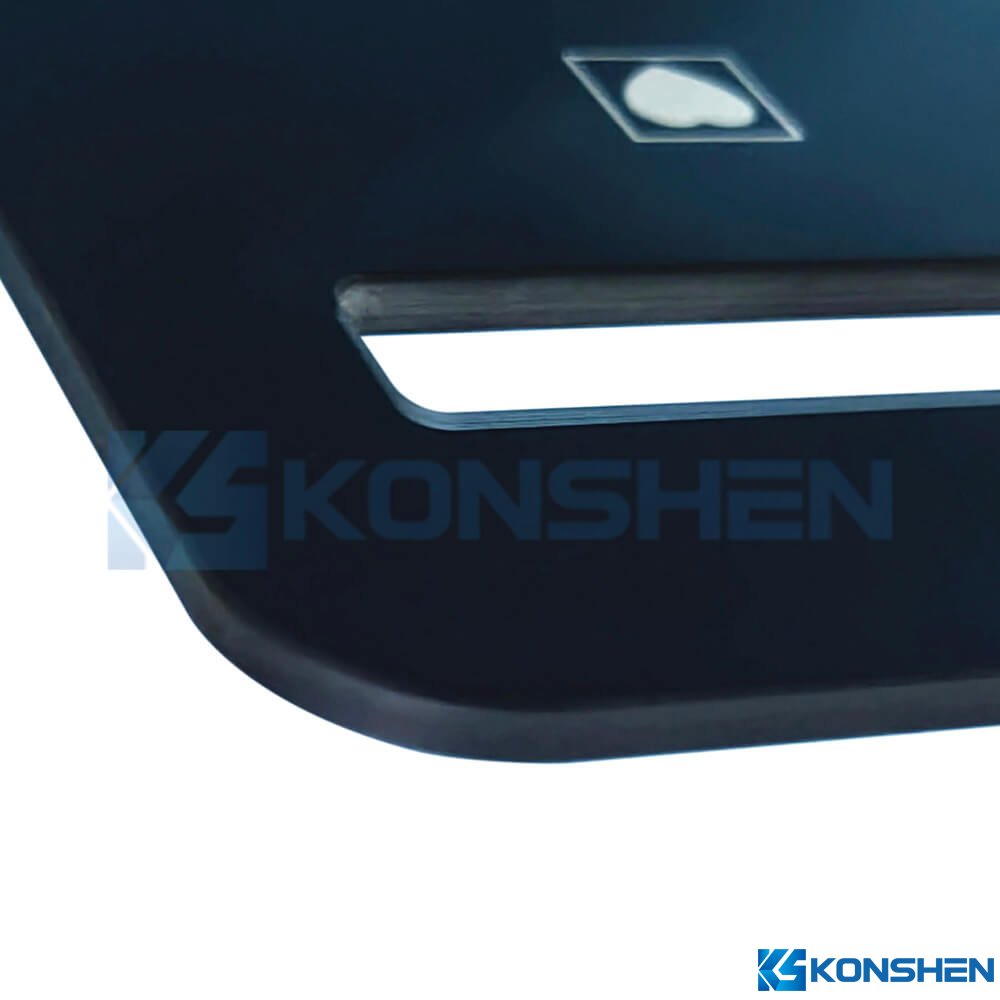

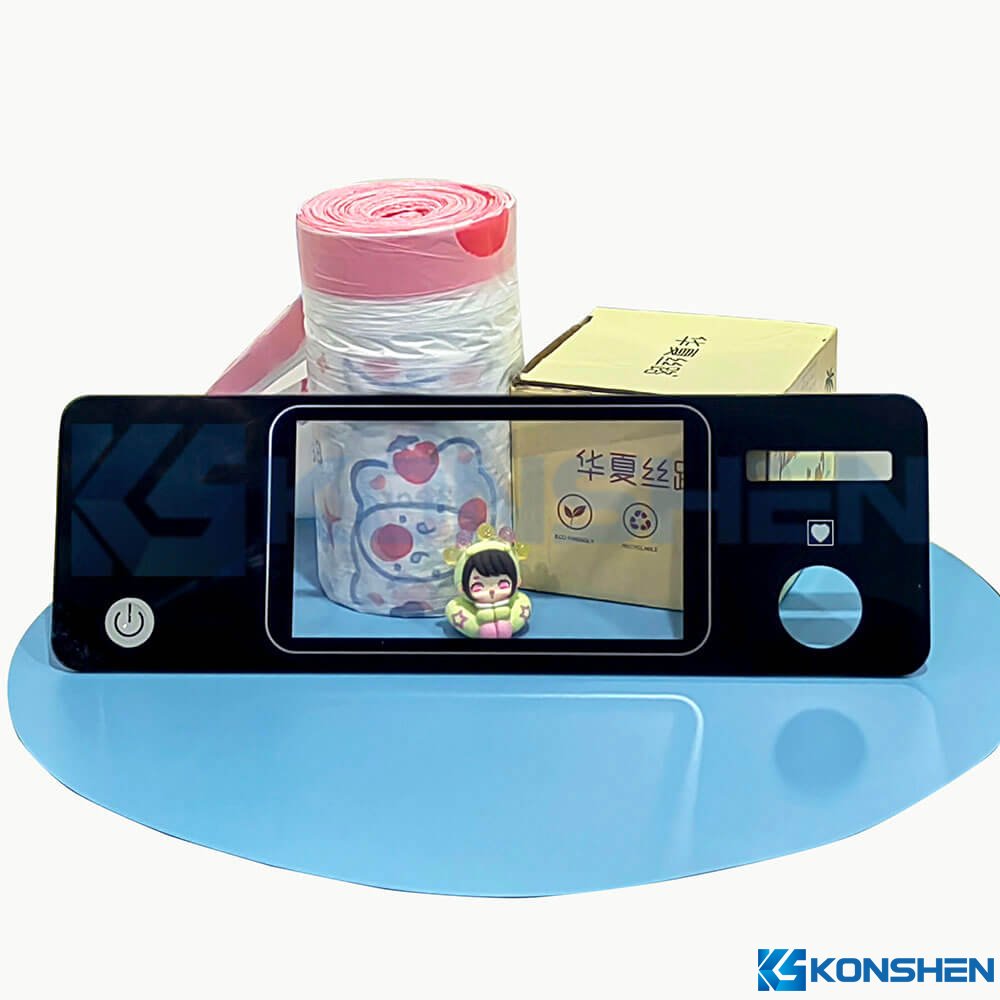

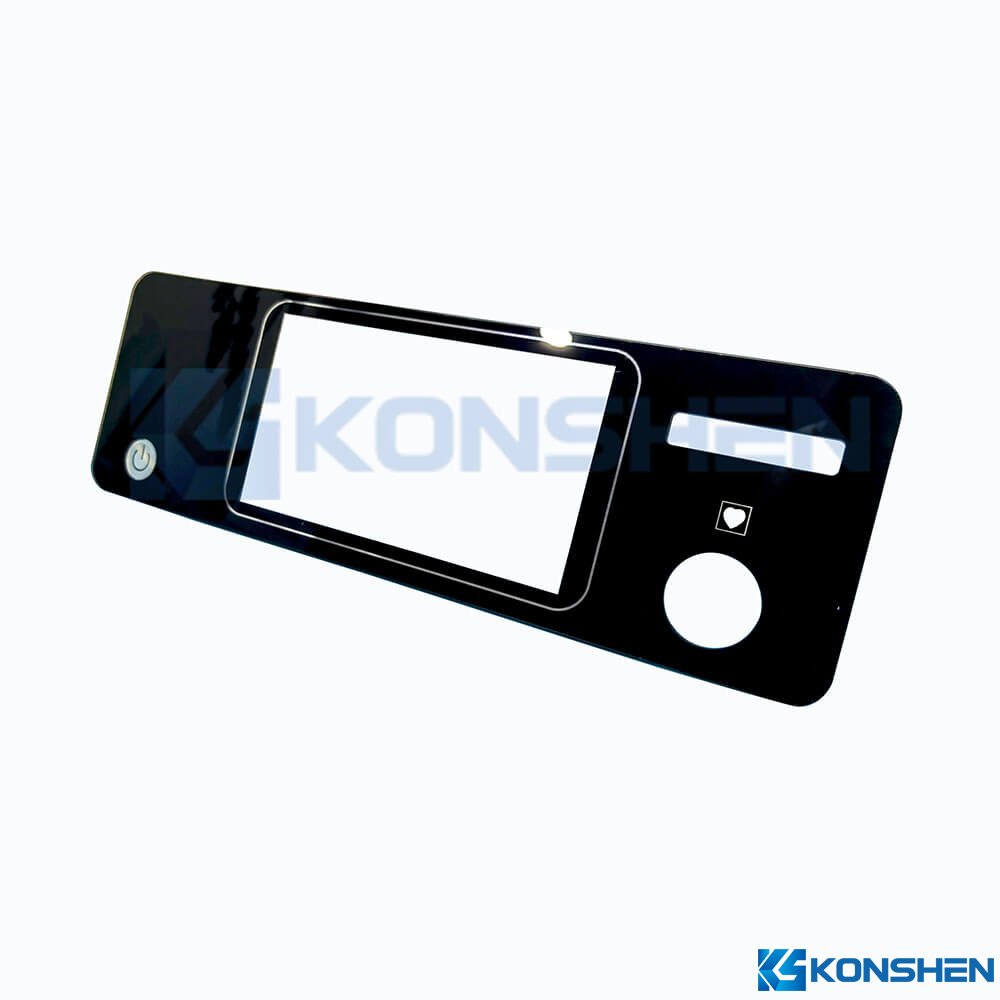

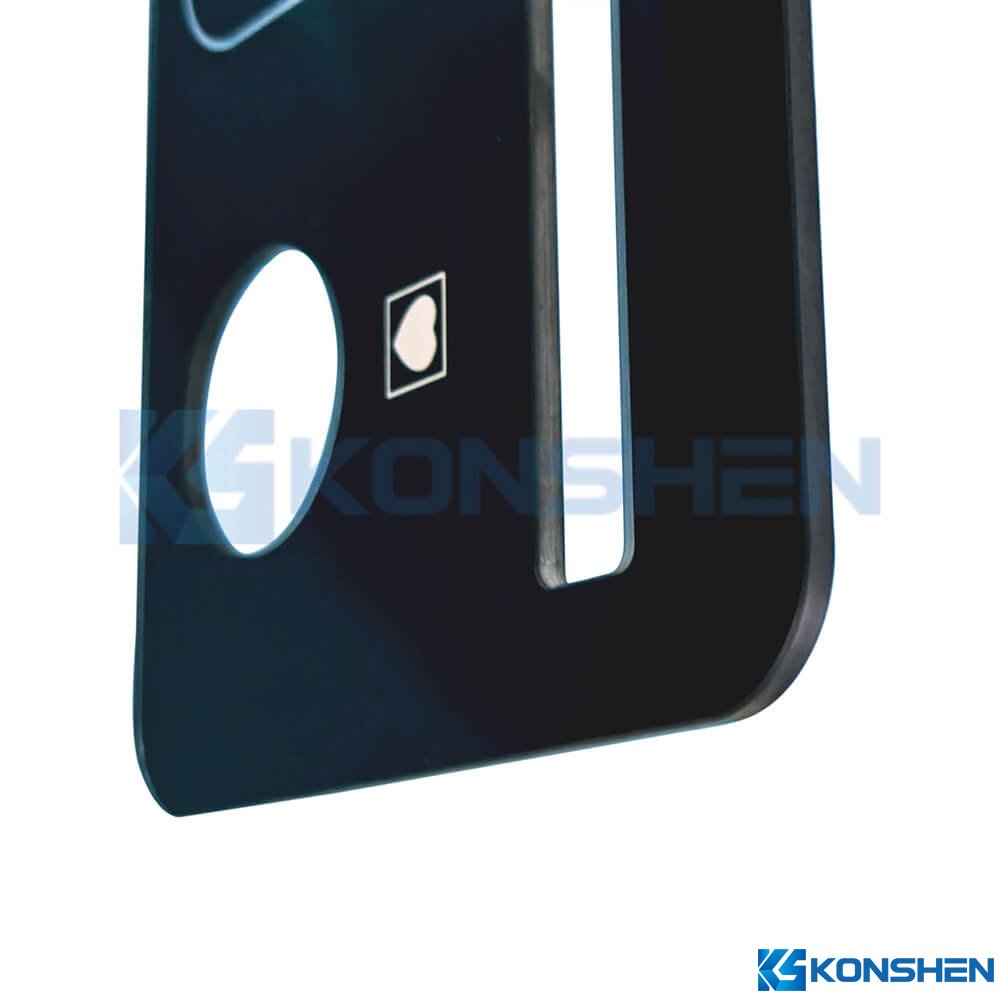

IK10 6mm High Transparency Physical Tempered automotive Display Cover Glass

Key Features:

• Optimal Thickness & Durability: The 6mm thick tempered glass provides excellent structural strength. It can resist impacts, scratches from daily use (such as cleaning or minor collisions), and maintain its integrity in varying temperature environments, ensuring a long service life.

• High Transparency Clarity: With a light transmittance of 90%, it offers crystal - clear visibility for displays. Whether it's showing navigation maps in a car, multimedia content on a consumer device, or critical data on an industrial panel, it ensures easy readability without glare or distortion.

• Precision Fitment: Custom cut to match the dimensions of different devices. Smooth edges and accurate cutouts (for buttons, sensors, or other components) enable seamless integration with existing setups, simplifying the installation process.

• Chemical & Temperature Resistance: Capable of withstanding a wide range of chemicals and extreme temperature changes. It maintains stable performance in harsh environments, preventing warping or discoloration.

Customized Option:

• Available Thickness: Ranging from 0.1 mm to 15 mm, depending on the insulation requirements and specific applications.

• Size & Shape: Supports special-shaped cutting to meet diverse needs. Customizes as per drawing.

• Cutting Option: CNC Cutting/Water jet Cutting/Diamond Blade Cutting

• Edge Options: Polished Edge/Safety Edge/Beveled Edge/Smooth Edge/2.5D Edge/Pencil Edge/Straight Edge

• Tempering Options: Physical Tempered/Checmical Strengthened

• Coating Options: Anti-Reflective (AR) Coating/Anti-Fingerprint (AF) Coating/Scratch-Resistant Coating/Indium Tin Oxide(ITO) Coating or Anti-Glare (AG)Coating

• Printing Options: UV Printing/Silk screen printing/Laser engraving printing

• Adhesive Options: AB Tape/ Double-side Tape/3M Adhesive

• Materials: Ultra Clear Glass

• Shape: Rectangular

• Thickness: 6mmT

• Edge Work: Safety edge by CNC machine

• Tempered Method: Physical Tempered

• Coating: Anti-fingerprint(AF) coating

• Printing Method: Silk screen printing  #RAL9004 BK

• Density: 2.5 g/cm³

• Hardness: at least 6H

• Strengthness: IK10

• Operating Temperature Range: Suitable for -30°C to 250°C.

• Thickness Tolerances:± 0.2mm

• Dimensional Tolerances:±0.5mm for large size; ±0.1mm for small size

• Weather Resistance: Strong resistance to high temperatures and humidity, reducing aging effects

• UV Resistance: High UV-blocking capability

• Impact Resistance: 2-5 times stronger than standard glass. Specific impact resistance can vary based on thickness and treatment.

• Automotive Industry: Dashboards and Infotainment Systems: Protects speedometers, fuel gauges, digital driver info screens, and touchscreens for music, navigation, and vehicle settings. Maintains readability in sunlight and resists scuff marks from frequent wiping.

• Consumer Electronics: Shields device screens from scratches and impacts during daily use. The high - transparency glass ensures a clear display for multimedia content, calls, and app usage.

• Home Appliances: Fits control panels of smart TVs, refrigerators, and washing machines. Resists wear from touches and cleaning, keeping the interface looking new.

• Industrial Sector: Control Panels: Protects industrial control panels used in manufacturing, automation, and monitoring systems. Withstands exposure to industrial chemicals, dust, and minor impacts, ensuring clear display of critical data and smooth operation.

• Medical Equipment: Diagnostic Devices: Used in the display panels of medical diagnostic equipment such as ultrasound machines and blood analyzers. The high - transparency and durable glass ensures accurate display of medical data and reliable operation in a clinical environment.
