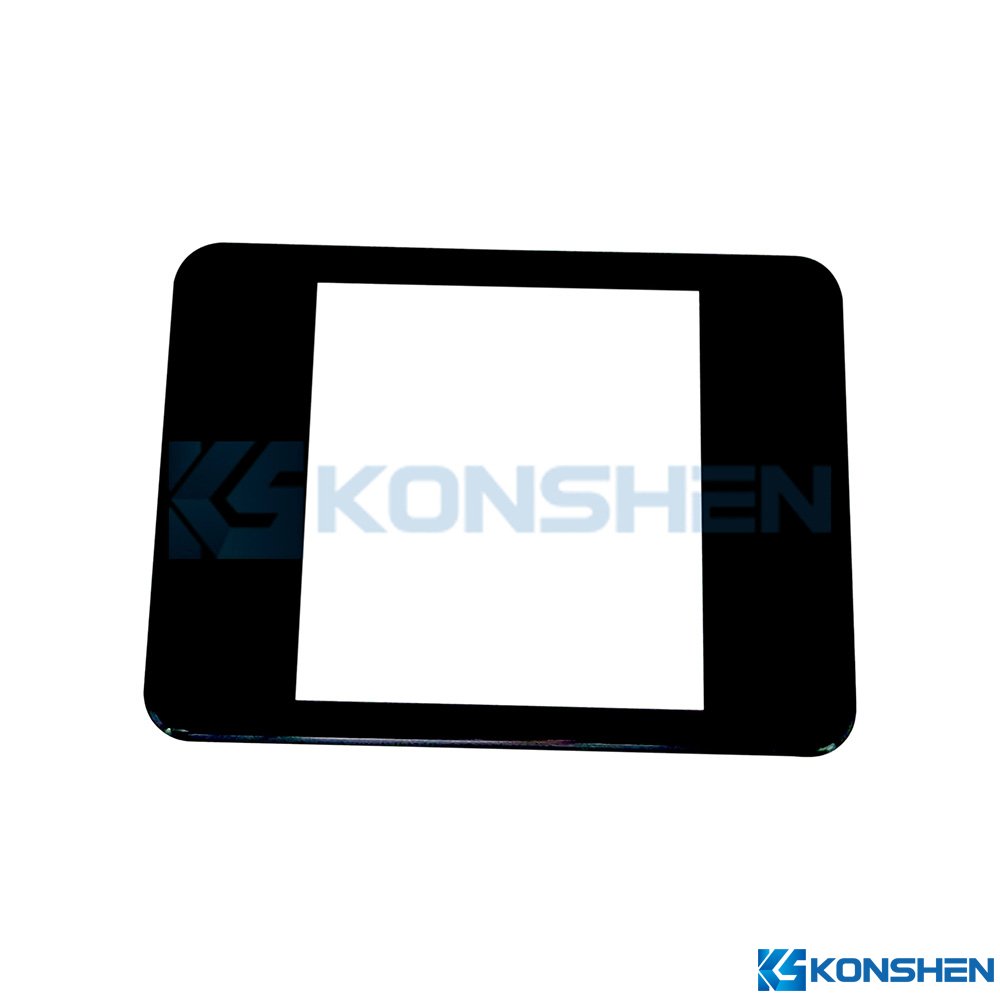

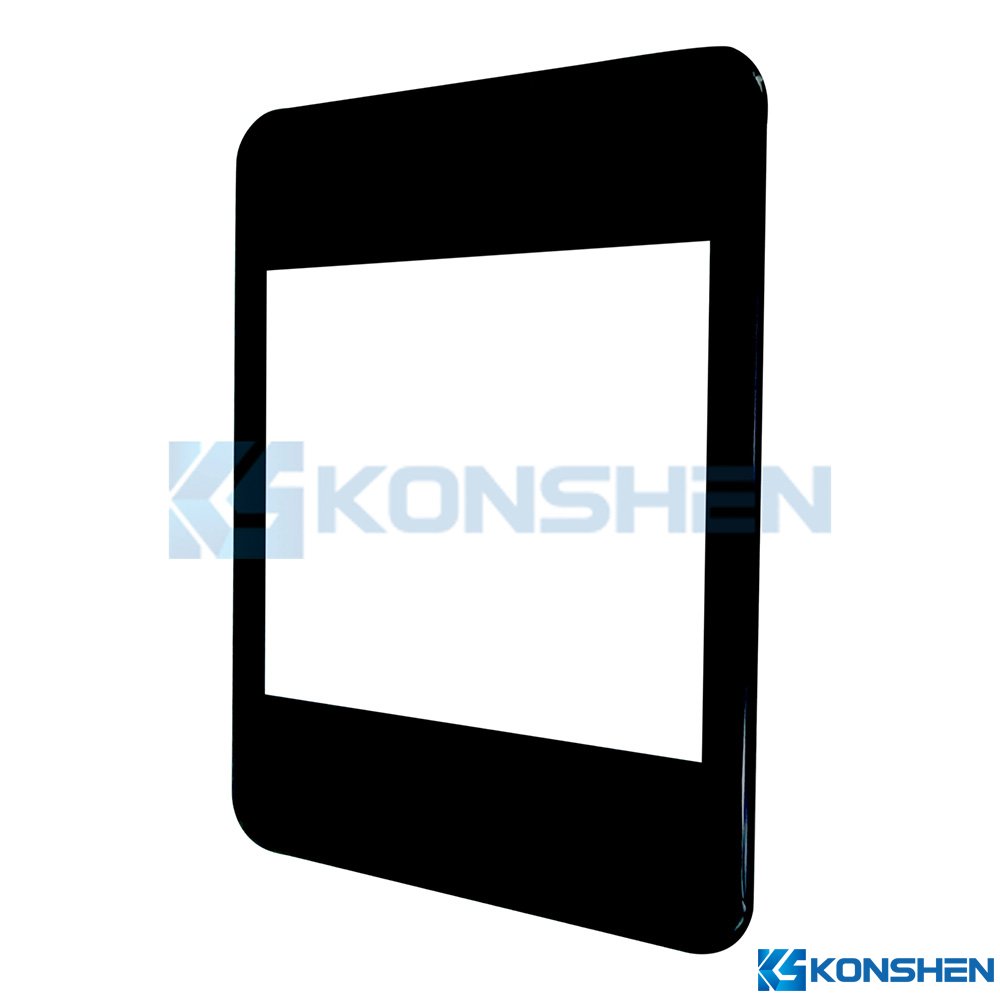

1.1mm 2.5D Checmically Strengthened Soda-Lime Glass for Touchscreens

Key Features:

• Ultra-thin and High-Strength: At 1.1mm, it's incredibly thin and lightweight, over 60% lighter than conventional 3mm cover panels, making it ideal for ultra-compact device designs. Using CSG's ultra-clear glass as the backing, chemically strengthened glass significantly enhances its strength and impact resistance, making it resistant to everyday scratches and minor drops.

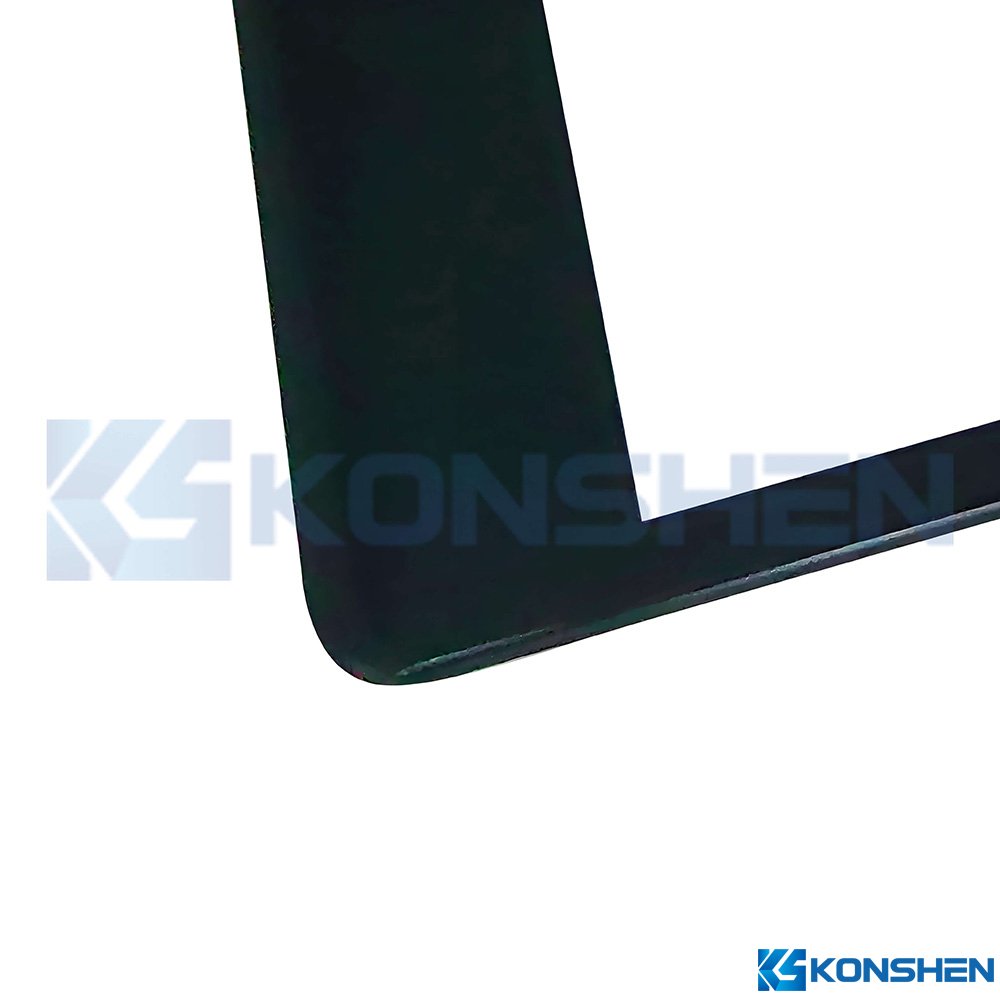

• 2.5D Edge Processing: The edges are precisely CNC-polished to a smooth, curved surface that feels soft and non-slip, enhancing the device's grip and premium feel.

• Low-Temperature Black Silkscreen: Using a low-temperature silkscreen printing process, the glass is first tempered before being printed with black silkscreen, resulting in a cleaner, more refined pattern edge that clearly demarcates the display area and enhances visual hierarchy.

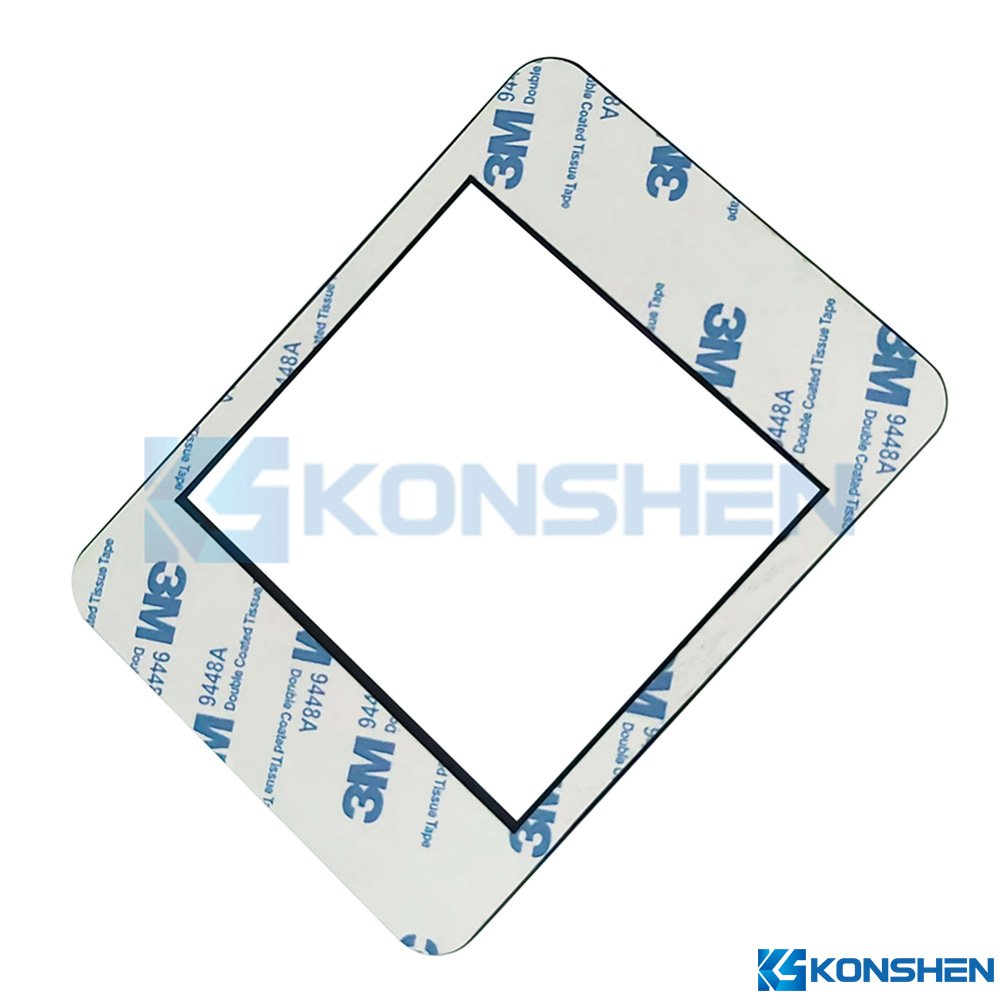

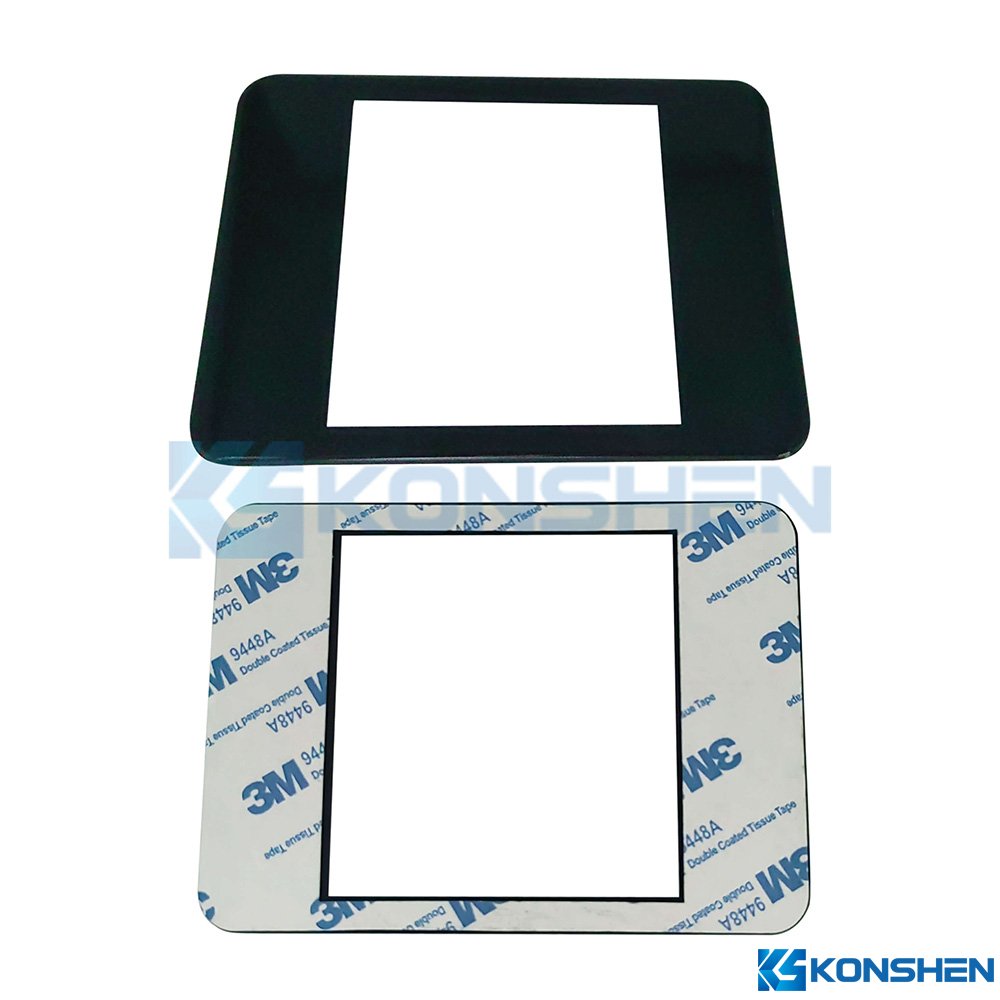

• 3M Double-Sided Adhesive on the Back: Genuine 3M double-sided adhesive offers stable initial adhesion for 72 hours at room temperature, streamlining production line assembly and eliminating the need for additional adhesive application. The adhesive layer is precisely die-cut, with a ±0.1mm tolerance between the adhesive surface and the glass edge, ensuring bubble-free and overflow-free bonding, ensuring a secure seal and a clean appearance.

Customized Option:

• Available Thickness: Ranging from 0.1 mm to 15 mm, depending on the insulation requirements and specific applications.

• Size & Shape: Supports special-shaped cutting to meet diverse needs. Customizes as per drawing.

• Cutting Option: CNC Cutting/Water jet Cutting/Diamond Blade Cutting

• Edge Options: Polished Edge/Safety Edge/Beveled Edge/Smooth Edge/2.5D Edge/Pencil Edge/Straight Edge

• Tempering Options: Physical Tempered/Checmical Strengthened

• Coating Options: Anti-Reflective (AR) Coating/Anti-Fingerprint (AF) Coating/Scratch-Resistant Coating/Indium Tin Oxide(ITO) Coating or Anti-Glare (AG)Coating

• Printing Options: UV Printing/Silk screen printing/Laser engraving printing

• Adhesive Options: AB Tape/ Double-side Tape/3M Adhesive

• Materials: Ultra Clear Glass

• Shape: Rectangular

• Thickness: 1.1mmT

• Edge Work: 2.5D edge by CNC machine

• Tempered Method: Chemical Strengthened

• Coating: Anti-fingerprint(AF) coating

• Printing Method: Silk screen printing  #RAL9004 BK

• Density: 2.5 g/cm³

• Hardness: at least 6H

• Strengthness: IK07

• Operating Temperature Range: Suitable for -30°C to 250°C.

• Thickness Tolerances:± 0.2mm

• Dimensional Tolerances:±0.5mm for large size; ±0.1mm for small size

• Weather Resistance: Strong resistance to high temperatures and humidity, reducing aging effects

• UV Resistance: High UV-blocking capability

• Impact Resistance: 2-5 times stronger than standard glass. Specific impact resistance can vary based on thickness and treatment.

• Consumer Electronics Devices: Suitable for smartphones, tablets, electronic game consoles, digital cameras, electronic dictionaries, and more, it provides anti-fingerprint and high light transmittance protection for screens, optimizing the touch experience and visual quality.

• Smart Home and Appliances: Can be used for smart appliance panels (refrigerators, air conditioners, etc.), smart central control devices, smart door locks, smart speaker displays, smart toilet control panels, smart clothes drying rack control panels, etc., keeping panels clean and beautiful, and improving operational sensitivity.

• Commercial Displays and Terminals: Compatible with POS terminals, self-service terminals, electronic price tags, ticket vending machines, self-service inquiry terminals, etc., it reduces screen smudges, maintains a professional appearance, and ensures clear information display.

• Educational and Office Equipment: Suitable for e-readers, laptop touch screens, all-in-one teaching computers, smart displays, etc., meeting the needs of multi-person collaboration and frequent use, ensuring a clean and clear display.

• Medical Equipment: Can be used in medical monitors, ultrasound diagnostic equipment, smart medical terminals, etc., facilitating operation by medical staff while meeting cleaning and disinfection requirements and ensuring a safe medical environment.

• Financial Equipment: Compatible with ATM screens, bank call machine displays, and other applications, it resists fingerprints and stains left by users, ensuring clear information and safe and convenient operation.
