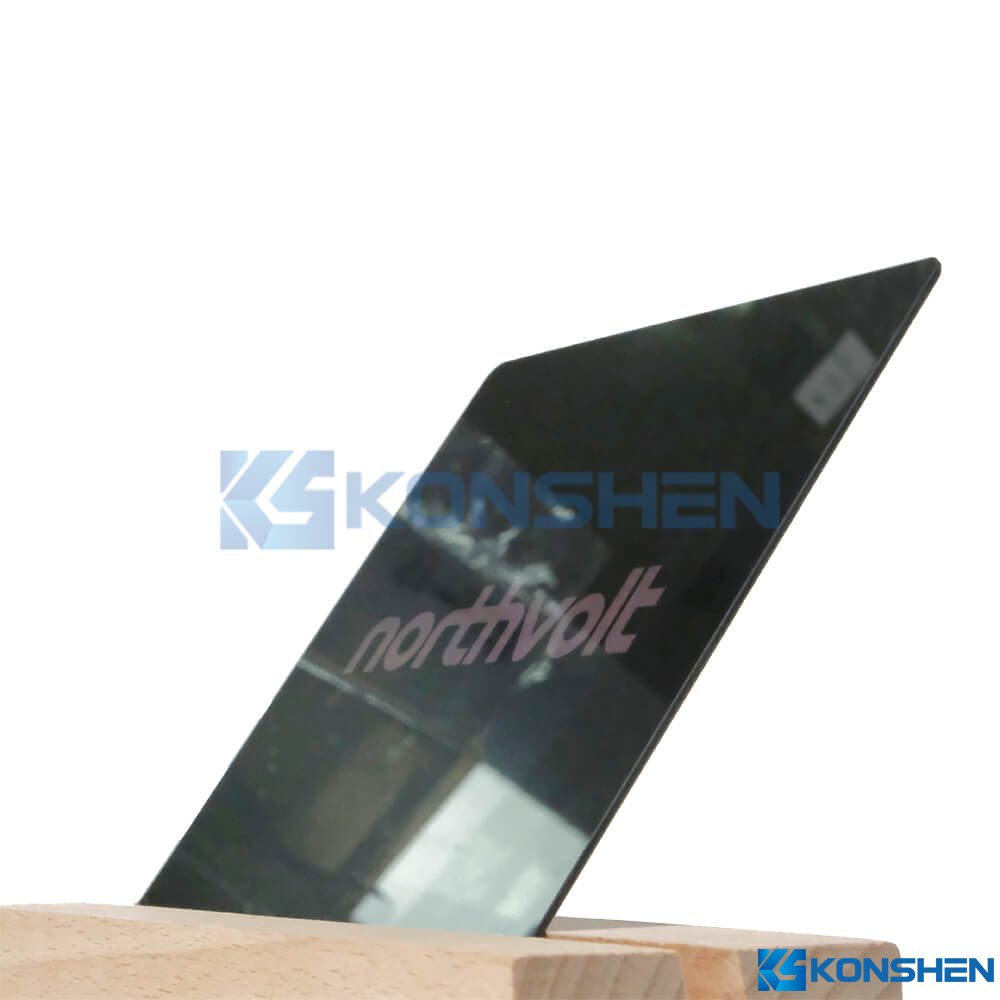

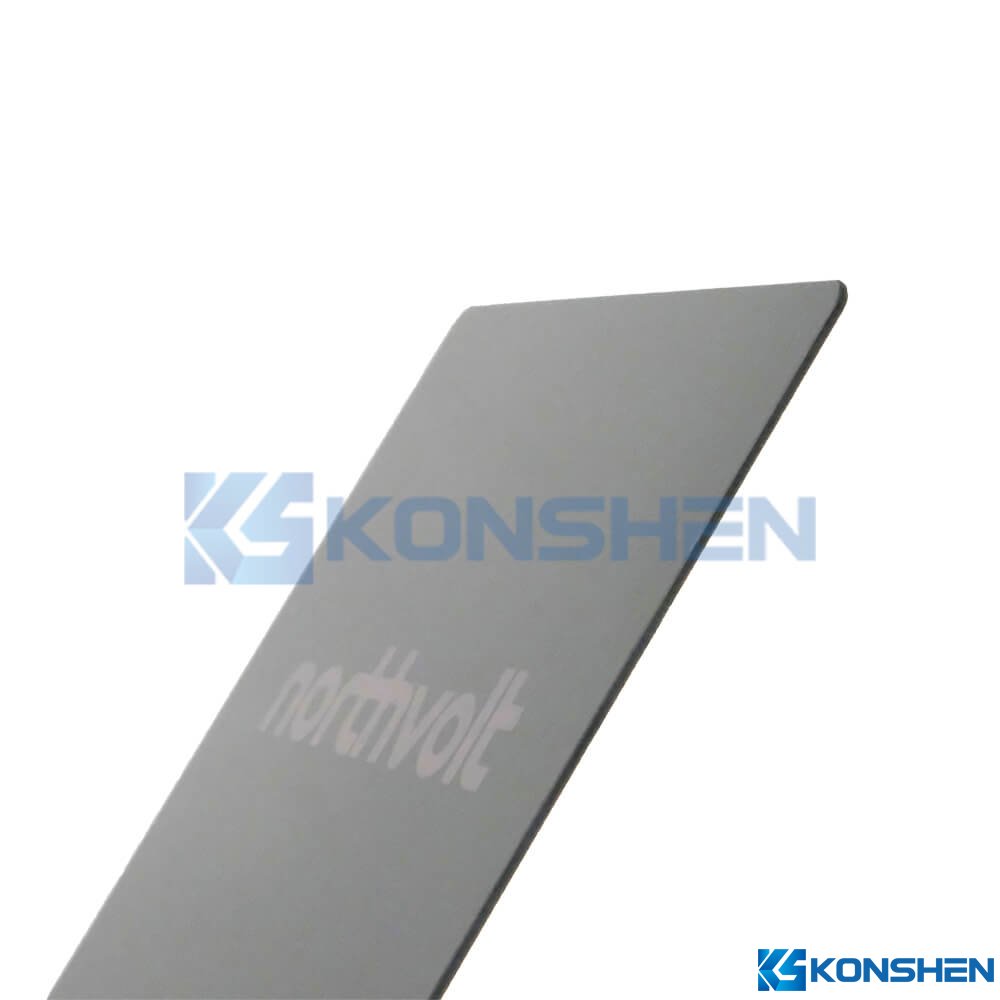

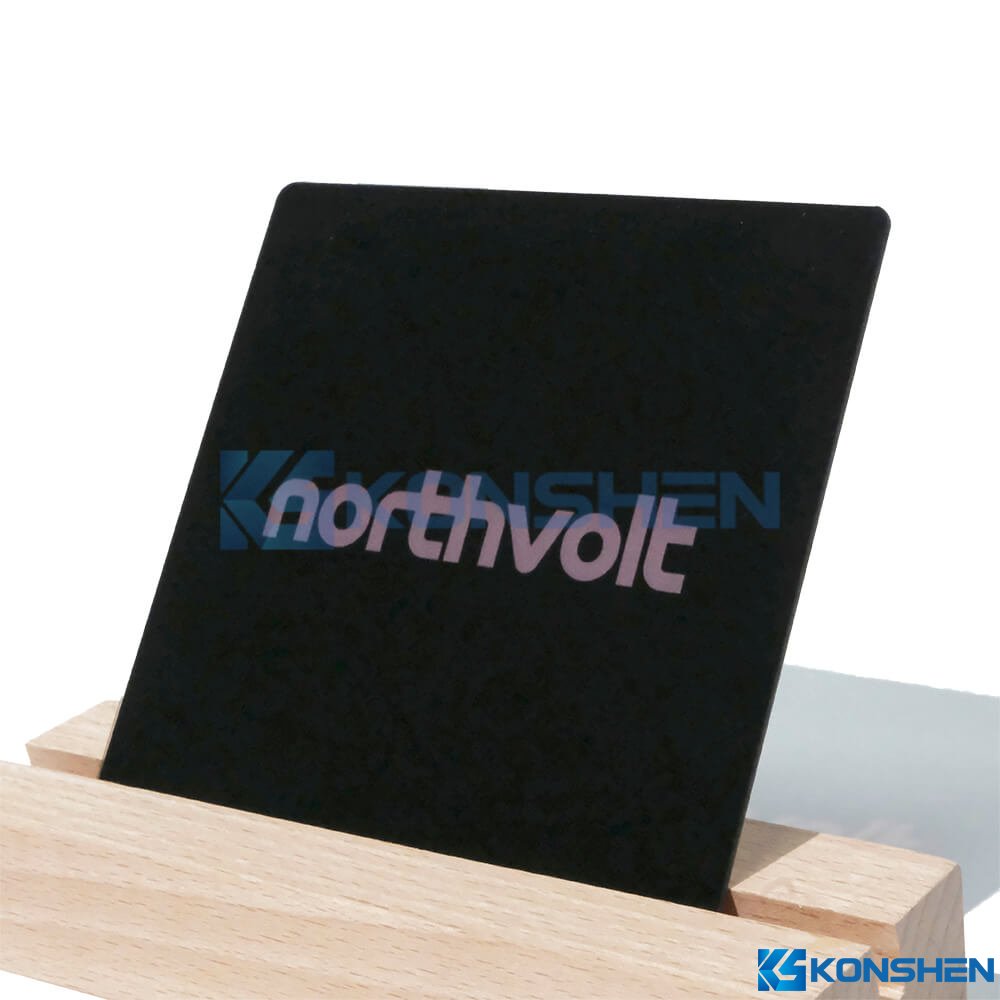

Durable 0.5mm Ultra-Thin Chemically Strengthened Glass with silkscreen Printing

Key Features:

• Ultra-Thin Thickness: At only 0.5mm thickness, this glass ensures minimal weight and space occupation, ideal for slim devices and compact assemblies.

• Chemical Strengthening: It improves mechanical strength, scratch resistance, and thermal stability, ensuring long-term durability in demanding applications.

• Semi-Transparent and Solid Black Printing: It offers elegant visual effects while meeting functional requirements such as logo marking, indicator windows, and optical alignment.

• Safety Edge Precisive Processing: It reduces the risk of edge chipping and improves user safety during assembly and operation. Supports high-precision assembly for electronic devices, sensors, and optical modules, ensuring reliable performance.

• Customizable Options: Available with various printing patterns, colors, and surface treatments such as AF, AR, or AG coatings.


Customized Option:

• Available Thickness: Ranging from 0.1 mm to 15 mm, depending on the insulation requirements and specific applications.

• Size & Shape: Supports special-shaped cutting to meet diverse needs. Customizes as per drawing.

• Cutting Option: CNC Cutting/Water jet Cutting/Diamond Blade Cutting

• Edge Options: Polished Edge/Safety Edge/Beveled Edge/Smooth Edge/2.5D Edge/Pencil Edge/Straight Edge

• Tempering Options: Physical Tempered/Checmical Strengthened

• Coating Options: Anti-Reflective (AR) Coating/Anti-Fingerprint (AF) Coating/Scratch-Resistant Coating/Indium Tin Oxide(ITO) Coating or Anti-Glare (AG)Coating

• Printing Options: UV Printing/Silk screen printing/Laser engraving printing

• Adhesive Options: AB Tape/ Double-side Tape/3M Adhesive

• Materials: Ultra Clear Glass

• Shape: Rectangular

• Thickness: 0.5mmT

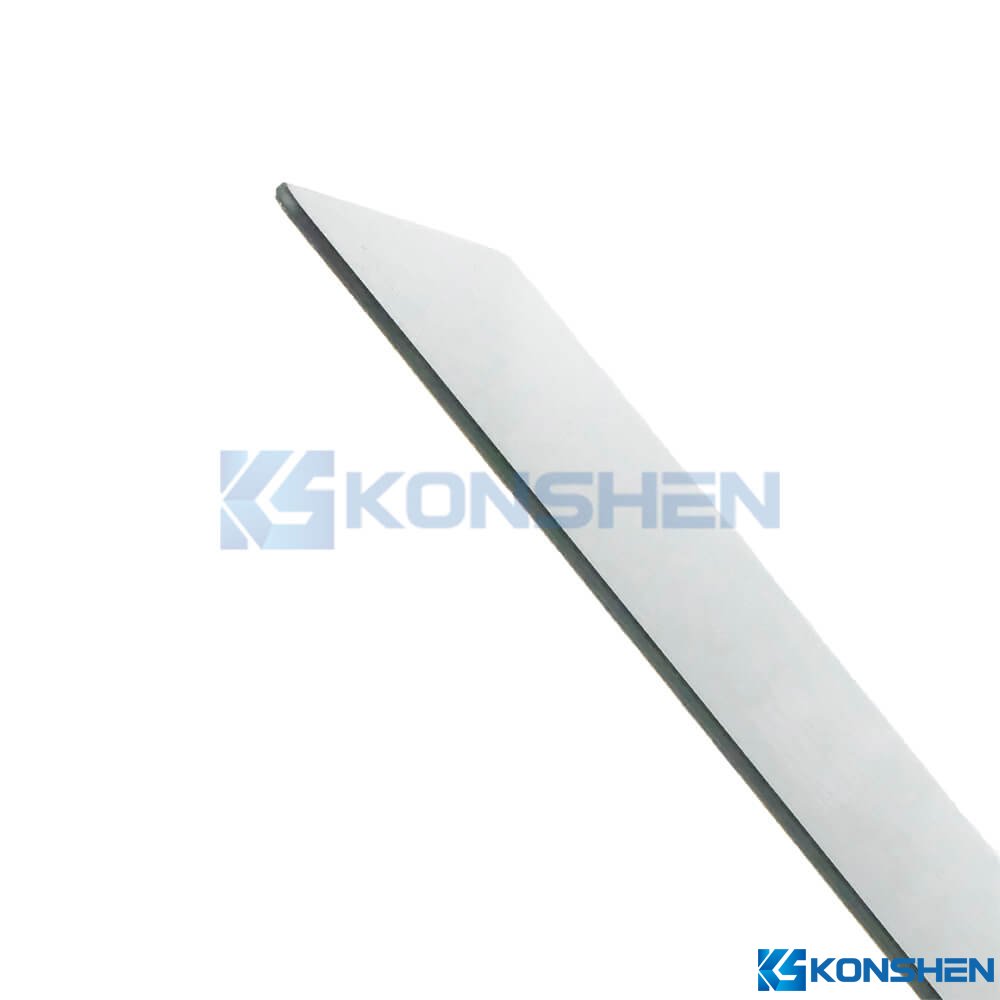

• Edge Work: Safety edge by CNC machine

• Tempered Method: Chemical Strengthened

• Coating: Anti-fingerprint(AF) coating

• Printing Method: Silk screen printing  #RAL9004 BK

• Density: 2.5 g/cm³

• Hardness: at least 6H

• Strengthness: IK07

• Operating Temperature Range: Suitable for -30°C to 250°C.

• Thickness Tolerances:± 0.2mm

• Dimensional Tolerances:±0.5mm for large size; ±0.1mm for small size

• Weather Resistance: Strong resistance to high temperatures and humidity, reducing aging effects

• UV Resistance: High UV-blocking capability

• Impact Resistance: 2-5 times stronger than standard glass. Specific impact resistance can vary based on thickness and treatment.

• Smart Devices and Consumer Electronics: Ideal for smartwatches, smartphones, tablets, and portable terminals that demand ultra-thin yet strong glass covers.

• Control Panels and Touch Interfaces: Perfect for high-end control panels, smart home devices, and user interfaces requiring sleek design and functional silk printing.

• Optical and Imaging Devices: Supports precision optical systems and camera modules where lightweight, strength, and high clarity are essential.

• Medical and Laboratory Equipment: Suitable for medical monitors, diagnostic instruments, and other equipment requiring ultra-thin, safe glass components.

• Wearable and Portable Electronics: Perfect for wearable devices and compact electronics where every millimeter counts without compromising durability.
