Ultra Thin 1.3mm AF Coated AGC Ultra Clear Glass with Black Printing

Key Features:

• Ultra-thin Premium AGC Glass: Made from 1.3mm ultra-thin AGC glass, ensuring sleek design with excellent strength, combining aesthetics with robustness, suitable for applications where space is limited.

• Chemically Strengthened: Chemically strengthened for enhanced impact resistance and durability, able to withstand frequent use and daily wear, reducing breakage risk and ensuring long-term safety.

• Black Back Silk Printing: Black silk printing on the back provides functional labeling, branding, or design customization, while protecting internal components from visible exposure.

• AF Anti-fingerprint Coating: AF coating on the surface reduces fingerprints and smudges, keeping the panel clean and aesthetically pleasing, prolonging product life and simplifying maintenance.

• Durable & Scratch-resistant: Surface hardness ≥7H combined with AF coating provides excellent scratch resistance and wear durability, extending product lifespan.

• Versatile Application Compatibility: Suitable for consumer electronics, smart devices, dashboards, and premium custom products, offering flexible compatibility with various devices and design requirements.

Customized Option:

• Available Thickness: Ranging from 0.1 mm to 15 mm, depending on the insulation requirements and specific applications.

• Size & Shape: Supports special-shaped cutting to meet diverse needs. Customizes as per drawing.

• Cutting Option:CNC Cutting/Water jet Cutting/Diamond Blade Cutting

• Edge Options:Polished Edge/Safety Edge/Beveled Edge/Smooth Edge/2.5D Edge/Pencil Edge/Straight Edge

• Tempering Options:Physical Tempered/Checmical Strengthened

• Coating Options:Anti-Reflective (AR) Coating/Anti-Fingerprint (AF) Coating/Scratch-Resistant Coating/Indium Tin Oxide(ITO) Coating or Anti-Glare (AG)Coating

• Printing Options: UV Printing/Silk screen printing/Laser engraving printing

• Adhesive Options: AB Tape/ Double-side Tape/3M Adhesive

• Materials: AGC Soda-Lime Glass

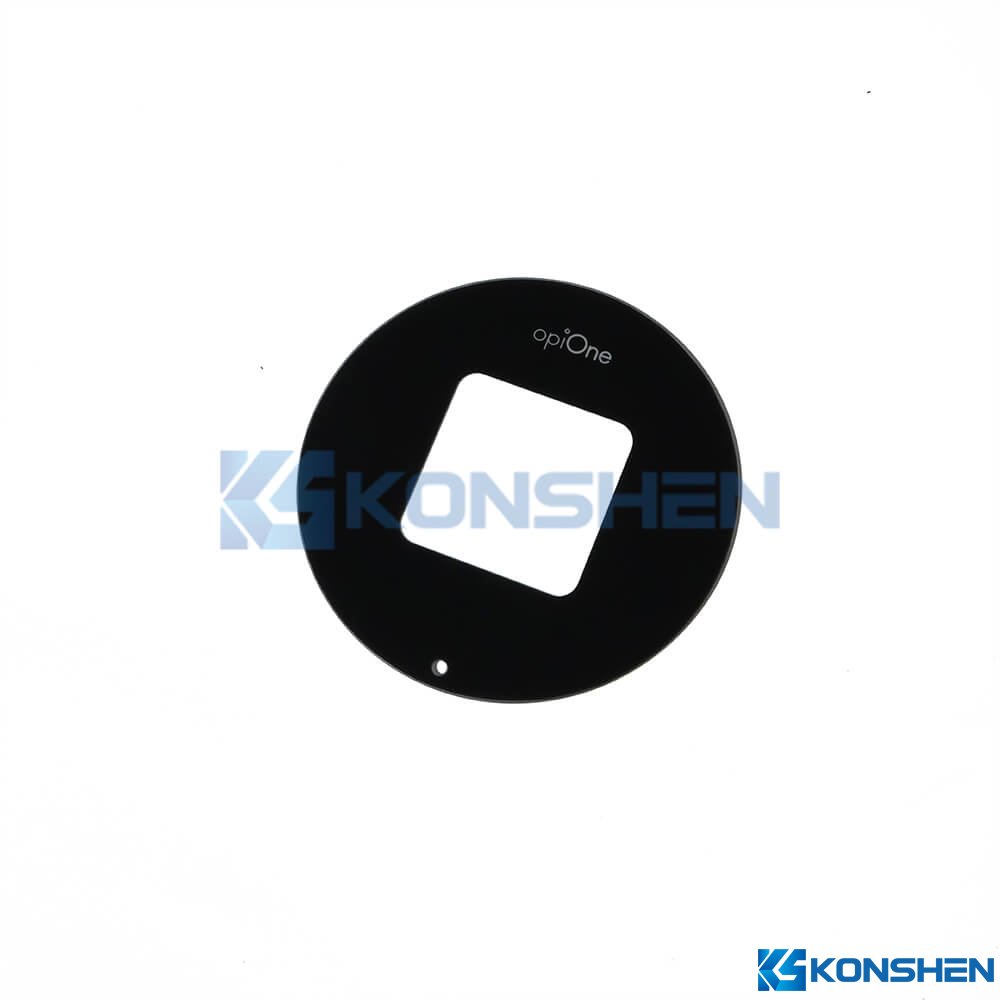

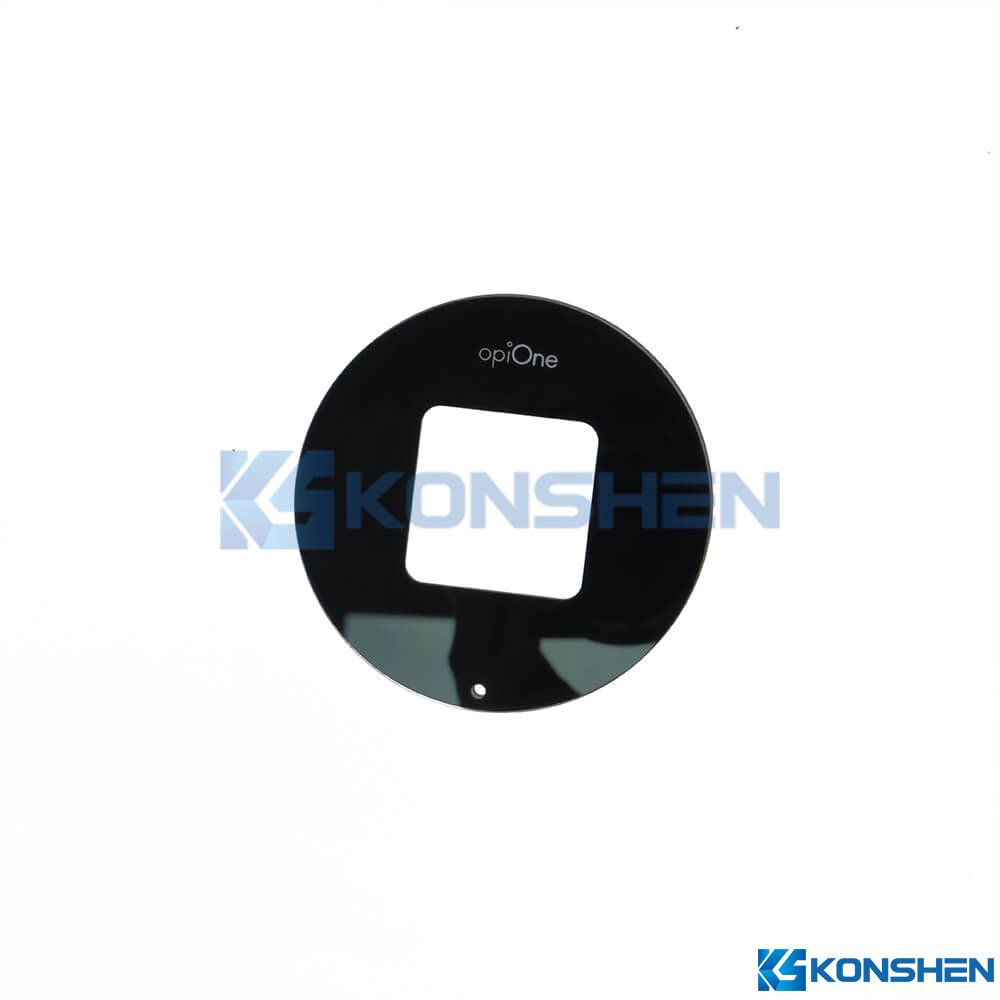

• Shape: Round

• Thickness: 1.3mmT

• Edge Work: Safety edge by CNC machine

• Tempered Method: Chemical Strengthened

• Coating: Anti-fingerprint(AF) coating

• Printing Method: Silk screen printing  #RAL9004 BK

• Density: 2.5 g/cm³

• Hardness: at least 6H

• Strengthness: IK07

• Operating Temperature Range: Suitable for -30°C to 250°C.

• Thickness Tolerances:± 0.2mm

• Dimensional Tolerances:±0.5mm for large size; ±0.1mm for small size

• Weather Resistance: Strong resistance to high temperatures and humidity, reducing aging effects

• UV Resistance: High UV-blocking capability

• Impact Resistance: 2-5 times stronger than standard glass. Specific impact resistance can vary based on thickness and treatment.

• Consumer Electronics: Ideal for smartwatches, audio panels, remote controls, enhancing both aesthetics and user experience.

• Smart Device Panels: Used in smart home devices, touch control equipment, and wearable terminals for premium touch interaction.

• Dashboards & Control Panels: Suitable for automotive dashboards, industrial control panels, and instrument display panels, providing durable and visually appealing solutions.

• Premium Custom Applications: Supports brand customization and personalized markings, meeting the needs of high-end consumer electronics and commercial product designs.
