Key Features:
  • High Transmittance: Made from optical-grade ultra-clear glass with excellent transparency and clarity for a premium appearance.
  • High Precision Printing: Dual-color silver and gray silk screen printing with high color accuracy, UV resistance, and long-term durability.
  • Scratch resistance: Scratch-resistant, smudge-resistant surface that remains clean and sleek even with frequent touch and use.
  • Impact resistance: Optional tempering enhances bending strength, impact resistance, and thermal stability, suitable for both industrial and home electronics.
  • Flexible Customization: Optional surface coatings like AF (anti-fingerprint), AR (anti-reflective), and AG (anti-glare) available, along with full customization of size, pattern, and structure.

Customized Option:
  • Available Thickness: Ranging from 0.33 mm to 10 mm, depending on the insulation requirements and specific applications.
  • Size & Shape: Supports special-shaped cutting to meet diverse needs. Customizes as per drawing.
  • Cutting Option:CNC Cutting/Water jet Cutting/Diamond Blade Cutting
  • Edge Options:Polished Edge/Safety Edge/Beveled Edge/Smooth Edge/2.5D Edge/Pencil Edge/Straight Edge
  • Tempering Options:Physical Tempered/Checmical Strengthened
  • Coating Options:Anti-Reflective (AR) Coating/Anti-Fingerprint (AF) Coating/Scratch-Resistant Coating/Indium Tin Oxide(ITO) Coating or Anti-Glare (AG)Coating
  • Printing Options: UV Printing/Silk screen printing/Laser engraving printing
  • Adhesive Options: AB Tape/ Double-side Tape/3M Adhesive

Technical Parameters

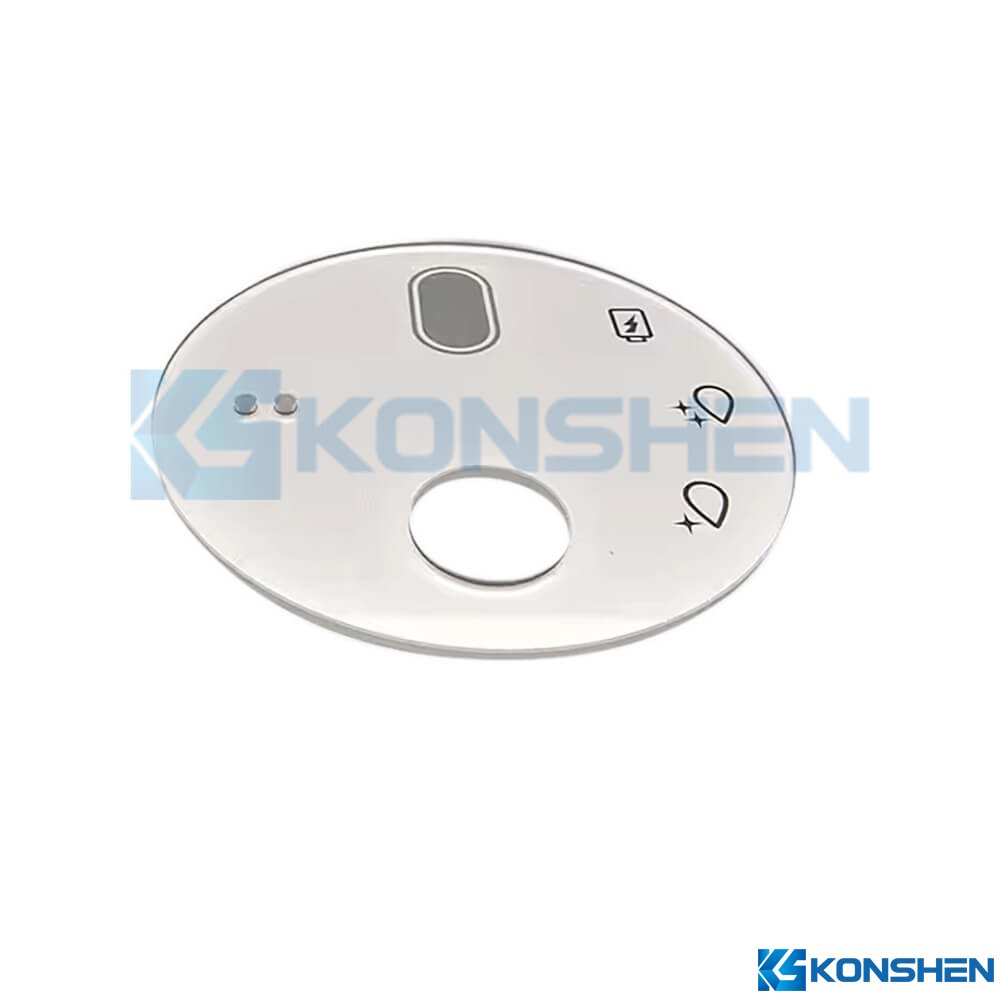

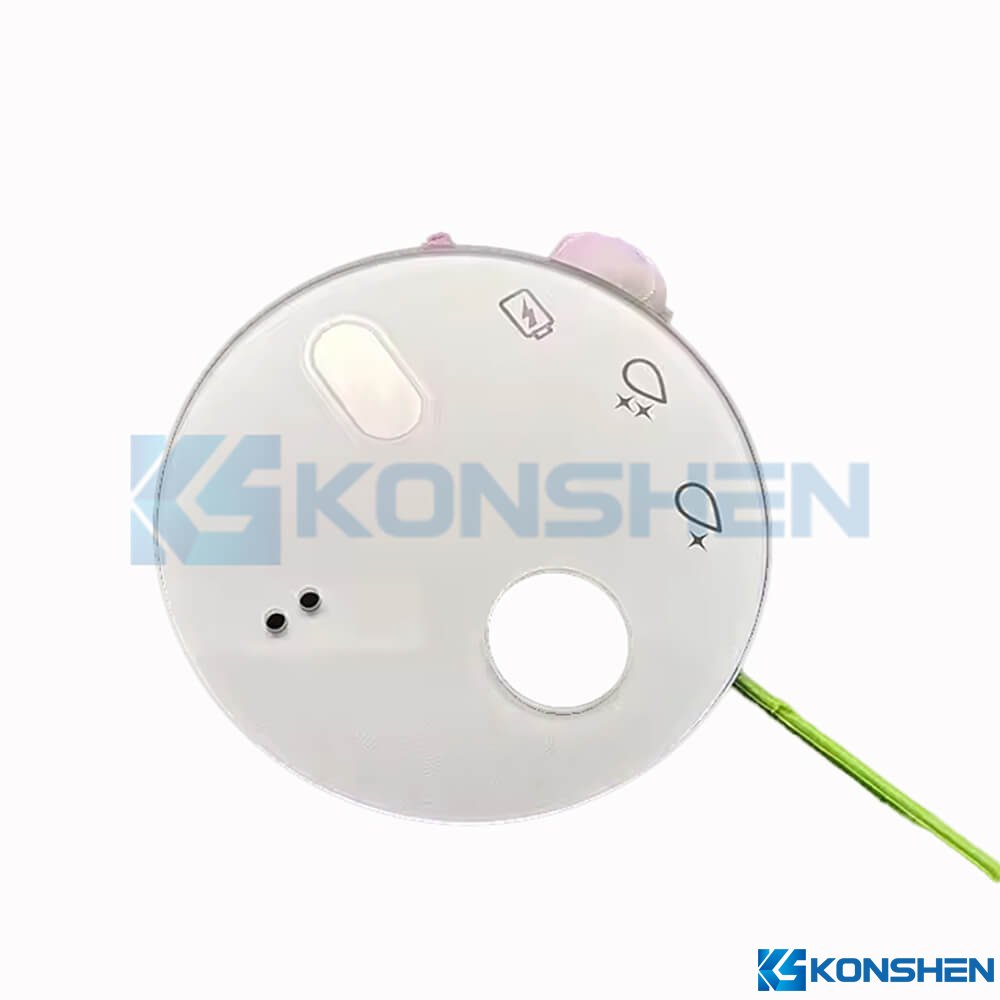

Materials: Ultra Clear Glass
Shape: Round
Thickness: 3mm

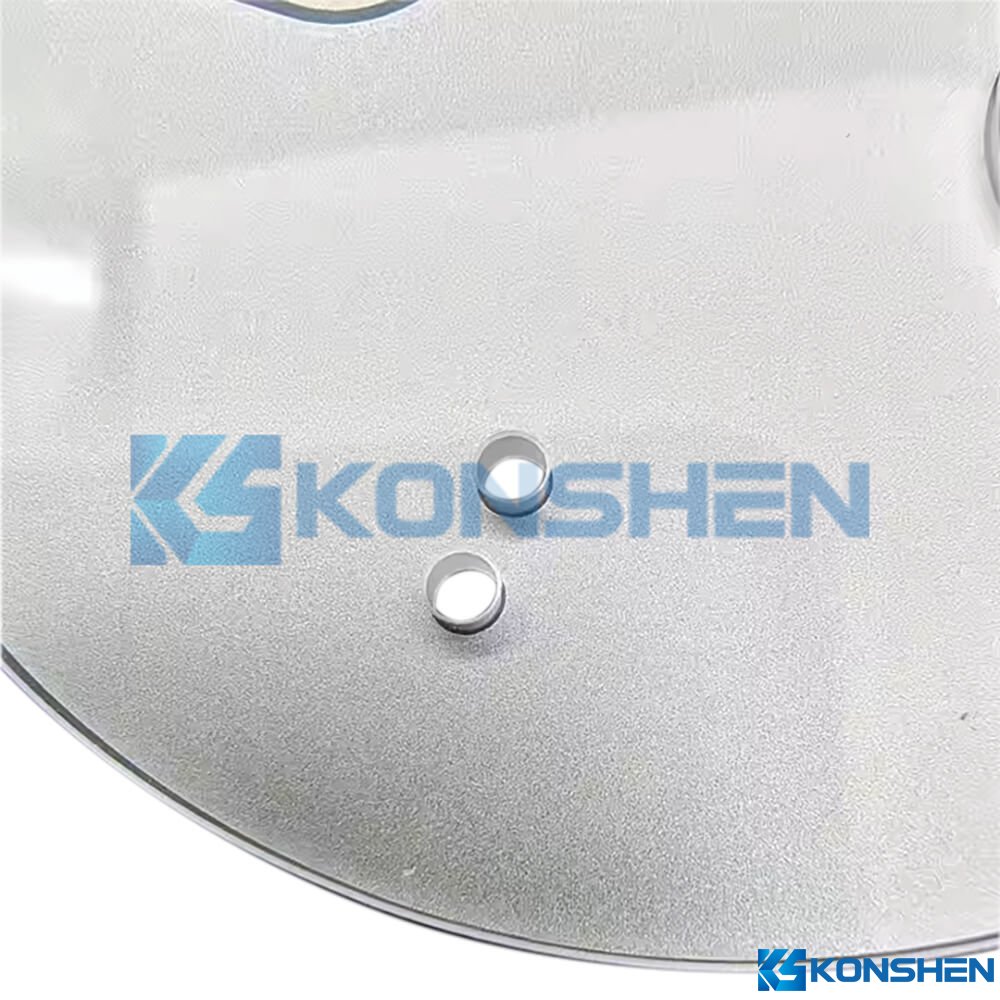

Edge Work: Safety Edge+ Chamfered+Hole drilling
Tempered Method: Physical Tempered
Printing: Silkscreen printing
Density: 2.5 g/cm³
Mohs Scale: ≥6H
Strengthness: IK07
Operating Temperature Range: Suitable for -30°C to 250°C.
Thickness Tolerances: ±0.2mm
Dimensional Tolerances: ±0.5mm for large size; ±0.1mm for small size
Surface Quality: No visible scratches, bubbles, or inclusions under inspection light
Weather Resistance: Strong resistance to high temperatures and humidity, reducing aging effects

Application

  • Home and smart appliance panels: Widely used as control panels in smart home appliances such as water purifiers, air purifiers, rice cookers, and induction cookers, enhancing device aesthetics and brand identity.
  • Consumer electronics terminal glass cover: Ideal for electronic front covers including speaker panels, power controllers, remote controls, and charging bases, providing decorative appeal and user durability.
  • Smart Instruments and Touch Interfaces: Applied in HMI (human-machine interface) components such as smart meters and touch zones, supporting icon printing and backlight-compatible cut-outs.
  • Medical and healthcare electronic devices: Suited for portable medical and wellness electronics including therapy devices and massagers, offering protection and ease of disinfection.
  • Industrial equipment display and operation panel: Utilized in industrial control terminals and electrical system panels, offering high durability for challenging operating environments.

Company and factory equipment

Customer Visit

Customer Visit

Company Profile

Company Profile

Dlivery & Payment

Packaging:

  • Step 1: PE film coating(Normally) / paper(For seashipment prevent wet).
  • Step 2: Kraft paper for fixation.
  • Step 3: Carton for glass safety protection.
  • Step 4: Custom make plywood case with hinge for custom(fumigation + convenient inspection) convenience.
  • Step 5: Packing strap for further fixation.
