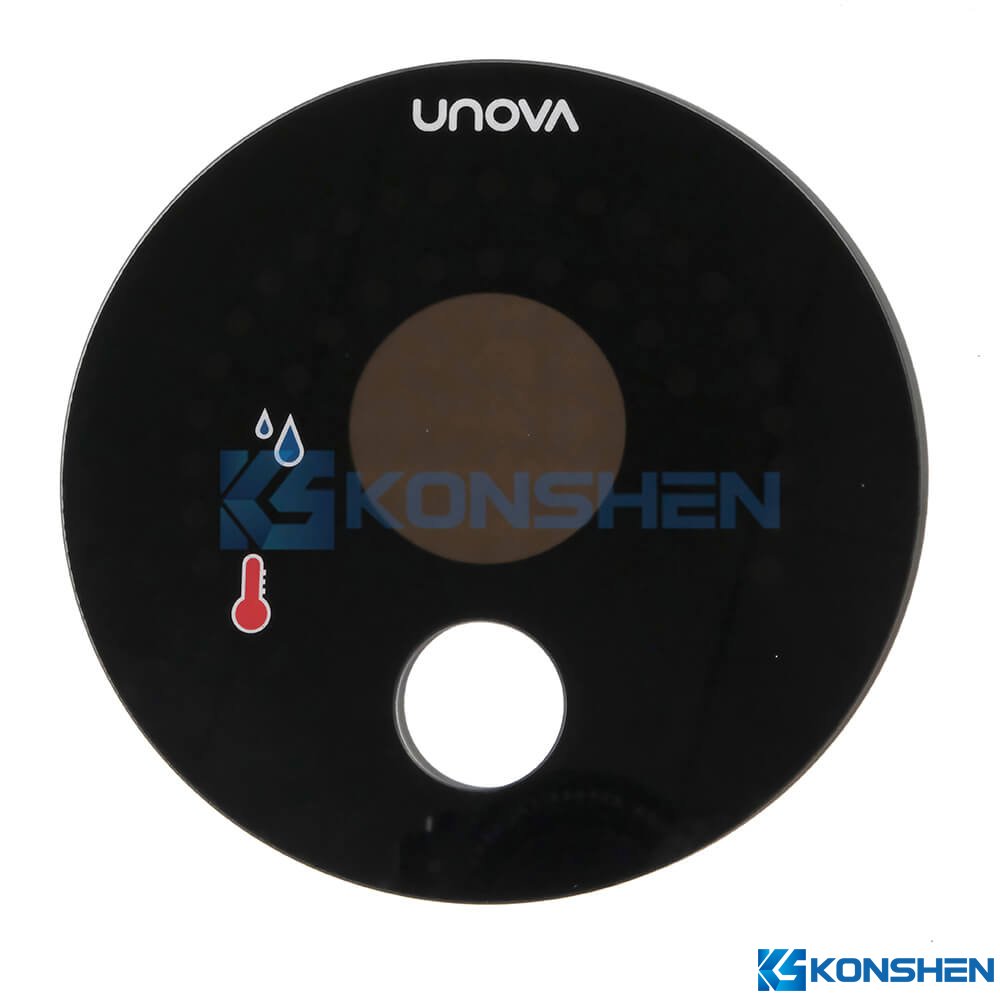

2mm Tempered AF & AS Coated Glass Panel with Silkscreen Printind

Key Features:

• High Quality Substrate: Made from premium ultra-clear glass with high optical transmittance and excellent flatness, ensuring superior display quality and aesthetics.

• Excellent Strength: Enhanced with semi-tempered strengthening process for improved impact resistance and thermal durability, ensuring long-term reliability.

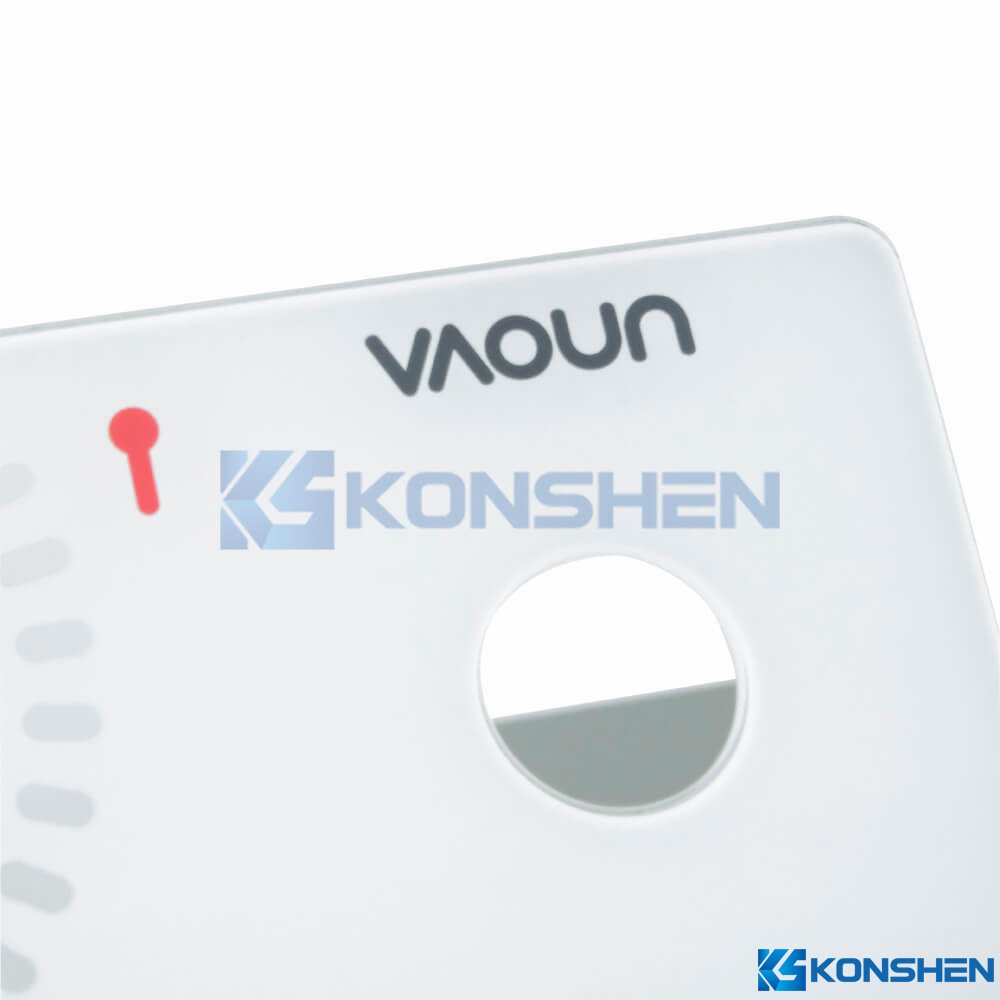

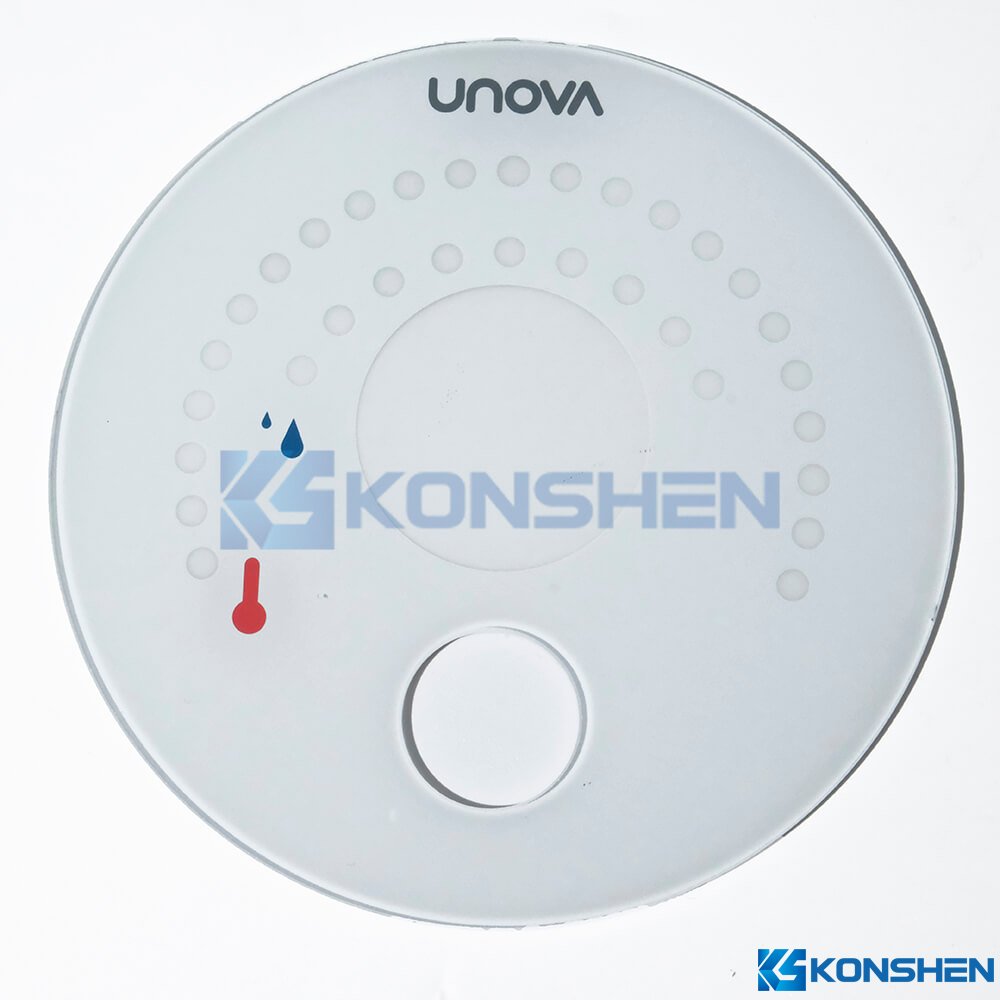

• Precisive Through-hole Cutout: Precisely drilled holes for versatile design compatibility and seamless integration in various devices.

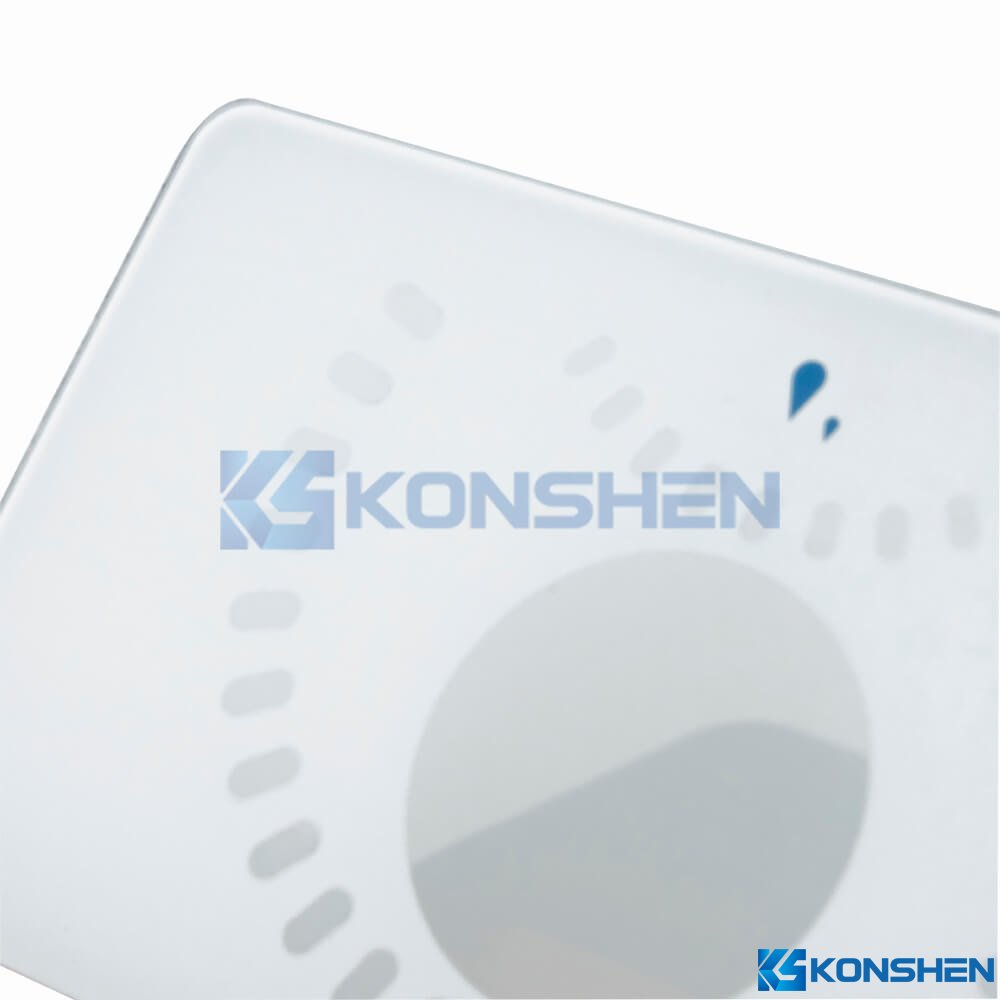

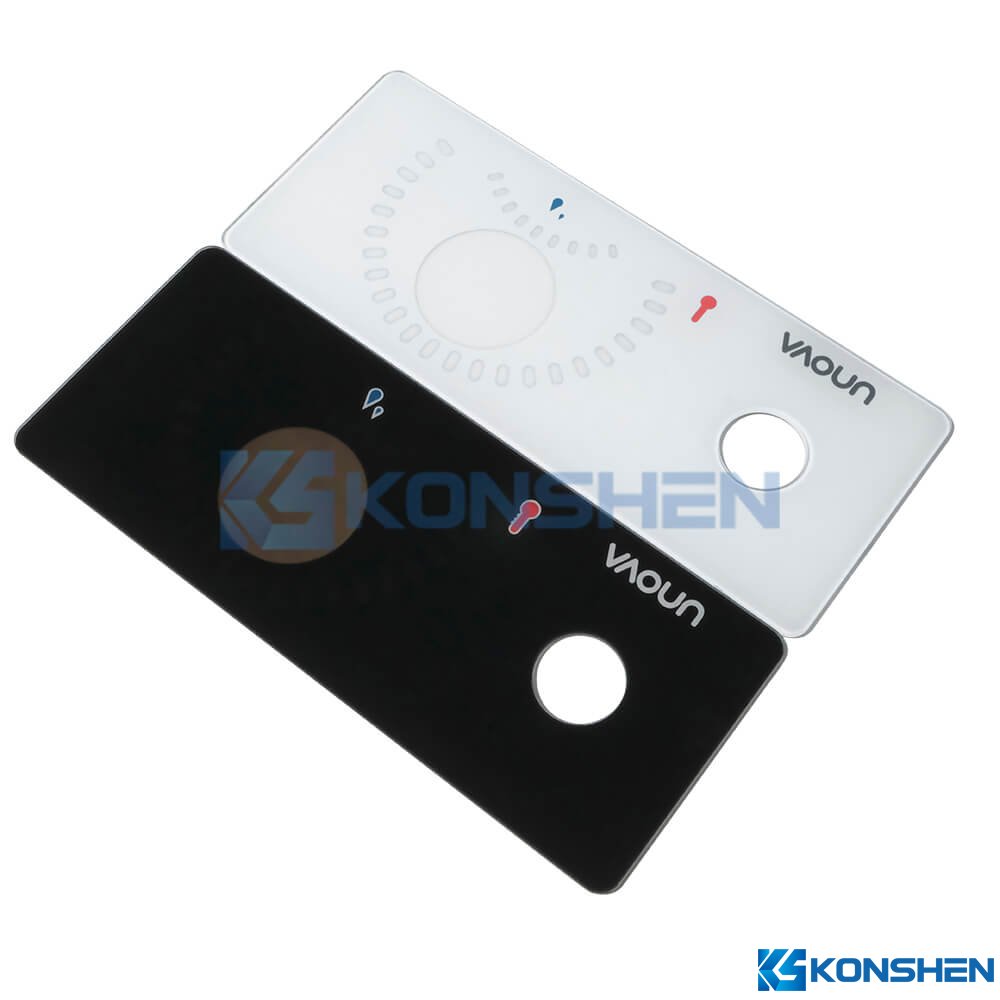

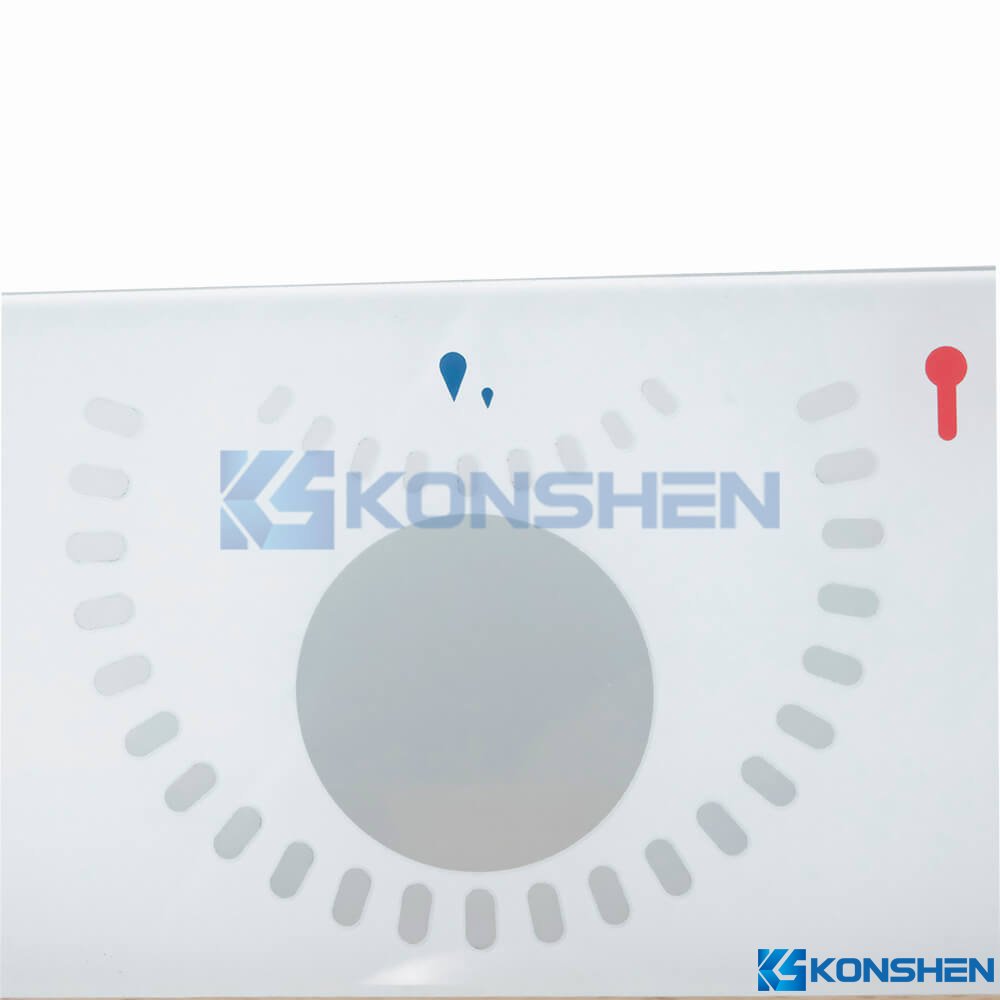

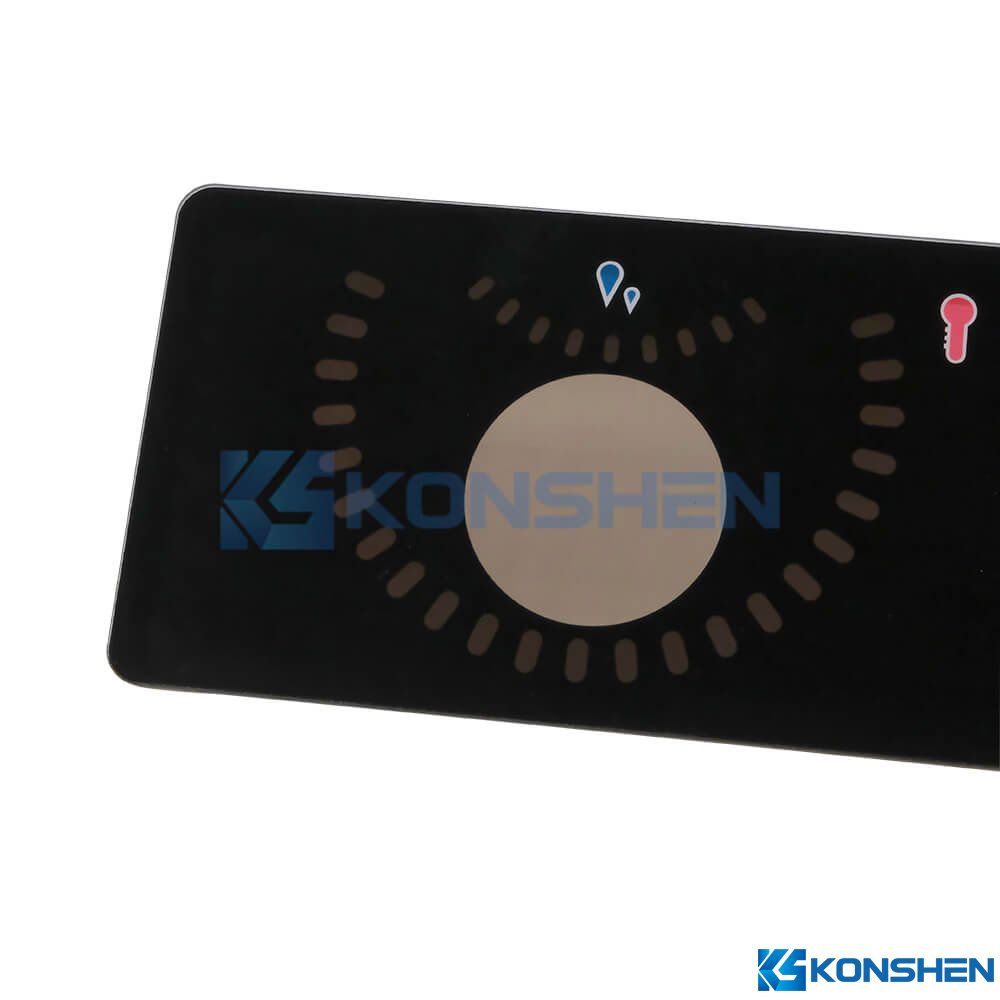

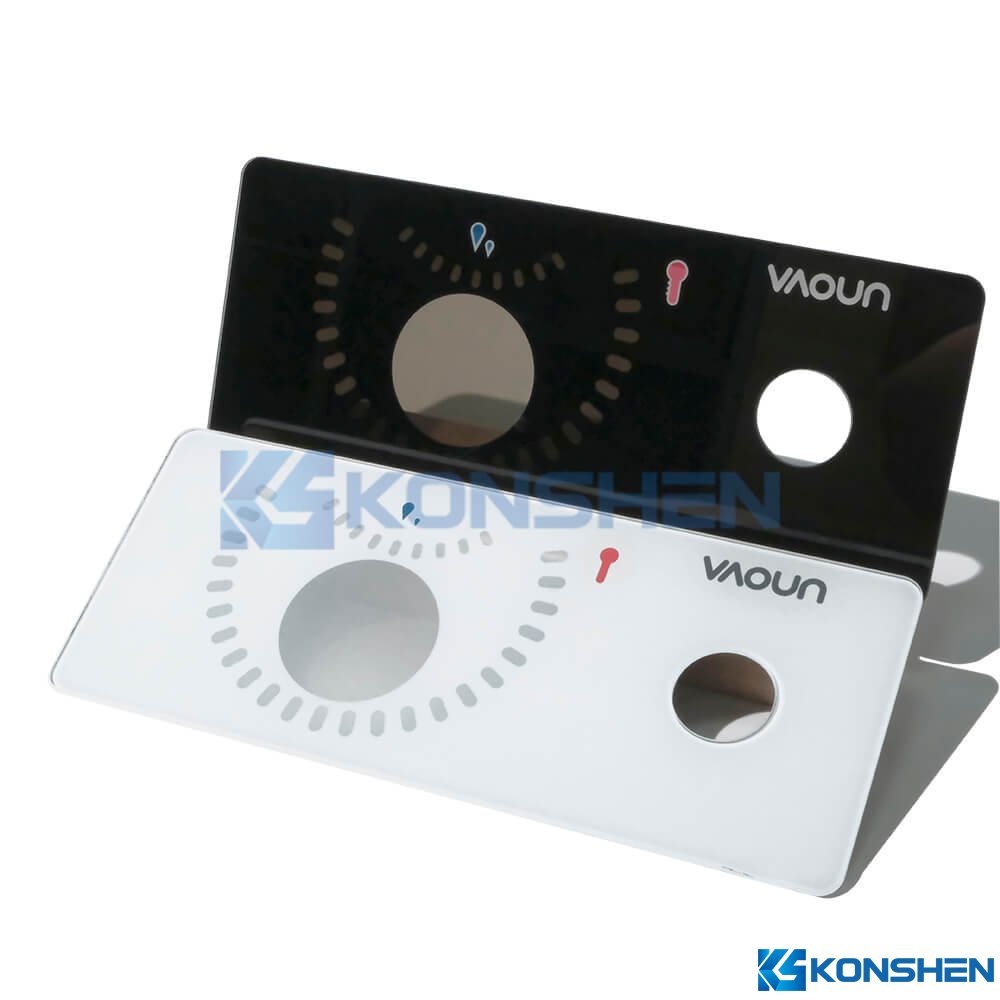

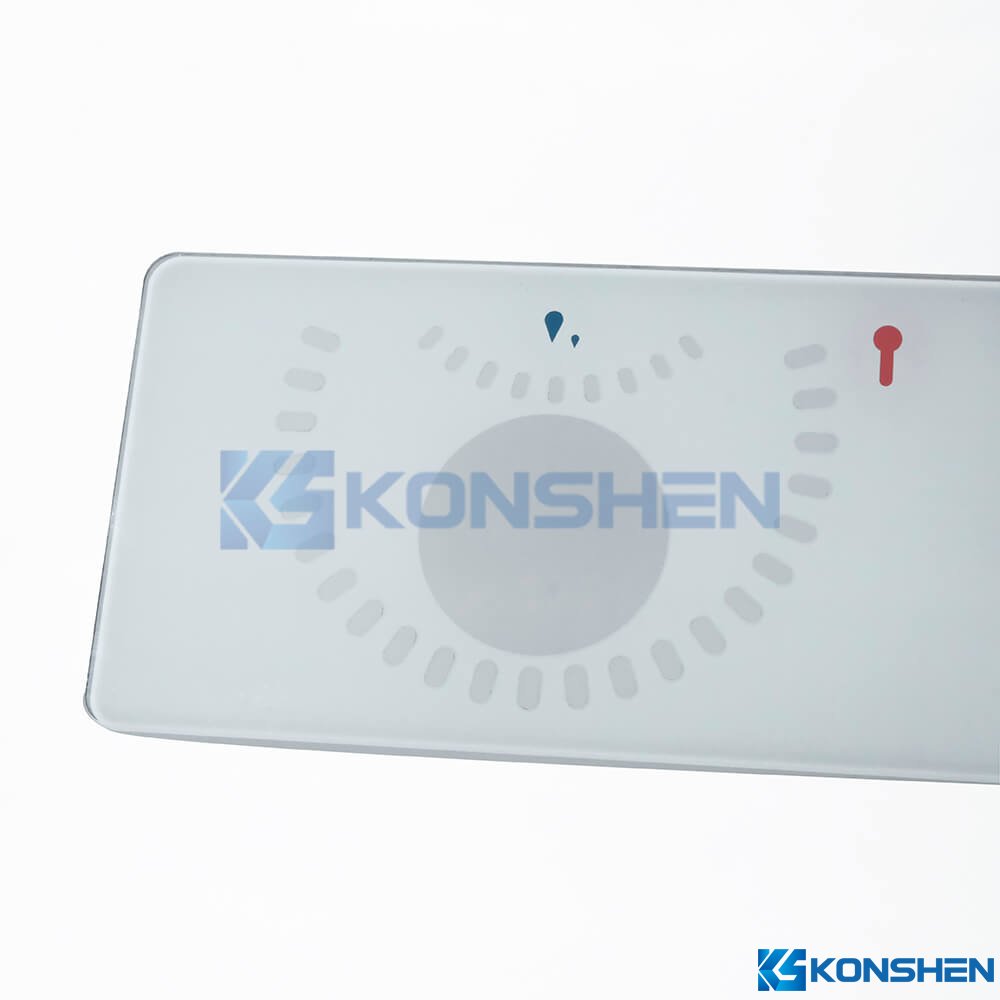

• Multiple-color Printing and Translucent Design: Available in black, white, and semi-transparent silk printing for both functional and aesthetic customization.

• Anti-fingerprint & Anti-scratch Coating: AF coating reduces fingerprint smudges, while AS coating enhances surface hardness for scratch resistance and easy cleaning.

Customized Option:

• Available Thickness: Ranging from 0.1 mm to 15 mm, depending on the insulation requirements and specific applications.

• Size & Shape: Supports special-shaped cutting to meet diverse needs. Customizes as per drawing.

• Cutting Option: CNC Cutting/Water jet Cutting/Diamond Blade Cutting

• Edge Options: Polished Edge/Safety Edge/Beveled Edge/Smooth Edge/2.5D Edge/Pencil Edge/Straight Edge

• Tempering Options: Physical Tempered/Checmical Strengthened

• Coating Options: Anti-Reflective (AR) Coating/Anti-Fingerprint (AF) Coating/Scratch-Resistant Coating/Indium Tin Oxide(ITO) Coating or Anti-Glare (AG)Coating

• Printing Options: UV Printing/Silk screen printing/Laser engraving printing

• Adhesive Options: AB Tape/ Double-side Tape/3M Adhesive

• Materials: Ultra Clear Glass

• Shape: Rectangular

• Thickness: 2mmT

• Edge Work: Safety edge by CNC machine

• Tempered Method: Semi-Physically Tempering

• Coating: Anti-fingerprint(AF) coating & Anti-scratch coating

• Printing Method: Silk screen printing  #RAL9004 BK #RAL9001 WH

• Density: 2.5 g/cm³

• Hardness: at least 6H

• Strengthness: IK07

• Operating Temperature Range: Suitable for -30°C to 250°C.

• Thickness Tolerances:± 0.2mm

• Dimensional Tolerances:±0.5mm for large size; ±0.1mm for small size

• Weather Resistance: Strong resistance to high temperatures and humidity, reducing aging effects

• UV Resistance: High UV-blocking capability

• Impact Resistance: 2-5 times stronger than standard glass. Specific impact resistance can vary based on thickness and treatment.

• Smart Devices: Ideal for smart home panels, smart locks, and touch controllers, enhancing both aesthetics and durability.

•  Industrial Control Panels: Perfect for industrial control panels requiring scratch resistance, anti-fingerprint properties, and impact protection for reliable performance.

• Consumer Electronics: Used in high-end audio systems, display cover glass, and handheld devices to achieve premium appearance and protection.

• Medical & Laboratory Equipment: Ideal for medical touch screens and lab instrument panels, ensuring safety, cleanliness, and chemical resistance.
