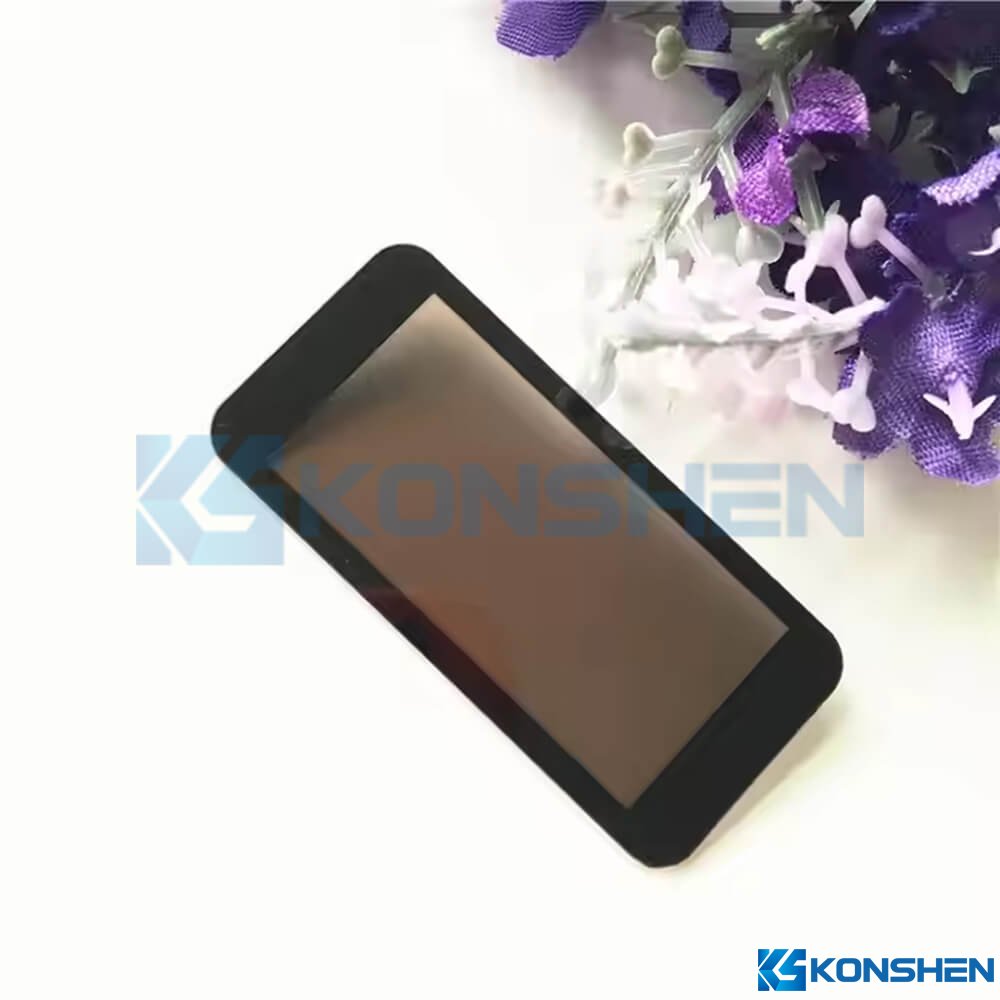

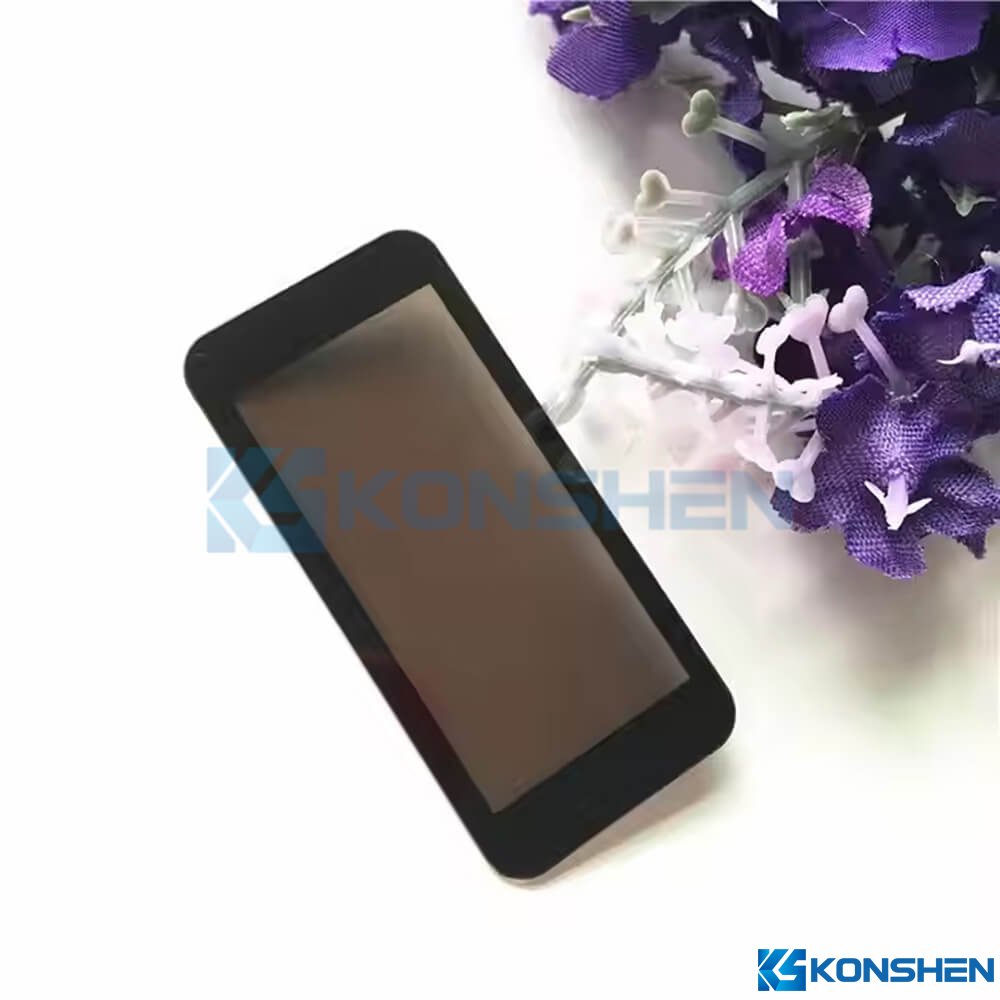

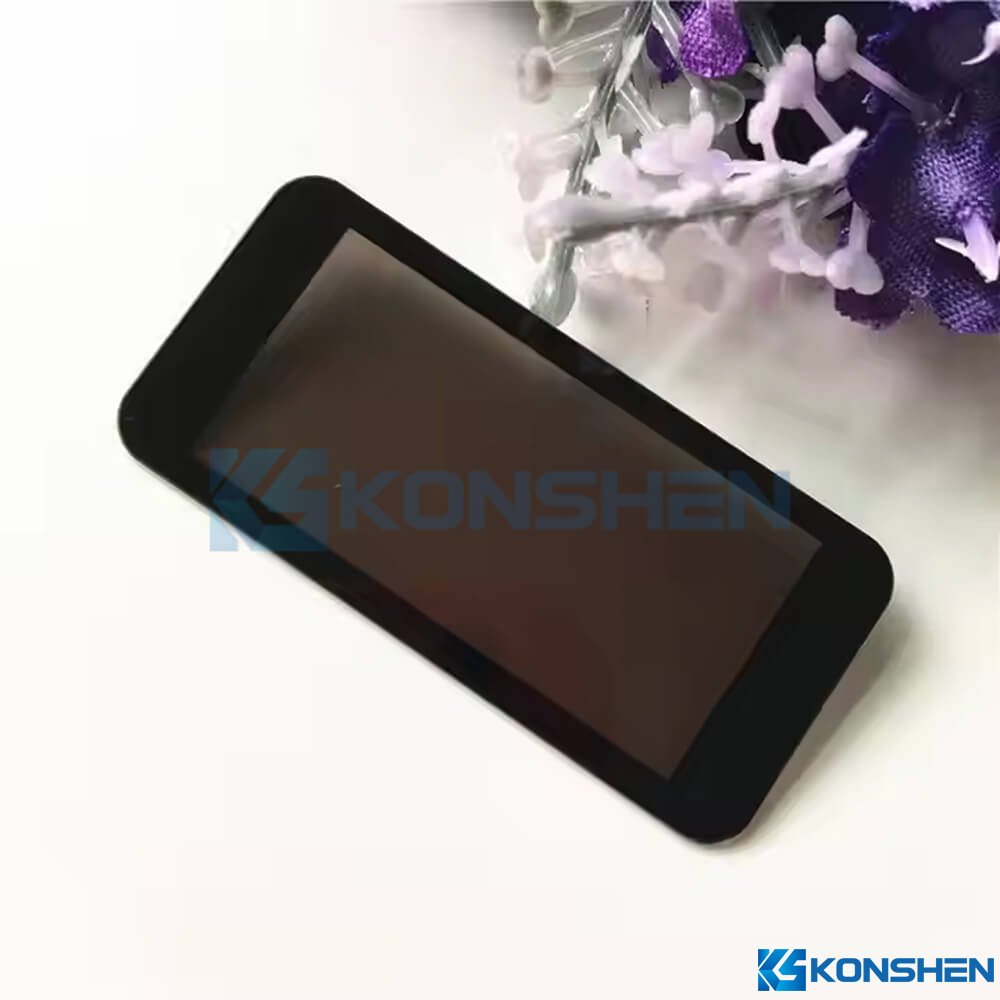

OEM 0.33mm Ultra Thin Diplay Cover Glass Panel with Semi Transparent Printing

Product Detail

Key Features:

Ultra-Thin 0.33mm Design: Offers a lightweight, sleek profile without compromising strength, ideal for compact devices.
Dual Silk Printing Process: Features both semi-transparent black and solid black silk printing, enabling high-contrast visual areas and functional display zones.
High Light Transmittance & Visual Clarity: The semi-transparent region allows partial light passage while maintaining display readability and uniformity.
Precision Cut Edges & Polished Finish: CNC precision cutting ensures smooth edges, reducing stress points and enhancing product safety.
Customizable Shapes & Patterns: Supports irregular shapes, cutouts, or logos based on client specifications, flexible for various industry uses.

Customized Option:

Materials Options: Soda Lime Glass,Mid-Aluminum Glass,High-Aluminum Glass
Available Thickness: 0.33 mm to 10 mm, customizable for different application needs.
Size & Shape: KS Glass offers various custom shapes and sizes tailored to your specifications.
Cutting Options: Laser Cutting,Water jet Cutting,Diamond Blade Cutting,CNC
Edge Options: Polished Edge,Safety Edge,Beveled Edge,Smooth Edge,2.5D Edge,Pencil Edge,Straight Edge
Tempering Options: Physical Tempered/Checmical Strengthened
Coating Options: Anti-Reflective (AR) Coating,Anti-Fingerprint (AF) Coating,Scratch-Resistant Coating(AS),Anti-Glare Coating(AG)
Printing Options: UV Printing,Silk screen printing,Laser engraving printing
Adhesive Options: AB Tape, Double-side Tape,3M Adhesive

Technical Parameters

Materials: Soda Lime Glass
Shape: Retangular
Thickness: 0.33mmT
Edge Work: Safety edge by CNC machine
Tempered Method: Chemically Strengthened
Printing Method: Silk screen printing #RAL9004 BK
Transmission Rate: ≥ 20%
Density: 2.5 g/cm³
Hardness: at least 6H
Strengthness: IK07
Operating Temperature Range: Suitable for -30°C to 250°C.
Thickness Tolerances:± 0.2mm
Dimensional Tolerances:±0.5mm for large size; ±0.1mm for small size
Weather Resistance: Strong resistance to high temperatures and humidity, reducing aging effects
UV Resistance: High UV-blocking capability
Impact Resistance: 2-5 times stronger than standard glass. Specific impact resistance can vary based on thickness and treatment.

Application

Smart Home Devices: Commonly applied to smart switches, control panels, and wall-mounted terminals, ensuring sleek interaction surfaces and intuitive interface designs.
Wearable Electronics: Suitable for smartwatches and fitness trackers, the ultra-thin glass adds minimal weight while offering high durability and aesthetic customization.
Consumer Electronics: Ideal for mobile phone lenses, back covers, or display covers, combining clarity with aesthetic control via silk printing.
Industrial Touch Interfaces: Enables control and display zones on HMI (Human Machine Interface) screens for industrial machinery, maintaining visibility and resilience.
Medical Terminals: Utilized on the surface of portable diagnostic tools and touch monitors in medical environments, meeting hygiene and clarity requirements.

Company and factory equipment

Customer Visit

Company Profile

Dlivery & Payment

Packaging:

Step 1: PE film coating(Normally) / paper(For seashipment prevent wet).
Step 2: Kraft paper for fixation.
Step 3: Carton for glass safety protection.
Step 4: Custom make plywood case with hinge for custom(fumigation + convenient inspection) convenience.
Step 5: Packing strap for further fixation.
