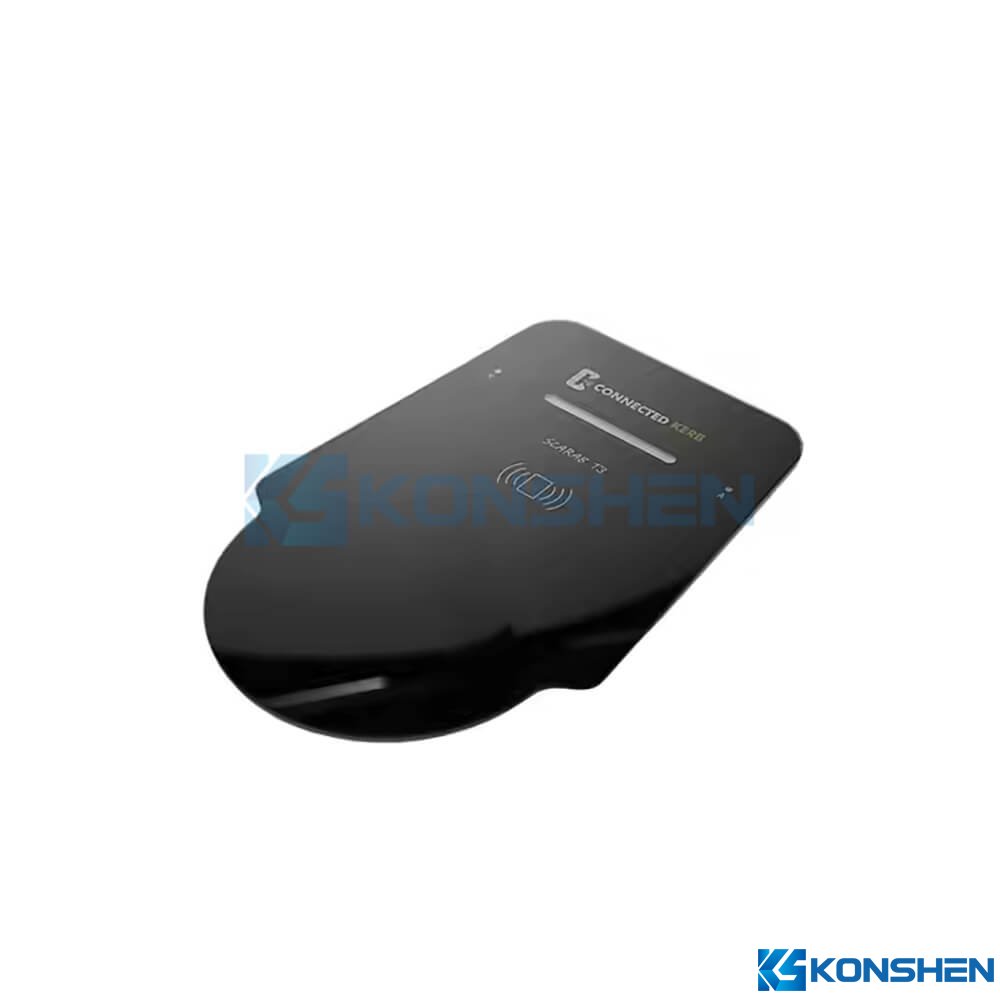

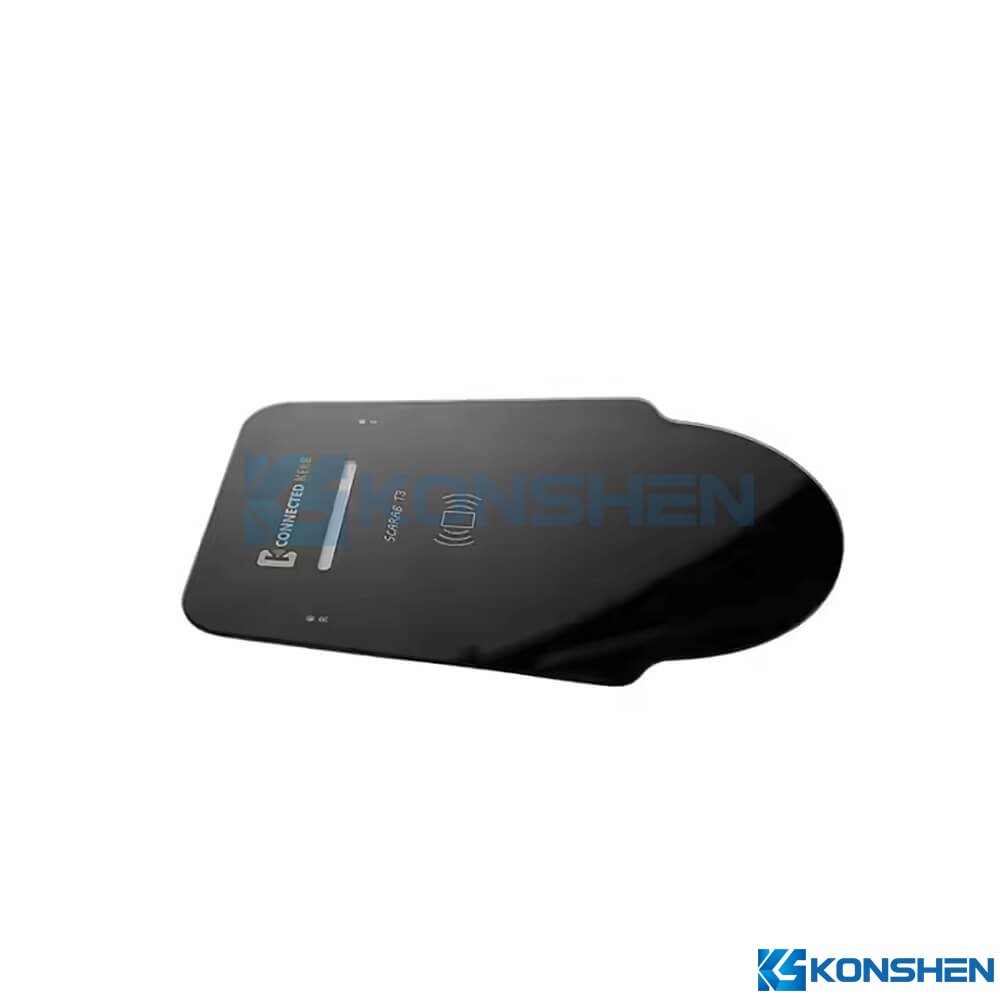

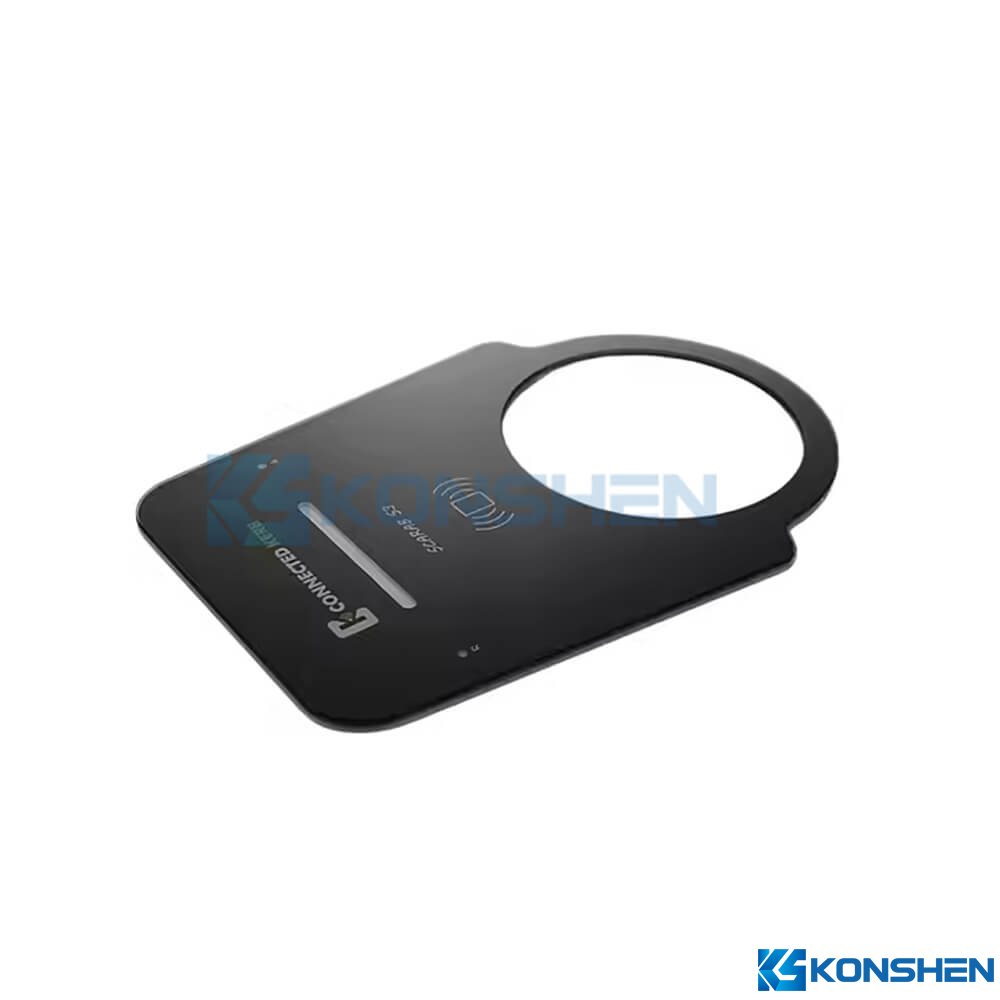

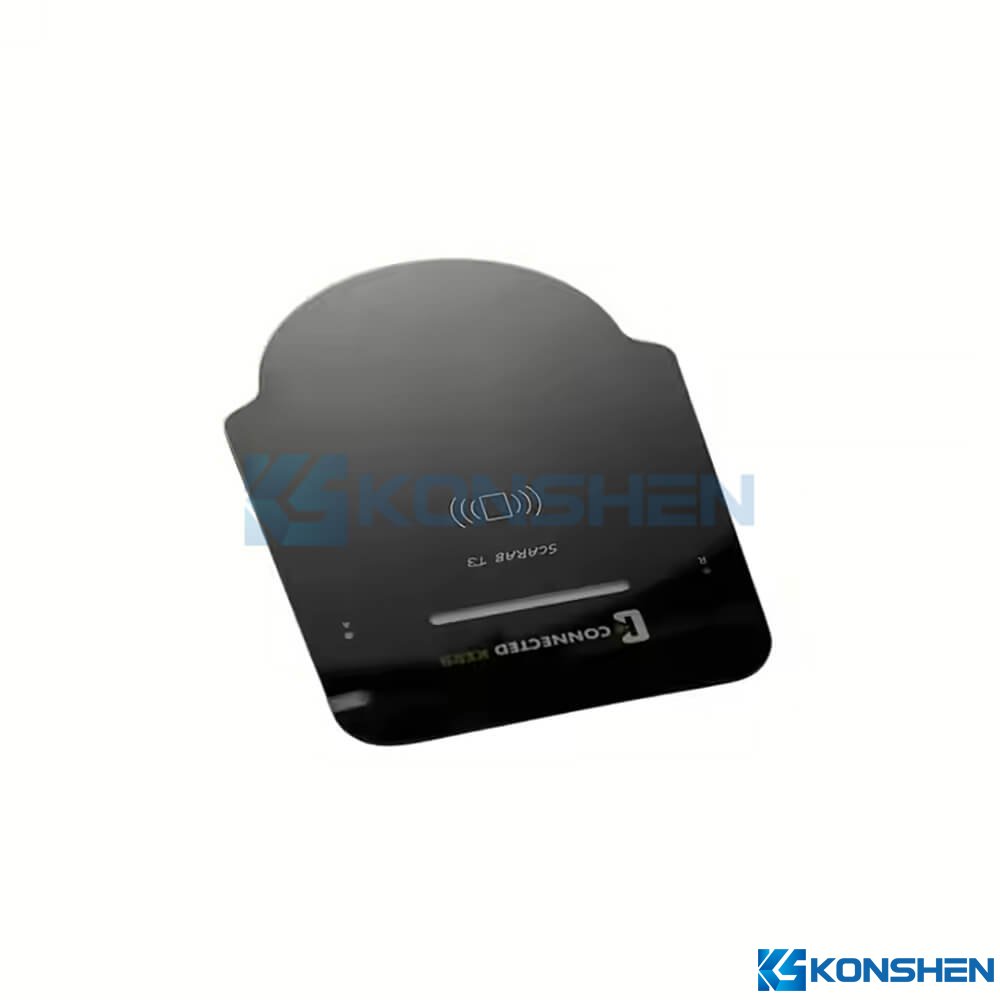

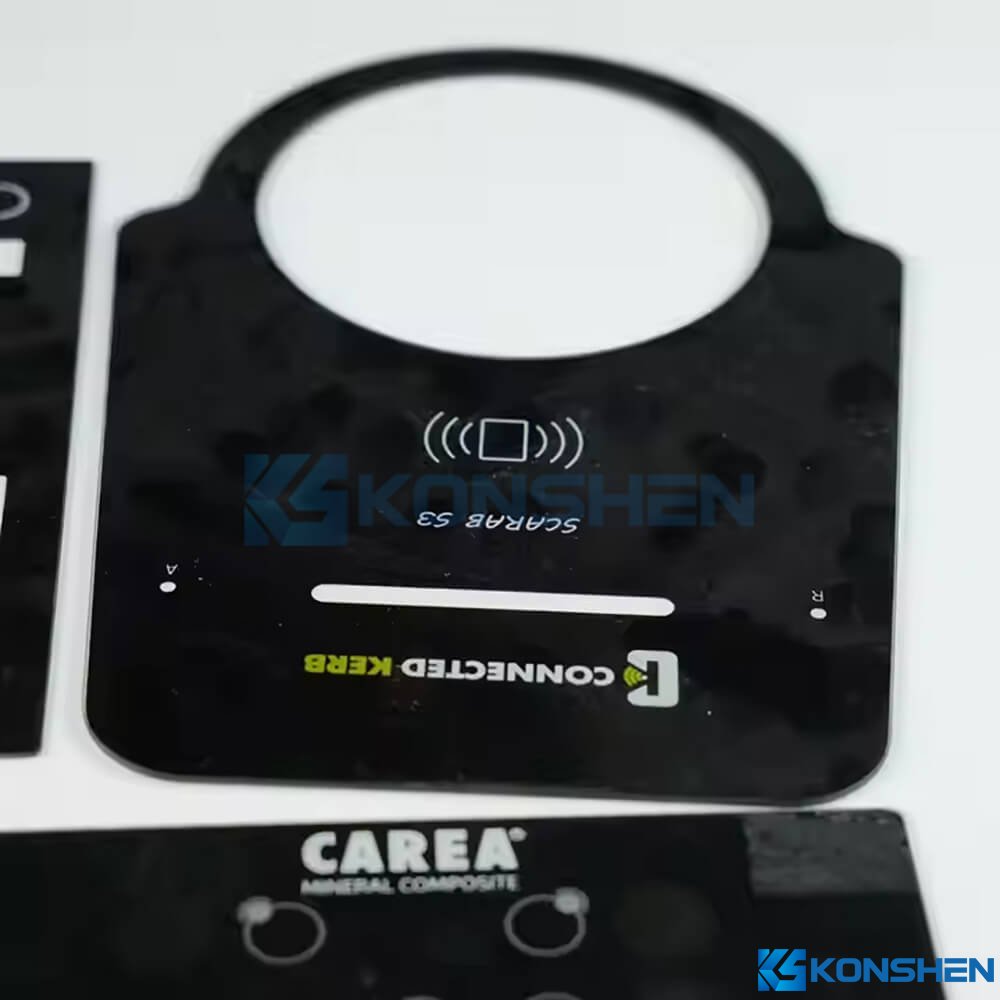

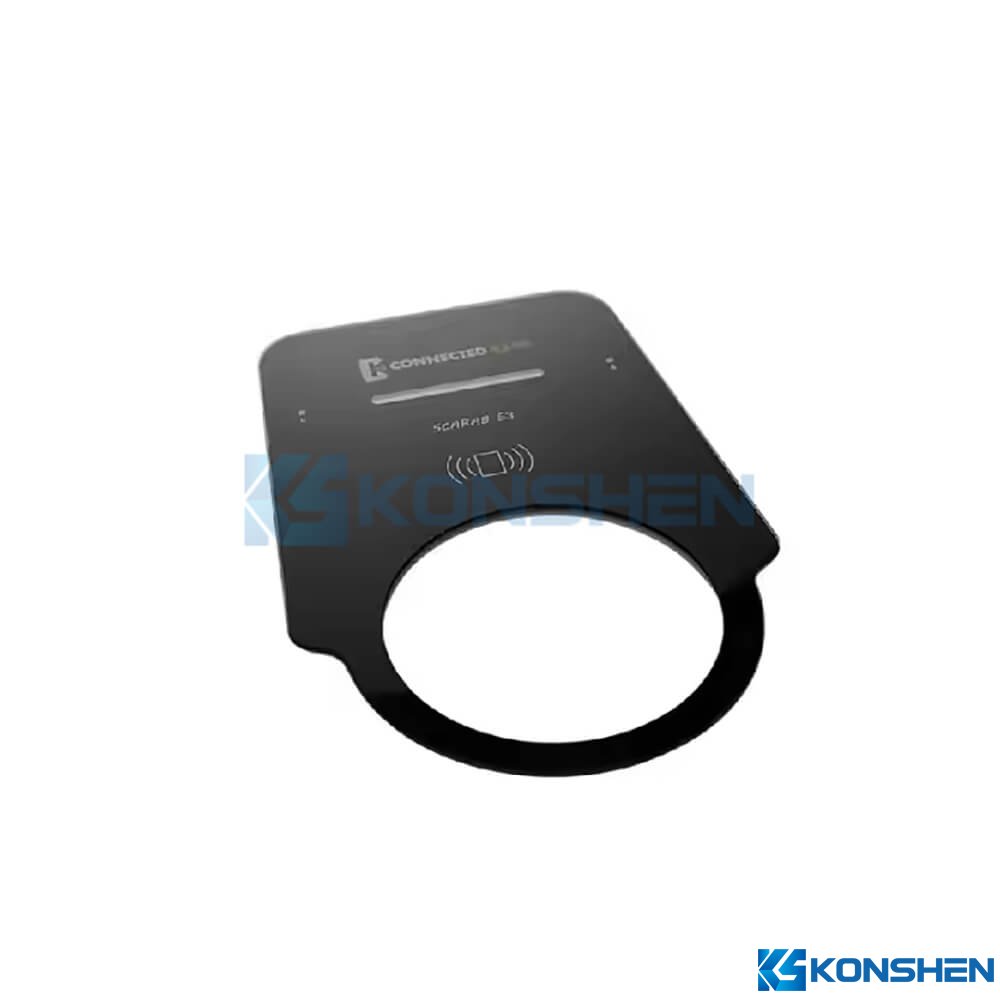

ODM 1.1mm Ultra-Thin Printed Glass Panel for Smart Devices with Holes Drilling

Product Detail

Key Features:

Ultra-Thin & Lightweight: With only 1.1mm thickness, the glass ensures compact form factors, reducing device bulk and enhancing portability. Especially suitable for slim-profile smart devices.
Multicolor Silk Printing: Supports black, white, green, and other ink colors to display functional icons, brand logos, or control elements with high color accuracy and adhesion.
Precision Drilled Holes: Laser/CNC-drilled holes allow for precise integration with biometric sensors, LED windows, cameras, or microphones.
Fine Edge Grinding: Smooth, polished edges reduce risk of chipping and ensure safer handling, as well as a visually refined product outline.
High Optical Transparency: Made from ultra-clear glass, offering ≥91% light transmittance, supporting clear display visibility even with multiple print layers.
Customizable in Shape & Print Layout: Shapes, hole patterns, color layouts, and logos can all be customized to match project specifications.

Customized Option:

Available Thickness: Ranging from 0.33 mm to 10 mm, depending on the insulation requirements and specific applications.
Size & Shape: Supports special-shaped cutting to meet diverse needs. Customizes as per drawing.
Cutting Option: CNC Cutting/Water jet Cutting/Diamond Blade Cutting
Edge Options: Polished Edge/Safety Edge/Beveled Edge/Smooth Edge/2.5D Edge/Pencil Edge/Straight Edge
Tempering Options: Physical Tempered/Checmical Strengthened
Coating Options: Anti-Reflective (AR) Coating/Anti-Fingerprint (AF) Coating/Scratch-Resistant Coating/Indium Tin Oxide(ITO) Coating or Anti-Glare (AG)Coating
Printing Options: UV Printing/Silk screen printing/Laser engraving printing
Adhesive Options: AB Tape/ Double-side Tape/3M Adhesive

Technical Parameters

Materials: Ultra Clear Glass
Shape: Irregular
Thickness: 1.1mmT
Edge Work: Safety edge by CNC machine
Tempered Method: Chemical Strengthened
Coating: Anti-fingerprint(AF) coating
Printing Method: Silk screen printing #RAL9004 BK #RAL9001 WH #HEX#8dc73f
Density: 2.5 g/cm³
Hardness: at least 6H
Strengthness: IK07
Operating Temperature Range: Suitable for -30°C to 250°C.
Thickness Tolerances:± 0.2mm
Dimensional Tolerances:±0.5mm for large size; ±0.1mm for small size
Weather Resistance: Strong resistance to high temperatures and humidity, reducing aging effects
UV Resistance: High UV-blocking capability
Impact Resistance: 2-5 times stronger than standard glass. Specific impact resistance can vary based on thickness and treatment.

Application

Smart Locks: Widely used in biometric, password, or facial recognition locks as a front panel for aesthetic and functional protection.
Access Control Panels: Deployed in residential, commercial, or industrial access panels, supporting secure ID and interface interaction.
Smart Home Terminals: Integrated into smart switches, central control units, and touchscreen panels for lighting, HVAC, or security management.
IoT Devices & Sensor Modules: Applied to compact smart modules such as intercoms, sensor hubs, and handheld scanners.
Consumer Electronics: Suitable for smart speakers, wearable docks, remote controls, or touch remotes requiring elegant and functional surfaces.

Company and factory equipment

Customer Visit

Company Profile

Dlivery & Payment

Packaging:

Step 1: PE film coating(Normally) / paper(For seashipment prevent wet).
Step 2: Kraft paper for fixation.
Step 3: Carton for glass safety protection.
Step 4: Custom make plywood case with hinge for custom(fumigation + convenient inspection) convenience.
Step 5: Packing strap for further fixation.
