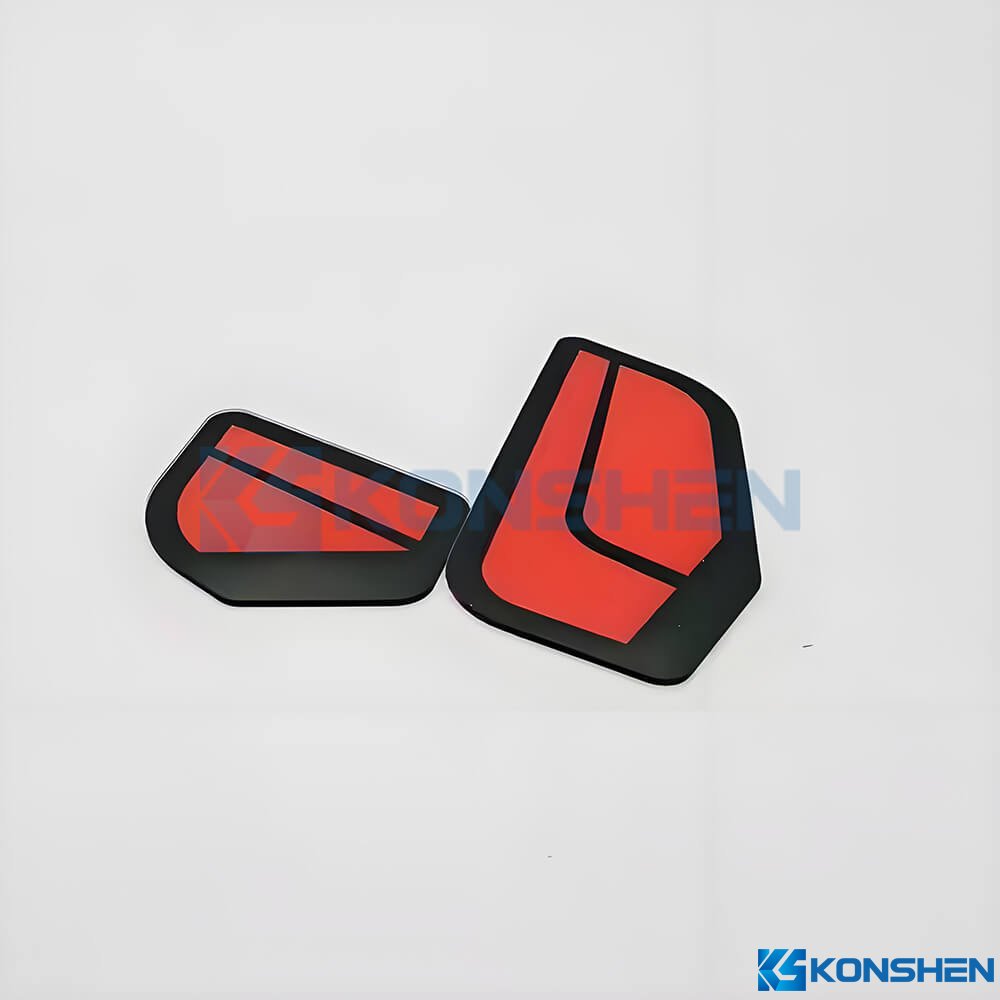

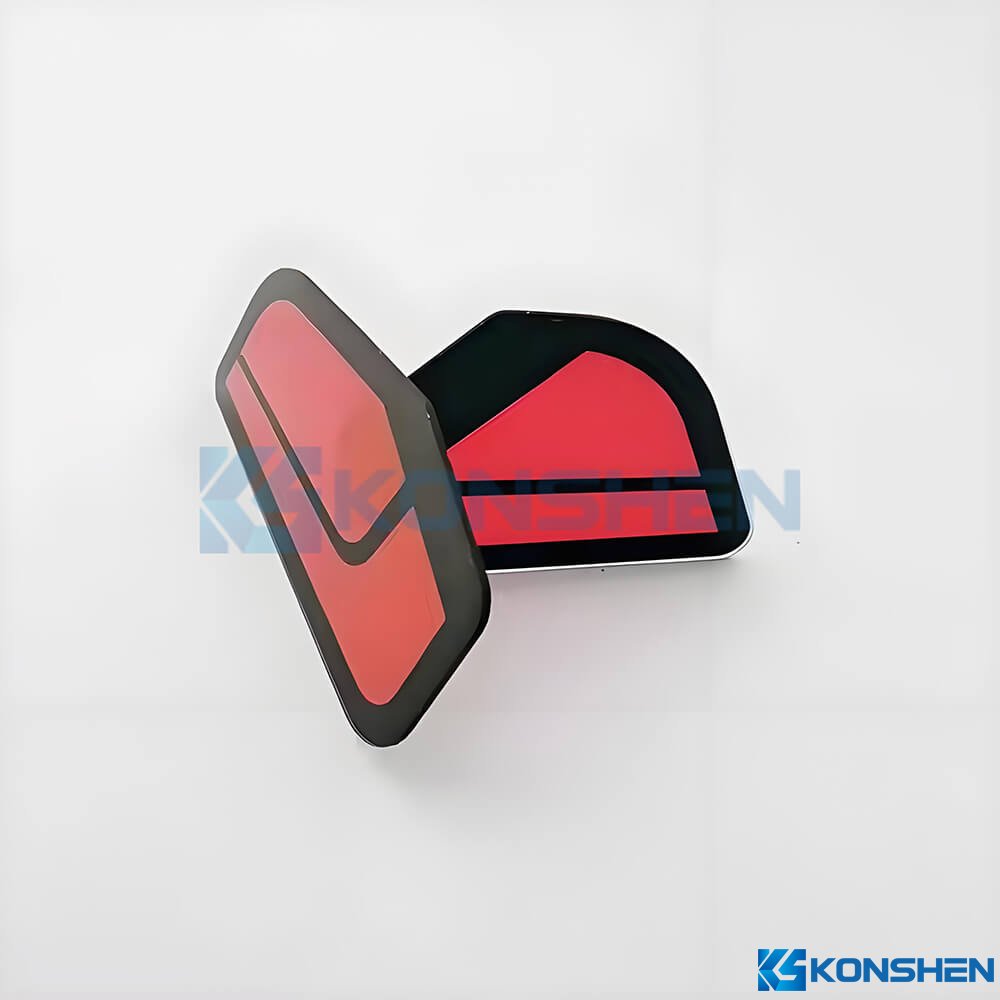

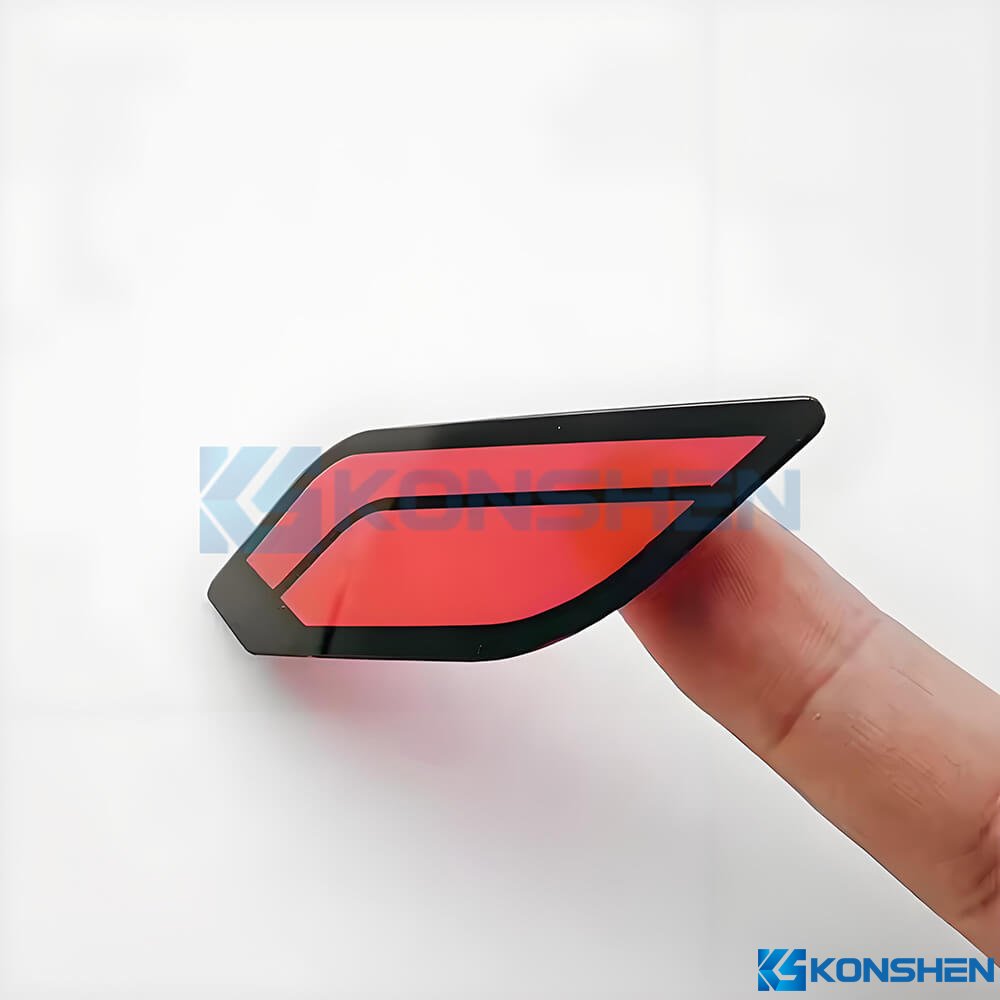

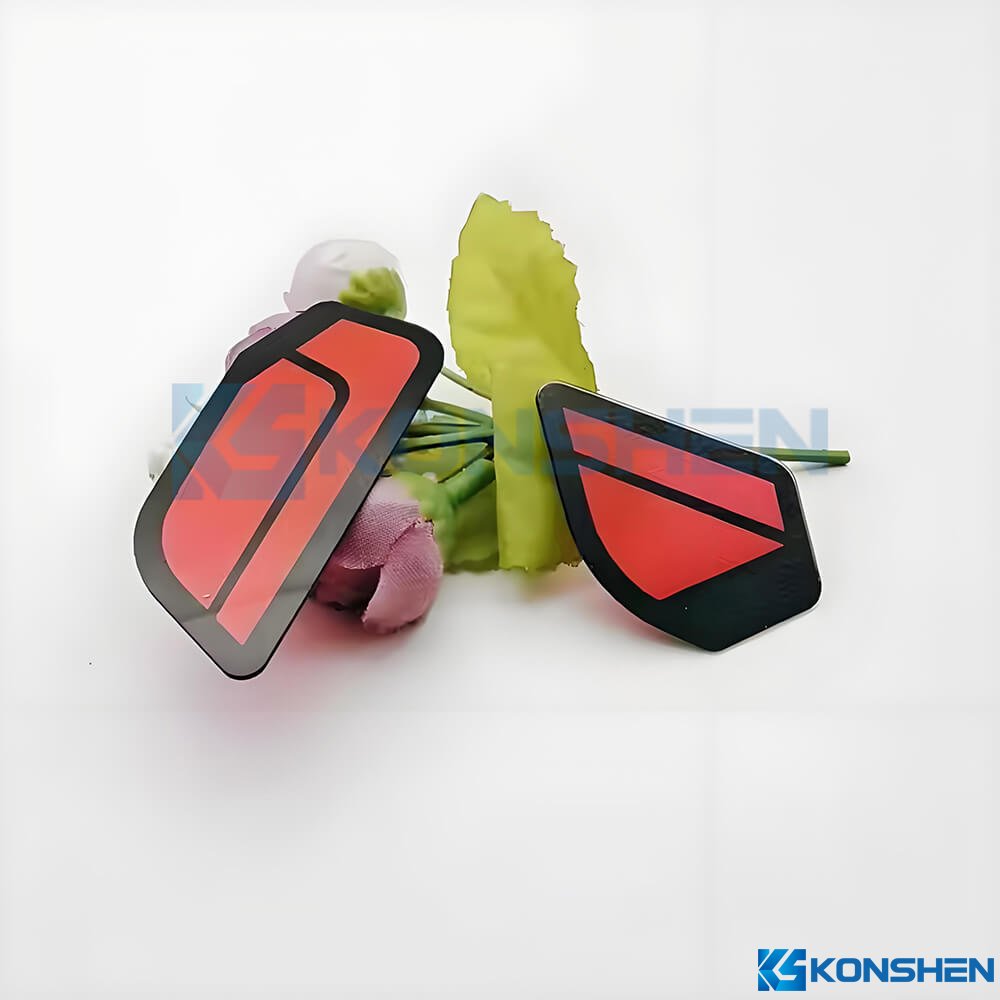

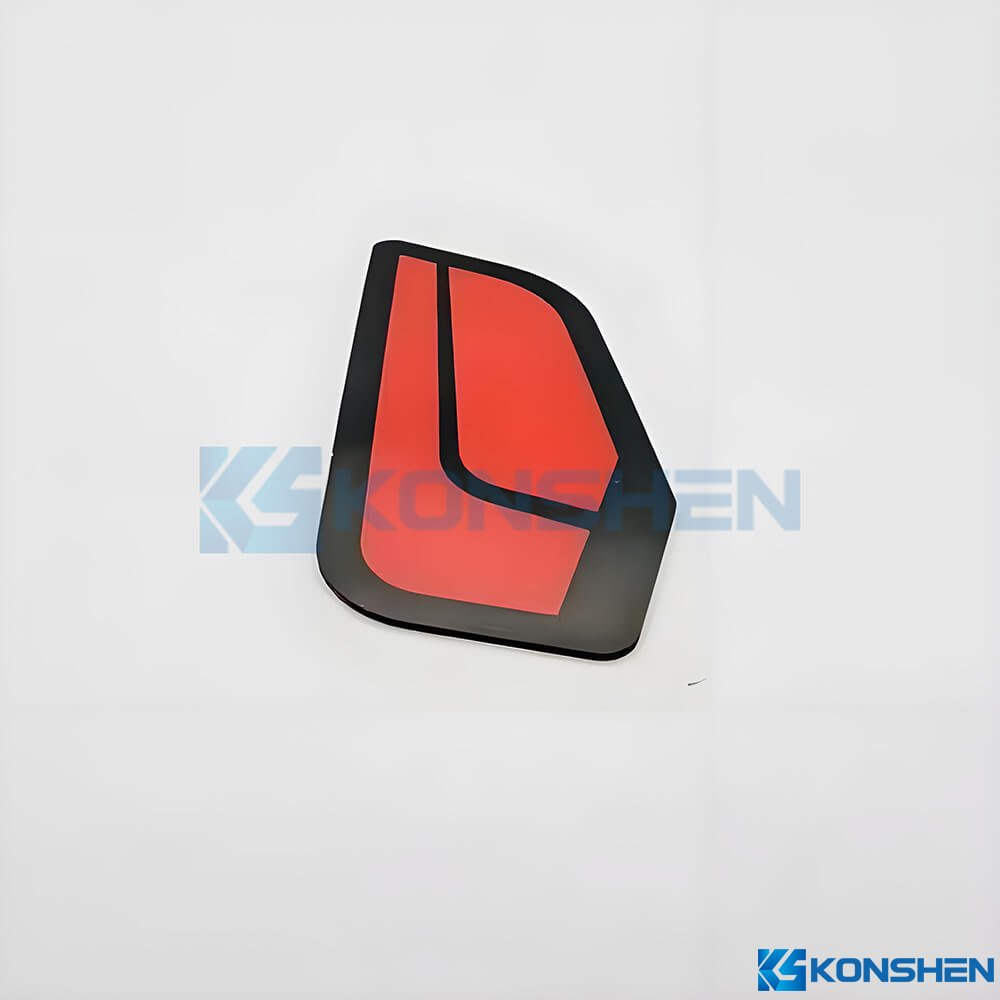

Ultra-thin 0.8mm Irregular-shape Checmical Strengthened Glass with Dual-color printing

Key Features:

• Ultra-Thin Thickness: Slim profile ensures lightweight design while maintaining high strength, making it perfect for compact and portable devices.

• Custom Irregular Shape: CNC precision cutting allows for intricate shapes and exact dimensions, ensuring seamless fit with enclosures or panels.

• Dual-Color Printing: Two-tone high-resolution printing delivers clear functional markings and enhanced brand aesthetics with long-lasting adhesion.

• High Scratch & Wear Resistance: >7H hardness resists scratches from daily use, keeping the surface pristine and extending service life.

• High Impact Resistance: Tempered process increases mechanical strength, withstanding accidental drops or external forces.

• Best Thermal Stability &Chemical Resistance: It maintains performance under temperatures up to 250°C, suitable for environments with heat exposure. It resists common cleaning agents, alcohol, and mild acids/alkalis, making it easy to maintain.

Customized Option:

• Available Thickness: Ranging from 0.1 mm to 15 mm, depending on the insulation requirements and specific applications.

• Size & Shape: Supports special-shaped cutting to meet diverse needs. Customizes as per drawing.

• Cutting Option: CNC Cutting/Water jet Cutting/Diamond Blade Cutting

• Edge Options: Polished Edge/Safety Edge/Beveled Edge/Smooth Edge/2.5D Edge/Pencil Edge/Straight Edge

• Tempering Options: Checmical Strengthened

• Coating Options: Anti-Reflective (AR) Coating/Anti-Fingerprint (AF) Coating/Scratch-Resistant Coating/Indium Tin Oxide(ITO) Coating or Anti-Glare (AG)Coating

• Printing Options: UV Printing/Silk screen printing/Laser engraving printing

• Adhesive Options: AB Tape/ Double-side Tape/3M Adhesive

Materials: Ultra Clear Glass

Shape: Irregular

Thickness: 0.8mmT

Edge Work: Safety edge by CNC machine

Tempered Method: Chemical Strengthened

Printing Method: Silk screen printing  #RAL9004 BK  #RAL3001 RD

Density: 2.5 g/cm³

Hardness: at least 7H

Strengthness: IK07

Operating Temperature Range: Suitable for -30°C to 250°C.

Thickness Tolerances:± 0.2mm

Dimensional Tolerances:±0.5mm for large size; ±0.1mm for small size

Weather Resistance: Strong resistance to high temperatures and humidity, reducing aging effects

UV Resistance: High UV-blocking capability

Impact Resistance: 2-5 times stronger than standard glass. Specific impact resistance can vary based on thickness and treatment.

• Consumer Electronics: Suitable for various household and portable electronic devices as exterior panels, functional button covers, and decorative parts, enhancing product aesthetics and brand recognition.

• Smart Home & IoT Devices: Ideal for smart control panels, touch areas, or indicator light windows, supporting multi-color marking and customized designs for easier user interaction and information recognition.

• Appliances & Kitchen Equipment: Applied in operation interfaces, display windows, and function marking areas, with heat resistance, stain resistance, and easy-to-clean properties for long-term frequent use.

• Industrial Control & Instrumentation: Provides reliable mechanical protection and clear visual display for industrial screens, button panels, and status indicators, suitable for dusty, oily, and mildly corrosive environments.

• Automotive Interior & Dashboard Components: Used for central control interfaces, functional key covers, and indicator markings, combining scratch resistance with aesthetics to meet automotive-grade appearance and durability standards.

• Medical & Laboratory Equipment: Suitable for control panels, status display areas, and function markings, with surfaces that are easy to disinfect and resistant to common cleaning agents and alcohol solutions.

• Public & Commercial Terminals: Widely applied in self-service machines, ticketing systems, information kiosks, and ATMs, withstanding frequent operation while maintaining clear visual performance.

• Branding & Decorative Panels: Dual-color printing enables unique visual effects and brand logos, delivering differentiated designs and boosting market competitiveness.
