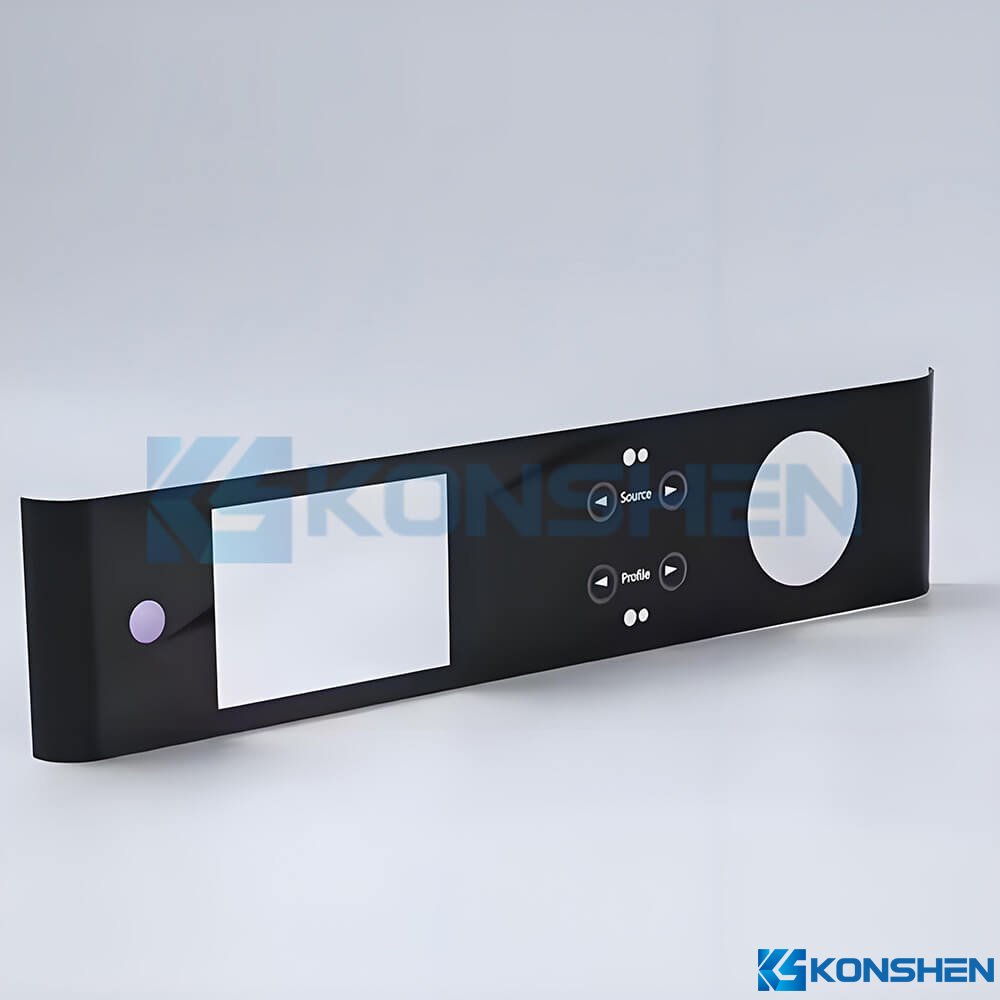

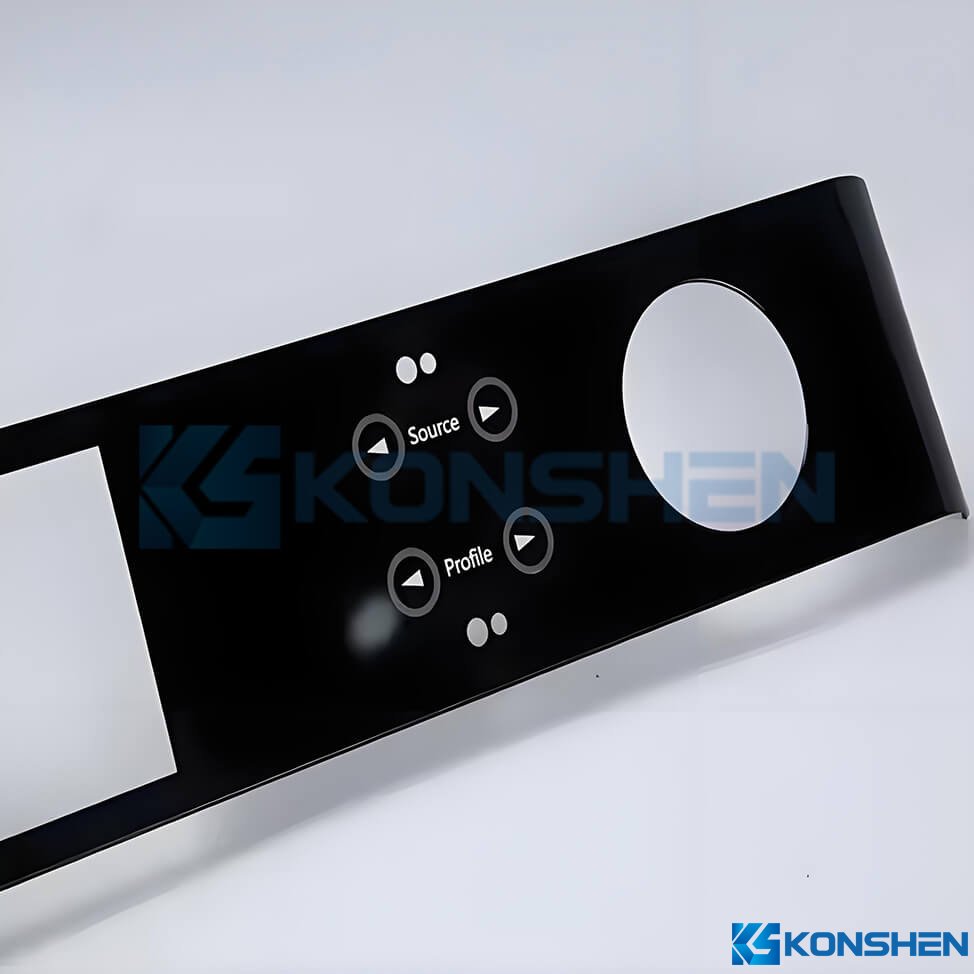

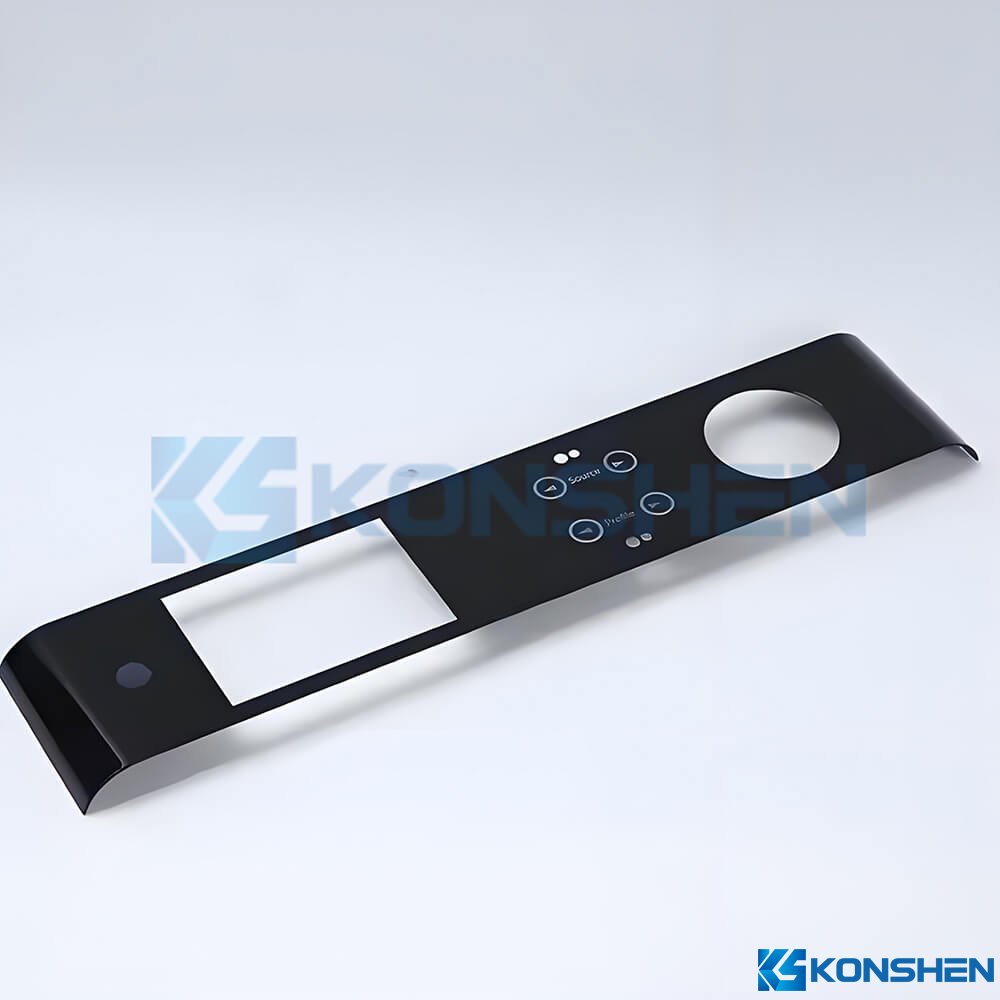

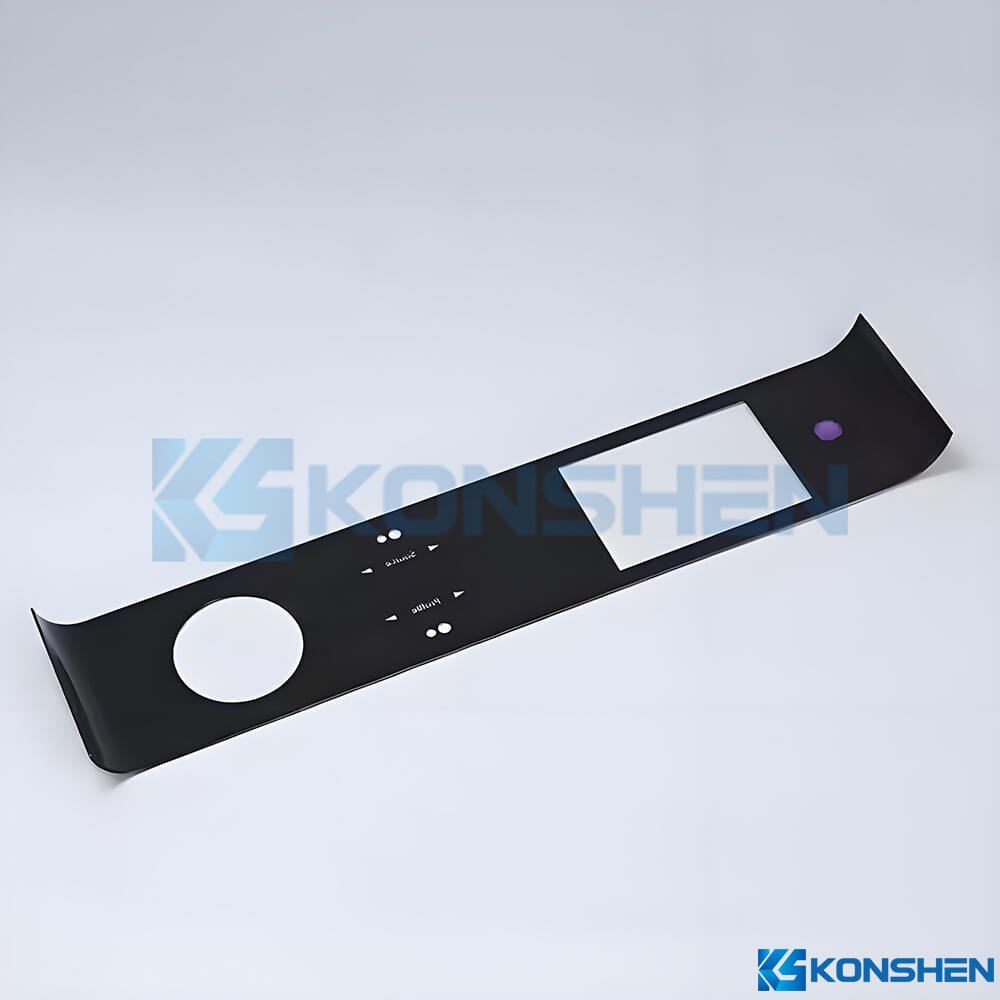

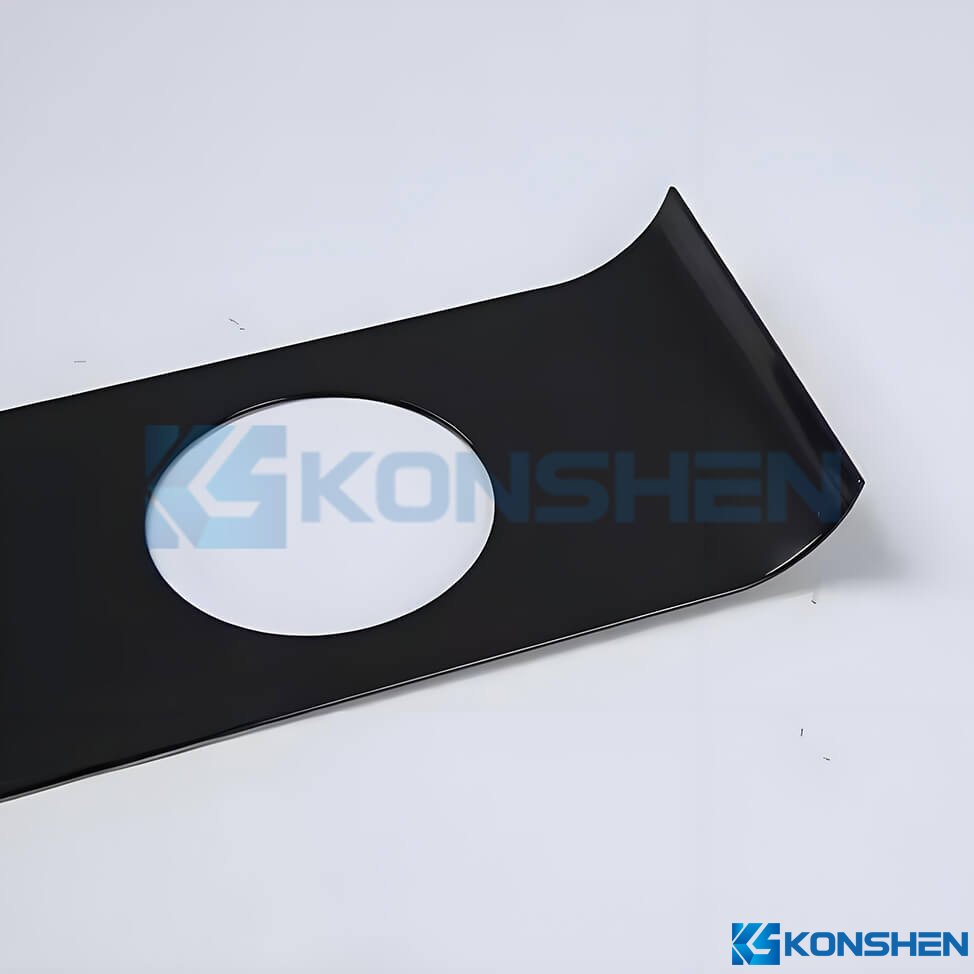

0.8mm Precisive Cutout Curved Glass Panel with Black Silk Printing

Key Features:

• Perfect Fusion of Appearance & Structure: Using advanced hot bending technology, the panel achieves a smooth curvature with precise dimensional control, ensuring seamless integration with device housings for enhanced aesthetics and premium feel.

• Precision CNC Edge Treatment: Precision CNC cutting and edge polishing deliver smooth, safe edges, with optional chamfering or custom-shaped designs available per customer requirements.

• Lightness & Strength: At just 0.8mm thick, this glass balances a lightweight profile with excellent impact and bending resistance, meeting both durability and slim design requirements.

• Upscale Printing: Black silk printing effectively conceals internal components, delivering a clean, premium look, while transparent or translucent windows are precisely aligned with functional buttons or display areas for optimal visual and touch performance.

• Flexibly Customization: Fully customizable in dimensions, curvature radius, silk printing patterns, and window placement, making it adaptable for appliances, industrial controls, automotive displays, and consumer electronics.

Customized Option:

• Available Thickness: Ranging from 0.2 mm to 15 mm, depending on the insulation requirements and specific applications.

• Size & Shape: Supports special-shaped cutting to meet diverse needs. Customizes as per drawing.

• Cutting Option: CNC Cutting/Water jet Cutting/Diamond Blade Cutting

• Edge Options: Polished Edge/Safety Edge/Beveled Edge/Smooth Edge/2.5D Edge/Pencil Edge/Straight Edge

• Tempering Options: Checmical Strengthened

• Coating Options: Anti-Reflective (AR) Coating/Anti-Fingerprint (AF) Coating/Scratch-Resistant Coating/Indium Tin Oxide(ITO) Coating or Anti-Glare (AG)Coating

• Printing Options: UV Printing/Silk screen printing/Laser engraving printing

• Adhesive Options: AB Tape/ Double-side Tape/3M Adhesive

Materials: Ultra Clear Glass

Shape: Irregular Curved Glass

Thickness: 0.8mmT

Edge Work: Safety edge by CNC machine

Tempered Method: Chemical Strengthened

Coating: Anti-fingerprint(AF) coating

Printing Method: Silk screen printing  #RAL9004 BK

Density: 2.5 g/cm³

Hardness: at least 7H

Strengthness: IK07

Operating Temperature Range: Suitable for -30°C to 250°C.

Thickness Tolerances:± 0.1mm

Dimensional Tolerances:±0.5mm for large size; ±0.1mm for small size

Weather Resistance: Strong resistance to high temperatures and humidity, reducing aging effects

UV Resistance: High UV-blocking capability

Impact Resistance: 2-5 times stronger than standard glass. Specific impact resistance can vary based on thickness and treatment.

• High-End Appliance Panels: Curved glass panels are widely used in premium home appliance control interfaces, such as built-in ovens, steam ovens, coffee machines, washing machines, and dryers. The smooth curvature blends seamlessly with appliance housings, elevating both visual sophistication and tactile comfort. Black silk printing conceals internal electronics while keeping display and control windows clear, ensuring a clean look and intuitive operation.

• Industrial Control & HMI Interfaces: In industrial automation, testing instruments, and smart production terminals, curved glass covers serve as protective and decorative layers for Human-Machine Interfaces (HMIs). Their sturdy construction, precisely aligned openings, and weather-resistant finishes allow long-term stable performance in high-use, challenging environments, while maintaining crisp graphics and labels for improved readability and longevity.

• Automotive & Transportation Equipment: Suitable for automotive central control panels, in-vehicle display covers, and other transportation control panels. The curved design fits dashboard contours for a cohesive look, while offering UV resistance, high-temperature endurance, and scratch protection to maintain high optical clarity and aesthetics over time.

• Consumer Electronics & Smart Devices: Applicable to smart speakers, home control panels, smart access systems, and wearable device docks, where appearance, tactile feedback, and functional zoning are critical. The combination of black silk printing with transparent or translucent windows allows seamless integration of displays, touch controls, backlighting, and icon indicators, enhancing both design appeal and product recognizability.
