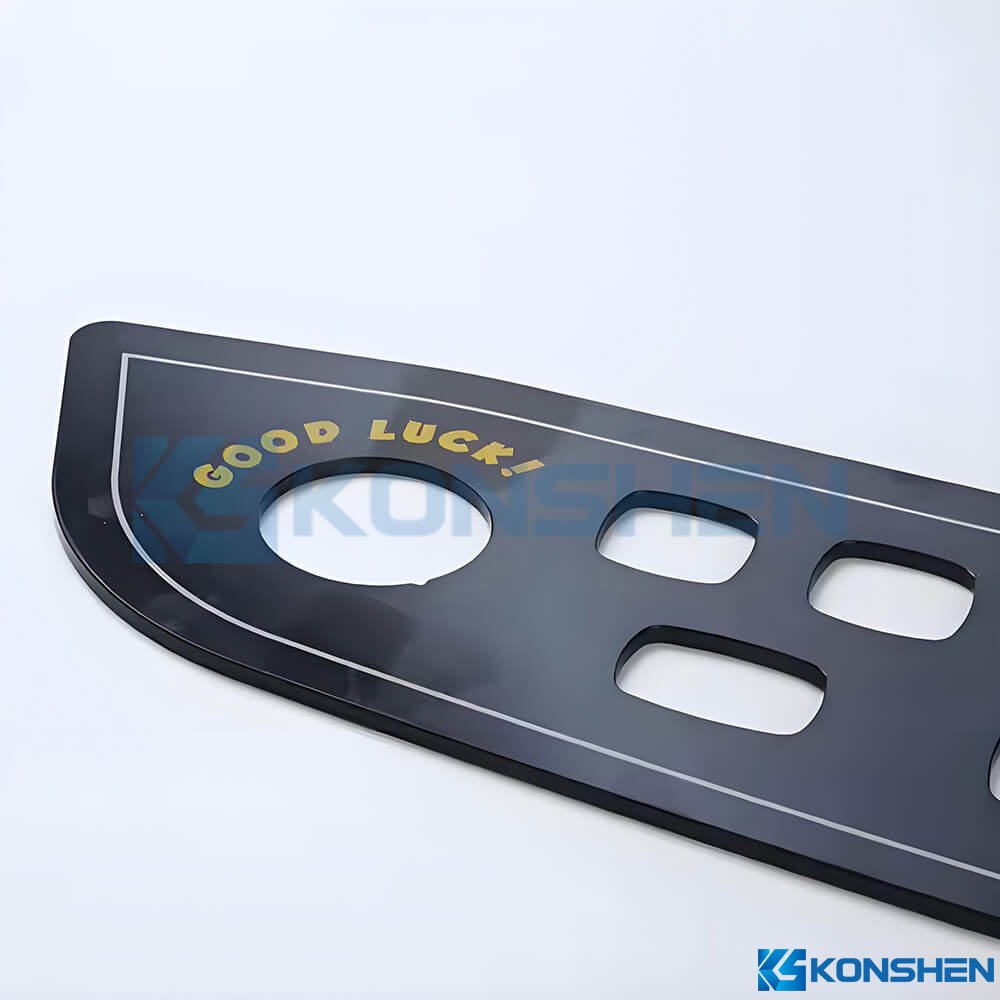

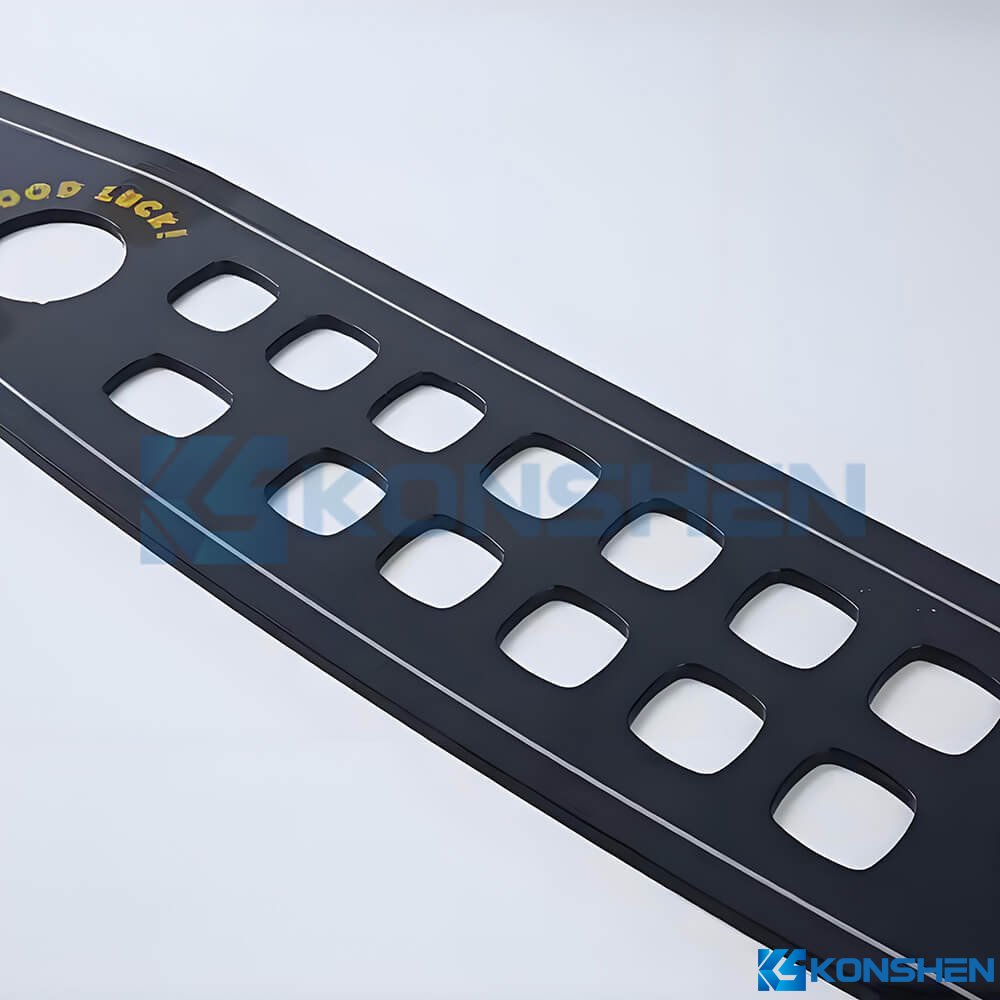

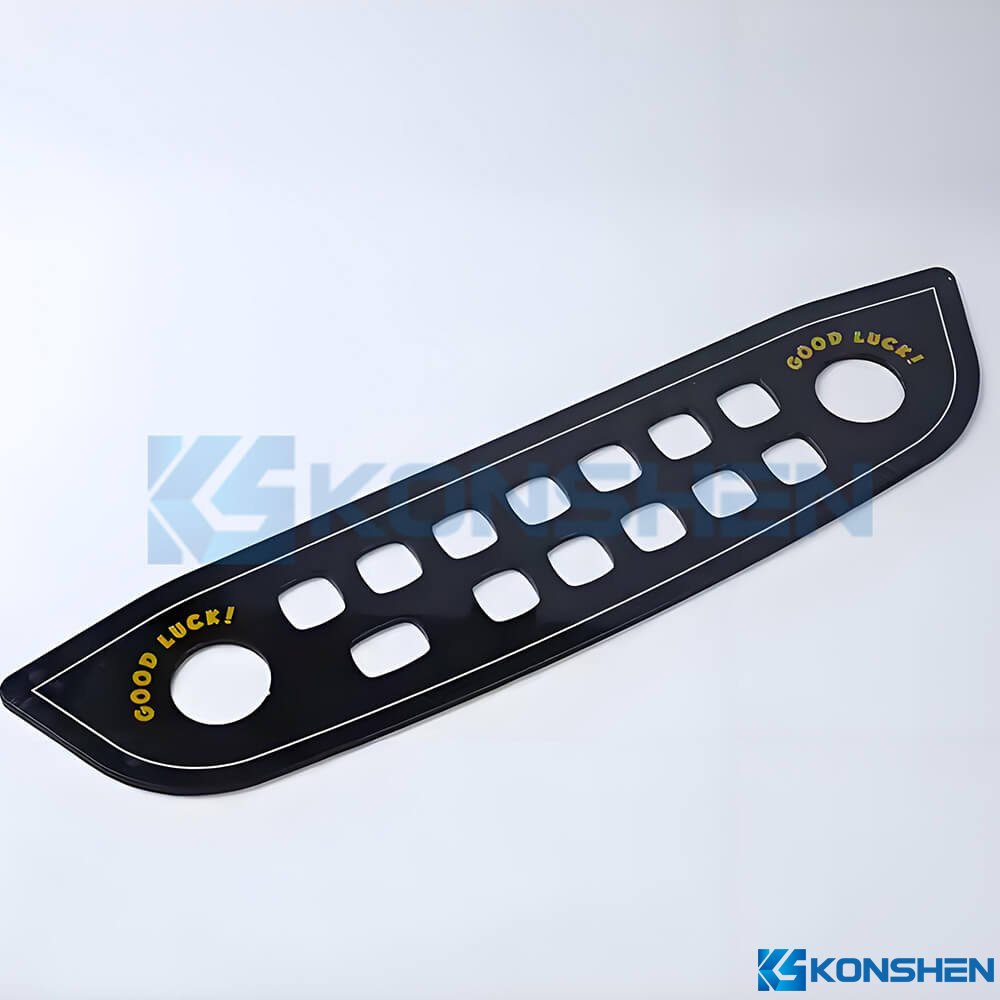

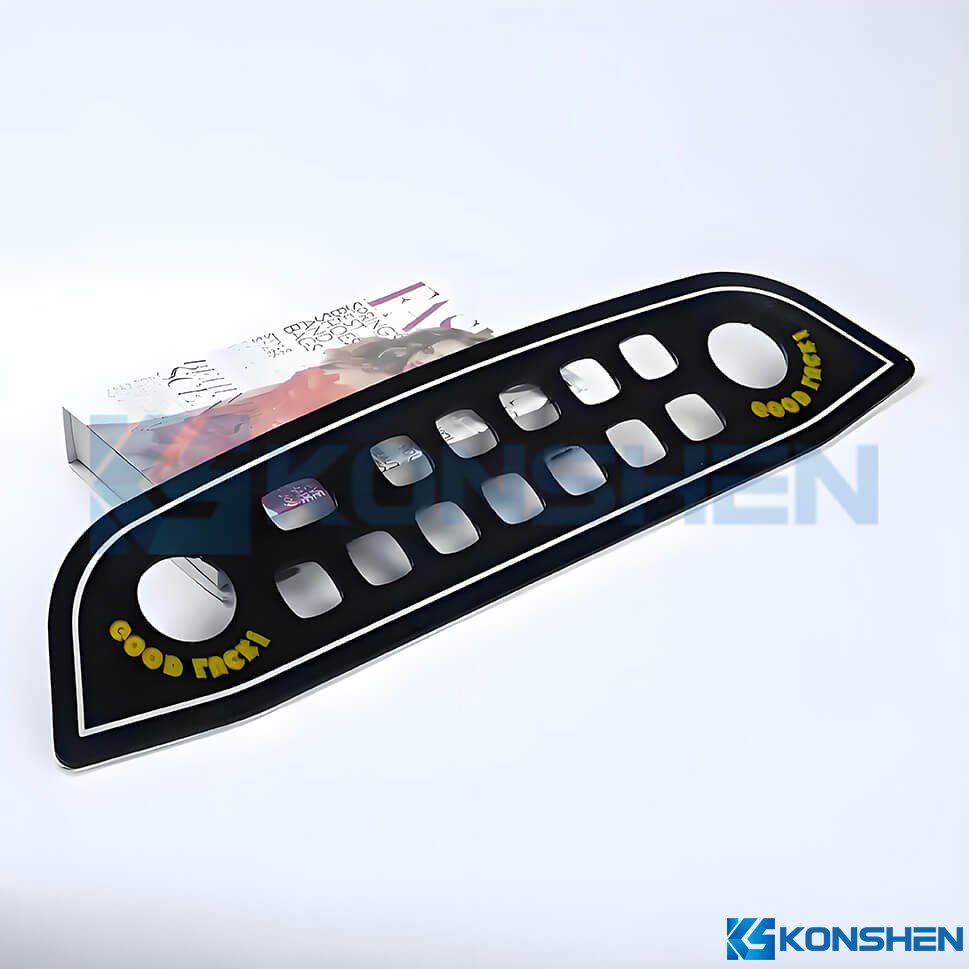

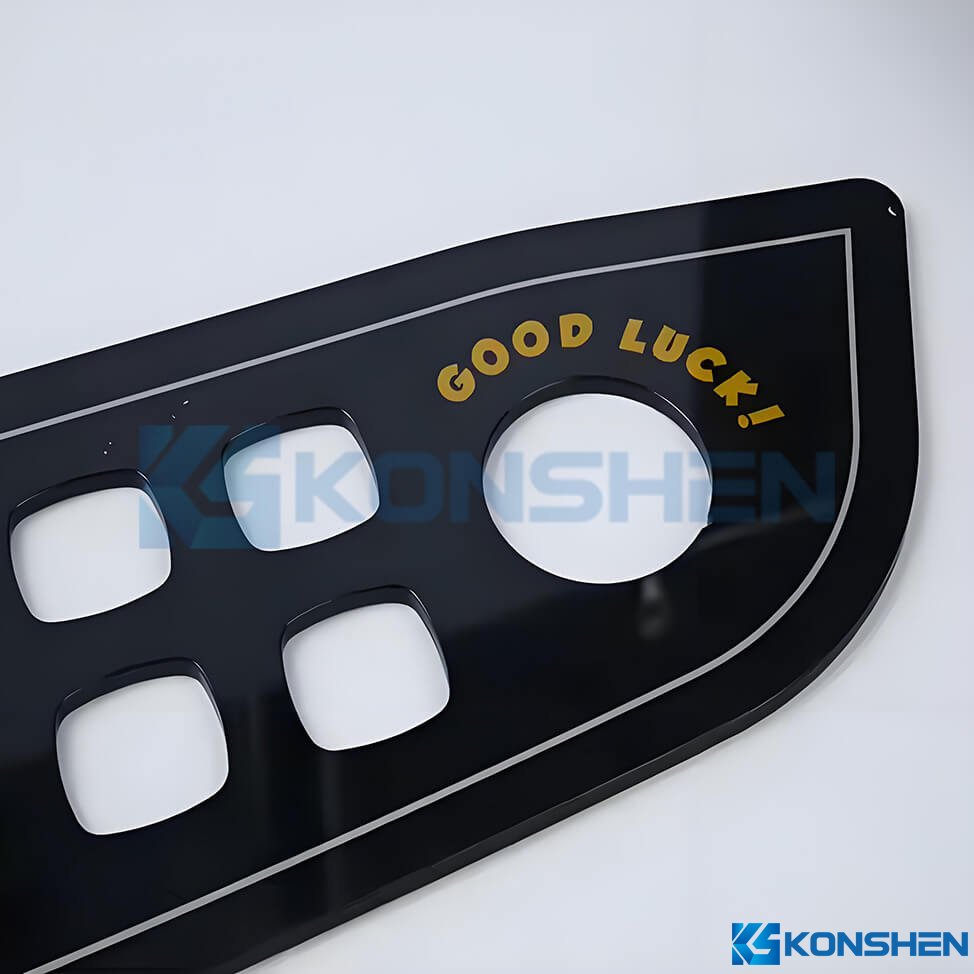

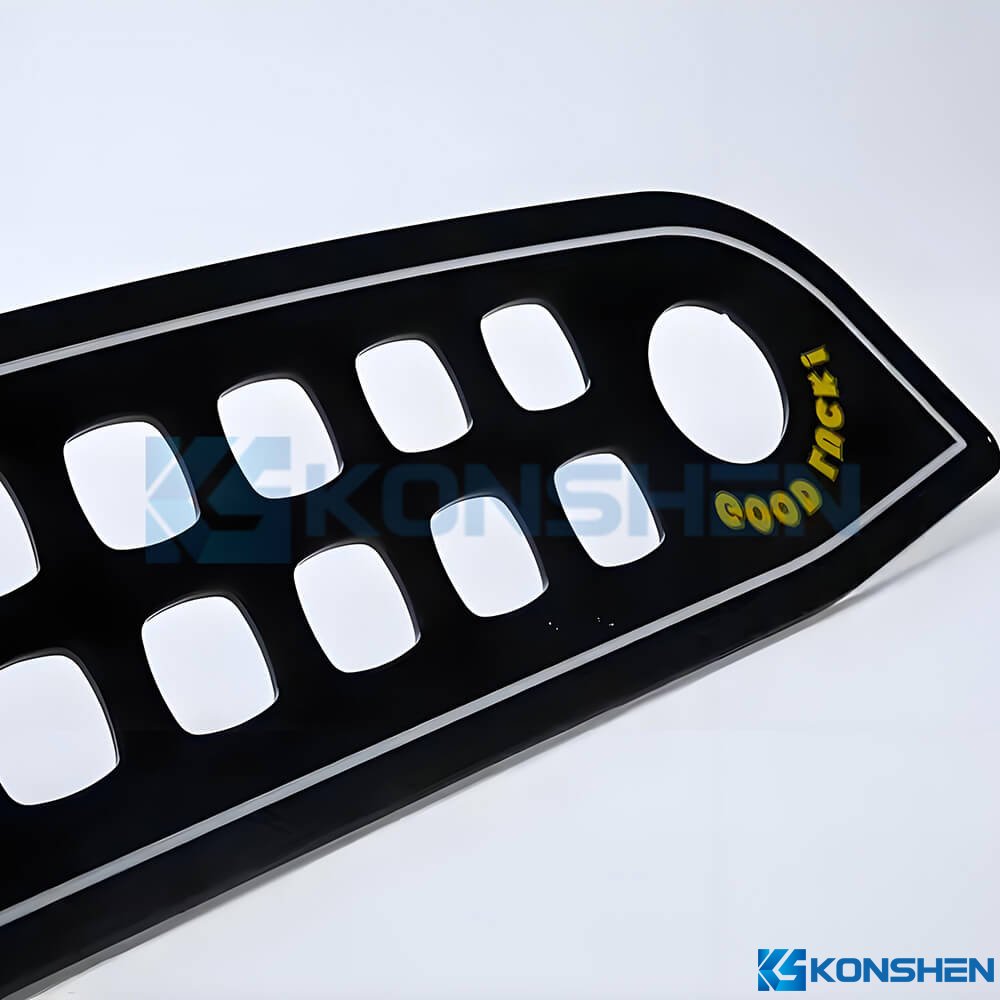

2mm precisive hole drilling Chemical strengthened Display Cover Glass

Key Features:

• High-Precision Custom Shape: Manufactured with CNC cutting and fine polishing, ensuring accurate dimensions and smooth edges for a perfect fit in customized device housings.

• Black Ceramic Silk Printing: High-quality ceramic ink provides deep, uniform black color with excellent opacity and durability, resistant to UV fading and scratches.

• Ultra-Thin Design: Combines lightweight handling with high structural stability, suitable for slim and compact device panels.

• Durable AF Coating: Oleophobic anti-fingerprint layer ensures smooth touch, easy cleaning, and long-lasting clarity.

• Optional Adhesive Backing: Integrated 3M adhesive for easy installation without compromising precision or stability.

• Enhanced Edge Safety: Chamfered and polished edges prevent injury during handling and assembly.

• Heat & Moisture Resistance: Maintains stability and performance in demanding environments, including high-temperature and high-humidity conditions.

Customized Option:

• Available Thickness: Ranging from 0.2 mm to 15 mm, depending on the insulation requirements and specific applications.

• Size & Shape: Supports special-shaped cutting to meet diverse needs. Customizes as per drawing.

• Cutting Option: CNC Cutting/Water jet Cutting/Diamond Blade Cutting

• Edge Options: Polished Edge/Safety Edge/Beveled Edge/Smooth Edge/2.5D Edge/Pencil Edge/Straight Edge

• Tempering Options: Physical Tempered/Checmical Strengthened

• Coating Options: Anti-Reflective (AR) Coating/Anti-Fingerprint (AF) Coating/Scratch-Resistant Coating/Indium Tin Oxide(ITO) Coating or Anti-Glare (AG)Coating

• Printing Options: UV Printing/Silk screen printing/Laser engraving printing

• Adhesive Options: AB Tape/ Double-side Tape/3M Adhesive

Materials: Ultra Clear Glass

Shape: Irregular

Thickness: 2mmT

Edge Work: Safety edge by CNC machine Through Holes Cutout

Tempered Method: [hysical Tempered

Coating: Anti-fingerprint(AF) coating

Printing Method: Silk screen printing  #RAL9004 BK

Density: 2.5 g/cm³

Hardness: at least 6H

Strengthness: IK07

Operating Temperature Range: Suitable for -30°C to 250°C.

Thickness Tolerances:± 0.2mm

Dimensional Tolerances:±0.5mm for large size; ±0.1mm for small size

Weather Resistance: Strong resistance to high temperatures and humidity, reducing aging effects

UV Resistance: High UV-blocking capability

Impact Resistance: 2-5 times stronger than standard glass. Specific impact resistance can vary based on thickness and treatment.

•

• Smart Home Control Panels: Ideal for touch-enabled switch panels, thermostat covers, and smart control interfaces, providing both functional and aesthetic value.

• Consumer Electronics: Perfect for wearable devices, handheld controllers, and docking stations requiring slim yet durable cover glass.

• Industrial Equipment: Suitable for control panel covers and display protection in manufacturing and automation systems, ensuring long service life in harsh environments.

• Security & Access Systems: Widely used in access control panels, intercom systems, and biometric recognition devices for added durability and premium look.

• Medical Devices: Applicable for monitoring screens, diagnostic equipment, and user interface panels that require hygiene, durability, and easy cleaning.

• Retail & Commercial Terminals: Suitable for POS systems, interactive kiosks, and digital signage requiring custom-sized and visually refined glass covers.

•
