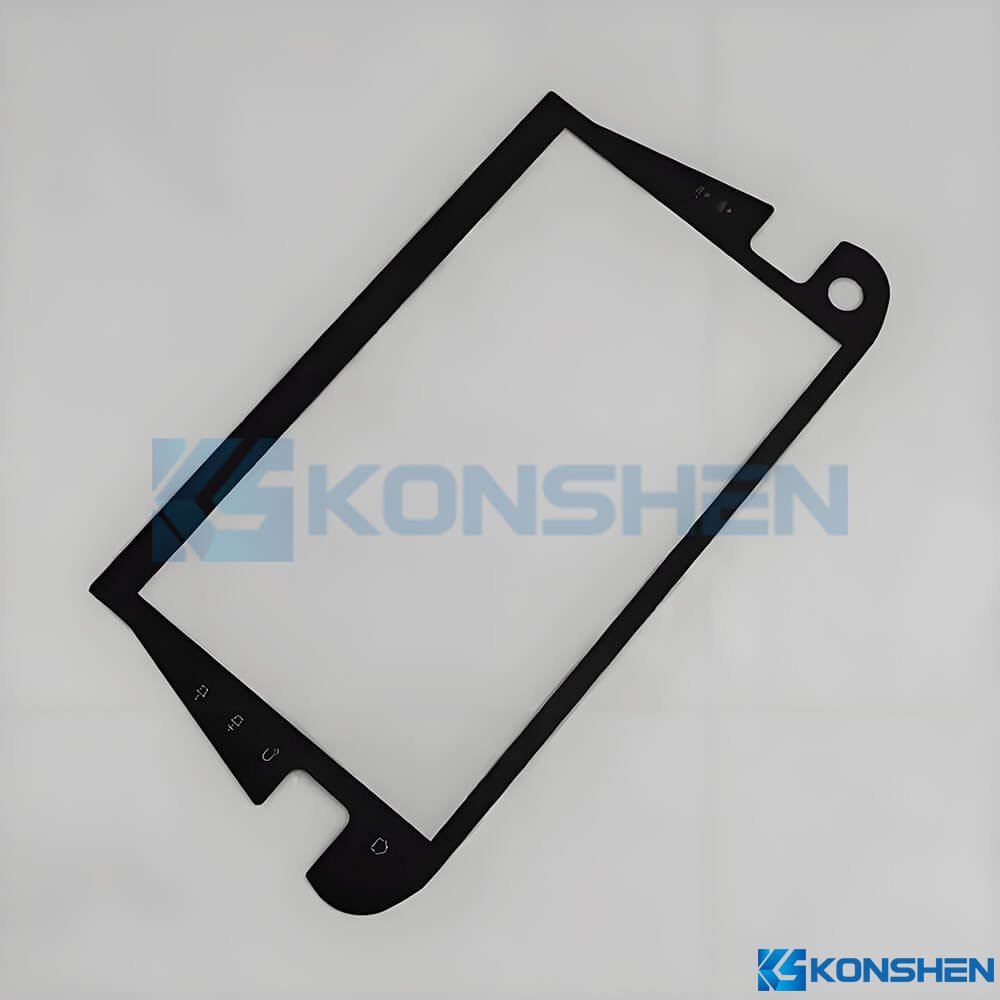

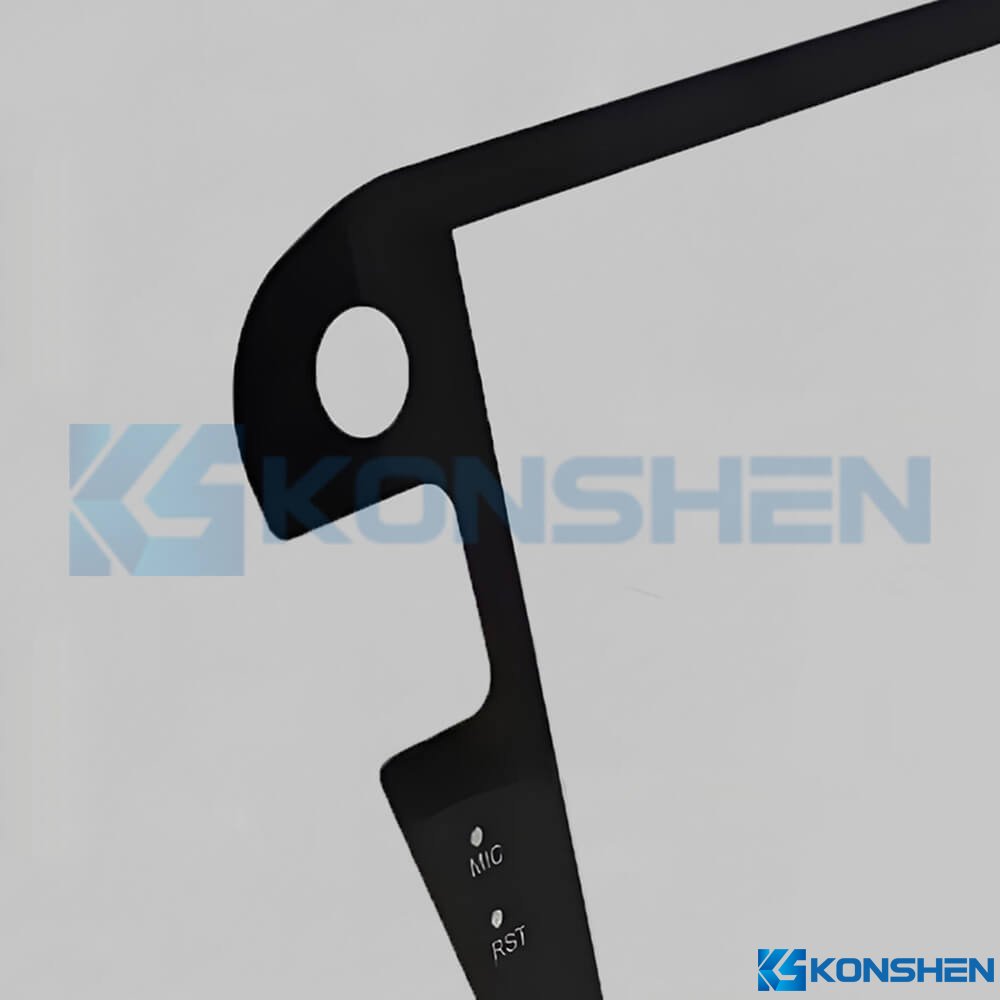

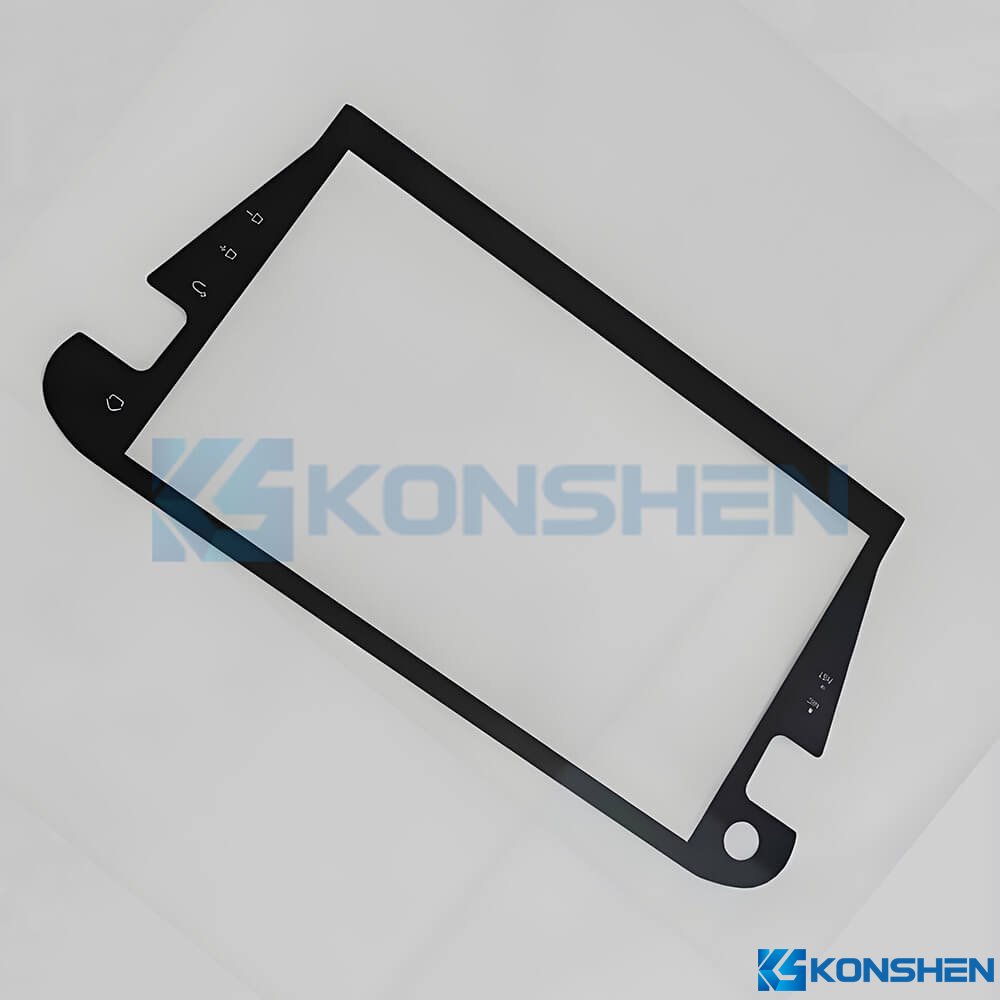

0.5mm anti-scratch Coated Checmical strengthened Electronic Glass Plate

Key Features:

• Ultra-Thin Lightweight Design: With a thickness of only 0.5mm, this cover glass achieves an extremely slim profile without compromising on strength. Its lightweight nature makes it especially suitable for portable devices such as smartphones, tablets, and wearables, where every gram counts. The ultra-thin design not only contributes to reduced overall device weight but also enhances aesthetic elegance, providing a sleek and modern look.

• High-Precision Machining: The glass undergoes CNC engraving for edge polishing and hole drilling, resulting in smooth edges and precise apertures. This ensures a flawless fit during assembly, minimizes the risk of misalignment, and improves the overall durability of the final device. Such accuracy is crucial for high-end electronics where component placement tolerance is minimal.

• Durability: The cover plate is chemically strengthened to enhance its resistance against impact, bending, and daily wear. Compared to untreated glass, chemically toughened glass can withstand significantly higher levels of stress, ensuring long-term reliability even under frequent usage and challenging environments.

• Premium Screen Printing: The black screen printing layer provides excellent opacity and vibrant color consistency. It allows for clear functional markings, decorative patterns, and brand elements, offering both functional and aesthetic benefits. The precision of the printing ensures that every detail is sharp, adding to the premium appeal of the final product.

• Advanced Surface Protection: The surface is coated with AS (Anti-Scratch) and AF (Anti-Fingerprint) coatings. The AS coating significantly reduces the risk of scratches caused by daily handling, while the AF layer effectively resists fingerprint smudges and oil stains. Together, they keep the glass clean and clear, maintaining both functionality and visual clarity over time.




Customized Option:

• Available Thickness: Ranging from 0.1 mm to 15 mm, depending on the insulation requirements and specific applications.

• Size & Shape: Supports special-shaped cutting to meet diverse needs. Customizes as per drawing.

• Cutting Option: CNC Cutting/Water jet Cutting/Diamond Blade Cutting

• Edge Options: Polished Edge/Safety Edge/Beveled Edge/Smooth Edge/2.5D Edge/Pencil Edge/Straight Edge

• Tempering Options: Physical Tempered/Checmical Strengthened

• Coating Options: Anti-Reflective (AR) Coating/Anti-Fingerprint (AF) Coating/Scratch-Resistant Coating/Indium Tin Oxide(ITO) Coating or Anti-Glare (AG)Coating

• Printing Options: UV Printing/Silk screen printing/Laser engraving printing

• Adhesive Options: AB Tape/ Double-side Tape/3M Adhesive

Materials: Ultra Clear Glass

Shape: Irregular

Thickness: 0.5mmT

Edge Work: Safety edge by CNC machine

Tempered Method: Chemical Strengthened

Coating: Anti-fingerprint(AF) coating Anti-scratch(AS) coating

Printing Method: Silk screen printing  #RAL9004 BK #RAL9001 WH

Density: 2.5 g/cm³

Hardness: at least 6H

Strengthness: IK07

Operating Temperature Range: Suitable for -30°C to 250°C.

Thickness Tolerances: ± 0.05mm

Dimensional Tolerances: ±0.5mm for large size; ±0.1mm for small size

Weather Resistance: Strong resistance to high temperatures and humidity, reducing aging effects

UV Resistance: High UV-blocking capability

Impact Resistance: 2-5 times stronger than standard glass. Specific impact resistance can vary based on thickness and treatment.

•

• Smart Consumer Electronics:This ultra-thin cover glass is ideal for smartphones, tablets, and wearable devices. Its lightweight nature makes portable electronics easier to handle, while its durability ensures protection against scratches and impacts. The elegant design further enhances the overall look and feel of consumer products, giving them a premium edge.

• Automotive Displays and Control Panels: In automotive electronics, this glass can be used for central control screens, navigation panels, and entertainment system interfaces. Its resistance to scratches and fingerprints ensures a consistently clear display, while its durability meets the demands of long-term use in varying environmental conditions inside vehicles.

• Medical and Industrial Devices: This glass cover plate is well-suited for medical monitoring systems, diagnostic instruments, and industrial control panels. Its chemically strengthened structure ensures that it can withstand intensive operation and frequent cleaning, while its clear markings improve usability in professional environments.

• Smart Home & IoT Devices: For smart panels, IoT terminals, and home automation systems, the combination of sleek aesthetics and functional durability makes this glass an excellent choice. Its fingerprint-resistant surface ensures a clean look even with frequent daily interactions, improving user satisfaction.

•
