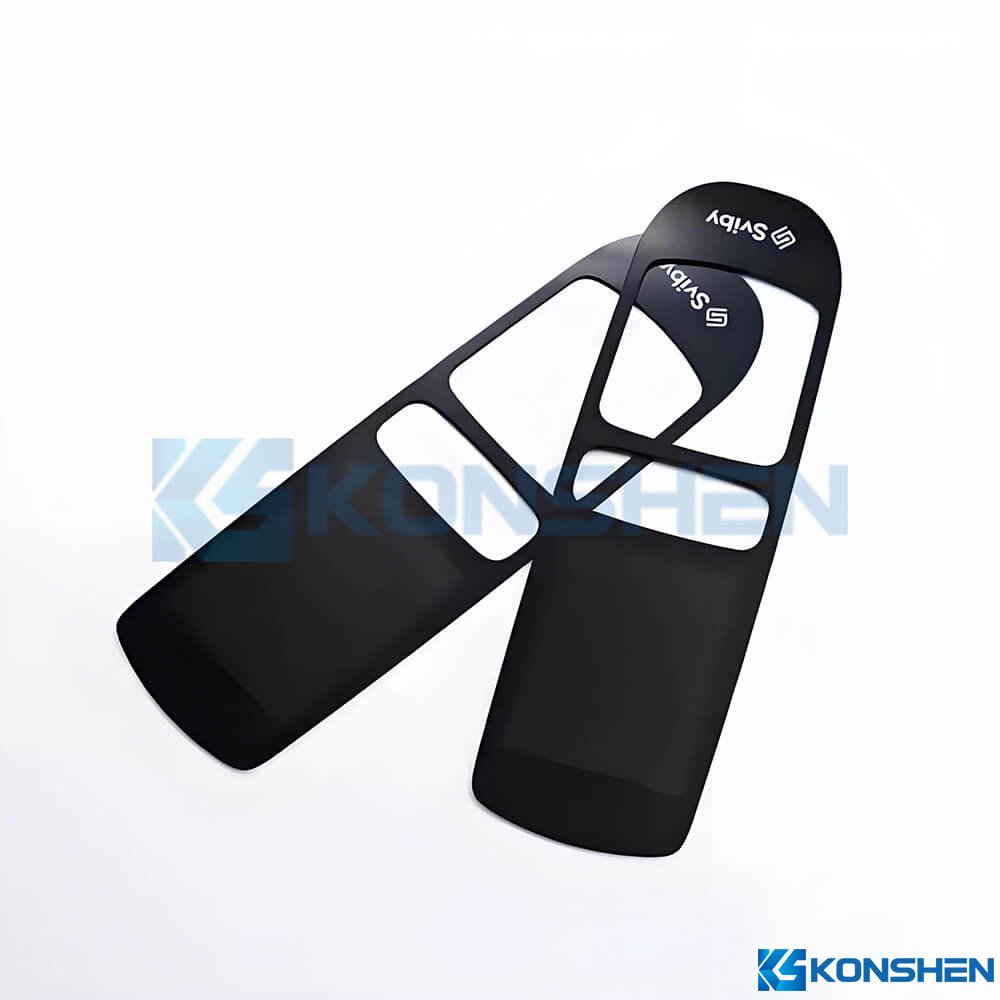

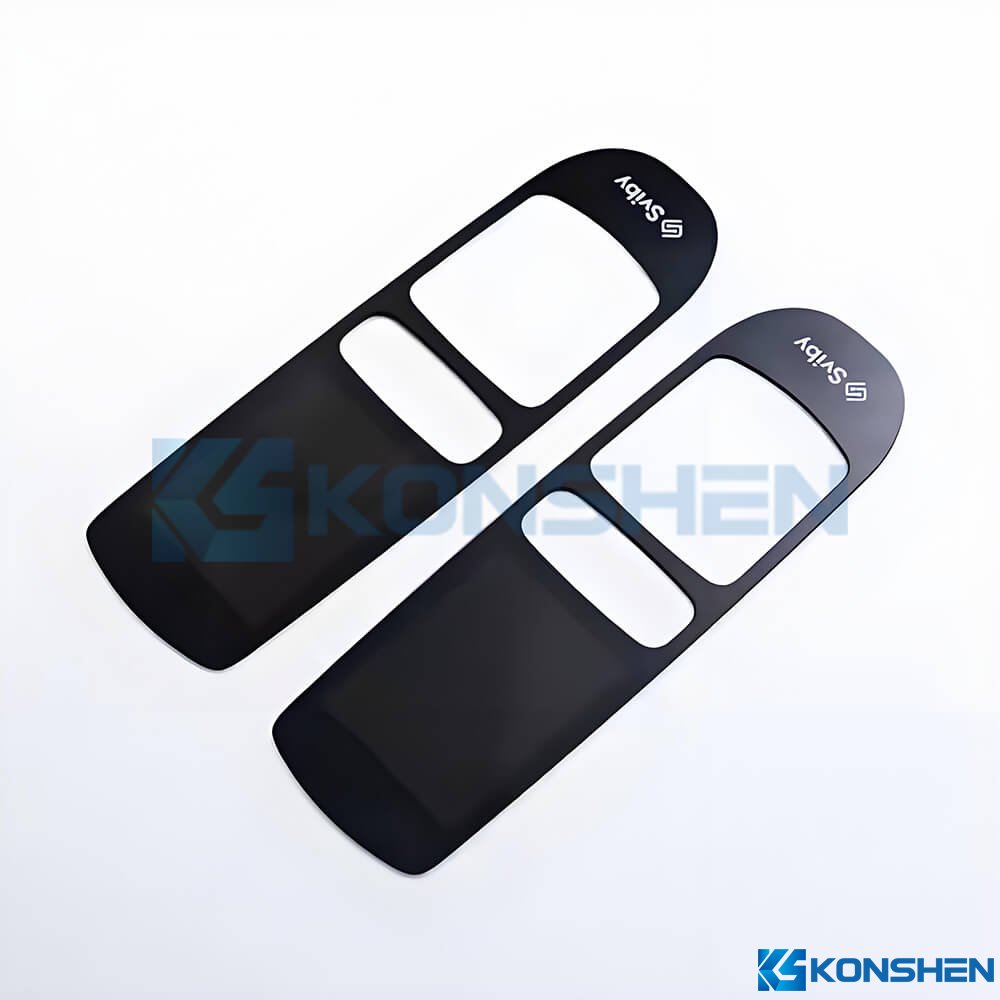

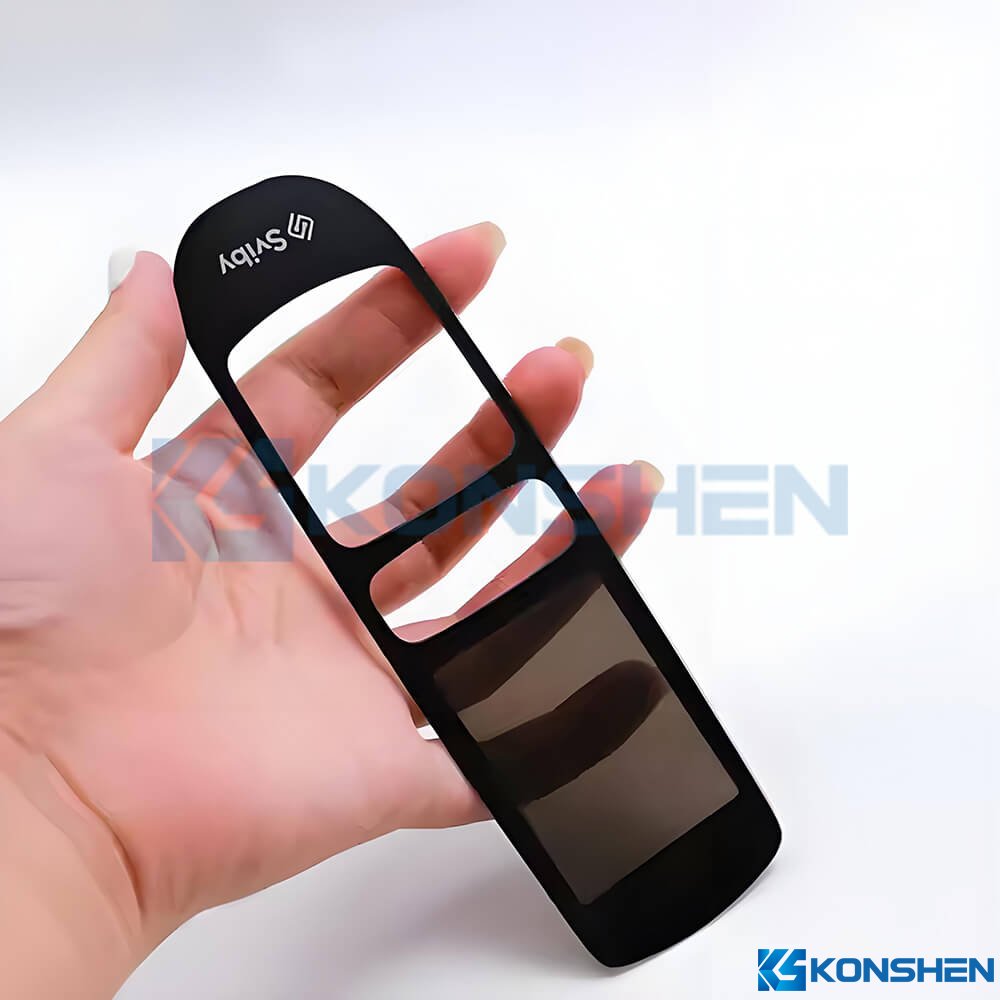

Custom 1.8mm Black Silk-Screened Tempered Glass Cover Plate for Smart Locks and Electronics

Key Features:

• High-Precision CNC Cutting: The glass is processed using advanced CNC technology, ensuring precise dimensions, smooth edges, and perfect fit for complex designs.

• Chemical Strengthening for Superior Durability: The glass undergoes chemical strengthening, significantly improving surface hardness and impact resistance, ensuring long-lasting performance even under harsh conditions.

• Premium Black Silk Printing:The surface features high-contrast black silk printing for a modern aesthetic while offering functional markings and excellent adhesion that resists fading and peeling.

• Smooth and Safe Edges: All edges are polished for a smooth, safe touch, preventing accidental cuts and enhancing the overall user experience.

• Versatile Applications: Suitable for various high-end devices, including smart locks, control panels, and electronic equipment, where durability and aesthetics are critical.

Customized Option:

• Available Thickness: Ranging from 0.1 mm to 15 mm, depending on the insulation requirements and specific applications.

• Size & Shape: Supports special-shaped cutting to meet diverse needs. Customizes as per drawing.

• Cutting Option: CNC Cutting/Water jet Cutting/Diamond Blade Cutting

• Edge Options: Polished Edge/Safety Edge/Beveled Edge/Smooth Edge/2.5D Edge/Pencil Edge/Straight Edge

• Tempering Options: Physical Tempered/Checmical Strengthened

• Coating Options: Anti-Reflective (AR) Coating/Anti-Fingerprint (AF) Coating/Scratch-Resistant Coating/Indium Tin Oxide(ITO) Coating or Anti-Glare (AG)Coating

• Printing Options: UV Printing/Silk screen printing/Laser engraving printing

• Adhesive Options: AB Tape/ Double-side Tape/3M Adhesive

• Materials: Ultra Clear Glass

• Shape: Irregular

• Thickness: 1.8mmT

• Edge Work: Safety edge by CNC machine

• Tempered Method: Chemical Strengthened

• Coating: Anti-fingerprint(AF) coating

• Printing Method: Silk screen printing  #RAL9004 BK #RAL9001 WH

• Density: 2.5 g/cm³

• Hardness: at least 6H

• Strengthness: IK07

• Operating Temperature Range: Suitable for -30°C to 250°C.

• Thickness Tolerances:± 0.1mm

• Dimensional Tolerances:±0.5mm for large size; ±0.1mm for small size

• Weather Resistance: Strong resistance to high temperatures and humidity, reducing aging effects

• UV Resistance: High UV-blocking capability

• Impact Resistance: 2-5 times stronger than standard glass. Specific impact resistance can vary based on thickness and treatment

• Smart Locks: Perfect for smart lock panels, providing a stylish and durable cover that ensures high impact resistance and excellent aesthetic appeal.

• Electronic Control Panels: Ideal for touch control panels and display interfaces in smart home systems, offering smooth surface and functional markings.

• Home Appliances: Commonly used for high-end appliance panels where durability, scratch resistance, and a modern design are required.

• Industrial Equipment: Provides a reliable protective cover for control panels in industrial devices, ensuring long service life under demanding conditions.

• Medical Devices: Suitable for medical control panels requiring easy cleaning, durability, and premium aesthetics.
