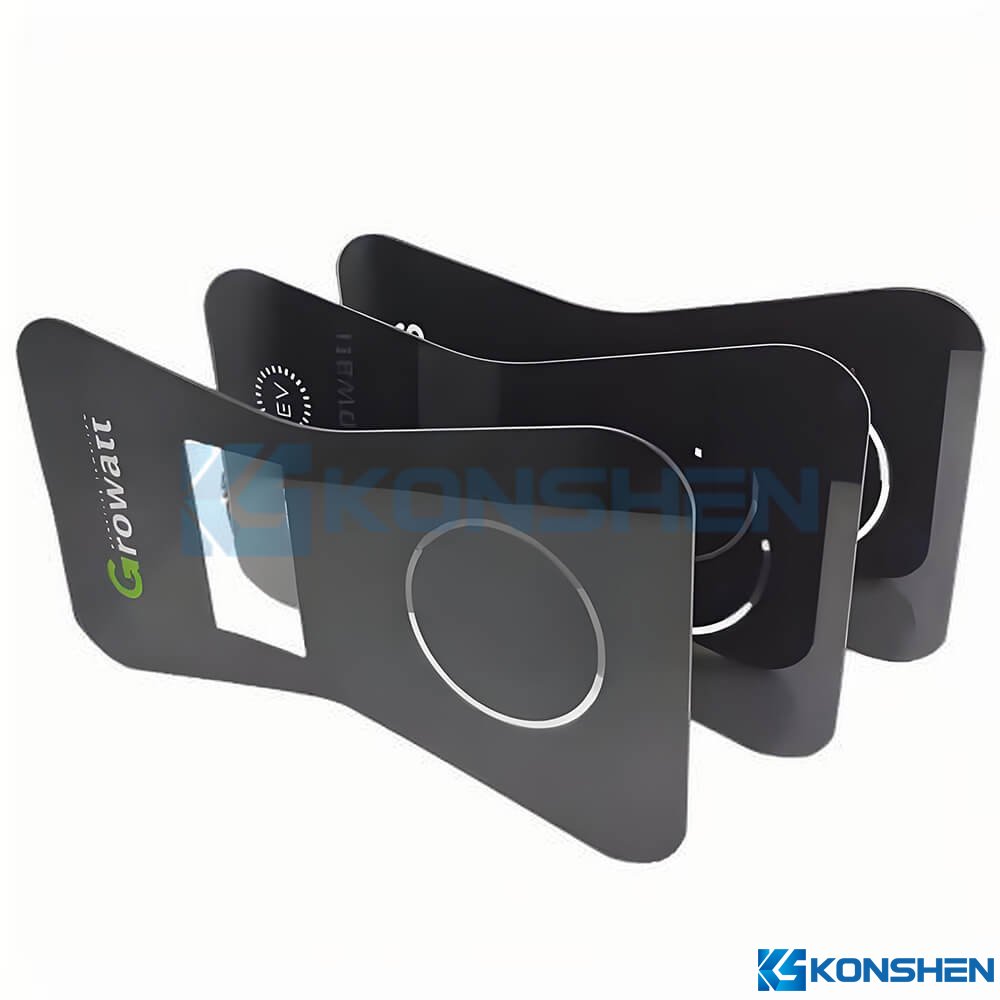

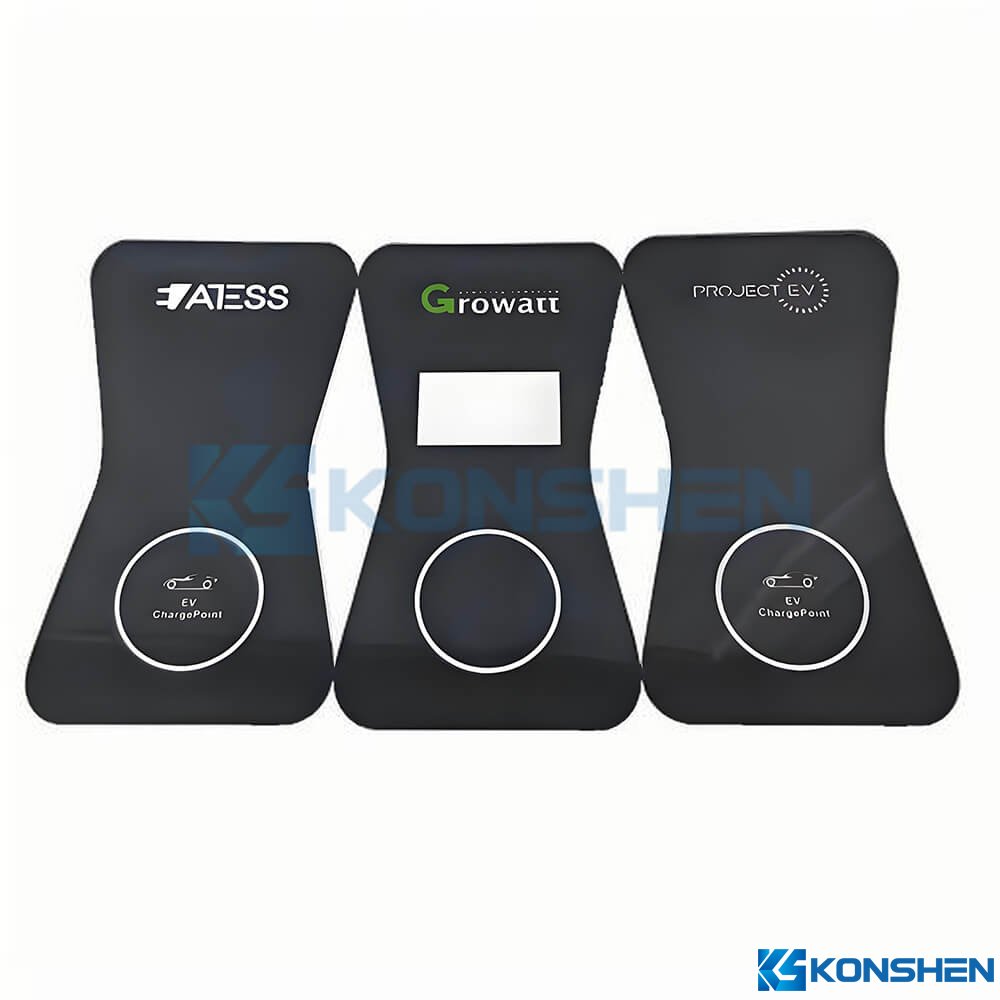

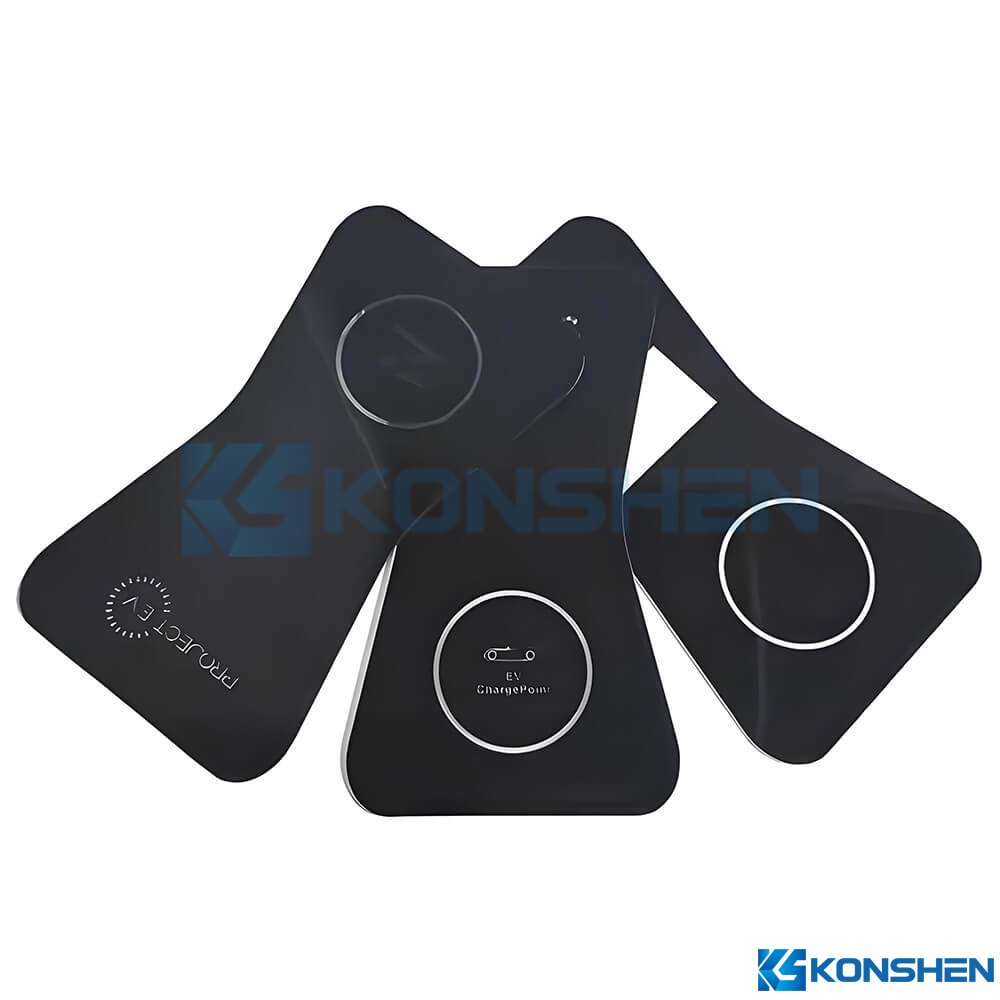

Custom 1.1mm Chemically Strengthened AF Coated Glass with Flexible Printing

Key Features:

• Ultra-Thin Design (1.1mm): Lightweight and space-saving, perfect for slim devices without compromising strength and durability.

• AF Anti-Fingerprint Coating: Reduces fingerprint smudges and oil stains, maintaining a clean and smooth touch surface for an enhanced user experience.

• Flexible Silk Printing: Supports multi-color, custom patterns, and brand logos to meet diverse design requirements while maintaining excellent adhesion and color durability.

• Chemical Strengthening: Provides superior impact resistance, improved bending strength, and increased safety performance compared to ordinary glass.

• High Optical Clarity: Ensures excellent light transmission and display visibility, suitable for applications requiring precise color rendering and visual clarity.

• Customization Options: Available in various shapes, sizes, edge processing, and with optional additional coatings such as AR, AG, or AS for specific performance needs.

Customized Option:

• Available Thickness: Ranging from 0.1 mm to 15 mm, depending on the insulation requirements and specific applications.

• Size & Shape: Supports special-shaped cutting to meet diverse needs. Customizes as per drawing.

• Cutting Option: CNC Cutting/Water jet Cutting/Diamond Blade Cutting

• Edge Options: Polished Edge/Safety Edge/Beveled Edge/Smooth Edge/2.5D Edge/Pencil Edge/Straight Edge

• Tempering Options: Physical Tempered/Checmical Strengthened

• Coating Options: Anti-Reflective (AR) Coating/Anti-Fingerprint (AF) Coating/Scratch-Resistant Coating/Indium Tin Oxide(ITO) Coating or Anti-Glare (AG)Coating

• Printing Options: UV Printing/Silk screen printing/Laser engraving printing

• Adhesive Options: AB Tape/ Double-side Tape/3M Adhesive

• Materials: Ultra Clear Glass

• Shape: Irregular

• Thickness: 1.1mmT

• Edge Work: Safety edge by CNC machine

• Tempered Method: Chemical Strengthened

• Coating: Anti-fingerprint(AF) coating

• Printing Method: Silk screen printing  #RAL9004 BK #RAL9001 WH

• Density: 2.5 g/cm³

• Hardness: at least 6H

• Strengthness: IK07

• Operating Temperature Range: Suitable for -30°C to 250°C.

• Thickness Tolerances:± 0.1mm

• Dimensional Tolerances: ±0.5mm for large size; ±0.1mm for small size

• Weather Resistance: Strong resistance to high temperatures and humidity, reducing aging effects

• UV Resistance: High UV-blocking capability

• Impact Resistance: 2-5 times stronger than standard glass. Specific impact resistance can vary based on thickness and treatment.

• Consumer Electronics: Perfect for small-sized smart devices, including smart switches, control panels, and home automation equipment, ensuring durability and a premium touch experience.

• Smart Control Panels & Switches: Widely used in modern smart home systems, providing an elegant interface that combines functional markings with robust surface protection.

• Industrial Equipment Interfaces: Ideal for industrial control panels requiring both visual clarity and strong resistance to scratches, chemical exposure, and frequent operation.

• Medical Device Displays: Applicable for compact medical instruments where hygiene and clear visibility are critical, supported by AF coating to keep surfaces clean.

• EV Charging & Energy Devices: Suitable for small charging station interfaces and energy management terminals, ensuring long-lasting performance and branding flexibility.

• Other Custom Applications: Can be adapted for specialized products requiring precise glass covers with aesthetic silk printing and advanced surface protection.
