Product Detail

Key Features:
  • Protection: It protects the underlying display components from physical damage, scratches, and other environmental factors such as dust and moisture.
  • Durability: It is made from toughened glass and is designed to be resistant to impacts and scratches.
  • Clarity: It maintains the visual clarity of the display, ensuring that colors and images appear vibrant and true-to-life.
  • Touch Sensitivity: In touch-enabled devices, it is part of the touch interface and must be sensitive enough to accurately detect user inputs.
  • Design: It contributes to the aesthetics of the device, often being seamless and integrated into the design to create a sleek appearance.

Customized Option:
  • Available Thickness: Ranging from 0.33 mm to 10 mm, depending on the insulation requirements and specific applications.
  • Size & Shape: Supports special-shaped cutting to meet diverse needs. Customizes as per drawing.
  • Cutting Option: CNC Cutting/Water jet Cutting/Diamond Blade Cutting
  • Edge Options: Polished Edge/Safety Edge/Beveled Edge/Smooth Edge/2.5D Edge/Pencil Edge/Straight Edge
  • Tempering Options: Physical Tempered/Checmical Strengthened
  • Coating Options: Anti-Reflective (AR) Coating/Anti-Fingerprint (AF) Coating/Scratch-Resistant Coating/Indium Tin Oxide(ITO) Coating or Anti-Glare (AG)Coating
  • Printing Options: UV Printing/Silk screen printing/Laser engraving printing
  • Adhesive Options: AB Tape/ Double-side Tape/3M Adhesive

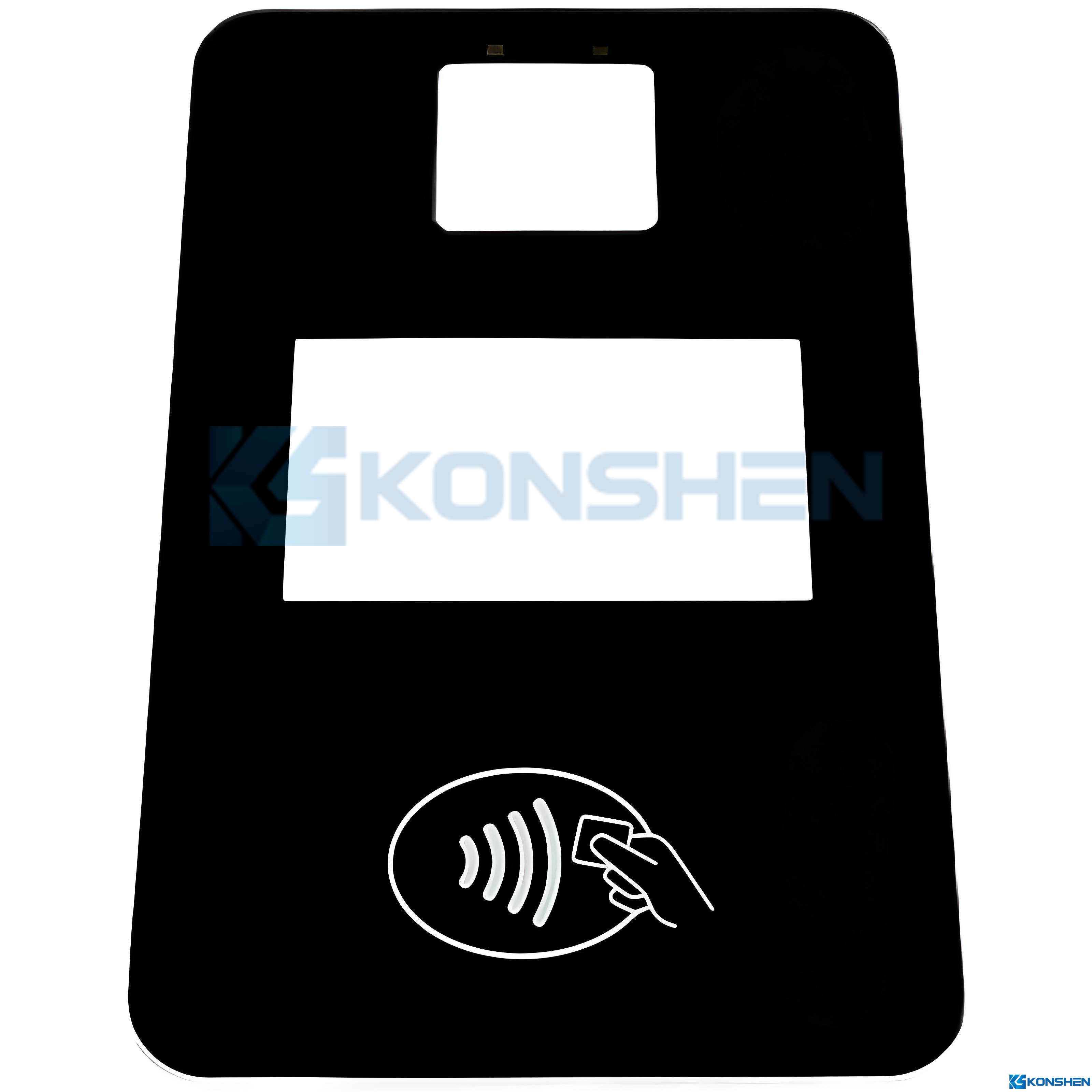

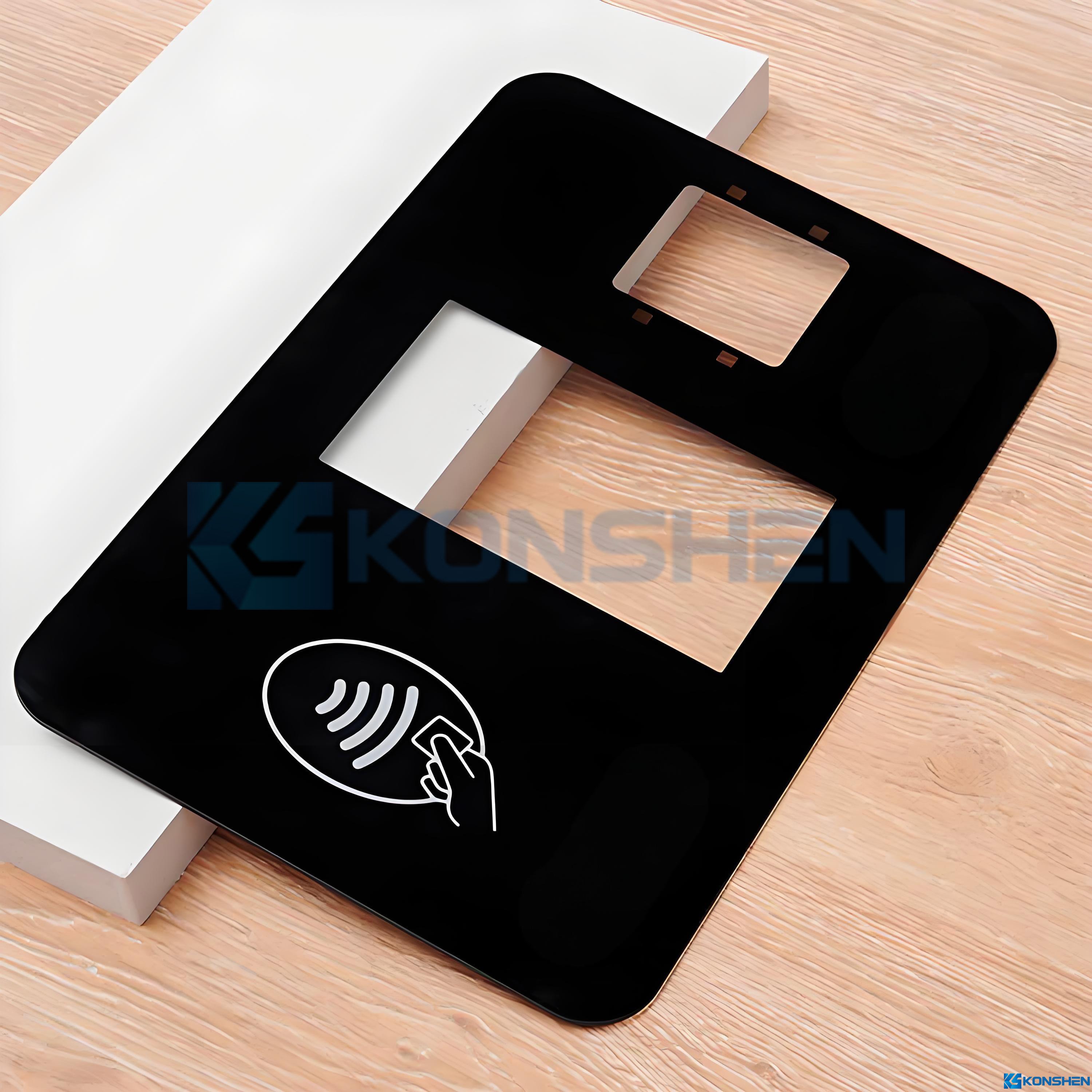

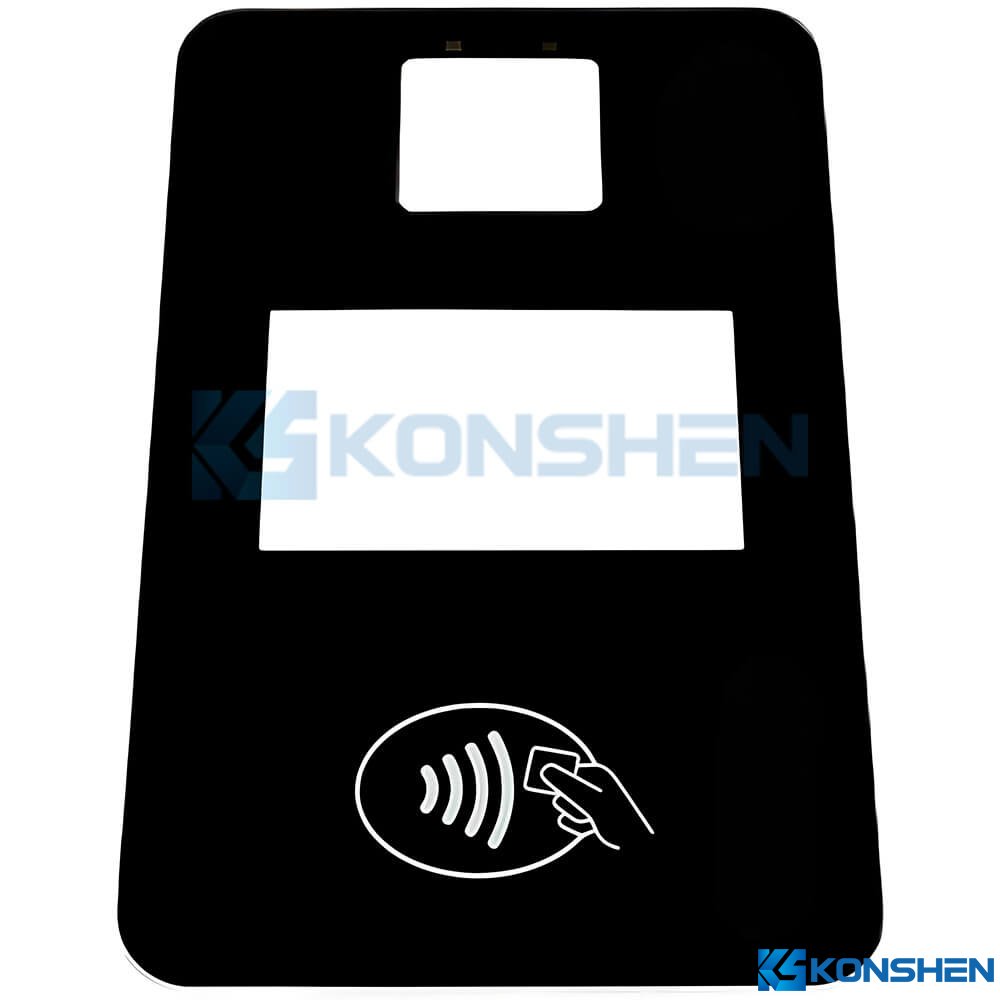

Technical Parameters

Materials: Ultra Clear Low Iron Glass
Shape: Rectangular
Thickness: 2mm

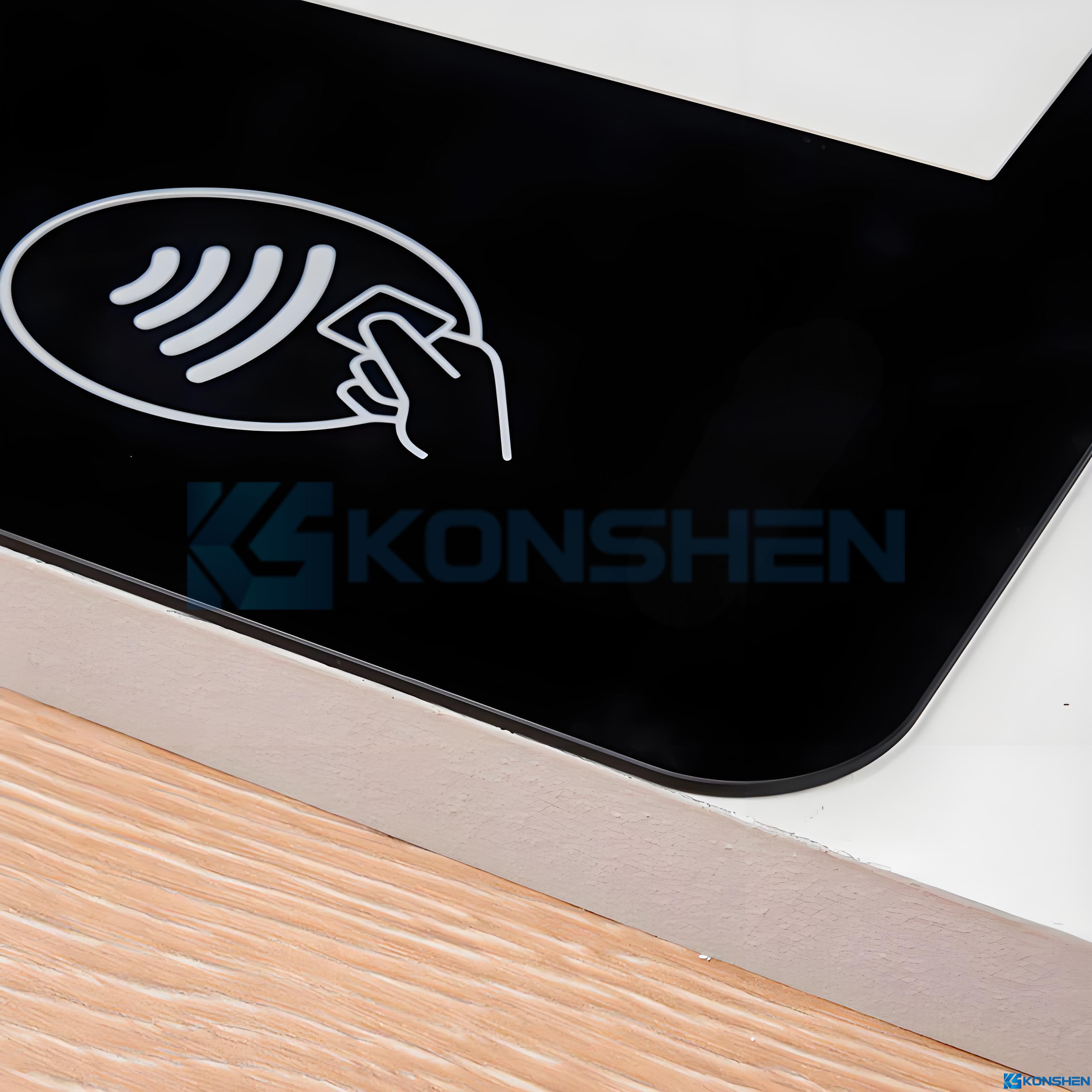

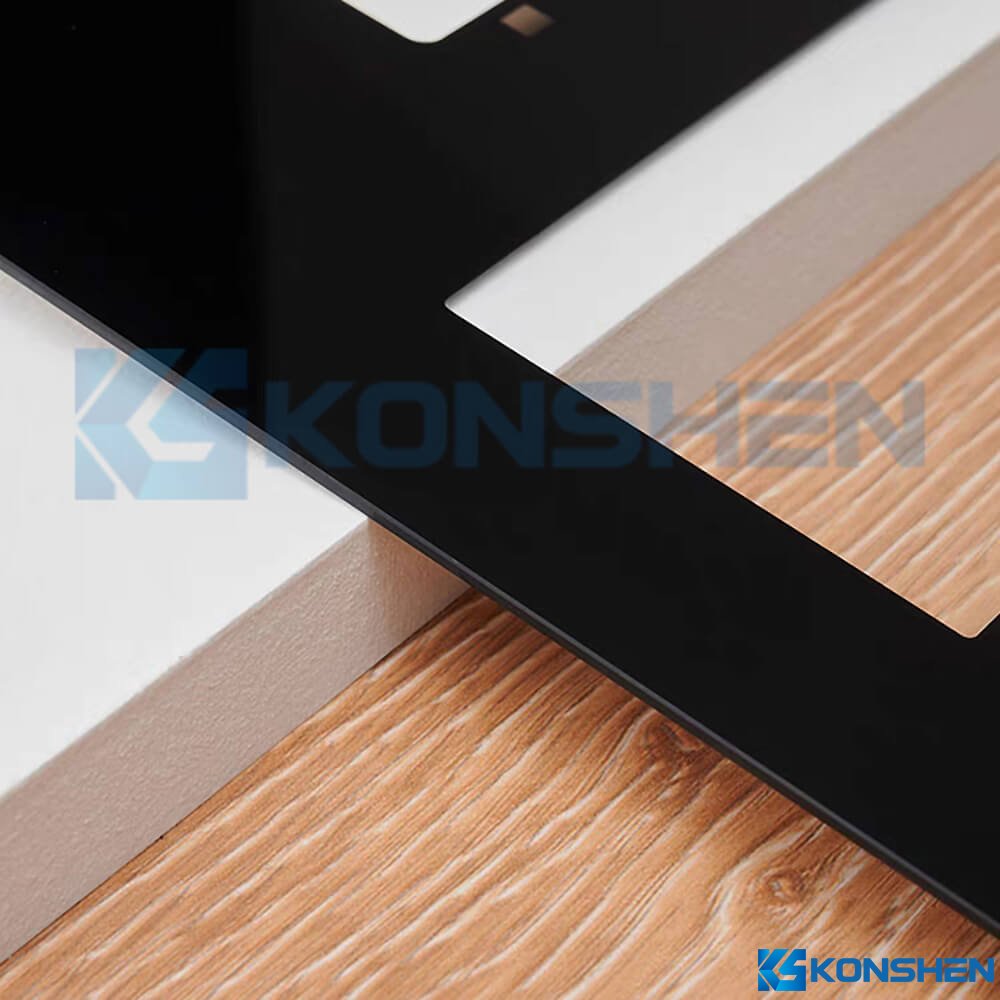

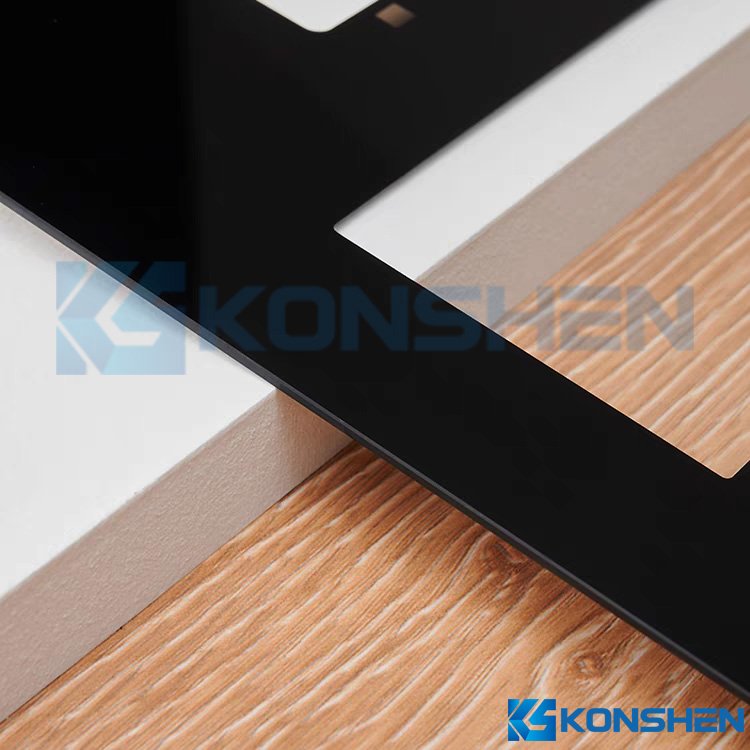

Edge Work: Safety Edge +R Corner
Tempered Method: Physical Tempered
Coating: Anti-fingerprint(AF)Coating
Printing: Silk screen Printing #RAL 9004 BK  #RAL9001 WH
Density: 2.5 g/cm³
Mohs Scale: ≥6H
Strengthness: IK07
Operating Temperature Range: Suitable for -30°C to 250°C.
Thickness Tolerances: ± 0.2mm
Dimensional Tolerances:±0.5mm for large size; ±0.1mm for small size
Surface Quality: No visible scratches, bubbles, or inclusions under inspection light
Weather Resistance: Strong resistance to high temperatures and humidity, reducing aging effects

Application

  • Smart Locks: Ideal as the protective cover glass for smart locks, offering high transparency, durability, and excellent scratch resistance, while ensuring seamless touch functionality.
  • Protective Cover Glass: Perfect for use as a cover in electronic devices, protecting the internal components while providing a sleek and modern look.
  • Smart Devices: Suitable for smartphones, tablets, and other smart devices, where both aesthetic appeal and protection are essential.
  • Industrial Touch Interfaces: Applied in industrial machinery and control panels, offering clear visibility, protection, and robustness in harsh environments.
  • Consumer Electronics: Widely used in consumer electronics such as kiosks, point-of-sale terminals, and interactive displays, providing both style and functionality.

Company and factory equipment

Customer Visit

Customer Visit

Company Profile

Company Profile

Dlivery & Payment

Packaging:

  • Step 1: PE film coating(Normally) / paper(For seashipment prevent wet).
  • Step 2: Kraft paper for fixation.
  • Step 3: Carton for glass safety protection.
  • Step 4: Custom make plywood case with hinge for custom(fumigation + convenient inspection) convenience.
  • Step 5: Packing strap for further fixation.
