Product Detail

Key Features:

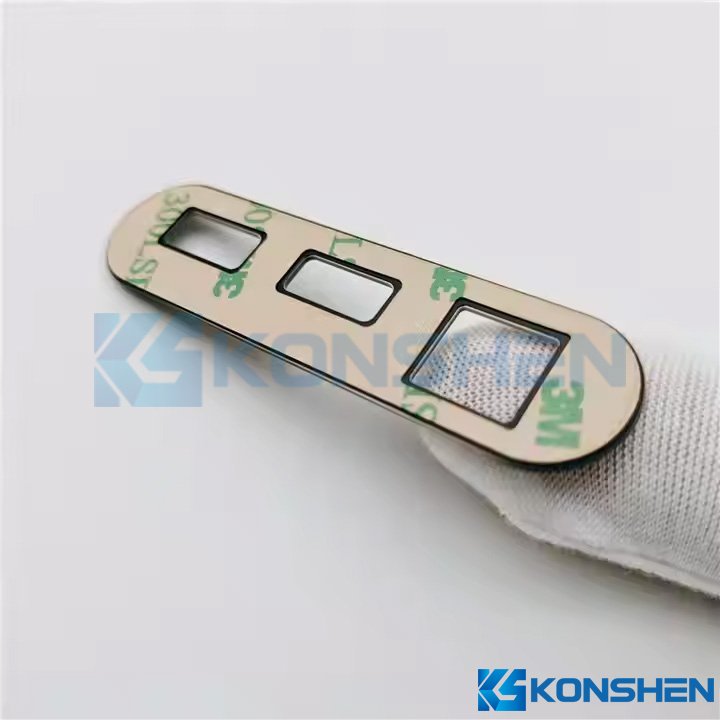

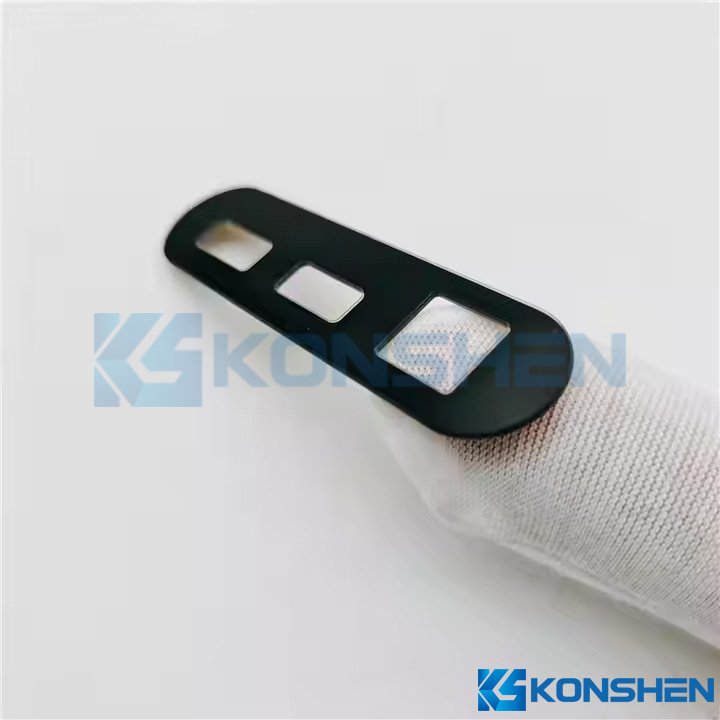

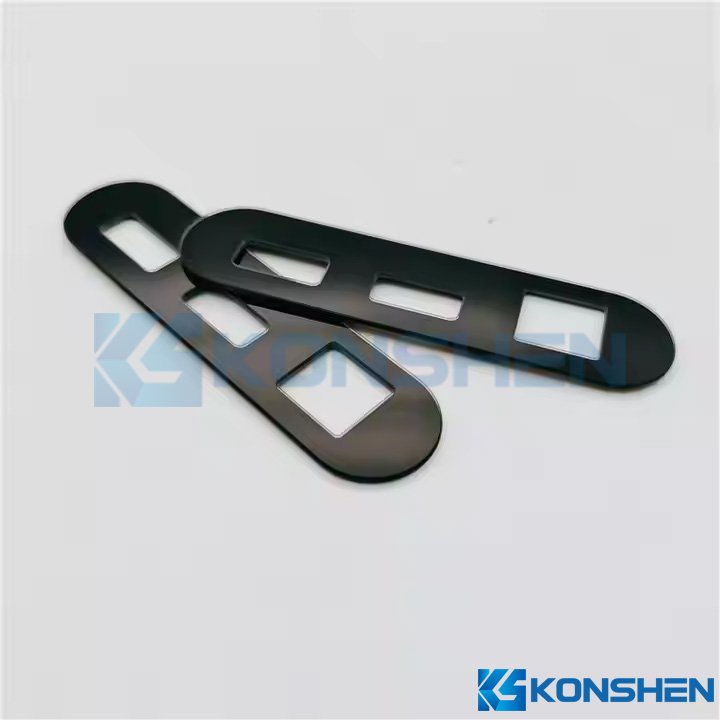

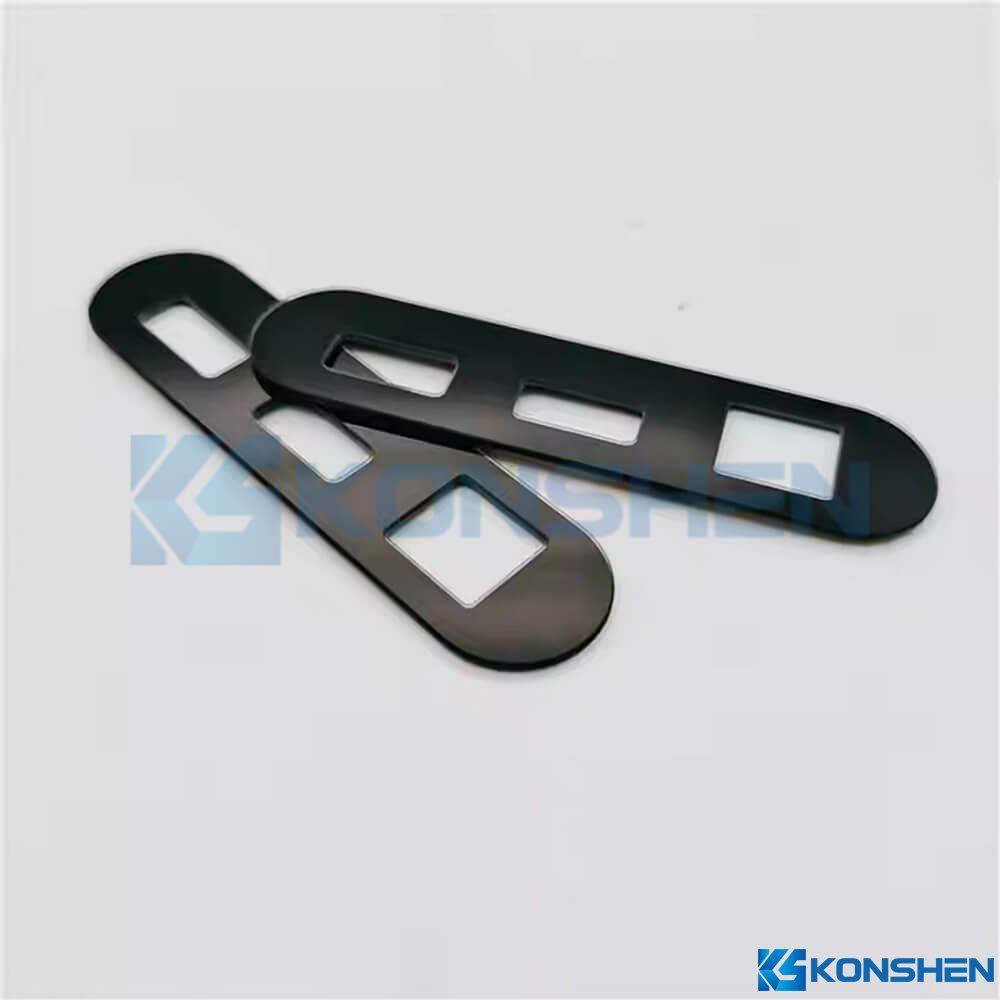

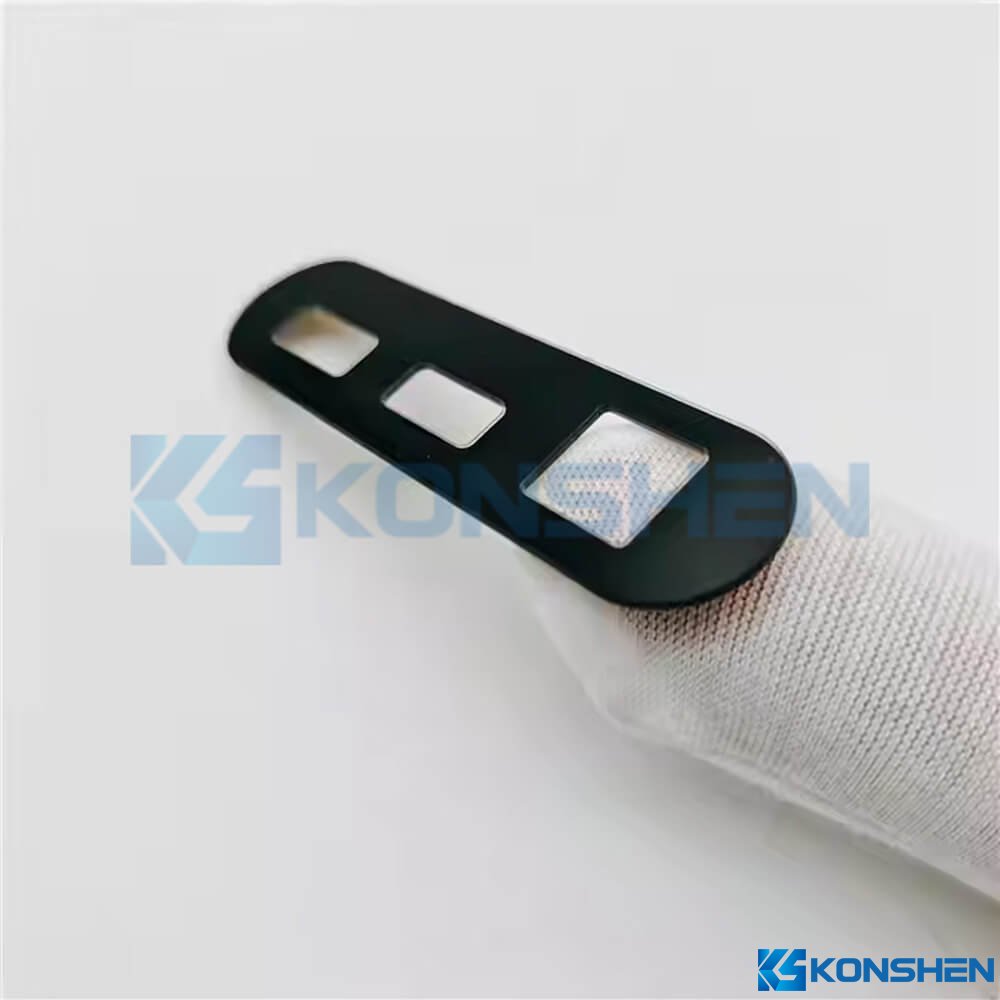

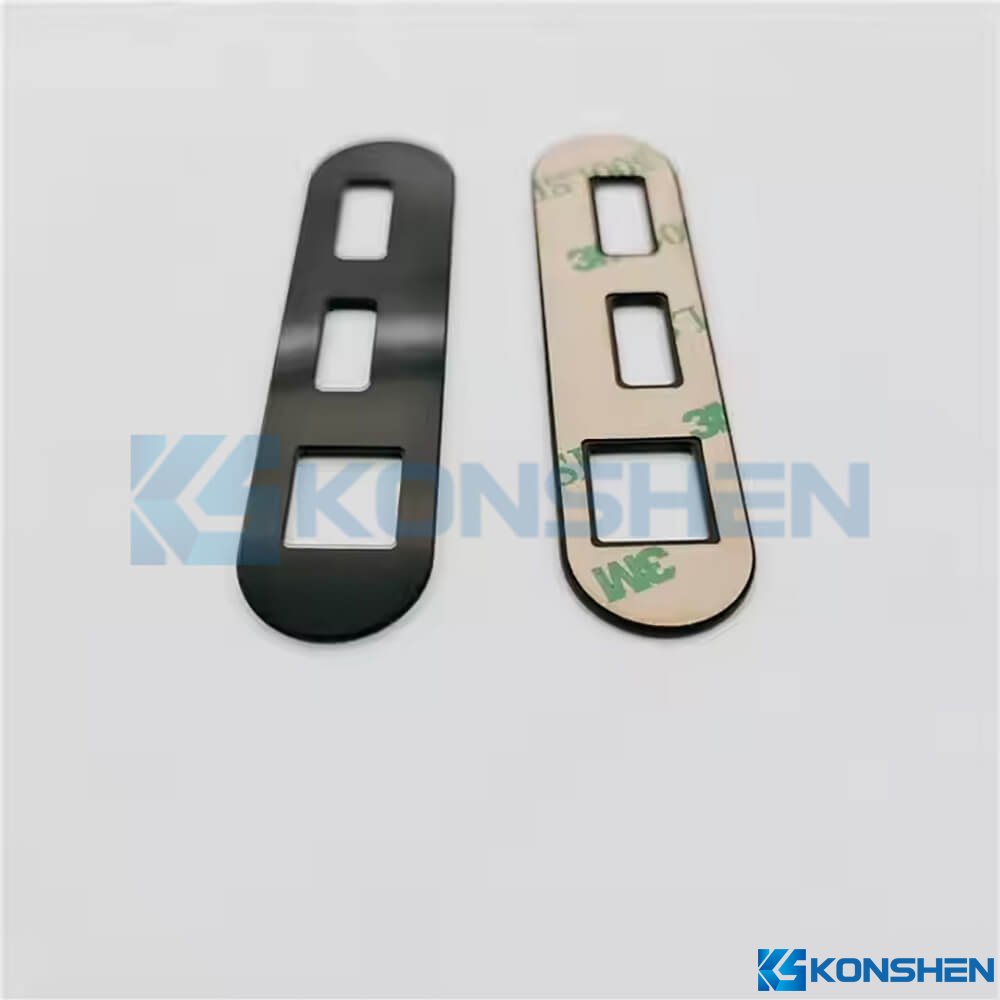

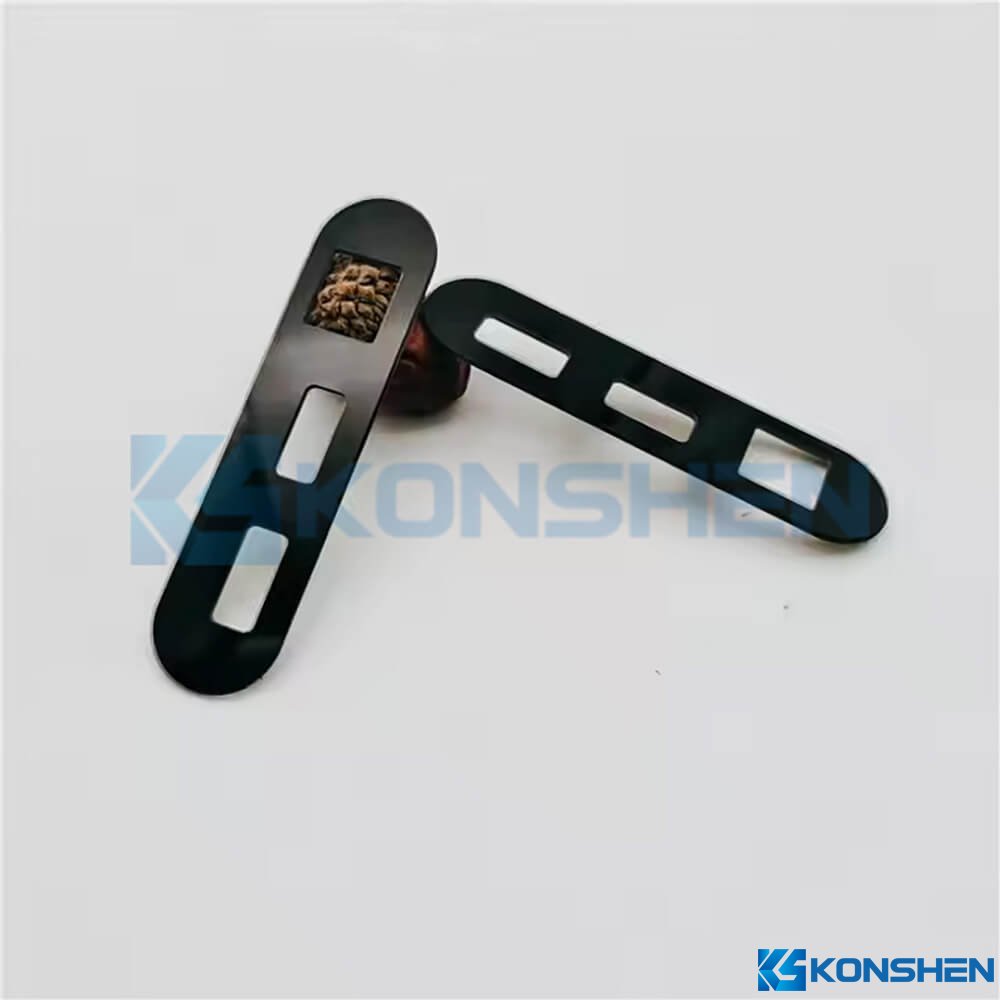

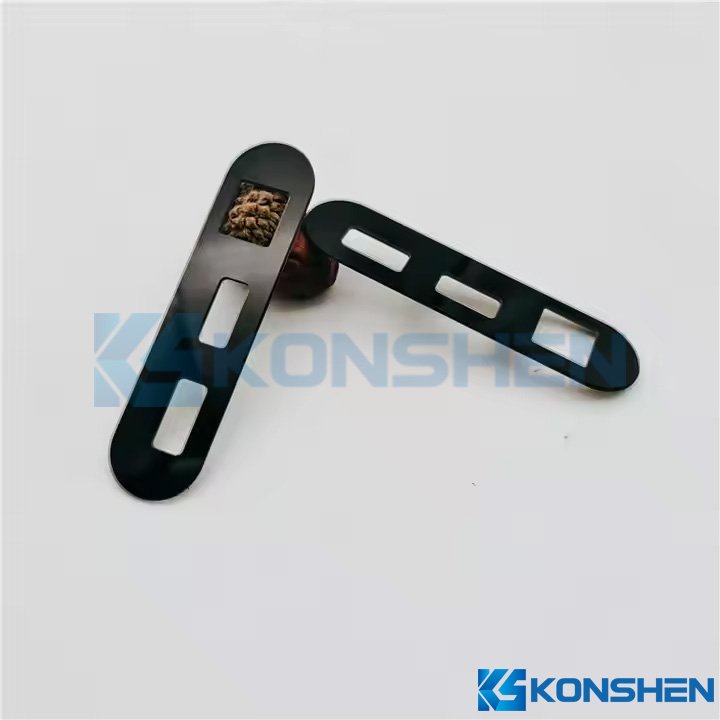

  • High-quality drilling: Three central square holes are precisely drilled using CNC processing, ensuring burr-free edges and secure integration for multiple lenses or sensors.
  • UV-Resistant Black Silk Printing: Premium black UV-resistant ink ensures lasting color and print integrity, even under intense lighting or temperature fluctuations.
  • High Light Transmittance & Optical Clarity: Despite its ultra-thin form and silk printing, the glass maintains ≥91% light transmittance, ensuring sharp and accurate imaging through the lens.
  • Flexible Customization Options: Customizable in size, shape, print, and hole configuration according to client specifications, fully supporting design flexibility and integration.
  • Impact Resistance: At only 1.1mm thick, this glass offers a lightweight form factor while maintaining excellent durability through chemical strengthening, ideal for compact, precision devices.

Customized Option:
  • Available Thickness: Ranging from 0.33 mm to 10 mm, depending on the insulation requirements and specific applications.
  • Size & Shape: Supports special-shaped cutting to meet diverse needs. Customizes as per drawing.
  • Cutting Option: CNC Cutting/Water jet Cutting/Diamond Blade Cutting
  • Edge Options: Polished Edge/Safety Edge/Beveled Edge/Smooth Edge/2.5D Edge/Pencil Edge/Straight Edge
  • Tempering Options: Physical Tempered/Checmical Strengthened
  • Coating Options: Anti-Reflective (AR) Coating/Anti-Fingerprint (AF) Coating/Scratch-Resistant Coating/Indium Tin Oxide(ITO) Coating or Anti-Glare (AG)Coating
  • Printing Options: UV Printing/Silk screen printing/Laser engraving printing
  • Adhesive Options: AB Tape/ Double-side Tape/3M Adhesive

Technical Parameters

Materials: Ultra Clear Glass
Shape: Long strip
Thickness: 1.1mm
Edge Work: Safety Edge
Surface Treatment: Hole Drilling by CNC carving machine
Tempered Method: Chemical Strengthened
Printing: Silkscreen printing #RAL9004 BK
Back Adhesive: 3M double side tape
Density: 2.5 g/cm³
Mohs Scale: ≥6H
Strengthness: IK07
Operating Temperature Range: Suitable for -30°C to 250°C.
Thickness Tolerances: ±0.2mm
Dimensional Tolerances: ±0.5mm for large size; ±0.1mm for small size
Surface Quality: No visible scratches, bubbles, or inclusions under inspection light
Weather Resistance: Strong resistance to high temperatures and humidity, reducing aging effects

Application

  • Multi-Lens Camera Module Covers: Used as a cover glass for multi-lens camera modules in smart cameras, mobile devices, and AR/VR headsets, providing both protection and optical clarity.
  • Machine Vision & Industrial Inspection: Applied in machine vision systems, industrial inspection terminals, and sensor windows, ensuring high imaging precision and structural durability.
  • Smart Surveillance Camera Panels: Ideal for indoor/outdoor security camera front covers, offering UV protection and durability against outdoor elements.
  • Medical Imaging Device Windows: Employed in diagnostic medical devices as lens windows requiring optical clarity and resistance to chemical exposure.
  • Portable Recognition & Display Devices: Used in portable devices with recognition features, barcode scanners, or display modules for a sleek, durable finish.

Company and factory equipment

Customer Visit

Customer Visit

Company Profile

Company Profile

Dlivery & Payment

Packaging:

  • Step 1: PE film coating(Normally) / paper(For seashipment prevent wet).
  • Step 2: Kraft paper for fixation.
  • Step 3: Carton for glass safety protection.
  • Step 4: Custom make plywood case with hinge for custom(fumigation + convenient inspection) convenience.
  • Step 5: Packing strap for further fixation.
Company Profile
Customer Visit
Customer Visit
Customer Visit
