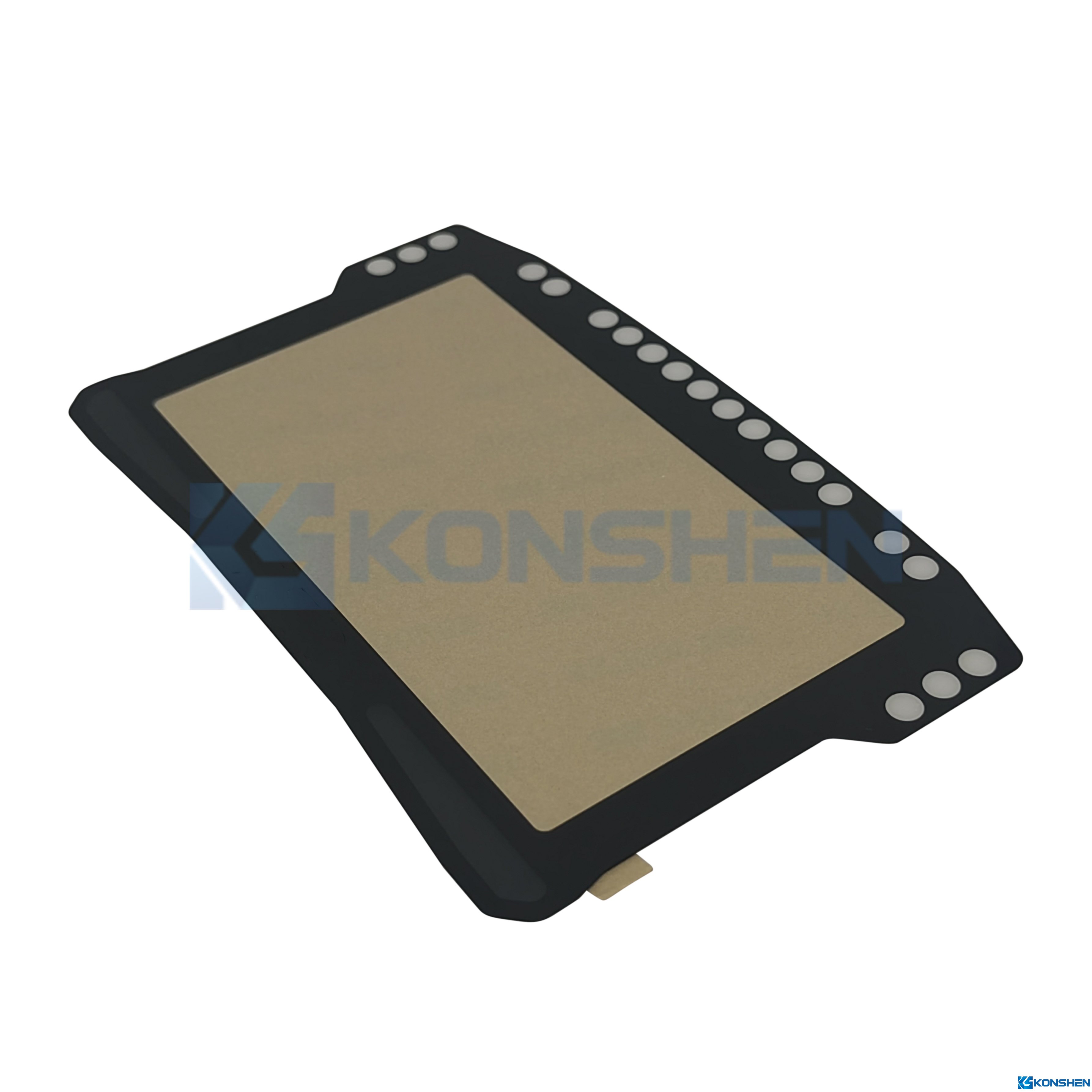

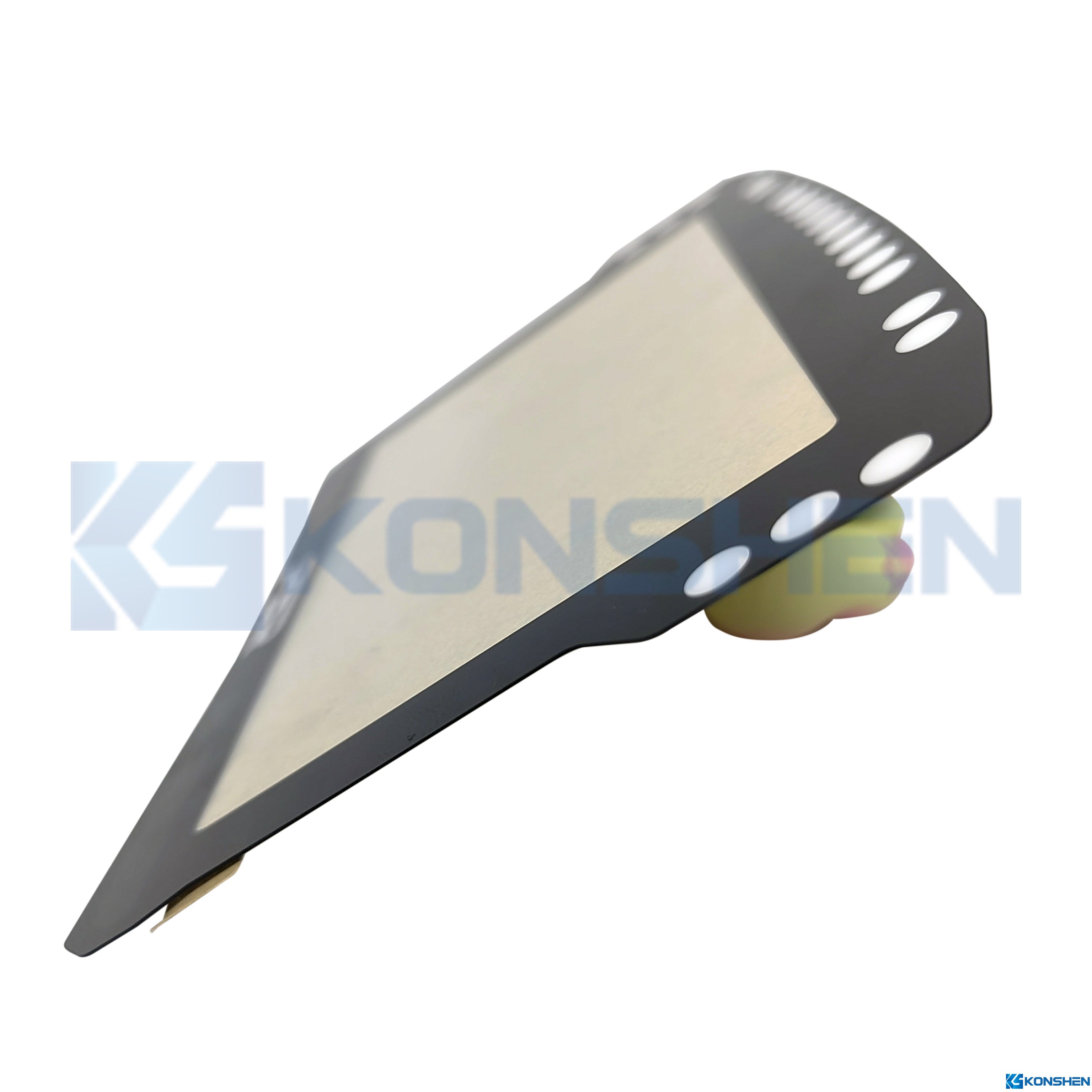

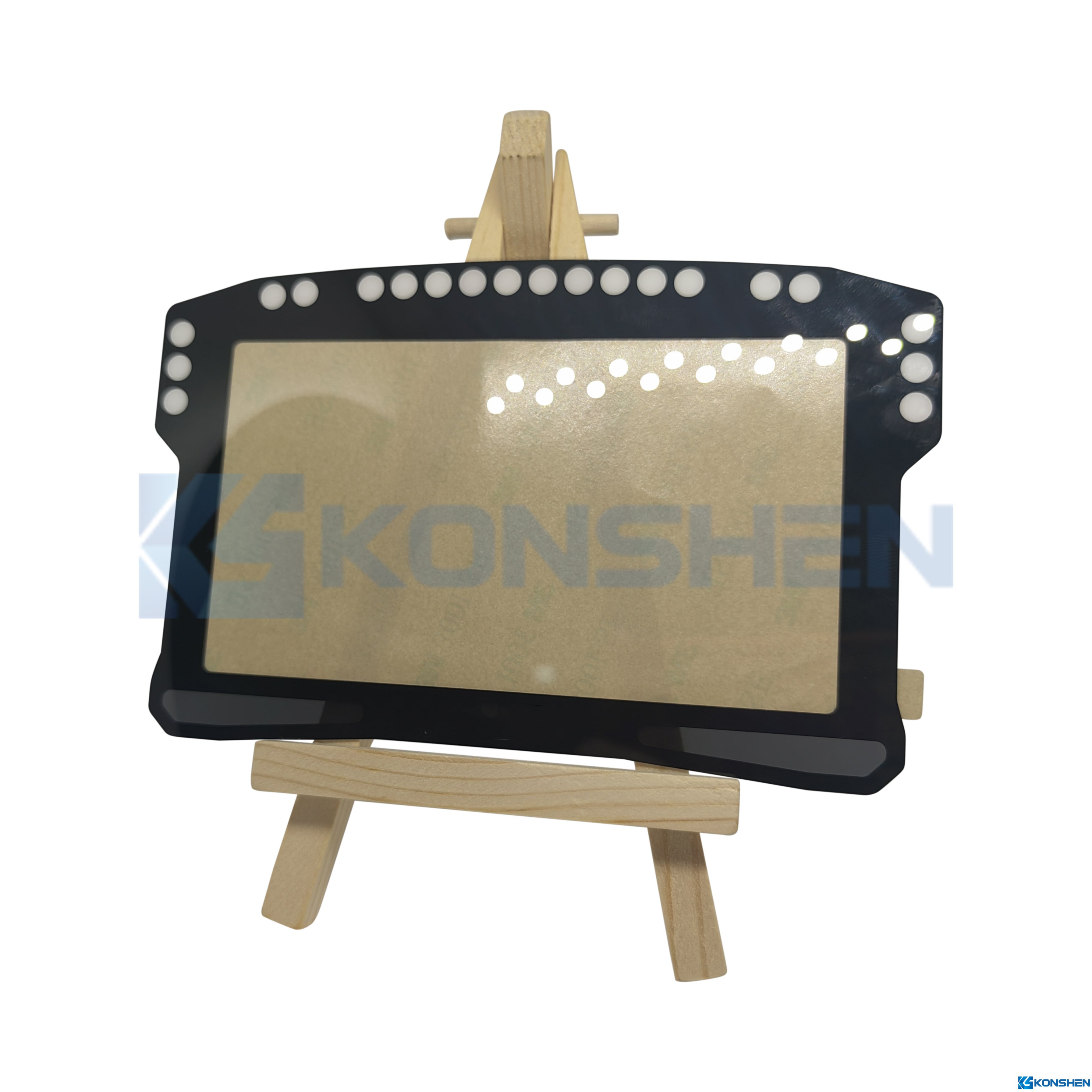

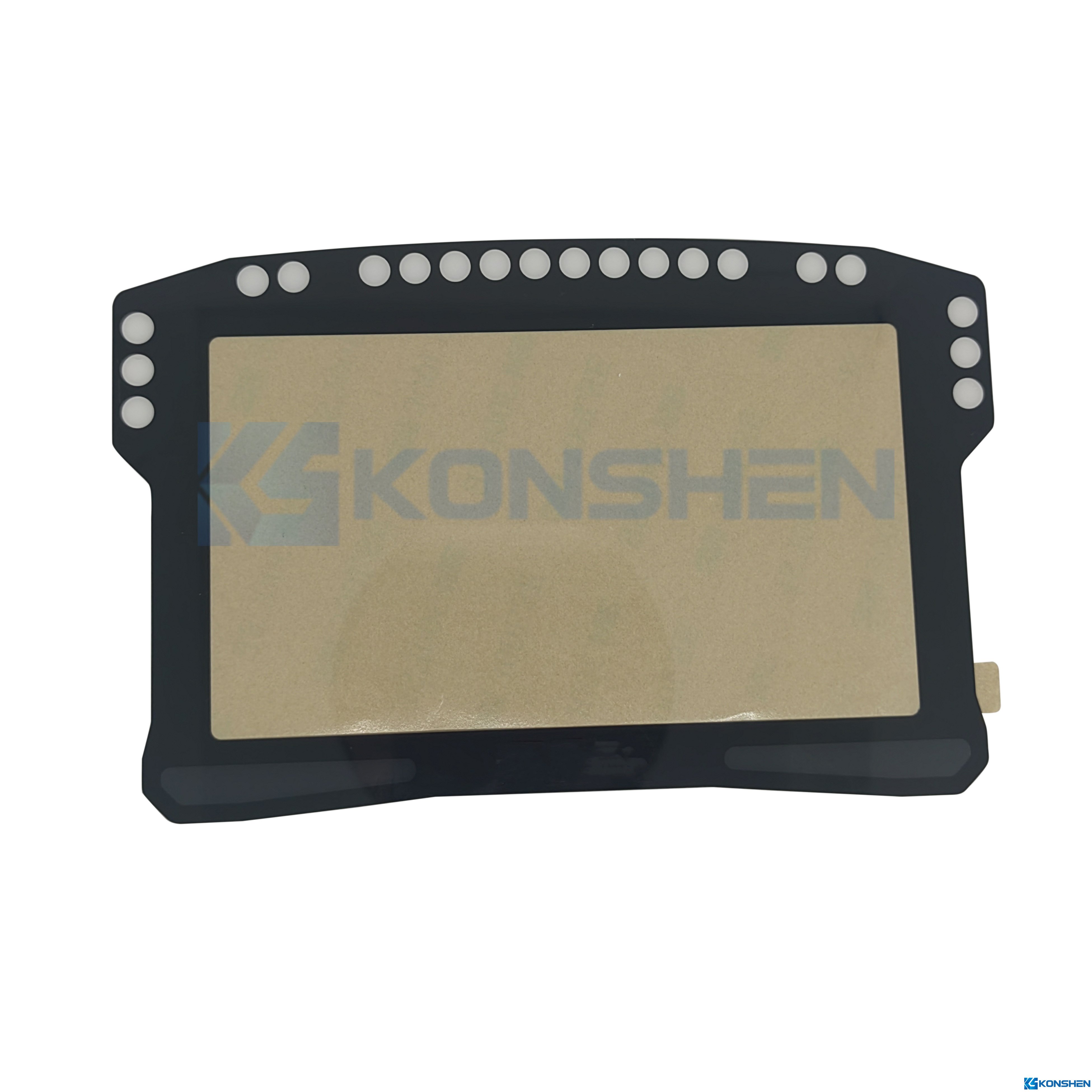

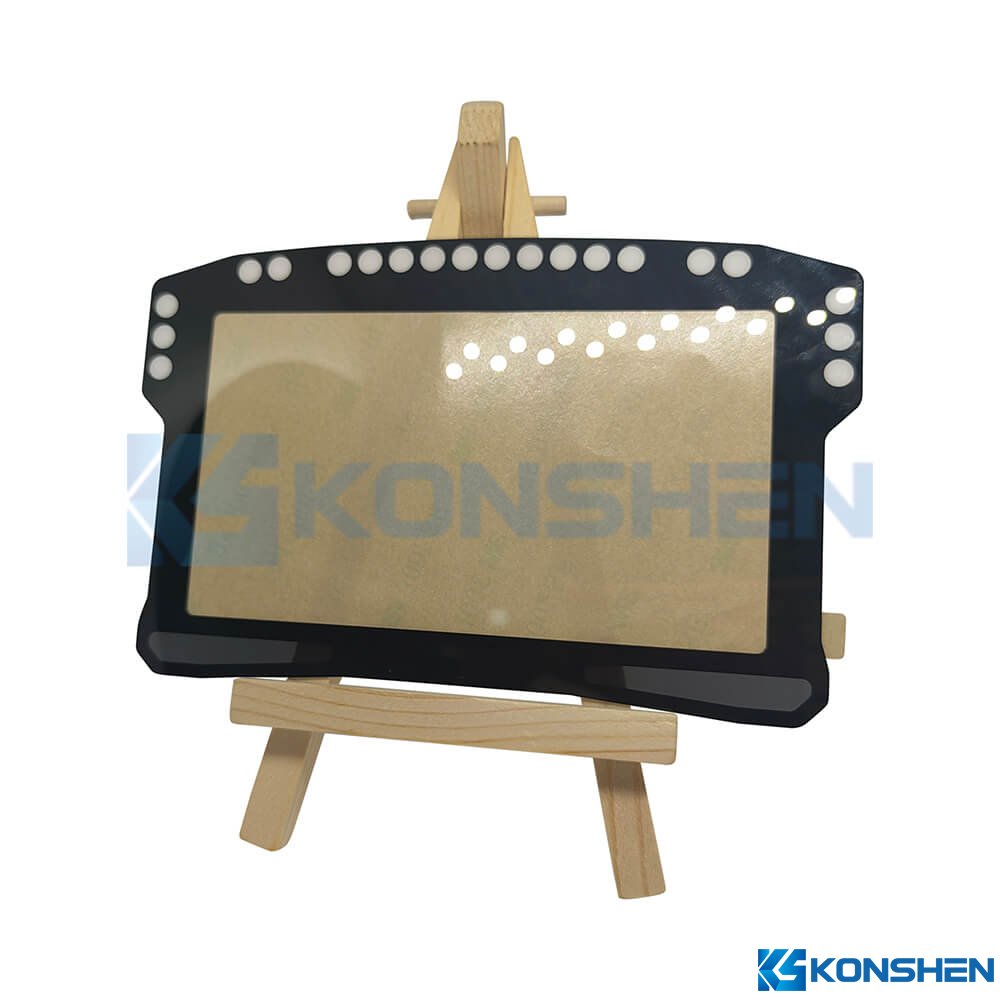

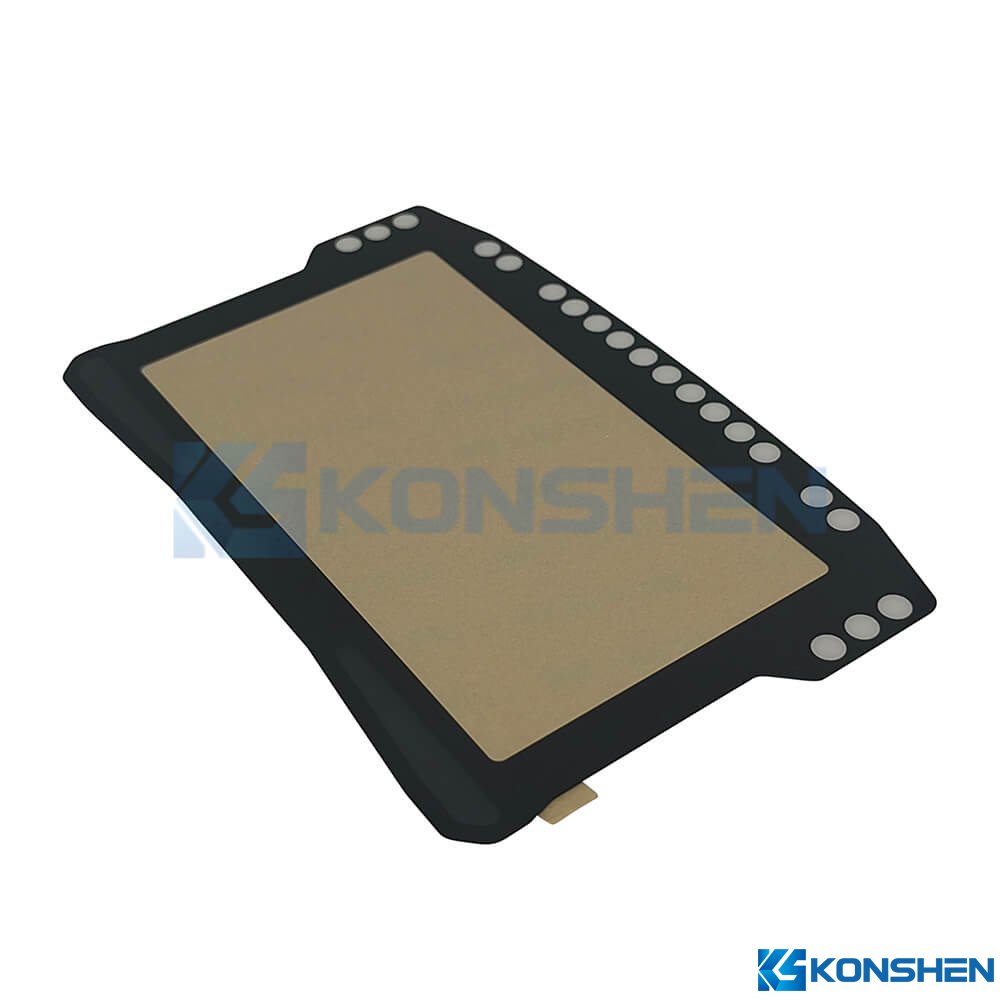

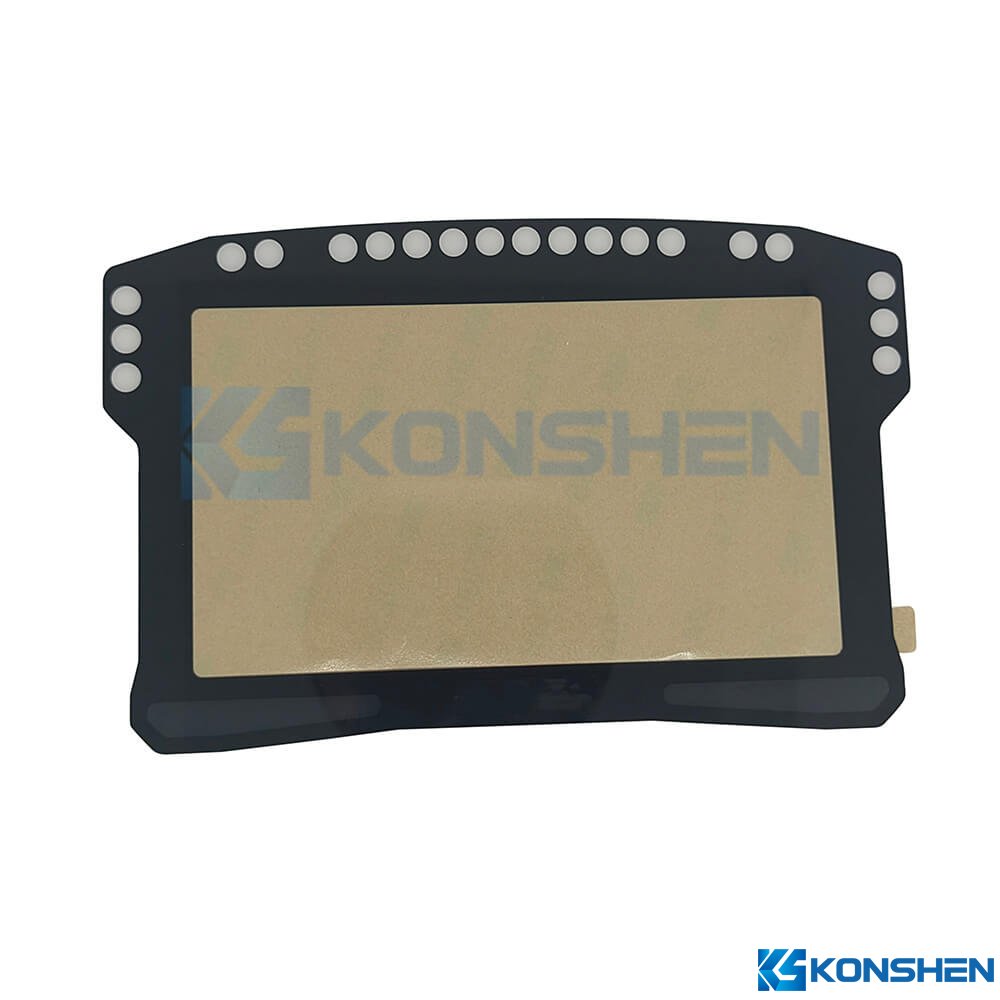

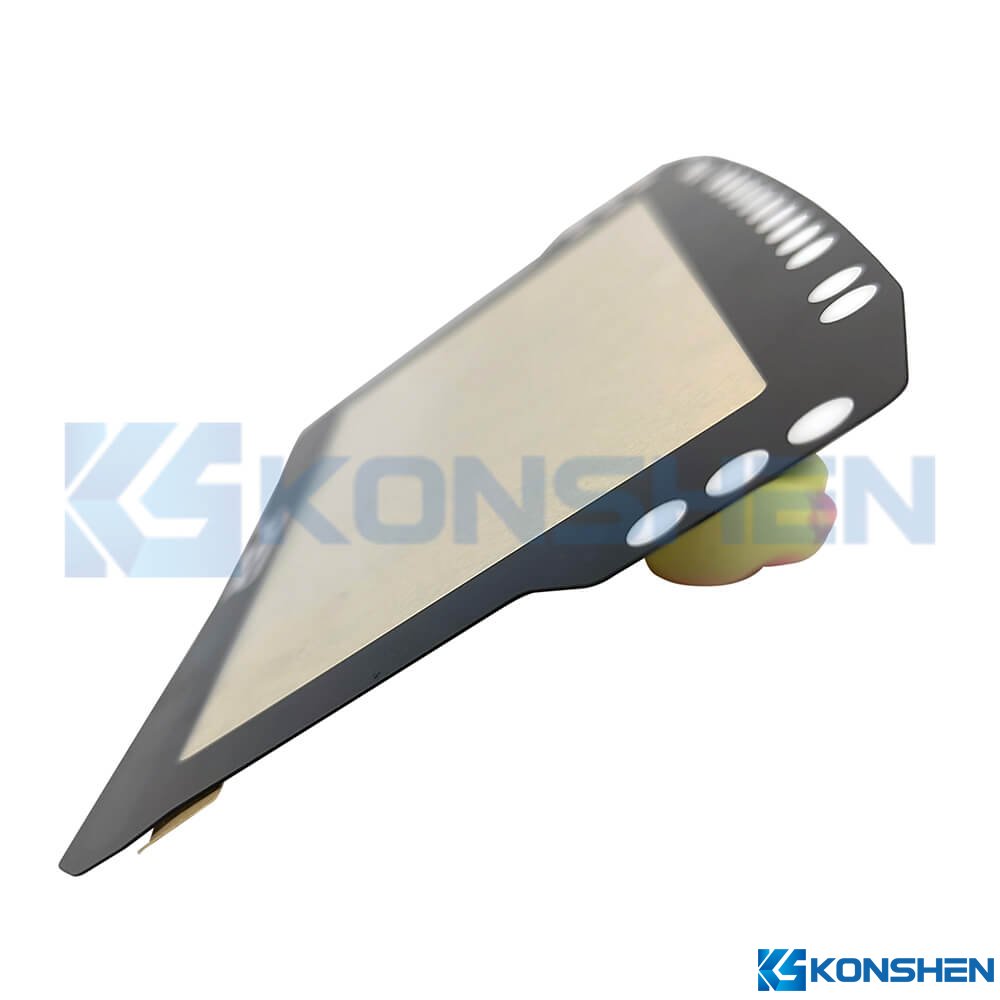

Custom 0.33mm Ultra Thin Chemically Strengthened Cover Glass Panel

Product Detail

Key Features:

Special-shaped Precision Cutting: It features high-precision custom-shaped cutting, tailored to complex structural designs provided by customers. With smooth edge transitions and tight dimensional tolerance control, it is ideal for space-constrained devices like TWS earbuds, smart remotes, and wearables.
Ultra-thin Design: With a total thickness of just 0.33mm, this ultra-thin glass reduces overall device weight while enhancing screen-to-body ratio and visual aesthetics. Despite its slim profile, it maintains structural rigidity and durability, meeting modern lightweight design needs.

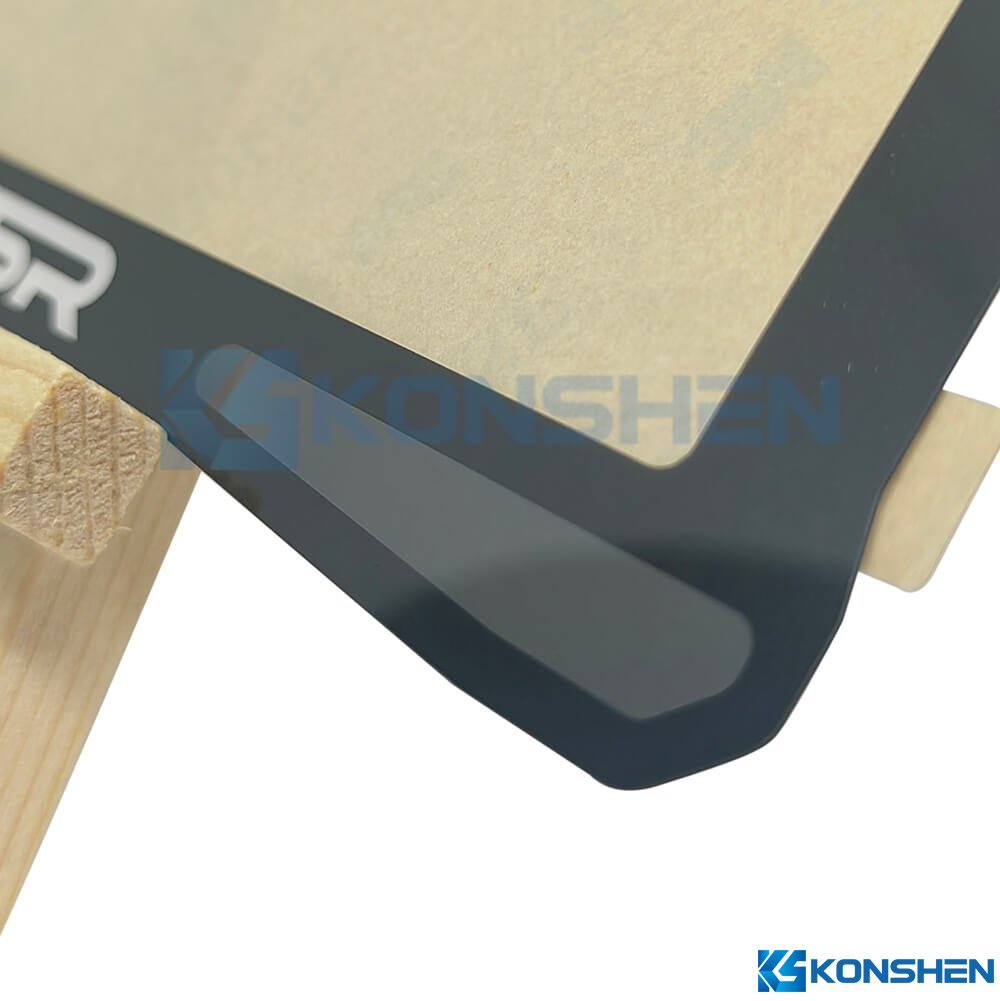

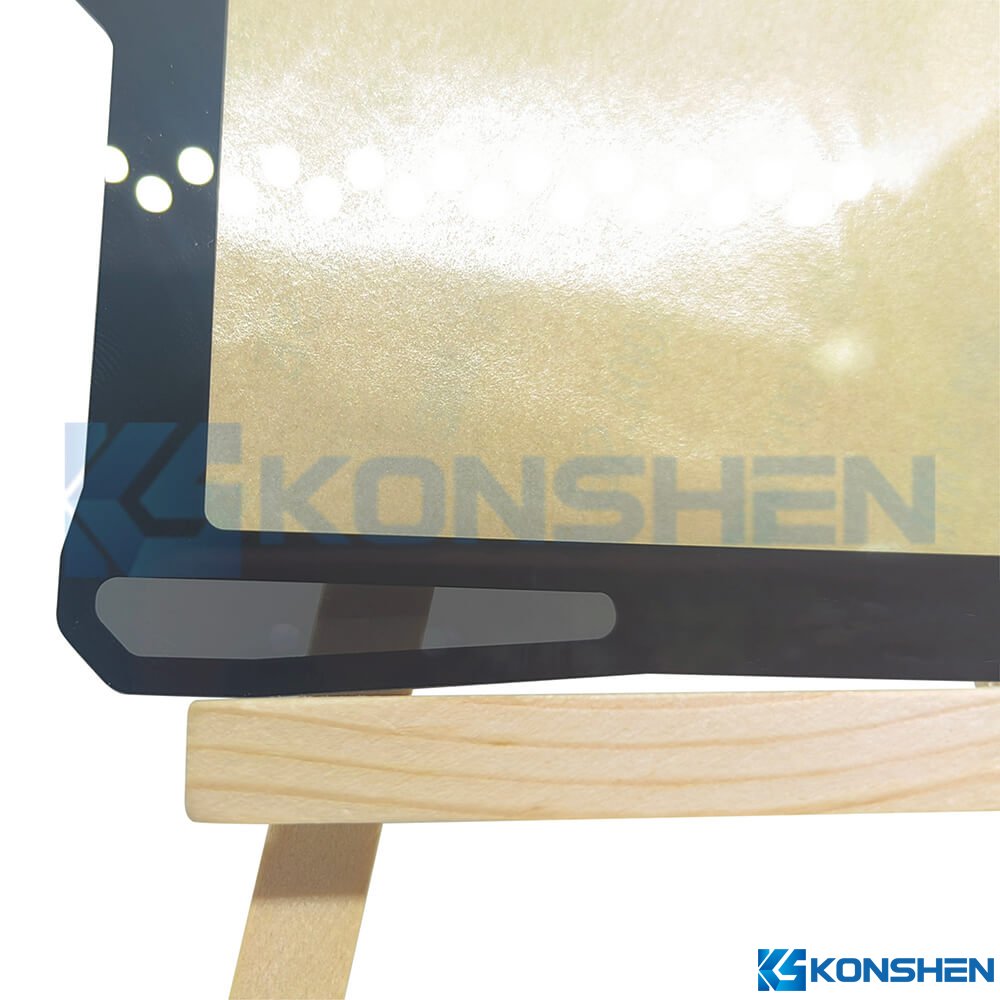

Semi-transparent Black Film Process: The semi-transparent black area of this product adopts a stable film-laminating process, which has both light-shielding properties and aesthetics, and provides uniform light-shielding.
Dust-free Silk Screen Printing: The back of glass are screen-printed in a class-100 cleanroom using black and frosted white inks. The process delivers excellent adhesion and high-definition graphics with vibrant color and lasting durability, ideal for high-end product displays.
Flexible Customization: Fully customizable for window openings, translucent icons, reverse white logos, and more, the glass adapts to diverse design requirements involving display, touch interface, and lighting integration.

Customized Option:

Materials Options: Soda Lime Glass,Mid-Aluminum Glass,High-Aluminum Glass
Available Thickness: 0.33 mm to 10 mm, customizable for different application needs.
Size & Shape: KS Glass offers various custom shapes and sizes tailored to your specifications.
Cutting Options: Laser Cutting,Water jet Cutting,Diamond Blade Cutting,CNC
Edge Options: Polished Edge,Safety Edge,Beveled Edge,Smooth Edge,2.5D Edge,Pencil Edge,Straight Edge
Tempering Options: Physical Tempered/Checmical Strengthened
Coating Options: Anti-Reflective (AR) Coating,Anti-Fingerprint (AF) Coating,Scratch-Resistant Coating(AS),Anti-Glare Coating(AG)
Printing Options: UV Printing,Silk screen printing,Laser engraving printing
Adhesive Options: AB Tape, Double-side Tape,3M Adhesive

Technical Parameters

Materials: Ultra Clear Glass
Shape: Irregular
Thickness: 0.33mm
Edge Work: Safety edge
Tempered Method: Chemically Strengthened
Coating: Anti-fingerprint(AF) coating
Printing Method: Silk screen printing #RAL9004 BK #RAL9001 WH

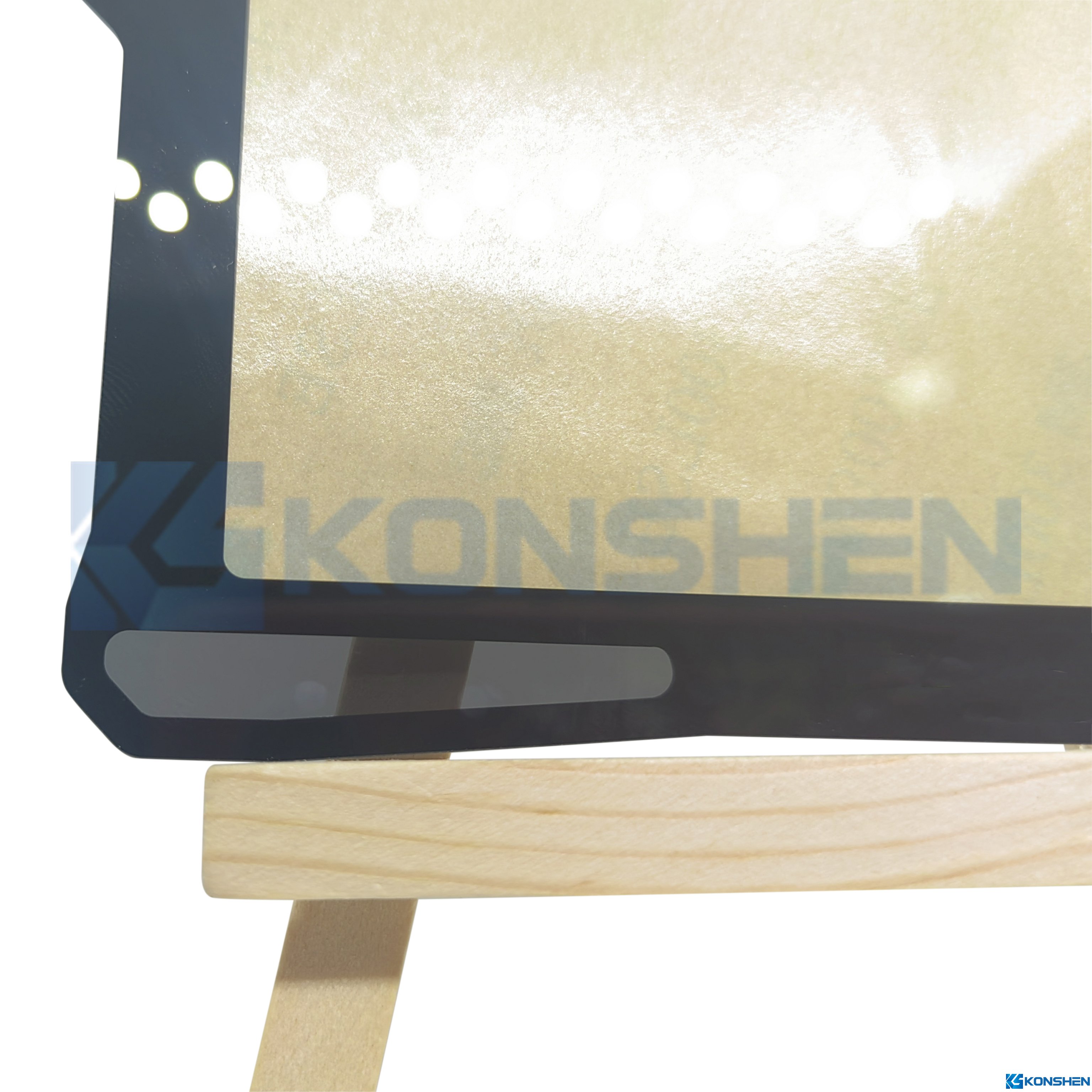

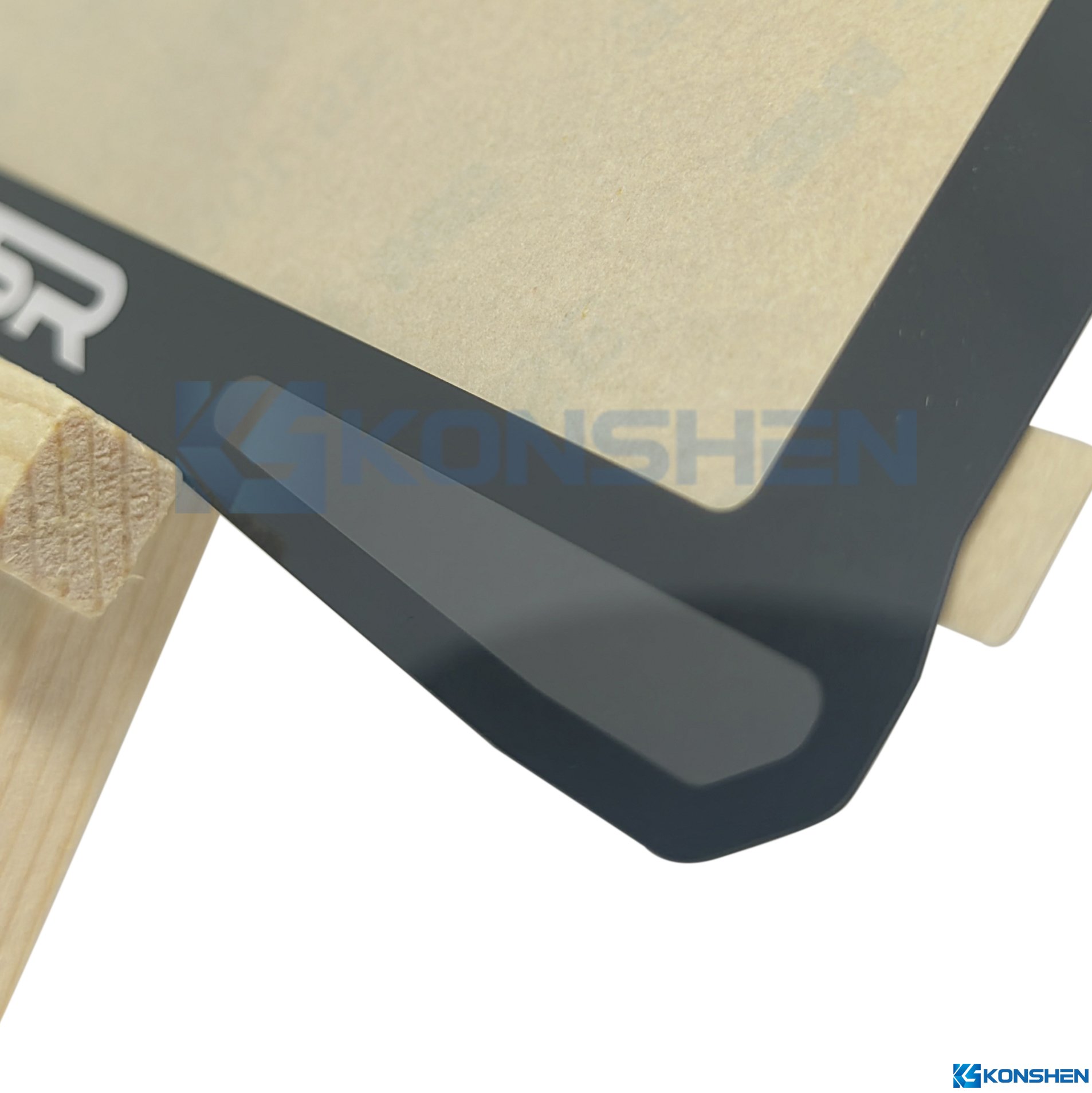

Semi-Transparent Area: 20% light transimittance semi-transparent black film

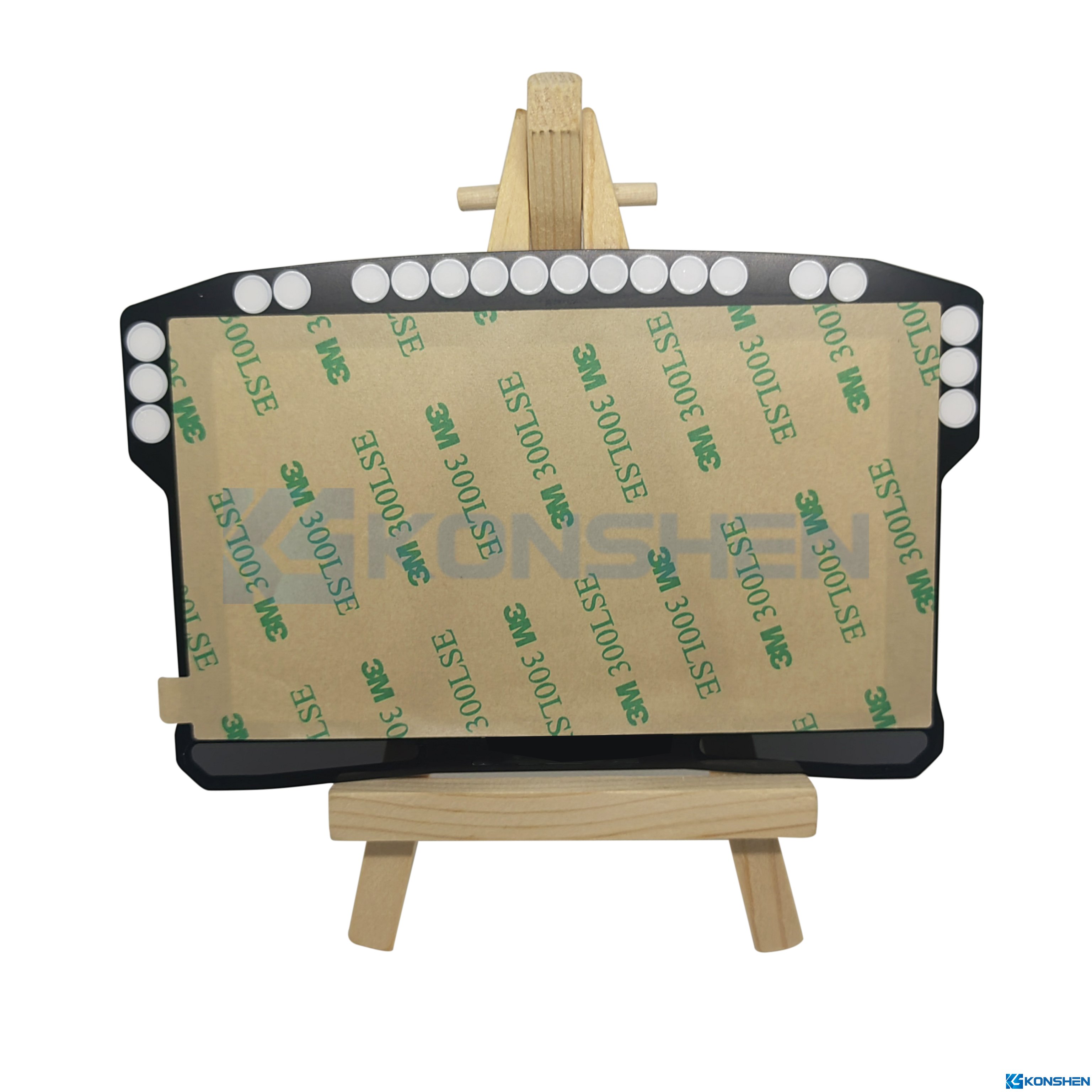

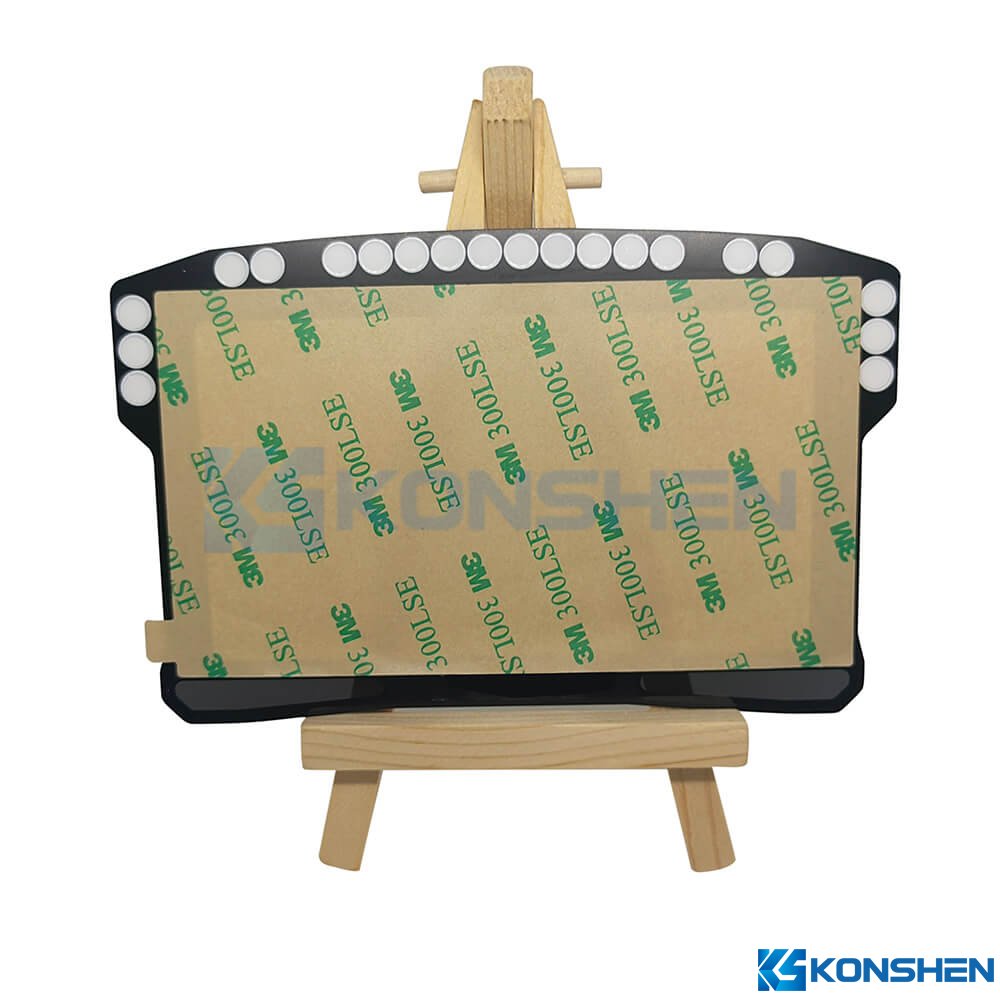

Back Adhelsive: 3M Double-side Tape
Density: 2.5 g/cm³
Hardness: at least 6H
Operating Temperature Range: Suitable for -30°C to 250°C.
Thickness Tolerances:± 0.2mm
Dimensional Tolerances:±0.5mm for large size; ±0.1mm for small size
Weather Resistance: Strong resistance to high temperatures and humidity, reducing aging effects
UV Resistance: High UV-blocking capability
Impact Resistance: 2-5 times stronger than standard glass. Specific impact resistance can vary based on thickness and treatment.

Application

Consumer Electronics: Ideal for compact consumer electronics such as TWS charging cases, smartwatches, remotes, and voice assistant panels. The pre-applied 3M adhesive streamlines assembly, while the combination of screen printing and translucent film balances icon visibility with structural masking.
Industrial Control Panels: Suitable for embedded controllers, HMI interfaces, and industrial button panels, this glass offers strong durability and precise graphics. Its adhesive-backed design enables quick integration, ideal for automated industrial systems.
Medical & Portable Devices: Applied in glucose meters, handheld terminals, and tag readers, this cover glass supports custom icon printing and functional zoning. Its film and matte finish reduce glare and enhance user interaction.
Decorative & Display Panels: Ideal for smart switches, small appliances, and touch lamps, this glass supports custom windows, translucent icons, and reverse white logos to meet diverse functional and branding requirements.

Company and factory equipment

Customer Visit

Company Profile

Dlivery & Payment

Packaging:

Step 1: PE film coating(Normally) / paper(For seashipment prevent wet).
Step 2: Kraft paper for fixation.
Step 3: Carton for glass safety protection.
Step 4: Custom make plywood case with hinge for custom(fumigation + convenient inspection) convenience.
Step 5: Packing strap for further fixation.
