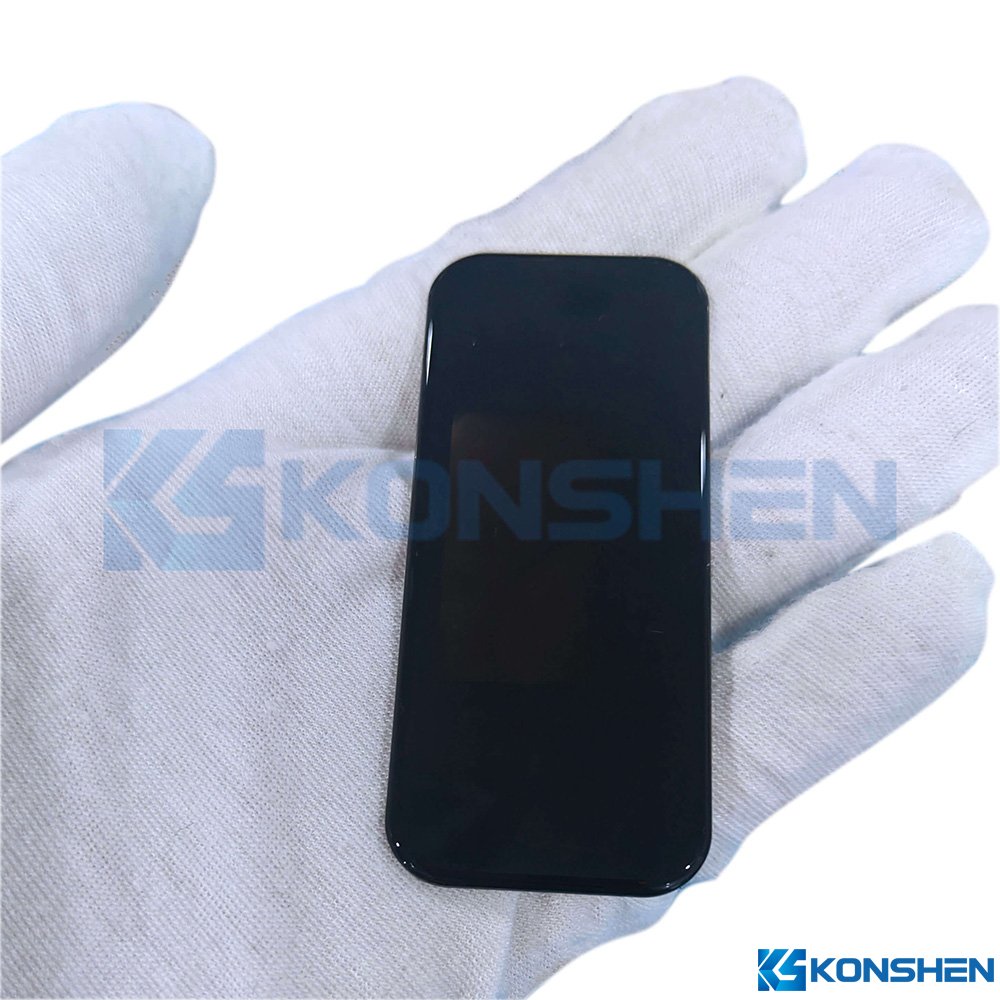

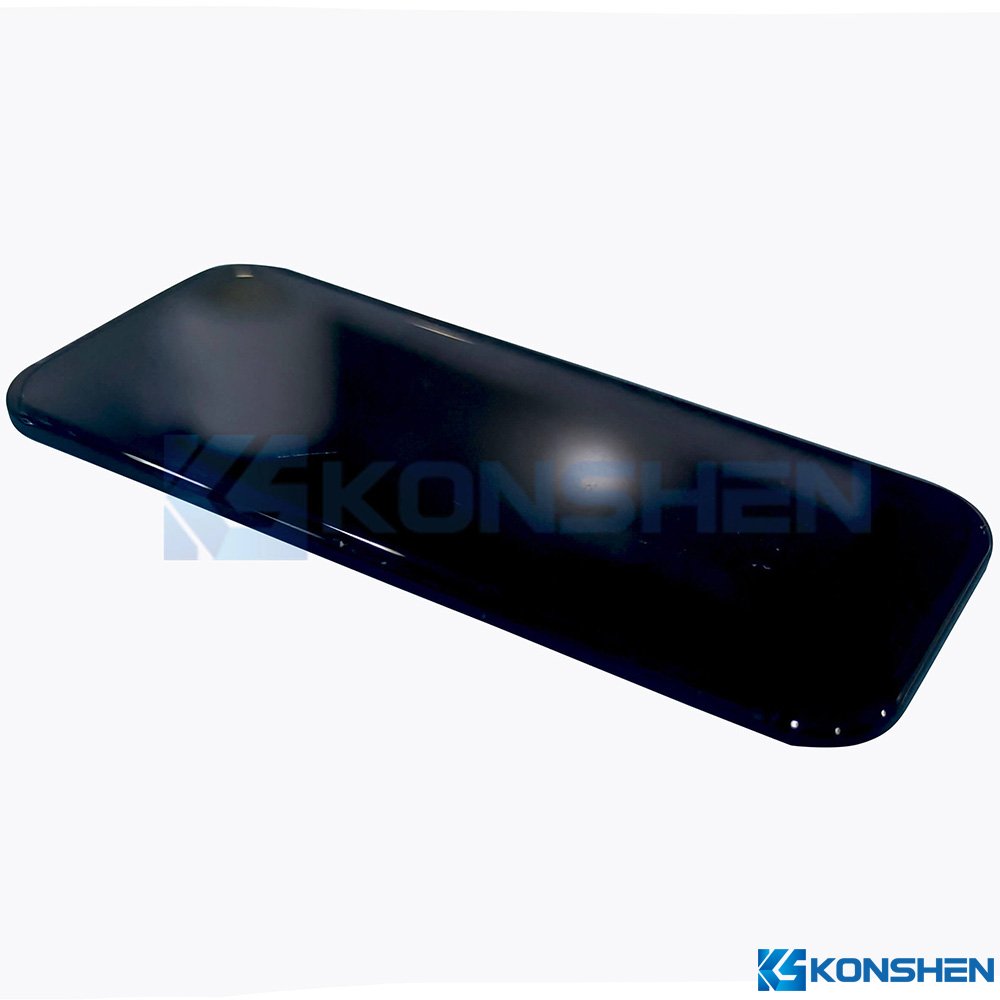

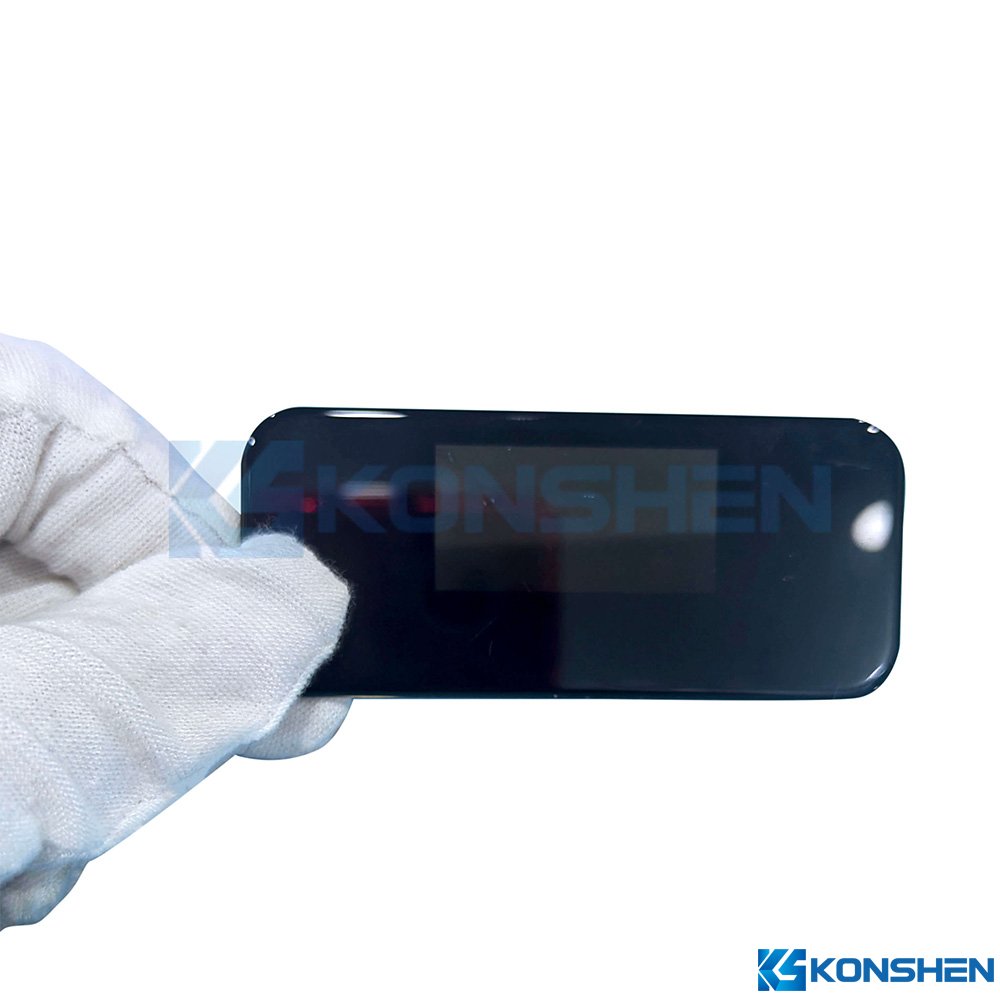

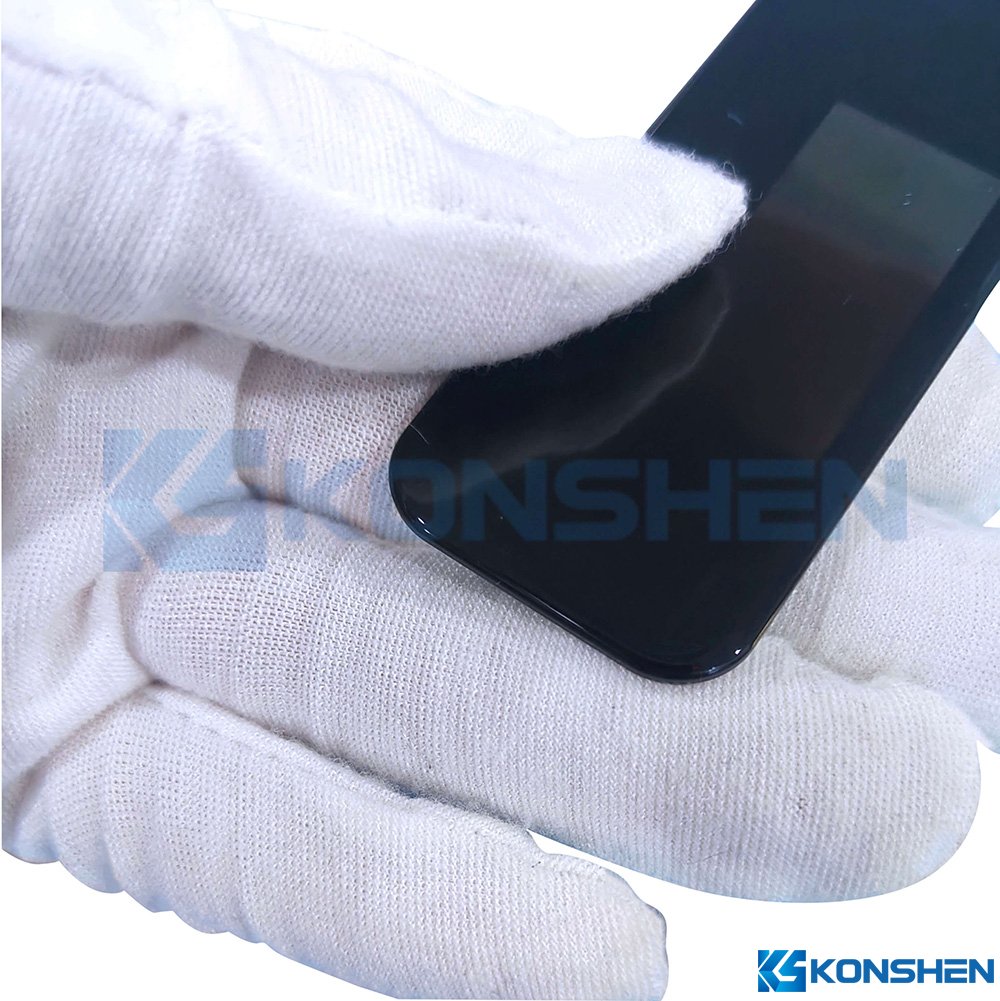

1.1mm 2.5D edge AF coated Display Cover Glass with Translucent Black printing

Key Features:

• Ultra-Thin and Lightweight: Utilizing a 1.1mm ultra-thin glass substrate, this lightweight design perfectly matches the compact design of small devices such as smart bracelets and micro sensors, without adding bulk or weight. It provides a comfortable grip and perfectly fits the needs of portable devices, empowering lightweight design for small devices.

• 2.5D Curved Edges: The 2.5D curved edges are meticulously CNC-polished. The smooth transitions between the curved edges conform to the curves of the finger, ensuring a non-scratching feel during operation and significantly improving grip comfort. They also impart a high-end, refined feel, adding a technological aesthetic to the appearance of small devices and enhancing their competitiveness through these subtle details.

• Translucent Black Silkscreen Window: A customized translucent black silkscreen process is used in the center window area. This ensures clear display of device data while obscuring and concealing internal components and circuitry, optimizing the appearance of small devices and achieving a perfect balance between display functionality and aesthetic simplicity.

• Anti-Fingerprint and Easy Cleaning: The surface features AF anti-fingerprint coating, effectively reducing surface tension, making it difficult for fingerprints and oil stains to adhere. After daily use, a light wipe is all it takes to clean it like new. It also improves surface smoothness, reducing touch resistance, and delivering a smoother, more intuitive experience for high-touch applications like smart wearables and portable devices.

• Enhanced Impact Resistance: Ion exchange chemical strengthening treatment achieves a surface compressive stress of 600 MPa and a flexural strength over three times that of ordinary glass. It effectively withstands daily impacts, such as minor drops and scratches with keys, providing reliable protection for small devices like smart wearables and mini sensors, reducing the risk of damage during use and extending product lifespan.

Customized Option:

• Available Thickness: Ranging from 0.1 mm to 15 mm, depending on the insulation requirements and specific applications.

• Size & Shape: Supports special-shaped cutting to meet diverse needs. Customizes as per drawing.

• Cutting Option: CNC Cutting/Water jet Cutting/Diamond Blade Cutting

• Edge Options:Polished Edge/Safety Edge/Beveled Edge/Smooth Edge/2.5D Edge/Pencil Edge/Straight Edge

• Tempering Options: Physical Tempered/Checmical Strengthened

• Coating Options: Anti-Reflective (AR) Coating/Anti-Fingerprint (AF) Coating/Scratch-Resistant Coating/Indium Tin Oxide(ITO) Coating or Anti-Glare (AG)Coating

• Printing Options: UV Printing/Silk screen printing/Laser engraving printing

• Adhesive Options: AB Tape/ Double-side Tape/3M Adhesive

• Materials: Ultra Clear Glass

• Shape: Rectangular

• Thickness: 1.1mmT

• Edge Work: 2.5D edge by CNC machine

• Tempered Method: Chemical Strengthened

• Coating: Anti-fingerprint(AF) coating

• Printing Method: Silk screen printing  #RAL9004 BK

• Density: 2.5 g/cm³

• Hardness: at least 6H

• Strengthness: IK07

• Operating Temperature Range: Suitable for -30°C to 250°C.

• Thickness Tolerances:± 0.1mm

• Dimensional Tolerances:±0.5mm for large size; ±0.1mm for small size

• Weather Resistance: Strong resistance to high temperatures and humidity, reducing aging effects

• UV Resistance: High UV-blocking capability

• Impact Resistance: 2-5 times stronger than standard glass. Specific impact resistance can vary based on thickness and treatment.

• Smart Wearable Devices: Suitable for small wearable devices such as smart bracelets and watches. Its ultra-thin 1.1mm thickness features a 2.5D curved edge finish. A translucent black window conceals the non-display circuitry, focusing on the screen's core data for a clean, visually simple design. The AF coating protects against fingerprints and sweat, keeping the dial pristine.

• Mini Sensor Terminals: The translucent black window conceals complex circuitry, displaying only key data for a clean and professional appearance. The AF coating protects against dust, while the impact-resistant treatment resists everyday impacts, ensuring stable operation in complex indoor and outdoor environments and clear, long-lasting data display.

• Portable Medical Terminals: The AF coating facilitates cleaning and disinfection, while impact resistance protects the device from drops and collisions, providing reliable support for home health monitoring and medical applications.

• Small Smart Remote Control and Electronic Label: The remote control's buttons are clearly labeled with a high-end black silk-screen print. The AF coating resists fingerprints and smudges, while impact resistance withstands daily use, ensuring a long-lasting, clear display. This device meets the needs of convenient operation and information display in a variety of scenarios, including home, retail, and warehousing.
