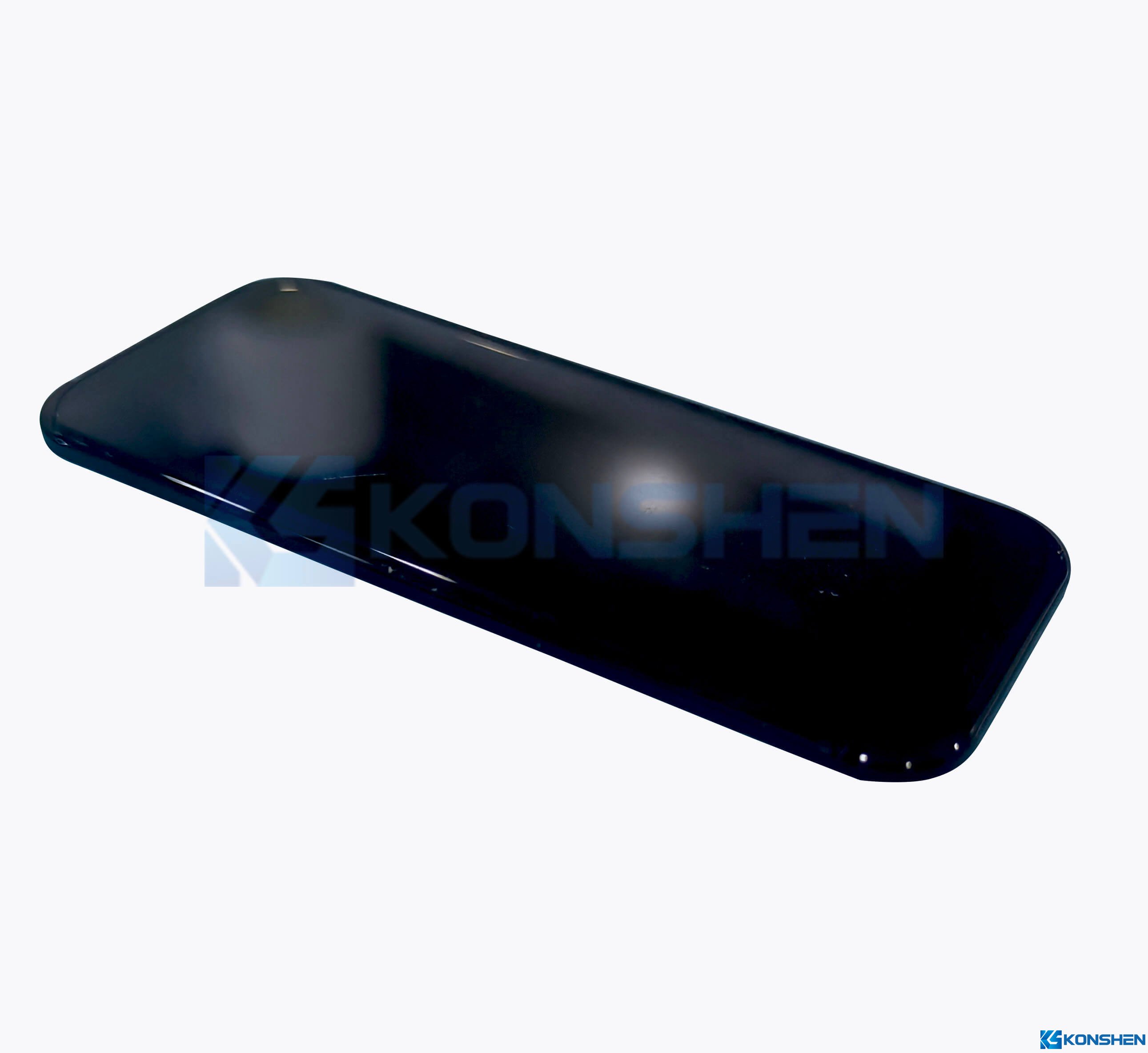

Wholesale 1.1mm 2.5D Chemically Strengthened Glass Cover with AF Coating and Black Printing

Key Features:

• Ultra-Thin & Lightweight Design: With only 1.1mm thickness, this glass cover provides a sleek, lightweight structure suitable for modern compact devices, reducing overall device thickness while maintaining strength.

• 2.5D Curved Edge Processing: The smooth rounded edges not only enhance the visual appeal but also improve safety and user comfort, preventing scratches during handling.

• Chemical Strengthening Technology: Through advanced chemical tempering, the glass achieves excellent hardness and impact resistance, significantly improving durability compared to standard glass.

• AF (Anti-Fingerprint) Coating: Special surface treatment minimizes fingerprints, smudges, and stains, keeping the display surface clear and easy to clean even after frequent use.

• High-Precision CNC Cutting: Ensures strict dimensional accuracy and perfect fit for customized designs, suitable for various electronic devices and industrial panels.

• Black Silk Screen Printing: Provides elegant aesthetics, brand customization options, and better visual integration with device housing.

• Scratch & Wear Resistance: The strengthened surface offers superior resistance against scratches and abrasions, extending the product’s service life.

Customized Option:

• Available Thickness: Ranging from 0.1 mm to 15 mm, depending on the insulation requirements and specific applications.

• Size & Shape: Supports special-shaped cutting to meet diverse needs. Customizes as per drawing.

• Cutting Option: CNC Cutting/Water jet Cutting/Diamond Blade Cutting

• Edge Options: Polished Edge/Safety Edge/Beveled Edge/Smooth Edge/2.5D Edge/Pencil Edge/Straight Edge

• Tempering Options: Physical Tempered/Checmical Strengthened

• Coating Options: Anti-Reflective (AR) Coating/Anti-Fingerprint (AF) Coating/Scratch-Resistant Coating/Indium Tin Oxide(ITO) Coating or Anti-Glare (AG)Coating

• Printing Options: UV Printing/Silk screen printing/Laser engraving printing

• Adhesive Options: AB Tape/ Double-side Tape/3M Adhesive

•

• Materials: Ultra Clear Glass

• Shape: Irregular

• Thickness: 1.1mmT

• Edge Work: Safety edge by CNC machine

• Tempered Method: Chemical Strengthened

• Coating: Anti-fingerprint(AF) coating

• Printing Method: Silk screen printing  #RAL9004 BK

• Density: 2.5 g/cm³

• Hardness: at least 6H

• Strengthness: IK07

• Operating Temperature Range: Suitable for -30°C to 250°C.

• Thickness Tolerances:± 0.1mm

• Dimensional Tolerances:±0.5mm for large size; ±0.1mm for small size

• Weather Resistance: Strong resistance to high temperatures and humidity, reducing aging effects

• UV Resistance: High UV-blocking capability

• Impact Resistance: 2-5 times stronger than standard glass. Specific impact resistance can vary based on thickness and treatment.

• Smart Home Control Panels: Perfect for touch-enabled smart switches, thermostats, and home automation devices.

• Consumer Electronics: Widely used in smartphones, tablets, smartwatches, and handheld devices requiring high-end display protection.

• Industrial Control Equipment: Applied in control panels, monitoring systems, and operator interfaces that need reliable glass protection in harsh environments.

• Optical Instruments & Measurement Devices: Suitable for high-precision measurement tools, optical sensors, and scientific equipment where clarity and durability are critical.

• Medical Equipment Interfaces: Ensures hygienic and scratch-resistant surfaces for diagnostic and testing devices.

• Testing and Laboratory Instruments: Provides a protective and easy-to-clean surface for analytical instruments and lab automation devices.

• Automotive Displays & Navigation Panels: Delivers impact resistance and elegant appearance for in-vehicle infotainment systems and dashboards.
