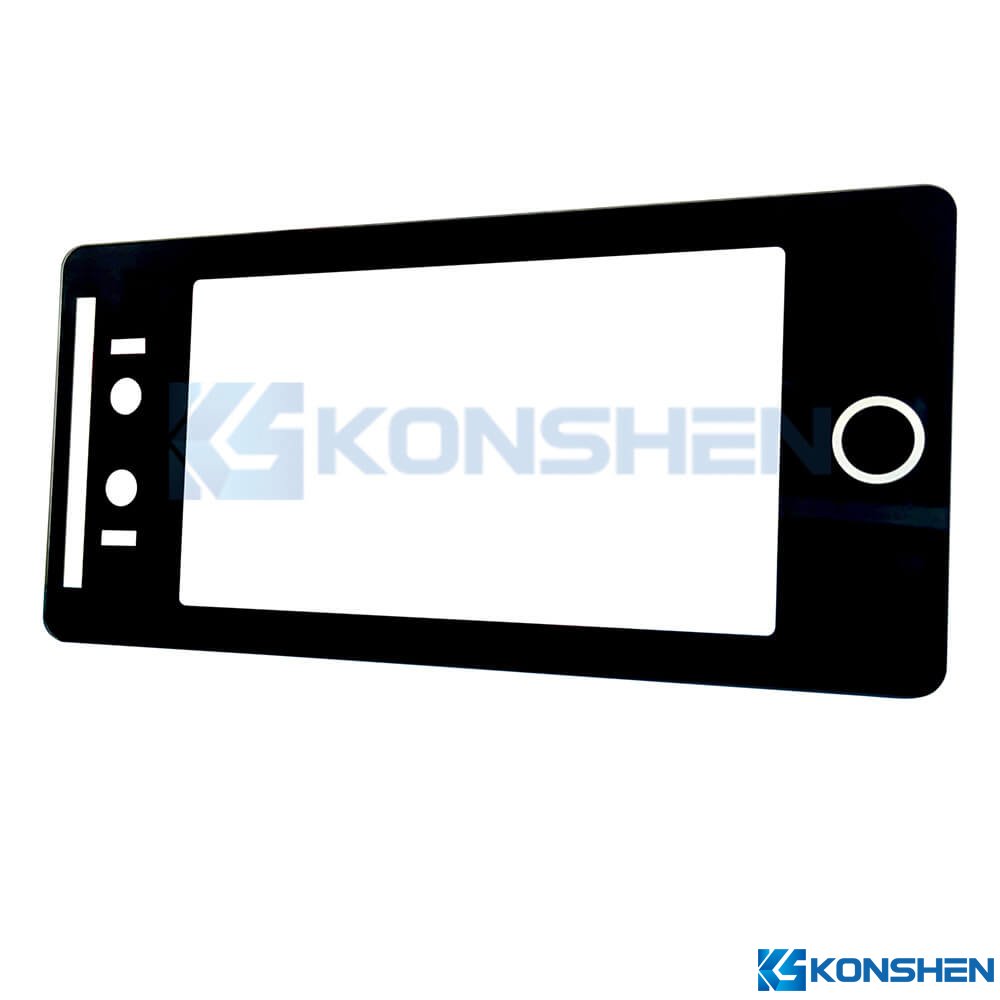

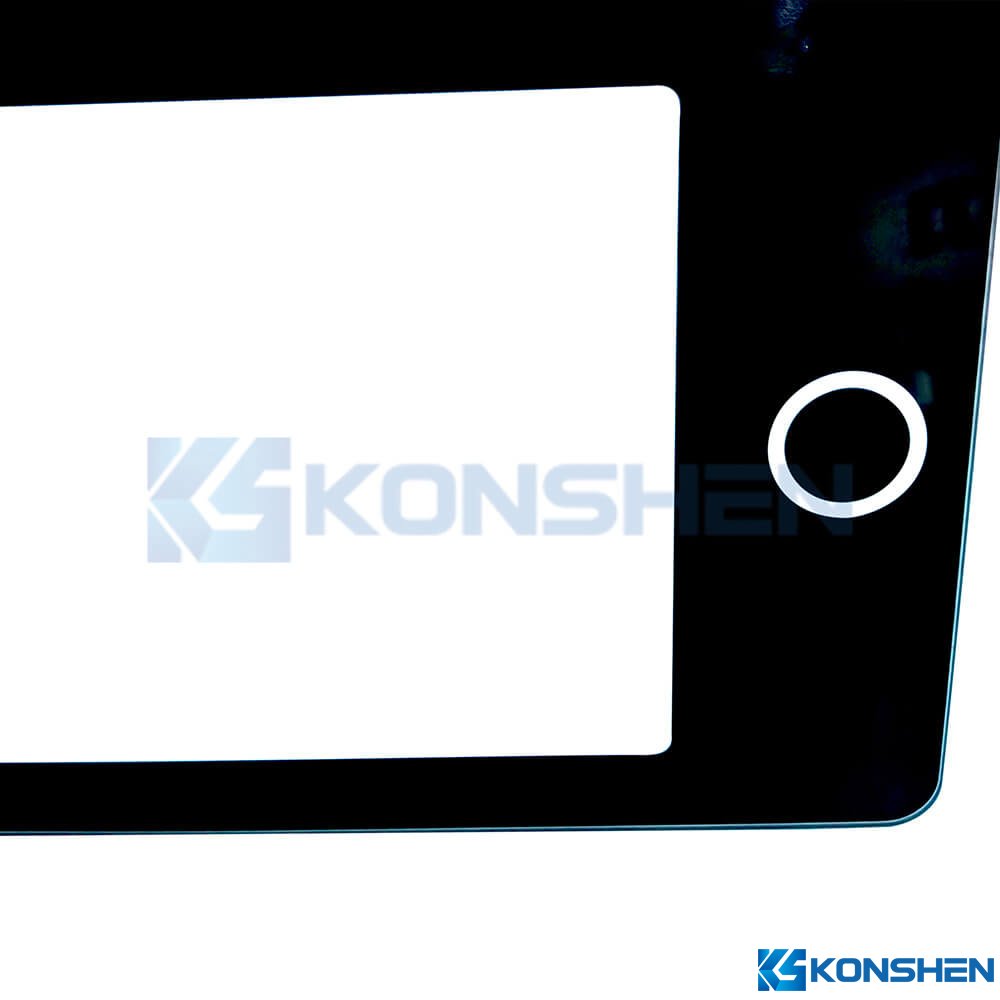

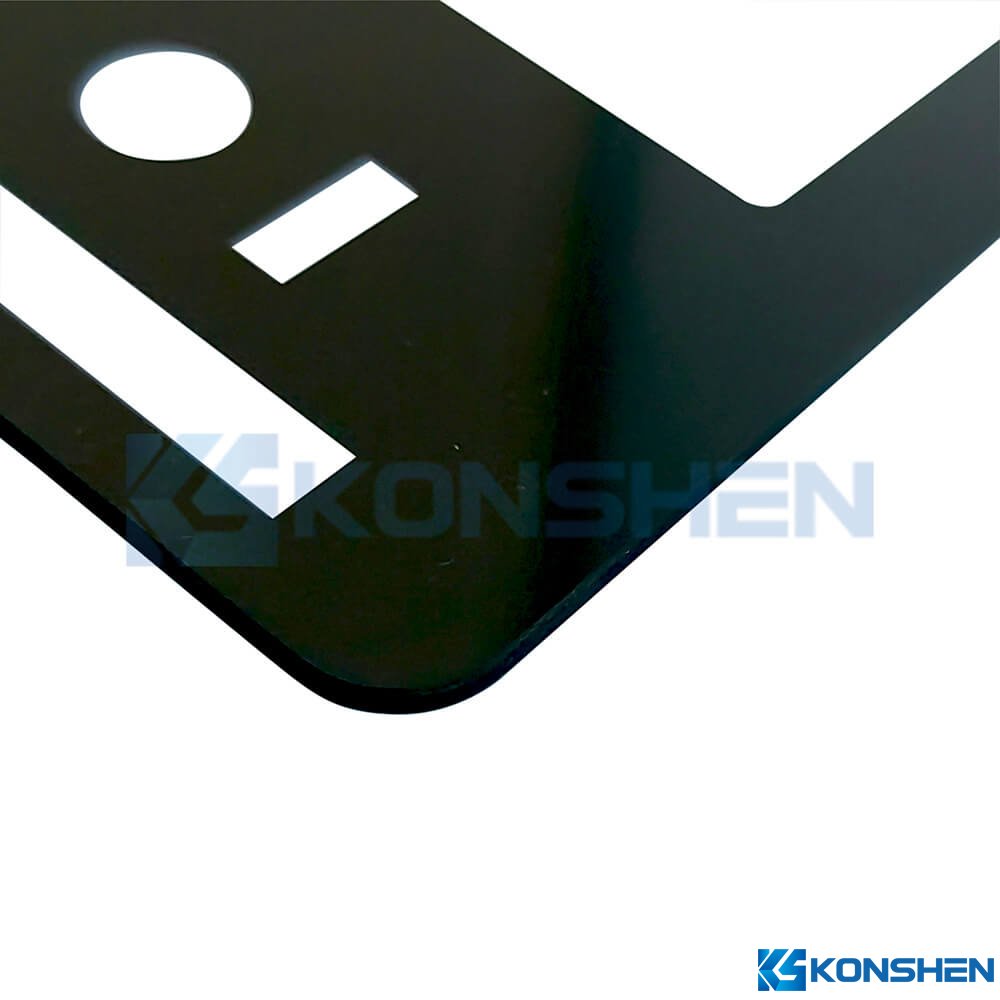

3MM IK07 Anti-fingerprint Coating Tempered Ulltra Clear Glass Panel

Key Features:

• High Transmittance: Utilizing ultra-clear glass with a low iron content, the device boasts a visible light transmittance of 89%, resulting in a clearer display and more accurate color reproduction.

• Stable Physical Properties: 3mm thick tempered glass provides enhanced impact resistance, resisting minor everyday bumps and scratches, ensuring long-term device use.

• High-Temperature Black Silkscreen: High-temperature sintering ensures a tight bond between the black ink and the glass, resulting in a fine, burr-free pattern with strong adhesion. The device withstands alcohol wiping and high- and low-temperature cycling, resisting peeling and fading. Customizable complex patterns and functional openings (such as button and sensor holes) are supported to meet the interactive and display needs of different devices.

• High-Precision Machining: Advanced CNC machines are used for edge grinding and drilling, ensuring scratch-resistant glass edges and through-holes for safe use.

• Anti-Fingerprint Hydrophobic Coating: Spray-on AF anti-fingerprint coating reduces fingerprint residue by 70%, leaving no visible marks after swiping your finger, keeping the screen clean for a long time.

Customized Option:

• Available Thickness: Ranging from 0.1 mm to 15 mm, depending on the insulation requirements and specific applications.

• Size & Shape: Supports special-shaped cutting to meet diverse needs. Customizes as per drawing.

• Cutting Option: CNC Cutting/Water jet Cutting/Diamond Blade Cutting

• Edge Options: Polished Edge/Safety Edge/Beveled Edge/Smooth Edge/2.5D Edge/Pencil Edge/Straight Edge

• Tempering Options: Physical Tempered/Checmical Strengthened

• Coating Options: Anti-Reflective (AR) Coating/Anti-Fingerprint (AF) Coating/Scratch-Resistant Coating/Indium Tin Oxide(ITO) Coating or Anti-Glare (AG)Coating

• Printing Options: UV Printing/Silk screen printing/Laser engraving printing

• Adhesive Options: AB Tape/ Double-side Tape/3M Adhesive

• Materials: Ultra Clear Glass

• Shape: Rectangular

• Thickness: 3mmT

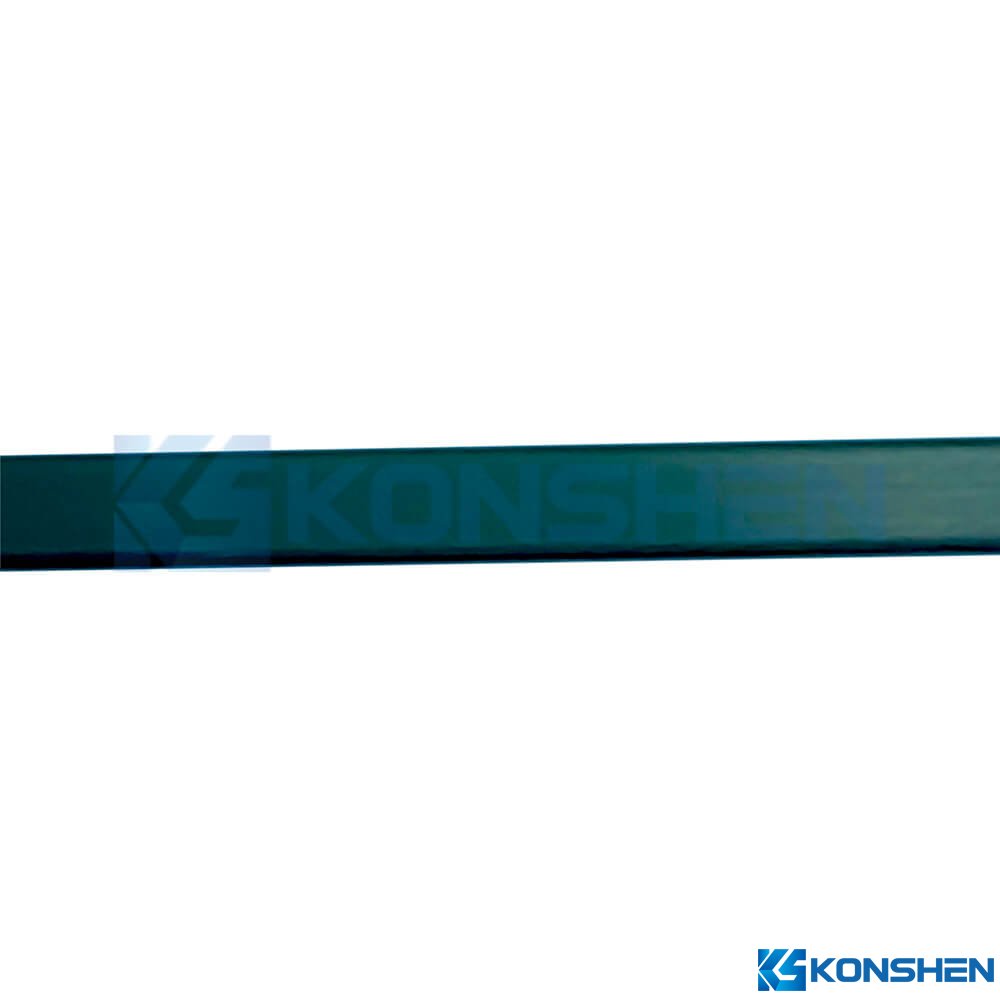

• Edge Work: Safety edge by CNC machine

• Tempered Method: Physical Tempered

• Coating: Anti-fingerprint(AF) coating

• Printing Method: Silk screen printing  #RAL9004 BK

• Density: 2.5 g/cm³

• Hardness: at least 6H

• Strengthness: IK07

• Operating Temperature Range: Suitable for -30°C to 250°C.

• Thickness Tolerances: ± 0.2mm

• Dimensional Tolerances: ±0.5mm for large size; ±0.1mm for small size

• Weather Resistance: Strong resistance to high temperatures and humidity, reducing aging effects

• UV Resistance: High UV-blocking capability

• Impact Resistance: 2-5 times stronger than standard glass. Specific impact resistance can vary based on thickness and treatment.

• Consumer Electronics: As a display panel cover, high light transmittance ensures a pleasant reading experience, while black silk-screen printing clearly distinguishes the functional and display areas, optimizing operational interaction.

• Indoor Home Appliances: Suitable for smart control panels throughout the home. Ultra-clear glass presents a clear UI interface.The high-temperature silk-screened black pattern is oil-resistant and easy to clean, ensuring long-lasting appearance. It can also be used as a cover for the display and touch panel areas of door locks. It resists fingerprints from frequent daily use, ensuring a clean password and fingerprint recognition area for enhanced security and aesthetics, while also protecting against outdoor dust and rain.

• Industrial Control Displays: Provide protection for device operating screens. Ultra-clear glass ensures clear data display, while black silk-screen printing identifies operating areas and status indicators, enhancing user-computer interaction.

• Commercial Displays and Terminals: Suitable for public self-service terminals such as ATMs, ticket machines, and advertising screens. Its anti-fingerprint feature prevents the screen from becoming covered with fingerprints due to frequent use, ensuring a high-end aesthetic while enhancing the user experience.
