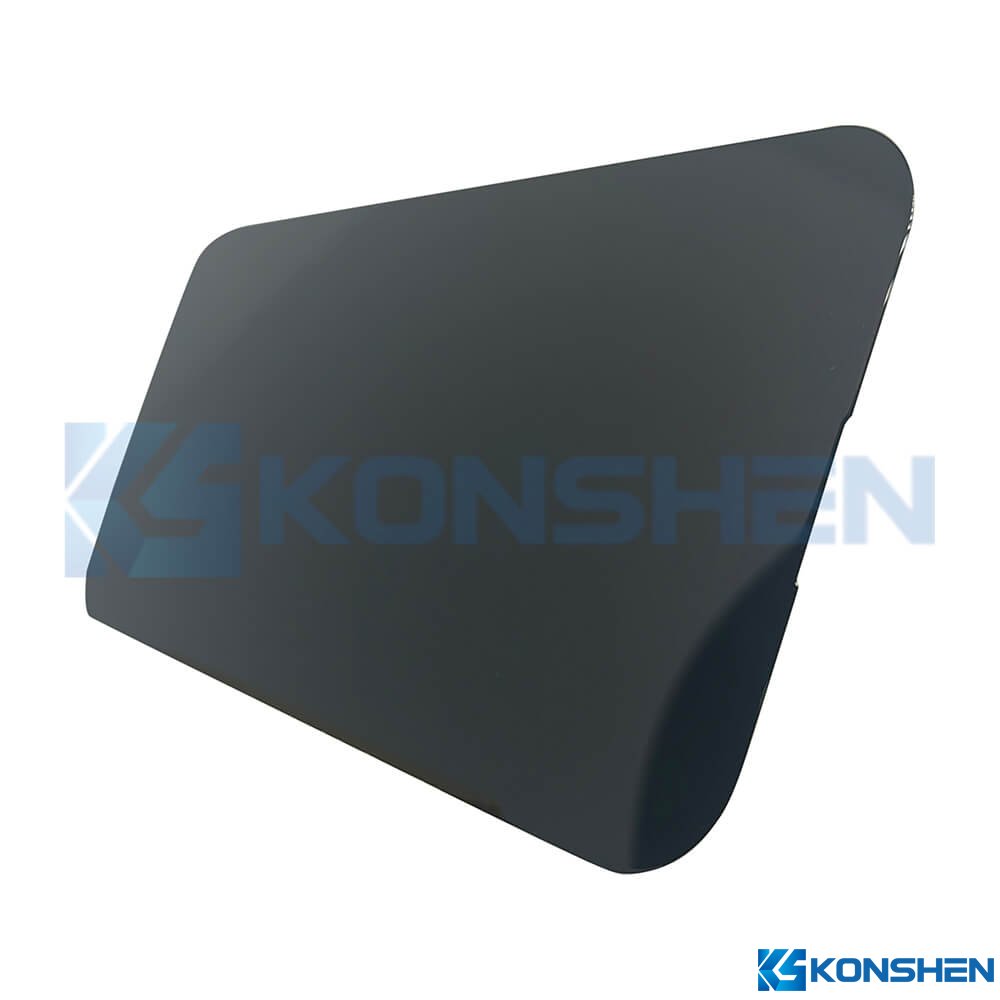

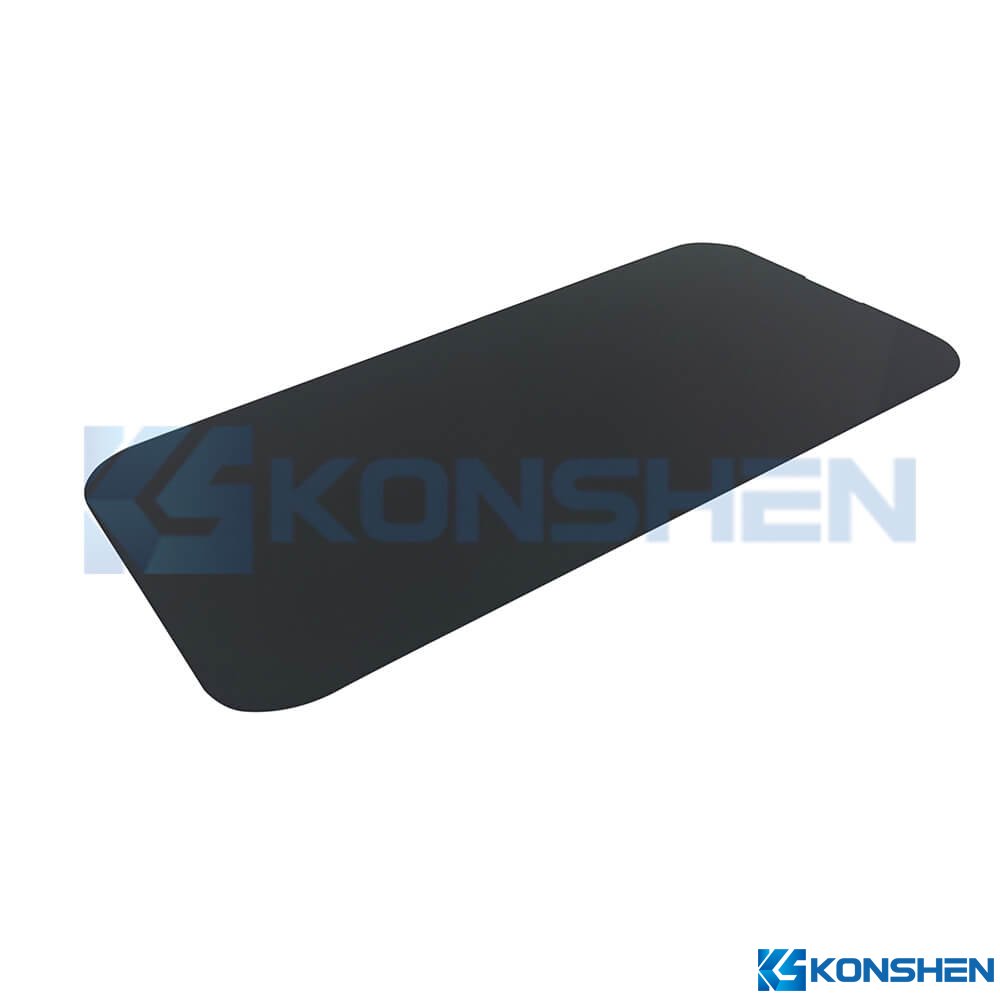

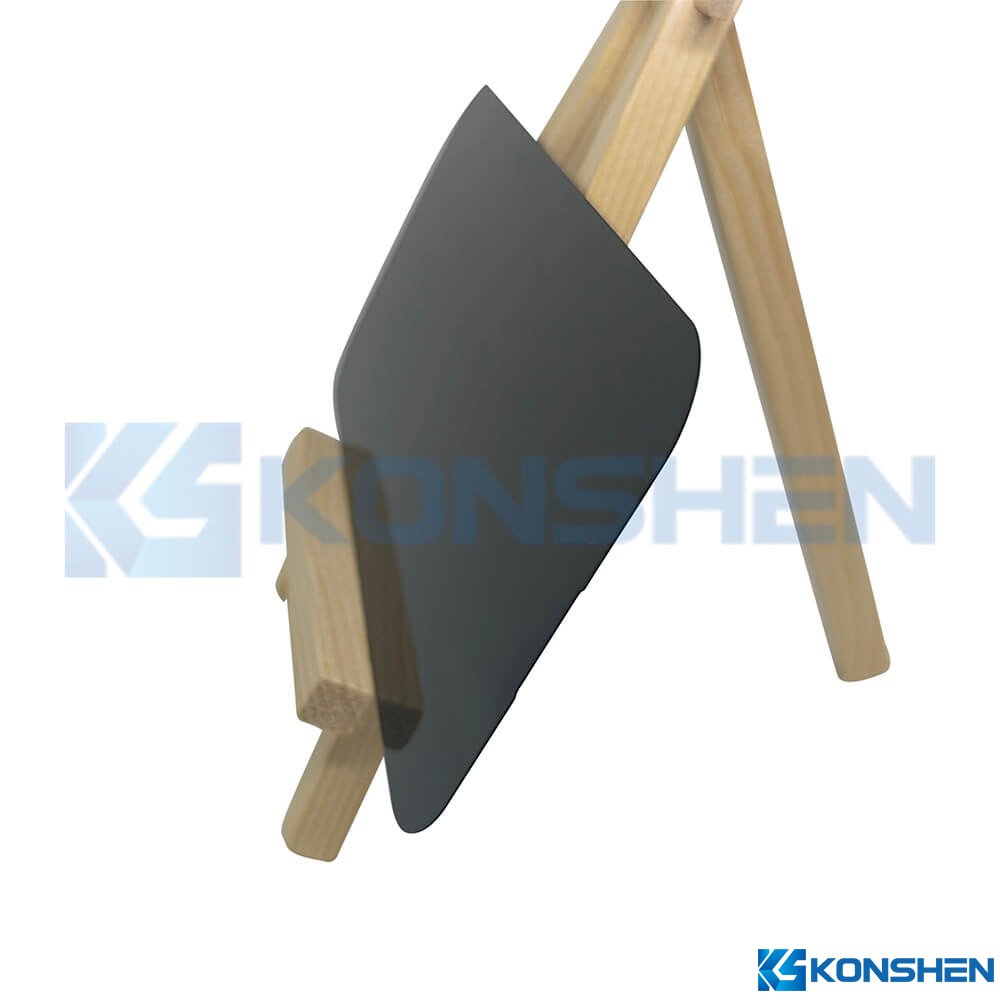

0.33mm 9H Tempered Glass with Oleophobic Electroplated AF Coating

Product Detail

Key Features：

Ultra-Thin Design (0.33mm) for High Precision Applications: Manufactured with premium ultra-clear glass, this cover glass offers excellent optical clarity while maintaining a lightweight and compact form factor—ideal for modern compact smart devices.
9H Tempered Glass for Enhanced Durability: With 9H surface hardness, the glass provides robust resistance to scratches, impacts, and wear, ensuring long-lasting surface integrity in demanding environments.
Oleophobic AF Coating via Electroplating: The surface features advanced anti-fingerprint treatment using electroplated AF coating technology, delivering superior resistance to smudges, grease, and water stains for effortless maintenance and a premium touch feel.
High-End Black Opaque Silk Printing: The black border is printed with high-quality ceramic ink in a cleanroom environment, offering excellent coverage, high adhesion, and smooth visual uniformity—suitable for hidden display zones and branding
Wide Compatibility Across Smart Devices and Industrial Systems: Engineered to meet diverse application needs, the glass is suitable for smart locks, vehicle-mounted systems, industrial HMIs, IoT terminals, and more.

Customized Option:

Available Thickness: Ranging from 0.1 mm to 15 mm, depending on the insulation requirements and specific applications.
Size & Shape: Supports special-shaped cutting to meet diverse needs. Customizes as per drawing.
Cutting Option: CNC Cutting/Water jet Cutting/Diamond Blade Cutting
Edge Options: Polished Edge/Safety Edge/Beveled Edge/Smooth Edge/2.5D Edge/Pencil Edge/Straight Edge
Tempering Options: Physical Tempered/Checmical Strengthened
Coating Options: Anti-Reflective (AR) Coating/Anti-Fingerprint (AF) Coating/Scratch-Resistant Coating/Indium Tin Oxide(ITO) Coating or Anti-Glare (AG)Coating
Printing Options: UV Printing/Silk screen printing/Laser engraving printing
Adhesive Options: AB Tape/ Double-side Tape/3M Adhesive

Technical Parameters

Materials: Ultra Clear Glass
Shape: Rectangular
Thickness: 0.33mmT
Net Weight: 8g/pcs
Edge Work: Safety edge R11.5 corner by CNC machine
Tempered Method: Chemical Strengthened
Coating: Anti-fingerprint(AF) coating
Printing Method: Silk screen printing #RAL9004 BK
Density: 2.5 g/cm³
Hardness: 9H
Operating Temperature Range: Suitable for -30°C to 250°C.
Thickness Tolerances:± 0.2mm
Dimensional Tolerances:±0.5mm for large size; ±0.1mm for small size
Weather Resistance: Strong resistance to high temperatures and humidity, reducing aging effects
UV Resistance: High UV-blocking capability

Application

Smart Terminals: Perfect for smart locks, thermostats, and video doorbells, offering both a sleek appearance and functional reliability.
Automotive Interfaces: Applied in central consoles, touch dashboards, smart mirrors, and voice-control panels requiring durable cover glass.
Industrial HMIs: Suitable for industrial displays and operator panels where anti-fingerprint and scratch-resistance are key.
Medical & Smart Home Devices: Well-suited for environments needing frequent cleaning and clarity, such as healthcare monitors and smart mirrors.

Company and factory equipment

Customer Visit

Company Profile

Dlivery & Payment

Packaging:

Step 1: PE film coating(Normally) / paper(For seashipment prevent wet).
Step 2: Kraft paper for fixation.
Step 3: Carton for glass safety protection.
Step 4: Custom make plywood case with hinge for custom(fumigation + convenient inspection) convenience.
Step 5: Packing strap for further fixation.
