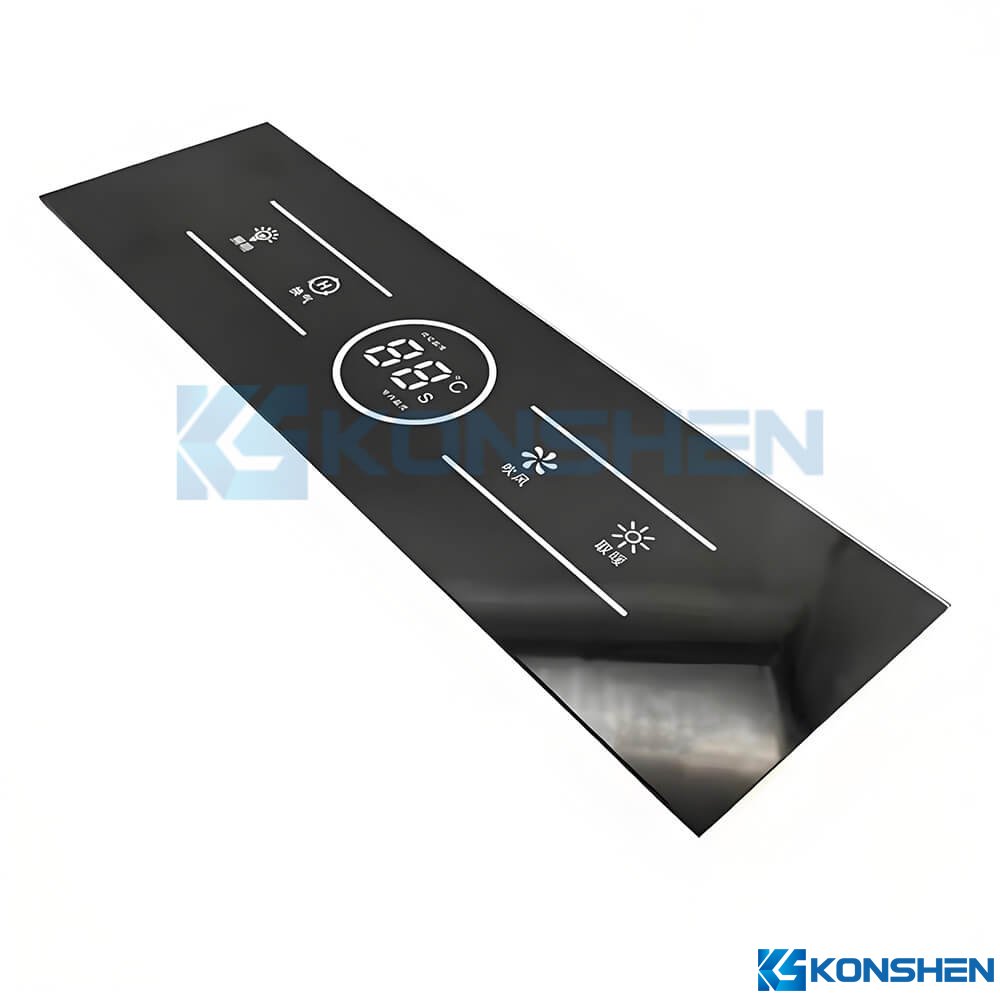

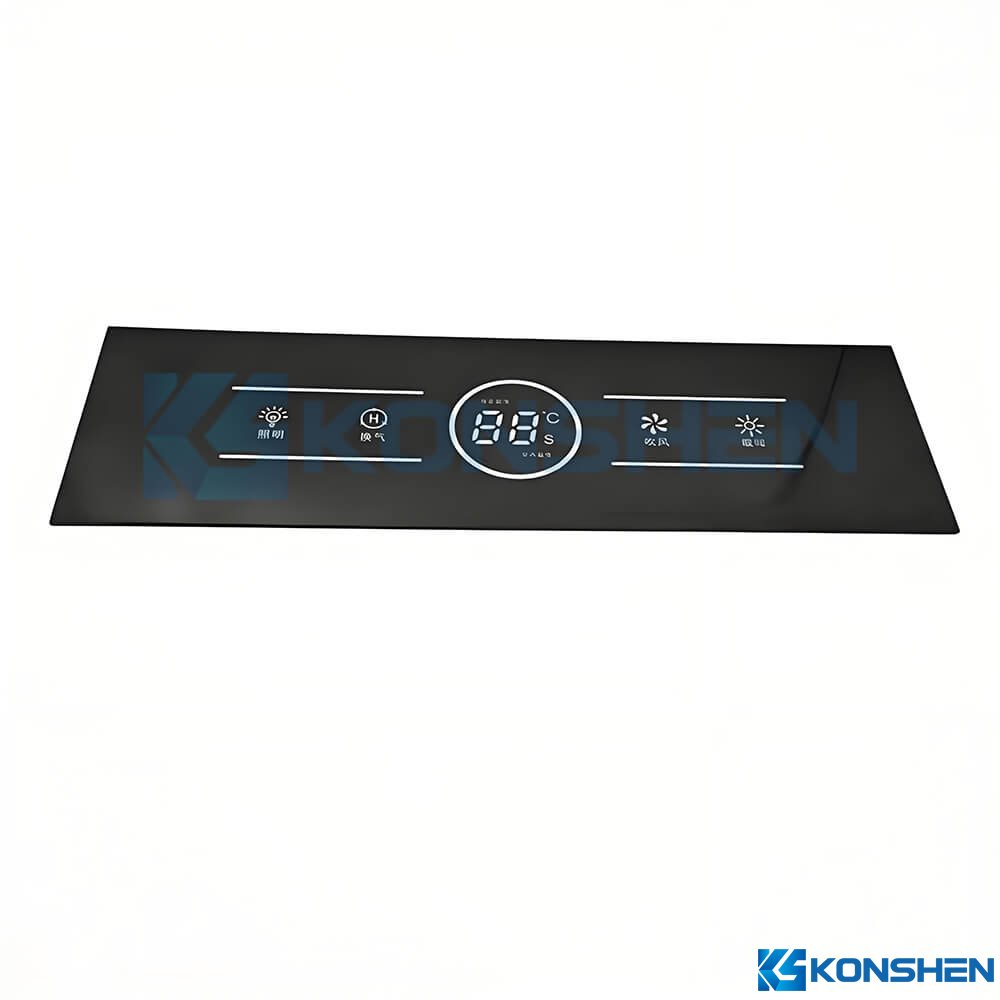

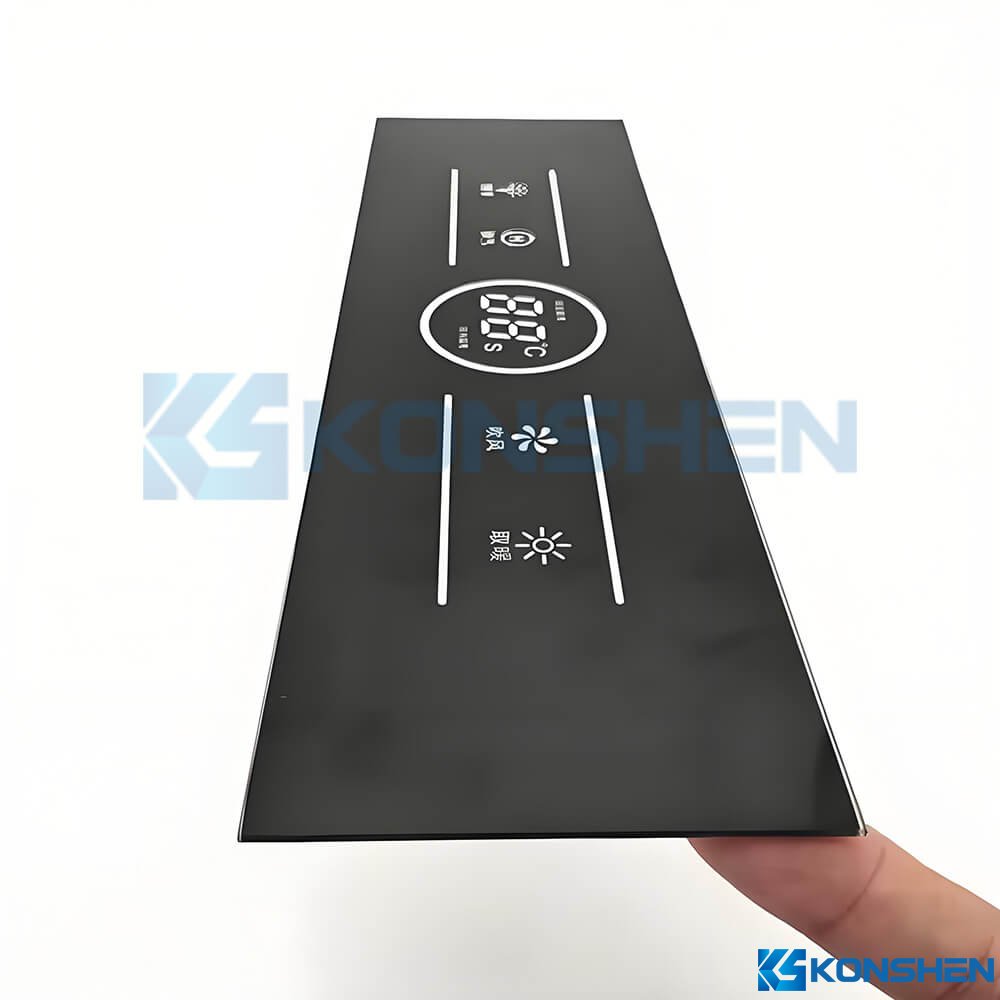

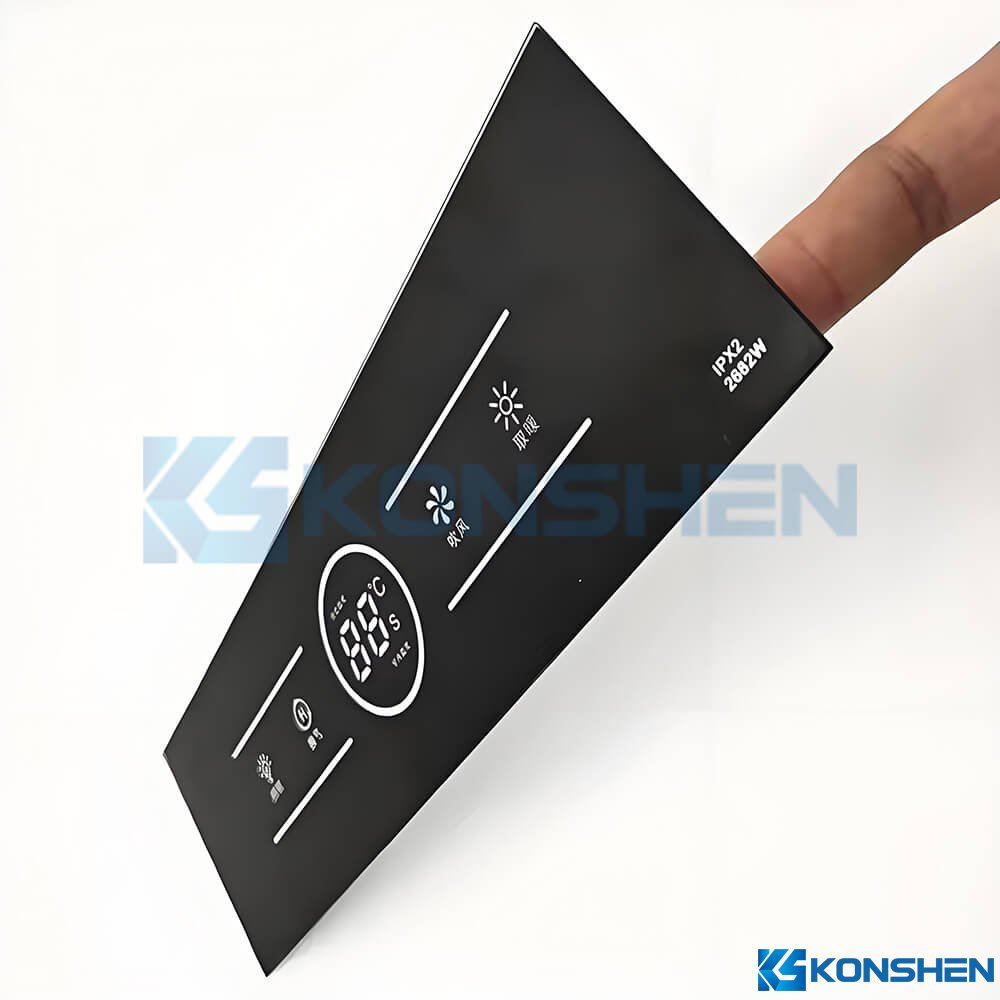

2mm AF & AS Coating Tempered Cover Glass for Control Panels

Product Detail

Key Features:

Tempered Glass Durability: Chemically strengthened to resist impact, scratches, and thermal stress, ensuring safety and long-term performance.
Oleophobic Coating (AF): Repels oils and fingerprints, making the surface easy to clean and ideal for frequent touch interactions.
Anti-Scratch Coating (AS): Provides extra hardness and protection against abrasion, suitable for harsh environments or high-wear applications.
Flexible Customization: Compatible with various shapes, holes, and multi-color silk screen printing to meet branding and interface design requirements.

Customized Option:

Anti-Scratch Coating (AS): Provides extra hardness and protection against abrasion, suitable for harsh environments or high-wear applications.
Flexible Customization: Compatible with various shapes, holes, and multi-color silk screen printing to meet branding and interface design requirements.
Available Thickness: Ranging from 0.1 mm to 15 mm, depending on the insulation requirements and specific applications.
Size & Shape: Supports special-shaped cutting to meet diverse needs. Customizes as per drawing.
Cutting Option:CNC Cutting/Water jet Cutting/Diamond Blade Cutting
Edge Options:Polished Edge/Safety Edge/Beveled Edge/Smooth Edge/2.5D Edge/Pencil Edge/Straight Edge
Tempering Options:Physical Tempered/Checmical Strengthened
Coating Options:Anti-Reflective (AR) Coating/Anti-Fingerprint (AF) Coating/Scratch-Resistant Coating/Indium Tin Oxide(ITO) Coating or Anti-Glare (AG)Coating
Printing Options: UV Printing/Silk screen printing/Laser engraving printing
Adhesive Options: AB Tape/ Double-side Tape/3M Adhesive

Technical Parameters

Materials: Ultra Clear Glass
Shape: Rectangular
Thickness: 2mmT
Edge Work: Safety edge by CNC machine
Tempered Method: Physical Tempered
Coating: Anti-fingerprint(AF) coating Anti-scratch(AS) coating
Printing Method: Silk screen printing #RAL9004 BK #RAL9001 WH
Density: 2.5 g/cm³
Hardness: at least 6H
Strengthness: IK07
Operating Temperature Range: Suitable for -30°C to 250°C.
Thickness Tolerances:± 0.2mm
Dimensional Tolerances:±0.5mm for large size; ±0.1mm for small size
Weather Resistance: Strong resistance to high temperatures and humidity, reducing aging effects
UV Resistance: High UV-blocking capability
Impact Resistance: 2-5 times stronger than standard glass. Specific impact resistance can vary based on thickness and treatment.

Application

Smart Home Control Panels: Widely used in touch-enabled interfaces of modern home appliances such as air conditioners, range hoods, water heaters, and lighting systems. The anti-fingerprint and anti-scratch coatings ensure lasting clarity and cleanliness in humid environments like kitchens and bathrooms, while black silk screen printing enhances the visual coherence of the interface design.
Industrial Control Terminals: Suitable for factory automation equipment, HMI screens, and other industrial touch interfaces that require high durability and chemical resistance. The enhanced surface hardness provides protection against friction, abrasion, and chemical exposure in demanding industrial settings.
Smart Mirror Displays: Ideal for smart bathroom mirrors, cosmetic mirrors, and touch-enabled reflective displays. Combines optical clarity with touch responsiveness, offering both visual sophistication and interactive functionality in home or commercial spaces.
Consumer Electronics Interfaces: Found in devices such as thermostats, smart kitchen panels, interactive displays, and IoT control units. The smooth surface and customizable silk printing enable responsive operation while supporting intuitive icon layouts and brand identity.
Medical and Laboratory Equipment: Applicable in touchscreen modules for diagnostic tools, sterilized environments, and lab instruments requiring frequent cleaning. Chemical resistance and surface durability make it reliable for high-standard use cases.

Company and factory equipment

Customer Visit

Company Profile

Dlivery & Payment

Packaging:

Step 1: PE film coating(Normally) / paper(For seashipment prevent wet).
Step 2: Kraft paper for fixation.
Step 3: Carton for glass safety protection.
Step 4: Custom make plywood case with hinge for custom(fumigation + convenient inspection) convenience.
Step 5: Packing strap for further fixation.
