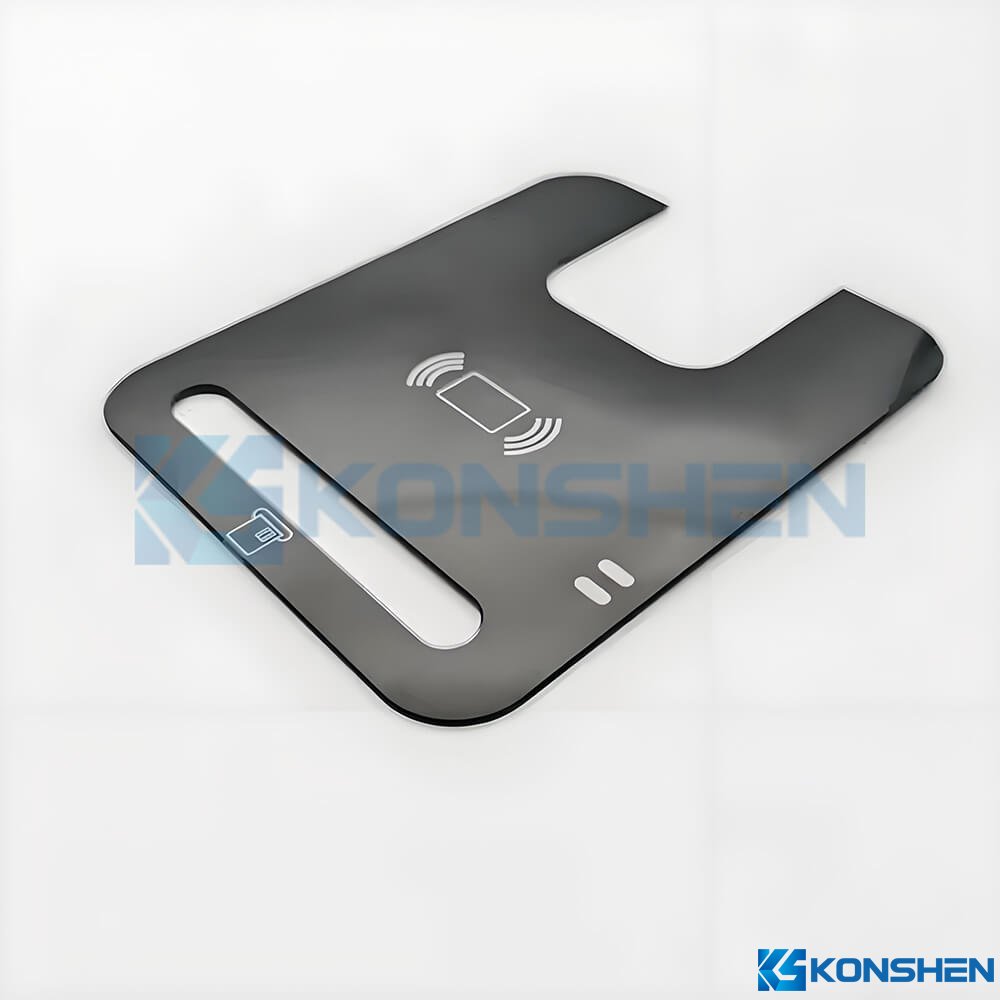

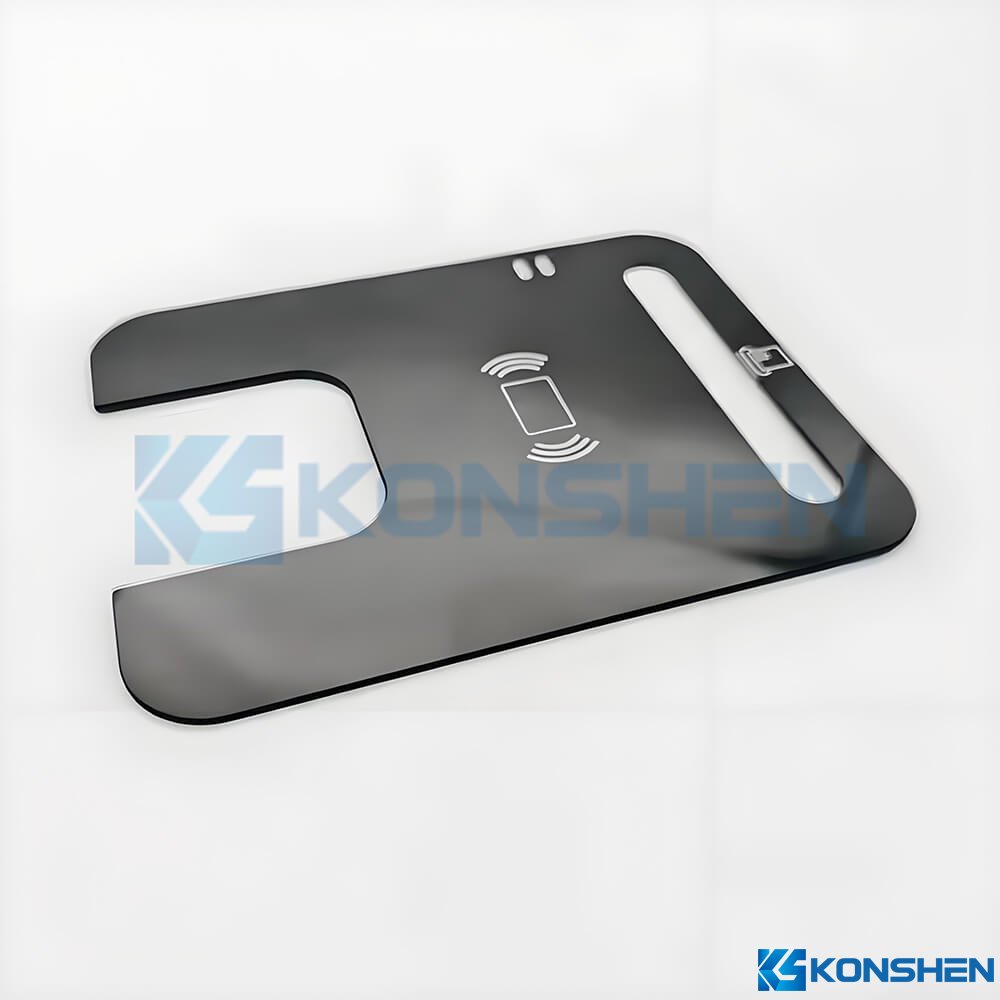

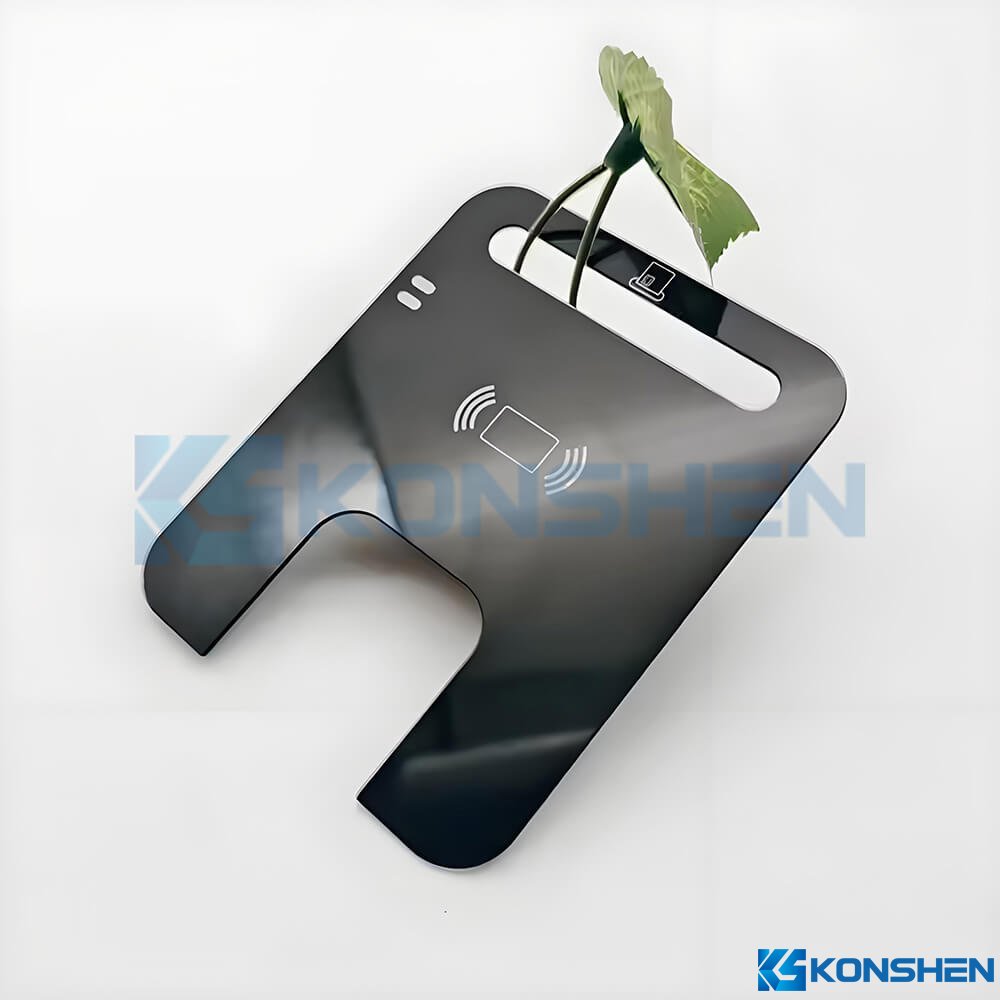

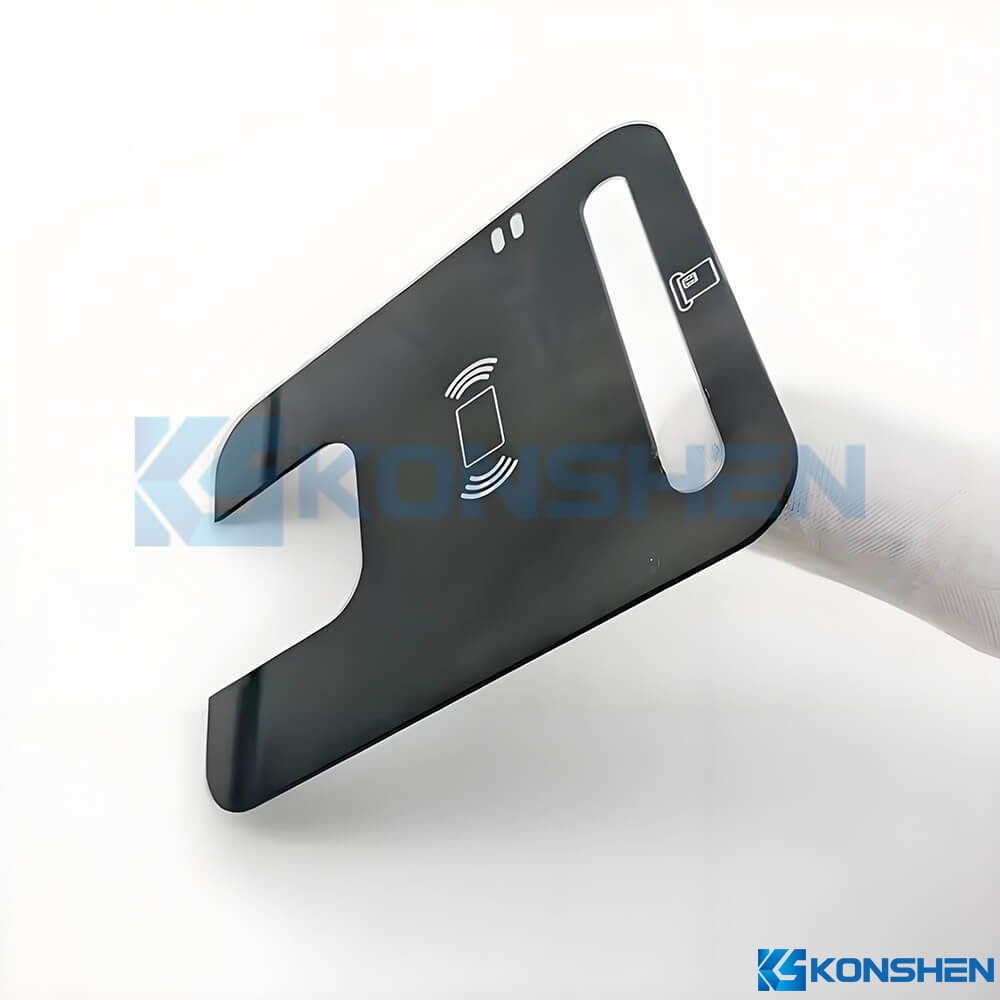

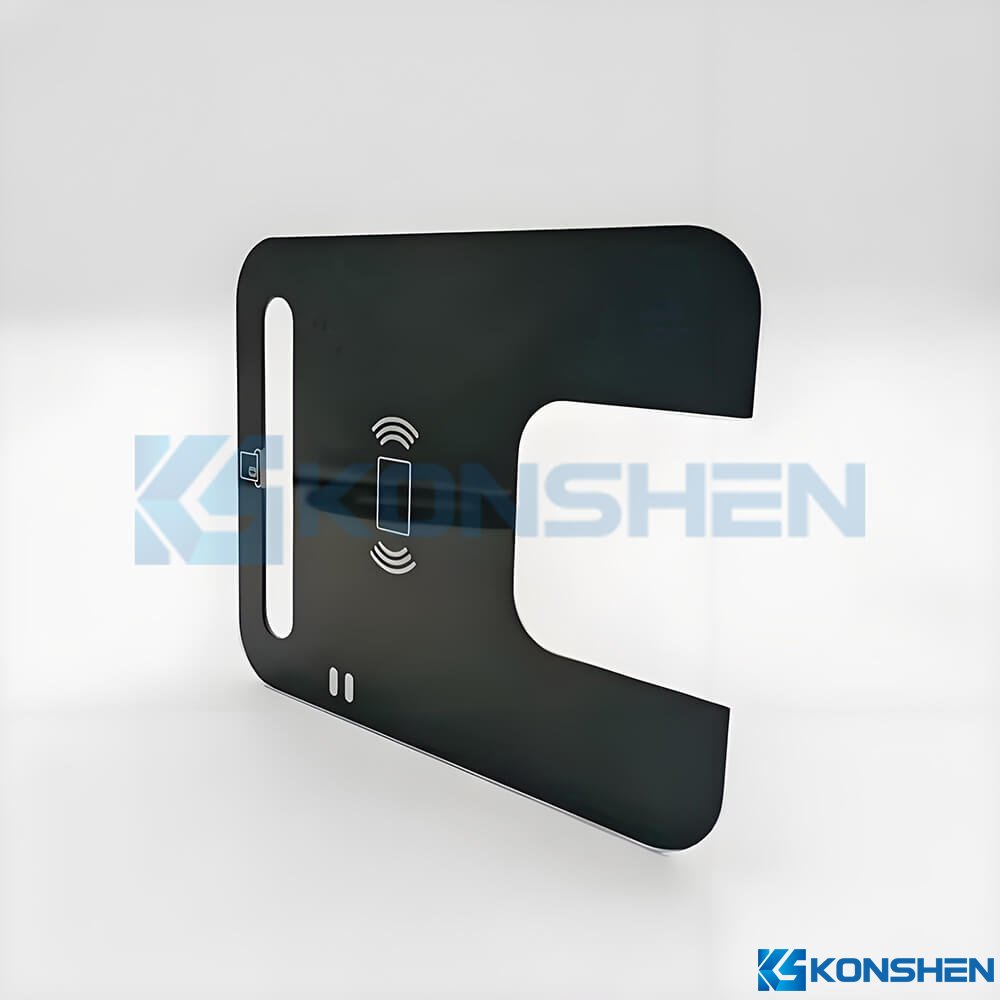

0.9mm AF Coated Chemical strengthened Glass Panel with Precision Hole

Key Features:

• Ultra-thin Thickness: Engineered for applications where space and weight are critical, offering a sleek profile without sacrificing strength or durability.

• Finely Drilled Holes with Smooth Finish: High-precision drilling ensures no sharp edges, providing enhanced safety during installation and prolonged handling.

• Safe Edges & Rounded Corners: Advanced CNC processing delivers perfectly smooth edges and ergonomically curved corners, reducing the risk of injury while adding a refined touch.

• Premium Black Silk Printing: Utilizes high-resolution screen printing techniques for deep, uniform color and excellent adhesion, ensuring graphics remain vibrant and scratch-resistant over time.

• AF (Anti-Fingerprint) Coating: Creates a protective layer that repels fingerprints, oil stains, and smudges, making cleaning effortless and maintaining a pristine appearance.

• High Mechanical Strength: Maintains excellent resistance to bending, impact, and scratching despite its ultra-thin profile, ensuring reliable long-term performance.

• Excellent Optical Clarity: Provides sharp, high-contrast visuals, making it ideal for applications where clear visibility is essential.

• Chemical and temperature resistance:Withstands exposure to common household chemicals, industrial cleaning agents, and varying environmental conditions without degradation.

Customized Option:

• Available Thickness: Ranging from 0.1 mm to 15 mm, depending on the insulation requirements and specific applications.

• Size & Shape: Supports special-shaped cutting to meet diverse needs. Customizes as per drawing.

• Cutting Option:CNC Cutting/Water jet Cutting/Diamond Blade Cutting

• Edge Options: Polished Edge/Safety Edge/Beveled Edge/Smooth Edge/2.5D Edge/Pencil Edge/Straight Edge

• Tempering Options:Physical Tempered/Checmical Strengthened

• Coating Options: Anti-Reflective (AR) Coating/Anti-Fingerprint (AF) Coating/Scratch-Resistant Coating/Indium Tin Oxide(ITO) Coating or Anti-Glare (AG)Coating

• Printing Options: UV Printing/Silk screen printing/Laser engraving printing

• Adhesive Options: AB Tape/ Double-side Tape/3M Adhesive

Materials: Ultra Clear Glass

Shape: Irregular

Thickness: 0.9mmT

Edge Work: Safety edge by CNC machine

Tempered Method: Chemical Strengthened

Coating: Anti-fingerprint(AF) coating

Printing Method: Silk screen printing  #RAL9004 BK

Density: 2.5 g/cm³

Hardness: at least 6H

Strengthness: IK07

Operating Temperature Range: Suitable for -30°C to 250°C.

Thickness Tolerances:± 0.2mm

Dimensional Tolerances: ±0.5mm for large size; ±0.1mm for small size

Weather Resistance: Strong resistance to high temperatures and humidity, reducing aging effects

UV Resistance: High UV-blocking capability

Impact Resistance: 2-5 times stronger than standard glass. Specific impact resistance can vary based on thickness and treatment.

• Consumer Electronics: Ideal for integration into smartphones, tablets, wearables, wireless chargers, smart speakers, and other portable devices, providing both protection and premium aesthetics.

• Automotive Industry: Perfect for dashboard panels, control interfaces, infotainment systems, and touch-screen displays in vehicles, offering durability, scratch resistance, and a refined visual appeal.

• Medical Equipment: Applied in medical monitors, diagnostic devices, and control panels, ensuring easy cleaning, chemical resistance, and clear visibility for critical operations.

• Industrial Control Systems: Suitable for machine interfaces, monitoring screens, and control units in industrial environments, providing strength, impact resistance, and long-term reliability.

• Smart Home Devices: Widely used in smart switches, home control panels, and IoT terminals, delivering a modern look while ensuring functional performance.

• Public and Commercial Facilities: Ideal for kiosks, ticket machines, vending machines, and interactive display systems, combining vandal resistance with user-friendly interaction.

•
