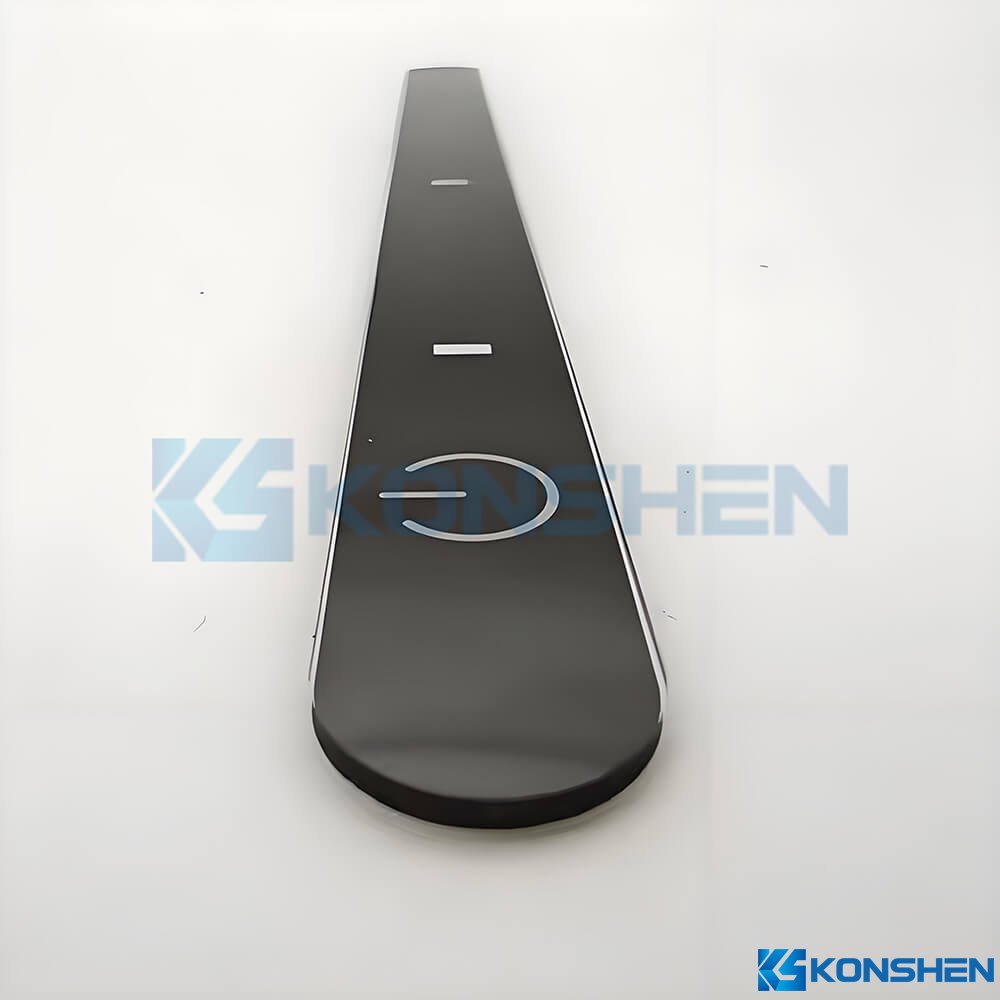

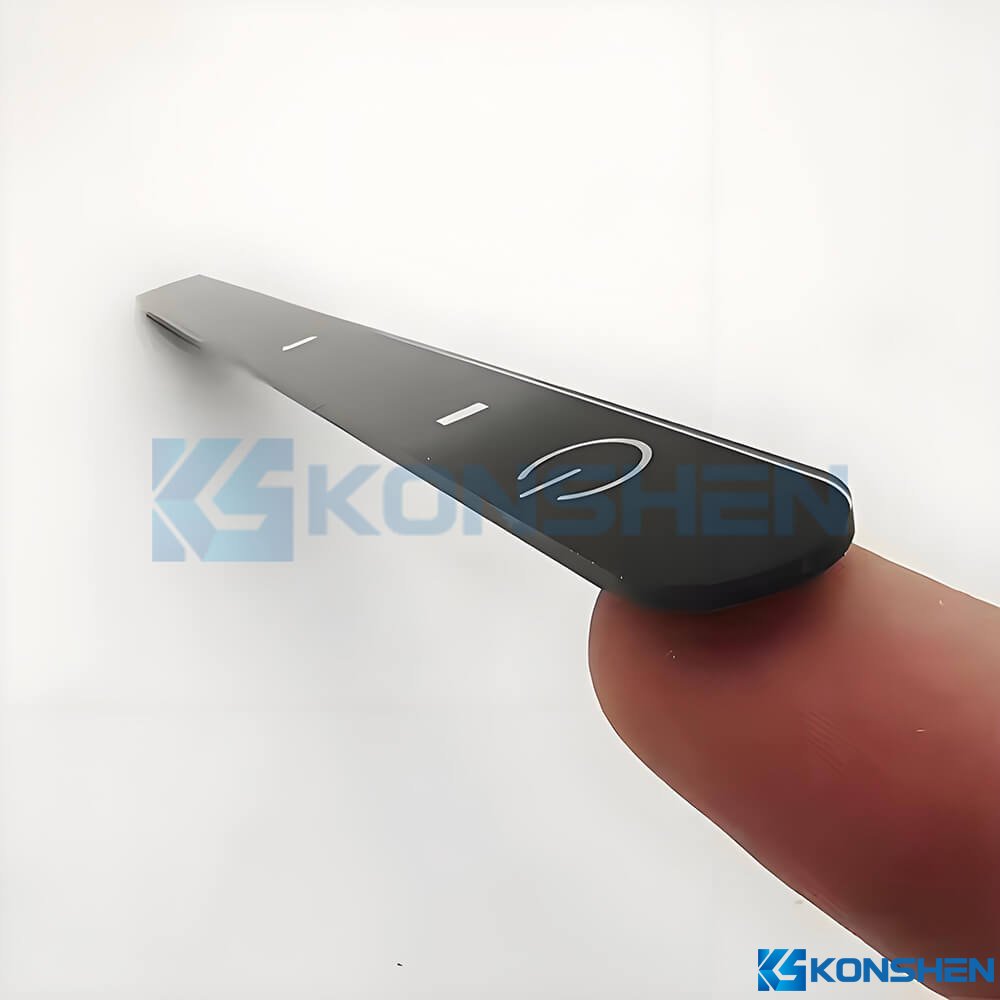

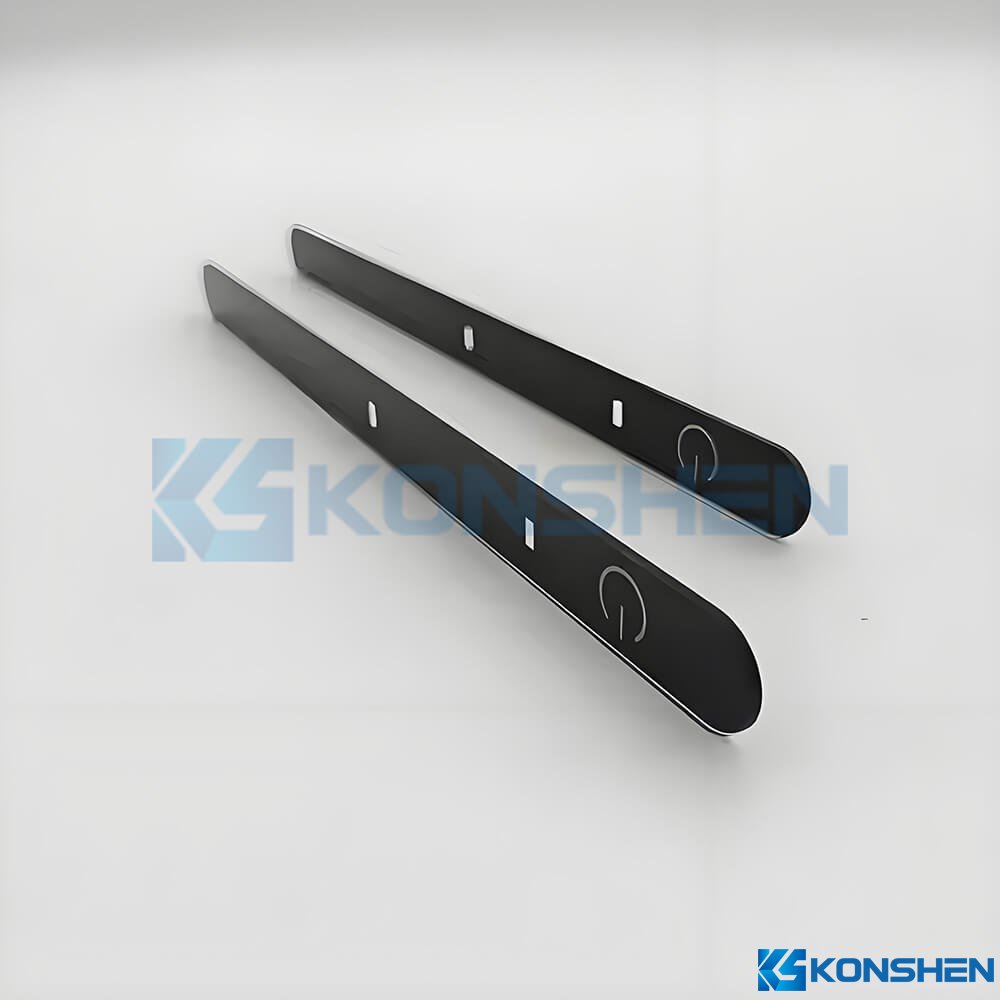

1.1mm Black Silk Screen Printed Glass Switch Panel with AF Coating and 3M Adhesive

Key Features:

• Ultra Thin Thickness: Offers optimal balance between strength and slim design, suitable for modern switch panels.

• Black Silk Screen Printing: High-quality and precise black silk print enhances aesthetics and provides clear, sharp visuals.

• Anti-Fingerprint (AF) Coating: Reduces fingerprint marks and smudges, keeping the panel clean and improving user experience.

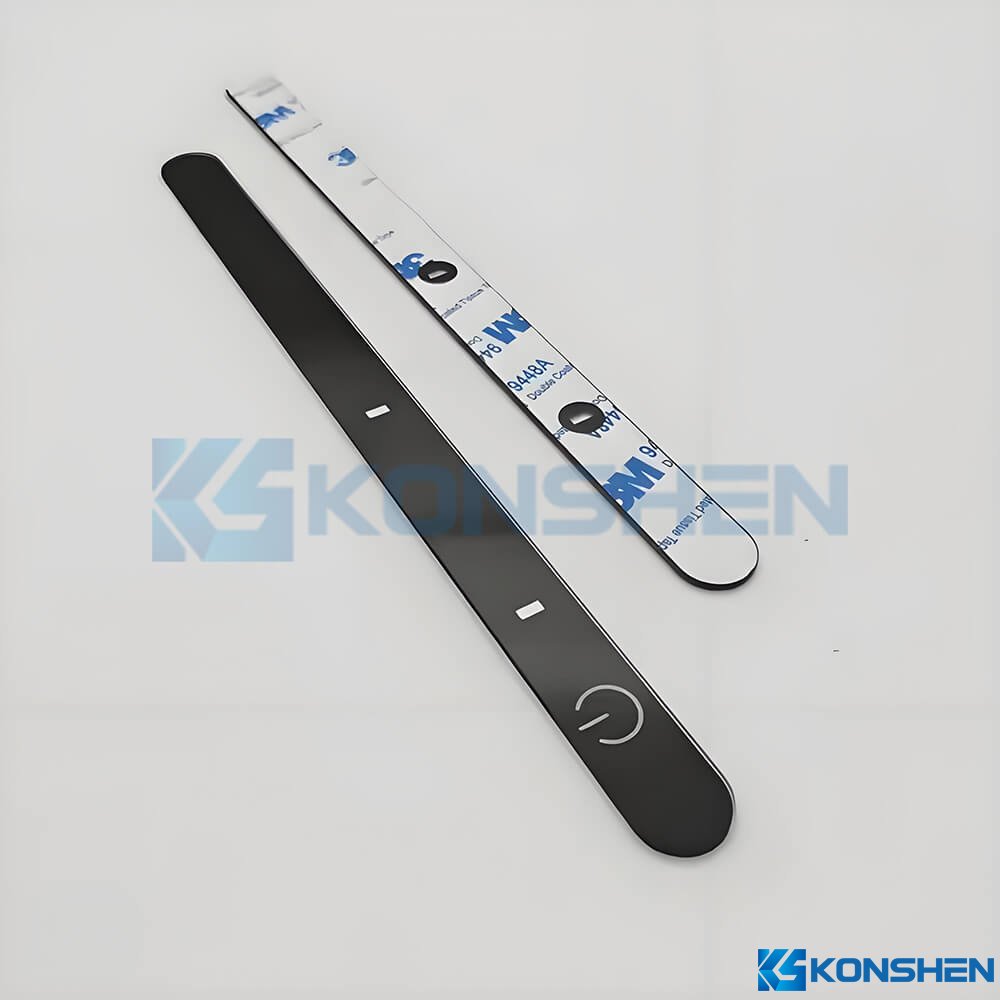

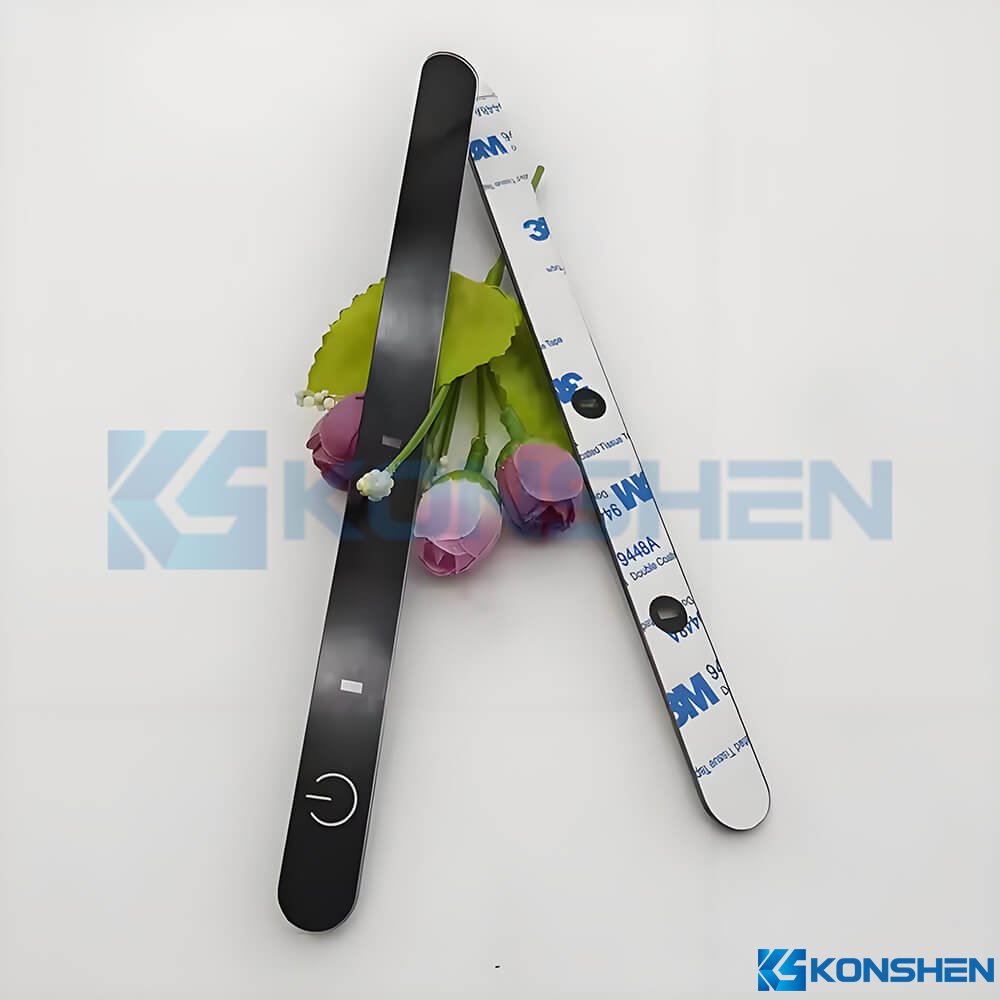

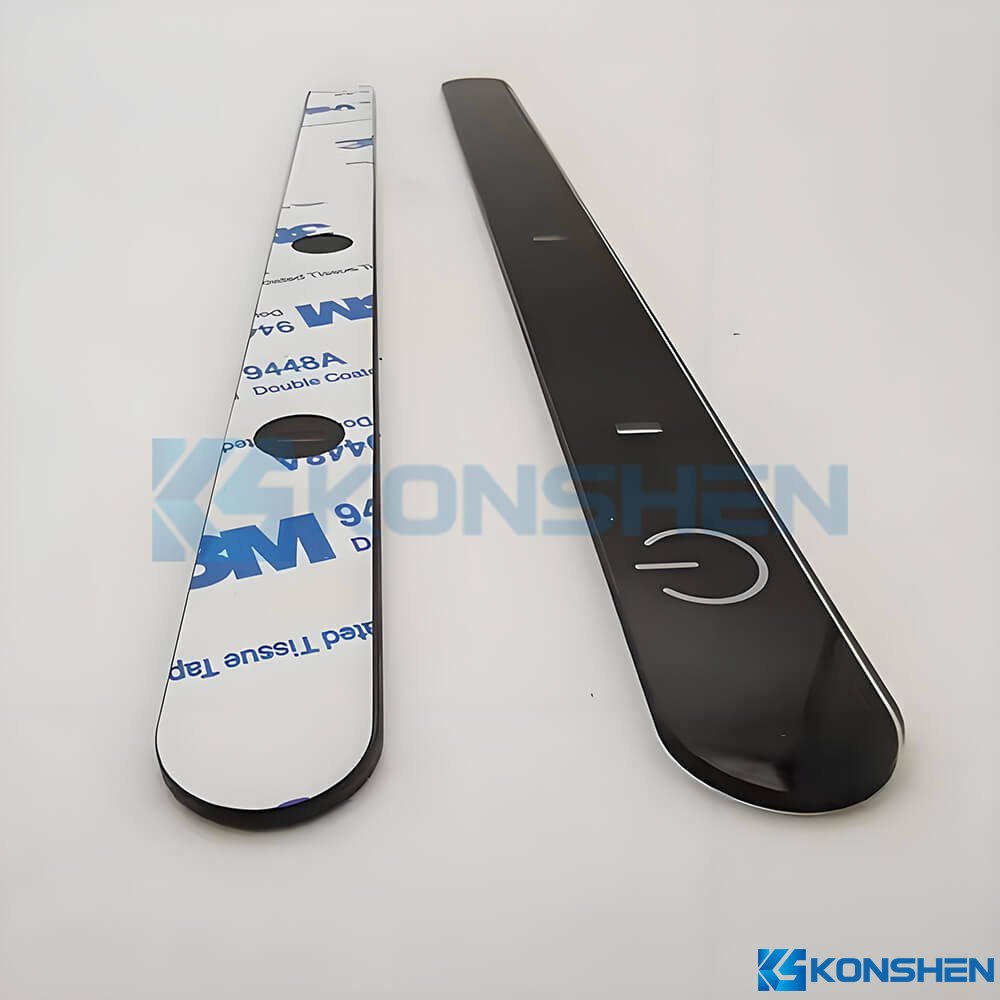

• 3M Adhesive Backing: Ensures strong and reliable attachment, simplifying installation without additional tools.

• Elongated Shape Design: Customized for switch panel applications, perfect for narrow and stylish control interfaces.

• Durable Glass Material: Scratch-resistant and easy to clean, maintaining a premium look over time.

• High Transparency: Maintains excellent light transmission where needed, ensuring clear button visibility.

Customized Option:

• Available Thickness: Ranging from 0.1 mm to 15 mm, depending on the insulation requirements and specific applications.

• Size & Shape: Supports special-shaped cutting to meet diverse needs. Customizes as per drawing.

• Cutting Option: CNC Cutting/Water jet Cutting/Diamond Blade Cutting

• Edge Options: Polished Edge/Safety Edge/Beveled Edge/Smooth Edge/2.5D Edge/Pencil Edge/Straight Edge

• Tempering Options: Physical Tempered/Checmical Strengthened

• Coating Options: Anti-Reflective (AR) Coating/Anti-Fingerprint (AF) Coating/Scratch-Resistant Coating/Indium Tin Oxide(ITO) Coating or Anti-Glare (AG)Coating

• Printing Options: UV Printing/Silk screen printing/Laser engraving printing

• Adhesive Options: AB Tape/ Double-side Tape/3M Adhesive

•

Materials: Ultra Clear Glass

Shape: Irregular

Thickness: 1.1mmT

Edge Work: Safety edge by CNC machine

Tempered Method: Chemical Strengthened

Coating: Anti-fingerprint(AF) coating

Printing Method: Silk screen printing  #RAL9004 BK

Density: 2.5 g/cm³

Hardness: at least 7H

Strengthness: IK07

Operating Temperature Range: Suitable for -30°C to 250°C.

Thickness Tolerances:± 0.2mm

Dimensional Tolerances:±0.5mm for large size; ±0.1mm for small size

Weather Resistance: Strong resistance to high temperatures and humidity, reducing aging effects

UV Resistance: High UV-blocking capability

Impact Resistance: 2-5 times stronger than standard glass. Specific impact resistance can vary based on thickness and treatment.

• Smart Home Switch Panels: Perfectly suited for modern smart home environments, this glass switch panel is widely used in light switches, fan controllers, and smart appliance control panels. Its sleek black silk screen design complements contemporary interiors while the AF coating ensures clean, fingerprint-free surfaces even with frequent use.

• Industrial Control Interfaces: Designed to withstand demanding industrial conditions, this durable glass panel offers excellent resistance to scratches and wear. It is ideal for control panels in manufacturing equipment, automation machines, and other industrial devices requiring both functionality and a polished look.

• Consumer Electronics: Commonly applied in consumer electronics such as smart locks, security systems, and home automation hubs, this switch panel provides a high-end tactile experience. The 3M adhesive backing allows easy and secure installation on various device surfaces without compromising design integrity.

• Automotive Interior Controls: The panel's refined black silk printing and durable glass material make it suitable for automotive dashboard controls, climate control panels, and infotainment interfaces, delivering a premium finish that enhances the vehicle interior aesthetics.

•
