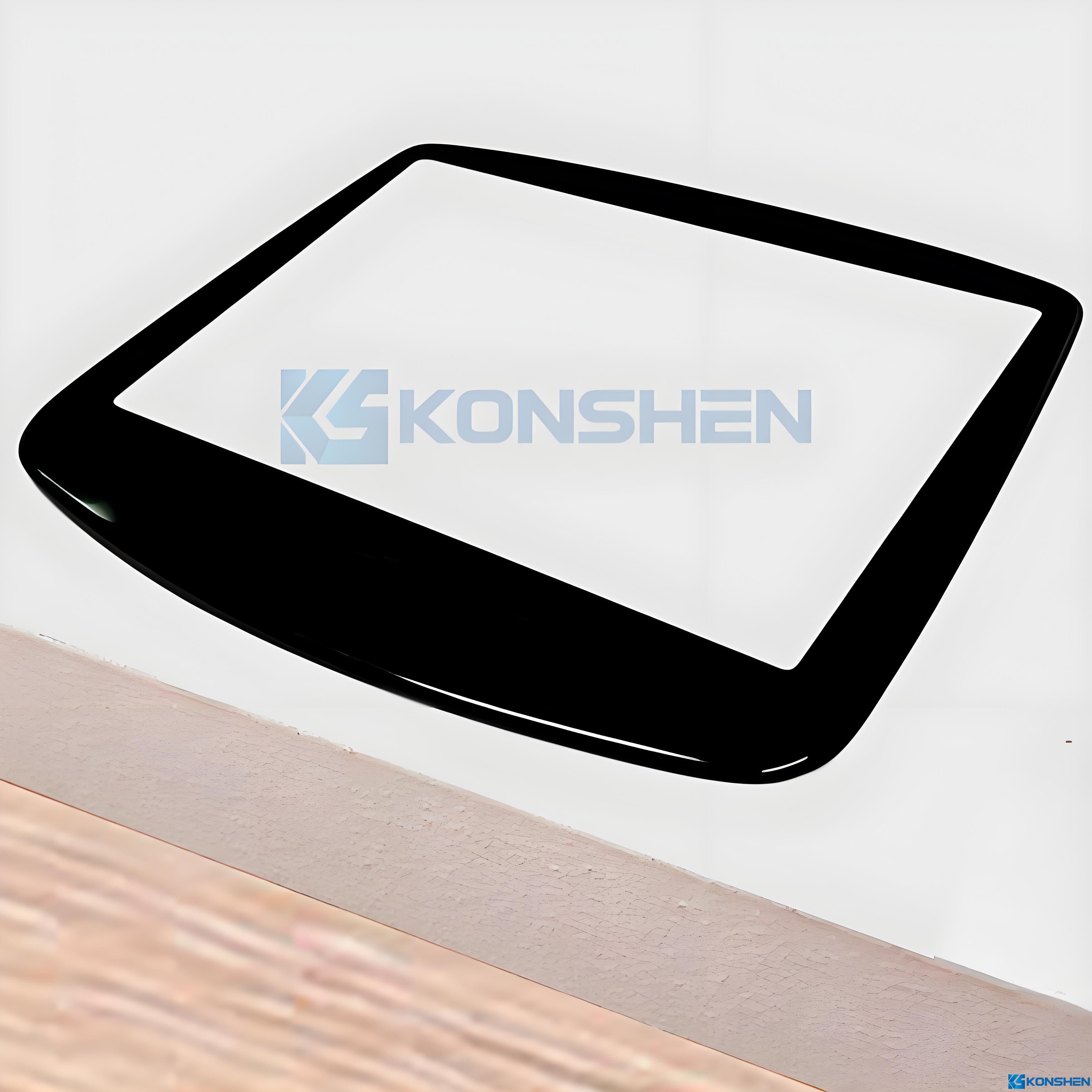

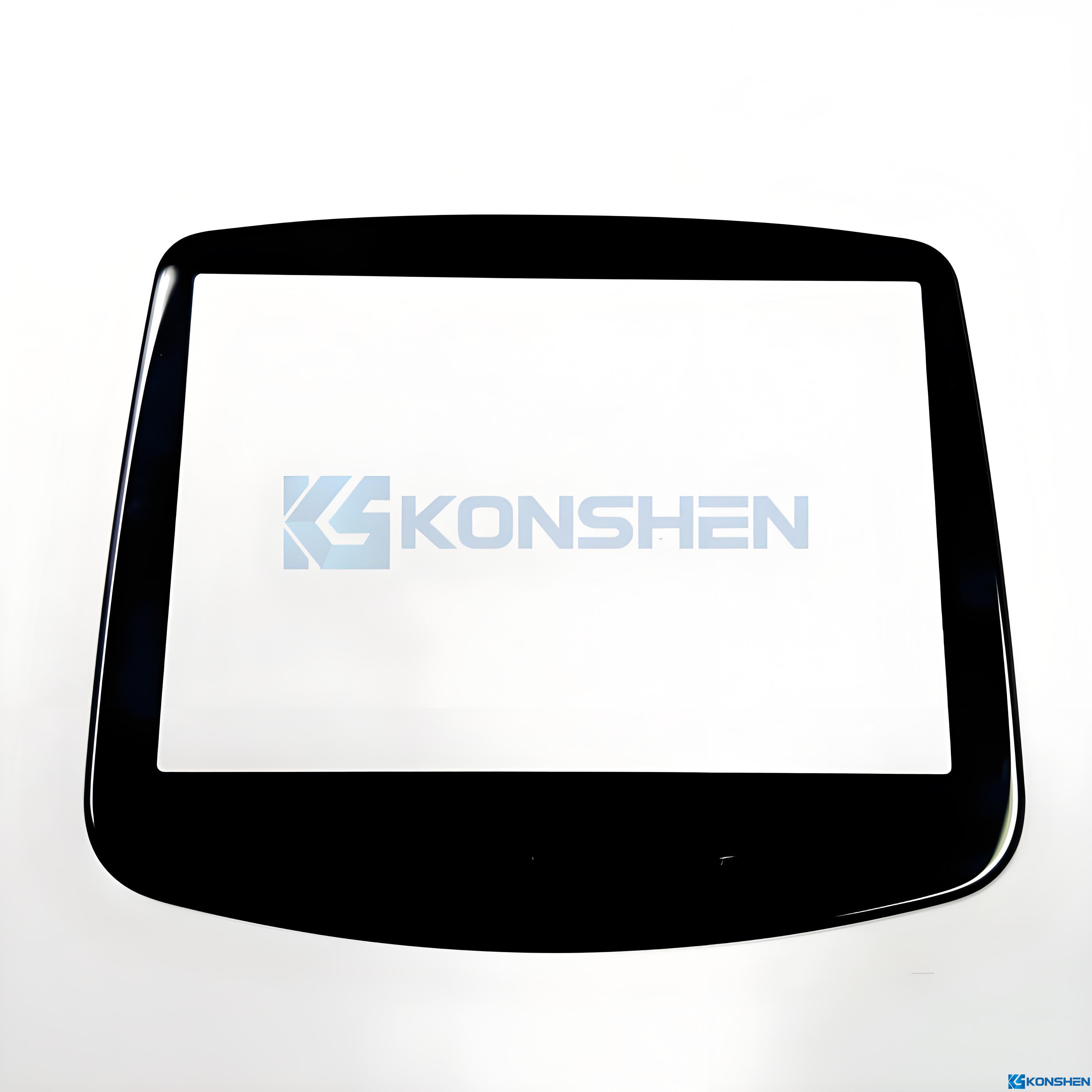

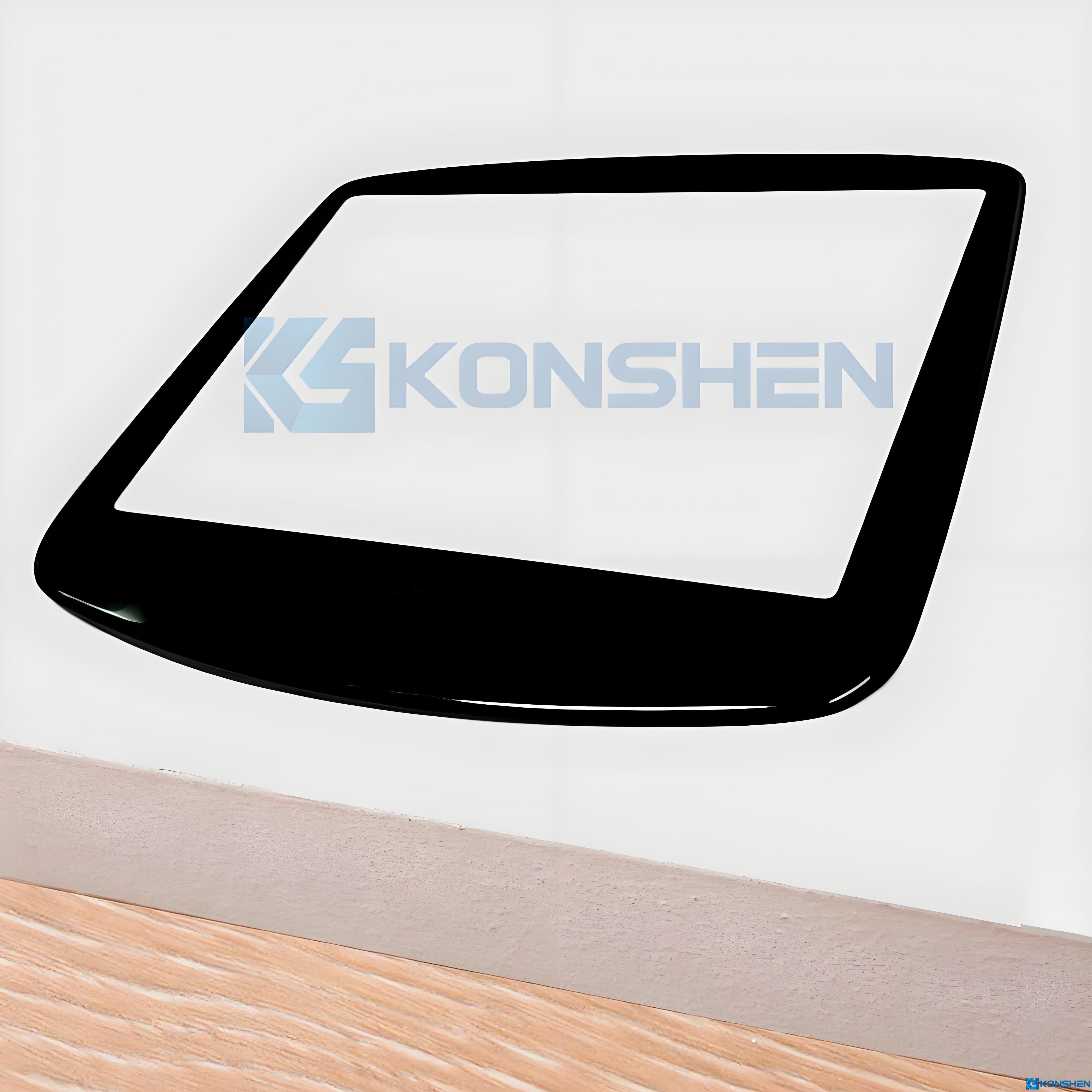

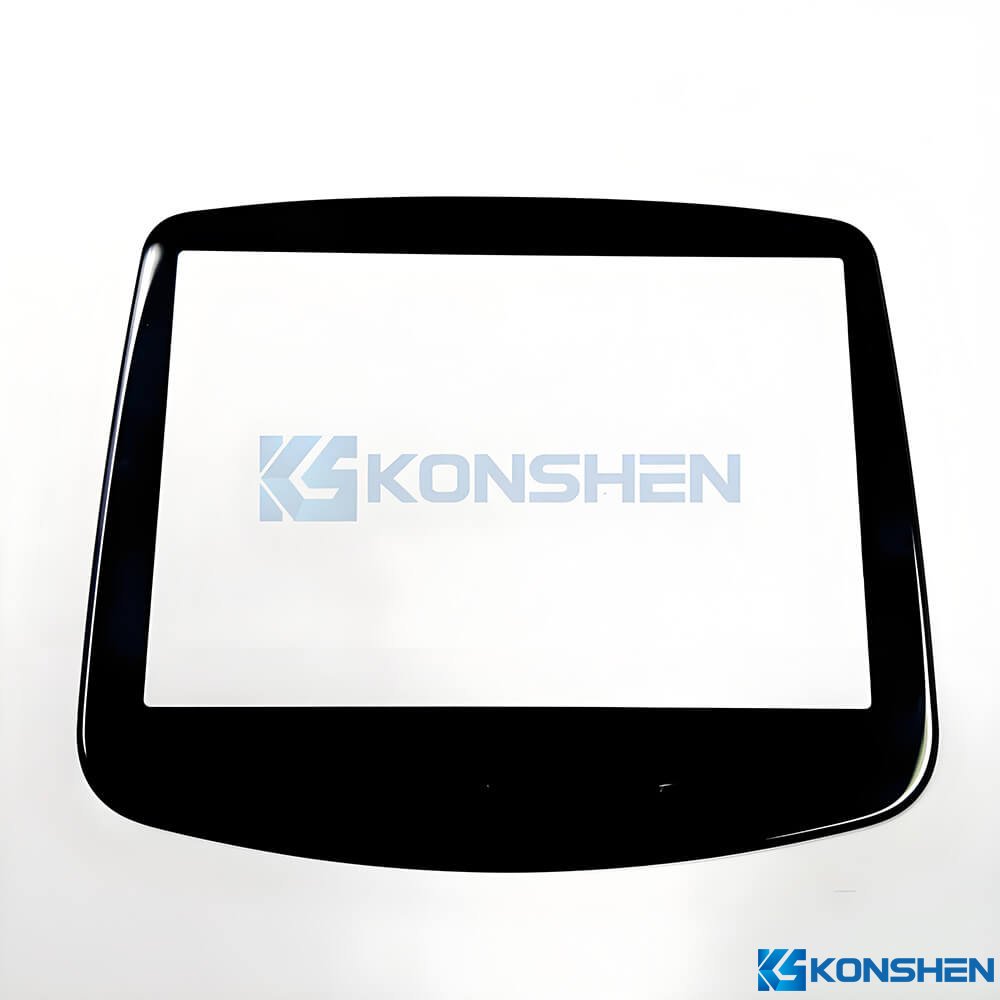

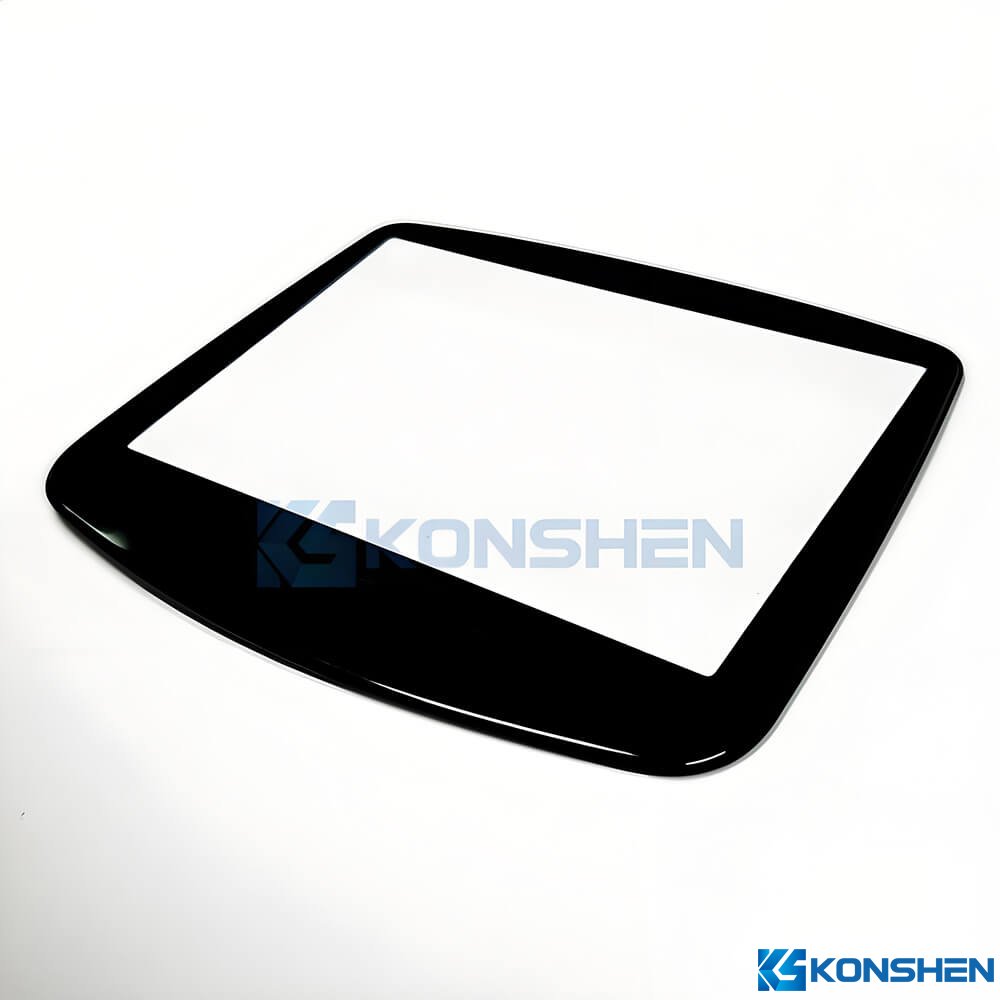

Customized 2mm Irregular-Shaped Display Cover Glass with 2.5D Edge and AF Coating

Product Detail

Key Features:

Protection:It protects the underlying display components from physical damage, scratches, and other environmental factors such as dust and moisture.
Durability:It is made from toughened glass and is designed to be resistant to impacts and scratches.
Clarity: It maintains the visual clarity of the display, ensuring that colors and images appear vibrant and true-to-life.
Touch Sensitivity: In touch-enabled devices, it is part of the touch interface and must be sensitive enough to accurately detect user inputs.
Clean Appearance: Treated with an anti-fingerprint coating to prevent oil, fingerprints, and other residues from remaining on the glass surface
Aesthetics Design: It contributes to the aesthetics of the device, often being seamless and integrated into the design to create a sleek appearance.

Customized Option:

Materials Options: Soda Lime Glass,Mid-Aluminum Glass,High-Aluminum Glass
Available Thickness:0.33 mm to 10 mm, customizable for different application needs.
Size & Shape: KS Glass offers various custom shapes and sizes tailored to your specifications.
Cutting Options:Laser Cutting,Water jet Cutting,Diamond Blade Cutting,CNC
Edge Options:Polished Edge,Safety Edge,Beveled Edge,Smooth Edge,2.5D Edge,Pencil Edge,Straight Edge
Tempering Options:Physical Tempered/Checmical Strengthened
Coating Options:Anti-Reflective (AR) Coating,Anti-Fingerprint (AF) Coating,Scratch-Resistant Coating(AS),Anti-Glare Coating(AG)
Printing Options: UV Printing,Silk screen printing,Laser engraving printing
Adhesive Options:AB Tape, Double-side Tape,3M Adhesive

Technical Parameters

Materials: Soda Lime Glass

Shape: Irregular

Thickness: 2mmT

Edge Work: 2.5D edge by CNC engraving carving machine

Tempered Method: Physical Tempering

Coating: Anti-fingerprint(AF) coating

Printing Method: Silk screen printing #RAL9004 BK

Transmission Rate: ≥ 90%

Density: 2.5 g/cm³

Hardness: at least 6H

Strengthness: IK07

Operating Temperature Range: Suitable for -30°C to 250°C.

Thickness Tolerances:± 0.2mm

Dimensional Tolerances:±0.5mm for large size; ±0.1mm for small size

Weather Resistance: Strong resistance to high temperatures and humidity, reducing aging effects

UV Resistance: High UV-blocking capability

Impact Resistance: 2-5 times stronger than standard glass. Specific impact resistance can vary based on thickness and treatment.

Application

Consumer Electronics:Used in smartphones, tablets, smartwatches, and smart home control panels, offering high clarity, smooth touch response, and enhanced durability.
Automotive Displays:Ideal for in-vehicle infotainment systems, dashboard displays, and navigation screens, with high impact resistance, anti-glare options, and excellent temperature tolerance.
Industrial and Medical Equipment:Applied in touch panels for industrial machinery, diagnostic devices, and medical monitors, providing reliable performance in harsh environments and cleanroom settings.
Retail and Public Displays:Suitable for kiosks, digital signage, vending machines, and ATM screens, ensuring long-lasting clarity, vandal resistance, and a clean appearance in high-traffic areas.

Company and factory equipment

Customer Visit

Company Profile

Dlivery & Payment

Packaging:

Step 1: PE film coating(Normally) / paper(For seashipment prevent wet).
Step 2: Kraft paper for fixation.
Step 3: Carton for glass safety protection.
Step 4: Custom make plywood case with hinge for custom(fumigation + convenient inspection) convenience.
Step 5: Packing strap for further fixation.
